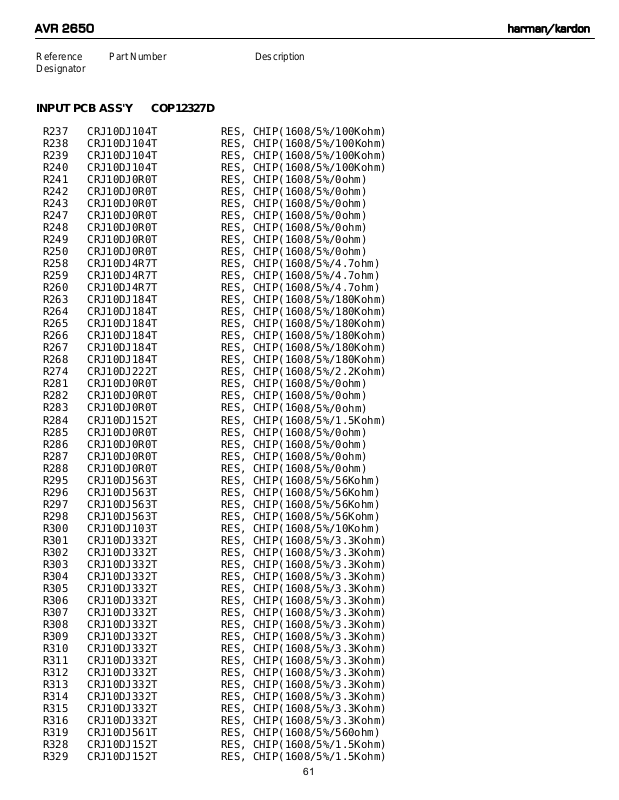

AVR 2650 harman/kardon

61

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R237 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R238 CRJ10DJ104T RES, CHIP(1608/5%/1
R239 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R240 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R241 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R242 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R243 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R247 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R248 CRJ10DJ0R0T RES, CHIP(1608/5%
R249 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R250 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R258 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm)
R259 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm)
R260 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm)
R263 CRJ10DJ184T RES, CHIP(1608/5%/180Kohm)
R264 CRJ10DJ184T RES, CHIP(1608/5%/180Kohm)
R265 CRJ10DJ184T RES, CHIP(1608/5%/180Kohm)
R266 CRJ10DJ184T RES, CHIP(1608/5%/180Kohm)
R267 CRJ10DJ184T RES, CHIP(1608/5%/180Kohm)
R268 CRJ10DJ184T RES, CHIP(1608/5%/180Kohm)
R274 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R281 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R282 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R283 CRJ10DJ0R0T RES, CHIP(16
R284 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R285 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R286 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R287 CRJ10DJ0R0T RES, CHIP(1608/
R288 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R295 CRJ10DJ563T RES, CHIP(1608/5%/56Kohm)
R296 CRJ10DJ563T RES, CHIP(1608/5%/56Kohm)
R297 CRJ10DJ563T RES, CHIP(1608/5%/56Kohm)
R298 CRJ10DJ563T RES, CH
R300 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R301 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R302 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R303 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R304 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R305 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R306 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R307 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R308 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R309 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R310 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R311 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R312 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R313 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R314 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R315 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R316 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R319 CRJ10DJ561T RES, CHIP(1608/5%/560ohm)
R328 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R329 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)

P(1608/5%/56Kohm)

8/5%/0ohm)

0Kohm)

0ohm)

%/0ohm)

.

6

C

m

/

(

AVR 2650 harman/kardon

62

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R330 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R331 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R332 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R333 CRJ10DJ152T RES, CHIP(1608/5%/1
R334 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R335 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R336 CRJ10DJ682T RES, CHIP(1608/5%/6.8Kohm)
R337 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R338 CRJ10DJ102T RES, CHIP(1
R340 CRJ10DJ561T RES, CHIP(1608/5%/560ohm)
R342 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)
R343 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)
R344 CRJ10DJ682T RES, CHIP(1608/5%/6.8Kohm)
R345 CRJ10DJ682T RES,
R346 CRJ10DJ682T RES, CHIP(1608/5%/6.8Kohm)
R347 CRJ10DJ682T RES, CHIP(1608/5%/6.8Kohm)
R348 CRJ10DJ682T RES, CHIP(1608/5%/6.8Kohm)
R349 CRJ10DJ682T RES, CHIP(1608/5%/6.8Kohm)
R350 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R351 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R352 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R353 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R354 CRJ10DJ301T RES, CHIP(1608/5%/300ohm)
R355 CRJ10DJ273T RES, CHIP(1608/5%/27Kohm)
R356 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R357 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R358 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R359 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R360 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R361 CRJ10DJ152T RES, CHIP(1608/5%/1.5Kohm)
R362 CRJ10DJ0R0T RES, CHIP(1608/5%/0oh
R363 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R364 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R365 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R366 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R367 CRJ10DJ0R0T RES, CHIP(1608/5%
R368 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R369 CRJ10DJ301T RES, CHIP(1608/5%/300ohm)
R370 CRJ10DJ273T RES, CHIP(1608/5%/27Kohm)
R371 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R372 CRJ10DJ101T RES, CHIP
R373 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R374 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R375 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R376 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R377 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R378 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R379 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R385 CRJ10DJ561T RES, CHIP(1608/5%/560ohm)
R386 CRJ10DJ561T RES, CHIP(1608/5%/560ohm)
R387 CRJ10DJ561T RES, CHIP(1608/5%/560ohm)
R388 CRJ10DJ561T RES, CHIP(1608/5%/560ohm)
R391 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)

HIP(1608/5%/6.8Kohm)

08/5%/1Kohm)

1608/5%/100ohm)

5Kohm)

)

0ohm)

.

o

3

AVR 2650 harman/kardon

63

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R392 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)
R393 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)
R395 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)
R396 CRJ10DJ392T RES, CHIP(1608/5%/3
R397 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)
R398 CRJ10DJ392T RES, CHIP(1608/5%/3.9Kohm)
R408 CRJ10DJ105T RES, CHIP(1608/5%/1Mohm)
R410 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R411 CRJ10DJ272T RES, CHIP(1608/5%/2.7Kohm)
R412 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R413 CRJ10DJ272T RES, CHIP(1608/5%/2.7Kohm)
R414 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R415 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R416 CRJ10DJ272T RES, CHIP(1608/5%/2.7Kohm)
R417 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R418 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R419 CRJ10DJ272T RES, CHIP(1608/5%/2.7Kohm)
R420 CRJ06IJ101T RES, CHIP(1005/5%/100ohm)
R421 CRJ06IJ101T RES, CHIP(1005/5%/100ohm)
R422 CRJ06IJ101T RES, CHIP(1005/5%/100ohm)
R423 CRJ06IJ101T RES, CHIP(1005/5%/100ohm)
R452 CRJ06IJ563T RES, CHIP(1005/5%/56Kohm)
R454 CRJ10DJ562T RES, CHIP(1608/5%/5.6Kohm)
R455 CRJ10DJ122T RES, CHIP(1608/5%/1.2Kohm)
R456 CRJ10DJ562T RES, CHIP(1608/5%/5.6Kohm)
R461 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R462 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R463 CRJ06IJ561T RES, CHIP(1005/5%/560ohm)
R464 CRJ06IJ561T RES, CHIP(1005/5%/560ohm)
R472 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R473 CRJ06IJ563T RES, CHIP(1005/5%/56Kohm)
R474 CRJ10DJ122T RES, CHIP(1608/5%/1.2Kohm)
R601 CRJ06IJ101T RES, CHIP(1005/5%/100
R602 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R603 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R604 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R605 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R606 CRJ10DJ332T RES, CHIP(1608/5%/
R607 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R610 CRJ10DF5101T RES, CHIP(1608/1%/5.1Kohm)
R611 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R612 CRJ06IJ820T RES, CHIP(1005/5%/82ohm)
R613 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R614 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R615 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R616 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R619 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R620 CRJ06IJ750T RES, CHIP(1005/5%/75ohm)
R621 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R622 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R701 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R702 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R706 CRJ10DJ221T RES, CHIP(1608/5%/220ohm)

9Kohm)

hm)

.3Kohm)

)

)

5

AVR 2650 harman/kardon

64

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R707 CRJ10DJ221T RES, CHIP(1608/5%/220ohm)
R709 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R710 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R711 CRJ06IJ560T RES, CHIP(1005/5%/56ohm
R712 CRJ06IJ820T RES, CHIP(1005/5%/82ohm)
R714 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R715 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R722 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R723 CRJ06IJ330T RES, CHIP(1005/5%/33ohm
R724 CRJ06IJ101T RES, CHIP(1005/5%/100ohm)
R728 CRJ06IJ102T RES, CHIP(1005/5%/1Kohm)
R729 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R730 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R732 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R734 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R737 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R739 CRJ06IJ820T RES, CHIP(1005/5%/82ohm)
R741 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R742 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R743 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R746 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R748 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R749 CRJ06IJ750T RES, CHIP(1005/5%/75ohm)
R750 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R751 CRJ06IJ820T RES, CHIP(1005/5%/82ohm)
R752 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R755 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R756 CRJ06IJ750T RES, CHIP(1005/5%/75ohm)
R757 CRJ06IJ750T RES, CHIP(1005/5%/75ohm)
R760 CRJ10DJ105T RES, CHIP(1608/5%/1Mohm)
R764 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R765 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R766 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R768 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R769 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R773 CRJ10DJ332T RES, CHIP(1608/
R774 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R775 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R776 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R777 CRJ06IJ101T RES, CHIP(1005/5%/100ohm)
R778 CRJ06IJ221T RES, CHIP(1005/5%/220ohm)
R782 CRJ10DJ272T RES, CHIP(1608/5%/2.7Kohm)
R783 CRJ10DJ272T RES, CHIP(1608/5%/2.7Kohm)
R784 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R786 CRJ10DJ471T RES, CHIP(1608/5%/470ohm)
R787 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R789 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R790 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R791 CRJ10DJ273T RES, CHIP(1608/5%/27Kohm)
R792 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R798 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R799 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R800 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)

%/3.3Kohm)

K

/

C

1

L

AVR 2650 harman/kardon

65

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R801 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R802 CRJ06IJ105T RES, CHIP(1005/5%/1Mohm)
R803 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R806 CRJ10DJ474T RES, CHIP(1608/5%/470Kohm)
R807 CRJ10DJ474T RES, CHIP(1608/5%/470Kohm)
R810 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R811 CRJ06IJ103T RES, CHIP(1005/5%/10
R815 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R816 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R820 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R821 CRJ06IJ330T RES, CHIP(1005/5%
R822 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R823 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R824 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R825 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R826 CRJ06IJ330T RES,
R827 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R828 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R832 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R833 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R838 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)
R839 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)
R840 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)
R841 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)
R842 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R843 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R848 CRJ10DJ100T RES, CHIP(1608/5%/10ohm)
R849 CRJ10DJ100T RES, CHIP(1608/5%/10ohm)
R852 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm)
R853 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R854 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R855 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R856 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R860 CRJ10DJ272T RES, CHIP(1608/5%/2.7Kohm)
R861 CRJ10DJ100T RES, CHIP(1608/5%/10ohm)
R862 CRJ10DJ301T RES, CHIP(1608/5%/300ohm)
R864 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R869 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R880 CRJ10DJ100T RES, CHIP(1608/5%/10ohm)
R890 CRJ10DJ0R0T RES, CHIP(
R909 CRJ10DJ153T RES, CHIP(1608/5%/15Kohm)
R921 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R923 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R960 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R967 CRJ10DJ153T RES, CHIP(1608/5%/15Kohm)
R992 CRJ10DJ153T RES, CHIP(1608/5%/15Kohm)
WF104 CJP17GA193ZY WAFER, CARD CAB
WF105 CJP17GA193ZY WAFER, CARD CABLE (SMD)
C137 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C138 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C231 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C232 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C233 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)

HIP(1005/5%/33ohm)

608/5%/0ohm)

E (SMD)

ohm)

33ohm)

AVR 2650 harman/kardon

66

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C234 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C235 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C236 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C237 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C238 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C281 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C282 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C283 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C284 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C285 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C286 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C287 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C288 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C292 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C294 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C295 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C296 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C297 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C298 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C340 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C341 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C342 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C343 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C344 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C345 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C346 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C347 CCEA1HH220T CAP , ELECT(50V/22uF) KR3-50V220MA(5*11L)
C361 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C374 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C389 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C390 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C414 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C415 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C429 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C430 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C441 CCEA1EH101T CAP , ELECT(25V/100uF) KR3-25V101MB(6.3*11L)
C452 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C453 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C454 CCEA1EH101T CAP , ELECT(25V/100uF) KR3-25V101MB(6.3*11L)
C463 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C464 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C465 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C612 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C614 CCEA1CKS101T CAP , ELECT(16V/100uF)-S KC3-16V101MA5(6.3*5L)
C628 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C630 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C703 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C706 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C717 CCEA1HH4R7T CAP , ELECT(50V/4.7uF) KR3-50V4R7MA(5*11L)
C720 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C721 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C726 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C728 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)

1

(

2

4

2

4

AVR 2650 harman/kardon

67

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C730 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C735 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C740 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C749 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C750 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C752 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C753 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C764 CCEA0JH102T CAP , ELECT(1000uF/6.3V) 1000UF 6.3V
C786 CCEA1CH101T CAP , ELECT(16V/100uF) KR3­ C787 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C799 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C844 CCEA1CKS101T CAP , ELECT(16V/100uF)-S KC3-16V101MA5(6.3*5L)
C845 CCEA1HKS1R0T CAP , ELECT(50V/1uF)-S KC3-50V010MA2(4*5L)
C847 CCEA1CKS101T CAP , ELECT(16V/100uF)-S KC3-16V101MA5(6.3*5L)
C861 CCEA1CKS100T CAP , ELECT(16V/10uF)-S KC3-16V100MA2(4*5L)
C862 CCEA1CKS101T CAP , ELECT(16V/100uF)-S KC3-16V101MA5(6.3*5L)
C863 CCEA1CKS101T CAP , ELECT(16V/100uF)-S KC3-16V101MA5(6.3*5L)
C868 CCEA1EH470T CAP , ELECT(25V/47uF) KR3-25V470MA(5*11L)
D221 CVD1N4003SRT DIODE , RECT 1N4003
D222 CVD1N4003SRT DIODE , RECT 1N4003
D803 CVD1N4003SRT DIODE , RECT 1N4003
D804 CVD1N4003SRT DIODE , RECT 1N4003
Q311 HVTKTC2874BT TRANSISTOR , MUTE KTC2874B
BN52 CWB1C005200EN WIRE ASS'Y(5P, 200MM, 2.0MM) 5P, 2.0MM, 200MM
CN11 CJP06GA19ZY WAFER,20017WS(2mm,STRAIGHT)
CN19 CJP06GA19ZY WAFER,20017WS(2mm,STRAIGHT)
CN20 CJP11GI237ZW LOCK-WAFER/STRAIGHT/2.5mm JWT A2512WV0-NP
CN51 CJP05GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN62 CJP64GA221ZB WAFER , 2.54MM 64PIN WAFER
CN71 CJP18GB143ZB FEMALE HEADER (18P, 2.54mm), ANGLE TYPE
C732 CCEA0JKR3222E CAP , ELECT(2200uF/6.3V)
ET70 CMD1A569 BRACKET , PCB
IC102 HVIKIA7808API I.C,REGULATOR(+8V,T0220IS) KIA7808API (KEC)
IC103 CVIKIA7908PI I.C,REGULATOR(-8V,T0220IS) KIA7908PI (KEC)
JK11 CJJ4P019W JACK , RCA
JK12 CJJ4R020W JACK , BOARD
JK52 CJJ9L015Z JACK , RJ-45(WITH FILTER) TM00640
JK75 HJSTORX147L MODULE , OPTICAL (RX,3.3V)
JK76 HJSTORX147L MODULE , OPTICAL (RX,3.3V)
JK78 CJJ4N075Z JACK , 2P(GOLD PLATE) RCA-215AG-01
JK79 HJSTOTX177AL MODULE , OPTICAL(TX)
L301 CLM4B001Z COIL , MPX
L302 CLM4B001Z COIL , MPX(FM 19KHz FILTER)
TUN1 CNVMW004MV1S63SA TUNER(USA) FM(SCREW:F TYPE,AM(S/LAB)KST-MW004MV1-S63SA
WF101 CJP27GA285ZN WAFER,FPC 1.25mm,stright 1.25-2-NP
WF103 CJP27GA285ZN WAFER,FPC 1.25mm,stright 1.25-2-NP
X701 HOX24576E150TF CRYSTAL, 24.576MHz, HC-49/S, 15pF, 30PPM 24.576MHZ
X702 HOX10000E220TF CRYSTAL, 10.000MHz, HC-49/S, 22pF, 30PPM CL­ X703 COX09000E150C CRYSTAL, 09.000MHz, HC­ X705 HOX10000E220TF CRYSTAL, 10.000MHz, HC-49/S, 22pF, 30PPM CL­ X708 HOX00032K120I CRYSTAL, 32.768KHz, TUNING FORK, 12pF, 20PPM
X777 COX25000E180C CRYSTAL, 25.000MHz, HC-

FM 19KHz FILTER)

9/S, 15pF, 30PPM

9/S, 18pF, 25PPM

6V101MA(5*11L)

2P

2P

1

V

0

C

u

u

)

)

AVR 2650 harman/kardon

68

Reference Part Number Description
Designator




HDMI PCB ASS'Y COP12328D

CN104 CJP17GB210ZY WAFER,(CARD CABLE,ANGLE,SMT,1MM,10008HR-17L(P) 10008HR-17L
CN105 CJP17GB210ZY WAFER,(CARD CABLE,ANGLE,SMT,1MM,10008HR-17L(P) 10008HR­ C101 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C102 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C104 CCUI1C104KC CAP , CHIP (1005, 16
C105 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C106 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C107 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C108 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C109 CCUI1E103KC CAP, CHIP(10
C110 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C111 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C113 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C115 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C116 CCUI1E103KC CAP,
C117 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C118 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C119 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C120 CCUC0J106KC CAP, CHIP(2012, 6.3V/10
C121 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C122 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C123 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C124 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C125 CCUI1E103KC CAP, CHIP(1005, 25V/0.01
C126 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C127 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C128 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C129 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C130 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF
C131 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C132 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C133 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C134 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C135 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF
C136 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C137 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C138 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C140 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C141 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C142 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C152 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C153 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C154 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C156 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C158 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C159 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C160 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C161 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C162 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C163 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C164 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C165 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C166 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)

HIP(1005, 25V/0.01uF)

5, 25V/0.01uF)

/0.1uF)

F)

F)

7L

6

(

,

0

(

/

AVR 2650 harman/kardon

69

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C168 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C169 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C171 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C172 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C173 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C174 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C175 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C176 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C177 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C178 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C179 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C180 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C181 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C183 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C184 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C186 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C187 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C188 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C189 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C191 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C192 CCUI1C104KC CAP , CHIP (1005, 1
C193 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C194 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C195 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C196 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C197 CCUI1C104KC CAP , CHIP
C198 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C200 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C201 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C202 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C203 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C204 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C206 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C208 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C211 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C212 CCUI1C104KC CAP , CHIP (1005
C213 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C214 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C216 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C217 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C218 CCUI1C104KC CAP , CHIP (1
C219 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C220 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C221 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C222 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C223 CCUI1C104KC CAP , CHIP
C224 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C225 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C227 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C229 CCUI1C104KC CAP , CHIP (1005, 16V
C230 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C231 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C232 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)

1005, 16V/0.1uF)

05, 16V/0.1uF)

1005, 16V/0.1uF)

V/0.1uF)

16V/0.1uF)

0.1uF)

C

/

1

0

P

C

P

AVR 2650 harman/kardon

70

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C233 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C234 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C235 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C236 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C237 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C238 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C239 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C243 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C244 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C245 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C246 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C248 CCUI1C104KC CAP ,
C249 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C250 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C251 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C255 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C256 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C257 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C258 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C259 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C263 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C264 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C266 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C267 CCUI1C104KC CAP , CHIP (1005, 16V
C268 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C269 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C270 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C271 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C274 CCUI1C104KC CAP , CHIP (1005,
C275 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C276 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C277 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C280 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C283 CCUI1C104KC CAP , CHIP (10
C284 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C285 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C287 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C288 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C289 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C290 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C295 CCUI1C104KC CAP , CHI
C296 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C297 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C298 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C300 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C301 CCUI1C104KC CAP ,
C302 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C303 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C305 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C306 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C307 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C308 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C309 CCUI1C104KC CAP , CHI

HIP (1005, 16V/0.1uF)

0.1uF)

6V/0.1uF)

5, 16V/0.1uF)

(1005, 16V/0.1uF)

HIP (1005, 16V/0.1uF)

(1005, 16V/0.1uF)

P

)

AVR 2650 harman/kardon

71

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C310 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C312 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C314 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C315 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C316 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C317 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C318 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C320 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C322 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C323 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C324 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C325 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C326 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C328 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C329 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C330 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C331 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C332 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C333 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C334 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C335 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C336 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C337 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C338 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C339 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C340 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C342 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C343 CCUI1C104KC CAP , CHI
C344 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C345 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C346 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C348 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C349 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C351 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C352 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C353 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C354 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C355 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C357 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C358 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF
C359 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C361 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C362 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C363 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C364 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C366 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C367 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C369 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C370 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C371 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C372 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C373 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C375 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)

(1005, 16V/0.1uF)

AVR 2650 harman/kardon

72

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C376 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C378 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C379 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C380 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C381 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C382 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C383 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C384 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C385 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C386 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C387 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C388 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C390 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C391 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C392 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C393 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C394 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C395 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C396 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C398 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C399 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C403 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C406 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C408 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C409 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C411 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C413 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C415 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C418 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C419 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C420 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C423 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C425 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C426 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C427 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C429 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C430 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C436 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C438 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C440 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C442 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C443 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C445 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C446 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C450 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C453 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C454 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C455 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C457 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C460 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C462 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C464 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C467 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)

R

AVR 2650 harman/kardon

73

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C468 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C470 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C471 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C475 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C479 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C480 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C482 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C483 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C490 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C491 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C498 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C501 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C508 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C514 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C516 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C519 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C522 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C523 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C525 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C529 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C530 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C532 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C533 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C536 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C537 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C538 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C545 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C546 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C547 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C549 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C551 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C552 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C553 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C555 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
D905 HVDUDZS5.1BSR DIODE , ZENER (CHIP,5.1V)
IC910 HVIKIC7SZ08FU I.C ,INPUT AND GATE (USV PACKAGE)KIC7SZ08FU­ L803 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L804 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L805 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L806 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L807 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L812 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L813 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L816 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L818 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L819 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L820 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L821 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L822 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L823 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L824 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L825 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L826 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER

TK

*

/

5

(

AVR 2650 harman/kardon

74

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

L827 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L828 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L829 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L830 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L831 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L832 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L833 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L835 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L837 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L838 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L840 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L841 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L843 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L844 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L847 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L857 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L861 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L864 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
Q913 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
Q914 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
Q915 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
Q916 CVTUPA672T F.E.T (NEC) UPA672T
RN13 CRJ064IJ330T RES, CHIP(1005/5%/33ohm
RN32 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN36 CRJ064IJ0R0T RES, CHIP(1005/5%/0ohm*4)
RN40 CRJ064IJ0R0T RES, CHIP(1005/5%/0ohm*4)
RN41 CRJ064IJ0R0T RES, CHIP(1005/5%/0ohm*4)
RN45 CRJ064IJ0R0T RES, CHIP(1005/5%/0ohm*4)
RN47 CRJ064IJ103T RES, CHIP(1005/5%/10Kohm*4)
RN50 CRJ064IJ0R0T RES, CHIP(1005
RN52 CRJ062IJ330T RES, CHIP(1005/5%/33ohm*2)
RN82 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN83 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN84 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN85 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN86 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN87 CRJ064IJ330T RES, CHIP(100
RN88 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN89 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN90 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN91 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
R602 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R603 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R605 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R608 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R609 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R612 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R614 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R615 CRJ10DJ0R0T RES, CHIP
R619 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R622 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R623 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R624 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)

1608/5%/0ohm)

5%/0ohm*4)

/5%/33ohm*4)

4)

K

0

0

AVR 2650 harman/kardon

75

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R629 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R631 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R634 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R637 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R639 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R648 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R652 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R656 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R657 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R660 CRJ10DJ102T RES, CHIP(1608/5%/1
R663 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R664 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R667 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R668 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R670 CRJ06IJ0R0T RES, CHIP(1
R672 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R674 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R675 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R677 CRJ06IJ271T RES, CHIP(1005/5%/270ohm)
R678 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R681 CRJ06IJ102T RES, CHIP(1005/5%/1Kohm)
R682 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R687 CRJ06IJ102T RES, CHIP(1005/5%/1Kohm)
R688 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R690 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R692 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R693 CRJ06IJ102T RES, CHIP(1005/5%/1Kohm)
R694 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R695 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R696 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R697 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R707 CRJ10DJ472T RES, CHIP(1608/5%/4.7Kohm)
R709 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R711 CRJ06IJ330T RES, CHIP(1005/5%/33ohm)
R713 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R714 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R715 CRJ10DJ510T RES, CHIP(1608/5%/51ohm)
R717 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R720 CRJ06IJ103T RES, CHIP(1005/5%/1
R729 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R731 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R733 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R734 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R737 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R743 CRJ10DF2800T RES, CHIP(1608/1%/280ohm)
R745 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R748 CRJ10DF2800T RES, CHIP(1608/1%/280ohm)
R756 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R757 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R760 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R771 CRJ10DF4R99T RES, CHIP(1608/1%/4.99ohm)
R774 CRJ06IJ182T RES, CHIP(1005/5%/1.8Kohm)
R777 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)

05/5%/0ohm)

ohm)

Kohm)

8

(

1

AVR 2650 harman/kardon

76

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R780 CRJ06IJ182T RES, CHIP(1005/5%/1.8Kohm)
R785 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)
R793 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R795 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)
R797 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R799 CRJ10DF49R9T RES, CHIP(1608/1%/49.9ohm)
R804 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R822 CRJ06IJ182T RES, CHIP(1005/5%/1.8Kohm)
R830 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R836 CRJ06IJ182T RES, CHIP(1005/5%/1.8Kohm)
R860 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R863 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R866 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R867 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R871 CRJ10DJ330T RES, CHIP(160
R875 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R878 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
C103 CCUI1E103KC CAP, CHIP(1005, 25V/0.01uF)
C112 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C114 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C139 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C143 CCUS1H470JA CAP, CHIP(1608, 50V/47pF)
C145 CCUS1H470JA CAP, CHIP(1608, 50V/47pF)
C146 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C147 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C148 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C150 CCUS1H104KC CAP, CHIP
C151 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C155 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C157 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C167 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C182 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C185 CCSNA0J220B CAP , CHIP TANTAL(22uF/6.3V, NingXia XingRi)
C199 CCUS1H270JA CAP, CHIP(1608, 50V/27pF)
C205 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C207 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C209 CCUS1H220JA CAP, CHIP(1608, 50V/22pF)
C210 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C226 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C240 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C241 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C247 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C252 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C253 CCUC0J106KC CAP, CHIP(2012, 6.3V/10uF)
C254 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C260 CCUI1C104KC CAP , CHIP (1005,
C261 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C262 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C265 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C272 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C273 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C278 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C279 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)

/5%/33ohm)

1608, 50V/0.1uF)

6V/0.1uF)

1

0

(

AVR 2650 harman/kardon

77

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C281 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C282 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C286 CCUI1H470JA CAP, CHIP(1005, 50V/47pF)
C291 CCUI1H470JA CAP, CHIP(1005, 50V/47pF)
C292 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C293 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C294 CCUI1C104KC CAP , CHIP (1005,
C299 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C311 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C313 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C319 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C321 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C327 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C341 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C347 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C350 CCUI1C104KC CAP , CHIP (10
C356 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C360 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C365 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C368 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C374 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C377 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C410 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C424 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C428 CCUS1A105KC CAP, CHIP(1608, 10V/1uF)
C431 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C439 CCUS1A105KC CAP, CHIP(1608, 10V/1uF)
C441 CCUI1C104KC CAP , CHIP
C451 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C452 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C488 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C489 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C493 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C494 CCUI1C104KC CAP , CHIP (1005, 16V/0.1uF)
C495 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C500 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C505 CCEC1CRV471T CAP, SMD ELECT(16V/470uF) MANLEX RV, 10X10
C506 CCEC1ACEEX151TY CAP , ELEC SMD (150uF/10V,8X10.5,SANYO)10CE150EX
C509 CCEC1ERV221T CAP , SMD ELECT(MANLEX, RV, 25V/220, 8X10)
C510 CCEC1ERV221T CAP , SMD ELECT(MANLEX, RV, 25V/220, 8X10)
C511 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C512 CCUS1H102KC CAP, CHIP(1608, 50V/1000pF)
C513 CCUS1H102KC CAP, CHIP(1608, 50V/1000pF)
C515 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C517 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C518 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C520 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C521 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C526 CCSNA1C100B CAP , CHIP TANTAL(10uF/16V, NingXia XingRi)
C527 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C531 CCEC1ERV221T CAP , SMD ELECT(MANLEX, RV, 25V/220, 8X10)
C534 CCEC1ERV221T CAP , SMD ELECT(MANLEX, RV, 25V/220, 8X10)
C539 CCUS1H102KC CAP, CHIP(1608, 50V/1000pF)

1005, 16V/0.1uF)

6V/0.1uF)

5, 16V/0.1uF)

2

2

2

)

1

1

1

1

1

AVR 2650 harman/kardon

78

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

C542 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C548 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
D902 CVDSS34SR DIODE , SCHOTTKY (40V,3A, DO­ D903 CVDSS34SR DIODE , SCHOTTKY (40V,3A, DO­ D904 CVDSS34SR DIODE , SCHOTTKY (40V,3A, DO­ IC901 CVIADV3014BSTZ I.C, HDMI1.4 Repeater(LQFP-144P) ADV3014BSTZ
IC902 CVIADV7844KBCZ I.C, HDMI RX/Decoder(BGA-425P) ADV7844KBCZ
IC903 CVITC74VCX541FT I,C, OCTAL BUS BUFFER (TOSHIBA) TC74VCX541FT
IC904 CVIA3S56D40FTPG5 I.C, 256MB DDR SDRAM(TOSPII-66P) A3S56D40FTPG5
IC905 CVI74FCT38072DCGI I.C, CLOCK DRIVER (IDT) IDT74FCT38072DCGI,IDT
IC906 CVIFLI30336AC I.C, VIDEO PROCESSOR (GENESIS) FLI30336
IC907 CVIANAM1550AV I.C, FLASH(CVIMX29LV320DTTI-70G
IC907 CVIMX29LV320DTTI-70G I.C, FLASH MEMORY (32MBIT,TSOP-48P) MX29LV320DTTI
IC908 CVIA3S56D40FTPG5 I.C, 256MB DDR SDRAM(TOSPII-66P) A3S56D40FTPG5
IC909 CVIA3S56D40FTPG5 I.C, 256MB DDR SDRAM(TOSPII-66P) A3S56D40FTPG5
IC911 CVI74ALVCH16827DGG I.C,BUFFER/DEIVER(TSSOP-56P)74ALVCH16827DGG,118/NXP SEMI
IC912 CVI74ALVCH16827DGG I.C,BUFFER/DEIVER(TSSOP-56P)74ALVCH16827DGG,118/NXP SEMI
IC915 CVI74ALVCH16827DGG I.C,BUFFER/DEIVER(TSSOP-56P)74ALVCH16827DGG,118/NXP SEMI
IC916 CVI74ALVCH16827DGG I.C,BUFFER/DEIVER(TSSOP-56P)74ALVCH16827DGG,118/NXP SEMI
IC917 CVINJU7754F05TE1 I.C , REGULATOR(SOT-23-5) NJU7754F05-TE1
IC918 CVIADV7511KSTZ I.C , HDMI TX (LQFP-100P) ADV7511KSTZ
IC922 HVINJM2391DL125 I.C , CHIP REGULATOR (+2.5V) JRC NJM2391DL125
IC923 CVISI8005QTL IC , DCDC Converter (3.5A, SOP8) SANKEN SI8005QTL
IC924 CVIKIA1117BS50 I.C , REGULATOR(SOT-223) KIA1117BS50
IC925 CVIKIA7809AF IC , REGULATOR (+9V,DPAK) KIA7809AF
IC927 CVISI8005QTL IC , DCDC Converter (3.5A, SOP8) SANKEN SI8005QTL
IC929 HVINJM2391DL125 I.C , CHIP REGULATOR (+2.5V) JRC NJM2391DL125
IC930 CVISI8005QTL IC , DCDC Converter (3.5A, SOP8) SANKEN SI8005QTL
JK92 CJJ9H008Y JACK, HDMI(TYPE-A, SMT­ JK93 CJJ9H008Y JACK, HDMI(TYPE-A, SMT­ JK94 CJJ9H008Y JACK, HDMI(TYPE-A, SMT­ JK95 CJJ9H008Y JACK, HDMI(TYPE-A, SMT-19P) H050FS019G643BY
JK96 CJJ9H008Y JACK, HDMI(TYPE-A, SMT­ JK97 CJJ9H008Y JACK, HDMI(TYPE-A, SMT­ L801 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L802 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L808 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L809 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L810 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L811 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L814 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L815 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L817 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L842 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L849 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L851 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L852 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F-SERIES
L853 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L854 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L855 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
L856 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F-SERIES
L858 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F-SERIES
L859 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER

9P) H050FS019G643BY
9P) H050FS019G643BY
9P) H050FS019G643BY

9P) H050FS019G643BY
9P) H050FS019G643BY

14AC) DELTA
14AC) DELTA
14AC) DELTA

0

o

AVR 2650 harman/kardon

79

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

L860 CLZ9R005Z FERRITE CHIP BEAD(1608/60ohm) HCB1608KF-600T30/COILMASTER
L862 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F-SERIES
L863 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60/COILMASTER
Q901 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
Q902 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
Q903 HVTKRA102S TRANSISTOR , CHIP , SOT-23 KRA102S
Q904 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
Q905 HVTKRA102S TRANSISTOR , CHIP , SOT-23 KRA102S
Q906 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
Q907 HVTKRA102S TRANSISTOR , CHIP , SOT-23 KRA102S
Q908 HVTKRA102S TRANSISTOR , CHIP , SOT-23 KRA102S
Q909 HVTKRA102S TRANSISTOR , CHIP , SOT-23 KRA102S
Q910 CVTKRC103S TRANSISTOR , CHIP , SOT-23 KRC103S
RN10 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN11 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN12 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN14 CRJ104DJ220T RES , CHIP , 22 OHM, 5% , 1608 X 4 22X4/2012
RN15 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN16 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN17 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN18 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN19 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN20 CRJ104DJ220T RES , CHIP , 22 OHM, 5% , 1608 X 4 22X4/2012
RN21 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN22 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN23 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN24 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN25 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN26 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN27 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN28 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN29 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN30 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN31 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN33 CRJ062IJ330T RES, CHIP(1005/5%/33ohm*2)
RN34 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN35 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN37 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN38 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN39 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN42 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN43 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN44 CRJ064IJ103T RES, CHIP(1005/5%/1
RN46 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN48 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN49 CRJ062IJ330T RES, CHIP(1005/5%/33ohm*2)
RN51 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN53 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN54 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN55 CRJ062IJ330T RES, CHIP(1005/5%/33ohm*2)
RN56 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN57 CRJ062IJ330T RES, CHIP(1005/5%/33
RN58 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)

Kohm*4)

hm*2)

(

)

AVR 2650 harman/kardon

80

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

RN59 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN60 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN61 CRJ062IJ330T RES, CHIP(1005/5%/33ohm*2)
RN72 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN73 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN74 CRJ064IJ330T RES, CHIP
RN75 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN76 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN77 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN78 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN79 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN80 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
RN81 CRJ064IJ330T RES, CHIP(1005/5%/33ohm*4)
R604 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R606 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R607 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R610 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R611 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R613 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R616 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R618 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R620 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R621 CRJ10DF8201T RES, CHIP(1608/1%/8.2Kohm)
R625 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R626 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R627 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R628 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R630 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R635 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R636 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R638 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R646 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R647 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R649 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R650 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R653 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R654 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R655 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R658 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R659 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R661 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R662 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R666 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R669 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R673 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R680 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R685 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R689 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R691 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R703 CRJ06IJ330T RES, CHIP(1005/5%/33ohm
R705 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R710 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R716 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)

1005/5%/33ohm*4)

h

2

0

/

AVR 2650 harman/kardon

81

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R718 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R719 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R721 CRJ06IJ560T RES, CHIP(1005/5%/56ohm)
R722 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R723 CRJ06IJ0R0T RES, CHIP(1005/5%/0ohm)
R724 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R725 CRJ06IJ560T RES, CHIP(1005/5%/56ohm)
R726 CRJ06IJ103T RES, CHIP(1005/5%/10Ko
R727 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R728 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R730 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R732 CRJ06IJ560T RES, CHIP(1005/5%/56ohm)
R735 CRJ06IJ220T RES, CHIP(1005/5%/2
R736 CRJ06IJ560T RES, CHIP(1005/5%/56ohm)
R738 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R739 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R740 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R741 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R742 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R744 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R746 CRJ06IJ560T RES, CHIP(1
R747 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R749 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R750 CRJ10DF1002T RES, CHIP(1608/1%/10Kohm) 10K /1/10W/F
R752 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R753 CRJ06IJ560T RES, CHIP(1005/5%/56ohm)
R754 CRJ10DF1002T RES, CHIP(1608/1%/10Kohm) 10K /1/10W/F
R755 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R758 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R761 CRJ06IJ560T RES, CHIP(1005/5%/56ohm)
R762 CRJ06IJ103T RES, CHIP(1005/5%
R763 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R764 CRJ06IJ220T RES, CHIP(1005/5%/22ohm)
R765 CRJ06IJ560T RES, CHIP(1005/5%/56ohm)
R767 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R768 CRJ06IJ103T RES, CHIP(1005/5%/10Kohm)
R776 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R779 CRJ10DF8201T RES, CHIP(1608/1%/8.2Kohm)
R787 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R792 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R796 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R826 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R834 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R838 CRJ10DJ123T RES, CHIP(1608/5%/12Kohm)
R839 CRJ10DJ273T RES, CHIP(1608/5%/27Kohm)
R840 CRJ10DJ512T RES, CHIP(1608/5%/5.1Kohm)
R841 CRJ10DJ123T RES, CHIP(1608/5%/12Kohm)
R843 CRJ10DJ202T RES, CHIP(1608/5%/2Kohm)
R844 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R845 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R846 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R847 CRJ10DJ512T RES, CHIP(1608/5%/5.1Kohm)
R851 CRJ10DJ512T RES, CHIP(1608/5%/5.1Kohm)

05/5%/56ohm)

10Kohm)

m)

ohm)

6

u

AVR 2650 harman/kardon

82

Reference Part Number Description
Designator




INPUT PCB ASS'Y COP12327D

R852 CRJ10DJ202T RES, CHIP(1608/5%/2Kohm)
R854 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R856 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R857 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R859 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R861 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R862 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R864 CRJ06IJ472T RES, CHIP(1005/5%/4.7Kohm)
R865 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R872 CRJ10DJ623T RES, CHIP(1608/5%/62Kohm)
R873 CRJ10DJ623T RES, CHIP(1608/5%/62Kohm)
R874 CRJ10DJ623T RES, CHIP(1608/5%/62Kohm)
R879 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R880 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R881 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R882 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R883 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R884 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
X901 COX28636E330S CRYSTAL, 28.636MHz, HC-49/SMD, 33pF, 30PPM
X902 COX28636E330S CRYSTAL, 28.636MHz, HC-49/SMD, 33pF, 30PPM
X903 COX19660E330S CRYSTAL, 19.660MHz, HC-49/SMD, 33pF, 20PPM
CMY1A297 HEAT SINK
BN301 CJP30GB143ZB DIP, SOCKET(30PIN, 2.54mm,ANGLE)
BN61 CWB1D00718058 WIRE ASS'Y (2.5mm, 7p, 180mm)
C528 CCEA1EH222E CAP , ELECT(25V/2200uF) 2200UF 25V

VIDEO PCB ASS'Y COP12361D

C179 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C180 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C181 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C182 CCUS1H104KC CAP, CHIP(1
C183 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C184 CCUS1H223KC CAP, CHIP(1608, 50V/0.022uF)
C185 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C187 CCUS1H223KC CAP, CHIP(1608, 50V/0.022uF)
C188 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C189 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C190 CCUS1H104KC CAP, CHIP(1608, 50V/0.1
C191 CCUS1H223KC CAP, CHIP(1608, 50V/0.022uF)
C192 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C193 CCUS1H223KC CAP, CHIP(1608, 50V/0.022uF)
C194 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C195 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C196 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C197 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C198 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C200 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C202 CCUS1H220JA CAP, CHIP(1608, 50V/22pF)
C203 CCUS1H220JA CAP, CHIP(1608, 50V/22pF)
D705 CVD1SS355T DIODE, SMD, SWITCHING 1SS355/SOD-323
D706 CVD1SS355T DIODE, SMD, SWITCHING 1SS355/SOD-323
D707 CVD1SS355T DIODE, SMD, SWITCHING 1SS355/SOD-323

08, 50V/0.1uF)

F)

5

C

AVR 2650 harman/kardon

83

Reference Part Number Description
Designator




VIDEO PCB ASS'Y COP12361D

D708 CVD1SS355T DIODE, SMD, SWITCHING 1SS355/SOD-323
L802 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm,4516)HCB4516KF-600T60/COILMASTER
R567 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R568 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R569 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R570 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R571 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R572 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R573 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R574 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R578 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R579 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R580 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R581 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R582 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm)
R583 CRJ10DJ474T RES, CHIP(1608/5%/470Kohm)
R584 CRJ10DJ220T RES, CHIP(1608/5%/22ohm)
R585 CRJ10DJ474T RES, CHIP(1608/5%/470Kohm)
R586 CRJ10DJ220T RES, CHIP(1608/5%/22ohm)
R587 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R589 CRJ10DJ220T RES, CHIP(1608/5%/22ohm)
R591 CRJ10DJ220T RES, CHIP(1608/5%/22ohm)
R592 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R593 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R594 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R596 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R602 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm)
R603 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm)
R605 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R606 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R608 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
C101 CCUS1H472KC CAP, CHIP(1608, 50V/4700pF)
C102 CCUS1H472KC CAP, CHIP(1608, 50V/4700pF)
C103 CCUS1H472KC CAP, CHIP(1608, 50V/4700pF)
C104 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C105 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C108 CCUS1H102KC CAP, CHIP(1608, 50V/1000pF)
C109 CCUS1H102KC CAP, CHIP(1608,
C110 CCUS1H020CA CAP, CHIP(1608, 50V/2pF)
C111 CCUS1H020CA CAP, CHIP(1608, 50V/2pF)
C112 CCUS1H020CA CAP, CHIP(1608, 50V/2pF)
C113 CCUS1H020CA CAP, CHIP(1608, 50V/2pF)
C114 CCUS1H020CA CAP, CHIP(1608, 50V/2pF)
C115 CCUS1H020CA CAP, CHIP(1608, 50V/2pF)
C116 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C117 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C118 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C119 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C120 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C121 CCUS1H103KC CAP,
C122 CCUS1H330JA CAP, CHIP(1608, 50V/33pF)
C123 CCUS1H330JA CAP, CHIP(1608, 50V/33pF)
C124 CCUS1H330JA CAP, CHIP(1608, 50V/33pF)

HIP(1608, 50V/0.01uF)

0V/1000pF)

1

2

)

I

C

AVR 2650 harman/kardon

84

Reference Part Number Description
Designator




VIDEO PCB ASS'Y COP12361D

C143 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C144 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C145 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C146 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C147 CCUS1H330JA CAP, CHIP(1608, 50V/33pF)
C148 CCUS1H330JA CAP, CHIP(1608, 50V/33pF)
C162 CCUS1H223KC CAP, CHIP(1608, 50V/0.022uF)
C164 CCUS1H103KC CAP, CHIP(
C165 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C166 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C204 CCUS1A105KC CAP, CHIP(1608, 10V/1uF)
C205 CCUS1A105KC CAP, CHIP(1608, 10V/1uF)
C206 CCUS1A105KC CAP, CHIP(1608, 10V/1uF)
D704 CVD1SS355T DIODE, SMD, SWITCHING 1SS355/SOD-323
IC901 CVINJW1321FP1 I.C , VIDEO S/W (JRC) NJW1321FP1
IC903 CVIKIA7809AF IC , REGULATOR (+9V,DPAK) KIA7809AF
IC904 CVIKIA1117BS50 I.C , REGULATOR(SOT-223) KIA1117BS50
IC905 CVINJM2595MTE1 I.C , VIDEO S/W (JRC) NJM2595MTE1
IC906 HVI74HCU04AFNG I.C , INVERTER (TOSHIBA) TC74HCU04AFNG(TOSHIBA)
IC907 CVIAZ4580MTR-E1 I.C , OPAMP(DUAL LOW NOISE)AZ4580MTR-E1/SOIC8/BCD
IC908 CVITL072CDR I.C , OP AMP/SOP/8P (TI) TL072CDR
IC909 CVINJM2505AFTE1 I.C , VIDEO AMP(4.5~9.0V,200MW,MTP5)JRC NJM2505AF-TE1
IC910 CVINJM2505AFTE1 I.C , VIDEO AMP(4.5~9.0V,200MW,MTP5)JRC NJM2505AF-TE1
IC911 HVINJM2581MTE1 I.C (JRC)NJM2581MTE1
IC912 CVINJM2505AFTE1 I.C , VIDEO AMP(4.5~9.0V,200MW,MTP5)JRC NJM2505AF-TE1
IC918 CVIILX3232DT I.C, RS232 DRIVER(3.3V) ILX3232D
L801 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm,4516)HCB4516KF-600T60/COILMASTER
Q901 HVTKRC102S TRANSISTOR , CHIP , SOT-23 KRC102S
Q904 HVTKRC102S TRANSISTOR , CHIP , SOT-23 KRC102S
Q905 HVTKRA102S TRANSISTOR , CHIP , SOT-23 KRA102S
Q906 HVTKRC102S TRANSISTOR , CHIP , SOT-23 KRC102S
Q908 HVTKRC107S TRANSISTOR , CHIP , SOT­ R501 CRJ10DJ750T RES, CHIP(1608/5%/75ohm
R502 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R503 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R504 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R505 CRJ10DJ750T RES, CH
R506 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R507 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R508 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R509 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R510 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R511 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R512 CRJ10DJ222T RES,
R513 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R514 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R515 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R516 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R517 CRJ10DF1002T RES, CHIP(1608/1%/10Kohm) 10K /1/10W/F
R518 CRJ10DF1002T RES, CHIP(1608/1%/10Kohm) 10K /1/10W/F
R519 CRJ10DF5101T RES, CHIP(1608/1%/5.1Kohm) 1608 SIZE
R520 CRJ10DF5101T RES, CHIP(1608/1%/5.1Kohm) 1608 SIZE
R521 CRJ10DF4992T RES, CHIP(1608/1%/49.9Kohm)

HIP(1608/5%/2.2Kohm)

608, 50V/0.01uF)

Dual Supply Wide Band 3ch Video Amplifier

3

P(1608/5%/75ohm)

H

AVR 2650 harman/kardon

85

Reference Part Number Description
Designator




VIDEO PCB ASS'Y COP12361D

R522 CRJ10DF4992T RES, CHIP(1608/1%/49.9Kohm)
R523 CRJ10DF4992T RES, CHIP(1608/1%/49.9Kohm)
R524 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R525 CRJ10DF4992T RES, CHIP(1608/1%/49.9Kohm)
R526 CRJ10DF4992T RES, CHIP(1608/1%/49.9Kohm)
R527 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R528 CRJ10DF1001T RES, CHIP(1608/1%/1Kohm)
R529 CRJ10DF4992T RES, CHIP(1608/1%/49.9Kohm)
R533 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R534 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R538 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R539 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R540 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R541 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R542 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R543 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R544 CRJ10DJ750T RES, CHIP(1608/5%/75ohm)
R545 CRJ10DJ101T RES, CHIP(1608/5%/100ohm)
R546 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R547 CRJ10DJ474T RES, CHIP(1608/5%/470Kohm)
R548 CRJ10DJ271T RES, CHIP(1608/5%/270ohm)
R549 CRJ10DJ271T RES, CHIP(1608/5%/270ohm)
R550 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R552 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R553 CRJ10DJ103T RES, C
R556 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
R557 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R559 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R561 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm) 1608 SIZE
R562 CRJ10DJ4R7T RES, CHIP(1608/5%/4.7ohm) 1608 SIZE
R563 CRJ10DJ103T RES, CHIP(1608/5%/10Kohm)
R575 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R576 CRJ10DJ330T RES, CHIP(1608/5%/33ohm)
R577 CRJ10DJ102T RES, CHIP(1608/5%/1Kohm)
C106 CCEA1EH221T CAP , ELECT(25V/220uF) KR3-25V221MC(8*11.5L)
C107 CCEA1CH471T CAP , ELECT(16V/470uF) KR3-16V471MC(8*11.5L)
C125 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C126 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C127 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C128 CCEA1HH4R7T CAP , ELECT(50V/4.7uF) KR3-50V4R7MA(5*11L)
C129 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C130 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C131 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C132 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C133 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C134 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C135 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C136 CCEA1HH1R0T CAP , ELECT(50V/1uF) KR3-50V010MA(5*11L)
C137 CCEA1HH1R0T CAP , ELECT(50V/1uF) KR3-50V010MA(5*11L)
C138 CCEA1HH1R0T CAP , ELECT(50V/1uF) KR3-50V010MA(5*11L)
C139 CCEA1HH1R0T CAP , ELECT(50V/1uF) KR3-50V010MA(5*11L)
C140 CCEA1HH1R0T CAP , ELECT(50V/1uF) KR3-50V010MA(5*11L)
C141 CCEA1HH1R0T CAP , ELECT(50V/1uF) KR3-50V010MA(5*11L)

IP(1608/5%/10Kohm)

W

M

AVR 2650 harman/kardon

86

Reference Part Number Description
Designator




VIDEO PCB ASS'Y COP12361D

C142 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C149 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C150 CCEA1HH4R7T CAP , ELECT(50V/4.7uF) KR3-50V4R7MA(5*11L)
C151 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C152 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C153 CCEA1CH221T CAP , ELECT(16V/220uF) KR3-16V221MB(6.3*11L)
C154 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C155 CCEA1CH470T CAP , ELECT(16V/47uF) KR3-16V470MA(5*11L)
C156 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C157 CCEA1CH470T CAP , ELECT(16V/47uF) KR3-16V470MA(5*11L)
C158 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C159 CCEA1CH470T CAP , ELECT(16V/47uF) KR3-16V470MA(5*11L)
C160 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C161 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C163 CCEA1CH470T CAP , ELECT(16V/47uF) KR3-16V470MA(5*11L)
C168 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C169 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C170 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C171 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C172 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C173 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C174 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C175 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C176 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C177 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
Q903 HVTKTA1266YT TRANSISTOR KTA1266YT
Q907 HVTKTA1266YT TRANSISTOR KTA1266YT
BN51 CWB1D00910058 WIRE ASS'Y (9PIN, 2.5mm,100mm,STRAIGHT,#22)
BN53 CJP18GB142ZB PIN HEADER (18P, 2.54mm) , ANGLE TYPE
CN40 CJP09GI237ZW LOCK­ CN41 CJP30GB142ZB 30PIN, 2.54
CN52 CJP05GB46ZY WAFER,20017WR(2mm,ANGLE)
IC902 CVIKIA7905PI I.C,REGULATOR(-5V,T0220IS) KIA7905PI (KEC)
IC913 HVIKIA7812API I.C,REGULATOR(+12V,T0220IS) KIA7812API
JK91 CJJ4R046Z JACK , BOARD
JK92 CJJ4P074Z JACK , RCA(4P, GOLD PLATE (Y/Y/Y/Y) 100861
JK93 CJJ9N007Z JACK , DIN SOCKET(8P) N-801
JK94 CJJ9L016Z JACK , IPOD CONNECTOR (36PIN) SI36P
JK95 CJJ9W001Z JACK, 9P D-SUB FEMALE(RS-232C) -9PF-RSB/SEMCO
JK96 CJJ2D008Z JACK, STEREO (BLK MOLD) -308-02/YUQIU

MAIN PCB ASS'Y COP12364D

AFER/STRAIGHT/2.5mm

M PIN HEADER

C501 CCEA1HH100T CAP , ELECT(50V/10uF) 3-50V100MA(5*11L)
C502 CCEA1HH100T CAP , ELECT(50V/10uF) 3-50V100MA(5*11L)
C503 CCEA1HH100T CAP , ELECT(50V/10uF) 3-50V100MA(5*11L)
C505 CCEA1HH100T CAP , ELECT(50V/10uF) 3-50V100MA(5*11L)
C506 CCKT1H331KB CAP, CERAMIC(50V/330pF/K)
C507 CCBS1H331KBT CAP , CERAMIC(330PF/50V) UP025 B331K-A-B Z
C508 CCBS1H331KBT CAP , CERAMIC(330PF/50V) UP025 B331K-A-B Z
C509 CCKT1H331KB CAP, CERAMIC(50V/330pF/K)
C510 CCBS1H331KBT CAP , CERAMIC(330PF/50V) UP025 B331K-A-B Z
C561 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)

AVR 2650 harman/kardon

87

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

C562 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C563 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C564 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C565 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C566 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C567 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C568 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C569 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C570 CCEA1CH101T CAP , ELECT(16V/100uF) 3-16V101MA(5*11L)
C571 CCBS1H681KBT CAP , CERAMIC(680PF/50V) UP025 B681K-A-B Z
C572 CCBS1H681KBT CAP , CERAMIC(680PF/50V) UP025 B681K-A-B Z
C573 CCBS1H681KBT CAP , CERAMIC(680PF/50V) UP025 B681K-A-B Z
C574 CCBS1H681KBT CAP , CERAMIC(680PF/50V) UP025 B681K-A-B Z
C575 CCBS1H681KBT CAP , CERAMIC(680PF/50V) UP025 B681K-A-B Z
C601 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C602 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C603 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C604 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C605 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C606 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C607 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C608 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C609 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C610 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C631 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C634 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C635 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C636 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C639 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C640 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C649 CCEA1HHR15T CAP , ELECT(50V/0.15uF) 0.15UF 50V
C650 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C681 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C682 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C683 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C684 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C685 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C704 CCKT1H102KB CAP, CERAMIC(50V/1000pF/K)
C716 CCEA1CH220T CAP , ELECT(16V/22uF) KR3-16V220MA(5*11L)
C725 CCKT1H221KB CAP, CERAMIC(50V/220pF/K)
C801 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C802 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C803 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C804 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C805 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C806 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C807 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C808 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C809 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C810 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C811 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C812 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C813 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)

AVR 2650 harman/kardon

88

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

C814 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C815 CCKT1H331KB CAP, CERAMIC(50V/330pF/K)
C816 CCBS1H331KBT CAP , CERAMIC(330PF/50V) CH UP025 B331K-A-B Z
C817 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C818 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C819 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C820 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C851 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C852 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C853 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C854 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C855 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C856 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C857 CCEA1HH100T CAP , ELECT(50V/10uF) KR3-50V100MA(5*11L)
C900 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C901 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C905 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V)CH UP025 F223Z-A-B J
C907 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C908 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V)CH UP025 F223Z-A-B J
C910 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C913 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V Z
C914 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C917 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C918 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C919 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C924 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V Z
C925 CCEA1HH2R2T CAP , ELECT(50V/2.2uF) KR3-50V2R2MA(5*11L)
C927 CCKT1H102KB CAP, CERAMIC(50V/1000pF/K)
C932 CCEA1CH101T CAP , ELECT(16V/100uF) KR3-16V101MA(5*11L)
C936 CCEA1CH221T CAP , ELECT(16V/220uF) KR3-16V221MB(6.3*11L)
C939 CCEA1HH4R7T CAP , ELECT(50V/4.7uF) KR3-50V4R7MA(5*11L)
C940 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C950 CCEA1AH471T CAP , ELECT(10V/470uF) KR3-10V471MB(6.3*11L)
C951 CCEA1HH470T CAP , ELECT(50V/47uF) KR3-50V470MB(6.3*11L)
C971 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C972 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C973 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C974 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C975 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C977 CCEA1HH2R2T CAP , ELECT(50V/2.2uF) KR3-50V2R2MA(5*11L)
C980 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C981 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C990 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C991 CCEA1HH1R0T CAP , ELECT(50V/1uF) KR3-50V010MA(5*11L)
C992 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C993 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C994 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C995 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C996 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C997 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C999 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
D501 CVD1SS133MT DIODE , SWITCHING 1SS133
D502 CVD1SS133MT DIODE , SWITCHING 1SS133

AVR 2650 harman/kardon

89

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

D503 CVD1SS133MT DIODE , SWITCHING 1SS133
D504 CVD1SS133MT DIODE , SWITCHING 1SS133
D505 CVD1SS133MT DIODE , SWITCHING 1SS133
D581 CVD1SS133MT DIODE , SWITCHING 1SS133
D582 CVD1SS133MT DIODE , SWITCHING 1SS133
D583 CVD1SS133MT DIODE , SWITCHING 1SS133
D584 CVD1SS133MT DIODE , SWITCHING 1SS133
D585 CVD1SS133MT DIODE , SWITCHING 1SS133
D701 CVD1SS133MT DIODE , SWITCHING 1SS133
D801 CVD1SS133MT DIODE , SWITCHING 1SS133
D802 CVD1SS133MT DIODE , SWITCHING 1SS133
D803 CVD1SS133MT DIODE , SWITCHING 1SS133
D804 CVD1SS133MT DIODE , SWITCHING 1SS133
D901 CVD1N4003ST DIODE , RECT 1N4003
D903 CVD1SS133MT DIODE , SWITCHING 1SS133
D912 CVD1SS133MT DIODE , SWITCHING 1SS133
D914 C3A206 WIRE , COPPER SN95/PB5 , 0.6
D915 CVD1N4003ST DIODE , RECT 1N4003
D917 CVD1SS133MT DIODE , SWITCHING 1SS133
D950 CVD1SS133MT DIODE , SWITCHING 1SS133
D953 CVD1SS133MT DIODE , SWITCHING 1SS133
D954 CVD1N4003SRT DIODE , RECT 1N4003
D955 CVD1N4003SRT DIODE , RECT 1N4003
D956 CVD1N4003ST DIODE , RECT 1N4003
D957 CVD1N4003ST DIODE , RECT 1N4003
D961 CVD1N4003ST DIODE , RECT 1N4003
D962 CVD1N4003ST DIODE , RECT 1N4003
D963 CVD1N4003ST DIODE , RECT 1N4003
D964 CVD1SS133MT DIODE , SWITCHING 1SS133
D967 CVD1SS133MT DIODE , SWITCHING 1SS133
D968 CVD1SS133MT DIODE , SWITCHING 1SS133
D969 CVD1SS133MT DIODE , SWITCHING 1SS133
D971 CVD1SS133MT DIODE , SWITCHING 1SS133
D972 CVD1SS133MT DIODE , SWITCHING 1SS133
D975 CVD1SS133MT DIODE , SWITCHING 1SS133
D976 CVD1SS133MT DIODE , SWITCHING 1SS133
D979 CVDZJ4.3BT DIODE , ZENER 4.3V ZJ4.3B 1/2W
ET90 HJT1A025 PLATE , EARTH MET37-0002
ET91 HJT1A025 PLATE , EARTH
F901 KJCFC5S HOLDER , FUSE 2.0
Q501 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q502 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q503 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q504 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q505 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q511 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q512 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q513 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q514 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q515 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q516 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q517 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q518 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH

AVR 2650 harman/kardon

90

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

Q519 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q520 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q541 HVTKTC3198YT TRANSISTOR KTC3198Y
Q542 HVTKTC3198YT TRANSISTOR KTC3198Y
Q543 HVTKTC3198YT TRANSISTOR KTC3198Y
Q544 HVTKTC3198YT TRANSISTOR KTC3198Y
Q545 HVTKTC3198YT TRANSISTOR KTC3198Y
Q556 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q557 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q558 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q559 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q560 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q561 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q563 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q564 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q565 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q601 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q602 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q603 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q604 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q605 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q641 HVTKRC102MT TRANSISTOR, TO-92M KRC102M
Q642 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q681 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q682 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q683 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q684 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q685 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q701 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q702 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q703 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q704 HVTKTA1267YT TRANSISTOR KTA1267Y
Q705 HVTKRC107MT TRANSISTOR, KRC107M
Q716 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q801 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q802 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q812 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q813 CVT2SC2240BL TRANSISTOR, 2SC2240BL(NPN,TO-92,LOW NOISE,TOSH
Q814 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q815 CVT2SC2240BL TRANSISTOR, 2SC2240BL NPN,TO-92,LOW NOISE,TOSH
Q816 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q817 HVTKTA1268GRT TRANSISTOR KTA1268GR
Q818 CVT2SC2240BL TRANSISTOR, 2SC2240BL(NPN,TO-92,LOW NOISE,TOSH
Q819 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q820 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q821 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q822 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q823 CVT2SC2240BL TRANSISTOR, 2SC2240BL (NPN, TO-92, LOW NOISE, TOSH
Q824 HVTKTC3198YT TRANSISTOR KTC3198Y
Q825 HVTKTC3198YT TRANSISTOR KTC3198Y
Q901 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q911 HVTKTA1271YT TRANSISTOR KTA1271Y
Q912 HVTKTA1271YT TRANSISTOR KTA1271Y

J

5

,

)

AVR 2650 harman/kardon

91

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

Q913 HVTKTA1271YT TRANSISTOR KTA1271Y
Q915 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q916 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q917 HVTKRC102MT TRANSISTOR, KRC102M
Q938 HVTKRA107MT TRANSISTOR, KRA107M
Q939 HVTKRA107MT TRANSISTOR, KRA107M
Q941 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q942 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q943 HVTKTC3199YT TRANSISTOR, KTC3199Y/TO-92M
Q950 HVTKTA1267YT TRANSISTOR KTA1267Y
Q951 HVTKTC3198YT TRANSISTOR KTC3198Y
Q952 HVTKTC3198YT TRANSISTOR KTC3198Y
Q960 HVTKRC107MT TRANSISTOR, TO-92M KRC107M
Q961 HVTKTA1024YT TRANSISTOR, KTA1024Y/TO-92L
R500 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R501 CRD20TJ433T RES, CARBON(1/5W,43Kohm,J)
R502 CRD20TJ433T RES, CARBON(1/5W,43Kohm,J)
R503 CRD20TJ433T RES, CARBON(1/5W,43Kohm,J)
R504 CRD20TJ433T RES, CARBON(1/5W,43Kohm,J)
R505 CRD20TJ433T RES, CARBON(1/5W,43Kohm,J)
R506 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R507 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R508 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R509 CRD20TJ273T RES, CARBON(1/5W,27Kohm,
R510 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R511 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R512 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R513 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R514 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R515 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R516 CRD20TJ152T RES, CARBON(1/5W,1.
R517 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R518 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R519 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R520 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R521 CRD20TJ471T RES, CARBON(1/5W,470ohm,J)
R522 CRD20TJ471T RES, CARBON(1/5W,470ohm,J)
R523 CRD20TJ471T RES, CARBON(1/5W,470ohm
R524 CRD20TJ471T RES, CARBON(1/5W,470ohm,J)
R525 CRD20TJ471T RES, CARBON(1/5W,470ohm,J)
R531 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R532 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R533 CRD20TJ221T RES, CARBON(1/5W,220ohm,J
R534 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R535 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R536 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R537 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R538 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R539 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R540 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R541 CRD20TJ271T RES, CARBON(1/5W,270ohm,J)
R542 CRD20TJ271T RES, CARBON(1/5W,270ohm,J)
R543 CRD20TJ271T RES, CARBON(1/5W,270ohm,J)

Kohm,J)

)

J)

7

5

N

/

O

AVR 2650 harman/kardon

92

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

R544 CRD20TJ271T RES, CARBON(1/5W,270ohm,J)
R545 CRD20TJ271T RES, CARBON(1/5W,270ohm,J)
R556 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R557 CRD20TJ273T RES, CARBON(1/5W,2
R558 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R559 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R560 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R561 CRD20TJ132T RES, CARBON(1/5W,1.3Kohm,J)
R562 CRD20TJ132T RES, CARBON(1/5W,1.3Kohm,J)
R563 CRD20TJ132T RES, CARBON(1/5W,1.3Kohm,J)
R564 CRD20TJ132T RES, CARBON(1/5W,1.3Kohm,J)
R565 CRD20TJ132T RES, CARBON(1/5W,1.3Kohm,J)
R566 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R567 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R568 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R569 CRD20TJ561T RES, CARBON(1/
R570 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R571 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R572 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R573 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R574 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R575 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R576 CRD20TJ100T RES, CARBON(1/5W,10ohm,J)
R577 CRD20TJ100T RES, CARBON(1/5W,10ohm,J)
R578 CRD20TJ100T RES, CARBON(1/5W,10ohm,J)
R579 CRD20TJ100T RES, CARBON(1/5W,10ohm,J)
R580 CRD20TJ100T RES, CARBON(1/5W,10ohm,J)
R581 CRD20TJ561T RES, CARBO
R582 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R583 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R584 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R585 CRD20TJ561T RES, CARBON(1
R586 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R587 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R588 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R589 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R590 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R591 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R592 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R593 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R594 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R595 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R596 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R597 CRD20TJ561T RES, CARB
R598 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R599 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R600 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R601 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R602 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R603 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R604 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R605 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R606 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)

(1/5W,560ohm,J)

5W,560ohm,J)

N(1/5W,560ohm,J)

Kohm,J)

W,560ohm,J)

O

7

(

AVR 2650 harman/kardon

93

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

R607 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R608 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R609 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R610 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R611 CRD20TJ100T RES, CARBON(1/5W,10ohm,J)
R612 CRD20TJ100T RES, CARBON(1/5W,10ohm,J)
R631 CRD25FJ180T RES , CARBON (18
R632 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R633 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R634 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R635 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R636 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R637 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R638 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R639 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R640 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R643 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R644 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R645 CRD20TJ102T RES, CARBON(1/5W,1Kohm,J)
R646 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R647 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R648 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R649 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R650 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R651 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R652 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R653 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R654 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R655 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R666 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R667 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R668 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R669 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R670 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R671 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R672 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R673 CRD20TJ472T RES, CARBON(1/5W,4.
R674 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R675 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R676 CRD25TJ182T RES, CARBON(1/4W,1.8Kohm,J)
R677 CRD25TJ182T RES, CARBON(1/4W,1.8Kohm,J)
R678 CRD25TJ182T RES, CARBON
R679 CRD25TJ182T RES, CARBON(1/4W,1.8Kohm,J)
R680 CRD25TJ182T RES, CARBON(1/4W,1.8Kohm,J)
R681 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R682 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R683 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R684 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R685 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R686 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R687 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R688 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R689 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)

1/4W,1.8Kohm,J)

HM) NONFLAMMABLE

Kohm,J)

/

,

N

J

W

W

AVR 2650 harman/kardon

94

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

R690 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R696 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R697 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R698 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R699 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R700 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R701 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R702 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R703 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R704 CRD20TJ103T RES, CARBON(1
R705 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R708 CRD20TJ564T RES, CARBON(1/5W,560Kohm,J)
R709 C3A206 WIRE , COPPER
R710 CRD20TJ1R0T RES, CARBON(1/5W,1ohm,J)
R711 CRD20TJ272T RES, CARBON(1/5W
R712 CRD20TJ473T RES, CARBON(1/5W,47Kohm,J)
R713 CRD20TJ563T RES, CARBON(1/5W,56Kohm,J)
R714 C3A206 WIRE , COPPER
R715 CRD20TJ153T RES, CARBON(1/5W,15Kohm,J)
R716 CRD20TJ392T RES, CARBO
R717 CRD20TJ333T RES, CARBON(1/5W,33Kohm,J)
R771 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R772 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R773 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R774 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R775 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R776 CRD20TJ750T RES, CARBON(1/5W,75ohm,
R777 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R781 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R782 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R783 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R784 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R785 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R786 CRD20TJ750T RES, CARBON(1/5
R787 CRD20TJ750T RES, CARBON(1/5W,75ohm,J)
R801 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R802 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R803 CRD20TJ562T RES, CARBON(1/5
R804 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R805 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R807 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R808 CRD25TJ182T RES, CARBON(1/4W,1.8Kohm,J)
R809 CRD25TJ182T RES, CARBON(1/4W,1.8Kohm,J)
R812 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R813 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R814 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R815 CRD25TJ470T RES, CARBON(1/4W,47ohm,J)
R817 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R818 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R819 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R820 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R821 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R822 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE

5W,10Kohm,J)

2.7Kohm,J)

(1/5W,3.9Kohm,J)

)

,75ohm,J)

,5.6Kohm,J)

,

(

,

,

J

AVR 2650 harman/kardon

95

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

R823 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R824 CRD25FJ180T RES , CARBON (18 OHM) NONFLAMMABLE
R830 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R831 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R832 CRD20TJ223T RES, CARBON(1/5W,22Kohm
R833 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R834 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R835 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R836 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R837 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R838 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R839 CRD20TJ561T RES, CARBON
R840 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R841 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R842 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R843 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R844 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R845 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R848 CRD20TJ273T RES, CARBON(1/5W,27Kohm
R849 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R850 CRD20TJ132T RES, CARBON(1/5W,1.3Kohm,J)
R851 CRD20TJ132T RES, CARBON(1/5W,1.3Kohm,J)
R852 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R853 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R854 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R855 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R856 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R857 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R858 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R859 CRD20TJ221T RES, CARBON(1/5W,220ohm,J)
R860 CRD20TJ271T RES, CARBON(1/5W,270ohm,J)
R861 CRD20TJ271T RES, CARBON(1/5W,270ohm,J)
R862 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R863 CRD20TJ273T RES, CARBON(1/5W,27Kohm,J)
R870 CRD20TJ433T RES, CARBON(1/5W,43Kohm,J)
R871 CRD20TJ433T RES, CARBON(1/5W,43Kohm,J)
R872 CRD20TJ471T RES, CARBON(1/5W,470ohm,J)
R873 CRD20TJ471T RES, CARBON(1/5W,470ohm,J)
R874 CRD20TJ331T RES, CARBON(1/5W,330ohm,J)
R875 CRD20TJ331T RES, CARBON(1/5W,330ohm,J)
R876 CRD20TJ331T RES, CARBON(1/5W,330ohm
R877 CRD20TJ331T RES, CARBON(1/5W,330ohm,J)
R878 CRD20TJ331T RES, CARBON(1/5W,330ohm,J)
R879 CRD20TJ331T RES, CARBON(1/5W,330ohm,J)
R880 CRD20TJ331T RES, CARBON(1/5W,330ohm,J)
R882 CRD20TJ122T RES, CARBON(1/5W,1.2Kohm,
R883 CRD20TJ122T RES, CARBON(1/5W,1.2Kohm,J)
R884 CRD20TJ122T RES, CARBON(1/5W,1.2Kohm,J)
R885 CRD20TJ122T RES, CARBON(1/5W,1.2Kohm,J)
R886 CRD20TJ122T RES, CARBON(1/5W,1.2Kohm,J)
R887 CRD20TJ122T RES, CARBON(1/5W,1.2Kohm,J)
R888 CRD20TJ122T RES, CARBON(1/5W,1.2Kohm,J)
R891 CRD20TJ391T RES, CARBON(1/5W,390ohm,J)

1/5W,560ohm,J)

J)

J)

J)

)

W

C

O

5

AVR 2650 harman/kardon

96

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

R892 CRD20TJ391T RES, CARBON(1/5W,390ohm,J)
R893 CRD20TJ391T RES, CARBON(1/5W,390ohm,J)
R894 CRD20TJ391T RES, CARBON(1/5W,390ohm,J)
R895 CRD20TJ391T RES, CARBON(1/5W,390ohm,J)
R896 CRD20TJ391T RES, CARBON(1/5W,390ohm,J)
R897 CRD20TJ391T RES, CARBON(1/5W,390ohm,J)
R901 CRD20TJ272T RES, CARBON(1/5W,2.7Kohm,J)
R908 CRD20TJ333T RES, CARBON(1/5W,33Kohm,J)
R909 CRD20TJ333T RES, CARBON(1/5W,33Kohm,J)
R912 CRD20TJ332T RES, CARBON(1/5W,3.3Kohm,J)
R915 KRG1SANJ101RT RES, METAL(OXIDE)FILM,5% 100/1W(RADIAL)
R917 CRD25TJ393T RES, CARBON(1/4W,39Kohm,J)
R918 CRD25TJ393T RES, CARBON(1/4W,39Kohm,J)
R919 CRD25TJ393T RES, CARBON(1/4W,39Kohm,J)
R920 CRD25TJ393T RES, CARBON(1/4W,39Kohm,J)
R924 CRD20TJ473T RES, CARBON(1/5W,47Kohm,J)
R925 CRD20TJ473T RES, CARBON(1/5W,47Kohm,J)
R926 CRD20TJ473T RES, CARBON(1/5W,47Kohm,J)
R927 CRD20TJ104T RES, CARBON(1/5W,100Kohm,J)
R928 CRD20TJ222T RES, CARBON(1/5W,2.2Kohm,J)
R929 CRD20TJ222T RES, CARBON(1/5W,2.2Kohm,J)
R930 CRD20TJ222T RES, CARBON(1/5W,2.2Kohm,J)
R933 CRD20TJ472T RES, CARBON(1/5
R934 CRD20TJ153T RES, CARBON(1/5W,15Kohm,J)
R935 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R939 CRD20TJ472T RES, CARBON(1/5W,4.7Kohm,J)
R940 CRD20TJ152T RES, CARBON(1/5W,1.5Kohm,J)
R941 CRD25TJ223T RES, CARBON(1/4W,22Kohm,J)
R942 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R943 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R944 CRD25TJ223T RES, CARBON(1/4W,22Kohm,J)
R945 CRD25TJ223T RES, CARBON(1/4W,22Kohm,J)
R946 CRD25TJ223T RES, CARBON(1/4W,22Kohm,J)
R947 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R952 CRD25TJ223T RES, CARBON(1/4W,22Kohm,J)
R953 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R954 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R955 CRD20TJ563T RES,
R956 CRD20TJ274T RES, CARBON(1/5W,270Kohm,J)
R957 CRD20TJ153T RES, CARBON(1/5W,15Kohm,J)
R958 CRD20TJ563T RES, CARBON(1/5W,56Kohm,J)
R959 CRD20TJ104T RES, CARBON(1/5W,100Kohm,J)
R960 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)
R961 CRD20TJ331T RES, CARBON(1/5W,330ohm,J)
R962 CRD20TJ273T RES, CARB
R964 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R965 CRD20TJ223T RES, CARBON(1/5W,22Kohm,J)
R986 CRD20TJ102T RES, CARBON(1/5W,1Kohm,J)
R987 CRD20TJ561T RES, CARBON(1/5W,560ohm,J)
R988 CRD20TJ562T RES, CARBON(1/5W,5.6Kohm,J)
R989 CRD20TJ302T RES, CARBON(1/5W,3Kohm,J)
R991 CRD20TJ822T RES, CARBON(1/
R998 CRD20TJ103T RES, CARBON(1/5W,10Kohm,J)

ARBON(1/5W,56Kohm,J)

N(1/5W,27Kohm,J)

,4.7Kohm,J)

W,8.2Kohm,J)

1

1

1

1

1

1

1

1

1

1

1

1

AVR 2650 harman/kardon

97

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

VR81 CVN12A221B03T RES , SEMI FIXED (220 OHM)NVZ6TLTAB221/HOKURIKU
VR82 CVN12A221B03T RES , SEMI FIXED (220 OHM)NVZ6TLTAB221/HOKURIKU
VR83 CVN12A221B03T RES , SEMI FIXED (220 OHM)NVZ6TLTAB221/HOKURIKU
VR84 CVN12A221B03T RES , SEMI FIXED (220 OHM)NVZ6TLTAB221/HOKURIKU
VR85 CVN12A221B03T RES , SEMI FIXED (220 OHM)NVZ6TLTAB221/HOKURIKU
VR86 CVN12A221B03T RES , SEMI FIXED (220 OHM)NVZ6TLTAB221/HOKURIKU
VR87 CVN12A221B03T RES , SEMI FIXED (220 OHM)NVZ6TLTAB221/HOKURIKU
CMYAVR2650 HEAT SINK ASS'Y
CFNRDH8025S MOTOR , FAN (80X80X25) 12V, 0.17A
CHD1A012R SCREW , SPECIAL 14.0
CHD1A036R SCREW , SPECIAL 4.0
CHD3A012R SCREW , SPECIAL 12.0
CMD1A417 BRACKET , PCB AG-D8900 2.0
CMD1A674 BRACKET , H/S 2.0
CMD1A694 BRACKET , FAN
CMY4A314 HEAT SINK
CTB3+8JR SCREW 6.0
CTW3+8JR SCREW 2.0
Q652 CVT2SB1560P43M TRANSISTOR Power, 2SB1560, MT­ Q653 CVT2SB1560P43M TRANSISTOR Power, 2SB1560, MT­ Q654 CVT2SB1560P43M TRANSISTOR Power, 2SB1560, MT-100(TO3P) w MICA M43
Q655 CVT2SB1560P43M TRANSISTOR Power, 2SB1560, MT­ Q657 CVT2SD2390P43M TRANSISTOR Power, 2SD2390, MT­ Q658 CVT2SD2390P43M TRANSISTOR Power, 2SD2390, MT­ Q659 CVT2SD2390P43M TRANSISTOR Power, 2SD2390, MT­ Q660 CVT2SD2390P43M TRANSISTOR Power, 2SD2390, MT­ Q661 CVT2SB1560P43M TRANSISTOR Power, 2SB1560, MT­ Q670 CVT2SD2390P43M TRANSISTOR Power, 2SD2390, MT­ Q803 CVT2SD2390P43M TRANSISTOR Power, 2SD2390, MT­ Q804 CVT2SB1560P43M TRANSISTOR Power, 2SB1560, MT­ Q805 CVT2SD2390P43M TRANSISTOR Power, 2SD2390, MT­ Q807 CVT2SB1560P43M TRANSISTOR Power, 2SB1560, MT-100(TO3P) w MICA M43
Q851 HVTKTD600KGR TRANSISTOR, BIAS KTD600KGR
Q852 HVTKTD600KGR TRANSISTOR, BIAS KTD600KGR
Q853 HVTKTD600KGR TRANSISTOR, BIAS KTD600KGR
Q854 HVTKTD600KGR TRANSISTOR, BIAS KTD600KGR
Q855 HVTKTD600KGR TRANSISTOR, BIAS KTD600KGR
Q856 HVTKTD600KGR TRANSISTOR, BIAS KTD600KGR
Q857 HVTKTD600KGR TRANSISTOR, BIAS KTD600KGR
BN14 CWB1D00718088 WIRE ASS'Y (2.5MM,180MM, 7PIN, DUAL-DIPP TYPE)
BN15 CWB1D00915088 WIRE ASS'Y (2.5mm,150mm, 9pin, Dual-dip type)
BN20 CWB3F905300UZ WIRE ASS'Y (3.96mm, 300mm, 5pin)
BN25 CWE8112120VV WIRE ASS'Y (1PIN,120mm,LUG,#18,RED)
BN26 CWE8112120VV WIRE ASS'Y (1PIN,120mm,LUG,#18,RED)
CN10 CJP03GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN11 CJP08GA221ZB FEMALE HEADER (08P,2.54mm) , STRAIGHT TYPE
CN12 CJP27GA285ZN WAFER,FPC 1.25mm,stright 1.25-2-NP
CN61 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN62 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN63 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN64 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN65 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN66 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)

00(TO3P) w MICA M43
00(TO3P) w MICA M43

00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43
00(TO3P) w MICA M43

N

N

E

AVR 2650 harman/kardon

98

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

CN67 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN89 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
CN90 CJP02GA89ZY WAFER, YW396­ CN91 CJP02GA89ZY WAFER, YW396­ CN92 CJP02KA060ZY WAFER
CN93 CJP02GA01ZY WAFER,YMW025(2.5mm,STRAIGHT)
C632 CCEA1JH221E CAP , ELECT 220UF 63V
C633 CCEA1JH221E CAP , ELECT 220UF 63V
C637 CCEA1JH221E CAP , ELECT 220UF 63V
C638 CCEA1JH221E CAP , ELECT 220UF 63V
C904 KCKDKS472ME CAP , CERAMIC(X1/Y2/SC) 0.0047UF/2.5KV
C906 CCEA1VH102E CAP , ELECT(35V/1000uF) KR3-35V102MG(12.5*20L)
C915 CCET63VKL5103NK CAP , ELECT
C916 CCET63VKL5103NK CAP , ELECT
ET92 CMD1A569 BRACKET , PCB
ET93 CMD1A387 BRACKET , PCB
IC95 CVINJU7223F50 I.C , REGULATOR(5V, TO-220F) NJU7223F50
JK90 CJJ4M070Z JACK , 1P(PURPLE) , GOLD PLATE RCA-107BAG-01
JK91 CJJ5R006Z TERMINAL , SPEAKER
JK92 CJJ5Q012Z TERMINAL , SPEAKER
JW91 CWE8112120VV WIRE ASS'Y (1PIN,120mm,LUG,#18,RED)
L501 CLEY0R5KAK COIL , SPEAKER(0.5uH) SPRING COIL 8TS/KSE
L502 CLEY0R5KAK COIL , SPEAKER(0.5uH) SPRING COIL 8TS/KSE
L503 CLEY0R5KAK COIL , SPEAKER(0.5uH) SPRING COIL 8TS/KSE
L504 CLEY0R5KAK COIL , SPEAKER(0.5uH) SPRING COIL 8TS/KSE
L505 CLEY0R5KAK COIL , SPEAKER(0.5uH) SPRING COIL 8TS/KSE
L506 CLEY0R5KAK COIL , SPEAKER(0.5uH) SPRING COIL 8TS/KSE
L507 CLEY0R5KAK COIL , SPEAKER(0.5uH) SPRING COIL 8TS/KSE
Q858 HVTKTA1360Y TRANSISTOR , PRE DRIVE KTA1360Y
Q871 HVTKTA1360Y TRANSISTOR , PRE DRIVE KTA1360Y
Q872 HVTKTA1360Y TRANSISTOR , PRE DRIVE KTA1360Y
Q874 HVTKTA1360Y TRANSISTOR , PRE DRIVE KTA1360Y
Q875 HVTKTA1360Y TRANSISTOR , PRE DRIVE KTA1360Y
Q876 HVTKTA1360Y TRANSISTOR , PRE DRIVE KTA1360Y
Q877 HVTKTA1360Y TRANSISTOR , PRE DRIVE KTA1360Y
Q881 HVTKTC3423Y TRANSISTOR , PRE DRIVE KTC3423Y
Q882 HVTKTC3423Y TRANSISTOR , PRE DRIVE KTC3423Y
Q883 HVTKTC3423Y TRANSISTOR , PRE DRIVE KTC3423Y
Q884 HVTKTC3423Y TRANSISTOR , PRE DRIVE KTC3423Y
Q885 HVTKTC3423Y TRANSISTOR , PRE DRIVE KTC3423Y
Q886 HVTKTC3423Y TRANSISTOR , PRE DRIVE KTC3423Y
Q887 HVTKTC3423Y TRANSISTOR , PRE DRIVE KTC3423Y
RY94 CSL1C005ZE RELAY (DC 5V, 1C1P) HL3-1A-5SH
R656 CRF5EKR27HX2K RES , CEMENT (0.27 OHM)
R657 CRF5EKR27HX2K RES , CEMENT (0.27 OHM)
R658 CRF5EKR27HX2K RES , CEMENT (0.27 OHM)
R659 CRF5EKR27HX2K RES , CEMENT (0.27 OHM)
R660 CRF5EKR27HX2K RES , CEMENT (0.27 OHM)
R706 CRF5EKR10HS RES , CEMENT (SMALL SIZE)
R707 CRF5EKR10HS RES , CEMENT (SMALL SIZE)
R810 CRF5EKR27HX2K RES , CEMENT (0.27 OHM)
R811 CRF5EKR27HX2K RES , C
R905 CRG1ANJ1R0H RES , METAL OXIDE FILM 1 OHM 1W J

MENT (0.27 OHM)

NAB(7.92mm)
NAB(7.92mm)

C

.

.

V

1

S

AVR 2650 harman/kardon

99

Reference Part Number Description
Designator




MAIN PCB ASS'Y COP12364D

R922 CRG2ANJ470H RES , METAL OXIDE FILM 47 OHM 2W J
R923 CRG1ANJ220H RES , METAL OXIDE FILM 22 OHM 1W J
R990 CRG1ANJ100H RES , METAL OXIDE FILM 10 OHM 1W J
R993 CRG1ANJ100H RES , METAL OXIDE FILM 10 OHM 1W J
R994 CRG1ANJ100H RES , METAL OXIDE FILM 10 OHM 1W J
R995 CRG1ANJ100H RES , METAL OXIDE FILM 10 OHM 1W J
R996 CRG1ANJ100H RES , METAL OXIDE FILM 10 OHM 1W J
R997 CRG1ANJ100H RES , METAL OXIDE FILM 10 OHM 1W J
R999 CRG1ANJ100H RES , METAL OXIDE FILM 10 OHM 1W J
TH91 KRTP42T7D330B THERMAL SENSOR , POSISTOR P42T7D330BW20
T902 CLT5I025ZU TRANS , SUB (AVR156X/1650/2650/3650)

DC-DC PCB ASS'Y COP12365D

C123 CCUS1H473KC CAP, CHIP(1608, 50V/0.047uF)
C124 CCUS1H473KC CAP, CHIP(1608, 50V/0.047uF)
C127 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C135 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C136 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C920 CCUS1H104KC CAP,
C921 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C922 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C923 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C924 CCUS1H103KC CAP, CHIP(1608, 50V/0
C925 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C926 CCEC1ACEEX151TY CAP , ELEC SMD (150uF/10V, 8X10.5,SANYO)10CE150EX
C936 CCUS1H473KC CAP, CHIP(1608, 50V/0.047uF)
C937 CCUS1H473KC CAP, CHIP(1608, 50V/0.047uF)
C950 CCUS1H104KC CAP, CHIP(1608, 50V/0
C951 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C952 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C953 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C954 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C955 CCUS1H104KC CAP, CHIP(1608, 50
C956 CCEC1ACEEX151TY CAP , ELEC SMD (150uF/10V,8X10.5, SANYO) 10CE150EX
C960 CCEC1EHVH151TY CAP , ELEC SMD (150uF/25V,8X10.5, SANYO) 25HVH150M
C961 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C962 CCUS1H221JA CAP, CHIP(1608, 50V/220pF)
C963 CCUS1H104KC CAP, CHIP(1608, 50V/0.1uF)
C964 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C965 CCUS1H103KC CAP, CHIP(1608, 50V/0.01uF)
C966 CCUS1H104KC CAP, CHIP(
C967 CCEC1ACEEX151TY CAP , ELEC SMD (150uF/10V, 8X10.5, SANYO) 10CE150EX
D920 CVDSS34SR DIODE , SCHOTTKY (40V,3A, DO-214AC)DELTA SS34SR
D950 CVDSS34SR DIODE , SCHOTTKY (40V,3A, DO-214AC)DELTA S34SR
D960 CVDSS34SR DIODE , SCHOTTKY (40V,3A, DO-214AC)DELTA SS34SR
IC90 CVISI8005QTL IC, DCDC Converter (3.5A, SOP8) SANKEN SI8005QTL
IC95 CVISI8005QTL IC, DCDC Converter (3.5A, SOP8) SANKEN SI8005QTL
IC96 CVISI8005QTL IC, DCDC Converter (3.5A, SOP8) SANKEN SI8005QTL
L900 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F­ L901 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm,4516)HCB4516KF-600T60/COILMASTER
L902 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm,4516)HCB4516KF-600T60/COILMASTER
L903 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm,4516)HCB4516KF-600T60/COILMASTER

HIP(1608, 50V/0.1uF)

01uF)

1uF)

/0.1uF)

608, 50V/0.1uF)

ERIES

m

2

2

T

W

L

L

2

(

AVR 2650 harman/kardon

100

Reference Part Number Description
Designator




DC-DC PCB ASS'Y COP12365D

L904 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm,4516)HCB4516KF-600T60/COILMASTER
L920 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F-SERIES
L950 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F-SERIES
L960 CLQ12E100MRZ COIL , SMD POWER (10UH/3A) CMI-SPC9H45F-SERIES
R120 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R912 CRJ10DJ153T RES, CHIP(1608/5%/15Kohm)
R913 CRJ10DJ153T RES, CHIP(1608/5%/15Kohm)
R920 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R921 CRJ10DJ683T RES, CHIP(1608/5%/68Kohm)
R922 CRJ10DJ623T RES, CHIP(1608/5%/62Kohm)
R923 CRJ10DJ473T RES, CHIP(1608/5%/47Kohm)
R924 CRJ10DJ0R0T RES, CHIP(1608/5%/0ohm)
R925 CRJ10DJ512T RES, CHIP(1608/5%/5.1Kohm)
R942 CRJ10DJ104T RES, CHIP(1608/5%/100Kohm)
R950 CRJ10DJ223T RES, CHIP(1608/5%/22Koh
R951 CRJ10DJ683T RES, CHIP(1608/5%/68Kohm)
R952 CRJ10DJ623T RES, CHIP(1608/5%/62Kohm)
R953 CRJ10DJ753T RES, CHIP(1608/5%/75Kohm)
R954 CRJ10DJ332T RES, CHIP(1608/5%/3.3Kohm)
R955 CRJ10DJ512T RES, CHIP(1608/5%/5.1Kohm)
R960 CRJ10DJ223T RES, CHIP(1608/5%/22Kohm)
R961 CRJ10DJ683T RES, CHIP(1608/5%/68Kohm)
R962 CRJ10DJ623T RES, CHIP(1608/5%/62Kohm)
R963 CRJ10DJ273T RES, CHIP(1608/5%/27Kohm)
R964 CRJ10DJ222T RES, CHIP(1608/5%/2.2Kohm)
R965 CRJ10DJ512T RES, CHIP(1608/5%/5.1Kohm)
C131 CCEA1HH4R7T CAP , ELECT(50V/4.7uF) KR3-50V4R7MA(5*11L)
C912 CCEA0JH102T CAP , ELECT(1000uF/6.3V) 1000UF 6.3V
C939 CCEA1EH101T CAP , ELECT(25V/100uF) KR3­ C940 CCEA1EH101T CAP , ELECT(25V/100uF) KR3­ BN20 CWB1D01110058 WIRE ASS'Y
CN11 CJP08GB142ZB PIN HEADER (08P, 2.54mm) , ANGLE TYPE
CN82 CJP07GI237ZW LOCK-WAFER/STRAIGH
CN96 CJP09GJ243ZW LOCK­ C129 CCEA1EH103E CAP, ELECT(25V/10000uF)22x30 KR3-025V103MM300
C929 CCEA1VH222EZ CAP, ELECT (2200UF/35V, 12.5X31)KR3-35V222MH1­ C930 CCEA1VH222EZ CAP, ELECT (2200UF/35V, 12.5X31)KR3-35V222MH1­ IC83 CVIKIA278R15PI I.C, REGULATOR(15V OUTPUT LOW DROP) KIA278R15PI
IC84 CVIKIA7915PI I.C, REGULATOR(-15V, TO-

AFER/ANGLE/2.5mm

/2.5mm

POWER PCB ASS'Y COP12394D

)

5V101MB(6.3*11L)
5V101MB(6.3*11L)

/C4.0
/C4.0

20AB) KIA7915PI

C104 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C105 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C106 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J
C107 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C108 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C109 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J
C132 CCFT1H473ZF CAP , CERAMIC 0.047UF 50V Z
C133 CCFT1H473ZF CAP , CERAMIC 0.047UF 50V Z
C134 CCFT1H473ZF CAP , CERAMIC 0.047UF 50V Z
C921 KCME2E104JP04T CAP , M-FILM
C922 CCME2A104JXT CAP,METAL-FILM(100V/0.1uF) HMFS104J2AP050T

250V/0.1uF)

W

(

AVR 2650 harman/kardon

101

Reference Part Number Description
Designator




POWER PCB ASS'Y COP12394D

C923 CCME2A104JXT CAP,METAL-FILM(100V/0.1uF) HMFS104J2AP050T
C924 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C925 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
D114 CVD1N4003ST DIODE , RECT 1N4003
D115 CVD1N4003ST DIODE , RECT 1N4003
D116 CVD1N4003ST DIODE , RECT 1N4003
D117 CVD1N4003ST DIODE , RECT 1N4003
D124 CVD1N4003ST DIODE , RECT 1N4003
D125 CVD1N4003ST DIODE , RECT 1N4003
D921 CVD1N4003ST DIODE , RECT 1N4003
F110 KBA2D6300A2EYT FUSE(382 Series, 250V, 6.3A)
F111 KBA2D6300A2EYT FUSE(382 Series, 250V, 6.3A)
R901 C3A206 WIRE , COPPER SN95/PB5 , 0.6
R902 C3A206 WIRE , COPPER SN95/PB5 , 0.6
BN96 CWB1D00912058 WIRE ASS'Y (LOCKING TYPE, 2.5MM, 9PIN, 120MM)
CN20 CJP05GA90ZY WAFER , 5P(DIP, 3.96PITCH)
C135 CCEA1EH472E CAP , ELECT(25V/4700uF) KR3-25V472MR(16*31.5L)
D701 CVDKBU804FMA BRIDGE DIODE ASS'Y KBU804F
CMY1A219 HEAT SINK (BRIDGE DIODE)
CTB3+12JR SCREW
D991 CVDGBJ1506BIA DIODE HEAT SINK ASS'Y (CMY2A138)
CMY2A138 HEAT SINK
CTB3+8JR SCREW
HVDGBJ1506 DIODE , BRIDGE(15A/600V) GBJ1506
RY21 CSL4B019ZU RELAY GB-2C-D24P
R104 CRQ1AJR47H RES , FUSE
R105 CRQ1AJR47H RES , FUSE
CRE1A076 SUPPORT , PCB 2.0
CTB3+6FFZR SCREW 11.0
CTB3+6JR SCREW 7.0
CTB3+8JFZR SCREW 19.0
CTS3+8JFZR SCREW 4.0
CTW3+12JR SCREW 2.0
CTW3+8JR SCREW 3.0
CUA4A294 CHASSIS , BOTTOM SECC 1.2T
KMC1A186 SHIELD, CUSHION 2.0
BN90 CSH1A015ZA SWITCH , MOMS
CSH1A015Z SWITCH , MOMS(OR-L-11G-BB) OR-L-11G-BB
CWB4F202080UK WIRE ASS'Y (3.96MM, 80MM, 2P, RED)
BN92 CWZPM5003TW91A 2P WIRE ASS'Y(100MM)
RT01 CJJ8A006ZW RECEPTACLE , AC(15A/250V,R-301,B21) R-301(B21)
TW91 CWZPM5003TW91 2P WIRE ASS'Y
CN12 CWC4C4A27B100B10 CARD , CABLE (27p,1.25mm Pitch,100mm Protec
F901 KBA2C8000TLEY FUSE(218 Series, 250V, 8A)
T901 CLT5V058ZU TRANS , POWER(AVR2650)
WF104 CWC4F2A17A100A10 CARD CABLE (1.0mm , A type , 17pin , 100mm)
WF105 CWC4F2A17A080A10 CARD , CABLE (17P/1.00mm/80mm , A TYPE)

MISCELLANEOUS/MECHANICAL

CHE154 CLAMPER , ARM
CGB1A233Z BADGE , AVR2650
CGL1A222 INDICATOR , VOLUME

IRE ASS'Y (2P, 80MM, RED)

100MM)

T

AVR 2650 harman/kardon

102

Reference Part Number Description
Designator




MISCELLANEOUS/MECHANICAL

CGR1A530H63 COVER , USB
CGU1A318Y ORNAMEN
CGU2A410A25O WINDOW , FIP
CGWAVR2650 FRONT PANEL ASS'Y
CBT2A1064 KNOB , STANDBY
CBT2A1065 KNOB , BACK
CGB3A158Z BADGE , HARMAN/KARDON (FRONT)
CGL1A265Y INDICATOR , POWER
CGW6A447RHUB24 PANEL , FRONT
CHG1A309 RUBBER
CMC1A372 PLATE , SHIELD 2.0
CMC1A414 PLTE , EARTH USB & HDMI
CMC1A416 PLATE , EARTH TOP 2.0
CMC3A338 PLATE , EARTH 2.0
CMD1A555 BRACKET , SIDE (L)
CMD2A443 BRACKET , SIDE
CMH2A215 HOLDER , LED
CMZ1A127 FILTER , FIP

, VOLUME

AVR 2650 harman/kardon

103

TECHNICAL DATA

Interface Transceiver of RS-232 Standard

ILX3232

with One Supply Voltage

DESCRIPTION

The ILX3232 is a 3V powered EIA/TIA-232 and V.28/V.24 communication interface with low power
requirements, high data-rate capabilities. ILX3232 has a proprietary low dropout transmitter output stage
providing true RS-232 performance from 3 to 5.5V supplies. The device requires only four small 0.1 µF
standard external capacitors for operations from 3V supply.

The ILX3232 has two receivers and two drivers. The device is guaranteed to run at data rates of
250Kbps while maintaining RS-232 output levels. Typical applications are Notebook, Subnotebook and
Palmtop Computers, Battery Powered Equipment, Hand-Held Equipment, Peripherals and Printers.

FEATURES

• 300 µA SUPPLY CURRENT

• 120Kbps MINIMUM GUARENTEED DATA RATE

• 3V/µs MINIMUM GUARANTEED SLEW RATE

• ENHANCED ESD SPECIFICATIONS:

±15kV IEC1000-4-2 Air Discharge

• AVAILABLE IN DIP-16, SO-16,TSSOP16 AND

SOP16L(W)

PIN CONFIGURATION

TSSOP 16

Ordering Information

ILX3232N Plastic DIP
ILX3232D SOIC
ILX3232TSD TSSOP

ILX3232DW SOP(W)

= from -40 to 85 оС

Т

А

for all packages

SOP16L(W)

January 2009, Ver. 04

AVR 2650 harman/kardon

104

ILX3232

PIN DESCRIPTION

PlN N° SYMBOL NAME AND FUNCTION

1 C1+
2 V+ Doubled Voltage Terminal
3 C1
4 C2+ Positive Terminal for the second Charge Pump Capacitor
5 C2
6 V- Inverted Voltage Terminal
7 T2OUT
8 R2IN

9 R2OUT Second Receiver Output Voltage
10 T2IN Second Transmitter Input Voltage
11 T1IN
12 R1OUT
13 R1IN
14 T1OUT First Transmitter Output Voltage
15 GND Ground
16 VCC Supply Voltage

ABSOLUTE MAXIMUM RATING

Symbol Parameter Value Unit

VCC

V+

V- Inverted Voltage Terminal 0.3 to -7 V

V+ +|V-|

TIN
RIN Receiver Input Voltage Range ± 25 V

TOUT Transmitter Output Voltage Range ± 13.2 V

ROUT

tSHORT

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these
condition is not implied. V+ and V-can have a maximum magnitude of +7V, but their absolute addition can not exceed 13 V.

Supply Voltage
Doubled Voltage Terminal

Transmitter Input Voltage Range

Receiver Output Voltage Range
Transmitter Output Short to GND Time

Positive Terminal for the first Charge Pump Capacitor

Negative Terminal for the first Charge Pump Capacitor

Negative Terminal for the second Charge Pump Capacitor

Second Transmitter Output Voltage
Second Receiver Input Voltage

First Transmitter Input Voltage
First Receiver Output Voltage
First Receiver Input Voltage

-0.3 to 6 V

(VCC - 0.3) to 7 V

13 V

-0.3 to 6 V

-0.3 to (V

CC + 0.3) V

Continuous

AVR 2650 harman/kardon

105

IDT74FCT38074

3.3V CMOS 1-TO-4 CLOCK DRIVER

INDUSTRIAL TEMPERATURE RANGE

3.3V CMOS
1-TO-4 CLOCK DRIVER

FEA TURES:

• Advanced CMOS Technology

• Guaranteed low skew < 100ps (max.)

• Very low duty cycle distortion< 250ps (max.)

• High speed propagation delay< 3ns (max.)

• Very low CMOS power levels

• TTL compatible inputs and outputs

• 1:4 fanout

• Maximum output rise and fall time < 1.5ns (max.)

• Low input capacitance: 3pF typical

•VCC = 3.3V ± 0.3V

• Inputs can be driven from 3.3V or 5V components

• Operating frequency up to 166MHz

• Available in SOIC package

FUNCTIONAL BLOCK DIAGRAM

IDT74FCT38074

DESCRIPTION:

The FCT38074 is a 3.3V clock driver built using advanced CMOS
technology. This low skew clock driver offers 1:4 fanout. The large fanout from
a single input reduces loading on the preceding driver and provides an efficient
clock distribution network. Multiple power and grounds reduce noise. Typical
applications are clock and signal distribution.

PIN CONFIGURATION

IN

O1

O2

O3

O4

1

VCC

IN

GND O1

2

3

4

8

7

6

5

O4VCC

O

O2

SOIC

TOP VIEW

3

AVR 2650 harman/kardon

106

NJM2581

DUAL SUPPLY WIDE BAND 3ch VIDEO AMPLIFIER

■■■■ GENERAL DESCRIPTION ■■■■ PACKAGE OUTLINE

The NJM2581 is a dual supply voltage wide band 3ch

video amplifier. It is suitable for Y, Pb, and Pr signal because
frequency range is 50MHz.

The NJM2581 is suitable for Set Top Box, AV amplifier,

and other high quality AV systems.

■■■■ FEATURES

● Operating Voltage ±4.5 to ±5.5V

● Wide frequency range 50MHz at 0dB typ.

● Internal 6dB Amplifier

● Internal 75ΩDriver Circuit (2-system drive)

● Power Save Circuit

● Bipolar Technology

● Package Outline DIP14, DMP14

■■■■ BLOCK DIAGRAM

VIN1

1

VEE1

2

BIAS

VIN2

3

VEE2

4

BIAS

VIN3

5

VEE3

6

BIAS

PowerSave

7

6dB

AMP

6dB

AMP

6dB

AMP

REF

75

Dr iv er

75

Dr iv er

75

Dr iv er

Ω

Ω

Ω

NJM2581D NJM2581M

V+ 1

14

13

VOUT1

12

V+ 2

VOUT2

11

+

V

10

9

8

3

VOUT3

GND

Ver.7

107

AVR 2650 harman/kardon

NJM2505A

SINGLE ISOLATION AMPLIFIER

■■■■ GENERAL DESCRIPTION ■■■■ PACKAGE OUTLINE

NJM2505A is the single isolation amplifier developed by the

video signal. It can remove the noise of a signal with isolation amplifier
and carries in the small package (MTP5), it is suitable for the interface
of the video signal of a car AV system.

■■■■ FEATURES

● Operating Voltage 4.5 to 9.0V

● Input: Sync-tip Clamp

● Common Mode Noise Rejection Ratio –55dBtyp.

● Voltage Gain 0dBtyp.

● Frequency Characteristics 0dBtyp.at 10MHz

● Bipolar Technology

● Package MTP5

■■■■ PIN CONFIGURATION

 

1: Vout

NJM2505AF



■■■■ BLOCK DIAGRAM

Vout

GND

+

V

2: GND

3: V+



4: Vin

5: VGND

 



VGND



Vin

Ver.4

AVR 2650 harman/kardon

108

NJM2595

5-INPUT 3-OUTPUT VIDEO SWITCH

■ GENERAL DESCRIPTI ON ■ PACKAGE OUTLINE

The NJM2595 is a 5-input 3-output video switch. Its switches

select one from five signals received from VTR,TV,DVD,
TV-GAME and others.
The NJM2595 is designed for audio items, such as AV amplifier
and others.

NJM2595D NJM2595M

■ FEATURES

● 5-input 3-output

● Operating Voltage ±4.0 to ±6.5V

● Operating current ±15mAtyp. at Vcc=±5V

● Crosstalk -65dBtyp.

● Internal 6dB Amplifier

● Internal 75Ω Driver

● Bipolar Technology

● Package Outline DIP16,DMP16

■ PIN CONFIGURATION and BLOCK DIAG RA M

16

+

SW2V

10 14 2

SW1

SW5

Vin1

Vin2

Vin3

Vin4

Vin5

13

20k

20k

20k

S5

S6

S7

6dB
Amp

6dB
Amp

6dB
Amp

8 12 6 4

-

75Ω
Driver

75Ω
Driver

75Ω
Driver

1

15

11

Vout1

Vout2

Vout3

9

20k

7

20k

5

20k

3

20k

S2

S3

SW3

S4

SW4

S1

GND V

109

AVR 2650 harman/kardon

NJW1321

WIDE BAND VIDEO SWITCH WITH I2C BUS

■■■■ GENERAL DESCRIPTION ■■■■ PACKAGE OUTLINE

The NJW1321 is a Wide Band Video Switch with I

2

C BUS.

The NJW1321 includes switch of 4-input 2-output and 6dB
amplifier. It is suitable for RGB or Y, Pb, and Pr signal because
frequency range is 100MHz.

The NJW1321 includes external logic control terminals and
external logic discernment terminals.

NJW1321FP1

The NJW1321 is suitable for PTV, DTV, PDP and other high quality
AV systems.

■■■■ FEATURES

● Operating Voltage +9.0V

2

C BUS Interface

● I

● 4-input 2-output 3-Circuits

● Wide frequency range 0dB at 100MHz typ.

-3dB at 300MHz typ.

● Internal 6dB amplifier (Selectable Bypass or 6dB)

● External logic discernment terminal

● External logic control terminal

● Selectable slave address

● Power Save Circuit

● Bi-CMOS Technology

● Package Outline QFP48

■■■■ BLOCK DIAGRAM

Y/R IN1

Y/R IN2

Y/R IN3

Y/R IN4

6dB

6dB

Y/R OUT1

Y/R OUT2

Pb/G IN1

Pb/G IN2

Pb/G IN3

Pb/G IN4

6dB

6dB

Pb/G OUT1

Pb/G OUT2

Pr/B IN1

Pr/B IN2

Pr/B IN3

Pr/B IN4

6dB

6dB

Pr/B OUT1

Pr/B OUT2

PORT 0

PORT 1

PORT 2

PORT 3

GND

VREF

I2C BUS

V+

BIAS

ADDRESS

SDA

SCL

AUX 0

AUX 1

AUX 2

AUX 3

DGND

Ver.3

V

A

A

A

A

110

AVR 2650 harman/kardon

NJW1321

■■■■PIN CONFIGURATION

UX0

Y OUT2

UX1

24

Pb OUT2
PORT0
PORT1
Pr OUT2

V+
VREF
DGND

GND
SDA

15

SCL

UX2

GND

39

V+

Pb IN4

38 25

V+

Y IN4

Y OUT1

GND

Pb OUT1

GND

UX3

Pr OUT1

Pr IN4

V+

Y IN3

GND

Pb IN3

V+

Pr IN3

GND

Y IN2

48

1

1. V+ 13. PORT2 25. AUX0 37. V+

2. Pb IN2 14. ADR 26. AUX1 38. Pb IN4

3. GND 15. SCL 27. Y OUT2 39. GND

4. Pr IN2 16. SDA 28. AUX2 40. Pr IN4

5. GND 17. GND 29. AUX3 41. V+

6. Y IN1 18. DGND 30. Pr OUT1 42. Y IN3

7. V+ 19. VREG 31. GND 43. GND

8. Pb IN1 20. V+ 32. Pb OUT1 44. Pb IN3

9. V+ 21. Pr OUT2 33. GND 45. V+

10. Pr IN1 22. PORT1 34. Y OUT1 46. Pr IN3

11. GND 23. PORT 0 35. V+ 47. GND

12. PORT3 24. Pb OUT2 36. Y IN4 48. Y IN2

+

GND

Pb IN2

Pr IN2

GND

Y IN1

V+

Pb IN1

V+

Pr IN1

GND

14

ADR

PORT3

PORT2

AVR 2650 harman/kardon

111

SI-8005Q

Step-Down Switching Regulator with Current-Mode Control

Features and Benefits

 Current-mode control system employed
 Excellent line regulation (60 mV maximum)
 165 m maximum on-resistance of built-in MOSFET
 Output current 3.5 A
 Wide range of input voltages (4.75 to 28 V), supports 24

V direct drive

 Output voltage 0.5 to 24 V, compatible with various IC

power supply voltages, through low V

 High efficiency, 94% maximum at V

and I

= 0.5 A

O

of 0.5 V.

REF

= 8 V, VO = 5 V,

IN

 Operating frequency 500 kHz, supports downsizing of

smoothing choke coil

 Soft start and output on/off functions built-in
 Built-in protection:

 Drooping overcurrent protection
 Overtemperature protection
 Undervoltage lockout (UVLO)

Package: HSOP8 surface mount with
exposed thermal pad

Description

The SI-8005Q is a step-down switching regulator IC, designed as
an output voltage regulator at the secondary stage of switch mode
power supplies. The current-mode control system permits small
ceramic capacitors to be used as output capacitors. Together
with the compact HSOP8 package, this allows reduction of
regulator circuitry area on the PCB by approximately 50% in
comparison with conventional topologies.

Designed to save power, losses in the SI-8005Q are reduced
by controlling the maximum on-resistance of a built-in output
MOSFET to as low as 165 m. Furthermore, die miniaturization
has been accomplished through a proprietary BCD process.

The SI-8005Q supplies an output current of 3.5 A and an output
voltage that is variable from 0.5 to 24 V, which is easily set to
a voltage compatible with the diverse reduced power supply
voltages required by signal processing ICs. Accepting a wide
input voltage range, from 4.75 to 28 V, the SI-8005Q can be
driven directly by a 24 V power supply.

Applications include power supplies for signal processing ICs
for memories and microcomputers used in plasma display panel
(PDP) TVs, liquid crystal display (LCD) TVs, computer hard
drives, and DVD recorders.

Not to scale

Functional Block Diagram

9

,1



,1

᧱

&XUU HQW

᧯

ː

293

76'

6HQVH

$PS

2&3

3:0

/2*,&

%RRW
5(*

$PS

'5,9(

YBOGR

66

᧰

᧯

9

᧭



&

26&

YBOGR

35(*

95()

9

(1

᧯

&203

&

5

21

᧯

2))



᧳



89/2

᧭



*1'

&

%6

᧲



&

6:

᧰

)%

᧴

/



'L

5



5

92

&

AVR 2650 harman/kardon

112

Philips Semiconductors Product specification

20-bit buffer/line driver, non-inverting (3-State)

PIN CONFIGURATION

1
2

1Y0

3

1Y1

4

GND

5

1Y2

6

1Y3

7

V

CC

8

1Y4

9

1Y5

10

1Y6

GND

11

1Y7

12

1Y8

13

1Y9

14

2Y0

15

2Y1

16

2Y2

17

GND

18

2Y3

19

2Y4

20

2Y5

21

V

22

CC

2Y6

23

2Y7

24

GND

25

2Y8

26

2Y9

27

1

2OE

28 29

561OE1
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30

SH00010

1OE
1A0
1A1
GND
1A2
1A3
V

CC

1A4
1A5
1A6
GND
1A7
1A8
1A9
2A0
2A1
2A2
GND
2A3
2A4
2A5
V

CC

2A6
2A7
GND
2A8
2A9
2OE

2

2

LOGIC SYMBOL (IEEE/IEC)

1OE1

1OE

2OE

2OE

1A0
1A1
1A2
1A3

1A4
1A5
1A6

1A7
1A8
1A9

2A0
2A1
2A2

2A3
2A4
2A5
2A6
2A7
2A8
2A9

74ALVCH16827

1

56

2

28

1

29

2

55
54
52
51
49
48
47
45
44

43
42
41
40
38
37
36
34
33
31
30

&

EN1

&

EN2

2

1 ∇

1

2 ∇

1

SH00012

1Y0

3

1Y1

5

1Y2

6

1Y3

8

1Y4

9

1Y5

10

1Y6

12

1Y7

13

1Y8

14

1Y9

15

2Y0

16

2Y1

17

2Y2

19

2Y3

20

2Y4

21

2Y5

23

2Y6

24

2Y7

26

2Y8

27

2Y9

LOGIC SYMBOL

55 54 52 51 49 48 47 45 44 43

1A0 1A1 1A2 1A3 1A4 1A5 1A6 1A7

1

1OE1

56

1OE2

1Y0 1Y1 1Y2 1Y3 1Y4 1Y5 1Y6 1Y7

2 3 5 6 8 9 10 12 13 14

42 41 40 38 37 36 34 33 31 30

2A0 2A1 2A2 2A3 2A4 2A5 2A6 2A7

28

2OE1

29

2OE2

2Y0 2Y1 2Y2 2Y3 2Y4 2Y5 2Y6 2Y7

15 16 17 19 20 21 23 24 26 27

1A8 1A9

1Y8 1Y9

2A8 2A9

2Y8 2Y9

FUNCTION TABLE

INPUTS OUTPUTS

nOE1 nOE2 A Y

L L L L

L L H H
H H X Z
X H X Z

H = High voltage level
L = Low voltage level
X = Don’t care
Z = High impedance “off” state

SH00011

V

V

V

DC in ut voltage

V

AVR 2650 harman/kardon

113

Philips Semiconductors Product specification

20-bit buffer/line driver, non-inverting (3-State)

74ALVCH16827

LOGIC DIAGRAM

nOE
nOE2

nA0

1

nY0

nA1

nY1

nA2

nY2

nA3

nY3

nA4

nY4

nA5

nY5

nA6

nY6

nA7

nY7

nA8

nY8

RECOMMENDED OPERA TING CONDITIONS

SYMBOL PARAMETER CONDITIONS MIN MAX UNIT

T

V

V

amb

tr, t

CC

DC supply voltage 2.5V range (for max. speed
performance @ 30 pF output load)

DC supply voltage 3.3V range (for max. speed
performance @ 50 pF output load)

DC Input voltage range 0 V

I

DC output voltage range 0 V

O

Operating free-air temperature range –40 +85 °C
Input rise and fall times

f

VCC = 2.3 to 3.0V
V

= 3.0 to 3.6V

CC

2.3 2.7

3.0 3.6

0
0

20
10

CC
CC

nA9

nY9

SH00013

V
V

ns/V

ABSOLUTE MAXIMUM RATINGS

1

In accordance with the Absolute Maximum Rating System (IEC 134)
Voltages are referenced to GND (ground = 0V)

SYMBOL

V

CC

I

IK

I

I

OK

V

O

I

O

I

, I

GND

CC

T

stg

P

TOT

DC supply voltage –0.5 to +4.6 V
DC input diode current VI 0 –50 mA

DC output diode current V
DC output voltage Note 2 –0.5 to VCC +0.5 V
DC output source or sink current VO = 0 to V
DC VCC or GND current 100 mA
Storage temperature range –65 to +150 °C
Power dissipation per package

–plastic medium-shrink (SSOP)
–plastic thin-medium-shrink (TSSOP)

PARAMETER CONDITIONS RATING UNIT

CC

2

2

–0.5 to +4.6

–0.5 to VCC +0.5

50 mA

p

For control pins
For data inputs

VCC or VO  0 50 mA

O

For temperature range: –40 to +125 °C
above +55°C derate linearly with 11.3 mW/K
above +55°C derate linearly with 8 mW/K

850
600

mW

NOTE:

1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the
device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to
absolute-maximum-rated conditions for extended periods may affect device reliability .

2. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

5

P/N:PM1281

REV. 1.0, AUG. 14, 2008

MX29LV320D T/B

32M-BIT [4M x 8 / 2M x 16] 3V SUPPLY FLASH MEMORY

FEATURES

GENERAL FEA TURES

• Byte/Word s witchable

- 4,194,304 x 8 / 2,097,152 x 16

• Sector Structure

- 8K-Byte x 8 and 64K-Byte x 63

• Extra 64K-Byte sector for security

- Features facto ry lo ck ed and identifiable, and customer lockable

• Tw enty-Fo ur Sector Gro ups

- Pro vides sector g roup pro tect functio n to pre vent pro gram o r erase o peratio n in the pro tected sector g rou p

- Pro vides chip unprotect functio n to allow co de changing

- Pro vides temporary secto r gro up unpro tect function f o r code changing in pre vio usly protected secto r gro ups

• Power Supply Operatio n

- Vcc 2.7 to 3.6 v o lt for read, erase, and program o perations

• Latch-up protected to 100mA from -1V to 1.5 x Vcc

• Low Vcc write inhibit : Vcc <= Vlko

• Compatible with JEDEC standard

- Pinout and so ftware co mpatib le to single power supply Flash

• Functional compatible with MX29L V320C T/B device

PERFORMANCE

• High Performance

- Fast access time: 70ns

- Fast pro gram time: 11us/wo rd typical utilizing accelerate function

- Fast erase time: 0.7s/sector, 35s/chip (typical)

• Low Power Co nsumption

- Low active read current: 10mA (typical) at 5MHz

- Low standby current: 5uA (typical)

• T ypical 100,000 erase/pro gram cycle

• 10 years data retention

SOFTW ARE FEATURES

• Erase Suspend/ Erase Resume

- Suspends sector er ase operatio n to read data fro m o r prog ram data to ano ther sector which is no t being erased

• Status Reply

- Data# Po lling & T o ggle bits pro vide detectio n o f prog ram and erase o peration co mpletio n

• Support Commo n Flash Interface (CFI)

HARDW ARE FEA TURES

• Ready/Busy# (RY/BY#) Output

- Provides a hardw are method o f detecting pro gram and erase o peratio n completio n

• Hardware Reset (RESET#) Input

- Pro vides a hardware metho d to reset the internal state machine to read mode

• WP#/ACC input pin

- Pro vides accelerated progr am capability

AVR 2650 harman/kardon

114

7

P/N:PM1281

REV. 1.0, AUG. 14, 2008

MX29LV320D T/B

PIN CONFIGURATION

48 TSOP

A15
A14
A13
A12
A11
A10

A9

A8
A19
A20

WE#

RESET#

NC

WP#/ACC

RY/BY#

A18
A17

A7

A6

A5

A4

A3

A2

A1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

A16
BYTE#
GND
Q15/A-1
Q7
Q14
Q6
Q13
Q5
Q12
Q4
VCC
Q11
Q3
Q10
Q2
Q9
Q1
Q8
Q0
OE#
GND
CE#
A0

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25

44 SOP

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23

WE#

A18
A17

A7
A6
A5
A4
A3
A2
A1
A0

CE#

GND

OE#

Q0
Q8
Q1
Q9
Q2

Q10

Q3

Q11

A20
A19
A8
A9
A10
A11
A12
A13
A14
A15
A16
BYTE#
GND
Q15/A-1
Q7
Q14
Q6
Q13
Q5
Q12
Q4
VCC

48-Ball TFBGA/LFBGA (6mm x 8mm, T op View , Balls F acing Down)

6

5

4

3

2

1

ABCDEFGH

A9

WE#

RY/BY#

A7

A3

A8

RE-

SET#

WP#/

ACC

A17

A4

A10

NC

A18

A6

A2

A11

A19

A20

A5

A1

Q7

Q5

Q2

Q0

A0

Q14

Q12

Q10

Q8

CE#

Q13

VCC

Q11

Q9

OE#

Q6

Q4

Q3

Q1

GND

A13 A12 A14 A15 A16 BYTE#

Q15/

A-1

GND

AVR 2650 harman/kardon

115

AVR 2650 harman/kardon

116

AVR 2650 harman/kardon

117

Data Brief

7

FLI30336

Single-chip enhanced LCD TV controller

Features

■ Integrated 3D video decoder

■ Flexible digital capture up to 165 MHz and

analog capture up to 162 MHz

■ VBI signal processing including WST version

2.5 support

■ Flexible DDR memory interface

■ Faroudja® TrueLife™ video enhancer

■ Advanced Picture-in-Picture (PIP) features

■ Advanced Color Management (ACM-3D) and

Adaptive Contrast Control (ACC)

■ On-chip microprocessor

■ Advanced bitmapped OSD controller

■ LCD overdrive

■ Embedded 10-bit dual-channel LVDS for

1080p and WUXGA panel support

■ Package: 416 PBGA

Applications

■ LCD and PDP TV

■ DLP®, LCD, and LCOS front and rear

projection

TTL

RGB or

YUV

Dual
Channel
LVDS

GPIO

6 channels

External Memory

Control Interface

YPrPb/

RGB 1

YPrPb/

RGB 2

2x24-bit or

1x30+1x16 bit

input

I2S inI2S

out

Sharpening

Filters

ACM 3D

and ACC

-

Output

Formatter

10 bit

LVDS Tx

OSD

Controller

VBI Data

Proc

Analog

Front

End

Digital

Input

Port

Embedded

Micro

processor

IR I/

F

LBWADC

3x3

Matrix

General
Purpose

I/O

YC1

YC2

Audio
Delay

CV1
CV2
CV3

Enhancer

3x3

Matrix


Blend

CLUTs

OSD

Blend

10 bit

Memory

Controller

10-bit Triple

ADC

DCDi Format

Conversion

for PIP

MUX

TTX

Decoder

10-bit 3D Video

Decoder and

Triple ADC

www.st.com

AVR 2650 harman/kardon

118

Description FLI30336

2/7

1 Description

The FLI30336 offers high integration for advanced applications of Picture-in-Picture (PIP)
and Picture-by-Picture (PBP) with an integrated video decoder and a 3D comb filter. The
FLI30336 can power up to 1080p/WUXGA displays with the proven Faroudja DCDi Cinema
branded technology.

Special performance features such as the Faroudja DCDi Cinema video format converter,
10-bit performance in the device, and the Advanced Color Management (ACM-3D) provide
exceptional video quality. This exclusive level of video quality technology only seen on
Faroudja Home Theater Systems is now available in a single-chip solution.

The FLI30336 also comprises an integrated Analog Front-End (AFE) that includes triple
ADCs and an integrated cross-point switch. The flexible AFE ensures simple PCB design
with direct connections to TV tuners and input video connectors. In essence, the FLI30336
is the only device needed for a single LCD TV chassis supporting worldwide standards. For
regional variations, only connector and firmware changes are required.

The integrated VBI dataslicer and decoder remove the need for external components
resulting in significant cost reduction. The FLI30336 supports many worldwide VBI
standards for applications of Teletext, Closed Captioning, V-Chip, and other VBI services.

The FLI30336 can be used in digital TV solutions requiring Faroudja DCDi Cinema video
performance levels. An embedded microprocessor and a versatile OSD in a single device
will facilitate rapid development of a reliable and attractive product. The FLI30336 utilizes
the common Cortez family firmware for easy and effortless migration across different
hardware platforms within this family.

Figure 1. System diagram

SCART or Analog RGB

FLI30336

Display

up to

WUXGA/

1080p

DDR

SDRAM

Program

Flash

Y/C

Component Video

TV

Tuner

RF

LVDS

16 configurable

analog inputs

Optional Second

Analog Channel

MPEG-2 Decoder

RF

AVR 2650 harman/kardon

119

AVR 2650 harman/kardon

120

A3S56D30FTP
A3S56D40FTP

256M Double Data Rate Synchronous DRAM

Pin Assignment (Top View) 66-pin TSOP

x8

x16

Vdd
DQ0

VddQ

NC

DQ1

VssQ

NC

DQ2

VddQ

NC

DQ3

VssQ

NC
NC

VddQ

NC
NC

Vdd

NC

NC

/WE
/CAS
/RAS

/CS

NC

BA0

BA1

A10/AP

A0
A1

A2
A3

Vdd

Vdd
DQ0

VddQ

DQ1
DQ2

VssQ

DQ3
DQ4

VddQ

DQ5
DQ6

VssQ

DQ7

NC

VddQ

LDQS

NC

Vdd

NC

LDM

/WE
/CAS
/RAS

/CS

NC

BA0

BA1

A10/AP

A0
A1

A2
A3

Vdd

1
2

3
4
5
6
7

8
9
10

11
12
13

14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

66pin TSOP(II)

400mil width

x

875mil length

0.65mm

Lead Pitch

Row

A0-12

Column

A0-9 (x8)
A0-8 (x16)

66
65

64
63
62
61
60

59
58
57

56
55
54

53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34

Vss
DQ15

VssQ
DQ14
DQ13
VddQ

DQ12
DQ11
VssQ

DQ10
DQ9

VddQ
DQ8
NC
VssQ
UDQS

NC
VREF

Vss
UDM

/CLK

CLK
CKE
NC
A12

A11
A9

A8
A7
A6
A5
A4

Vss

Vss
DQ7

VssQ
NC
DQ6
VddQ

NC
DQ5
VssQ

NC
DQ4

VddQ
NC
NC
VssQ
DQS

NC
VREF

Vss
DM

/CLK

CLK
CKE
NC
A12

A11
A9

A8
A7
A6
A5
A4

Vss

CLK, /CLK : Master Clock
CKE : Clock Enable
/CS : Chip Select
/RAS : Row Address Strobe
/CAS : Column Address Strobe
/WE : Write Enable

DQ0-15 : Data I/O (x16)

DQ0-7 : Data I/O (x8)

UDM, LDM : Write Mask (x16)

DM : Write Mask (x8)

UDQS, LDQS : Data Strobe (x16)

DQS : Data Strobe (x8)

A0-12 : Address Input
BA0,1 : Bank Address Input
Vdd : Power Supply
VddQ : Power Supply for Output
Vss : Ground
VssQ : Ground for Output

VREF : SSTL_2 reference voltage
