harman/kardon Service Manual
AVR 139/230
AVR 141/230
AVR 142/230
5 x 40W 5.1 CHANNEL A/V RECEIVER
CONTENTS
ESD WARNING 2
BASIC SPECIFICATIONS 3
TROUBLESHOOTING GUIDE 4
PROCESSOR RESET 4
PACKAGE LISTS AND PARTS 5
DISASSEMBLY 8
EXPLODED VIEW AND PARTS 9
Released EU2009 Harman Consumer Group, Inc. Rev 0, 04/2009
8500 Balboa Boulevard
Northridge, California 91329
ELECTRICAL PARTS LIST 10
IC LIST 30

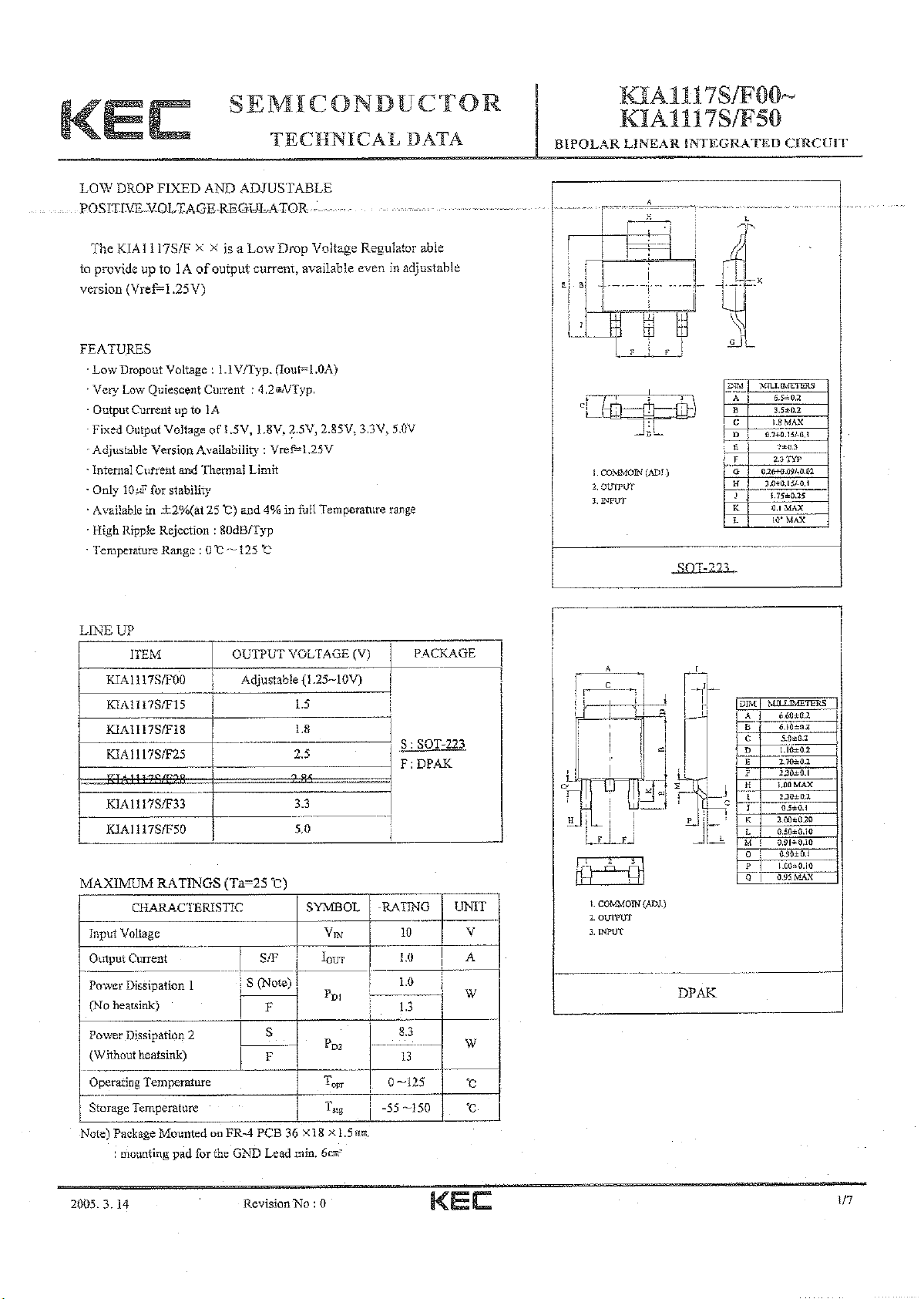

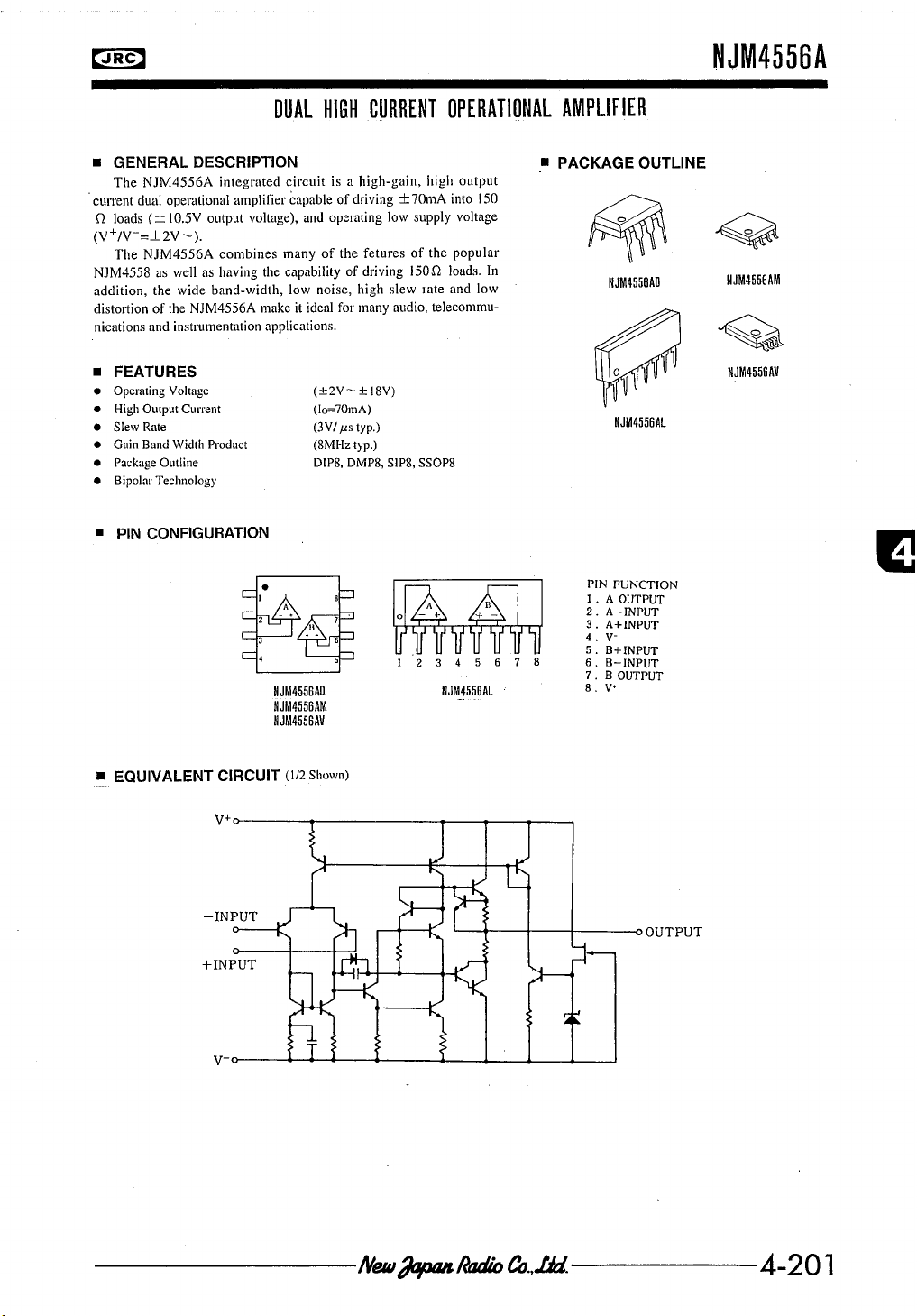

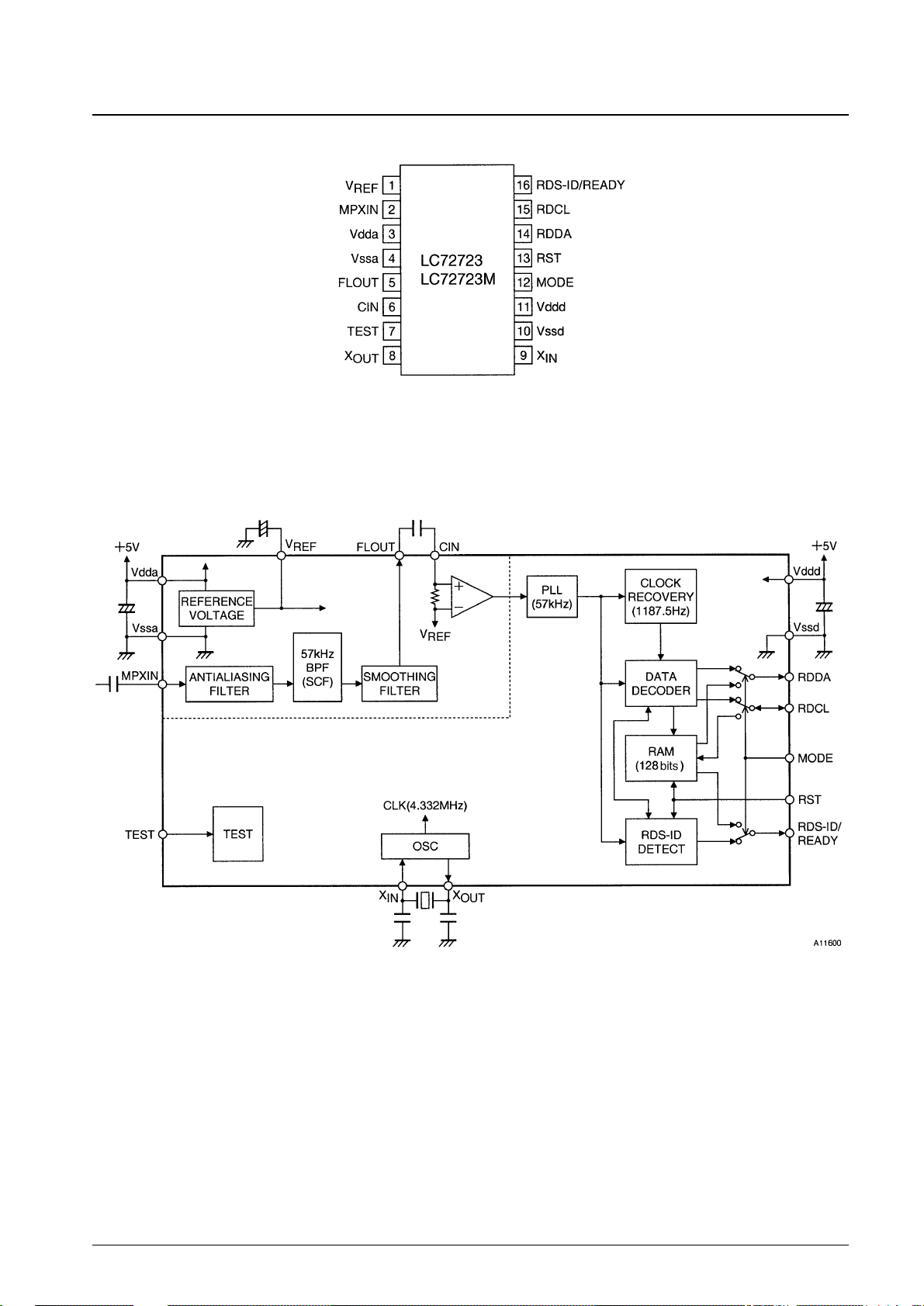

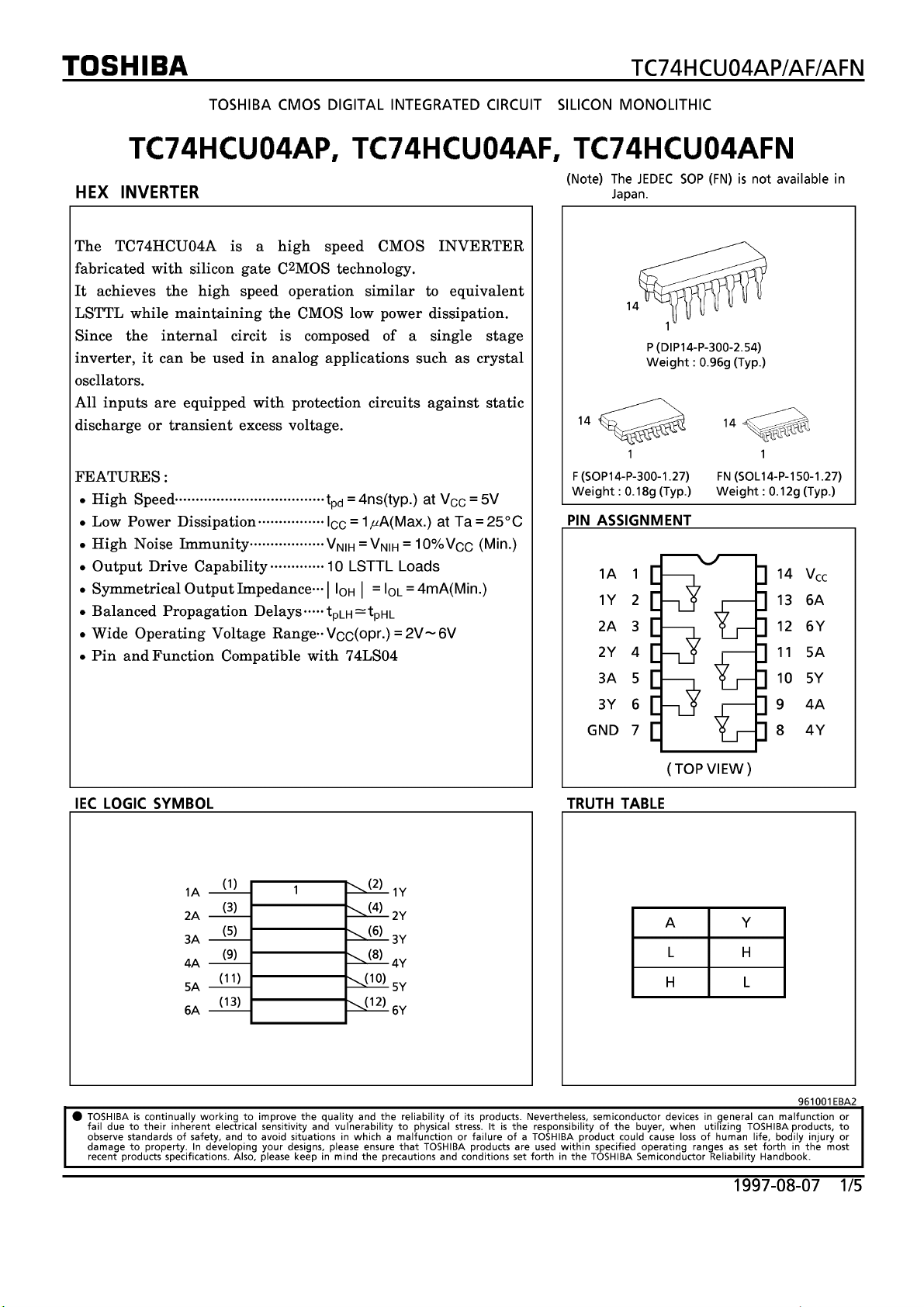

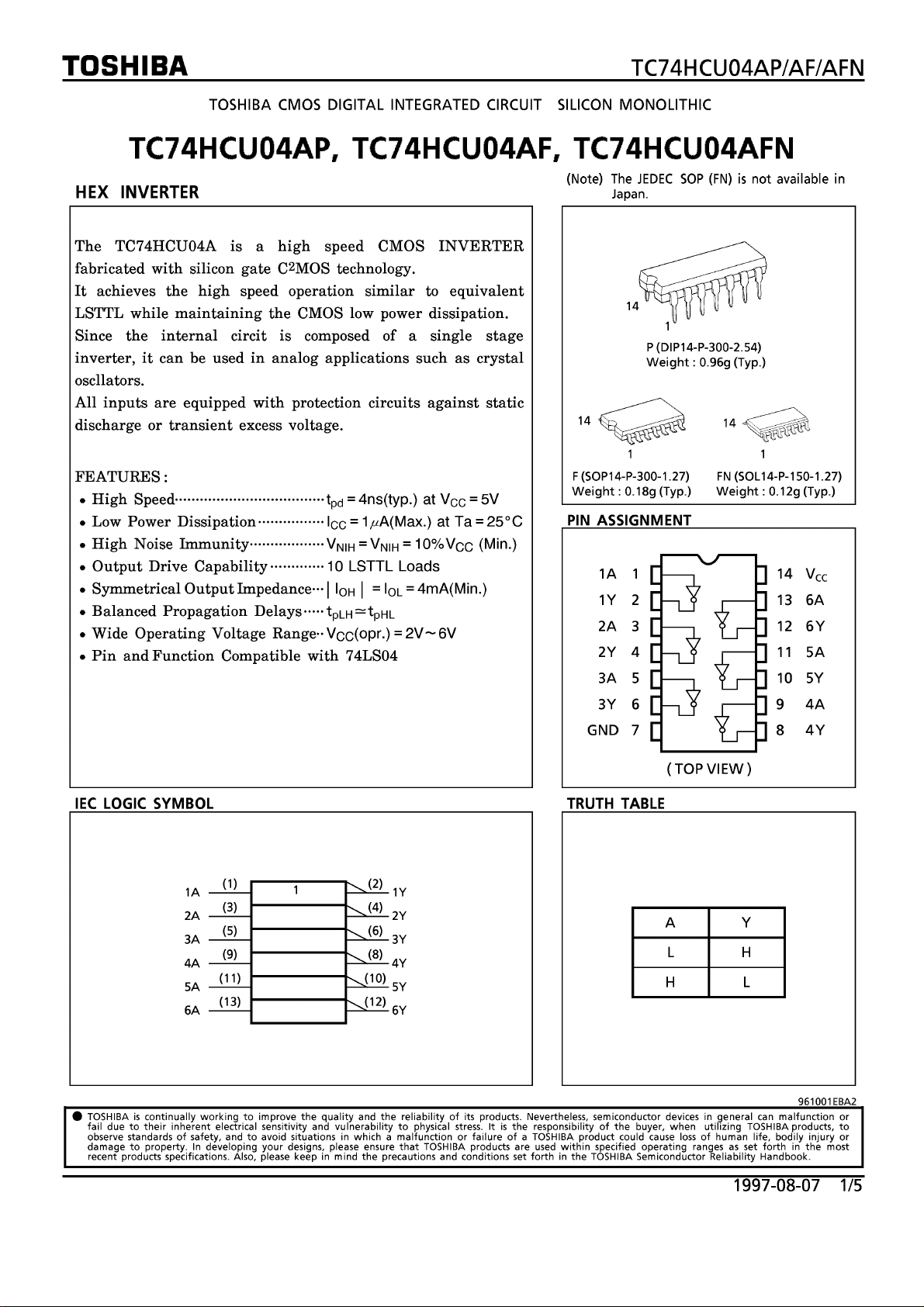

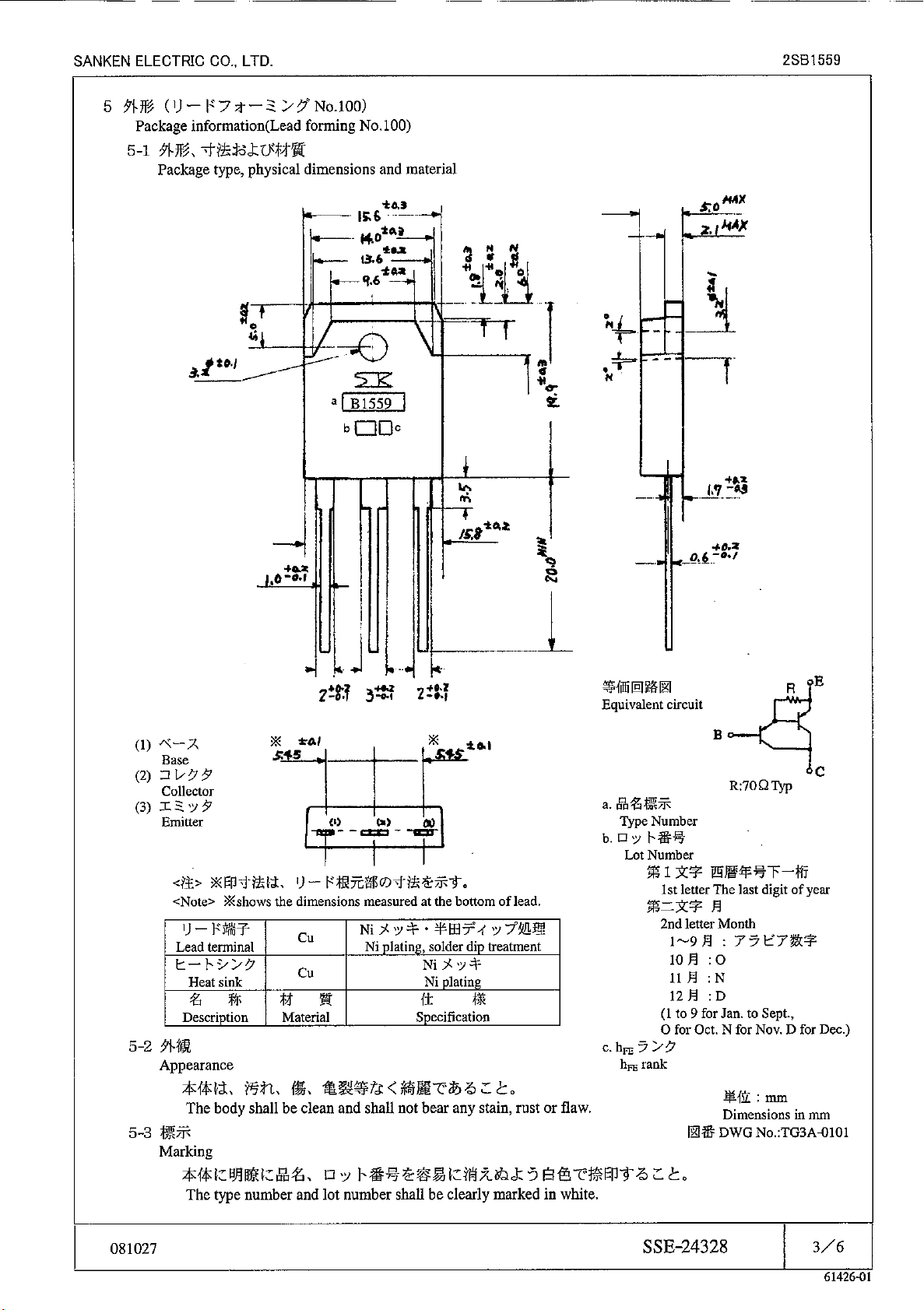

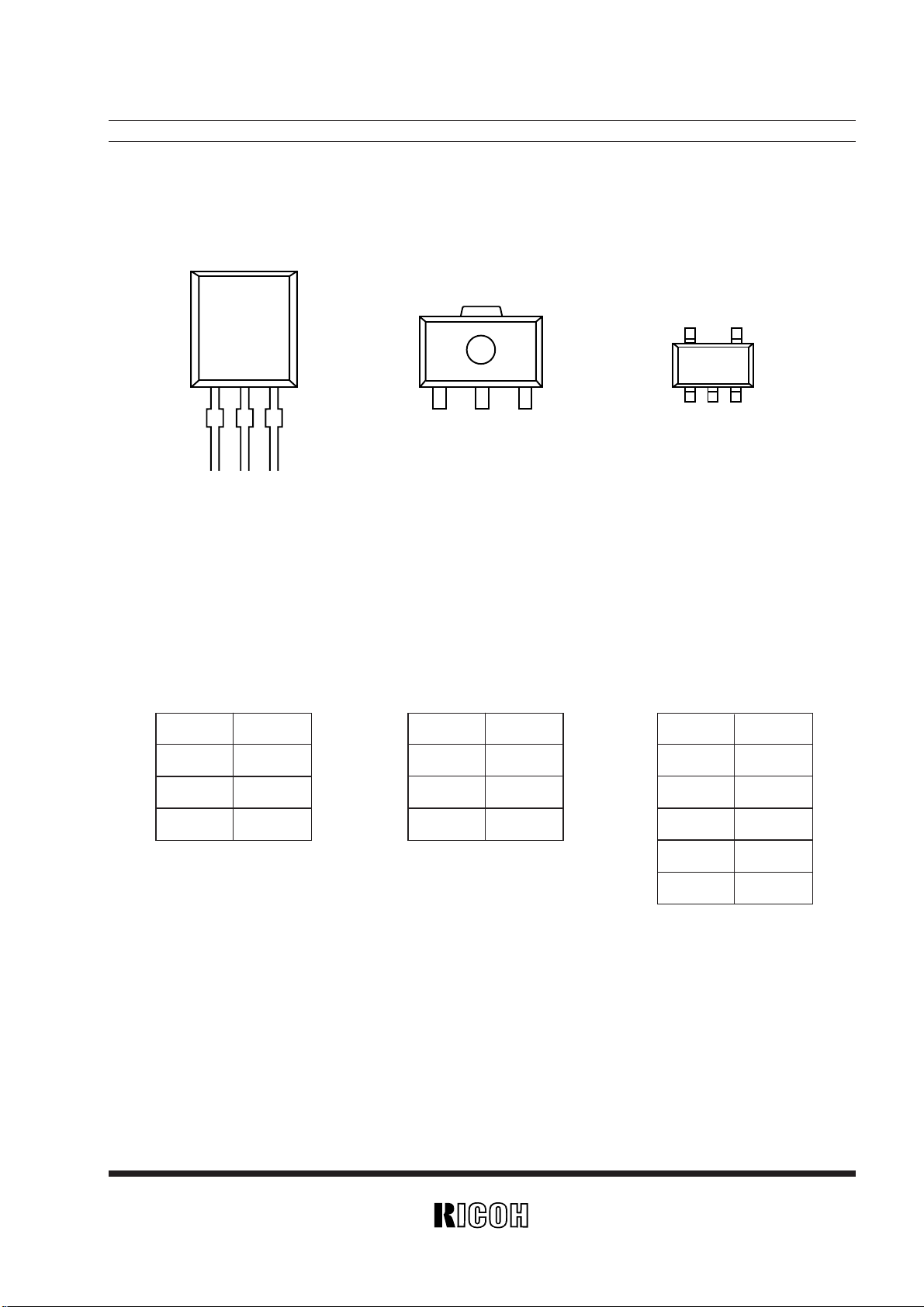

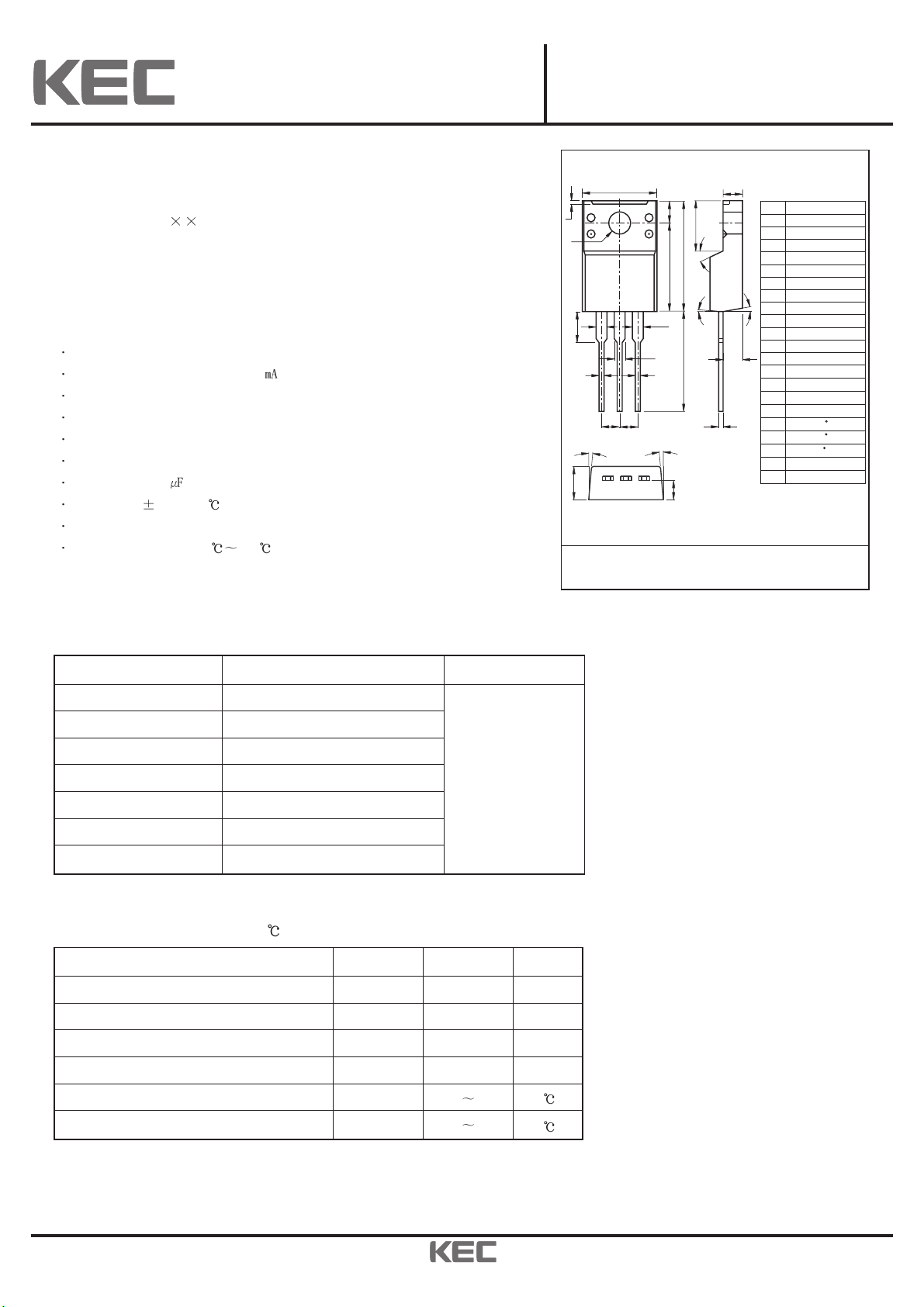

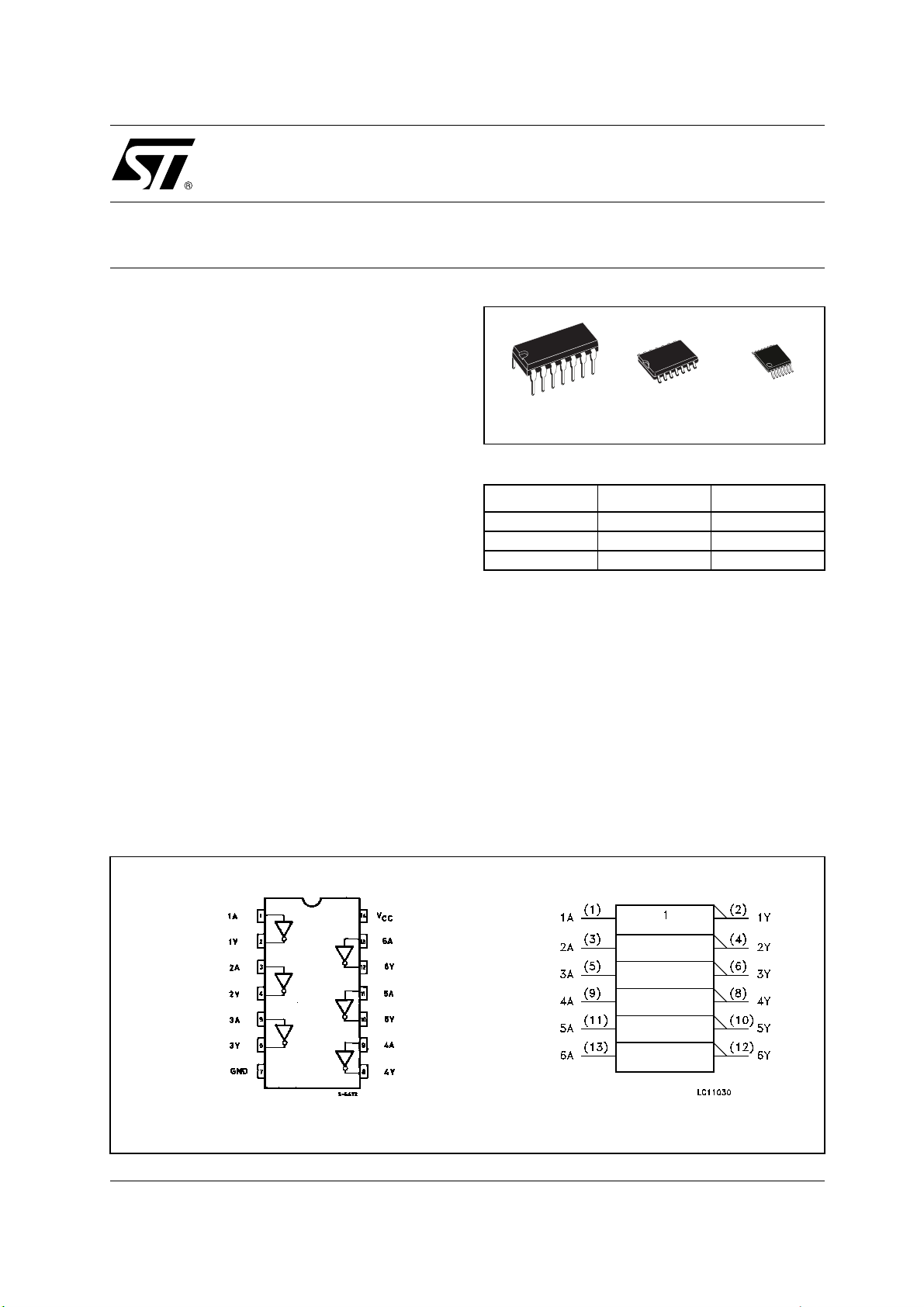

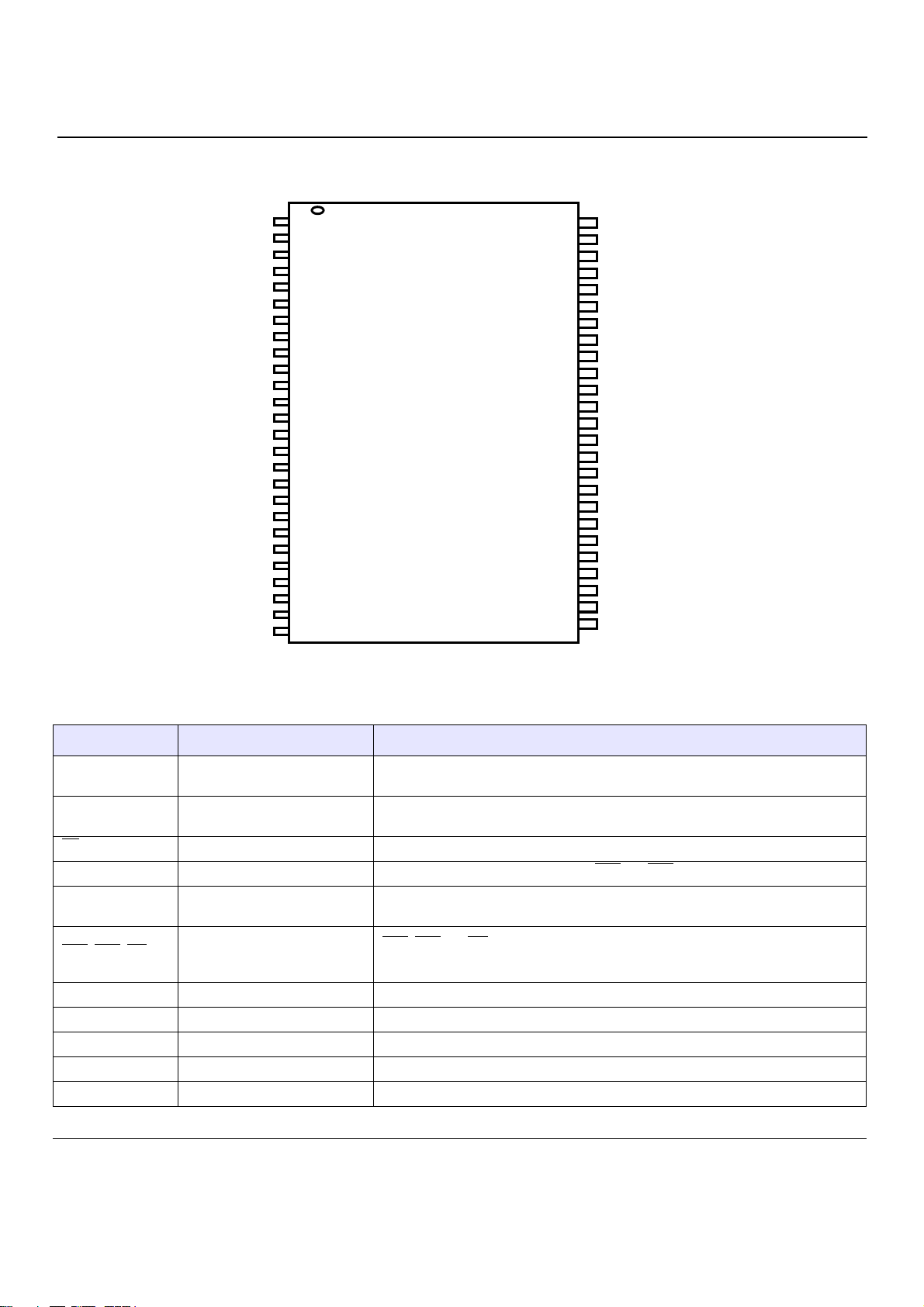

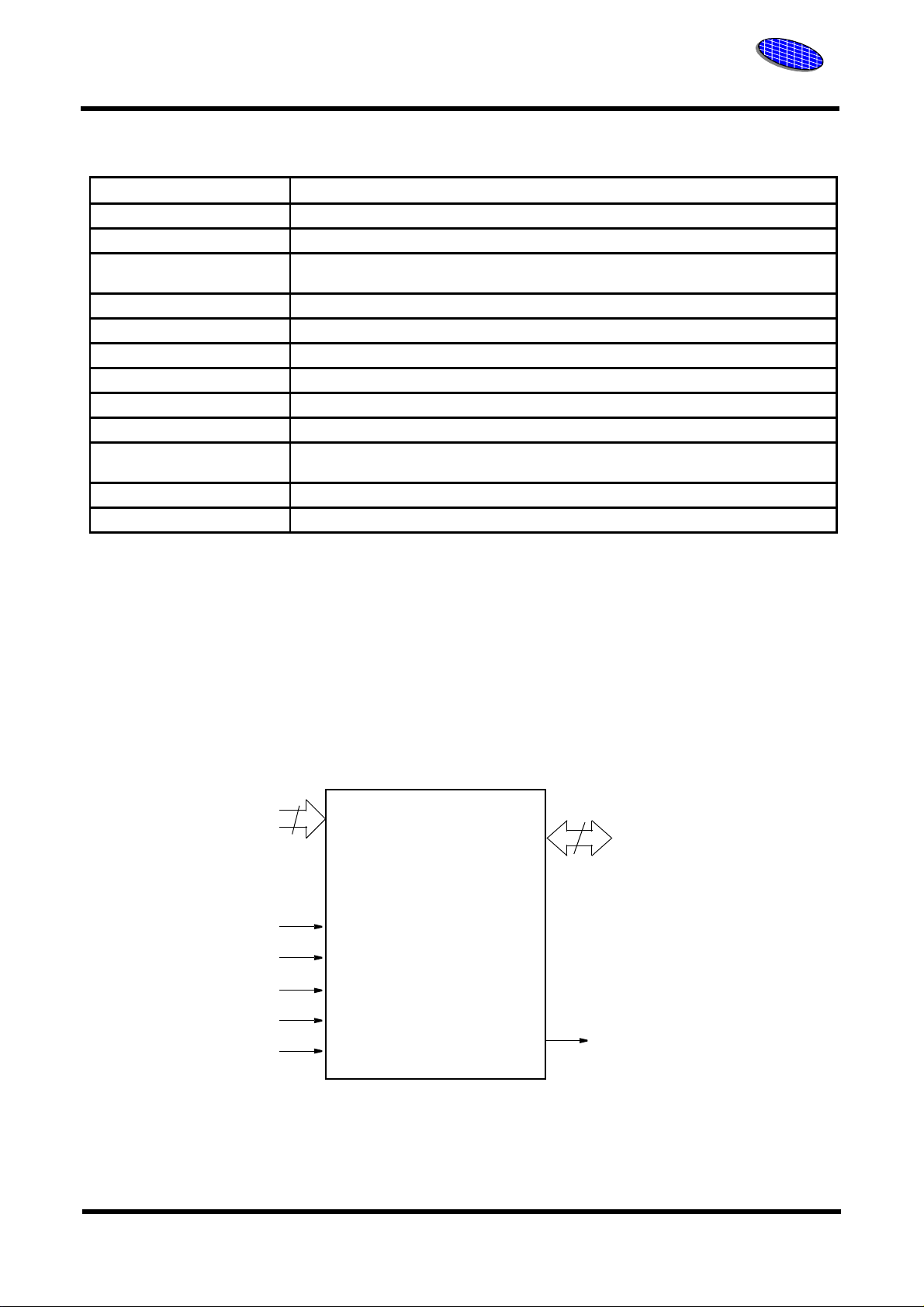

SEMICONDUCTOR PINOUTS 31
PCB DRAWINGS 69
BLOCK DIAGRAM 74
WIRING DIAGRAM 75
AMP BIAS ADJUSTMENT 76

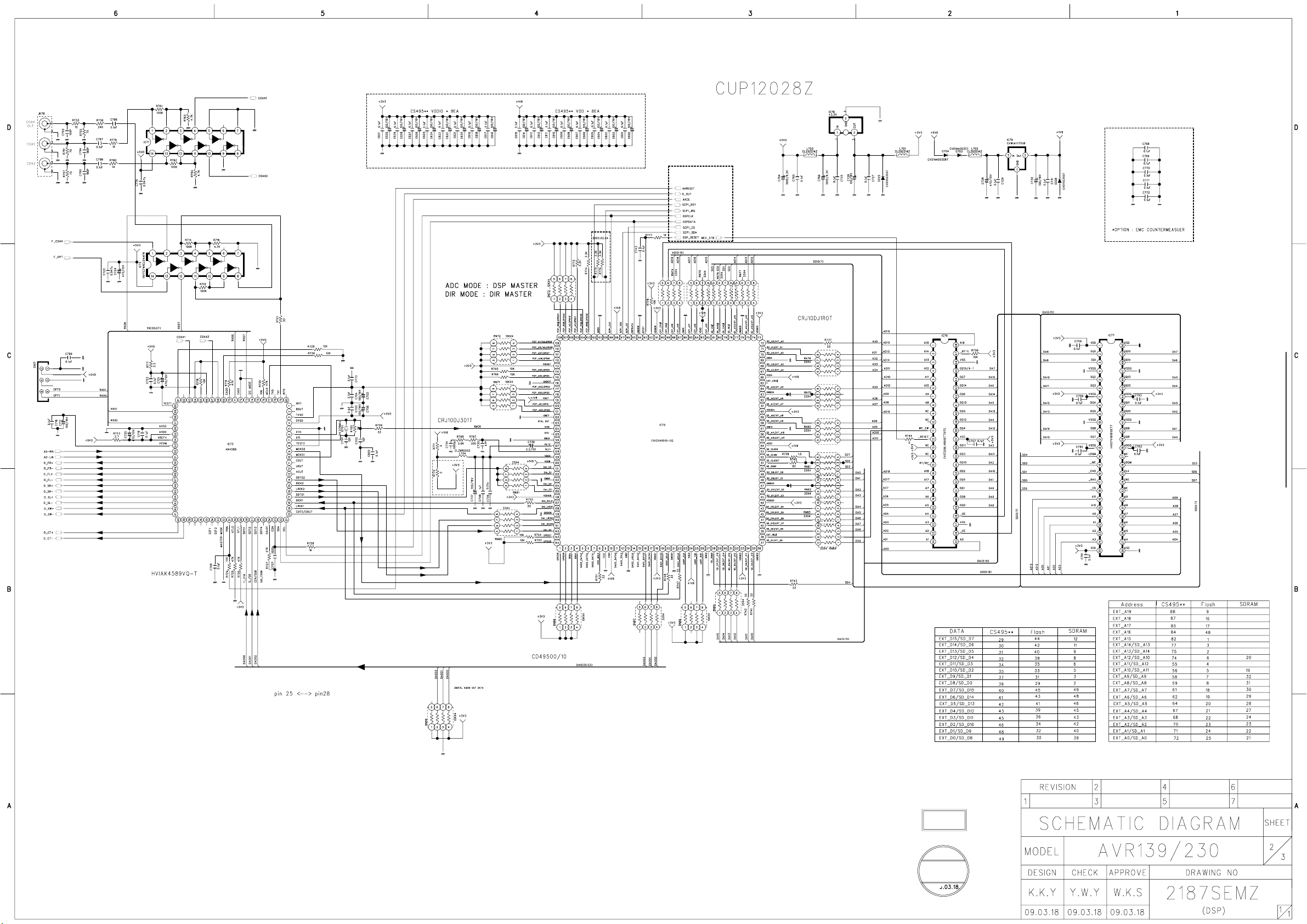

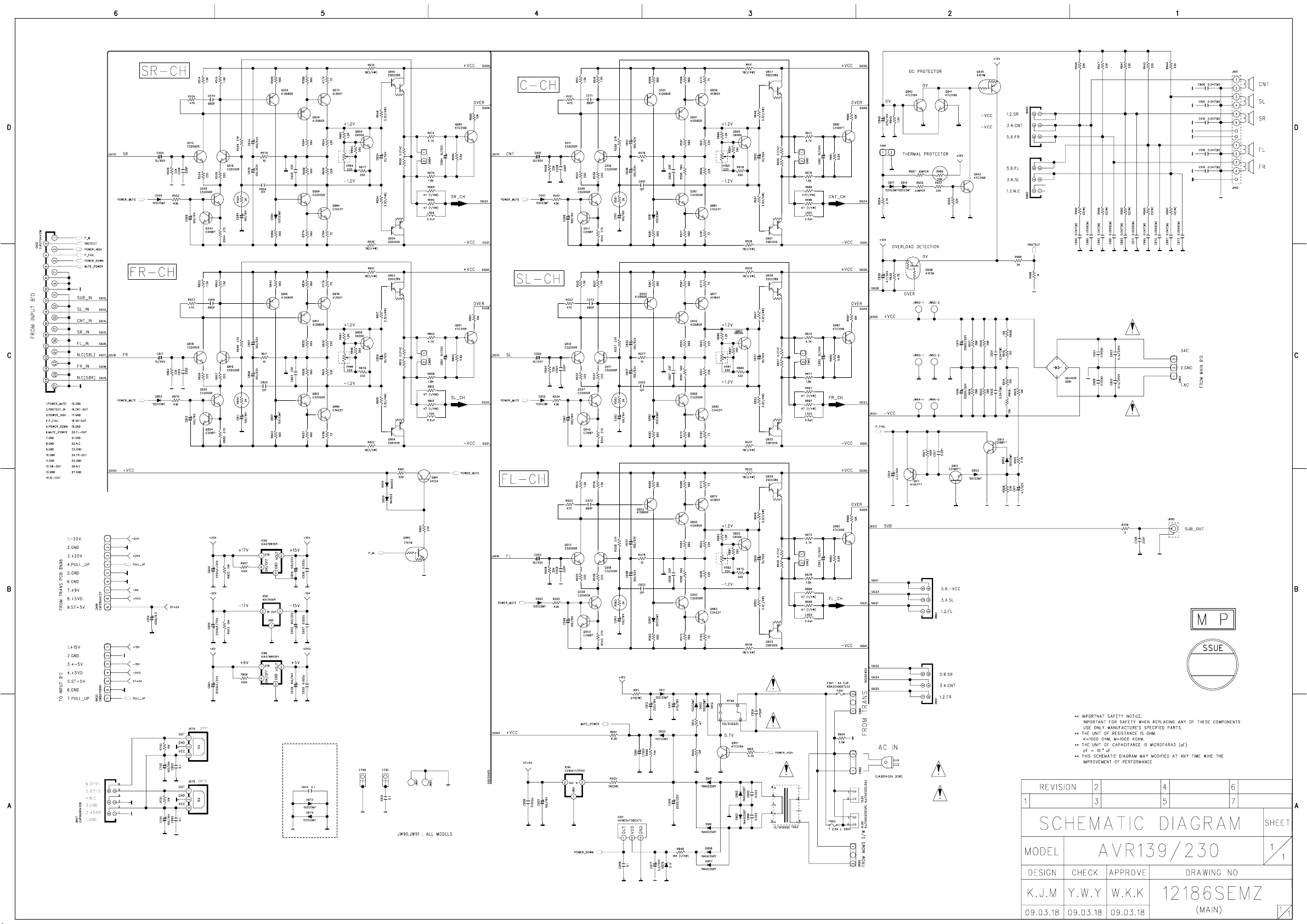

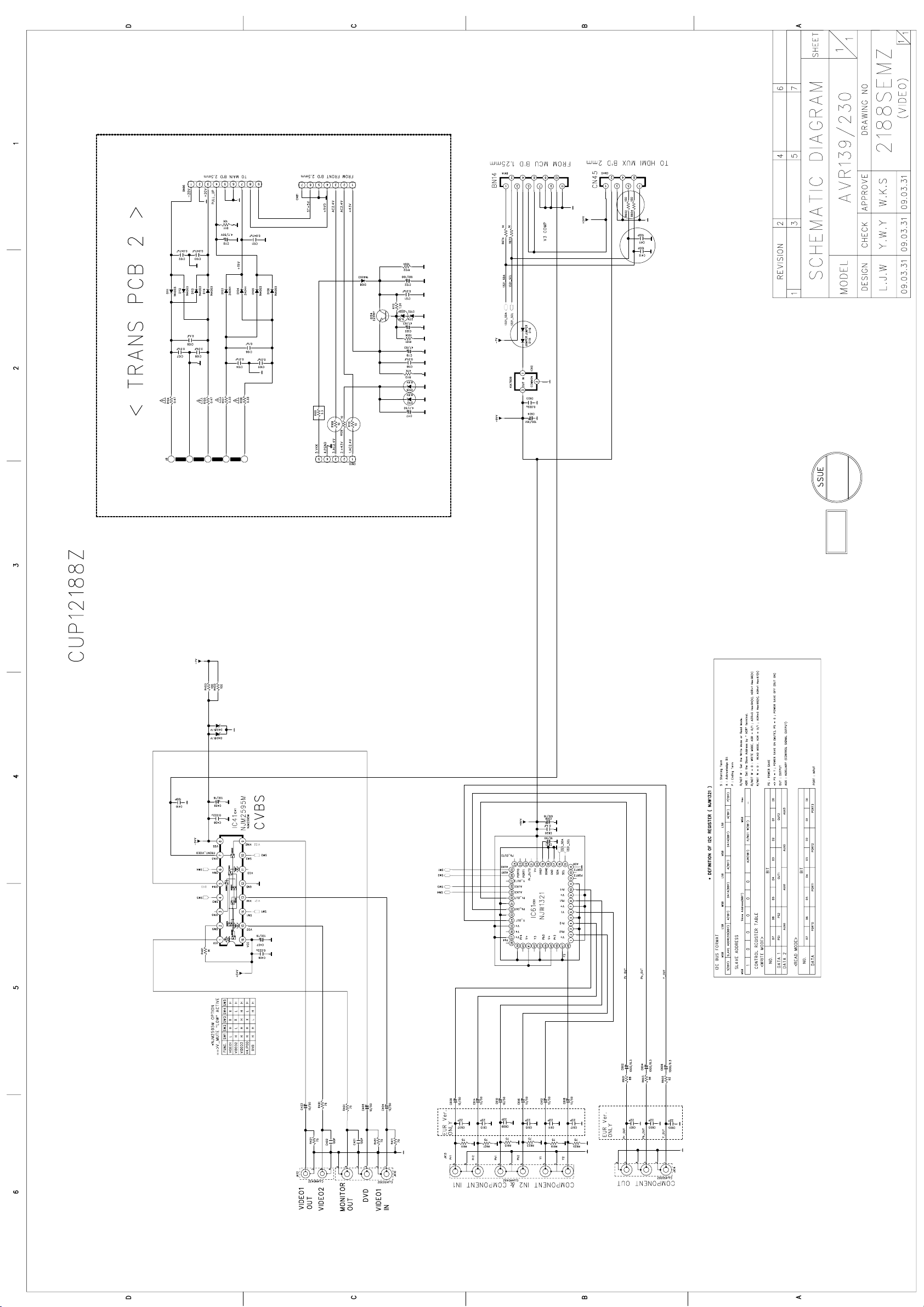

SCHEMATIC DIAGRAMS 77-83
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
harman/kardon
AVR 139-141-142/230 Service Manual
Page 2 of 83
2
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and
semiconductor "chip" components.
The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge build-up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges
sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the
chassis or circuit assembly into which the device will be installed.
CAUTION :
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together
or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.
Each precaution in this manual should be followed during servicing.
Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with
, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before retuming the product to the customer.
Technical Specifications for AVR Surround Receiver
harman/kardon
AVR 139-141-142/230 Service Manual
Page 3 of 83
Audio Section
Stereo Mode
Continuous Average Power (FTC)
40 Watts per channel, 20Hz–20kHz,
@ < 0.07% THD, both channels driven into 8 ohms
Five-Channel Surround Modes
Power Per Individual Channel, all channels driven simultaneously
Front L&R channels:
35 Watts per channel,
@ < 0.07% THD, 20Hz–20kHz into 8 ohms
Center channel:
35 Watts,
@ < 0.07% THD, 20Hz–20kHz into 8 ohms
Surround channels:
35 Watts per channel,
@ < 0.07% THD, 20Hz–20kHz into 8 ohms
Five-Channel Surround Modes
(One channel driven into 6 ohms, 1kHz, @ <0.07% THD)
Front L&R channels:
70 Watts per channel
Center channel:
70 Watts
Surround (L & R) channels:
70 Watts per channel
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) 55dB
DTS 55dB
Frequency Response
@ 1W (+0dB, –3dB) 10Hz–100kHz
High Instantaneous
Current Capability (HCC) ±25 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16µsec
Slew Rate 40V/µsec
FM Tuner Section
Frequency Range 87.5–108MHz
Usable Sensitivity IHF 1.3 µV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/65dB (DIN)
Distortion Mono/Stereo: 0.15/0.3%
Stereo Separation 35dB @ 1kHz
Selectivity ±400kHz: 70dB
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 522–1620kHz
Signal-to-Noise Ratio 45dB
Usable Sensitivity Loop: 500µV
Distortion 1kHz, 50% Mod: 0.8%
Selectivity ±10kHz: 30dB
Video Section
Video Format PAL/NTSC
Input Level/Impedance 1Vp-p/75 ohms
Output Level/Impedance 1Vp-p/75 ohms
Video Frequency
Response 10Hz–8MHz (–3dB)
General
Power Requirement AC 230V/50Hz
Power Consumption 72W idle, 580W maximum
(2 channels driven)
Dimensions (Max)
Width 440mm
Height 165mm
Depth 382mm
Weight 9.6 kg
Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon and Logic 7 are trademarks of Harman International Industries, Incorporated,
registered in the United States and/or other countries.
Designed to Entertain is a trademark of Harman International Industries, Incorporated.
*Manufactured under license from Dolby Laboratories. “Dolby ”, “Pro Logic”, AC-3 and the
Double-D symbol are trademarks of Dolby Laboratories, Inc.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535; 7,003,467 & other U.S. and worldwide patents issued & pending. DTS, DTS Digital
Surround, ES, and Neo:6 are registered trademarks and the DTS logos Symbol are trademarks of
DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
Logic 7 is a registered trademark of Lexicon, Inc.
HDMI is a trademark or registered trademark of HDMI Licensing LLC.
SACD is a trademark of Sony Corporation.
Troubleshooting Guide
harman/kardon
AVR 139-141-142/230 Service Manual
Page 4 of 83
SYMPTOM CAUSE SOLUTION
Unit does not function when • No AC Power • Make certain AC power cord is plugged
Main Power Switch
Display lights, but no sound • Intermittent input connections • Make certain that all input and speaker
or picture connections are secure
Sound is heard, but Front-Panel • Display brightness is turned off • Follow the instructions in the Display Brightness section
Display does not light on page 23 so that the display is set to VFD FULL
No sound from any speaker; • Amplifier is in protection mode • Check speaker-wire connections for shorts at receiver
light around Power switch
No sound from surround or • Incorrect surround mode • Select a mode other than Stereo
center speakers • Incorrect configuration • Check speaker mode
is pushed into a live outlet
• Check to see if outlet is switch controlled
• Mute is on • Press Mute button
• Volume control is down • Turn up volume control
1
is red due to possible short and speaker ends
• Amplifier is in protection mode • Contact your local Harman Kardon service depot
due to internal problems
• Stereo or Mono program material • With (analog or digital) Dolby surround modes, the surround
decoder may not create rear-channel
information from non-encoded programs
• Speakers not properly connected • Check speaker-wire connections or use test tone
to verify connections (see page 20)
4
Unit does not respond to • Weak batteries in remote • Change remote batteries
remote commands • Wrong device selected • Press the AVR selector
• Remote sensorEis obscured • Make certain front-panel sensor is visible to remote or
connect remote sensor
Intermittent buzzing in tuner • Local interference • Move unit or antenna away from computers, fluorescent lights,
motors or other electrical appliances
Letters flash in the Channel Indicator • Digital audio feed paused • Resume play for DVD
Display and Digital Audio stops • Check that Digital Signal is fed to the Digital Input selected
Processor Reset
In the rare case where the unit’s operation or the
displays seem abnormal, the cause may involve
the erratic operation of the system’s memory or
microprocessor.
To correct this problem, first unplug the unit
from the AC wall outlet and wait at least three
minutes. After the pause, reconnect the AC
power cord and check the unit’s operation. If the
system still malfunctions, a system reset may
clear the problem.
To clear the AVR’s entire system memory
including tuner presets, output level settings,
delay times and speaker configuration data, first
put the unit in Standby by pressing the System
Power Control button
hold the Surround Mode Button
onds.
The unit will turn on automatically. Note that
once you have cleared the memory in this manner, it is necessary to re- establish all system
configuration settings and tuner presets.
1
. Next, press and
6
for 5 sec-
NOTE: Resetting the processor will erase any
configuration settings you have made for
speakers, output levels, surround modes, digital
input assignments as well as the tuner presets.
After a reset the unit will be returned to the
factory presets, and all settings for these items
must be reentered.
If the system is still operating incorrectly, there
may have been an electronic discharge or severe
AC line interference that has corrupted the
memory or microprocessor.
If these steps do not solve the problem, consult
an authorized Harman Kardon service depot.
harman/kardon
AVR 139-141-142/230 Service Manual
Page 5 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 6 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 7 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 8 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 9 of 83
COMPLETE ELECTRICAL PARTS LISTS FOR AVR 139 - AVR 141 - AVR 14
2
V
V
V
V
V
V
V
V
V
X
s
V
(
)
harman/kardon
AVR 139-141-142/230 Service Manual
Page 10 of 83
AVR 139 AND AVR 141 ARE IN THE SYSTEMS 13926/13928 AND 14126/14128, WITH DVD 26 AND 28
AVR 142 IS SOLD AS A SEPARATE
Parts for AVR 139 only
Ref. # Part Number
CPG1A880X BOX , OUT CARTON
CPG1A876 BOX , PAD SYSTEM13828/230
CQXSYSTEM14126/230 INSTRUCTION MANUAL ASS'Y
CJS4S004Z CORD , PIN(3P,W/R/Y)
CJS8T001Z CABLE, HDMI(2M) CBADV-005-2
CGB1A213Z BADGE , AVR139
CPB1061W BAG , POLY(ENGLISH/FRANCH) FRANCE LANGUAGE ADDED
CGUAVR139 WINDOW ASS'Y
FRONT PANEL ASSY
Ref. # Part Number
CGWAVR139/230 FRONT PANEL ASS'Y
BOTTOM CHASSIS ASS'Y
Ref. # Part Number
CKF9A337Z PANEL , REAR
Description
Description
Description
alue
alue
alue
Parts for AVR 141 only
Ref. # Part Number
CPG1A880W BOX , OUT CARTON
CPG1A876 BOX , PAD SYSTEM13828/230
CQXSYSTEM14126/230 INSTRUCTION MANUAL ASS'Y
CJS4S004Z CORD , PIN(3P,W/R/Y)
CJS8T001Z CABLE, HDMI(2M) CBADV-005-2
CGB1A221Z BADGE , AVR141
CPB1061W BAG , POLY(ENGLISH/FRANCH) FRANCE LANGUAGE ADDED
CGUAVR141/230 WINDOW ASS'Y
FRONT PANEL ASSY
Ref. # Part Number
CGWAVR141/230 FRONT PANEL ASS'Y
Description
Description
alue
alue
BOTTOM CHASSIS ASS'Y
Ref. # Part Number
CKF9A337Y PANEL , REAR
Description
Parts for AVR 142 only
Ref. # Part Number
CQX1A1441Z MANUAL , INSTRUCTION
CPG1A890Z BOX , OUT CARTON
CGUAVR142/230 WINDOW ASS'Y
CGB1A222Z BADGE , AVR142
CGU2A399W WINDOW , FIP
FRONT PANEL ASSY
Ref. # Part Number
CGWAVR142/230 FRONT PANEL ASS'Y
BOTTOM CHASSIS ASS'Y
Ref. # Part Number
CKF9A337
PANEL , REAR
Description
Description
Description
AVR 139 / 141 / 142 electrical parts list for all model
Ref. # Part Number
CGL1A222 INDICATOR , VOLUME AVR130/230/330
CGR1A331H63 COVER , A AVR154
CGR1A332H63 COVER , B AVR154
CGU2A399W WINDOW , FIP
CGU1A318Y ORNAMENT , VOLUME AVR255
CGX1A338MBC63 CAP , VOLUME
CKC6B145S60 CABINET , TOP AVR350
CMH1A214 HOLDER , VOLUME AVR130/230/330
CMZ2A090 SHEET , VOLUME
CQB1A549Y LABEL , ATTENTION DVD48
CQB1A622 LABEL , SERIAL NO
CTB3+8JFZR SCREW
CTB4+6FFZR SCREW
CHE154 CLAMPER , ARM
CPP1A081Z BAG,POLY SET
CPS5A564 PAD , SNOW L
CPS5A565 PAD , SNOW R
CQB1A907Z LABEL , BAR CODE AVR154
CQB1A931Y LABEL , COUNTRY AVR142/230
CQS1A001 RIBON , BAR CODE SONY
Description
alue
alue
alue
alue
alue
TR-4070
Ref. # Part Number
V
V
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 11 of 83
Description
CQXAVR142/230 INSTRUCTION MANUAL ASS'Y
CABR03P3PB BATTERY , AAA 3PCS IN PACK
CARTAVR142/230 REMOCON TRANSMITTER ASS'Y
CPB1061W BAG , POLY(ENGLISH/FRANCH) FRANCE LANGUAGE ADDED
CPL0905 STAPLE
CQE1A220Z SHEET , FRONT COVER AVR130/230BK
CQE1A411Z SHEET , BATTERY HARMAN
CQX1A1441Z MANUAL , INSTRUCTION
CSA1A018Z FM 1 POLE ANT
CSA1A020Z ANT , AM LOOP
C4FC240CL TAPE , P.P(24mm*50mm)
C4FC500CL TAPE , OPP
alue
FRONT PANEL ASSY
Ref. # Part Number
CBC1A158ZB41 KNOB , MOMS AVR138/230
CBT1A1026MMZB41 KNOB , POWER AVR138/230
CBT1A1028YB41 KNOB , FUNCTION AVR138/230
CGB1A158Y BADGE , FRONT HARMAN/KARDON
CGL1A258Z INDICATOR , POWER
CGW4A427RHWH63 PANEL , FRONT
CHR301 CLAMPER
CMC1A366 PLATE , SHIELD
CMC2A302 PLATE , SHIELD
CMD2A443 BRACKET , SIDE
CMH1A299 HOLDER , AUX
CMH2A215 HOLDER , LED AVR350
CMK2A010 BRACKET , PCB
CMZ1A088Z FILTER , FIP AVR154
CMZ1A120 SHEET , REFLECTION
CTB3+16GFZR SCREW
CTB3+8JFZR SCREW
CN72 CWC4C4A31B250B10 CABLE , CARD (31P,1.25MM,250MM,B,10MM)
Description
alue
FRONT PCB ASSY
Ref. # Part Number
COP12185B AVR139/230 FRONT PCB ASS'Y
C278 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C406 CCEA1HKS4R7T CAP , ELECT 4.7UF 50V SMALL SIZE
C513 CCEA1HKS4R7T CAP , ELECT 4.7UF 50V SMALL SIZE
C714 CCBS1H680JT CAP , CERAMIC(68PF/50V) CH UP025SL680J-A-B Z
C716 CCEA1AH331T CAP , ELECT 330UF 10V
C719 CCBS1H102KBT CAP , CERAMIC(1000PF/50V) CH UP025 B102K-A-B Z
C720 CCBS1H102KBT CAP , CERAMIC(1000PF/50V) CH UP025 B102K-A-B Z
C721 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C722 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C723 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C724 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C725 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C726 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C727 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C728 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C729 CCBS1H473ZFT CAP , CERAMIC(47000PF/50V) CH UP025 F473Z-A-B J
C735 CCEA1CKS100T CAP , ELECT 10UF 16V
C742 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C793 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C794 CCBS1C222MXT CAP , CERAMIC(2200PF/16V) CH EP025 B222M-A-B J
C795 CCBS1H102KBT CAP , CERAMIC(1000PF/50V) CH UP025 B102K-A-B Z
C796 CCBS1H102KBT CAP , CERAMIC(1000PF/50V) CH UP025 B102K-A-B Z
C805 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C806 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C807 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C808 CCBS1H181KBT CAP , CERAMIC(180PF/50V) CH UP025 B181K-A-B Z
C809 CCEA1AH471T CAP , ELECT 470UF 10V
C812 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C817 CCBS1H100JCT CAP , CERAMIC(10PF/50V) CH UP025CH100J-A-B Z
C843 CCEA1HH100T CAP , ELECT 10UF 50V
C850 HCQI1H102JZT CAP , MYLAR 1000PF 50V J
C851 HCQI1H102JZT CAP , MYLAR 1000PF 50V J
C855 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C856 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C857 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C862 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C863 CCBS1H221KBT CAP , CERAMIC(220PF/50V) CH UP025 B221K-A-B Z
C864 CCBS1H221KBT CAP , CERAMIC(220PF/50V) CH UP025 B221K-A-B Z
C866 CCEA1HKS100T CAP , ELECT 10UF 50V SMALL SIZE
C867 CCEA1HKS100T CAP , ELECT 10UF 50V SMALL SIZE
C868 CCEA1CKS470T CAP , ELECT 47UF 16V
C869 CCEA1CKS470T CAP , ELECT 47UF 16V
C870 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C871 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C872 CCEA1CH331T CAP , ELECT 330UF 16V
C873 CCEA1CH331T CAP , ELECT 330UF 16V
C882 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C889 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
Description
alue
FRONT PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 12 of 83
Ref. # Part Number
C891 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C892 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C893 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C894 CCEA1CKS100T CAP , ELECT 10UF 16V
C896 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C897 CCEA1AH471T CAP , ELECT 470UF 10V
C903 CCEA1HKS2R2T CAP , ELECT 2.2UF 50V SMALL SIZE
C905 CCEA1HKS2R2T CAP , ELECT 2.2UF 50V SMALL SIZE
D774 CVD1SS133MT DIODE 1SS133
D775 CVD1SS133MT DIODE 1SS133
D786 CVD1SS133MT DIODE 1SS133
D787 CVD1SS133MT DIODE 1SS133
L702 HLQ02C100KT COIL , AXAIL
Q701 HVTKRC107MT T.R KRC107M
Q722 HVTKRA107MT T.R KRA107M
Q724 HVTKRC107MT T.R KRC107M
Q725 HVTKRC107MT T.R KRC107M
Q734 HVTKTC2874BT T.R , MUTE KTC2874B
Q735 HVTKTC2874BT T.R , MUTE KTC2874B
Q736 HVTKTC2874BT T.R , MUTE KTC2874B
Q737 HVTKTC2874BT T.R , MUTE KTC2874B
Q738 HVTKRC107MT T.R KRC107M
Q739 HVTKTA1271YT T.R KTA1271Y
R582 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R583 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R584 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R585 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R701 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R702 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R704 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R705 CRD20TJ820T RES , CARBON 82 OHM 1/5W J
R706 CRD20TJ820T RES , CARBON 82 OHM 1/5W J
R708 CRD20TJ820T RES , CARBON 82 OHM 1/5W J
R709 CRD20TJ470T RES , CARBON 47 OHM 1/5W J
R710 CRD20TJ470T RES , CARBON 47 OHM 1/5W J
R711 CRD20TJ470T RES , CARBON 47 OHM 1/5W J
R718 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J
R724 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R725 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R737 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R753 CRD20TF1001T RES , CARBON 1K /1/5W /F
R754 CRD20TF1501T RES , CARBON 1.5K /1/5W /F
R755 CRD20TF1801T RES , CARBON 1.8K /1/5W /F
R756 CRD20TF2701T RES , CARBON 2.7K /1/5W/F
R757 CRD20TF3301T RES , CARBON 3.3K /1/5W/F
R758 CRD20TF5601T RES , CARBON(5.6K/F)
R759 CRD20TF1001T RES , CARBON 1K /1/5W /F
R760 CRD20TF1501T RES , CARBON 1.5K /1/5W /F
R761 CRD20TF1801T RES , CARBON 1.8K /1/5W /F
R762 CRD20TF2701T RES , CARBON 2.7K /1/5W/F
R763 CRD20TF3301T RES , CARBON 3.3K /1/5W/F
R764 CRD20TF5601T RES , CARBON(5.6K/F)
R765 CRD20TF7501T RES , CARBON (7.5K/F)
R781 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R783 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R784 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R786 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R787 CRD20TJ101T RES , CARBON 100 OHM 1/5W J
R791 CRD20TJ123T RES , CARBON 12K OHM 1/5W J
R805 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R806 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R824 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R825 CRD20TJ681T RES , CARBON 680 OHM 1/5W J
R828 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R829 CRD20TJ681T RES , CARBON 680 OHM 1/5W J
R864 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J
R865 CRD20TJ101T RES , CARBON 100 OHM 1/5W J
R866 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J
R869 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R871 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R872 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R873 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R874 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R875 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R878 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R892 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J
R893 CRD20TJ333T RES , CARBON 33K OHM 1/5W J
R895 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R896 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R897 CRD20TJ101T RES , CARBON 100 OHM 1/5W J
R898 CRD20TJ101T RES , CARBON 100 OHM 1/5W J
R899 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R900 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R901 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R902 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R903 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
Description
alue
FRONT PCB ASSY
V
V
(
)
harman/kardon
AVR 139-141-142/230 Service Manual
Page 13 of 83
Ref. # Part Number
R904 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R905 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R906 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R907 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R908 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R909 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R910 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R911 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R912 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R913 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R915 CRD20TJ473T RES , CARBON 47K OHM 1/5W J
R918 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R919 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
S701 CST1A024ZT SW , TACT
S702 CST1A024ZT SW , TACT
S703 CST1A024ZT SW , TACT
S704 CST1A024ZT SW , TACT
S705 CST1A024ZT SW , TACT
S706 CST1A024ZT SW , TACT
S707 CST1A024ZT SW , TACT
S711 CST1A024ZT SW , TACT
S712 CST1A024ZT SW , TACT
S713 CST1A024ZT SW , TACT
S714 CST1A024ZT SW , TACT
S715 CST1A024ZT SW , TACT
BK71 CMD1A468 BRACKET , FLT
BK72 CMD1A468 BRACKET , FLT
BN10 CWB1B009450BM001 WIRE ASS'Y (9P,2.5MM,450MM,Shield)
BN81 CWB1C007200BM WIRE ASS'Y
BN84 CWB1B005080BM WIRE ASS'Y (5P,2.5MM,80MM)
BN85 CWB1B013200EN001 WIRE ASS'Y (13P,2.0MM,200MM,Shield)
BN88 CWB1B005100BM WIRE ASS'Y (5P,2.5MM,100MM)
BN89 CWB1B003080MM WIRE ASS'Y (3P,2.5MM,80MM)
CN72 CJP31GA41ZM WAFER (1.25MM, CARD CABLE, STRAIGHT 31P) MOLEX 52045-**45
CN84 CJP05GB03ZY WAFER , ANGLE (2.5mm)
CN85 CJP13GA19ZY WAFER, STRAIGHT, 13PIN
CN86 CJP02GA89ZM WAFER
CN88 CJP05GB03ZY WAFER , ANGLE (2.5mm)
C906 KCKDKS471ME CAP , CERAMIC(KH TYPE) DKS471ME
D701 CVD52CSBBCEAB2 L.E.D , BLUE
D703 CVD52CSBBCEAB2 L.E.D , BLUE
D705 CVD52CSBBCEAB2 L.E.D , BLUE
D727 CVD50BOBBWGA L.E.D , 2 COLOR (ORG , BLUE) TOL-50BOBBWGA
D728 CVD50BOBBWGA L.E.D , 2 COLOR (ORG , BLUE) TOL-50BOBBWGA
D778 HVD1N5819T DIODE , SCHOTTKY 1N5819
FIP2 CFL162BD01GINK V.F.D 162-BD-01GINK
IC73 HRVNJL34H380A SENSOR , REMOCON
IC75 HVI74ACT04MTR I.C , HEX
IC76 HVI74HCU04AFNG I.C , INVERTER TC74HCU04AFNG(TOSHIBA)
IC86 HVINJM4556AL I.C , HEADPHONE NJM4556AL
JK43 HJJ2D003Y JACK , HEADPHONE (SILVER)
JK81 CJJ4M041Y JACK , BOARD (COAX)
JK82 HJSTORX177L MODULE , OPTICAL(RX) TORX177L
JK83 CJJ2E026Z JACK , HEADPHONE(SILVER PLATE)
JK86 CJJ4S023Y JACK , BOARD
SW1 CSH1A008ZV SW , PUSH (MOMS)
VR74 CSR2A037Z ENCODER
Description
alue
BOTTOM CHASSIS ASS'Y
Ref. # Part Number
CUAAVR142/230 BOTTOM CHASSIS ASS'Y
CHD1A012ZR SCREW , SPECIAL
CHD1A023R SCREW , SPECIAL
CHD4A012R SCREW , SPECIAL
CHE170 HOLDER , PCB
CHE36-3 CLAMPER , WIRE
CHG1A160Z CUSHION , RUBBER
CHG1A360 CUSHION , FOOT
CHR301 CLAMPER
CHS1A032 TAPE , HEMELON
CJA2B043ZA CORD , POWER(EUR) QDR-7100CC
CKL2A069H43 FOOT
CLT5U036ZE TRANS , MAIN AVR139/230
CNVM9004MS1J75L MODULE , TUNER EUR KST-M9004MS1-J75L(WO/19KHZ)
CTB3+10JFZR SCREW
CTB3+6FFZR SCREW
CTB3+8JFZR SCREW
CTW3+12JR SCREW
CUA2A294 CHASSIS , BOTTOM
KBA2C4000TLEY FUSE 4A/250V(EUR)
KHR1A028 BUSHING , AC CORD
CN12 CWC4C4A27B120B10 CABLE , CARD (11P,1.25MM,120MM,B,10MM)
CN13 CWC4C4A13B100B10 CABLE , CARD (13P,1.25MM,100MM,B,10MM)
CN14 CWC4C4A11B100B10 CABLE , CARD (11P,1.25MM,100MM,B,10MM)
CN45 CWC4F2A07A060B10 CABLE , CARD (7P,1.0MM,60MM,B,10MM)
CN83 CWB4F232450UU 2P WIRE ASS'Y
Description
450MM UL1617
alue
HDMI PCB ASSY
V
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 14 of 83
Ref. # Part Number
COP12109B HDMI MUX PCB ASS'Y
CN45 CJP07GA193ZY WAFER , CARD CABLE SMD
C637 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C901 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C903 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C904 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C905 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C906 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C907 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C908 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C909 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C910 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C911 CCUS1A105KC CAP , CHIP 1UF 10V K
C912 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C913 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C914 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C915 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C916 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C917 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C918 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C919 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C920 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C921 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C922 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C923 CCSJA0J220B CAP , CHIP TANTAL(A TYPE, 22uF/6.3V, ELNA)
C924 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C925 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C926 HCEC1CRV2220T CAP , CHIP ELECT 22UF/16V
C927 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C928 HCEC1CRV2220T CAP , CHIP ELECT 22UF/16V
C929 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C930 HCEC1CRV2220T CAP , CHIP ELECT 22UF/16V
IC91 CVISII9185ACTU I.C , HDMI RX SW(80PIN TQFP) SII9185ACTU
IC92 CVIKIA1117S50 I.C , REGULATOR(SOT-223) KIA1117S50-RTK/P
IC93 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC94 CVIKIA1117S18 I.C , REGULATOR(SOT-223) KIA1117S/F18, SOT-223
JK81 HJJ9H003Z JACK , HDMI(JALCO) YKF45-7009
JK82 HJJ9H003Z JACK , HDMI(JALCO) YKF45-7009
JK83 HJJ9H003Z JACK , HDMI(JALCO) YKF45-7009
JK84 HJJ9H003Z JACK , HDMI(JALCO) YKF45-7009
L823 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L824 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L825 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L826 CLZ9R009Z CHOKE COIL, CHIP ( FOR HDMI )
L901 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60
L902 CLZ9R005Z FERRITE , CHIP BEAD(60ohm, 1608) HCB1608KF-600T30
L903 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60
Q901 HVTKRA102S T.R , CHIP KRA102S
Q902 CVTKRC103S T.R , CHIP
Q903 HVTKRA102S T.R , CHIP KRA102S
Q904 CVTKRC103S T.R , CHIP
Q905 HVTKRA102S T.R , CHIP KRA102S
Q906 CVTKRC103S T.R , CHIP
R901 CRJ10DJ102T RES , CHIP 1608 SIZE
R902 CRJ10DJ223T RES , CHIP 1608 SIZE
R911 CRJ10DJ102T RES , CHIP 1608 SIZE
R912 CRJ10DJ223T RES , CHIP 1608 SIZE
R915 CRJ10DJ473T RES , CHIP 1608 SIZE
R916 CRJ10DJ103T RES , CHIP 1608 SIZE
R921 CRJ10DJ102T RES , CHIP 1608 SIZE
R922 CRJ10DJ223T RES , CHIP 1608 SIZE
R932 CRJ10DJ473T RES , CHIP 1608 SIZE
R933 CRJ10DJ152T RES , CHIP 1608 SIZE
R934 CRJ10DJ152T RES , CHIP 1608 SIZE
R935 CRJ10DJ473T RES , CHIP 1608 SIZE
R936 CRJ10DJ473T RES , CHIP 1608 SIZE
R937 CRJ10DJ202T RES , CHIP
R938 CRJ10DJ202T RES , CHIP
R939 CRJ10DJ221T RES , CHIP 1608 SIZE
R940 CRJ10DJ221T RES , CHIP 1608 SIZE
R941 CRJ10DJ221T RES , CHIP 1608 SIZE
R963 CRJ10DJ473T RES , CHIP 1608 SIZE
R964 CRJ10DJ101T RES , CHIP 1608 SIZE
Description
alue
MAIN PCB ASSY
Ref. # Part Number
COP12186B AVR139/230 MAIN PCB ASS'Y
CHR301 CLAMPER
C501 CCEA1HH100T CAP , ELECT 10UF 50V
C502 CCEA1HH100T CAP , ELECT 10UF 50V
C503 CCEA1HH100T CAP , ELECT 10UF 50V
C504 CCEA1HH100T CAP , ELECT 10UF 50V
C506 CCKT1H331KB CAP , CERAMIC 330PF 50V K
Description
alue
MAIN PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 15 of 83
Ref. # Part Number
C507 CCKT1H331KB CAP , CERAMIC 330PF 50V K
C508 CCKT1H331KB CAP , CERAMIC 330PF 50V K
C509 CCKT1H331KB CAP , CERAMIC 330PF 50V K
C561 CCEA1CH101T CAP , ELECT 100UF 16V
C562 CCEA1CH101T CAP , ELECT 100UF 16V
C563 CCEA1CH101T CAP , ELECT 100UF 16V
C564 CCEA1CH101T CAP , ELECT 100UF 16V
C566 CCEA1CH101T CAP , ELECT 100UF 16V
C567 CCEA1CH101T CAP , ELECT 100UF 16V
C568 CCEA1CH101T CAP , ELECT 100UF 16V
C569 CCEA1CH101T CAP , ELECT 100UF 16V
C571 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C572 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C573 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C574 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C601 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C602 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C603 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C604 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C606 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C607 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C608 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C609 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C681 CCEA1HH100T CAP , ELECT 10UF 50V
C682 CCEA1HH100T CAP , ELECT 10UF 50V
C683 CCEA1HH100T CAP , ELECT 10UF 50V
C684 CCEA1HH100T CAP , ELECT 10UF 50V
C726 CCKT1H221KB CAP , CERAMIC 220PF 50V K
C750 CCEA1CH101T CAP , ELECT 100UF 16V
C751 CCEA1CH101T CAP , ELECT 100UF 16V
C801 CCEA1HH100T CAP , ELECT 10UF 50V
C803 CCCT1H330JC CAP , CERAMIC 33PF 50V J
C805 CCCT1H120JC CAP , CERAMIC 12PF 50V J
C811 CCEA1CH101T CAP , ELECT 100UF 16V
C813 CCEA1CH101T CAP , ELECT 100UF 16V
C815 CCKT1H331KB CAP , CERAMIC 330PF 50V K
C817 CCEA1HH100T CAP , ELECT 10UF 50V
C819 CCBS1H681KBT CAP , CERAMIC(680PF/50V) CH UP025 B681K-A-B Z
C852 CCEA1HH100T CAP , ELECT 10UF 50V
C854 CCEA1HH100T CAP , ELECT 10UF 50V
C855 CCEA1HH100T CAP , ELECT 10UF 50V
C856 CCEA1HH100T CAP , ELECT 10UF 50V
C857 CCEA1HH100T CAP , ELECT 10UF 50V
C900 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C901 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C902 CCEA1EH101T CAP , ELECT 100UF 25V
C903 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V Z
C905 CCFT1H223ZF CAP , CERAMIC 0.022UF 50V Z
C907 CCEA1CH101T CAP , ELECT 100UF 16V
C908 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C909 CCEA1EH101T CAP , ELECT 100UF 25V
C910 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C911 CCEA1CH471T CAP , ELECT 470UF 16V
C912 CCEA1CH221T CAP , ELECT 220UF 16V
C913 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V Z
C914 CCEA0JH102T CAP , ELECT 1000UF 6.3V
C917 CCEA1HH470T CAP , ELECT 47UF 50V
C918 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C919 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C920 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V Z
C921 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C922 KCME2E104JP04T CAP , METALLIZED FILM
C923 KCME2E104JP04T CAP , METALLIZED FILM
C924 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V Z
C925 CCEA1HKS2R2T CAP , ELECT 2.2UF 50V SMALL SIZE
C926 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C927 CCKT1H102KB CAP , CERAMIC 1000PF 50V K
C931 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C932 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C935 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C936 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C937 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C938 CCEA1CH101T CAP , ELECT 100UF 16V
C939 CCEA1HH4R7T CAP , ELECT 4.7UF 50V
C940 CCEA1AH471T CAP , ELECT 470UF 10V
C948 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V Z
C971 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C972 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C973 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C977 CCEA1HH3R3T CAP , ELECT 3.3UF 50V
C980 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C981 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
C990 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C991 CCEA1HH1R0T CAP , ELECT 1UF 50V
C992 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C993 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
Description
alue
MAIN PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 16 of 83
Ref. # Part Number
C995 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C997 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J
C999 CCFT1H223ZF CAP , CERAMIC 0.022UF 50V Z
D501 CVD1SS133MT DIODE 1SS133
D502 CVD1SS133MT DIODE 1SS133
D503 CVD1SS133MT DIODE 1SS133
D504 CVD1SS133MT DIODE 1SS133
D581 CVD1SS133MT DIODE 1SS133
D582 CVD1SS133MT DIODE 1SS133
D583 CVD1SS133MT DIODE 1SS133
D584 CVD1SS133MT DIODE 1SS133
D801 CVD1SS133MT DIODE 1SS133
D802 CVD1SS133MT DIODE 1SS133
D803 CVD1SS133MT DIODE 1SS133
D901 CVD1N4003SRT DIODE , RECT 1N4003
D902 CVD1SS133MT DIODE 1SS133
D903 CVD1SS133MT DIODE 1SS133
D911 CVD1SS133MT DIODE 1SS133
D912 CVD1SS133MT DIODE 1SS133
D914 CVD1SS133MT DIODE 1SS133
D917 CVD1SS133MT DIODE 1SS133
D953 CVD1SS133MT DIODE 1SS133
D954 CVD1N4003SRT DIODE , RECT 1N4003
D955 CVD1N4003SRT DIODE , RECT 1N4003
D956 CVD1N4003SRT DIODE , RECT 1N4003
D957 CVD1N4003SRT DIODE , RECT 1N4003
D961 CVD1N4003SRT DIODE , RECT 1N4003
D962 CVD1N4003SRT DIODE , RECT 1N4003
D963 CVD1N4003SRT DIODE , RECT 1N4003
D973 CVD1SS133MT DIODE 1SS133
D974 CVD1SS133MT DIODE 1SS133
D979 CVDZJ5.1BT DIODE , ZENER ZJ5.1B 1/2W
ET90 HJT1A025 PALTE , EARTH MET37-0002
ET91 HJT1A025 PALTE , EARTH MET37-0002
F901 KJCFC5S HOLDER , FUSE
IC97 HVIRE5VT28CATZ I.C , RESET
Q501 HVTKTA1268GRT T.R KTA1268GR
Q502 HVTKTA1268GRT T.R KTA1268GR
Q503 HVTKTA1268GRT T.R KTA1268GR
Q504 HVTKTA1268GRT T.R KTA1268GR
Q511 HVTKTC3200GRT T.R KTC3200GR
Q512 HVTKTC3200GRT T.R KTC3200GR
Q513 HVTKTC3200GRT T.R KTC3200GR
Q514 HVTKTC3200GRT T.R KTC3200GR
Q516 HVTKTC3200GRT T.R KTC3200GR
Q517 HVTKTC3200GRT T.R KTC3200GR
Q518 HVTKTC3200GRT T.R KTC3200GR
Q519 HVTKTC3200GRT T.R KTC3200GR
Q541 HVTKTC3198YT T.R KTC3198Y
Q542 HVTKTC3198YT T.R KTC3198Y
Q543 HVTKTC3198YT T.R KTC3198Y
Q544 HVTKTC3198YT T.R KTC3198Y
Q556 HVTKTC3200GRT T.R KTC3200GR
Q557 HVTKTC3200GRT T.R KTC3200GR
Q558 HVTKTC3200GRT T.R KTC3200GR
Q559 HVTKTC3200GRT T.R KTC3200GR
Q561 HVTKTC3200GRT T.R KTC3200GR
Q562 HVTKTC3200GRT T.R KTC3200GR
Q563 HVTKTC3200GRT T.R KTC3200GR
Q564 HVTKTC3200GRT T.R KTC3200GR
Q601 HVTKTA1268GRT T.R KTA1268GR
Q602 HVTKTA1268GRT T.R KTA1268GR
Q603 HVTKTA1268GRT T.R KTA1268GR
Q604 HVTKTA1268GRT T.R KTA1268GR
Q681 HVTKTC3199YT T.R KTC3199Y
Q682 HVTKTC3199YT T.R KTC3199Y
Q683 HVTKTC3199YT T.R KTC3199Y
Q684 HVTKTC3199YT T.R KTC3199Y
Q801 HVTKTC3199YT T.R KTC3199Y
Q812 HVTKTA1268GRT T.R KTA1268GR
Q813 HVTKTC3200GRT T.R KTC3200GR
Q816 HVTKTA1268GRT T.R KTA1268GR
Q818 HVTKTC3200GRT T.R KTC3200GR
Q819 HVTKTC3200GRT T.R KTC3200GR
Q820 HVTKTC3200GRT T.R KTC3200GR
Q824 HVTKTC3198YT T.R KTC3198Y
Q901 HVTKTC3199YT T.R KTC3199Y
Q911 HVTKTA1267YT T.R KTA1267Y
Q912 HVTKTC3198YT T.R KTC3198Y
Q913 HVTKTC3198YT T.R KTC3198Y
Q938 HVTKRA107MT T.R KRA107M
Q939 HVTKRA107MT T.R KRA107M
Q941 HVTKTC3199YT T.R KTC3199Y
Q942 HVTKTC3199YT T.R KTC3199Y
Q943 HVTKTC3199YT T.R KTC3199Y
Q960 HVTKRC107MT T.R KRC107M
Description
alue
MAIN PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 17 of 83
Ref. # Part Number
Q961 HVTKTA1024YT T.R
R501 CRD20TJ433T RES , CARBON 43K OHM 1/5W J
R502 CRD20TJ433T RES , CARBON 43K OHM 1/5W J
R504 CRD20TJ433T RES , CARBON 43K OHM 1/5W J
R505 CRD20TJ433T RES , CARBON 43K OHM 1/5W J
R506 CRD20TJ333T RES , CARBON 33K OHM 1/5W J
R507 CRD20TJ333T RES , CARBON 33K OHM 1/5W J
R508 CRD20TJ333T RES , CARBON 33K OHM 1/5W J
R509 CRD20TJ333T RES , CARBON 33K OHM 1/5W J
R511 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R512 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R513 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R514 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R516 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R517 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R518 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R519 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R521 CRD20TJ471T RES , CARBON 470 OHM 1/5W J
R522 CRD20TJ471T RES , CARBON 470 OHM 1/5W J
R523 CRD20TJ471T RES , CARBON 470 OHM 1/5W J
R524 CRD20TJ471T RES , CARBON 470 OHM 1/5W J
R531 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R532 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R533 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R534 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R536 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R537 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R538 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R539 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R541 CRD20TJ271T RES , CARBON 270 OHM 1/5W J
R542 CRD20TJ271T RES , CARBON 270 OHM 1/5W J
R543 CRD20TJ271T RES , CARBON 270 OHM 1/5W J
R544 CRD20TJ271T RES , CARBON 270 OHM 1/5W J
R556 CRD20TJ273T RES , CARBON 27K OHM 1/5W J
R557 CRD20TJ273T RES , CARBON 27K OHM 1/5W J
R558 CRD20TJ273T RES , CARBON 27K OHM 1/5W J
R559 CRD20TJ273T RES , CARBON 27K OHM 1/5W J
R561 CRD20TJ202T RES , CARBON
R562 CRD20TJ202T RES , CARBON
R563 CRD20TJ202T RES , CARBON
R564 CRD20TJ202T RES , CARBON
R566 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R567 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R568 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R569 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R571 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R572 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R573 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R574 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R576 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R577 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R578 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R579 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R581 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R582 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R583 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R584 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R586 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R587 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R588 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R589 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R591 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R592 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R593 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R594 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R596 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R597 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R598 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R599 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R601 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R602 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R603 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R604 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R606 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R607 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R608 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R609 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R611 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R631 CRD25FJ180T RES , CARBON
R632 CRD25FJ180T RES , CARBON
R633 CRD25FJ180T RES , CARBON
R634 CRD25FJ180T RES , CARBON
R636 CRD25FJ180T RES , CARBON
R637 CRD25FJ180T RES , CARBON
R638 CRD25FJ180T RES , CARBON
R639 CRD25FJ180T RES , CARBON
Description
alue
MAIN PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 18 of 83
Ref. # Part Number
R646 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R647 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R648 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R649 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R651 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R652 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R653 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R654 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R666 CRD25TJ470T RES , CARBON
R667 CRD25TJ470T RES , CARBON
R668 CRD25TJ470T RES , CARBON
R669 CRD25TJ470T RES , CARBON
R671 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R672 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R673 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R674 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R676 CRD25TJ182T RES , CARBON
R677 CRD25TJ182T RES , CARBON
R678 CRD25TJ182T RES , CARBON
R679 CRD25TJ182T RES , CARBON
R681 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R682 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R683 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R684 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R686 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R687 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R688 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R689 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R696 CRD25TJ470T RES , CARBON
R697 CRD25TJ470T RES , CARBON
R698 CRD25TJ470T RES , CARBON
R699 CRD25TJ470T RES , CARBON
R750 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R751 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R771 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R772 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R773 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R774 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R776 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R781 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R782 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R783 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R784 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R786 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R801 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R803 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J
R805 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R808 CRD25TJ182T RES , CARBON
R812 CRD25TJ470T RES , CARBON
R813 CRD25TJ470T RES , CARBON
R817 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R818 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R821 CRD25FJ180T RES , CARBON
R822 CRD25FJ180T RES , CARBON
R830 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R831 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R834 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R835 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R836 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R837 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R842 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R843 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
R848 CRD20TJ273T RES , CARBON 27K OHM 1/5W J
R850 CRD20TJ202T RES , CARBON
R852 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R853 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J
R856 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R857 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
R860 CRD20TJ271T RES , CARBON 270 OHM 1/5W J
R862 CRD20TJ333T RES , CARBON 33K OHM 1/5W J
R870 CRD20TJ433T RES , CARBON 43K OHM 1/5W J
R872 CRD20TJ471T RES , CARBON 470 OHM 1/5W J
R875 CRD20TJ331T RES , CARBON 330 OHM 1/5W J
R877 CRD20TJ331T RES , CARBON 330 OHM 1/5W J
R878 CRD20TJ331T RES , CARBON 330 OHM 1/5W J
R879 CRD20TJ331T RES , CARBON 330 OHM 1/5W J
R880 CRD20TJ331T RES , CARBON 330 OHM 1/5W J
R883 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J
R885 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J
R886 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J
R887 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J
R888 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J
R891 CRD20TJ391T RES , CARBON
R893 CRD20TJ391T RES , CARBON
R894 CRD20TJ391T RES , CARBON
R896 CRD20TJ391T RES , CARBON
Description
alue
MAIN PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 19 of 83
Ref. # Part Number
R897 CRD20TJ391T RES , CARBON
R900 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R901 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J
R902 CRD20TJ153T RES , CARBON 15K OHM 1/5W J
R903 CRD20TJ153T RES , CARBON 15K OHM 1/5W J
R905 CRG1SANJ1R0RT RES , METAL OXIDE FILM(1W/1 OHM)
R906 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R907 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R908 CRD20TJ153T RES , CARBON 15K OHM 1/5W J
R909 CRD20TJ153T RES , CARBON 15K OHM 1/5W J
R910 CRD20TJ153T RES , CARBON 15K OHM 1/5W J
R911 KRG1SANJ271RT RES , METAL OXIDE FILM
R912 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J
R913 CRD25TJ470T RES , CARBON
R914 CRD20TJ153T RES , CARBON 15K OHM 1/5W J
R917 CRD25TJ393T RES , CARBON
R918 CRD25TJ393T RES , CARBON
R919 CRD25TJ393T RES , CARBON
R920 CRD25TJ393T RES , CARBON
R925 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R927 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R928 CRD20TJ333T RES , CARBON 33K OHM 1/5W J
R939 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
R940 CRD20TJ123T RES , CARBON 12K OHM 1/5W J
R941 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R942 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R944 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R946 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R947 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R948 CRD25TJ153T RES , CARBON
R954 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J
R955 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R957 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
R961 CRD20TJ331T RES , CARBON 330 OHM 1/5W J
R962 CRD20TJ273T RES , CARBON 27K OHM 1/5W J
R986 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R988 CRD20TJ203T RES , CARBON
R989 CRD20TJ302T RES , CARBON
R990 KRG1SANJ100RT RES , METAL OXIDE FILM 10 OHM 1W J
R991 CRD20TJ822T RES , CARBON 8.2K OHM 1/5W J
R993 KRG1SANJ100RT RES , METAL OXIDE FILM 10 OHM 1W J
R995 KRG1SANJ100RT RES , METAL OXIDE FILM 10 OHM 1W J
R997 KRG1SANJ100RT RES , METAL OXIDE FILM 10 OHM 1W J
R998 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R999 KRG1SANJ100RT RES , METAL OXIDE FILM 10 OHM 1W J
VR82 CVN1RA221B02T RES , SEMI FIXED (220, B CURVE) KVSF637AVC
VR84 CVN1RA221B02T RES , SEMI FIXED (220, B CURVE) KVSF637AVC
VR85 CVN1RA221B02T RES , SEMI FIXED (220, B CURVE) KVSF637AVC
VR86 CVN1RA221B02T RES , SEMI FIXED (220, B CURVE) KVSF637AVC
VR87 CVN1RA221B02T RES , SEMI FIXED (220, B CURVE) KVSF637AVC
CMYAVR139/230 HEAT SINK ASS'Y
CHD1A012R SCREW , SPECIAL
CHD4A012R SCREW , SPECIAL
CMD1A398 BRACKET , PCB AG-D9320
CMD1A417 BRACKET , PCB AG-D8900
CMY1A321 HEAT SINK
CTB3+8JR SCREW
CTW3+8JR SCREW
IC89 HVIKIA278R05PI REGULATOR (5V OUTPUT LOW DROP) KIA278R05PI
IC90 CVIKIA278R15PI I.C , REGULATOR(15V OUTPUT LOW DROP)
IC91 CVIKIA7915PI I.C , REGULATOR(15V, TO-220AB) KIA7915PI
Q652 CVT2SB1559P43M TR , 2SB1559 (PNP,MT-100,POWER, MICA 43 TYPE)
Q653 CVT2SB1559P43M TR , 2SB1559 (PNP,MT-100,POWER, MICA 43 TYPE)
Q654 CVT2SB1559P43M TR , 2SB1559 (PNP,MT-100,POWER, MICA 43 TYPE)
Q657 CVT2SD2389P43M TR , 2SD2389 (NPN,MT-100,POWER, MICA 43 TYPE)
Q658 CVT2SD2389P43M TR , 2SD2389 (NPN,MT-100,POWER, MICA 43 TYPE)
Q659 CVT2SD2389P43M TR , 2SD2389 (NPN,MT-100,POWER, MICA 43 TYPE)
Q660 CVT2SD2389P43M TR , 2SD2389 (NPN,MT-100,POWER, MICA 43 TYPE)
Q661 CVT2SB1559P43M TR , 2SB1559 (PNP,MT-100,POWER, MICA 43 TYPE)
Q803 CVT2SD2389P43M TR , 2SD2389 (NPN,MT-100,POWER, MICA 43 TYPE)
Q804 CVT2SB1559P43M TR , 2SB1559 (PNP,MT-100,POWER, MICA 43 TYPE)
Q852 HVTKTD600KGR T.R , BIAS KTD600KGR
Q854 HVTKTD600KGR T.R , BIAS KTD600KGR
Q855 HVTKTD600KGR T.R , BIAS KTD600KGR
Q856 HVTKTD600KGR T.R , BIAS KTD600KGR
Q857 HVTKTD600KGR T.R , BIAS KTD600KGR
CVDGBJ1006BHA DIODE HEAT SINK ASS'Y (CMY1A138)
CMY1A138 HEAT SINK , DIODE
CTB3+12JR SCREW
K8AYG6260 COMPOUND , SILICONE
D991 HVDGBJ1006 DIODE , BRIDGE
BN17 CJP06GB143ZB FEMALE HEADER(6P, 2.54mm)
BN20 CWB1C007220BM WIRE ASS'Y
BN90 CJP02GA89ZY WAFER
CN12 CJP27GA41ZM WAFER (1.25MM, CARD CABLE, STRAIGHT 27P) MOLEX 52045-**45
CN61 CJP02GA01ZY WAFER , STRAIGHT, 2PIN
Description
alue
MAIN PCB ASSY
V
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 20 of 83
Ref. # Part Number
CN62 CJP02GA01ZY WAFER , STRAIGHT, 2PIN
CN63 CJP02GA01ZY WAFER , STRAIGHT, 2PIN
CN64 CJP02GA01ZY WAFER , STRAIGHT, 2PIN
CN65 CJP03GA90ZY WAFER
CN66 CJP02GA01ZY WAFER , STRAIGHT, 2PIN
CN91 CJP02GA89ZY WAFER
CN92 CJP02KA060ZY WAFER
CN96 CJP09GA01ZY CON WAFER YMW025-09R
C631 CCEA1JH101E CAP , ELECT 100UF 63V
C632 CCEA1JH101E CAP , ELECT 100UF 63V
C633 CCEA1JH101E CAP , ELECT 100UF 63V
C634 CCEA1JH101E CAP , ELECT 100UF 63V
C636 CCEA1JH101E CAP , ELECT 100UF 63V
C637 CCEA1JH101E CAP , ELECT 100UF 63V
C638 CCEA1JH101E CAP , ELECT 100UF 63V
C639 CCEA1JH101E CAP , ELECT 100UF 63V
C807 CCEA1JH101E CAP , ELECT 100UF 63V
C808 CCEA1JH101E CAP , ELECT 100UF 63V
C904 KCKDKS472ME CAP , CERAMIC(X1/Y2/SC) 0.0047UF/2.5KV
C906 CCEA1EH222E CAP , ELECT 2200UF 25V
C915 CCET50VKL4103NK CAP , ELECT 10000UF/50V
C916 CCET50VKL4103NK CAP , ELECT 10000UF/50V
C929 CCEA1VH222EZ CAP , ELECT (2200UF/35V, 12.5X31) KR3-35V222MH1-L/C4.0
C930 CCEA1VH222EZ CAP , ELECT (2200UF/35V, 12.5X31) KR3-35V222MH1-L/C4.0
C941 CCEA1EH822E CAP , ELECT(KR3, 8200UF/25V, 18X30) KR3-25V822MU
ET01 CMD1A387 BRACKET , PCB
IC94 CVIKIA1117PI50 I.C , REGULATOR (+5V,TO-220IS)
JK75 HJSTORX177L MODULE , OPTICAL(RX) TORX177L
JK76 HJSTORX177L MODULE , OPTICAL(RX) TORX177L
JK90 CJJ4M040Z JACK , BOARD (SW)
JK91 CJJ5R006Z TERMINAL , SPEAKER
JK92 CJJ5P020Z TERMINAL , SPEAKER
JW92 CWE8112220VV WIRE , 1P RED (220MM)
JW93 CWE8102150VV WIRE ASS'Y (1PIN #18, 150MM TERMINAL)
JW94 CWE8101200VV WIRE , 1P BLUE (200MM)
L501 CLEY0R5KAK COIL , SPEAKER 0.5UH K
L502 CLEY0R5KAK COIL , SPEAKER 0.5UH K
L503 CLEY0R5KAK COIL , SPEAKER 0.5UH K
L504 CLEY0R5KAK COIL , SPEAKER 0.5UH K
L506 CLEY0R5KAK COIL , SPEAKER 0.5UH K
Q858 HVTKTA1360Y T.R , PRE DRIVE KTA1360Y
Q871 HVTKTA1360Y T.R , PRE DRIVE KTA1360Y
Q872 HVTKTA1360Y T.R , PRE DRIVE KTA1360Y
Q874 HVTKTA1360Y T.R , PRE DRIVE KTA1360Y
Q876 HVTKTA1360Y T.R , PRE DRIVE KTA1360Y
Q881 HVTKTC3423Y T.R , PRE DRIVE KTC3423Y
Q882 HVTKTC3423Y T.R , PRE DRIVE KTC3423Y
Q883 HVTKTC3423Y T.R , PRE DRIVE KTC3423Y
Q884 HVTKTC3423Y T.R , PRE DRIVE KTC3423Y
Q886 HVTKTC3423Y T.R , PRE DRIVE KTC3423Y
RY94 CSL1E002ZE RELAY , POWER G5PA-1 (DC 6V)
R656 CRF5EKR27HX2K RES , CEMENT
R657 CRF5EKR27HX2K RES , CEMENT
R658 CRF5EKR27HX2K RES , CEMENT
R659 CRF5EKR27HX2K RES , CEMENT
R810 CRF5EKR27HX2K RES , CEMENT
TH91 KRTP42T7D330B THERMAL SENSOR , POSISTOR P42T7D330BW20
T902 CLT5I009ZE TRANS , SUB CD6002/N
Description
alue
INPUT PCB ASSY
Ref. # Part Number
COP12187B AVR139/230 INPUT PCB ASS'Y
C260 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C277 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C279 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C280 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C289 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C290 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C400 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C401 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C405 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C601 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C603 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C605 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C607 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C609 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C611 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C613 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C615 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C619 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C621 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C623 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C625 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C627 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C629 CCUS1H104KC CAP , CHIP 0.1UF 50V K
Description
alue
INPUT PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 21 of 83
Ref. # Part Number
C631 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C704 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C707 CCUS1H102KC CAP , CHIP 1000PF 50V K
C719 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C738 CCUS1A105KC CAP , CHIP 1UF 10V K
C739 CCUS1H103KC CAP , CHIP 0.01UF 50V K
C743 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C757 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C759 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C760 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C761 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C762 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C763 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C769 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C770 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C771 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C772 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C773 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C793 CCUS1H101JA CAP , CHIP 100PF 50V J
C799 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C800 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C804 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C808 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C809 CCUS1H104KC CAP , CHIP 0.1UF 50V K
D201 CVD1SS355T DIODE , CHIP
D202 CVD1SS355T DIODE , CHIP
D203 CVD1SS355T DIODE , CHIP
D204 CVD1SS355T DIODE , CHIP
D207 CVD1SS355T DIODE , CHIP
D208 CVD1SS355T DIODE , CHIP
D209 CVD1SS355T DIODE , CHIP
D210 CVD1SS355T DIODE , CHIP
D211 CVD1SS355T DIODE , CHIP
D212 CVD1SS355T DIODE , CHIP
D213 CVD1SS355T DIODE , CHIP
D214 CVD1SS355T DIODE , CHIP
D228 CVD1SS355T DIODE , CHIP
D229 CVD1SS355T DIODE , CHIP
IC77 HVI57V161610ET7 SDRAM 16M 7NS HY57V161610ET-7
R254 CRJ10DJ4R7T RES , CHIP 1608 SIZE
R255 CRJ10DJ4R7T RES , CHIP 1608 SIZE
R256 CRJ10DJ4R7T RES , CHIP 1608 SIZE
R257 CRJ10DJ4R7T RES , CHIP 1608 SIZE
R259 CCUS1H104KC CAP , CHIP 0.1UF 50V K
R260 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R723 CRJ10DJ2R7T RES , CHIP 1/10W 2.7
R727 CRJ10DJ473T RES , CHIP 1608 SIZE
R729 CRJ10DJ123T RES , CHIP 1608 SIZE
R730 CRJ10DJ123T RES , CHIP 1608 SIZE
R739 CRJ10DJ1R0T RES , CHIP 1608 SIZE
R740 CRJ10DJ820T RES , CHIP 1608 SIZE
CIP12187BTSMD AVR139/230 INPUT PCB TOP SMD ASS'Y
CUP12187Z AVR139/230 PCB , INPUT (FR-4,216X168)
C201 CCUS1H221JA CAP , CHIP 220PF 50V J
C202 CCUS1H221JA CAP , CHIP 220PF 50V J
C203 CCUS1H221JA CAP , CHIP 220PF 50V J
C204 CCUS1H221JA CAP , CHIP 220PF 50V J
C205 CCUS1H221JA CAP , CHIP 220PF 50V J
C206 CCUS1H221JA CAP , CHIP 220PF 50V J
C209 CCUS1H221JA CAP , CHIP 220PF 50V J
C210 CCUS1H221JA CAP , CHIP 220PF 50V J
C211 CCUS1H221JA CAP , CHIP 220PF 50V J
C212 CCUS1H221JA CAP , CHIP 220PF 50V J
C213 CCUS1H221JA CAP , CHIP 220PF 50V J
C214 CCUS1H221JA CAP , CHIP 220PF 50V J
C215 CCUS1H221JA CAP , CHIP 220PF 50V J
C216 CCUS1H221JA CAP , CHIP 220PF 50V J
C219 CCUS1H221JA CAP , CHIP 220PF 50V J
C220 CCUS1H221JA CAP , CHIP 220PF 50V J
C221 CCUS1H221JA CAP , CHIP 220PF 50V J
C222 CCUS1H221JA CAP , CHIP 220PF 50V J
C223 CCUS1H221JA CAP , CHIP 220PF 50V J
C224 CCUS1H221JA CAP , CHIP 220PF 50V J
C269 CCUS1A105KC CAP , CHIP 1UF 10V K
C274 CCUS1A105KC CAP , CHIP 1UF 10V K
C291 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C293 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C301 CCUS1H471JA CAP , CHIP 470PF 50V J
C302 CCUS1H471JA CAP , CHIP 470PF 50V J
C303 CCUS1H471JA CAP , CHIP 470PF 50V J
C304 CCUS1H471JA CAP , CHIP 470PF 50V J
C305 CCUS1H471JA CAP , CHIP 470PF 50V J
C306 CCUS1H471JA CAP , CHIP 470PF 50V J
C309 CCUS1H332KC CAP , CHIP 3300PF 50V K
C310 CCUS1H332KC CAP , CHIP 3300PF 50V K
C311 CCUS1H332KC CAP , CHIP 3300PF 50V K
Description
alue
INPUT PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 22 of 83
Ref. # Part Number
C312 CCUS1H332KC CAP , CHIP 3300PF 50V K
C313 CCUS1H332KC CAP , CHIP 3300PF 50V K
C314 CCUS1H332KC CAP , CHIP 3300PF 50V K
C317 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C318 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C319 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C321 CCUS1H561JA CAP , CHIP 560PF 50V J
C322 CCUS1H561JA CAP , CHIP 560PF 50V J
C323 CCUS1H561JA CAP , CHIP 560PF 50V J
C324 CCUS1H561JA CAP , CHIP 560PF 50V J
C325 CCUS1H561JA CAP , CHIP 560PF 50V J
C326 CCUS1H561JA CAP , CHIP 560PF 50V J
C327 CCUS1H561JA CAP , CHIP 560PF 50V J
C328 CCUS1H561JA CAP , CHIP 560PF 50V J
C329 CCUS1H561JA CAP , CHIP 560PF 50V J
C330 CCUS1H561JA CAP , CHIP 560PF 50V J
C331 CCUS1H561JA CAP , CHIP 560PF 50V J
C332 CCUS1H561JA CAP , CHIP 560PF 50V J
C337 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C338 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C339 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C350 CCUS1H332KC CAP , CHIP 3300PF 50V K
C351 CCUS1H332KC CAP , CHIP 3300PF 50V K
C352 CCUS1H332KC CAP , CHIP 3300PF 50V K
C353 CCUS1H332KC CAP , CHIP 3300PF 50V K
C354 CCUS1H332KC CAP , CHIP 3300PF 50V K
C355 CCUS1H332KC CAP , CHIP 3300PF 50V K
C369 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C370 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C381 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C382 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C383 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C384 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C385 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C386 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C391 CCUS1H151JA CAP , CHIP 150PF 50V J
C392 CCUS1H151JA CAP , CHIP 150PF 50V J
C393 CCUS1H151JA CAP , CHIP 150PF 50V J
C394 CCUS1H102KC CAP , CHIP 1000PF 50V K
C395 CCUS1H151JA CAP , CHIP 150PF 50V J
C396 CCUS1H151JA CAP , CHIP 150PF 50V J
C397 CCUS1H181JA CAP , CHIP 180PF 50V J
C398 CCUS1H181JA CAP , CHIP 180PF 50V J
C399 CCUS1H181JA CAP , CHIP 180PF 50V J
C402 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C403 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C404 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C406 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C617 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C701 CCUS1H150JA CAP , CHIP(15PF/50V) 15PF 50V J
C702 CCUS1H150JA CAP , CHIP(15PF/50V) 15PF 50V J
C705 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C708 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C709 CCUS1H102KC CAP , CHIP 1000PF 50V K
C711 CCUS1H102KC CAP , CHIP 1000PF 50V K
C712 CCUS1H223KC CAP , CHIP 0.022UF 50V K
C713 CCUS1H300JA CAP , CHIP
C714 CCUS1H270JA CAP , CHIP 27PF 50V J
C718 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C722 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C723 CCUS1H473KC CAP , CHIP 0.047UF 50V K
C725 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C727 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C729 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C731 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C733 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C734 CCUS1H102KC CAP , CHIP 1000PF 50V K
C735 CCUS1H470JA CAP , CHIP 47PF 50V J
C741 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C742 CCUS1H220JA CAP , CHIP 22PF 50V J
C744 CCUS1H220JA CAP , CHIP 22PF 50V J
C745 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C746 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C747 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C748 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C751 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C755 CCUS1H561JA CAP , CHIP 560PF 50V J
C758 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C765 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C768 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C775 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C776 CCUS1H473KC CAP , CHIP 0.047UF 50V K
C794 CCUS1H181JA CAP , CHIP 180PF 50V J
C795 CCUS1H181JA CAP , CHIP 180PF 50V J
C796 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C797 CCUS1H104KC CAP , CHIP 0.1UF 50V K
Description
alue
INPUT PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 23 of 83
Ref. # Part Number
C798 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C801 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C803 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C805 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C806 CCUS1H104KC CAP , CHIP 0.1UF 50V K
C807 CCUS1H680JA CAP , CHIP 68PF 50V J
D221 CVD1SS355T DIODE , CHIP
D222 CVD1SS355T DIODE , CHIP
D223 CVD1SS355T DIODE , CHIP
D224 CVD1SS355T DIODE , CHIP
D225 CVD1SS355T DIODE , CHIP
D226 CVD1SS355T DIODE , CHIP
D227 CVD1SS355T DIODE , CHIP
IC20 CVINJW1197CFC2 I.C , VOL WITH INPUT SELECTOR NJW1197CFC2
IC21 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC22 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC23 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC25 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC31 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC32 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC33 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1
IC71 HVI74HCU04AFNG I.C , INVERTER TC74HCU04AFNG(TOSHIBA)
IC72 HVITC74HCU04AFN IC , INVERTER TC74HCU04AFN
IC73 HVIAK4589VQ-T I.C , CODEC + DIR AK4589VQ
IC74 HVILC72723M IC , PLL (RDS)
IC75 CVICS49510-CQ I.C , DSP
IC76 CVIANAM1487AT I.C , FLASH ROM 8M (ES29LV800ET70TG,AVR139/230)
IC76 CVIES29LV800ET70TG IC , FLASH MEMORY (8Mbit) ES29LV800ET-70TG/8M NOR FLASH
IC78 HVINJM2391DL133 I.C , CHIP REGULATOR (+3.3V)
IC79 CVIKIA1117S18 I.C , REGULATOR(SOT-223) KIA1117S/F18, SOT-223
IC87 HVIRH5VT28C I.C , RESET
IC88 CVIKIA1117S33 I.C , REGULATOR(SOT-223) KIA1117S/F33, SOT-223
IC89 CVIM24C32WMN6TP I.C , EEPROM (32 Kbit)
IC90 CVIANAM1486AT I.C , U-COM (T5CC1,AVR139/230)
IC90 CVIT5CC1 I.C , FLASH U-COM
IC91 HVI74ACT04MTR I.C , HEX
L701 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60
L702 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60
L703 CLZ9Z014Z FERRITE , CHIP BEAD(60ohm, 4516) HCB4516KF-600T60
L704 CLZ9R005Z FERRITE , CHIP BEAD(60ohm, 1608) HCB1608KF-600T30
L705 CLZ9R005Z FERRITE , CHIP BEAD(60ohm, 1608) HCB1608KF-600T30
Q301 HVTKTC2875B TR , CHIP KTC2875B
Q302 HVTKTC2875B TR , CHIP KTC2875B
Q303 HVTKTC2875B TR , CHIP KTC2875B
Q304 HVTKTC2875B TR , CHIP KTC2875B
Q305 HVTKTC2875B TR , CHIP KTC2875B
Q306 HVTKTC2875B TR , CHIP KTC2875B
Q307 HVTKTC2875B TR , CHIP KTC2875B
Q729 HVTKRC107S T.R , CHIP
Q730 HVTKRC107S T.R , CHIP
Q731 HVTKRC107S T.R , CHIP
Q732 HVTKRC107S T.R , CHIP
Q901 HVTKRC107S T.R , CHIP
Q902 HVTKRA107S TR, CHIP
Q903 HVTKRC107S T.R , CHIP
Q904 HVTKRA107S TR, CHIP
RN62 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN63 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN64 CRJ104DJ101T RES , CHIP NETWORK(1/16W, 100ohm, 1608X4) 100R (1608)
RN65 CRJ104DJ101T RES , CHIP NETWORK(1/16W, 100ohm, 1608X4) 100R (1608)
RN66 CRJ104DJ101T RES , CHIP NETWORK(1/16W, 100ohm, 1608X4) 100R (1608)
RN71 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN72 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN73 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN74 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN75 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN76 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN77 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN78 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN79 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN80 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN81 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN82 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN83 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN84 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN85 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN86 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN87 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN88 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN89 CRJ104DJ103T RES, ARRAY, 10K (1608) 10K(1608)
RN90 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN91 CRJ104DJ330T RES , 4ARRAY (1608*4) 33 OHM/1608*4
RN92 CRJ104DJ101T RES , CHIP NETWORK(1/16W, 100ohm, 1608X4) 100R (1608)
R201 CRJ10DJ221T RES , CHIP 1608 SIZE
R202 CRJ10DJ221T RES , CHIP 1608 SIZE
R203 CRJ10DJ221T RES , CHIP 1608 SIZE
Description
alue
INPUT PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 24 of 83
Ref. # Part Number
R204 CRJ10DJ221T RES , CHIP 1608 SIZE
R205 CRJ10DJ221T RES , CHIP 1608 SIZE
R206 CRJ10DJ221T RES , CHIP 1608 SIZE
R209 CRJ10DJ221T RES , CHIP 1608 SIZE
R210 CRJ10DJ221T RES , CHIP 1608 SIZE
R211 CRJ10DJ221T RES , CHIP 1608 SIZE
R212 CRJ10DJ221T RES , CHIP 1608 SIZE
R213 CRJ10DJ221T RES , CHIP 1608 SIZE
R214 CRJ10DJ221T RES , CHIP 1608 SIZE
R215 CRJ10DJ221T RES , CHIP 1608 SIZE
R216 CRJ10DJ221T RES , CHIP 1608 SIZE
R219 CRJ10DJ221T RES , CHIP 1608 SIZE
R220 CRJ10DJ221T RES , CHIP 1608 SIZE
R221 CRJ10DJ221T RES , CHIP 1608 SIZE
R222 CRJ10DJ221T RES , CHIP 1608 SIZE
R223 CRJ10DJ221T RES , CHIP 1608 SIZE
R224 CRJ10DJ272T RES , CHIP 1608 SIZE
R227 CRJ10DJ104T RES , CHIP 1608 SIZE
R228 CRJ10DJ104T RES , CHIP 1608 SIZE
R229 CRJ10DJ104T RES , CHIP 1608 SIZE
R230 CRJ10DJ104T RES , CHIP 1608 SIZE
R231 CRJ10DJ104T RES , CHIP 1608 SIZE
R232 CRJ10DJ104T RES , CHIP 1608 SIZE
R235 CRJ10DJ104T RES , CHIP 1608 SIZE
R236 CRJ10DJ104T RES , CHIP 1608 SIZE
R237 CRJ10DJ104T RES , CHIP 1608 SIZE
R238 CRJ10DJ104T RES , CHIP 1608 SIZE
R239 CRJ10DJ104T RES , CHIP 1608 SIZE
R240 CRJ10DJ104T RES , CHIP 1608 SIZE
R241 CRJ10DJ104T RES , CHIP 1608 SIZE
R242 CRJ10DJ104T RES , CHIP 1608 SIZE
R245 CRJ10DJ104T RES , CHIP 1608 SIZE
R246 CRJ10DJ104T RES , CHIP 1608 SIZE
R247 CRJ10DJ104T RES , CHIP 1608 SIZE
R248 CRJ10DJ104T RES , CHIP 1608 SIZE
R249 CRJ10DJ104T RES , CHIP 1608 SIZE
R250 CRJ10DJ103T RES , CHIP 1608 SIZE
R261 CRJ10DJ184T RES , CHIP 1608 SIZE
R262 CRJ10DJ184T RES , CHIP 1608 SIZE
R263 CRJ10DJ184T RES , CHIP 1608 SIZE
R264 CRJ10DJ184T RES , CHIP 1608 SIZE
R265 CRJ10DJ184T RES , CHIP 1608 SIZE
R266 CRJ10DJ184T RES , CHIP 1608 SIZE
R271 CRJ10DJ242T RES , CHIP 1608 SIZE
R272 CRJ10DJ242T RES , CHIP 1608 SIZE
R273 CRJ10DJ242T RES , CHIP 1608 SIZE
R274 CRJ10DJ222T RES , CHIP 1608 SIZE
R275 CRJ10DJ242T RES , CHIP 1608 SIZE
R276 CRJ10DJ242T RES , CHIP 1608 SIZE
R281 CRJ10DJ512T RES , CHIP 1608 SIZE
R282 CRJ10DJ512T RES , CHIP 1608 SIZE
R283 CRJ10DJ512T RES , CHIP 1608 SIZE
R284 CRJ10DJ103T RES , CHIP 1608 SIZE
R285 CRJ10DJ512T RES , CHIP 1608 SIZE
R286 CRJ10DJ512T RES , CHIP 1608 SIZE
R291 CRJ10DJ184T RES , CHIP 1608 SIZE
R292 CRJ10DJ184T RES , CHIP 1608 SIZE
R293 CRJ10DJ184T RES , CHIP 1608 SIZE
R294 CRJ10DJ184T RES , CHIP 1608 SIZE
R295 CRJ10DJ184T RES , CHIP 1608 SIZE
R296 CRJ10DJ184T RES , CHIP 1608 SIZE
R301 CRJ10DJ332T RES , CHIP 1608 SIZE
R302 CRJ10DJ332T RES , CHIP 1608 SIZE
R303 CRJ10DJ332T RES , CHIP 1608 SIZE
R304 CRJ10DJ332T RES , CHIP 1608 SIZE
R305 CRJ10DJ332T RES , CHIP 1608 SIZE
R306 CRJ10DJ332T RES , CHIP 1608 SIZE
R307 CRJ10DJ332T RES , CHIP 1608 SIZE
R308 CRJ10DJ332T RES , CHIP 1608 SIZE
R309 CRJ10DJ332T RES , CHIP 1608 SIZE
R310 CRJ10DJ332T RES , CHIP 1608 SIZE
R311 CRJ10DJ332T RES , CHIP 1608 SIZE
R312 CRJ10DJ332T RES , CHIP 1608 SIZE
R317 CRJ10DJ561T RES , CHIP
R318 CRJ10DJ392T RES . CHIP
R321 CRJ10DJ512T RES , CHIP 1608 SIZE
R322 CRJ10DJ122T RES , CHIP 1608 SIZE
R323 CRJ10DJ122T RES , CHIP 1608 SIZE
R324 CRJ10DJ512T RES , CHIP 1608 SIZE
R325 CRJ10DJ512T RES , CHIP 1608 SIZE
R326 CRJ10DJ122T RES , CHIP 1608 SIZE
R327 CRJ10DJ122T RES , CHIP 1608 SIZE
R328 CRJ10DJ103T RES , CHIP 1608 SIZE
R329 CRJ10DJ512T RES , CHIP 1608 SIZE
R330 CRJ10DJ122T RES , CHIP 1608 SIZE
R331 CRJ10DJ122T RES , CHIP 1608 SIZE
Description
alue
INPUT PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 25 of 83
Ref. # Part Number
R332 CRJ10DJ512T RES , CHIP 1608 SIZE
R341 CRJ10DJ122T RES , CHIP 1608 SIZE
R344 CRJ10DJ122T RES , CHIP 1608 SIZE
R345 CRJ10DJ122T RES , CHIP 1608 SIZE
R348 CRJ10DJ122T RES , CHIP 1608 SIZE
R349 CRJ10DJ122T RES , CHIP 1608 SIZE
R352 CRJ10DJ122T RES , CHIP 1608 SIZE
R361 CRJ10DJ104T RES , CHIP 1608 SIZE
R362 CRJ10DJ104T RES , CHIP 1608 SIZE
R363 CRJ10DJ104T RES , CHIP 1608 SIZE
R364 CRJ10DJ104T RES , CHIP 1608 SIZE
R365 CRJ10DJ104T RES , CHIP 1608 SIZE
R366 CRJ10DJ104T RES , CHIP 1608 SIZE
R371 CRJ10DJ512T RES , CHIP 1608 SIZE
R372 CRJ10DJ512T RES , CHIP 1608 SIZE
R373 CRJ10DJ512T RES , CHIP 1608 SIZE
R374 CRJ10DJ103T RES , CHIP 1608 SIZE
R375 CRJ10DJ512T RES , CHIP 1608 SIZE
R376 CRJ10DJ512T RES , CHIP 1608 SIZE
R381 CRJ10DJ561T RES , CHIP
R382 CRJ10DJ561T RES , CHIP
R383 CRJ10DJ561T RES , CHIP
R384 CRJ10DJ561T RES , CHIP
R385 CRJ10DJ561T RES , CHIP
R386 CRJ10DJ561T RES , CHIP
R389 CRJ10DJ184T RES , CHIP 1608 SIZE
R390 CRJ10DJ184T RES , CHIP 1608 SIZE
R391 CRJ10DJ392T RES . CHIP
R392 CRJ10DJ392T RES . CHIP
R393 CRJ10DJ392T RES . CHIP
R394 CRJ10DJ392T RES . CHIP
R395 CRJ10DJ392T RES . CHIP
R396 CRJ10DJ392T RES . CHIP
R701 CRJ10DJ103T RES , CHIP 1608 SIZE
R702 CRJ10DJ103T RES , CHIP 1608 SIZE
R703 CRJ10DJ103T RES , CHIP 1608 SIZE
R704 CRJ10DJ330T RES , CHIP 1608 SIZE
R705 CRJ10DJ330T RES , CHIP 1608 SIZE
R706 CRJ10DJ222T RES , CHIP 1608 SIZE
R707 CRJ10DJ222T RES , CHIP 1608 SIZE
R708 CRJ10DJ101T RES , CHIP 1608 SIZE
R709 CRJ10DJ103T RES , CHIP 1608 SIZE
R710 CRJ10DJ103T RES , CHIP 1608 SIZE
R711 CRJ10DJ103T RES , CHIP 1608 SIZE
R713 CRJ10DJ330T RES , CHIP 1608 SIZE
R714 CRJ10DJ104T RES , CHIP 1608 SIZE
R715 CRJ10DJ104T RES , CHIP 1608 SIZE
R716 CRJ10DJ472T RES , CHIP 1608 SIZE
R717 CRJ10DJ3R3T RES , CHIP
R718 CRJ10DJ123T RES , CHIP 1608 SIZE
R719 CRJ10DJ473T RES , CHIP 1608 SIZE
R720 CRJ10DJ473T RES , CHIP 1608 SIZE
R721 CRJ10DJ330T RES , CHIP 1608 SIZE
R722 CRJ10DJ330T RES , CHIP 1608 SIZE
R724 CRJ10DJ101T RES , CHIP 1608 SIZE
R725 CRJ10DJ473T RES , CHIP 1608 SIZE
R726 CRJ10DJ473T RES , CHIP 1608 SIZE
R728 CRJ10DJ102T RES , CHIP 1608 SIZE
R731 CRJ10DJ330T RES , CHIP 1608 SIZE
R732 CRJ10DJ330T RES , CHIP 1608 SIZE
R733 CRJ10DJ100T RES , CHIP 1608 SIZE
R734 CRJ10DJ330T RES , CHIP 1608 SIZE
R735 CRJ10DJ104T RES , CHIP 1608 SIZE
R736 CRJ10DJ241T RES , CHIP
R737 CRJ10DJ330T RES , CHIP 1608 SIZE
R738 CRJ10DJ330T RES , CHIP 1608 SIZE
R741 CRJ10DJ330T RES , CHIP 1608 SIZE
R742 CRJ10DJ330T RES , CHIP 1608 SIZE
R743 CRJ10DJ330T RES , CHIP 1608 SIZE
R744 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R745 CRJ10DJ330T RES , CHIP 1608 SIZE
R746 CRJ10DJ330T RES , CHIP 1608 SIZE
R747 CRJ10DJ330T RES , CHIP 1608 SIZE
R748 CRJ10DJ330T RES , CHIP 1608 SIZE
R749 CRJ10DJ330T RES , CHIP 1608 SIZE
R750 CRJ10DJ330T RES , CHIP 1608 SIZE
R751 CRJ10DJ330T RES , CHIP 1608 SIZE
R752 CRJ10DJ330T RES , CHIP 1608 SIZE
R753 CRJ10DJ103T RES , CHIP 1608 SIZE
R754 CRJ10DJ103T RES , CHIP 1608 SIZE
R755 CRJ10DJ750T RES , CHIP 1608 SIZE
R756 CRJ10DJ103T RES , CHIP 1608 SIZE
R757 CRJ10DJ750T RES , CHIP 1608 SIZE
R758 CRJ10DJ103T RES , CHIP 1608 SIZE
R759 CRJ10DJ330T RES , CHIP 1608 SIZE
R760 CRJ10DJ105T RES , CHIP 1608 SIZE
Description
alue
INPUT PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 26 of 83
Ref. # Part Number
R761 CRJ10DJ104T RES , CHIP 1608 SIZE
R762 CRJ10DJ104T RES , CHIP 1608 SIZE
R763 CRJ10DJ472T RES , CHIP 1608 SIZE
R764 CRJ10DJ472T RES , CHIP 1608 SIZE
R765 CRJ10DJ103T RES , CHIP 1608 SIZE
R766 CRJ10DJ103T RES , CHIP 1608 SIZE
R767 CRJ10DJ301T RES , CHIP 1608
R768 CRJ10DJ562T RES , CHIP 1608 SIZE
R769 CRJ10DJ330T RES , CHIP 1608 SIZE
R770 CRJ10DJ330T RES , CHIP 1608 SIZE
R771 CRJ10DJ0R0T RES , CHIP 1608 SIZE
R773 CRJ10DJ332T RES , CHIP 1608 SIZE
R774 CRJ10DJ332T RES , CHIP 1608 SIZE
R775 CRJ10DJ332T RES , CHIP 1608 SIZE
R776 CRJ10DJ332T RES , CHIP 1608 SIZE
R777 CRJ10DJ102T RES , CHIP 1608 SIZE
R778 CRJ10DJ103T RES , CHIP 1608 SIZE
R779 CRJ10DJ102T RES , CHIP 1608 SIZE
R780 CRJ10DJ102T RES , CHIP 1608 SIZE
R781 CRJ10DJ750T RES , CHIP 1608 SIZE
R782 CRJ10DJ272T RES , CHIP 1608 SIZE
R783 CRJ10DJ272T RES , CHIP 1608 SIZE
R784 CRJ10DJ473T RES , CHIP 1608 SIZE
R785 CRJ10DJ104T RES , CHIP 1608 SIZE
R786 CRJ10DJ471T RES , CHIP 1608 SIZE
R787 CRJ10DJ101T RES , CHIP 1608 SIZE
R789 CRJ10DJ103T RES , CHIP 1608 SIZE
R790 CRJ10DJ103T RES , CHIP 1608 SIZE
R791 CRJ10DJ101T RES , CHIP 1608 SIZE
R793 CRJ10DJ103T RES , CHIP 1608 SIZE
R794 CRJ10DJ102T RES , CHIP 1608 SIZE
R795 CRJ10DJ102T RES , CHIP 1608 SIZE
R796 CRJ10DJ102T RES , CHIP 1608 SIZE
R799 CRJ10DJ102T RES , CHIP 1608 SIZE
R800 CRJ10DJ102T RES , CHIP 1608 SIZE
R801 CRJ10DJ105T RES , CHIP 1608 SIZE
R802 CRJ10DJ100T RES , CHIP 1608 SIZE
R803 CRJ10DJ101T RES , CHIP 1608 SIZE
R804 CRJ10DJ103T RES , CHIP 1608 SIZE
R805 CRJ10DJ330T RES , CHIP 1608 SIZE
R910 CRJ10DJ105T RES , CHIP 1608 SIZE
R932 CRJ10DJ103T RES , CHIP 1608 SIZE
R960 CRJ10DJ332T RES , CHIP 1608 SIZE
R963 CRJ10DJ105T RES , CHIP 1608 SIZE
R966 CRJ10DJ472T RES , CHIP 1608 SIZE
R992 CRJ10DJ562T RES , CHIP 1608 SIZE
X702 HOX27000E180S CRYSTAL , CHIP(27MHZ,SMD) HC-49/US
C261 CCEA1EH470T CAP , ELECT 47UF 25V
C262 CCEA1EH470T CAP , ELECT 47UF 25V
C263 CCEA1EH470T CAP , ELECT 47UF 25V
C264 CCEA1EH470T CAP , ELECT 47UF 25V
C265 CCEA1EH470T CAP , ELECT 47UF 25V
C266 CCEA1EH470T CAP , ELECT 47UF 25V
C267 CCEA1EH470T CAP , ELECT 47UF 25V
C268 CCEA1EH470T CAP , ELECT 47UF 25V
C272 CCEA1HH100T CAP , ELECT 10UF 50V
C273 CCEA1HH100T CAP , ELECT 10UF 50V
C275 CCEA1HH100T CAP , ELECT 10UF 50V
C276 CCEA1HH100T CAP , ELECT 10UF 50V
C281 CCEA1HH100T CAP , ELECT 10UF 50V
C282 CCEA1HH100T CAP , ELECT 10UF 50V
C283 CCEA1HH100T CAP , ELECT 10UF 50V
C284 CCEA1HH100T CAP , ELECT 10UF 50V
C285 CCEA1HH100T CAP , ELECT 10UF 50V
C286 CCEA1HH100T CAP , ELECT 10UF 50V
C292 CCEA1CH101T CAP , ELECT 100UF 16V
C294 CCEA1CH101T CAP , ELECT 100UF 16V
C341 CCEA1HH100T CAP , ELECT 10UF 50V
C342 CCEA1HH100T CAP , ELECT 10UF 50V
C343 CCEA1HH100T CAP , ELECT 10UF 50V
C344 CCEA1HH100T CAP , ELECT 10UF 50V
C345 CCEA1HH100T CAP , ELECT 10UF 50V
C346 CCEA1HH100T CAP , ELECT 10UF 50V
C358 CCEA1CH101T CAP , ELECT 100UF 16V
C360 CCEA1CH101T CAP , ELECT 100UF 16V
C371 CCEA1HH100T CAP , ELECT 10UF 50V
C372 CCEA1HH100T CAP , ELECT 10UF 50V
C373 CCEA1HH100T CAP , ELECT 10UF 50V
C374 CCEA1HH100T CAP , ELECT 10UF 50V
C375 CCEA1HH100T CAP , ELECT 10UF 50V
C376 CCEA1HH100T CAP , ELECT 10UF 50V
C389 CCEA1HH100T CAP , ELECT 10UF 50V
C390 CCEA1HH100T CAP , ELECT 10UF 50V
C600 CCEA1CH101T CAP , ELECT 100UF 16V
C602 CCEA1CH101T CAP , ELECT 100UF 16V
C604 CCEA1CH101T CAP , ELECT 100UF 16V
Description
alue
INPUT PCB ASSY
V
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 27 of 83
Ref. # Part Number
C606 CCEA1CH101T CAP , ELECT 100UF 16V
C608 CCEA1CH101T CAP , ELECT 100UF 16V
C610 CCEA1CH101T CAP , ELECT 100UF 16V
C612 CCEA1CH101T CAP , ELECT 100UF 16V
C614 CCEA1CH101T CAP , ELECT 100UF 16V
C616 CCEA1CH101T CAP , ELECT 100UF 16V
C618 CCEA1CH101T CAP , ELECT 100UF 16V
C620 CCEA1CH101T CAP , ELECT 100UF 16V
C622 CCEA1CH101T CAP , ELECT 100UF 16V
C624 CCEA1CH101T CAP , ELECT 100UF 16V
C626 CCEA1CH101T CAP , ELECT 100UF 16V
C628 CCEA1CH101T CAP , ELECT 100UF 16V
C630 CCEA1CH101T CAP , ELECT 100UF 16V
C703 CCEA1CH101T CAP , ELECT 100UF 16V
C706 CCEA1CH101T CAP , ELECT 100UF 16V
C717 CCEA1CH101T CAP , ELECT 100UF 16V
C720 CCEA1AH471T CAP , ELECT 470UF 10V
C721 CCEA1AH471T CAP , ELECT 470UF 10V
C724 CCEA1AH471T CAP , ELECT 470UF 10V
C726 CCEA1CH101T CAP , ELECT 100UF 16V
C728 CCEA1AH471T CAP , ELECT 470UF 10V
C730 CCEA1CH101T CAP , ELECT 100UF 16V
C736 CCEA1HH2R2T CAP , ELECT 2.2UF 50V
C737 CCEA1CH101T CAP , ELECT 100UF 16V
C740 CCEA1CH101T CAP , ELECT 100UF 16V
C749 CCEA1CH101T CAP , ELECT 100UF 16V
C764 CCEA0JH102T CAP , ELECT 1000UF 6.3V
C766 CCEA0JH102T CAP , ELECT 1000UF 6.3V
C767 CCEA1CKS100T CAP , ELECT 10UF 16V
C774 CCEA1CH101T CAP , ELECT 100UF 16V
C802 CCEA1HH100T CAP , ELECT 10UF 50V
D704 CVD1N4003SRT DIODE , RECT 1N4003
IC36 HVIKA78L08AZT I.C , REGULATOR (+8V) KA78LXXAZTA
IC37 HVIKA79L08AZT REGULATOR, -8V KA79LXXAZTA
CN10 CJP09GA01ZY CON WAFER YMW025-09R
CN12 CJP27GA41ZM WAFER (1.25MM, CARD CABLE, STRAIGHT 27P) MOLEX 52045-**45
CN13 CJP13GA115ZY WAFER , CARD CABLE
CN14 CJP11GA115ZY WAFER(11P, ST 1.25MM)
CN17 CJP06GB142ZB PIN HEADER(6P, 2.54mm)
CN19 CJP07GA117ZY WAFER
CN20 CJP07GA01ZY WAFER , STRAIGHT(7PIN)
CN72 CJP31GA41ZM WAFER (1.25MM, CARD CABLE, STRAIGHT 31P) MOLEX 52045-**45
C732 CCEA0JKR3222E CAP , ELECT
D703 CVD1N4003ST DIODE , RECT 1N4003
JK11 CJJ4R019W TERMINAL , IN/OUT
JK12 CJJ4P014W JACK , IN/OUT
JK13 CJJ4R019W TERMINAL , IN/OUT
JK14 CJJ4P043W JACK IN/OUT
JK78 CJJ4S022Z JACK , BOARD
X701 HOX24576E150TF CRYSTAL 24.576MHZ
X703 HOX04332E200C CRYSTAL
Description
alue
VIDEO PCB ASSY
Ref. # Part Number
COP12188B AVR139/230 VIDEO PCB ASS'Y
C101 CCFT1H473ZF CAP , CERAMIC 0.047UF 50V Z
C102 CCFT1H473ZF CAP , CERAMIC 0.047UF 50V Z
C103 CCFT1H473ZF CAP , CERAMIC 0.047UF 50V Z
C104 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C105 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C106 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J
C107 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C108 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J
C109 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J
C110 CCEA1HH4R7T CAP , ELECT 4.7UF 50V
C117 CCEA1HH4R7T CAP , ELECT 4.7UF 50V
C118 CCBS1H103ZFT CAP , CERAMIC 0.01UF 50V Z
C119 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C120 CCEA1JH470TS CAP , ELECT 63V/47UF/105'C
C121 CCBS1H103ZFT CAP , CERAMIC 0.01UF 50V Z
C122 CCEA2AH101E CAP , ELECT
C401 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C402 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C403 CCEA1HH100T CAP , ELECT 10UF 50V
C404 CCEA1HH100T CAP , ELECT 10UF 50V
C405 CCEA1HH100T CAP , ELECT 10UF 50V
C406 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C407 CCEA1CH101T CAP , ELECT 100UF 16V
C408 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C409 CCEA1CH101T CAP , ELECT 100UF 16V
C410 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C411 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C412 CCBS1H101KBT CAP , CERAMIC(100PF/50V) CH UP025 B101K-A-B Z
C601 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C602 CCEA0JH102T CAP , ELECT 1000UF 6.3V
Description
alue
VIDEO PCB ASSY
V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 28 of 83
Ref. # Part Number
C603 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C604 CCEA0JH102T CAP , ELECT 1000UF 6.3V
C605 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C606 CCEA0JH102T CAP , ELECT 1000UF 6.3V
C607 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C608 CCEA1HH100T CAP , ELECT 10UF 50V
C609 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C610 CCEA1HH100T CAP , ELECT 10UF 50V
C611 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C612 CCEA1HH100T CAP , ELECT 10UF 50V
C613 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C614 CCEA1HH100T CAP , ELECT 10UF 50V
C615 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C616 CCEA1HH100T CAP , ELECT 10UF 50V
C617 CCBS1H220JCT CAP , CERAMIC(22PF/50V) CH UP025CH220J-A-B Z
C618 CCEA1HH100T CAP , ELECT 10UF 50V
C619 CCEA1CH101T CAP , ELECT 100UF 16V
C620 CCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z
C621 CCEA1HH100T CAP , ELECT 10UF 50V
C623 CCBS1H223ZFT CAP , CERAMIC(22000PF/50V) CH UP025 F223Z-A-B J
C624 CCEA1CH101T CAP , ELECT 100UF 16V
D101 HVDMTZJ5.1BT DIODE , ZENER MTZJ5.1B 1/2W
D102 HVDMTZJ27BT DIODE , ZENER MTZJ27B 1/2W
D105 CVD1N4003ST DIODE , RECT 1N4003
D106 CVD1N4003ST DIODE , RECT 1N4003
D108 CVD1N4003ST DIODE , RECT 1N4003
D109 CVDZJ6.8BT DIODE , ZENER ZJ6.8B 1/2W
D110 CVDZJ6.8BT DIODE , ZENER ZJ6.8B 1/2W
D111 CVD1N4003ST DIODE , RECT 1N4003
D112 CVD1N4003ST DIODE , RECT 1N4003
D113 CVD1N4003ST DIODE , RECT 1N4003
D114 CVD1N4003ST DIODE , RECT 1N4003
D401 CVDZJ5.1BT DIODE , ZENER ZJ5.1B 1/2W
D402 CVDZJ5.1BT DIODE , ZENER ZJ5.1B 1/2W
Q104 CVTKTC1027YT T.R
R101 CRD25FJ3R3T RES , CARBON 3.3 OHM 1/4W J
R108 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R109 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R110 CRD20TJ100T RES , CARBON 10 OHM 1/5W J
R111 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
R112 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J
R113 CRD20TJ473T RES , CARBON 47K OHM 1/5W J
R121 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R122 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
R401 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R402 CRD25TJ101T RES , CARBON
R403 CRD25TJ101T RES , CARBON
R411 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R421 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R451 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R461 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R491 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R601 CRD20TJ680T RES , CARBON 68 OHM 1/5W J
R602 CRD20TJ101T RES , CARBON 100 OHM 1/5W J
R603 CRD20TJ560T RES , CARBON 56 OHM 1/5W J
R604 CRD20TJ101T RES , CARBON 100 OHM 1/5W J
R605 CRD20TJ620T RES , CARBON 1/5W 62 OHM
R611 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R613 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R615 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R621 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R623 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R625 CRD20TJ750T RES , CARBON 75 OHM 1/5W J
R674 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
R675 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
BN14 CJP11GA115ZY WAFER(11P, ST 1.25MM)
BN96 CWB1C009280BM WIRE ASS'Y (9P,2.5MM,280MM)
CN13 CJP05GA01ZY WAFER(YMW025-05R)
CN45 CJP07GA117ZY WAFER
CN81 CJP07GA01ZY WAFER , STRAIGHT(7PIN)
D103 HVD2A04H DIODE , RECT(2A)
D104 HVD2A04H DIODE , RECT(2A)
IC41 CVINJM2595MTE1 I.C , VIDEO S/W
IC61 CVINJW1321FP1 I.C , VIDEO S/W
IC62 HVIKIA7809API I.C , REGULATOR +9V KIA7809 (KEC)
JK10 CJJ4S010Z JACK , BOARD
JK12 CJJ4N043Z JACK , BOARD
JK13 CJJ4R045Z JACK , BOARD
JK14 CJJ4S030Z JACK , BOARD 3P,G/B/R,SILVER
R104 CRQ1AJR47H RES , FUSE
R105 CRQ1AJR47H RES , FUSE
R106 CRQ1AJR33H RES , FUSE
R107 CRQ1AJR33H RES , FUSE
Description
alue
VIDEO PCB ASSY
V
(
)
harman/kardon
AVR 139-141-142/230 Service Manual
Page 29 of 83
Ref. # Part Number
COP12189B AVR139/230 GUIDE PCB ASS'Y
CN50 CJP06GB142ZB PIN HEADER(6P, 2.54mm)
CN51 CJP06GB142ZB PIN HEADER(6P, 2.54mm)
CN60 CJP06GB142ZB PIN HEADER(6P, 2.54mm)
CN61 CJP06GB142ZB PIN HEADER
6P, 2.54mm
Description
alue
8
R
AVR139/230, AVR141/230, AVR142/230 IC List
harman/kardon
AVR 139-141-142/230 Service Manual
Page 30 of 83
2009.04.22
No. PCB Name Ref. # Part No.(Makers) Part No.(ANAM) Description Makers
1 COP12185B (Front PCB Ass'y ) IC73 NJL34H380A HRVNJL34H380A INFRARED REMOTE CONTROL RECEIVER JRC
2 " IC75 74ACT04MTR HVI74ACT04MTR HEX INVERTER ST
3 " IC76 74HCU04AFNG HVI74HCU04AFNG HEX INVERTER TOSHIBA
4 " IC86 NJM4556AL HVINJM4556AL DUAL HIGH CURRENT OPERATIONAL AMPLIFIER JRC
5 " FIP1 162-BD-01GINK CFL162BD01GINK VACUUM FLUORESCENT DISPLAY TUBE FUTABA
No. PCB Name Ref. # Part No.(Makers) Part No.(ANAM) Description Makers
1 COP12186B (Main PCB Ass'y )
2"
3"
4"
5"
6"
7"
8"
No. PCB Name Ref. # Part No.(Makers) Part No.(ANAM) Description Makers
1 COP12187B (Input PCB Ass'y )
2"
3"
4"
5"
6"
7"
8"
9"
10 "
11 "
12 "
13 "
14 "
15 "
16 "
17 "
18 "
No. PCB Name Ref. # Part No.(Makers) Part No.(ANAM) Description Makers
1 COP12188B (Video PCB Ass'y )
2"
3"
No. PCB Name Ref. # Part No.(Makers) Part No.(ANAM) Description Makers
1 COP12109B (HDMI PCB Ass'y )
2"
3"
4"
IC21~IC33
IC91
IC92
IC93
IC94
KIA278R05PI
IC89
KIA278R15PI
IC90
KIA7915PI
IC91
KIA1117PI50
IC94
RE5VT28CATZ
IC97
2SB1559
Q653
2SD2389
Q659
KD600K
Q852
NJW1197C
IC20
NJM2068M
KA78L08AZ
IC36
KA79L08AZ
IC37
TC74HCU04AFNG HVI74HCU04AFNG HEX INVERTER TOSHIBA
IC71
TC74HCU04AFNG
IC72
AK4589VQ
IC73
LC72723M
IC74
CS49510-CQ
IC75
IC76 ES29LV800ET70TG CVIANAM1487AT
57V161610ET7
IC77
NJM2391DL1-33
IC78
KIA1117S18
IC79
RH5VT28C
IC87
KIA1117S33
IC88
M24C32WMN6TP
IC89
IC90 T5CC1 CVIANAM1486AT
74ACT04MTR HVI74ACT04MTR HEX INVERTER ST
IC91
NJM2595M
IC41
NJW1321FP1
IC61
KIA7809API
IC62
SII9185ACTU
KIA1117S50
KIA1117S33
KIA1117S1
HVIKIA278R05PI
CVIKIA278R15PI
CVIKIA7915PI
CVIKIA1117PI50
HVIRE5VT28CATZ
CVT2SB1559P47M
CVT2SD2389P47M
HVTKD600KGR
CVINJW1197CFC2
HVINJM2068MDTE1
HVIKA78L08AZT
HVIKA79L08AZT
HVITC74HCU04AFN
HVIAK4589VQ-T
HVILC72723M
CVICS49510-CQ
HVI57V161610ET7
HVINJM2391DL133
CVIKIA1117S18
HVIRH5VT28C
CVIKIA1117S33
CVIM24C32WMN6TP
CVINJM2595MTE1
CVINJW1321FP1
HVIKIA7809API
CVISII9185ACTU
CVIKIA1117S50
CVIKIA1117S33
CVIKIA1117S18
4 TERMINAL 2A OUTPUT LOW DROP VOLTAGE REGULATOR KEC
4 TERMINAL 2A OUTPUT LOW DROP VOLTAGE REGULATOR KEC
1A THREE TERMINAL NEGATIVE VOLTAGE REGULATOR KEC
LOW DROP FIXED AND ADJUSTABLEPOSITIVE VOLTAGE REGULATOR KEC
LOW VOLTAGE DETECTOR RICOH
Silicon PNP Epitaxial Planar Transistor SANKEN
Silicon NPN Triple Diffused Planar Transistor SANKEN
EPITAXIAL PLANAR NPN TRANSISTOR KEC
8-CHANNEL ELECTRONIC VOLUME WITH INPUT SELECTOR JRC
LOW NOISE DUAL OPERATIONAL AMPLIFIER JRC
3-Terminal 0.1A Positive Voltage Regulator FAIRCHILD
3-Terminal 0.1A Negative Voltage Regulator FAIRCHILD
HEX INVERTER TOSHIBA
2/8-Channel Audio CODEC with DIR AKM
RDS Demodulation IC SANYO
Multi-channel Audio DSP CIRRUS LOGIC
8MbitCMOS 3.0 Volt-only, Boot Sector Flash Memory ESI
2 Banks x 512K x 16 Bit Synchronous DRAM HYNIX
LOW DROPOUT VOLTAGE REGULATOR JRC
LOW DROP FIXED POSITIVE VOLTAGE REGULATOR KEC
LOW VOLTAGE DETECTOR RICOH
LOW DROP FIXED POSITIVE VOLTAGE REGULATOR KEC
64Kbit and 32Kbit Serial I²C Bus EEPROM ST
CMOS 16-Bit Microcontrollers TOSHIBA
5-INPUT 3-OUTPUT VIDEO SWITCH JRC
WIDE BAND VIDEO SWITCH WITH I2C BUS JRC
THREE TERMINAL POSITIVE VOLTAGE REGULATORS KEC
3:1 HDMI 1.3 Switch Silicon Image
LOW DROP FIXED POSITIVE VOLTAGE REGULATOR KEC
LOW DROP FIXED POSITIVE VOLTAGE REGULATOR KEC
LOW DROP FIXED POSITIVE VOLTAGE REGULATO
KEC
harman/kardon
AVR 139-141-142/230 Service Manual
Page 31 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 32 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 33 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 34 of 83
74ACT04
harman/kardon
AVR 139-141-142/230 Service Manual
Page 35 of 83
HEX INVERTER
■ HIGH SPEED: t
■ LOW POWER DISSIPATION:
I
= 2µA(MAX.) at TA=25°C
CC
■ COMPATI B LE WITH TTL OUTPU TS
V
= 2V (MIN.), VIL = 0.8V (MAX.)
IH
■ 50Ω TRANSMI SSION L INE DRI VING
= 5.0ns (TYP.) at VCC = 5V
PD
CAPABILITY
■ SYMMETRICAL OUTPUT IMPEDANCE:
|I
| = IOL = 24mA (MIN)
OH
■ BALANCED PROPAGATION DELAYS:
t
≅ t
PLH
■ OPERA TING VOLTAGE RANGE:
V
CC
■ PIN AND FUNCTION COMPAT IBLE WITH
PHL
(OPR) = 4.5V to 5.5V
74 SERIES 04
■ IMPROVED LATCH-UP IMMUNITY
DESCRIPTION
The 74ACT04 is an advanced high-speed CMOS
HEX INVERTER fabricated with sub-micron
silicon gate and double-layer metal wiring C
2
MOS
technology.
The internal circuit is composed of 3 stages
including buffer output , which enables high noise
immunity and stable output.
TSSOPDIP SOP
ORDER CODES
PACKAGE TUBE T & R
DIP 74ACT04B
SOP 74ACT04M 74ACT04MTR
TSSOP 74ACT04TTR
The device is designed to interface directly High
Speed CMOS systems with TTL, NMOS and
CMOS output voltage levels.
All inputs and outputs are equipped with
protection circuits against stat ic discharge, giving
them 2KV ESD immunity and transient excess
voltage.
PIN CONNECTION AND IEC LOGIC SYMBOLS
1/8July 2001
harman/kardon
AVR 139-141-142/230 Service Manual
Page 36 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 37 of 83
SEMICONDUCTOR
harman/kardon
AVR 139-141-142/230 Service Manual
Page 38 of 83
KIA278R05PI~KIA278R15PI
TECHNICAL DATA
4 TERMINAL 2A OUTPUT LOW DROP
VOLTAGE REGULATOR
The KIA278Rᴧᴧ Series are Low Drop Voltage Regulator
suitable for various electronic equipments.
It provides constant voltage power source with TO-220 4 terminal
lead full molded PKG. The Regulator has multi function such as
over current protection, overheat protection and ON/OFF control.
FEATURES
ᴌ2.0A Output Low Drop Voltage Regulator.
ᴌBuilt in ON/OFF Control Terminal.
ᴌBuilt in Over Current Protection, Over Heat
Protection Function.
LINE UP
ITEM OUTPUT VOLTAGE (Typ.) UNIT
KIA278R05PI 5
BIPOLAR LINEAR INTEGRATED CIRCUIT
C
O
S
H
DIM
A
B
C
D
E
F
G
H
J
R
K
L
M
N
O
P
R
S
T
U
V
DC INPUT (V )
1
DC OUTPUT (V )
2
GND
3
ON/OFF CONTROL
4
MILLIMETERS
_
+
10.00 0.20
_
+
15.00 0.20
_
+
2.70 0.20
_
+
0.60 0.10
_
+
Φ3.20 0.20
_
+
3.50 0.10
_
+
15.70 0.20
_
+
0.40 0.10
14.3+0.2/-0.1
_
+
1.45 0.10
_
+
1.00 0.10
2.54
_
+
4.50 0.20
_
+
7.5 0.1
_
+
1.50 0.10
5
8
_
+
1.30 0.1
_
+
3-1.00 0.1
_
+
1.30 0.1
IN
O
E
B
L
J
P
A
V
V
T
M
1234
F
G
L
K
U
D
N
TO-220IS-4
KIA278R06PI 6
KIA278R08PI 8
KIA278R09PI 9
KIA278R10PI 10
KIA278R12PI 12
* KIA278R15PI 15
* Note) * : Under Development.
MAXIMUM RATING (Ta=25ᴱ)
CHARACTERISTIC SYMBOL RATING UNIT Remark
Input Voltage
ON/OFF Control Voltage
Output Current
Power Dissipation 1
Power Dissipation 2
Junction Temperature
Operating Temperature
Storage Temperature
Soldering Temperature (10sec)
V
V
IN
V
C
I
O
P
d1
P
d2
T
j
T
opr
T
stg
T
sol
35 V -
35 V -
2 A -
1.5 W No heatsink
15 W with heatsink
125
-20ᴕ80
-30ᴕ125
260
ᴱ
ᴱ
ᴱ
ᴱ
-
-
-
-
2001. 6. 28 1/7
Revision No : 3
harman/kardon
AVR 139-141-142/230 Service Manual
Page 39 of 83
2005. 3. 14 1/6Revision No : 0
SEMICONDUCTOR
TECHNICAL DATA
KIA1117PI00~
KIA1117PI50
BIPOLAR LINEAR INTEGRATED CIRCUIT
LOW DROP FIXED AND ADJUSTABLE
POSITIVE VOLTAGE REGULATOR
The KIA1117PI is a Low Drop Voltage Regulator able
to provide up to 0.8A of output current, available even in adjustable
version (Vref=1.25V)
FEATURES
Low Dropout Voltage : 1.1V/Typ. (Iout=0.8A)
Very Low Quiescent Current : 4.2 /Typ.
Output Current up to 0.8A
Fixed Output Voltage of 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V
Adjustable Version Availability : Vref=1.25V
Internal Current and Thermal Limit
A minimum of 10 for stability
Available in 2%(at 25 ) and 4% in full Temperature range
High Ripple Rejection : 80dB/Typ.
Temperature Range : -30 125
O
Q
1
2
3
T
T
LINE UP
ITEM OUTPUT VOLTAGE (V) PACKAGE
KIA1117PI00 Adjustable (1.25~10V)
TO-220IS
KIA1117PI15 1.5
KIA1117PI18 1.8
KIA1117PI25 2.5
KIA1117PI28 2.85
KIA1117PI33 3.3
KIA1117PI50 5.0
MAXIMUM RATINGS (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Input Voltage
V
IN
10 V
Output Current
I
OUT
0.8 A
Power Dissipation 1 (No Heatsink)
P
D1
2.0
W
Power Dissipation 2 (Infinite Heatsink)
P
D2
20.8 W
Operating Temperature
T
opr
-30 125
Storage Temperature
T
stg
-55 150
harman/kardon
AVR 139-141-142/230 Service Manual
Page 40 of 83
A
U
E
L
K
D
N
T
O
1
F
B
G
L
M
J
D
N
T
3
2
Q
P
S
T
1. GND (Adj.)
2. OUTPUT
3. INPUT
C
DIM MILLIMETERS
A
B
C
D
E
F
G 12.30 MAX
R
J
K
L
M
V
N
O
P
Q
R
H
S
T
U
V
10.30 MAX
15.30 MAX
_
+
2.70 0.30
0.85 MAX
_
+
Φ3.20 0.20
_
+
3.00 0.30
0.75 MAXH
_
+
13.60 0.50
3.90 MAX
1.20
1.30
2.54
_
4.50 0.20
+
6.80
_
2.60 0.20
+
10
25
5
0.5
_
2.60 0.15
+
TO-220IS
R×5VT
5
•
TO-92
PIN CONFIGURATION
•
SOT-89
•
SOT-23-5
PIN DESCRIPTION
•
TO-92
•
SOT-89
•
SOT-23-5
Pin No. Symbol
1 OUT
2 VDD
3 GND
4 NC
5 NC
Pin No. Symbol
1 OUT
2 VDD
3 GND
Pin No. Symbol
1 OUT
2 VDD
3 GND
harman/kardon
AVR 139-141-142/230 Service Manual
Page 41 of 83
5
4
(mark side)
1 2
3
(mark side)
1 2
3
(mark side)
1 2
3
harman/kardon
AVR 139-141-142/230 Service Manual
Page 42 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 43 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 44 of 83
NJW1197C
harman/kardon
AVR 139-141-142/230 Service Manual
Page 45 of 83
PIN FUNCTION
80
51
81
50
No. SYMBOL FUNCTION No. SYMBOL FUNCTION
1 ROUT Rch output 51 DCR_IN “Multi-channel selector” Rch input
2 COUT Cch output 52 DCR_OUT “Input selector” Rch output
3 LSOUT LSch output 53 GND Ground
4 RSOUT RSch output 54 DCL_IN “Multi-channel selector” Lch input
5 LBOUT LBch output 55 DCL_OUT “Input selector” Lch output
6 RBOUT RBch output 56 GND Ground
7 SWOUT SWch output 57 REC_B1R “Input selector” Rch REC output B1
8 GND Ground 58 REC_B1L “Input selector” Lch REC output B1
9 FIL_BL2 Lch Bass filter terminal 2 59 REC_A4R “Input selector” Rch REC output A4
10 FIL_BL1 Lch Bass filter terminal 1 60 REC_A4L “Input selector” Lch REC output A4
11 FIL_TL Lch Treble filter terminal 61 REC_A3R “Input selector” Rch REC output A3
12 TCAP Switching noise rejection capacitor 62 REC_A3L “Input selector” Lch REC output A3
13 FIL_BR2 Rch Bass filter terminal 2 63 REC_A2R “Input selector” Rch REC output A2
14 FIL_BR1 Rch Bass filter terminal 1 64 REC_A2L “Input selector” Lch REC output A2
15 FIL_TR Rch Treble filter terminal 65 REC_A1R “Input selector” Rch REC output A1
16 V+ + Power supply voltage input 66 REC_A1L “Input selector” Lch REC output A1
17 ADR Chip address select input 67 VDDOUT Internal Digital +Power Supply Output
18 V- - Power supply voltage input 68 DATA Control data signal input
19 L1IN “Input selector” Lch input 1 69 CLOCK Clock signal input
20 DCCAP_SW Switching noise rejection capacitor 70 LATCH Latch signal input
21 R1IN “Input selector” Rch input 1 71 MUTE External mute control
22 DCCAP_RB Switching noise rejection capacitor 72 FL+
23 L2IN “Input selector” Lch input 2 73 FL- “Input selector gain control” Lch inverted output
24 DCCAP_LB Switching noise rejection capacitor 74 FR+
25 R2IN “Input selector” Rch input 2 75 FR- “Input selector gain control” Rch inverted output
26 DCCAP_RS Switching noise rejection capacitor 76 GND Ground
27 L3IN “Input selector” Lch input 3 77 LSCIN Multi-channel LSch input C
28 DCCAP_LS Switching noise rejection capacitor 78 RSCIN Multi-channel RSch input C
29 R3IN “Input selector” Rch input 3 79 LBCIN Multi-channel LBch input C
30 DCCAP_C Switching noise rejection capacitor 80 RBCIN Multi-channel RBch input C
31 L4IN “Input selector” Lch input 4 81 GND Ground
32 DCCAP_R Switching noise rejection capacitor 82 LAIN Multi-channel Lch input A
33 R4IN “Input selector” Rch input 4 83 RAIN Multi-channel Rch input A
34 DCCAP_L Switching noise rejection capacitor 84 CAIN Multi-channel Cch input A
35 L5IN “Input selector” Lch input 5 85 LSAIN Multi-channel LSch input A
36 GND Ground 86 RSAIN Multi-channel RSch input A
37 R5IN “Input selector” Rch input 5 87 LBAIN Multi-channel LBch input A
38 GND Ground 88 RBAIN Multi-channel RBch input A
39 L6IN “Input selector” Lch input 6 89 SWAIN Multi-channel SWch input A
40 L9IN “Input selector” Lch input 9 90 GND Ground
41 R6IN “Input selector” Rch input 6 91 LBIN Multi-channel Lch input B
42 R9IN “Input selector” Rch input 9 92 RBIN Multi-channel Rch input B
43 L7IN “Input selector” Lch input 7 93 CBIN Multi-channel Cch input B
44 L10IN “Input selector” Lch input 10 94 LSBIN Multi-channel LSch input B
45 R7IN “Input selector” Rch input 7 95 RSBIN Multi-channel RSch input B
46 R10IN “Input selector” Rch input 10 96 LBBIN Multi-channel LBch input B
47 L8IN “Input selector” Lch input 8 97 RBBIN Multi-channel RBch input B
48 L11IN “Input selector” Lch input 11 98 SWBIN Multi-channel SWch input B
49 R8IN “Input selector” Rch input 8 99 GND Ground
50 R11IN “Input selector” Rch input 11 100 LOUT Lch output
100
1
31
30
“Input selector gain control” Lch no-inverted output
“Input selector gain control” Rch no-inverted output
– 2 –
harman/kardon
AVR 139-141-142/230 Service Manual
Page 46 of 83
www.fairchildsemi.com
harman/kardon
AVR 139-141-142/230 Service Manual
Page 47 of 83
KA78LXXA/KA78L05AA
3-Terminal 0.1A Positive Voltage Regulator
Features
• Maximum Output Current of 100mA
• Output Voltage of 5V, 6V, 8V, 9V,10V, 12V, 15V, 18V and
24V
• Thermal Overload Protection
• Short Circuit Current Limiting
• Output Voltage Offered in ±5% Tolerance
Description
The KA78LXXA/ KA78L05AA serie s of fixed voltage
monolithic integrated circuit voltage regulators are suitable
for application that required supply current up to 100mA.
TO-92
2
1
3
1. Output 2. GND 3. Input
8-SOP
8
1. Output 2. GND 3. GND 4. NC
5. NC 6. GND 7. GND 8. Input
SOT-89
GND
1
2
3
1
Internal Block Diagram
V
I
Inpu
t
3
REFERENCE VOLTAGE
GND
2
©2005 Fairchild Semiconductor Corporation
THERMAL SHUTDOWN
I
+
-
CIRCUIT
SHORT CIRCUIT
PROTECTION
SC
R
V
0
Outpu
t
1
Rev. 1.0.5
www.fairchildsemi.com
harman/kardon
AVR 139-141-142/230 Service Manual
Page 48 of 83
KA79LXXA
3-Terminal 0.1A Negative Voltage Regulator
Features
• Output Current up to 100mA
• No External Components
• Internal Thermal Over Load Protection
• Internal Short Circuit Current Limiting
• Output Voltage Offered in ±5% Tolerance
• Output Voltage of -5V, -8V, -12V, -15V, -18V
and -24V
Internal Block Diagram
Description
These regulators employ internal current limiting and
thermal shutdown, making them essentially indestructible.
TO-92
1
1.GND 2.Input 3.Output
8-SOP
1
1. Output 2.3.6.7. Input 5. GND 4.8. NC
SOT-89
1
D3
D2
Q14
Q16
R28
R24
©2002 Fairchild Semiconductor Corporation
R23+R21
Q15
Q13
R22
R18
R25
Q10
Q11
Q5
R29
Q17
R7
Q6
Q9
C1
R16
Q12
R26
R17
Q8
Q7
Q1
Q4
R1
R2
R6
D1
R3
R4
Q2
R15
R
Q3
R5
Rev. 1.0.2
harman/kardon
AVR 139-141-142/230 Service Manual
Page 49 of 83
ASAHI KASEI [AK4589]
L
A
R
-
+
-
+
-
+
harman/kardon
AVR 139-141-142/230 Service Manual
Page 50 of 83
Ordering Guide
AK4589VQ -10 ∼ +70°C 80pin LQFP(0.5mm pitch)
AKD4589 Evaluation Board for AK4589
Pin Layout
INT0
TX1
TX0
MCLK
VIN
DAUX2
I2C
RX7
CAD1
RX6
CAD0
RX5
TEST2
RX4
INT1
BOUT
TVDD
DVDD
DVSS
XT O
XT I
TEST3
MCKO2
MCKO1
COUT
UO UT
VOUT
SDTO2
BICK2
LRCK2
SDTO1
BICK1
LRCK1
CDTO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
PVDD R PVSS
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
(Top View)
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
RX3
NC
RX2
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
36
37
38
39
40
TEST1
RX1
NC
RX0
AVSS
AVDD
VREFH
VCOM
RIN
LIN
ROUT1+
ROUT1LOUT1+
LOUT1ROUT2+
ROUT2LOUT2+
LOUT2ROUT3+
ROUT3-
MS0339-E-00 2004/09
- 4 -
CSN
SDTI4
SDTI3
SDTI2
DAUX1
CDTI/SD
CCLK/SC
SDTI1
PDN
XTL1
XTL0
DZF2
DZF1
LOUT4
MASTE
LOUT4
LOUT3
ROUT4
LOUT3
ROUT4
Pin Assignment (DIP16/MFP16)
No. 6037-2/8
LC72723, LC72723M
Block Diagram
harman/kardon
AVR 139-141-142/230 Service Manual
Page 51 of 83
Pin Assignment (DIP16/MFP16)
No. 6037-2/8
LC72723, LC72723M
Block Diagram
harman/kardon
AVR 139-141-142/230 Service Manual
Page 52 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 53 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 54 of 83
PIN DESCRIPTION
Pin Description
A0-A18 19 Addresses
DQ0-DQ14 15 Data Inputs/Outputs
DQ15/A-1
CE# Chip Enable
OE# Output Enable
WE# Write Enable
RESET# Hardware Reset Pin, Active Low
BYTE# Selects 8-bit or 16-bit mode
RY/BY# Ready/Busy Output
Vcc
Vss Device Ground
NC Pin Not Connected Internally
Excel Semiconductor inc.
DQ15 (Data Input/Output, Word Mode)
A-1 (LSB Address Input, Byte Mode)
3.0 volt-only single power supply
(see Product Selector Guide for speed options and voltage supply tolerances)
ESI
ESI
LOGIC SYMBOL
19
A0 ~ A18
CE#
OE#
WE#
RESET#
BYTE#
16 or 8
DQ0 ~ DQ15
(A-1)
RY/BY#
ES29LV800E
4
Rev. 0A January 5, 2006
harman/kardon
AVR 139-141-142/230 Service Manual
Page 55 of 83
CONNECTION DIAGRAM
ESI
ESI
Excel Semiconductor inc.
A15
A14
A13
A12
A11
A10
A9
A8
NC
NC
WE#
RESET#
NC
NC
RY/BY#
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48-Pin Standard TSOP
ES29LV800
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
A16
BYTE#
Vss
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
Vcc
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
Vss
CE#
A0
48-Ball FBGA (6 x 8 mm)
(Top View, Balls Facing Down)
A B C D E F G H
6
5
4
3
2
1
A13 A12
A9
WE#
RY/
BY#
A7
A3
A8
RESET#
NC
A17
A4
A14
A10
NC
A18
A6
A2
A15
A16
A11 DQ7
NC
NC
A5
DQ5
DQ2
DQ0
A0A1
BYTE#
DQ14
DQ12
DQ10 DQ11 DQ3
DQ8 DQ9 DQ1
DQ15/
A-1
DQ13
Vcc
OE#CE#
Vss
DQ6
DQ4
Vss
ES29LV800E
5
Rev. 0A January 5, 2006
PIN CONFIGURATION
harman/kardon
AVR 139-141-142/230 Service Manual
Page 56 of 83
HY57V161610E
V
V
DD
DD
DQ0
DQ0
DQ1
DQ1
V
V
SSQ
SSQ
DQ2
DQ2
DQ3
DQ3
V
V
DDQ
DDQ
DQ4
DQ4
DQ5
DQ5
V
V
SSQ
SSQ
DQ6
DQ6
DQ7
DQ7
VDDQ
VDDQ
LDQM
LDQM
/WE
/WE
/CAS
/CAS
/RAS
/RAS
/CS
/CS
A11
A11
A10
A10
A0
A0
A1
A1
A2
A2
A3
A3
V
V
DD
DD
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
50pin TSOP II
50pin TSOP II
400mil x 825mil
400mil x 825mil
0.8mm pin pitch
0.8mm pin pitch
50
50
49
49
48
48
47
47
46
46
45
45
44
44
43
43
42
42
41
41
40
40
39
39
38
38
37
37
36
36
35
35
34
34
33
33
32
32
31
31
30
30
29
29
28
28
27
27
26
26
V
V
SS
SS
DQ15
DQ15
DQ14
DQ14
VSSQ
VSSQ
DQ13
DQ13
DQ12
DQ12
VDDQ
VDDQ
DQ11
DQ11
DQ10
DQ10
VSSQ
VSSQ
DQ9
DQ9
DQ8
DQ8
VDDQ
VDDQ
NC
NC
UDQM
UDQM
CLK
CLK
CKE
CKE
NC
NC
A9
A9
A8
A8
A7
A7
A6
A6
A5
A5
A4
A4
VSS
VSS
PIN DESCRIPTION
PIN PIN NAME DESCRIPTION
CLK Clock
CKE Clock Enable
CS
BA Bank Address Select either one of banks during both RAS
A0 ~ A10 Address
, CAS, WE
RAS
LDQM, UDQM Data Input/Output Mask DQM control output buffer in read mode and mask input data in write mode
DQ0 ~ DQ15 Data Input/Output Multiplexed data input / output pin
DD/VSS Power Supply/Ground Power supply for internal circuit and input buffer
V
DDQ/VSSQ Data Output Power/Ground Power supply for DQ
V
NC No Connection No connection
Chip Select Command input enable or mask except CLK, CKE and DQM
Row Address Strobe,
Column Address Strobe, Write
Enable
The system clock input. All other inputs are referenced to the SDRAM on the rising
edge of CLK.
Controls internal clock signal and when deactivated, the SDRAM will be one of the
states among power down, suspend or self refresh.
and CAS activity.
Row Address : RA0 ~ RA10, Column Address : CA0 ~ CA7
Auto-precharge flag : A10
, CAS and WE define the operation.
RAS
Refer function truth table for details
Rev. 0.2 / Aug. 2003 2
312
harman/kardon
AVR 139-141-142/230 Service Manual
Page 57 of 83
LOW DROPOUT VOLTAGE REGULATOR
GENERAL DESCRIPTION PACKAGE OUTLINE
The NJM2391 is low dropout voltage regulators
featuring high precision voltage.
It is suitable for Notebook PCs, PC cards and hard
disks where 3.3V need to be generated from 5V supply.
A small TO-252 package is adopted for the space
saving.
FEATURES
zOutput Current Io(max.)=1A
zHigh Precision Output Voltage Vo±1%
zLow Dropout Voltage ∆ V
=1.1V typ. At Io=1A
I-O
zInternal Excessive Voltage Protection Circuit
zInternal Short Circuit Current Limit
zInternal Thermal Overload Protection
zBipolar Technology
zPackage Outline TO-252
PIN CONFIGURATION
PIN FUNCTION
1.V
IN
2.GND
OUT
3.V
NJM2391DL1
NJM2391
NJM2391DL1
ABSOLUTE MAXIMUM RATINGS (Ta=25°C)
PARAMETER SYMBOL RATINGS UNIT
Input Voltage V+ +10 V
Power Dissipation PD TO-252
Operating Temperature
Storage Temperature
Topr
Ts tg
8 (Tc=25°C)
0.8(Ta≤25°C)
W
−40 ~ +85 °C
−50 ~ +125 °C
OUTPUT VOLTAGE RANK LIST
Device Name V
OUT
NJM2391DL1-25 2.5V
NJM2391DL1-26 2.6V
NJM2391DL1-28 2.85V
NJM2391DL1-03 3.0V
NJM2391DL1-33 3.3V
NJM2391DL1-35 3.5V
NJM2391DL1-05 5.0V
harman/kardon
AVR 139-141-142/230 Service Manual
Page 58 of 83
R×5VT
5
•
TO-92
PIN CONFIGURATION
•
SOT-89
•
SOT-23-5
PIN DESCRIPTION
•
TO-92
•
SOT-89
•
SOT-23-5
Pin No. Symbol
1 OUT
2 VDD
3 GND
4 NC
5 NC
Pin No. Symbol
1 OUT
2 VDD
3 GND
Pin No. Symbol
1 OUT
2 VDD
3 GND
harman/kardon
AVR 139-141-142/230 Service Manual
Page 59 of 83
5
4
(mark side)
1 2
3
(mark side)
1 2
3
(mark side)
1 2
3
harman/kardon
AVR 139-141-142/230 Service Manual
Page 60 of 83
M24C64
harman/kardon
AVR 139-141-142/230 Service Manual
Page 61 of 83
M24C32
64Kbit and 32Kbit Serial I²C Bus EEPROM
FEATURES SUMMARY
■ Two-Wire I
Supports 400kHz Protocol
■ Single Supply Voltage:
– 4.5 to 5.5V for M24Cxx
– 2.5 to 5.5V for M24Cxx-W
– 1.8 to 5.5V for M24Cxx-R
■ Write Control Input
■ BYTE and PAGE WRIT E (up to 32 Bytes)
■ RANDOM and SEQUENTIAL READ Modes
■ Self-Timed Programming Cycle
■ Automatic Addres s Incr em ent ing
■ Enhanced ESD/Latch-Up Protection
■ More than 1 Million Erase/Write Cycles
■ More than 40-Year Data Retention
Table 1. Product List
Reference Part Number
M24C64
M24C32
2
C Serial Interface
M24C64
M24C64-W
M24C64-R
M24C32
M24C32-W
M24C32-R
Figure 1. Packages
8
1
PDIP8 (BN)
8
1
SO8 (MN)
150 mil width
TSSOP8 (DW)
169 mil width
UFDFPN8 (MB)
2x3mm² (MLP)
1/26January 2005
M24C64, M24C32
harman/kardon
AVR 139-141-142/230 Service Manual
Page 62 of 83
SUMMARY DESCRIPTION
These I2C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 8192 x 8 bits (M24C64) and 4096 x 8 bits
(M24C32).
Table 2. Signal Names
E0, E1, E2 Chip Enable
SDA Serial Data
Figure 2. Logic Diagram
V
CC
3
E0-E2 SDA
SCL
WC
2
I
C uses a two-wire serial interf ace, comprisi ng a
M24C64
M24C32
V
SS
AI01844B
bi-directional data line and a clock line. The devices carry a built-in 4-bit Device Type Identifier code
(1010) in accordance with the I
The device behaves as a slave in the I
2
C bus definition.
2
C protocol,
with all memory operations synchronized by the
serial clock. Read and Write operations are initiated by a Start condition, generated by the bus master. The Start condition is followed by a Device
Select Code and Read/Write
bit (RW) (as described in Table 3.), terminated by an acknowledge bit.
When writing data to the memory, the dev ice inserts an acknowled ge bit during the 9
th
bit time,
following the bus master’s 8-bit transmission.
When data is read by the bus master, the bus
master acknowledge s the rec eipt o f the d ata by te
in the same way. Data transfers are terminated by
a Stop condition after an Ack for Write, and after a
NoAck for Read.
SCL Serial Clock
WC
V
CC
V
SS
Power On Reset: V
Write Control
Supply Voltage
Ground
Lock-Out Write Protect
CC
In order to prevent data corruption and inadvertent
Write operations during Power-up, a Power On
Reset (POR) circuit is included . At Power-up, the
internal reset i s he ld a cti ve unti l V
has reached
CC
the Power On Reset (POR) threshold voltage, and
all operations are disabled – the device will not respond to any command. In the sam e way, when
V
drops from the operat ing voltage, below the
CC
Power On Reset (PO R) threshold voltage, a ll operations are disa bled and the device will not respond to any command.
A stable and valid V
(as defined in Table 9. and
CC
Table 10.) must be applied before applying any
logic signal.
Figure 3. DIP, SO, TSSOP and UFDFPN
Connections
M24C64
M24C32
1
E0 V
2
3
E2
4
SS
Note: See PACKAGE MECHANICAL section for package dimen-
sions, and how to identify pin-1.
8
7
6
5
AI01845C
CC
WCE1
SCL
SDAV
4/26
harman/kardon
AVR 139-141-142/230 Service Manual
Page 63 of 83
2. Pin Assignment and Pin Functions
The assignment of input/output pins for the T5CC1, their names and functions are as follows:
2.1 Pin Assignment Diagram
Figure 2.1.1 shows the pin assignment of the T5CC1.
DVCC 89
P66 90
DVSS 91
P50/AN0 92
P51/AN1 93
P52/AN2 94
P53/AN3/ADTRG 95
P54/AN4 96
P55/AN5 97
P56/AN6 98
P57/AN7 99
VREFH 100
VREFL 1
AVSS 2
AVCC 3
P70/TA0IN 4
P71/TA1OUT 5
P72/TA3OUT 6
P73/TA4IN 7
P74/TA5OUT 8
P75/TA7OUT 9
P80/TB0IN0/INT5 10
P81/TB0IN1/INT6 11
P82/TB0OUT0 12
P83/TB0OUT1 13
P84/TB1IN0/INT7 14
P85/TB1IN1/INT8 15
P86/TB1OUT0 16
P87/TB1OUT1 17
P90/TXD0 1 8
P91/RXD0 19
P92/SCLK0/CTS0 20
P93/TXD1 2 1
P94/RXD1 22
P95/SCLK1/CTS1 23
AM0 24
DVCC 25
X2 26
DVSS 27
X1 28
AM1 29
RESET 30
P96/XT1 31
P97/XT2 32
EMU0 33
EMU1 34
PA0/INT1 3 5
PA1/INT2 3 6
PA2/INT3 3 7
Top view
QFP100
88 P65
87 P64/SCOUT
86 P63/INT0
85 P62/SI/SCL
84 P61/SO/SDA
83 P60/SCK
82 P43/CS3
81 P42/CS2
80 P41/CS1
79 P40/CS0
78 P37/BOOT
77 P36/R/W
76 P35/BUSAK
75 P34/BUSRQ
74 P33/WAIT
73 P32/HWR
72 P31/WR
71 P30/RD
70 P27/A7/A23
69 P26/A6/A22
68 P25/A5/A21
67 P24/A4/A20
66 P23/A3/A19
65 P22/A2/A18
64 DVCC
63 NMI
62 DVSS
61 P21/A1/A17
60 P20/A0/A16
59 P17/AD15/A15
58 P16/AD14/A14
57 P15/AD13/A13
56 P14/AD12/A12
55 P13/AD11/A11
54 P12/AD10/A10
53 P11/AD9/A9
52 P10/AD8/A8
51 P07/AD7
50 P06/AD6
49 P05/AD5
48 P04/AD4
47 P03/AD3
46 P02/AD2
45 P01/AD1
44 P00/AD0
43 ALE
42 PA7
41 PA6
40 PA5
39 PA4
38 PA3/INT4
T5CC1
T5CC1 2006-03-03
Figure 2.1.1 Pin assignment diagram (100-pin LQFP)
harman/kardon
AVR 139-141-142/230 Service Manual
Page 64 of 83
2.2 Pin Names and Functions
The names of the input/output pins and their functions are described below.
Table 2.2.1 Pin names and functions.
Table 2.2.1 Pin names and functions (1/3)
T5CC1
Pin Name
P00∼P07
AD0
∼AD7
P10∼P17
AD8
∼AD15
∼A15
A8
P20∼P27
∼A7
A0
∼A23
A16
P30
RD
P31
WR
P32
HWR
P33
WAIT
P34
BUSRQ
P35
BUSAK
P36
W/R
P37
BOOT
P40
CS0
P41
CS1
P42
CS2
P43
CS3
P50∼P57
∼AN7
AN0
ADTRG
Number
of Pins
8 I/O
8 I/O
8 I/O
1 Output
1 Output
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
8 Input
I/O Functions
Port 0: I/O port that allows I/O to be selected at the bit level
I/O
Address and data (lower): Bits 0 to 7 of address and data bus
Port 1: I/O port that allows I/O to be selected at the bit level
I/O
Address and data (upper): Bits 8 to 15 for address and data bus
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Address: Bits 8 to 15 of address bus
Port 2: I/O port that allows I/O to be selected at the bit level
Address: Bits 0 to 7 of address bus
Address: Bits 16 to 23 of address bus
Port 30: Output port
Read: Strobe signal for reading external memory
This port output RD signal also case of reading internal-area by setting P3
= 0 and P3FC <P30F> = 1.
<P30>
Port 31: Output port
Write: Strobe signal for writing data to pins AD0 to AD7
Port 32: I/O port (with pull-up resistor)
High Write: Strobe signal for writing data to pins AD8 to AD15
Port 33: I/O port (with pull-up resistor)
Input
Wait: Pin used to request CPU bus wait
((1+N) WAIT mode)
Port 34: I/O port (with pull-up resistor)
Input
Bus Request: Signal used to request Bus Release
Port 35: I/O port (with pull-up resistor)
Bus Acknowledge: Signal used to acknowledge Bus Release
Port 36: I/O port (with pull-up resistor)
Read/Write: 1 represents Read or Dummy cycle; 0 represents Write cycle.
Port 36: I/O port (with pull-up resistor)
Input
This pin sets single boot mode.
When released reset, Single boot mode is started at P37
Port 40: I/O port (with pull-up resistor)
Chip Select 0: Outputs 0 when address is within specified address area
Port 41: I/O port (with pull-up resistor)
Chip Select 1: Outputs 0 if address is within specified address area
Port 42: I/O port (with pull-up resistor)
Chip Select 2: Outputs 0 if address is within specified address area
Port 43: I/O port (with pull-up resistor)
Chip Select 3: Outputs 0 if address is within specified address area
Port 5: Pin used to input port
Input
Analog input: Pin used to input to AD converter
Input
AD Trigger: Signal used to request start of AD converter (Shared with53 pin)
＝Low level.
T5CC1 2006-03-03
harman/kardon
AVR 139-141-142/230 Service Manual
Page 65 of 83
T5CC1
Table 2.2.1 Pin names and functions (2/3)
Pin Name
P60
SCK
P61
SO
SDA
P62
SI
SCL
P63
INT0
P64
SCOUT
P65 1 I/O Port 65 I/O port
P66 1 I/O Port 66 I/O port
P70
TA0IN
P71
TA1OUT
P72
TA3OUT
P73
TA4IN
P74
TA5OUT
P75
TA7OUT
P80
TB0IN0
INT5
P81
TB0IN1
INT6
P82
TB0OUT0
P83
TB0OUT1
P84
TB1IN0
INT7
P85
TB1IN1
INT8
P86
TB1OUT0
P87
TB1OUT1
Number
of Pins
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
1 I/O
I/O Functions
Port 60: I/O port
I/O
Serial bus interface clock in SIO Mode
Port 61: I/O port
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Serial bus interface send data at SIO mode
Serial bus interface send/recive data at I
I/O
Open-drain output mode by programmable
Port 62: I/O port
Input
Serial bus interface recive data at SIO mode
I/O
Serial bus interface clock I/O data at I
Open-drain output mode by programmable
Port 63: I/O port
Input
Interrupt Request Pin 0: Interrupt request pin with
rising edge / falling edge
Port 64: I/O port
System Clock Output: Outputs f
Port 70I/O port
Input
8bitt timer 0 input:: Timer 0 input
Port 71I/O port
8-bit timer 1 output: Timer 0 or Timer 1 output
Port 72I/O port 8bit
8-bit timer 3 output: Timer 2 or Timer 3 output
Port 73: I/O port
Input
8-bit timer 4 input: Timer 4 input
Port 74: I/O port
8-bit timer 5 output: Timer 4 or Timer 5 output
Port 75: I/O port
88-bit timer 7 output: Timer 6 or Timer 7 output
Port 80: I/O port
Input
16bit timer 0 input 0: 16bit Timer 0 count / capture trigger input
Input
Interrupt Request Pin 5: Interrupt request pin with programmable rising edge
/ falling edge.
Port 81: I/O port
Input
16bit timer 0 input 1: 16bit Timer 0 count / capture trigger input
Input
Interrupt Request Pin 6: Interrupt request on rising edge
Port 82: I/O port
16bit timer 0 output 0: 16bit Timer 0 output
Port 83: I/O port
16bit timer 0 output 1: 16bit Timer 0 output
Port 84: I/O port
Input
16bit timer 1 input 0: 16bit Timer 1 count / capture trigger input
Input
Interrupt Request Pin 7: Interrupt request pin with programmable rising edge
/ falling edge.
Port 85: I/O port
Input
16bit timer 1 input 1: 16bit Timer 1 count / capture trigger input
Input
Interrupt Request Pin 8: Interrupt request on rising edge
Port 86: I/O port
16bit timer 1 output 0: 16bit Timer 1 output 16bit
Port 87: I/O port
16bit timer 1 output 1: 16bit Timer 1 output 16bit 16bit
2
or fs clock.
FPH
2
C bus mode
C bus mode
programmable level /
T5CC1 2006-03-03
74ACT04
harman/kardon
AVR 139-141-142/230 Service Manual
Page 66 of 83
HEX INVERTER
■ HIGH SPEED: t
■ LOW POWER DISSIPATION:
I
= 2µA(MAX.) at TA=25°C
CC
■ COMPATI B LE WITH TTL OUTPU TS
V
= 2V (MIN.), VIL = 0.8V (MAX.)
IH
■ 50Ω TRANSMI SSION L INE DRI VING
= 5.0ns (TYP.) at VCC = 5V
PD
CAPABILITY
■ SYMMETRICAL OUTPUT IMPEDANCE:
|I
| = IOL = 24mA (MIN)
OH
■ BALANCED PROPAGATION DELAYS:
t
≅ t
PLH
■ OPERA TING VOLTAGE RANGE:
V
CC
■ PIN AND FUNCTION COMPAT IBLE WITH
PHL
(OPR) = 4.5V to 5.5V
74 SERIES 04
■ IMPROVED LATCH-UP IMMUNITY
DESCRIPTION
The 74ACT04 is an advanced high-speed CMOS
HEX INVERTER fabricated with sub-micron
silicon gate and double-layer metal wiring C
2
MOS
technology.
The internal circuit is composed of 3 stages
including buffer output , which enables high noise
immunity and stable output.
TSSOPDIP SOP
ORDER CODES
PACKAGE TUBE T & R
DIP 74ACT04B
SOP 74ACT04M 74ACT04MTR
TSSOP 74ACT04TTR
The device is designed to interface directly High
Speed CMOS systems with TTL, NMOS and
CMOS output voltage levels.
All inputs and outputs are equipped with
protection circuits against stat ic discharge, giving
them 2KV ESD immunity and transient excess
voltage.
PIN CONNECTION AND IEC LOGIC SYMBOLS
1/8July 2001
harman/kardon
AVR 139-141-142/230 Service Manual
Page 67 of 83
NJM2595
5-INPUT 3-OUTPUT VIDEO SWITCH
■ GENERAL DESCRIPTION ■ PACKAGE OUTLINE
The NJM2595 is a 5-input 3-output video switch. Its switches
select one from five signals received from VTR,TV,DVD,
TV-GAME and others.
The NJM2595 is designed for audio items, such as AV amplifier
and others.
NJM2595D NJM2595M
■ FEATURES
● 5-input 3-output
● Operating Voltage ±4.0 to ±6.5V
● Operating current ±15mAtyp. at Vcc=±5V
● Crosstalk -65dBtyp.
● Internal 6dB Amplifier
● Internal 75Ω Driver
● Bipolar Technology
● Package Outline DIP16,DMP16
■ PIN CONFIGURATION and BLOCK DIAGRA M
16
+
SW2V
10 14 2
SW1
SW5
Vin1
Vin2
Vin3
Vin4
Vin5
13
20k
20k
20k
S5
S6
S7
6dB
Amp
6dB
Amp
6dB
Amp
8 12 6 4
-
75Ω
Driver
75Ω
Driver
75Ω
Driver
1
15
11
Vout1
Vout2
Vout3
9
20k
7
20k
5
20k
3
20k
S2
S3
SW3
S4
SW4
S1
GND V
-1 -
harman/kardon
AVR 139-141-142/230 Service Manual
Page 68 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 69 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 70 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 71 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 72 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 73 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 74 of 83
AVR139 WIRING.sch-1 - Mon Apr 27 09:56:15 2009
harman/kardon
AVR 139-141-142/230 Service Manual
Page 75 of 83
AMPLIFIER SECTION BIAS ADJUSTMENT
n
harman/kardon
AVR 139-141-142/230 Service Manual
Page 76 of 83
Model : AVR139/230, AVR141/230, AVR142/230 Date 2009.04.28
Rated voltage : AC 230V 50 Hz JM.Kang
Measurement conditio
Standard value : 1) Ideal current : 48mA (± 5%)
* CUP12186Z ( MAIN PCB )
: No input signal or volume position is minimum.
2) Ideal DC Voltage : 25.92mV (± 5%)
CN66 CN61 CN64 CN63 CN62
VR86 VR85 VR84 VR82 VR87
FR-CH CNT-CH SR-CH FL-CH SL-CH
DV
+-
No. Channel Adjust Adjustment
1 FR-CH 25.92mV (± 5%) CN66
2 CNT-CH 25.92mV (± 5%) CN61
3 SR-CH 25.92mV (± 5%) CN64
4 FL-CH 25.92mV (± 5%) CN63
5 SL-CH 25.92mV (± 5%) CN62
VR ADJUST
CUP12185Z_AVR139_FRONT_SHC_MP_090331.sch-1 - Mon Apr 27 10:13:45 2009
harman/kardon
AVR 139-141-142/230 Service Manual
Page 77 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 78 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 79 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 80 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 81 of 83
harman/kardon
AVR 139-141-142/230 Service Manual
Page 82 of 83
CUP12188Z_AVR139_VIDEO_SHC_MP_090331.sch-1 - Mon Apr 27 10:35:18 2009
harman/kardon
AVR 139-141-142/230 Service Manual
Page 83 of 83
Loading...
