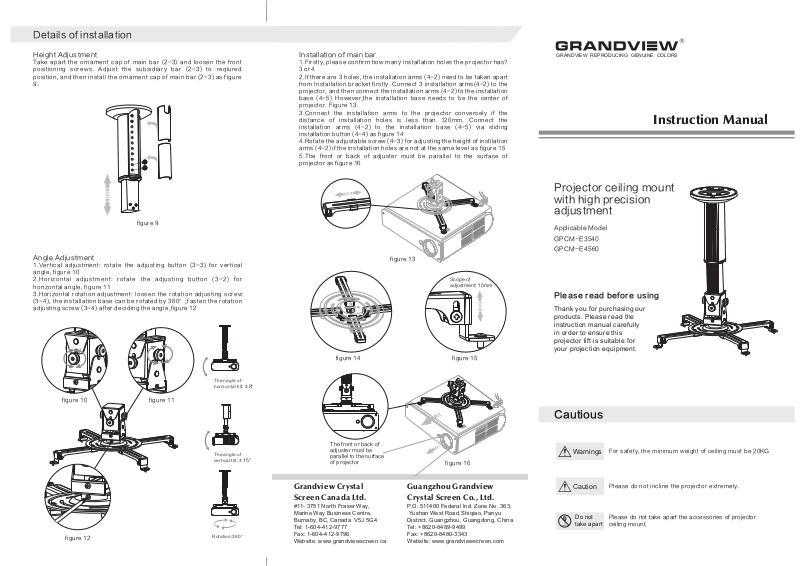

Grandview GPCM-E User Manual

Details of installation

Heigh t Adjustm ent

Take apart the orn ame nt cap of main bar (2-3) and loosen the fron t
pos ition ing scr ews. Adju st the subsid iar y bar (2-3 ) to reqiured
pos ition , an d then ins tall t he o rname nt c ap of m ain bar (2-3) as figure

9.

figur e 9

Angle A djustme nt

1.V ertic al adjust men t: rota te the ad justing bu tton (3 -3) for vertical
angle, fig ure 1 0

2. Ho ri zontal a dj us tm en t: ro tat e t he ad justi ng bu tt on (3 -2) fo r
hor izont al angle, figu re 11

3.H orizo nta l rot ation adjustmen t: loos en the rotation adjust ing scr ew
(3- 4), th e in stallati on b ase can be r ota ted by 3 60°;f ast en t he r otation
adj ustin g scr ew (3-4) aft er de ciding the a ngl e,figure 1 2

Installation of main bar

1.First ly, please confirm how ma ny insta llat ion hole s the projector has?
3 or 4

2.If the re are 3 h oles, the ins tallati on arms (4-2) need to b e taken a part
from In stallation bracket firstl y. Conn ect 3 insta llation arms(4 -2) to the
project or, and the n connect t he instal lati on arms (4-2) to t he instal lati on
base (4-5 ) However,the i nstalla tion base nee ds to be the ce nter of
project or. Figure 13.

3.Conne ct the instal lati on arms to the project or conversely if the
dis tance of in stallat ion hol es is less than 120mm. Connect the
install ation arms (4-2 ) to the ins tallati on b ase (4-5) via slidi ng
install atio n button (4 -4) as figure 14

4.Rotat e the adjustabl e screw (4-3) for a djusting the he ight of ins tlla tion
arms (4-2 ) if the installa tion holes are no t at the same level a s figure 15

5.The f ront or back of adju ster mu st be parall el to th e surfa ce of
project or as figure 16

figur e 13

Scope of
adjustment: 10mm

figur e 14 figur e 15

GRANDVIEW REPRODUCING GENUINE COLORS

Instruction Manual

Projector ceiling mount
with high precision
adjustment

Applicable Model

GPCM-E3540

GPCM-E4560

Please read before using

Thank you for purchasin g our
products. Please read t he
instructi on manual care fully
in order to ensure this
projector lift is suita ble for
your proj ection equipme nt.

figur e 10 figur e 11

figur e 12

The n agle of
hor izont al tilt :±8°

The a ngle of
ver tical t ilt:±15°

Rot ation :360°

The front or back of
adjuster must be
parallel to the surface
of projector

Grandview Crystal
Screen Canada Ltd.

#11- 3751 N orth Fra ser Way,
Marin e Way Business Cen tre,
Burna by, BC, Cana da V5J 5G 4
Tel: [phone]
Fax: [phone]
Websi te: www.gr andvi ewscre en.ca

figur e 16

Guangzhou Grandview
Crystal Screen Co., Ltd.

P.O. 511400 Fede ral Ind. Zone No. 3 63,
Yushan Wes t Road,Shiqia o, Pany u
Distr ict, Gu angzhou, Guan gdong, China
Tel: [phone]
Fax: [phone]
Websi te: www.gr andvi ewscre en.co m

Cautious

Warnings

Caution

Do not
take apart

For safety , the minim um of ceili ng must be 20KGweight

Pleas e do not incline the projec tor extreme ly.

Please do not take apart the accessories of projector
ceiling mount.

Parts

Scope

Two steps of installation

GPCM-E is combined by GPCM and GPE

GPCM Main Bar Overview
1-1 Fixation
1-2 Top Cap
2-1 Main Bar
2-2 Subsidiary Bar
2-3 Ornament Board of Main Bar
2-4 Ornament Board of Subsidiary Bar
2-5 Ornament Cap of Main Bar

GPE Adjusting Overview
3-1 Adjuster
3-2 Horizontal Adjusting Button
3-3 Vertical Adjusting Button
3-4 Rotation Adjusting Screw
4-1 Installation Bracket
4-2 Installation Arm
4-3 Adjustable Screw
4-4 Sliding Installation
Button
4-5 Installation Base

Acces sories :
① M6x25 T apping S crew (3s ets)
② M5x10 P hilips S crew/
Washe r/Spri ng Washe r (4sets )
③ M4x6 So cket Cap S crew (6p cs)
④ M5x8 Ph ilips Sc rew (6pc s)
⑤ M3x8 Ph ilips Sc rew (4pc s)
⑥ M4x8 Ph ilips Sc rew (4pc s)
⑦ M5x8 Ph ilips Sc rew (4pc s)

2-5

3-2

3-4

4-4
4-5

4-3

Scope

Scope f or installati on (Installation hole of projector):
Maxim um scope for installation:390mm diameter
Minim um scope for installation:20mm diameter

Note: C onnect th e installati on arms to the pro jector conve rsely for diff erent instal lation
holes o f project or.

1-1

1-2

2-1

2-3

2-2

2-4

3-1

3-2

4-1
4-2

Scope f or installati on (H is the distan ce between ceiling and projector)
The H of GPCM-E3540 is 350 mm~400mm
The H of GPCM-E4560 is 450mm~600mm

H

H

GPC M-E35 40 GPC M-E45 60

Two steps of installation

1

Insta ll the fixatio n on th e ceiling (scr ews of accesso ry ① )
as figur e 1. GPCM-E can be installe d to the concr ete­roof with ceiling or withou t cei ling,su ch as figu re 2 and
figur e 3.

figur e 1

2

Conne ct the adjuster to GPCM Main Ba r Overview, and
then fast en t he s crews (acce ssory③ ) as figure 4.
After ward, s lide th e Adjustment Overvi ew (projecte r has
been insta lled) to ad juster, and the fast en the screws
(acce ssory ④) as fi gure 5.

figur e 4

figur e 5

Details of installation

Wires c ollecti on

Take apar t the ornamen t cap of mai n bar (2-5 ) after con necting the
GPC M Main Bar Overv iew to the fix ation (1- 1), then stay the power
cor d int o the s torag e gap. At las t, re- insta ll th e orna men t c ap of m ain
bar ( 2-5) as figure 7、 8 a nd 9.

Maxim um diame ter: 390 mm Minim um diame ter: 20m m

figur e 2 figur e 3

figur e 6 figur e 7 figur e 8
