Page 1

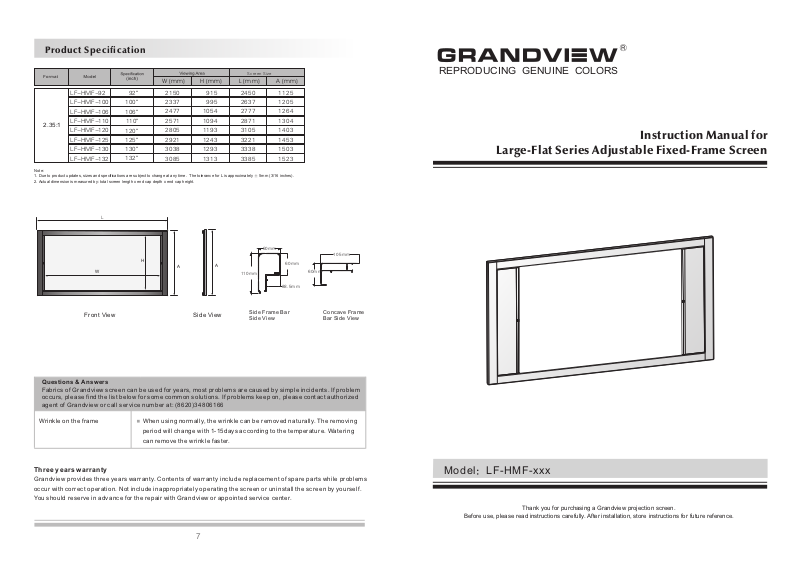

Product Specification
Scree n Siz e
W (mm) L (mm) H (mm) A (m m)
LF-HMF-92
LF-HMF-100
LF-HMF-106
2.35:1
Note:
1. Due to product updates, sizes and specifications are subject to change at any time. The tolerance for L is approximately ± 5mm (3/16 inches).
2. Actual dimension is measured by: total screen length x end cap depth x end cap height.
LF-HMF-110
LF-HMF-120
LF-HMF-125
LF-HMF-130
LF-HMF-132
L
W
92 ”
100”
106”
110”
120”
125”
130”
132”
H
2150
2337
2477
2571
2805
2921
3038
3085
915
995
1054
1094
1193
1243
1293
1313
A
A
2450
2637
2777
2871
3105
3221
3338
3385
110mm
1125
1205
1264
1304
1403
1453
1503
1523
60mm
60mm
REPRODUCING GENUINE COLORS
Instruction Manual for
Large-Flat Series Adjustable Fixed-Frame Screen
105mm
60mm
38.5m m
Fron t Vi ew
Side Vie w
Side Fra me B ar
Side View
Concav e Fr am e
Bar Side View
Ques tions & Answers
Fabr ics of Gr andview s creen c an be used for years , most problems ar e caused by simple i ncide nts. If pro blem
occu rs, ple ase find th e list be low for some commo n solutions. If pr oblems keep on, pl ease co ntact aut horiz ed
agen t of Gran dview or ca ll serv ice number at: (86 20)34806166
Wrinkl e on the fr ame
When u sing no rmally, the wr inkle c an be remov ed natu rally. The remov ing
peri od will c hange with 1-15d ays according to t he temperature . Wate ring
can re move th e wrinkle f aster.
Three years warranty
Gran dview p rovides t hree ye ars warranty. Conte nts of warr anty in clude replacem ent of spare parts w hile problems
occu r with co rrect ope ratio n. Not include ina ppropriately o perating the scr een or un install t he scre en by yours elf.
You should re serve in advance f or the repair with G randv iew or appo inted s ervice ce nter.
Model： HMF-xxxLF-
Thank you for purchasing a Grandview projection screen.
Before use, please read instructions carefully. After installation, store instructions for future reference.
7
Page 2
Caution
Warnings:
1. Ple ase rea d careful ly with t his instructio ns before instal lation to avoid th e damag e caused by i nappr opriate
inst allat ion or oper ation
2. Ple ase kee p the scree n away fr om hot sources, su ch as radiator, hea ting machine, fi repla ce, louds peake r
or oth er rela tive devi ce.
3. Ple ase han dle the rep air wor k to the professio nal agent
4. Ple ase pre vent scre en from w ater as wel l as putt ing stuff wit h water ( such as vase) on the s creen.
please prevent scree n from wet place to avoid electr ic or fire danger
Plea se foll ow the inst allat ion as below:
a.Wood wa ll inst allatio n: fix th e top and low b racke t on the wall u sing th e 5X60mm wood scre w (3 screws on
each b racke t) (figur e 11) .
b.Con crete w all insta llati on: drill six prop er holes on the conc rete wa ll with ele ctric d rill, the n fix the t op and low
brac ket on th e wall usin g the 5X4 0mm tappi ng scre w and then fasten wi th the anchor (3 scr ews on each bracke t)
(fig ure 12) .
5. Ple ase mak e sure whic h one is fr ont or back of produ ct.
6. Ple ase put d own the scr een car efully because o f the aluminum all oy frame.
7. Ple ase cov er the scre en by clo th if it is not b eing us ed for a long time.
8. Ple ase do no t poke scre en fabr ic with hand or edge t ools to avoid mark ing on the screen su rface .
figure 11 fig ur e 12
3.Buc kle the h anger of co ncave f rame bar on top and lo w bracket, figur e 13-14.
figure 1 3 figure 1 4
4.Aft er hang ing on the br acket , please adjust th e screen horizon tally and ensure t he hole o f hanging p iece an d the
hole s of low br acket is at t he same l evel, and t hen fas ten the security f ixing screws int o the holes (figur e 15-16 )
Hanging Piece
G
r
oov
e
Frame
Hanging Piece
Frame
Plea se foll ow the inst ructi on to operate.
Plea se cont act the pro fessi onal people for re pairing.
Cleaning
Clea n the cas ing of scre en with a s oft cloth a nd luke warm water.
Do not u se any de tergent o r clean ing products.
1
Top Bracket
Security Fixing Screw
figure 1 5 figure 1 6
Security Fixing Screw
Low Bracket
6
Page 3
Screen Installation
1.Eac h scree n has a set of br acket . Each brac ket has a n umber of corresp onding holes and 3 h oles pe r group,
Plea se refe r to figure 8 .
Top Bracket
15
10
25
3
Side View
120
32 23
6
8
6
R
20
Lt
Front View
5
40
12
Description
Concav e Fr am e Ba r
Side Fra me B ar
35
2
5
15
40
21
3
120
32 23
Low Bracket
6
8
5
6
R
20
Lt
Front ViewSide View
40
12
unit：mm
figure 8
Table 2: the length of bracket (Lt)
Spec ific atio n
Form at
2.35 :1
Lt (mm )
Note: due to produ ct u pd ates, sizes and specifications ar e su bj ect to change at any time.
92”
100” 106”
1900 2050
2200
110”
120” 125” 130”
2350
2500
2500 2650 2650
132”
2.Top bra cket an d low brack et are co nnected by a belt wh en delivery. The t op brac ket shall k eep bal ance with the
low br acket v ertical ly beca use of the univers al gravitation . Please ensure th e dista nce betwe en the to p bracket
and th e low bra cket is the s ame as th e data of tab le show s us (if not, please m easure), and the n fix the frames on
the wa ll ( plea se refer th e data to m ake sure th e dista nce between top an d low bracket) (fi gure 9- 10)
Top View
Accessories
Front View（16:9）
Side View
Rod
Connec ti ng B oa rd 1
Connec ti ng B oa rd 2
Front View（4:3）
Screen
Spring
Screen
Back View
Top Bracke t
Link
Low Brac ke t
figure 9 figure 1 0
Table 3: the safety distance between two brackets
Spec if ic atio n
Format
2.35 :1
Note: due to product updates, sizes and specifications are subject to change at any time.
Distance(mm)
92”
1600 1750
100” 106 ” 110”
2050
1900
120”
2200
125”
2200
130”
2350
5
132”
2350
1122
Co n cave Fra me B a r （2p cs）
Si d e Fr ame B ar （2 pcs）
M4x6 mm Scre w(8pcs)
In s truc tion M a nual ( 1 pc)
Top& L ow Br acke t (1 pc)
5×40 mmTappin g w ith Anch o r（6se t s）
7x 0.8 x28mmSpring（A num ber）
Warra nty C ard (1pc )
2
Secu rity Fi xing Scre w (2pcs )
M5x8 mmScr ew 12pc s（ ）
M6x1 2mm Scr ew（8pcs）
Page 4
Installation
Screen Fabric Installation
Open t he pack ing box, ch eck whe ther the co mpone nts which need to be i nstalled are com plete o r not accor ding to
the Acc essor y Diagram matic S ketch in th e user ma nual, then take ou t all the small comp onent s careful ly from t he
pack ing box a nd put them a t a suita ble place, final ly install it acco rding to the opera ting me thod as bel ow:
Frame Installation
1.Put t he fixi ng lug into t he slot s of top and bo ttom ba rs, taking the fol lowing table as re ference (figur e 1).
Concav e Fr am e Ba r
Side Fra me B ar
figure 1
2.Pul l up the le ft bar to a sui table d istance , and the n attach the wheel i nto the groove of co ncave frame bar. In sert
the co nnect ing board 1 a nd the co nnecting board 2 i nto Concave Fram e Bar(p lease ope rate to gether in t wo side s).
Fina lly, fasten the corre spond ing screw s: figu re 2
wheel
left Bar
M3X6mm
Tapping Screw
1.Pu t the who le frame up side do wn and then unwrap t he screen fabric ( avoid scraping t he fabr ic when
unwr appin g) (figur e 4).
figure 4
2.Put t he tens ion bars to t he four s lots of scr een fab ric (note : this is a s tep suggested to b e completed by two
pers ons, on e to hold the s creen f abric and the othe r pull through the t ension bar) (fig ure 5-7 ).
Positi on f or
Frame Ha ng er
Positi on f or F ra me H anger
Spring
Rod
Screen F ab ri c
Spring
Screen F ab ri c
Rod
wheel
Connecting Board 2
Connecting Board 1
figure 2
M4X6mmScrew
3.The i nstal lation of r ight ba r is the same a s left ba r. Th e install ation h as been complete d (figure 3).
figure 3
M5X8mmScrew
Instal la ti on f or s pring of side frame bar
figure 5
Instal la ti on f or s pring of concave frame bar
figure 6
figure 7
3
4
