Decomat 8666
Decomat 8666
RESERVDELAR/
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
SPARE PARTS
Bildnr Utgåva
Ill. No. Issue
Decomat
8666
Tillv. nr. 81511-
4996871-04
0301
1
Produced: 1999
Decomat 8666
Decomat 8666
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
2
Reservdelar
Parts
Decomat 8666
Decomat 8666
Innehåll
Sammanställning _________________________________________5
Cirkulationssystem _______________________________________7
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
Cirkulationspump ________________________________________9
Ånguppvärmning ________________________________________ 11
Eluppvärmning _________________________________________13
Magnetventil, dubbel_____________________________________15
DV-ventil______________________________________________17
Matarpump (tryck under 50 kPa) ___________________________19
Avloppssystem för maskin utan tork _________________________21
Torkaggregat ___________________________________________ 23
Avloppspump __________________________________________25
Avloppskylning _________________________________________ 27
Luckstängning __________________________________________ 29
Motordrivningsenhet _____________________________________ 31
Luckstägning manuell lucka _______________________________33
Diskmedelsdosering _____________________________________35
Dosering process ________________________________________37
Spolsystem, övre ________________________________________39
Spolsystem, nedre _______________________________________ 41
Automatenhet __________________________________________ 43
Elkomponenter _________________________________________45
Förvärmningstank _______________________________________47
Printer ________________________________________________ 49
In-/Utlastare____________________________________________ 51
Klädselplåtar, enkel lucka _________________________________ 53
Klädselplåtar, dubbel lucka ________________________________ 55
Bildnr Utgåva
Ill. No. Issue
V1037 0993
Contents
Assembly _______________________________________________ 5
Circulation system ________________________________________ 7
Circulation pump _________________________________________ 9
Steam heating __________________________________________11
Electrical heating________________________________________13
Solenoid valve, double ___________________________________15
DW-valve _____________________________________________17
Feed pump (pressure below 50 kPa) _________________________ 19
Drain system for machine without drying unit _________________ 21
Drying unit ____________________________________________ 23
Drainage pump _________________________________________25
Outlet cooling __________________________________________ 27
Door closing ___________________________________________29
Motor drive unit ________________________________________ 31
Door closing, manual door ________________________________33
Detergent dosing ________________________________________ 35
Dosing process _________________________________________37
Flushing system, upper ___________________________________ 39
Flushing system, lower ___________________________________41
Control________________________________________________43
Electrical components ____________________________________ 45
Pre-heating tank_________________________________________ 47
Printer ________________________________________________ 49
Loader/ Unloader _______________________________________ 51
Housing, single door _____________________________________ 53
Housing, double door ____________________________________55
3
Decomat 8666
Decomat 8666
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
V777 0699
7
3
5
1
6
8
8
4
2
4
Reservdelar
Parts
Decomat 8666
Decomat 8666
Sammanställning
Bildnr Utgåva
Ill. No. Issue
Assembly
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
1 1 Styrsystem Control system Sid/ page 43
2 1 Cirkulationssystem Circulation system Sid/ page 7
3 1 Torksystem Drying system Sid/ page 23
4 1 Apparatskåp Component cabinet Sid/ page 45
5 1 Lucka Door
6 1 Avloppsystem Drain system Sid/ page 21,23
7 1 Lucköppning Door opening Sid/ page 29,33
8 Anslutning In-/Utmatare Connection Loader/ Sid/ page 51
Unloader
V777 0699
5
Decomat 8666
Decomat 8666
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
V767 0699
3
4
12
5
2
1
9
8
11
7
6
10
6
Reservdelar
Parts
Decomat 8666
Decomat 8666
Cirkulationssystem
Circulation system
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
1 Cirkulationspump Circulation pump Sid/page 9
2 4992074-04 Slang Hose
3 4992074-05 Slang Hose
4 4992074-02 Slang Hose
5 4992075-00 Slangklämma Hose clamp
6 Avloppspump Drain pump Sid/page 25
7 4989874-00 Slangsockel Hose connection
8 4991059-00 Backventil Non-return valve
9 5001132-00 Avloppsslang Drain hose
104689406-13 SlangHose
11 5000876-00 Slang Hose
12 5000588-01 Dräneringsslang OS Drain hose SS
5000588-02 Dräneringsslang RS Drain hose CS
Bildnr Utgåva
Ill. No. Issue
V767 0699
7
Decomat 8666
Decomat 8666
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
V774 0699
13
5
7
10
6
4
3
2
1
9
12
8
11
8
Reservdelar
Parts
Decomat 8666
Decomat 8666
Cirkulationspump
Bildnr Utgåva
Ill. No. Issue
Circulation pump
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
4998835-00 Pump P-65-13SS 50 Hz Pump P-65-13SS 50 Hz
4998835-01 Pump P-65-13SS 60 Hz Pump P-65-13SS 60 Hz
4998835-04 Pump P-65-13SS 200V,50Hz Pump P-65-13SS 200V,50Hz
4998835-05 Pump P-65-13SS 200V Pump P-65-13SS 200V
60 Hz 60Hz
1 Skruv M6S 8x16 Screw M6S 8x16
2 4990401-00 Pumphuslock Pump flange
3 Skruv MC6S 8x25 Screw MC6S 8x25
4 4990402-00 Navpropp Plug
5 5000975-00 Pumphjul 50Hz Pump wheel 50Hz
5000975-01 Pumphjul 60Hz Pump wheel 60Hz
6 4986447-00 Mekanisk tätning 50Hz Axial packing 50Hz
4986447-01 Mekanisk tätning 200V, 60Hz Axial packing 200V, 60Hz
V774 0699
7 4990404-00 O-ring 134,5x3 O-ring 134,5x3
8 4990405-00 Pumphus Pump body
9 4990406-00 Avkastare Bearing ring
10 5000976-00 Motor komplett Motor complete
5000976-01 Motor komplett 60 Hz Motor complete 60 Hz
11 4986451-00 Propp Plug
12 5001250-00 O-ring 10,8x2,6 O-ring 10,8x2,6
13 Skruv M6S 10x20 Screw M6S 10x20
9
Decomat 8666
Decomat 8666
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
V786 0699
1,
2
6
3, 4, 5
7
10
Reservdelar
Parts
Decomat 8666
Decomat 8666
Ånguppvärmning
Steam heating
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
1 5000076-00 Ångslinga Steam coil
2 7404831-05 O-ring O-ring
3 4995352-00 Magnetventil Solenoid valve
4 4995784-00 Reservdelssats Spare parts set
5 4997646-00 Spole Coil
6 4991330-00 Kondensvattenavledare Steam trap
7 5800063 Filter Filter
Bildnr Utgåva
Ill. No. Issue
V786 0699
11

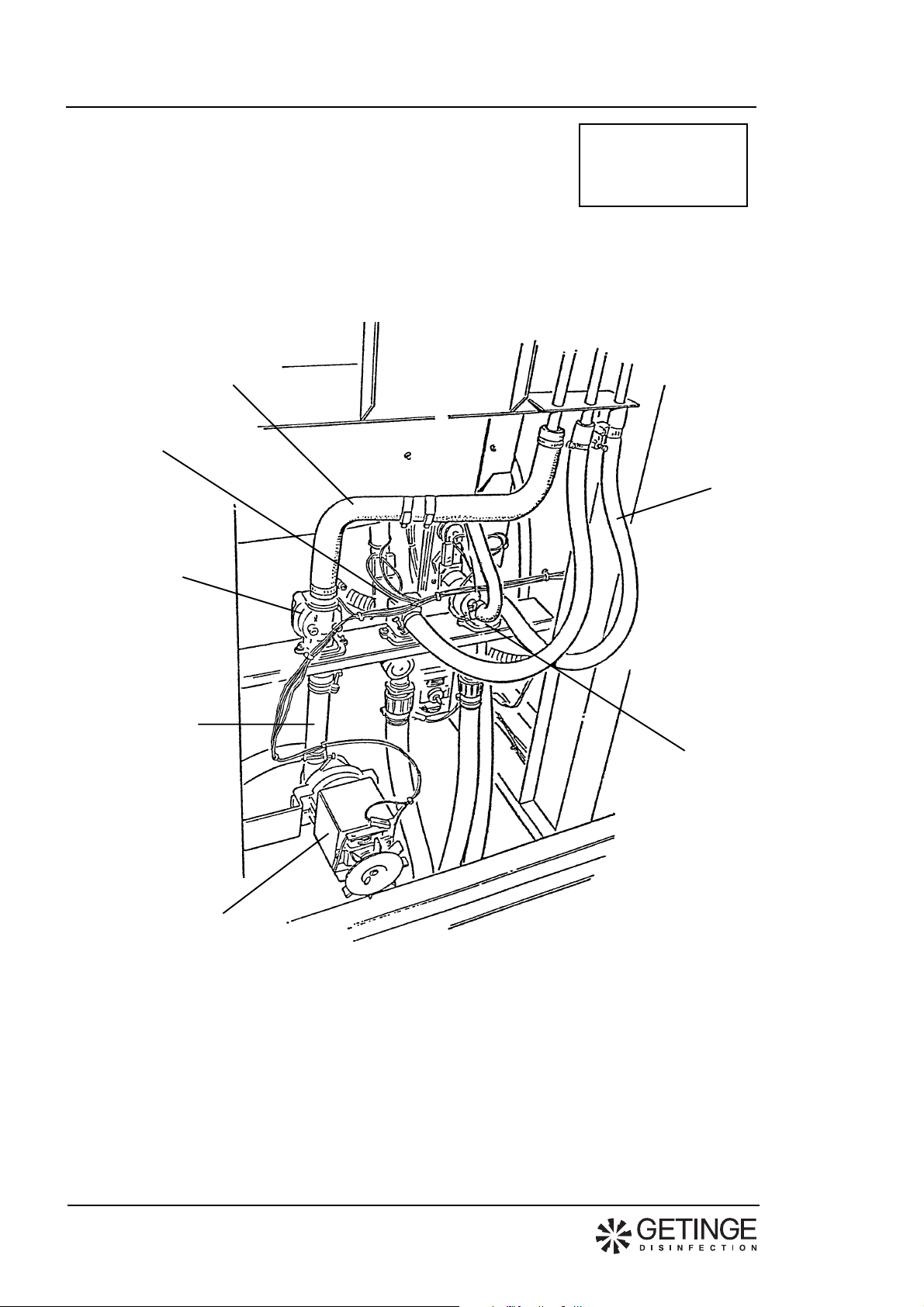

Decomat 8666
Decomat 8666
2
1
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
V767 0699
3,4
12
6
Reservdelar
Parts
Decomat 8666
Decomat 8666
Eluppvärmning
Bildnr Utgåva
Ill. No. Issue
Electrical heating
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
1 4990857-00 Överhettningsskydd Overheat protector
2 4989411-00 Element 9 kW Element 9 kW
4991365-00 Element 7, 5 kW Elemenet 7, 5 kW
3 4780859-00 Elementfläns Element flange
5 7404831-05 O-ring O-ring
6 5000534-00 Skyddshuv Protective cover
V767 0699
13

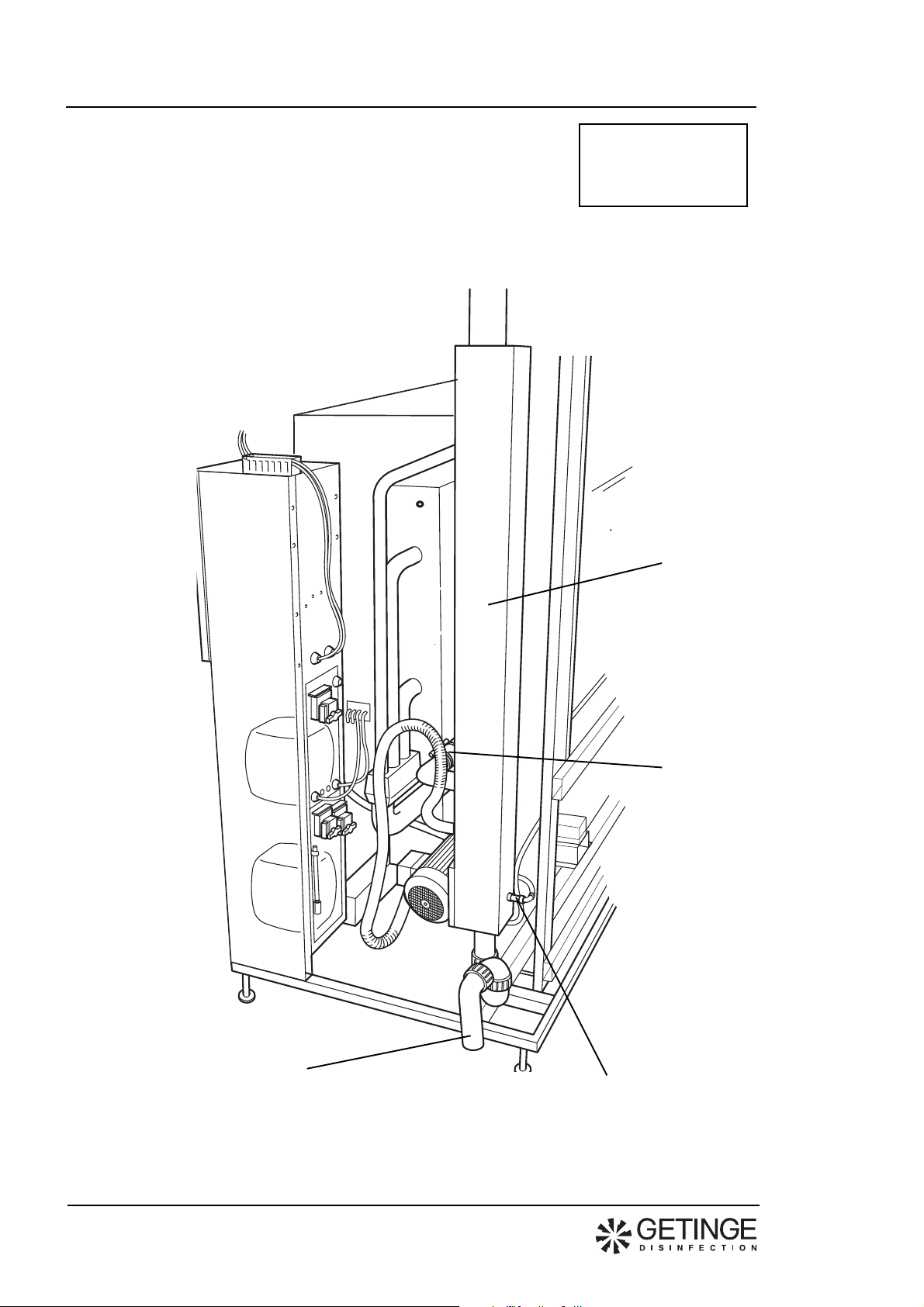

Decomat 8666
Decomat 8666
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
V781 0699
4
2
1
3
14
Reservdelar
Parts
Decomat 8666
Decomat 8666
Magnetventil, dubbel
Solenoid valve, double
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
1 4989410-01 Magnetventil dubbel Solenoid valve, double
2 4771343-02 Magnetventil Solenoid valve
3 4986252-05 Slang Hose
4 4998786-00 Huvudbrytare Main switch
Bildnr Utgåva
Ill. No. Issue
V781 0699
15
Decomat 8666
Decomat 8666
Reservdelar
Parts
Bildnr Utgåva
Ill. No. Issue
V399 0598
1
2
3
4
16
Reservdelar
Parts
Decomat 8666
Decomat 8666
DV-ventil
DW-valve
Pos Antal Art. nummer Benämning Description Anmärkning
Item Qty Part No. Notes
1 4989410-01 Magnetventil, dubbel Solenoid valve, double
2 4771343-02 Magnetventil Solenoid valve
3 4986252-05 Slang Hose
4 50800063 Filter Filter
Bildnr Utgåva
Ill. No. Issue
V99 0598
17
