Epson XP-4100 User Guide

Download
XP-4100/XP-4105 User's Guide

Contents

XP-4100/XP-4105 User's Guide................................................................................................................. 11
Product Basics .......................................................................................................................................... 12
Using the Control Panel ..................................................................................................................... 12
Control Panel Buttons and Lights .................................................................................................. 13
The LCD Screen ....................................................................................................................... 14
Changing LCD Screen Language.................................................................................................. 19
Product Parts Locations ..................................................................................................................... 19
Product Parts - Front ..................................................................................................................... 20
Product Parts - Inside .................................................................................................................... 21
Product Parts - Back...................................................................................................................... 22
Using Power Saving Settings ............................................................................................................. 22
Changing the Sleep Timer Settings ............................................................................................... 22
Changing the Power Off Timer Settings ........................................................................................ 23
Epson Connect Solutions for Smartphones, Tablets, and More ......................................................... 24
Setting Up Epson Connect Services.............................................................................................. 25
Using Epson Email Print ............................................................................................................... 26
Using the Epson iPrint Mobile App ................................................................................................ 27
Using Epson Remote Print ........................................................................................................... 27
Using Epson Scan to Cloud........................................................................................................... 28
Using AirPrint .................................................................................................................................... 29
Using Google Cloud Print................................................................................................................... 30
Setting Up Google Cloud Print on a Chromebook ......................................................................... 31
Android Printing Using the Epson Print Enabler ................................................................................ 32
Using Fire OS Printing ....................................................................................................................... 32
Using Windows 10 Mobile Printing .................................................................................................... 33
Using Epson Print and Scan App with Windows Tablets ................................................................... 33
3
Using the Mopria Print Service .......................................................................................................... 34
Wi-Fi Networking ....................................................................................................................................... 35
Network Security Recommendations ................................................................................................. 35
Wi-Fi Infrastructure Mode Setup......................................................................................................... 36
Selecting Wireless Network Settings from the Control Panel ........................................................ 37
Wi-Fi Direct Mode Setup .................................................................................................................... 40
Enabling Wi-Fi Direct Mode........................................................................................................... 40
Connecting to a Mobile Device Using Wi-Fi Direct ........................................................................ 42
Wi-Fi Protected Setup (WPS)............................................................................................................. 43
Using WPS to Connect to a Network ............................................................................................. 44
Printing a Network Status Sheet......................................................................................................... 45
Printing a Network Connection Report ............................................................................................... 46
Network Connection Report Codes and Messages ....................................................................... 47
Changing or Updating Network Connections ..................................................................................... 53
Accessing the Web Config Utility................................................................................................... 53
Changing a USB Connection to a Wi-Fi Connection...................................................................... 54
Connecting to a New Wi-Fi Router ................................................................................................ 54
Disabling Wi-Fi Features ............................................................................................................... 55
Loading Paper ........................................................................................................................................... 57

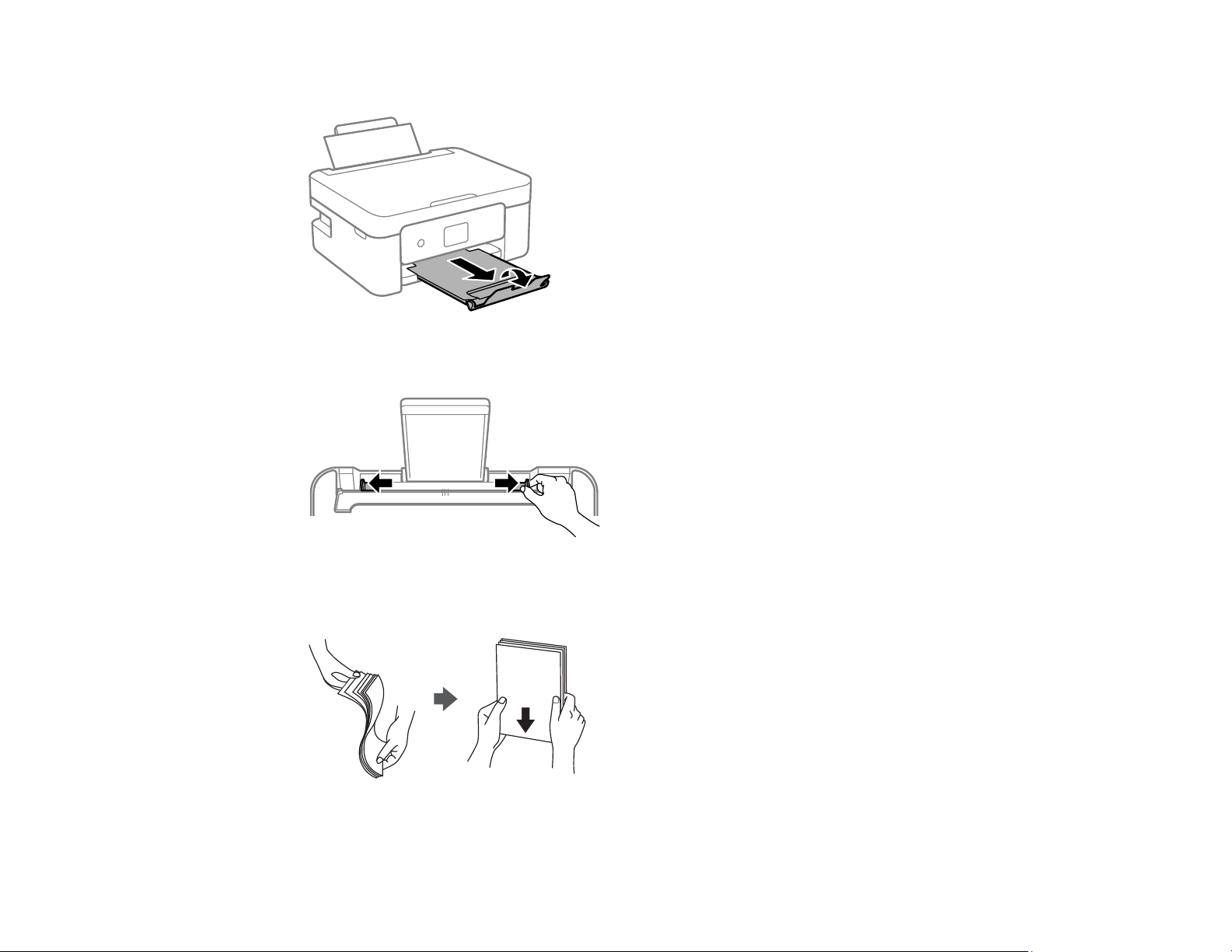

Loading Paper in the Rear Paper Feed .............................................................................................. 57
Paper Loading Capacity..................................................................................................................... 61
Turning Off the Paper Setting Alert..................................................................................................... 61
Double-sided Printing Capacity.......................................................................................................... 62
Compatible Epson Papers.................................................................................................................. 63
Borderless Paper Type Compatibility ................................................................................................. 65
Paper or Media Type Settings - Printing Software.............................................................................. 66

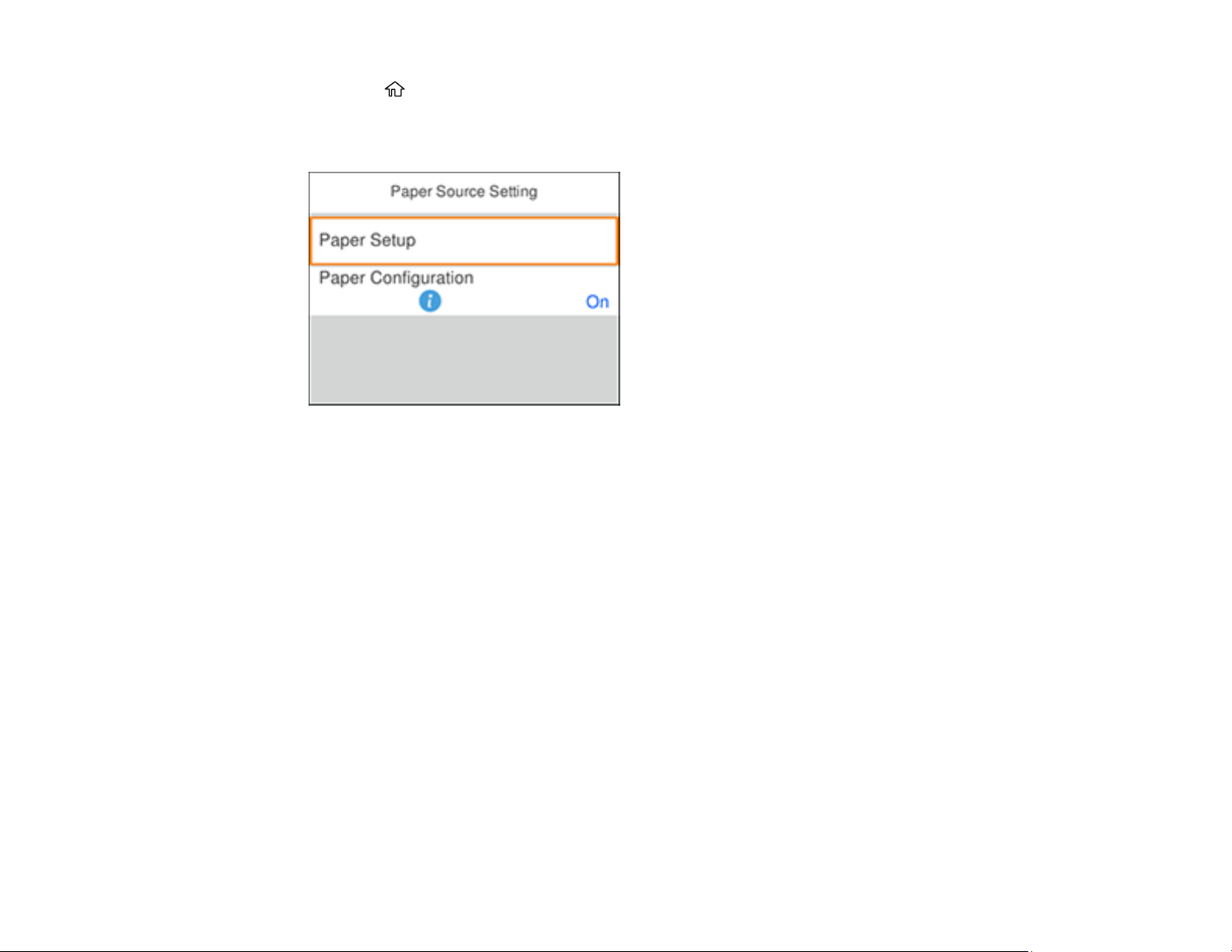

Selecting the Paper Settings - Control Panel ..................................................................................... 66
Paper Type Settings - Control Panel ............................................................................................. 68
Placing Originals on the Product ............................................................................................................. 70
Placing Originals on the Scanner Glass ............................................................................................. 70
Copying ...................................................................................................................................................... 74
Copying Documents or Photos........................................................................................................... 74
4
Copying Restored Photos .................................................................................................................. 75

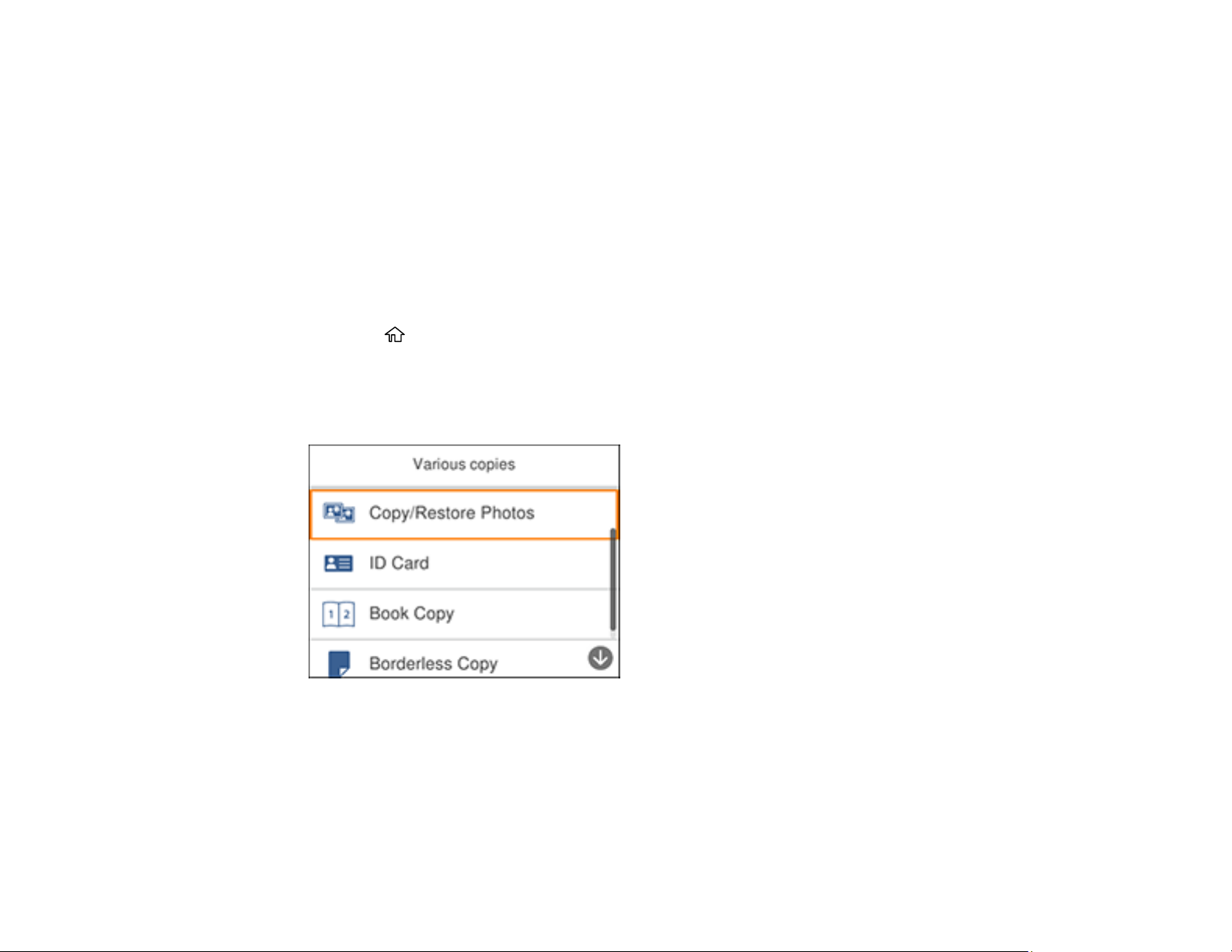

Copying Books, ID Cards, or Borderless Photos................................................................................ 77
Copying Options................................................................................................................................. 78
Printing from a Computer ......................................................................................................................... 80
Printing with Windows ........................................................................................................................ 80

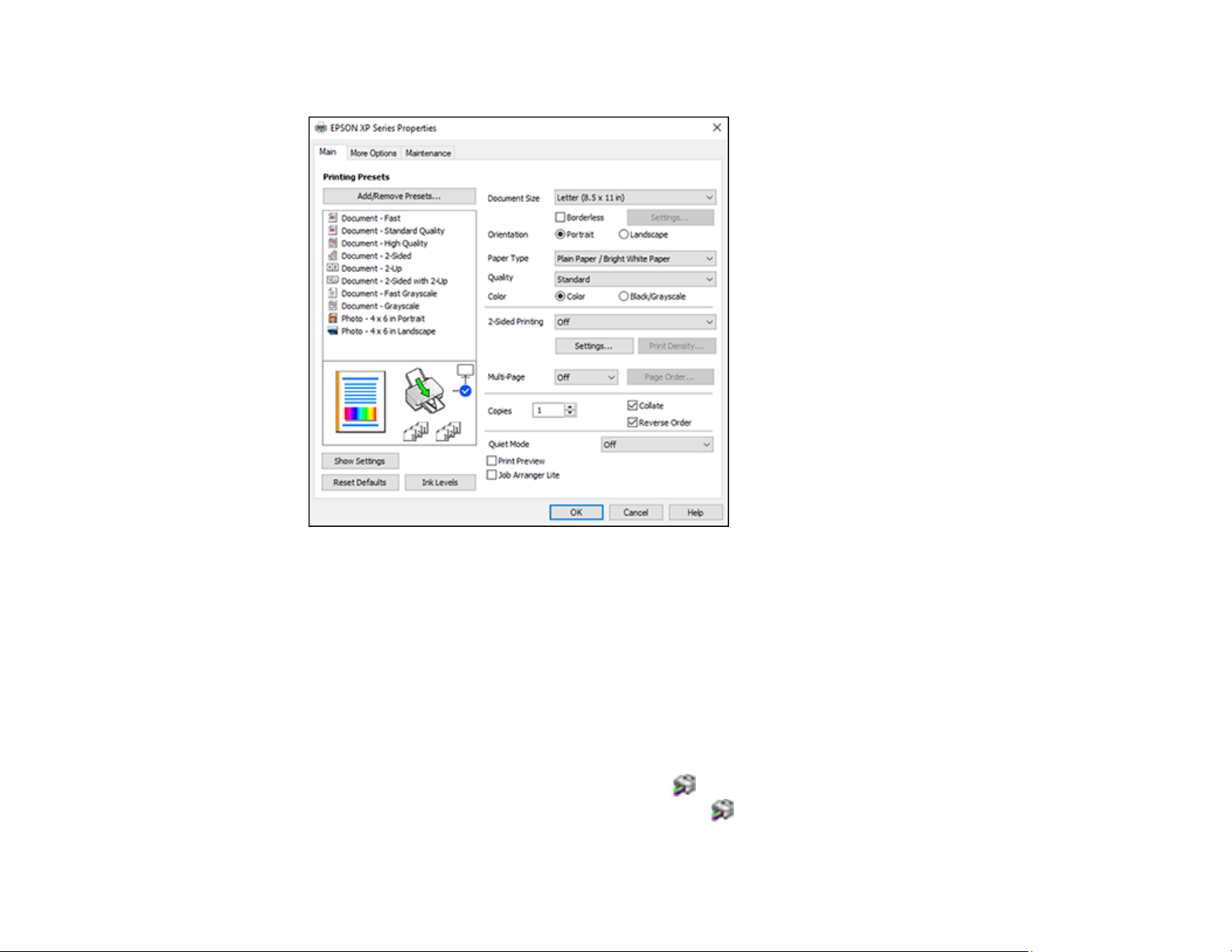

Selecting Basic Print Settings - Windows ...................................................................................... 81
Print Quality Options - Windows ............................................................................................... 83
Selecting Double-sided Printing Settings - Windows ..................................................................... 84
Double-sided Printing Options - Windows................................................................................. 86
Print Density Adjustments - Windows ....................................................................................... 87
Selecting Additional Layout and Print Options - Windows ............................................................. 88
Custom Color Correction Options - Windows............................................................................ 90
Header/Footer Settings - Windows ........................................................................................... 92

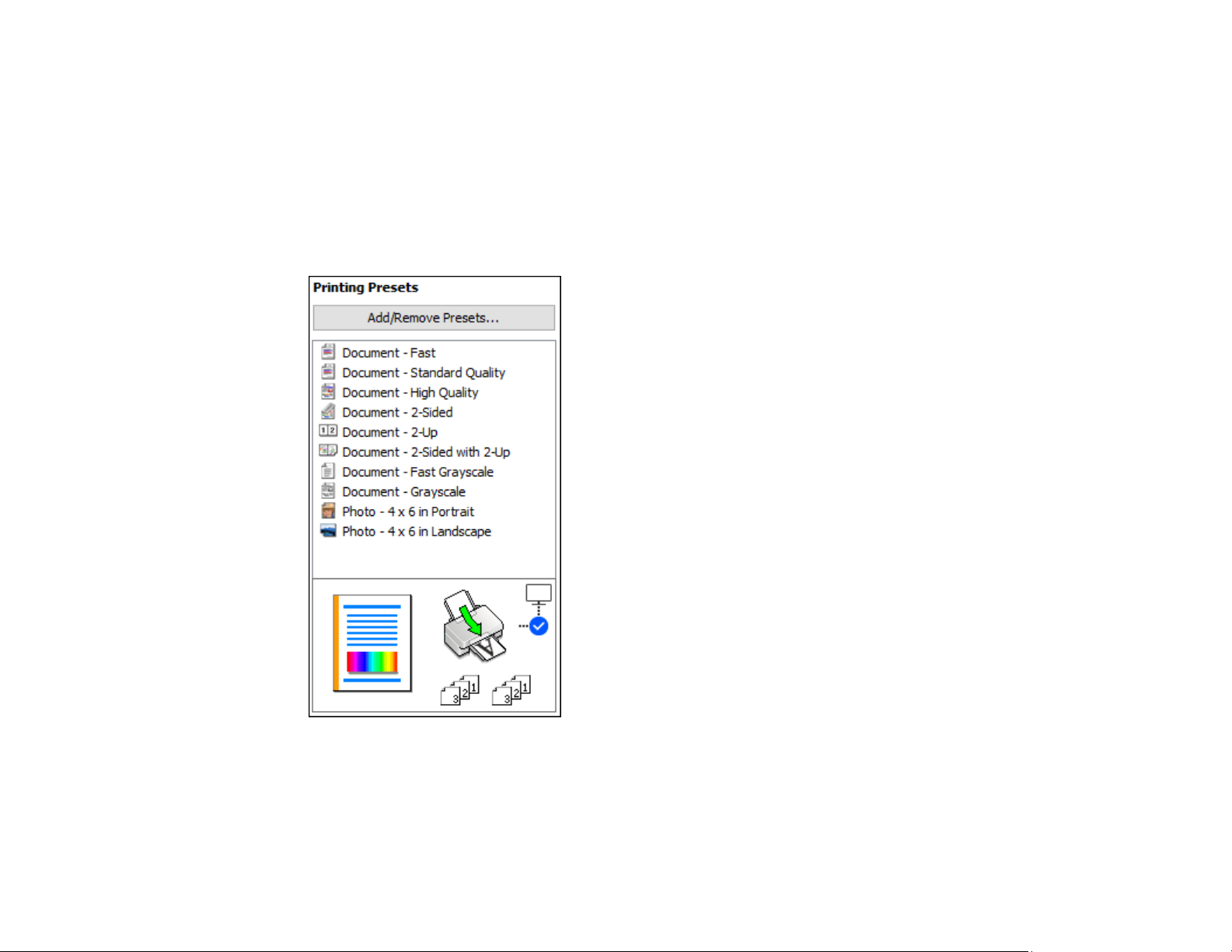

Selecting a Printing Preset - Windows........................................................................................... 93
Selecting Extended Settings - Windows ........................................................................................ 94

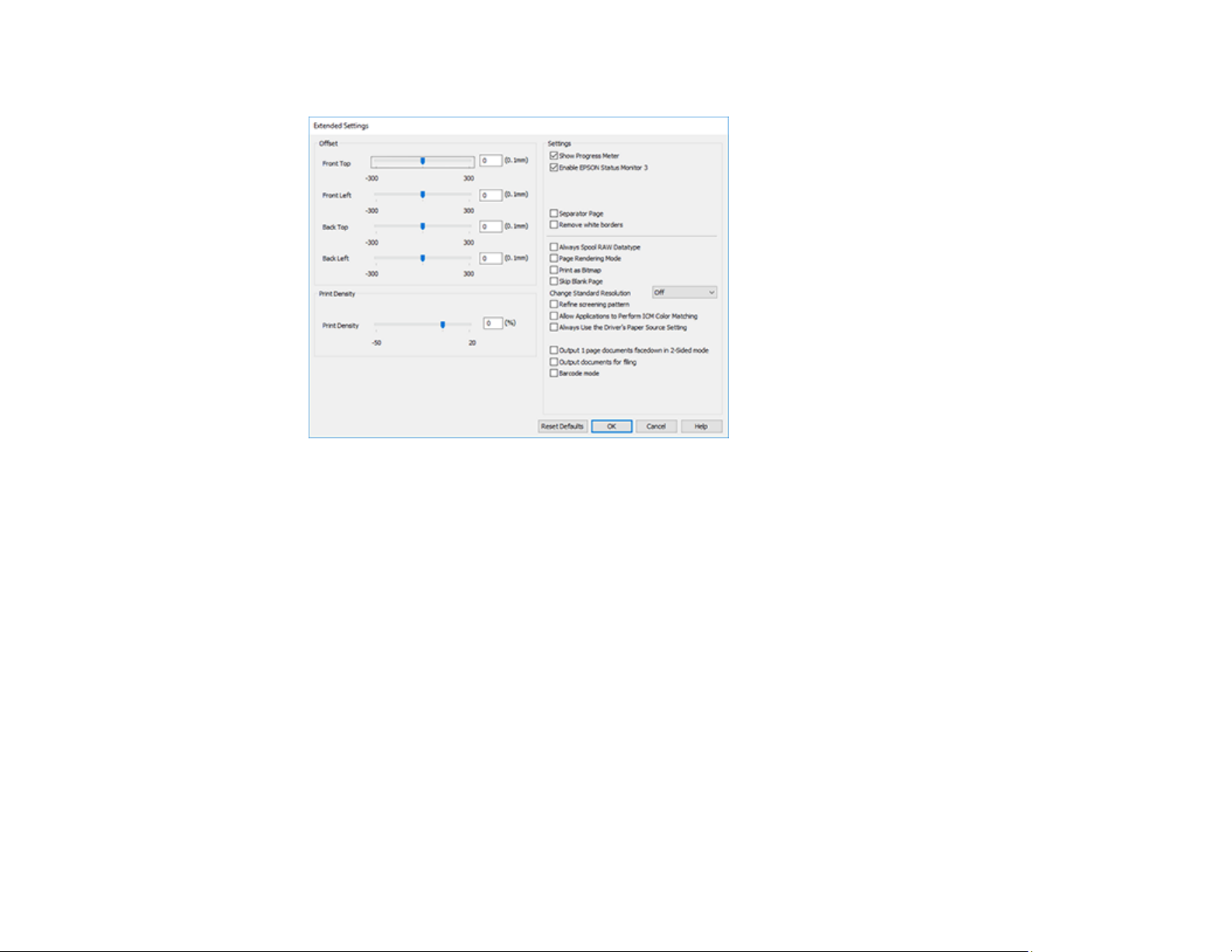

Extended Settings - Windows ................................................................................................... 95
Printing Your Document or Photo - Windows................................................................................. 96
Checking Print Status - Windows.............................................................................................. 98
Selecting Default Print Settings - Windows.................................................................................... 98
Changing the Language of the Printer Software Screens ......................................................... 99
Changing Automatic Update Options .......................................................................................... 100
Printing with the Built-in Epson Driver - Windows 10 S..................................................................... 101
Selecting Print Settings - Windows 10 S...................................................................................... 102
Printing on a Mac ............................................................................................................................. 105
Selecting Basic Print Settings - Mac ............................................................................................ 106
Print Quality Settings - Mac..................................................................................................... 110
Print Options - Mac ................................................................................................................. 110
Selecting Page Setup Settings - Mac .......................................................................................... 111
Selecting Print Layout Options - Mac........................................................................................... 112
Selecting Double-sided Printing Settings - Mac........................................................................... 113
Double-sided Printing Options and Adjustments - Mac........................................................... 114
5
Managing Color - Mac ................................................................................................................. 115
Color Matching and Color Options - Mac ................................................................................ 116
Selecting Printing Preferences - Mac .......................................................................................... 117
Printing Preferences - Mac...................................................................................................... 118
Printing Your Document or Photo - Mac ...................................................................................... 119
Checking Print Status - Mac.................................................................................................... 120
Printing From a Chromebook ........................................................................................................... 120
Cancelling Printing Using a Product Button...................................................................................... 122
Scanning .................................................................................................................................................. 123
Starting a Scan................................................................................................................................. 123
Starting a Scan Using the Product Control Panel ........................................................................ 123
Scanning to a Connected Computer ....................................................................................... 125
Scanning to the Cloud............................................................................................................. 127
Setting Up a WSD Port (Windows 7/Windows Vista) .............................................................. 128
Control Panel Scanning Options............................................................................................. 129
Changing Default Scan Job Settings ...................................................................................... 130
Starting a Scan Using the Epson Scan 2 Icon ............................................................................. 131
Starting a Scan from a Scanning Program................................................................................... 133
Starting a Scan from a Smart Device........................................................................................... 135
Scanning in Epson Scan 2 ............................................................................................................... 135
Additional Scanning Settings - Main Settings Tab ....................................................................... 138
Additional Scanning Settings - Advanced Settings Tab............................................................... 139
Saving Scanned Documents as a Searchable PDF Using Epson Scan 2 ................................... 140
Image Format Options................................................................................................................. 141
Scan Resolution Guidelines ........................................................................................................ 142
Scanning to Online Destinations Using Easy Photo Scan ................................................................ 143
Scanning Using Easy Photo Scan ............................................................................................... 143
Uploading Scanned Images to Google Photos ............................................................................ 145
Uploading Scanned Images to Evernote ..................................................................................... 147
Uploading Scanned Images to SugarSync .................................................................................. 149
Uploading Scanned Images to a Web Folder .............................................................................. 150
Uploading Scanned Images to Email........................................................................................... 152
Saving Scanned Images to a Folder............................................................................................ 153
6
Replacing Ink Cartridges and Maintenance Boxes............................................................................... 155
Check Cartridge and Maintenance Box Status................................................................................. 155
Checking Cartridge and Maintenance Box Status on the LCD Screen ........................................ 155
Checking Cartridge and Maintenance Box Status - Windows...................................................... 156
Checking Cartridge and Maintenance Box Status - Mac ............................................................. 159
Purchase Epson Ink Cartridges and Maintenance Box .................................................................... 160
Ink Cartridge and Maintenance Box Part Numbers...................................................................... 160
Removing and Installing Ink Cartridges............................................................................................ 161
Printing with Black Ink and Expended Color Cartridges ................................................................... 167
Printing with Expended Color Cartridges - Control Panel ............................................................ 167
Printing with Expended Color Cartridges - Windows ................................................................... 168
Printing with Expended Color Cartridges - Mac ........................................................................... 168
Conserving Low Black Ink with Windows ......................................................................................... 170
Replacing the Maintenance Box....................................................................................................... 170
Adjusting Print Quality............................................................................................................................ 175
Print Head Maintenance................................................................................................................... 175
Print Head Nozzle Check............................................................................................................. 175
Checking the Nozzles Using the Product Control Panel ......................................................... 175
Checking the Nozzles Using a Computer Utility...................................................................... 178
Print Head Cleaning .................................................................................................................... 180
Cleaning the Print Head Using the Product Control Panel ...................................................... 181
Cleaning the Print Head Using a Computer Utility................................................................... 182
Aligning the Print Head Using the Product Control Panel................................................................. 185
Cleaning the Paper Guide ................................................................................................................ 186
Cleaning and Transporting Your Product ............................................................................................. 187
Cleaning Your Product ..................................................................................................................... 187
Cleaning the Print Head Path ........................................................................................................... 187
Transporting Your Product ............................................................................................................... 190
Solving Problems .................................................................................................................................... 194
Checking for Software Updates........................................................................................................ 194
Product Status Messages ................................................................................................................ 195
Running a Product Check ................................................................................................................ 197
Resetting Control Panel Defaults ..................................................................................................... 198
7
Solving Setup Problems ................................................................................................................... 199
Product Does Not Turn On or Off................................................................................................. 200
Noise After Ink Installation........................................................................................................... 200
Software Installation Problems .................................................................................................... 200
Solving Network Problems ............................................................................................................... 201
Product Cannot Connect to a Wireless Router or Access Point .................................................. 201
Network Software Cannot Find Product on a Network................................................................. 203
Product Does Not Appear in Mac Printer Window ....................................................................... 204
Cannot Print Over a Network....................................................................................................... 204
Cannot Scan Over a Network ...................................................................................................... 206
Wireless Network Connection is Unstable on a Mac ................................................................... 206
Solving Copying Problems ............................................................................................................... 207
Product Makes Noise, But Nothing Copies.................................................................................. 207
Product Makes Noise When It Sits for a While............................................................................. 207
Solving Paper Problems................................................................................................................... 207
Paper Feeding Problems............................................................................................................. 208
Paper Jam Problems Inside the Product ..................................................................................... 208
Paper Jam Problems in the Rear Cover ...................................................................................... 210
Paper Ejection Problems ............................................................................................................. 212
Solving Problems Printing from a Computer..................................................................................... 212
Nothing Prints.............................................................................................................................. 213
Product Icon Does Not Appear in Windows Taskbar ................................................................... 213
Printing is Slow ............................................................................................................................ 214
Solving Page Layout and Content Problems.................................................................................... 216
Inverted Image............................................................................................................................. 216
Too Many Copies Print ................................................................................................................ 217
Blank Pages Print ........................................................................................................................ 217
Incorrect Margins on Printout....................................................................................................... 218
Border Appears on Borderless Prints .......................................................................................... 218
Incorrect Characters Print............................................................................................................ 219
Incorrect Image Size or Position.................................................................................................. 219
Slanted Printout........................................................................................................................... 220
Solving Print Quality Problems......................................................................................................... 221
8
White or Dark Lines in Printout .................................................................................................... 221
Blurry or Smeared Printout .......................................................................................................... 222
Faint Printout or Printout Has Gaps ............................................................................................. 223
Grainy Printout............................................................................................................................. 223
Incorrect Colors ........................................................................................................................... 224
Solving Scanning Problems ............................................................................................................. 225
Scanning Software Does Not Operate Correctly ......................................................................... 225
Cannot Start Epson Scan 2 ......................................................................................................... 226
Scanning is Slow ......................................................................................................................... 227
Solving Scanned Image Quality Problems ....................................................................................... 227
Scanned Image Quality Problems ............................................................................................... 227
Image Consists of a Few Dots Only............................................................................................. 229
Line of Dots Appears in All Scanned Images............................................................................... 229
Straight Lines in an Image Appear Crooked ................................................................................ 229
Image Colors are Patchy at the Edges ........................................................................................ 229
Ripple Patterns Appear in an Image ............................................................................................ 230
Scanned Image Edges are Cropped ........................................................................................... 230
Uninstall Your Product Software....................................................................................................... 230
Uninstalling Product Software - Windows.................................................................................... 230
Uninstalling Product Software - Mac............................................................................................ 231
Where to Get Help............................................................................................................................ 232
Technical Specifications ........................................................................................................................ 234
Windows System Requirements ...................................................................................................... 234
Mac System Requirements .............................................................................................................. 235
Paper Specifications ........................................................................................................................ 235
Printable Area Specifications ........................................................................................................... 237
Scanning Specifications ................................................................................................................... 238
Ink Cartridge Specifications.............................................................................................................. 239
Dimension Specifications ................................................................................................................. 240
Electrical Specifications ................................................................................................................... 240
Environmental Specifications ........................................................................................................... 241
Interface Specifications .................................................................................................................... 241
Network Interface Specifications ...................................................................................................... 241
9
Safety and Approvals Specifications ................................................................................................ 242
Notices ..................................................................................................................................................... 243
Important Safety Instructions............................................................................................................ 243
General Product Safety Instructions ............................................................................................ 243
Ink Cartridge Safety Instructions.................................................................................................. 245
Wireless Connection Safety Instructions ..................................................................................... 246
LCD Screen Safety Instructions................................................................................................... 246
Important Privacy Notice (Printer Serial Number)............................................................................. 247
FCC Compliance Statement............................................................................................................. 247
Binding Arbitration and Class Waiver ............................................................................................... 248
Trademarks...................................................................................................................................... 251
Copyright Notice............................................................................................................................... 252
libTIFF Software Acknowledgment.............................................................................................. 252
A Note Concerning Responsible Use of Copyrighted Materials................................................... 253
Default Delay Times for Power Management for Epson Products ............................................... 253
Copyright Attribution.................................................................................................................... 253
10
XP-4100/XP-4105 User's Guide
Welcome to the XP-4100/XP-4105 User's Guide.
For a printable PDF copy of this guide, click here.
11

Product Basics

See these sections to learn about the basic features of your product.
Using the Control Panel Product Parts Locations Using Power Saving Settings Epson Connect Solutions for Smartphones, Tablets, and More Using AirPrint Using Google Cloud Print Android Printing Using the Epson Print Enabler Using Fire OS Printing Using Windows 10 Mobile Printing Using Epson Print and Scan App with Windows Tablets Using the Mopria Print Service

Using the Control Panel

See these sections to learn about the control panel and select control panel settings.
Control Panel Buttons and Lights Changing LCD Screen Language
Parent topic: Product Basics
12

Control Panel Buttons and Lights

1
2
3 LCD screen
4 + and – buttons
5
6 start button
7
8 Arrow buttons and the OK button
9 back button
10
The LCD Screen Status Icon Information Navigating the LCD Screen Entering Characters on the LCD Screen Viewing Animations
power button and light
home button
stop button
reset button
help button
13
Parent topic: Using the Control Panel
The LCD Screen
1 Displays various status information; select an icon to check its status or adjust its settings
2 Menu options
3 Scrolls to show more menu options
Parent topic: Control Panel Buttons and Lights
Related references
LCD Screen Safety Instructions
Status Icon Information
Your product displays status icons on the LCD screen for certain product status conditions.
Icons Description
Ink and maintenance box status; select the icon to view the ink and maintenance box levels
14
Icons Description
Network connection status; select the icon to set up or change your network connection
• The product is not connected to a wireless network
• The product is searching for an SSID or experiencing a wireless network connection issue
• The product is connected to a wireless network; the number of bars indicates the connection's signal strength
• Wi-Fi Direct is not enabled
• Wi-Fi Direct is enabled
The Quiet Mode setting is enabled or disabled. Select the icon to change the setting. When this feature is enabled and depending on the selected paper type and print quality, noise is reduced during printing at the cost of print speed.
There is a problem with the indicated setting; select the icon for information on resolving the problem
Additional information is available; select the icon to display the information
Parent topic: Control Panel Buttons and Lights
Navigating the LCD Screen
Follow these guidelines to navigate and use the menus on the LCD screen.
To navigate the menus, press the arrow buttons to change your highlighted selection and press the OK button to confirm your selection.
To change a setting, press the arrow buttons to highlight the setting and press the OK button.
To enter a value in a field, press the arrow buttons to highlight the field and press the OK button to display the on-screen keyboard.
Parent topic: Control Panel Buttons and Lights
Entering Characters on the LCD Screen
Follow these guidelines to enter characters for passwords and other settings.
15
On-screen keyboard
1 Displays the character count
2 Moves the cursor left or right
3 Switches between uppercase and lowercase characters, numbers and symbols
4 Switches between characters and numbers or symbols
5 Changes the keyboard layout
6 Displays a list of common domain names to choose from
7 Enters a space
8 Select when you are finished
9 Deletes the previous character
Note: You can also switch the character type by pressing the reset button.
16
On-screen keypad
1 Deletes the previous number
2 Clears the entered number
3 Select when you are finished
Parent topic: Control Panel Buttons and Lights
Viewing Animations
You can view animations on the LCD screen to help guide you with a procedure or to troubleshoot a problem.
1. Press the help button.
17
You see a screen like this:
2. Select Troubleshooting if you are experiencing a problem or How To to view instructions on common procedures.
3. Select a topic from the list of available topics and follow the on-screen instructions.
While viewing the topics, you may see screens like this:
1 Displays the current step number and the total number of steps
18
2 Press the left arrow button to view the previous step
3 Indicates your overall progress through the animation
4 Press the right arrow button to view the next step
Parent topic: Control Panel Buttons and Lights

Changing LCD Screen Language

You can change the language used on the LCD screen.
1. Press the home button, if necessary.
2. Select Settings.
You see a screen like this:
3. Select Basic Settings.
4. Select Language.
5. Select a language.
Parent topic: Using the Control Panel

Product Parts Locations

See these sections to identify the parts on your product.
Product Parts - Front
19
Product Parts - Inside Product Parts - Back
Parent topic: Product Basics

Product Parts - Front

1 Rear paper feed
2 Paper support
3 Edge guides
4 Feeder guard
5 Output tray
6 Stopper
Parent topic: Product Parts Locations
20

Product Parts - Inside

1 Document cover
2 Scanner glass
3 Control panel
1 Scanner unit support
21
2 Scanner unit
3 Ink cartridge holder
Parent topic: Product Parts Locations

Product Parts - Back

1 Maintenance box cover
2 Rear cover (duplexer)
3 AC inlet
4 USB port
Parent topic: Product Parts Locations

Using Power Saving Settings

Your product enters sleep mode automatically and turns off the LCD screen if it is not used for a period of time. You can make the time period shorter and select other options to save energy and resources.
Changing the Sleep Timer Settings Changing the Power Off Timer Settings
Parent topic: Product Basics

Changing the Sleep Timer Settings

You can adjust the time period before your product enters sleep mode and turns off the LCD screen.
22
1. Press the home button, if necessary.
2. Select Settings.
You see a screen like this:
3. Select Basic Settings.
4. Select Sleep Timer.
5. Press the + and – button to adjust the number of minutes of inactivity before the product enters sleep mode.
Note: You can also use the displayed numeric keypad to select the number of minutes (up to 99).
Parent topic: Using Power Saving Settings

Changing the Power Off Timer Settings

You can have the product turn off automatically if it is not used for a specified period of time.
1. Press the home button, if necessary.
2. Select Settings.
23
You see a screen like this:
3. Select Basic Settings.
4. Select Power Off Timer.
5. Select a time period between 30minutes and 12h (12 hours).
Parent topic: Using Power Saving Settings

Epson Connect Solutions for Smartphones, Tablets, and More

Use your smartphone, tablet, or computer to print and scan documents, photos, emails, and web pages from your home, office, or even across the globe.
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the software described in this section. You also cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.
Print from anywhere with these Epson Connect solutions:
• Epson Email Print
• Epson iPrint Mobile App
• Epson Remote Print
Scan and send a file as an email or upload it to an online service directly from your Epson product with Epson Scan to Cloud or the Epson iPrint Mobile App.
24
Setting Up Epson Connect Services Using Epson Email Print Using the Epson iPrint Mobile App Using Epson Remote Print Using Epson Scan to Cloud
Parent topic: Product Basics
Related tasks
Using AirPrint Using Google Cloud Print Android Printing Using the Epson Print Enabler Using Fire OS Printing Using Windows 10 Mobile Printing Using Epson Print and Scan App with Windows Tablets Using the Mopria Print Service

Setting Up Epson Connect Services

If you did not activate your product's email address for use with Epson Connect when you set up your product, you can activate it using the product control panel.
1. Press the home button, if necessary.
2. Select Settings.
You see a screen like this:
25
3. Select Web Service Settings.
4. Select Epson Connect Services.
You see a screen like this:
5. Select Register.
6. Follow the instructions on the screen to activate your product's email address.
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More

Using Epson Email Print

With Epson Email Print, you can print from any device that can send email, such as your smartphone, tablet, or laptop. Just activate your product's unique email address. When you want to print, attach a PDF, Microsoft Office document, or photo to an email and send it to your product. Both the email and the attachments will print automatically.
1. Connect your product to your network. See the link below.
2. If you did not already set up Email Print when you installed your product software, see the link below to use your product control panel to activate your unique email address. Or visit epson.com/connect (U.S), epson.ca/connect (Canada), or epsonconnect.com (Caribbean) to learn more about Email Print, create your Epson Connect account, and register your product to the Epson Connect service.
3. Now you are ready to send and print emails to your product's Email Print address.
Note: Go to epsonconnect.com and log into your Epson Connect account to personalize your product's email, adjust print settings, and set up other Epson Connect services.
26
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More
Related tasks
Setting Up Epson Connect Services
Related topics
Wi-Fi Networking

Using the Epson iPrint Mobile App

Use this free Apple and Android app to print and scan with networked Epson products. Epson iPrint lets you print PDFs, Microsoft Office documents, photos, and web pages over a wireless network. You can scan and save a file on your device, send it as an email, or upload it to an online service such as Box, Dropbox, Evernote, or Google Drive.
1. Connect your product to your wireless network. See the link below.
2. Visit epson.com/connect (U.S), epson.ca/connect (Canada), or epson.com.jm/connect (Caribbean) to learn more about Epson iPrint and check the compatibility of your mobile device.
3. Download Epson iPrint from the Apple App Store or Google Play.
4. Connect your mobile device to the same wireless network as your product.
5. Open Epson iPrint and select your Epson product.
Now you are ready to print or scan with your mobile device and your Epson product.
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More
Related tasks
Setting Up Epson Connect Services
Related topics
Wi-Fi Networking

Using Epson Remote Print

With Epson Remote Print software, you can print from your laptop or desktop computer to an Epson Email-enabled product anywhere in the world.
1. Connect your Epson product to your wireless network. See the link below.
27
2. If you did not already set up an Epson Connect account when you installed your product software, visit epsonconnect.com to create your account and register your product to the Epson Connect service.
Note: Make a note of your product's email address.
3. Visit epsonconnect.com to learn more about Remote Print and how to download the Remote Print Driver software.
4. Download and install the Remote Print software.
5. Enter the email address and optional access key of your Epson product during Remote Print setup.
6. Now you are ready to print remotely. Select the print command in your laptop or desktop computer application and choose the Remote Print option for your Epson product.
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More
Related tasks
Setting Up Epson Connect Services
Related topics
Wi-Fi Networking

Using Epson Scan to Cloud

The Epson Scan to Cloud service allows you to scan and send a file as an email or upload it to an online service directly from your Epson product. Register an email address or online services such as Box, DropBox, Evernote, or Google Drive with your Epson Connect account.
1. Connect your Epson product to your network. See the link below.
2. If you did not already set up an Epson Connect account when you installed your product software, visit epsonconnect.com to create your account and register your product to the Epson Connect service.
Note: Make a note of your product's email address and password.
3. Visit epsonconnect.com to sign into your account with the email address and password you selected.
4. Select your product, select Scan to Cloud, and select Destination List.
5. Click Add, then follow the instructions on the screen to create your destination list.
28
6. Now you are ready to use Scan to Cloud. Select the setting for scanning to Scan to Cloud on your Epson product control panel.
Parent topic: Epson Connect Solutions for Smartphones, Tablets, and More
Related tasks
Setting Up Epson Connect Services
Related topics
Wi-Fi Networking

Using AirPrint

AirPrint enables instant wireless printing from iPhone, iPad, iPod touch, and Mac without the need to install drivers or download software.
Note: If you disabled paper configuration messages on your product control panel, you cannot use AirPrint. See the link below to enable the messages, if necessary.
1. Load paper in your product.
2. Set up your product for wireless printing. See the link below.
3. Connect your Apple device to the same wireless network that your product is using.
4. Print from your device to your product.
Note: For details, see the AirPrint page on the Apple website.
Parent topic: Product Basics
Related tasks
Setting Up Epson Connect Services
Related topics
Wi-Fi Networking
29

Using Google Cloud Print

With a Google Account, you can print from your Apple or Android device to your Epson product. You can also print from Chromebooks and the Google Chrome browser without drivers or cables.
1. Connect your Epson product to your wireless network. See the link below.
2. Note your product's IP address by checking your network status. See the link below.
3. Connect your computer or your mobile device to the same wireless network as your Epson product.
4. Enter your product's IP address into the address bar of a web browser.
5. Select the Google Cloud Print Services option.
Note: If you don't see the Google Cloud Print Services option, turn your product off and back on. If the option still doesn't appear, select the Firmware Update option and follow the on-screen instructions to update your product.
6. Click Register.
7. Select the checkbox to agree to the Usage Advisory and click Next.
8. Click OK to launch the sign-in page.
A separate browser window opens.
9. Enter your Google Account username and password and click Sign in, or, if you don't have an account, click Sign up for a new Google Account and follow the on-screen instructions.
10. Click Finish printer registration to complete setup and print a test page.
Your product is now linked to your Google Account and can be accessed from any Chromebook, computer, Apple or Android device with Internet access. Visit Epson Support for Google Cloud Print (U.S) or Epson Support for Google Cloud Print (Canada) for more information on using Google Cloud Print, or the Google Cloud Print website for a list of supported apps.
Setting Up Google Cloud Print on a Chromebook
Parent topic: Product Basics
Related tasks
Printing a Network Status Sheet
Related topics
Wi-Fi Networking
30

Setting Up Google Cloud Print on a Chromebook

With a Google Account, you can print from a Chromebook without drivers or cables.
1. Connect your Epson product to your wireless network. See the link below.
2. Turn on your Chromebook and connect it to the same wireless network as your product.
Note: See your Chromebook's documentation for details on connecting to a network.
3. Do one of the following:
• Click Add to Cloud Print in the notification that appears in the corner of your Chromebook
screen.
Note: If you do not see a notification, check to see if a number appears in the status area at the lower-right corner of the screen. Click this number to open the notifications menu, then click Add to Cloud Print.
• Open a web browser and enter chrome://devices in the address bar. Skip to step 5.
• If you see a registration confirmation screen instead, click Register.
4. Click Add Device.
5. Click the Register button that appears next to your product.
6. Click Register on the confirmation screen. Your product's LCD screen displays a confirmation message.
7. Select OK or press the OK button on your product to confirm the Google Cloud Print connection and print a test page.
Your product is now linked to your Google Account and can be accessed from any Chromebook, iPhone, or Android phone with Internet access. Visit Epson Support for Google Cloud Print (U.S) or Epson
Support for Google Cloud Print (Canada) for more information on using Google Cloud Print, or the Google Cloud Print website for a list of supported apps.
Parent topic: Using Google Cloud Print
Related tasks
Printing From a Chromebook
Related topics
Wi-Fi Networking
31

Android Printing Using the Epson Print Enabler

You can wirelessly print your documents, emails, photos, and web pages right from your Android phone or tablet (Android v4.4 or later). With a few taps, your Android device will discover your nearby Epson product and print.
1. Connect your Epson product to your wireless network. See the link below.
2. On your Android device, download the Epson Print Enabler plug-in from Google Play.
3. Go to Settings on your Android device, select Printing, and enable the Epson plug-in.
4. Connect your Android device to the same wireless network as your product.
5. Now you are ready to print. From an Android application such as Chrome or Gmail, tap the menu icon and print whatever is on the screen.
Note: If you do not see your product, tap All Printers and select your product.
Parent topic: Product Basics
Related topics
Wi-Fi Networking

Using Fire OS Printing

You can wirelessly print from Amazon Fire tablets and phones to your nearby networked Epson product. There is no software to download, no drivers to install, and no cables to connect. With just a few taps in Email, Calendar, Contacts, and WPS Office, you can send whatever is on the screen to an Epson product.
1. Connect your Epson product to your wireless network. See the link below.
2. Connect your Amazon device to the same wireless network as your product.
3. Now you are ready to print. From your Amazon application, tap the print option and select your product to print whatever is on the screen.
Note: If you see a message telling you that a plug-in is required, tap OK and tap Download. If your Amazon Fire product uses Fire OS 5 and above, your device automatically uses the built-in Mopria Print Service app to print.
Parent topic: Product Basics
32
Related topics
Wi-Fi Networking Wi-Fi Networking

Using Windows 10 Mobile Printing

You can wirelessly print from Windows 10 Mobile tablets and phones to your nearby networked Epson product. There is no software to download, no drivers to install, and no cables to connect. Look for the print option in your Windows 10 application to send whatever is on the screen to an Epson product.
1. Connect your Epson product to your wireless network. See the link below.
2. Connect your Windows 10 Mobile device to the same wireless network as your product.
3. Now you are ready to print. From your Windows 10 application, tap the print option and select your product to print whatever is on the screen.
Parent topic: Product Basics
Related topics
Wi-Fi Networking

Using Epson Print and Scan App with Windows Tablets

You can use this free app to print photos and scan from your Windows (Windows 8 or higher) Surface RT or Pro tablet with networked Epson products. Epson Print and Scan App allows you to scan and capture images right to your tablet or to Microsoft OneDrive.
Note: The Epson Print and Scan App does not support Windows 10 Mobile printing.
1. Connect your Epson product to your wireless network. See the link below.
2. Download Epson Print and Scan App from the Microsoft Windows Store.
3. Connect your Windows tablet to the same wireless network as your product.
4. Open Epson Print and Scan App and select your Epson product.
Now you are ready to print photos or scan.
Parent topic: Product Basics
Related topics
Wi-Fi Networking
33

Using the Mopria Print Service

You can use the Mopria Print Service to print from your Android phone or tablet (Android v4.4 or later) to your Epson product or any Mopria-certified product from other manufacturers. You can download the Mopria Print Service from Google Play.
Note: For details on the Mopria Print Service, click here (U.S) or click here (Canada).
1. Connect your Epson product to your wireless network. See the link below.
2. On your Android device, download the Mopria Print Service app from Google Play.
Note: On some Samsung Galaxy devices, Mopria may come preinstalled.
3. Go to Settings on your Android device, select Printing, and enable the Mopria Print Service.
4. Connect your Android device to the same wireless network as your product.
5. Now you are ready to print. From an Android application such as Chrome or Gmail, tap the menu icon and select Print. Then select All printers, select your Epson product, adjust your print settings, and print.
Parent topic: Product Basics
Related topics
Wi-Fi Networking
34

Wi-Fi Networking

See these sections to use your product on a Wi-Fi network.
Network Security Recommendations Wi-Fi Infrastructure Mode Setup Wi-Fi Direct Mode Setup Wi-Fi Protected Setup (WPS) Printing a Network Status Sheet Printing a Network Connection Report Changing or Updating Network Connections
Related references
Wireless Connection Safety Instructions

Network Security Recommendations

To help deter unauthorized access to your product over a network, you should protect your network environment using appropriate security measures.
Security measures such as these can help deter threats such as loss of user data, use of telephone and fax lines, and other intrusions:
• Enable security on your wireless LAN
Enable the appropriate security on the wireless LAN you plan to use with your product. Network security such as a network password can deter interception of traffic over the wireless LAN. Your router may already have a default password enabled by your Internet service provider (ISP). See your ISP and router documentation for instructions on how to change the default password and better secure your network.
• Connect your product only to a network protected by a firewall
Connecting your product directly to the Internet may leave it vulnerable to security threats. Instead, connect it to a router or other network connection protected by a firewall. Your router may already have a firewall set up by your Internet service provider; check with your ISP for confirmation. For best results, set up and use a private IP address for your network connection.
• Change the default administrator password on your product
If your product has an option to set an administrator password, change the default administrator password to deter access by unauthorized users to personal data stored on your product, such as IDs, passwords, and contact lists.
35
Parent topic: Wi-Fi Networking

Wi-Fi Infrastructure Mode Setup

You can set up your product to communicate with your computer using a wireless router or access point. The wireless router or access point can be connected to your computer over a wireless or wired network.
1 Epson product
2 Wireless router or access point
3 Computer with a wireless interface
4 Computer
5 Internet
6 Ethernet cable (used only for wired connection to the wireless router or access point)
Selecting Wireless Network Settings from the Control Panel
Parent topic: Wi-Fi Networking
36

Selecting Wireless Network Settings from the Control Panel

You can select or change wireless network settings using your product control panel.
To install your product on a wireless network, follow the instructions on the Start Here sheet and install the necessary software by downloading it from the Epson website. The installer program guides you through network setup.
Note: Breakdown or repair of this product may cause loss of network data and settings. Epson is not responsible for backing up or recovering data and settings during or after the warranty period. We recommend that you make your own backup or print out your network data and settings.
1. Press the home button, if necessary.
2. Select the icon.
You see a screen like this:
3. Select Wi-Fi (Recommended).
4. Select Start Setup or Change Settings.
5. Select Wi-Fi Setup Wizard.
37
You see a screen like this:
6. Select the name of your wireless network or press the + button to enter the name manually. If you are entering the name manually, use the displayed keyboard to enter your network name.
Note: The network name and password are case sensitive. Be sure to correctly enter uppercase and lowercase letters, and numeric or special characters.
• To move the cursor, press the left or right arrows.
• To change the case of letters, select .
38
• To delete the previous character, select .
• To enter numbers and symbols, select AB1#.
• To enter a space, select .
• To finish entering your network name or password, select OK.
7. Select the Enter Password field and use the displayed keyboard to enter your network password.
8. When you are finished, confirm the displayed network settings and select Start Setup to begin setup.
9. Do one of the following:
• If setup was successful, select Print Check Report to print a network setup report or OK to finish
with the setup.
• If setup was unsuccessful, select Print Check Report to print a network setup report or Re-enter
to re-enter your network name and password again.
10. Press the home button to return to the Home screen.
The Wi-Fi icon is displayed on the LCD screen and indicates your wireless connection status. If the product is not connected to the network, you may have selected the wrong network name or entered the password incorrectly. Repeat these steps to try again.
If you are printing from a computer, make sure you installed the network software as described on the Start Here sheet.
39
Parent topic: Wi-Fi Infrastructure Mode Setup
Related references
Status Icon Information
Related tasks
Entering Characters on the LCD Screen

Wi-Fi Direct Mode Setup

You can set up your product to communicate directly with your computer or another device without requiring a wireless router or access point. In Wi-Fi Direct Mode, the product itself acts as a network access point for up to 8 devices.
1 Epson product
2 Computer with a wireless interface
3 Other wireless device
Enabling Wi-Fi Direct Mode Connecting to a Mobile Device Using Wi-Fi Direct
Parent topic: Wi-Fi Networking

Enabling Wi-Fi Direct Mode

You can enable Wi-Fi Direct mode to allow direct communication between your product and computer or other devices without a wireless router or access point.
40
1. Press the home button, if necessary.
2. Select the icon.
You see a screen like this:
3. Select Wi-Fi Direct.
4. Select Start Setup.
5. Select Start Setup again.
You see a screen like this:
41
6. Use your computer or wireless device to select the Wi-Fi network name (SSID) displayed on the LCD screen, then enter the password shown.
7. When you are finished, scroll down on the product's LCD screen and select OK.
Note: You can also scan the QR Code on the LCD screen to view online setup instructions.
8. Press the home button to return to the Home screen.
The Wi-Fi Direct icon is displayed on the LCD screen and indicates if Wi-Fi Direct is enabled on the product.
If you are printing from a computer, make sure you installed the network software as described on the Start Here sheet.
Parent topic: Wi-Fi Direct Mode Setup
Related references
Status Icon Information

Connecting to a Mobile Device Using Wi-Fi Direct

You can connect a mobile device directly to the printer without a wireless router or access point.
Note: After your smartphone is connected, use the Epson iPrint app to print from the device.
1. Press the home button, if necessary.
2. Select Smartphone connect.
• If your product is not connected to a wireless network, go to the next step.
• If you product is already connected to a wireless network, select Next to display your product's
model name and IP address or select Other Methods to choose a specific device to connect.
3. Select Start Setup.
42
You see this screen:
4. Do one of the following:
• For iOS devices, select iOS. Scan the QR code with the camera app on your device and follow the
instructions on your device. Select Next on the LCD screen to verify the printer information, and then open the Epson iPrint app on your device and select the printer displayed on the LCD screen. Select Complete on the LCD screen.
• For Android devices, select Android. Open the Epson iPrint app on your device and select the
printer displayed on the LCD screen. Select Complete on the LCD screen.
• For other types of devices, select Other OS Devices. Use your device to select the Wi-Fi network
name (SSID) displayed on the LCD screen, then enter the password shown.
5. Follow the instructions on the LCD screen to complete Wi-Fi Direct setup.
The Wi-Fi Direct icon is displayed on the LCD screen and indicates if Wi-Fi Direct is enabled on the product.
Parent topic: Wi-Fi Direct Mode Setup
Related references
Status Icon Information

Wi-Fi Protected Setup (WPS)

If your network uses a WPS-enabled wireless router or access point, you can quickly connect your product to the network using Wi-Fi Protected Setup (WPS).
43
Note: To check if your router is WPS-enabled, look for a button labeled WPS on your router or access
point. If there is no hardware button, there may be a virtual WPS button in the software for the device. Check your network product documentation for details.

Using WPS to Connect to a Network

Parent topic: Wi-Fi Networking
Using WPS to Connect to a Network
If you have a WPS-enabled wireless router or access point, you can use Wi-Fi Protected Setup (WPS) to connect your product to the network.
1. Press the home button, if necessary.
2. Select the icon.
You see a screen like this:
3. Select Wi-Fi (Recommended).
4. Select Start Setup or Change Settings.
5. Select Push Button Setup (WPS).
6. Follow the instructions on the LCD screen to complete WPS setup.
Note: Make sure you press Start Setup within two minutes of activating WPS on your router.
44
7. Press the home button to return to the Home screen.
The Wi-Fi icon is displayed on the LCD screen and indicates your wireless connection status. If the product is not connected to the network, repeat these steps to try again.
If you are printing from a computer, make sure you installed the network software as described on the Start Here sheet.
Parent topic: Wi-Fi Protected Setup (WPS)

Printing a Network Status Sheet

You can print a network status sheet to help you determine the causes of any problems you may have using your product on a network.
1. Press the home button, if necessary.
2. Select Settings.
You see a screen like this:
3. Select Network Settings.
4. Select Network Status.
5. Select Print Status Sheet.
6. Press the start button to print the status sheet.
Examine the settings shown on the network status sheet to diagnose any problems you have.
Parent topic: Wi-Fi Networking
45

Printing a Network Connection Report

You can print a network connection report to view solutions to any problems you may have using your product on a network.
1. Make sure a few sheets of plain paper are loaded in the cassette.
2. Press the home button, if necessary.
3. Select Settings.
You see a screen like this:
4. Select Network Settings.
5. Select Connection Check.
46
You see a screen like this:
6. Select Print Check Report to print the network connection report.
Examine any error codes and solutions shown on the network connection report.

Network Connection Report Codes and Messages

Parent topic: Wi-Fi Networking
Network Connection Report Codes and Messages
Check the error codes and messages on the network connection report to solve problems you may encounter with network connections. The tables here list solutions to problems based on the error codes and messages that may appear on the top of the report.
47
1 Error code
2 Message
Note: Error codes and messages listed here may not all apply to your product.
Error Codes and Messages
Error code and message Solution
E1
Confirm that the network cable is connected and network devices such as hub, router, or access point are turned on.
Make sure your router, access point, and/or hub are turned on, and the network cable is securely connected to your device and to your product.
If you are trying to set up Wi-Fi, remove the network cable and set up Wi-Fi again. Ethernet and Wi-Fi cannot be connected at the same time.
48
Error code and message Solution
E2, E3, or E7
No wireless network names (SSID) found. Confirm that the router/access point is turned on and the wireless network (SSID) is set up correctly. Contact your network administrator for assistance.
No wireless network names (SSID) found. Confirm that the wireless network name (SSID) of the PC you wish to connect is set up correctly. Contact your network administrator for assistance.
Entered security key/password does not match the one set for your router/access point. Confirm security key/password. Contact your network administrator for assistance.
Check the following:
• Make sure your router or access point is turned on, and is correctly connected to your computer or network device.
• Turn off the router or access point, wait about 10 seconds, and turn it on again.
• Move your product closer to your router or access point, and remove any obstacles between them. Also move your product away from devices such as wireless phones or microwaves.
• Confirm that the SSID shown on the network connection report matches the label on your router or access point. Also make sure your SSID uses only ASCII characters and symbols, or your product cannot display the SSID correctly.
• If you are trying to connect using the WPS push button method, make sure your router or access point supports it.
• If you are using a network password, check the label on your router or access point to confirm that you are using the correct password, or check with your network administrator or router/access point documentation.
• If you are connecting to a smart device that generates an SSID, check the device documentation for the SSID and password you should use.
• If your wireless connection suddenly disconnects, and another smart device was added to the network using a WPS push button method or your network was set up using a non-WPS push button method, try downloading and installing your product software again.
49
Error code and message Solution
E5
Security mode (e.g. WEP, WPA) does not match the current setting of the printer. Confirm security mode. Contact your network administrator for assistance.
E6
MAC address of your printer may be filtered. Check whether your router/access point has restrictions such as MAC address filtering. See the documentation of the router/access point or contact your network administrator for assistance.
If the security on your router or access point is not one of the following types, change the type of security on your router or access point and reset your product's network settings.
• WEP-64 bit (40 bit)
• WEP-128 bit (104 bit)
• WPA PSK (TKIP/AES); also known as WPA Personal
• WPA2 PSK (TKIP/AES); also known as WPA2 Personal
• WPA (TKIP/AES)
• WPA2 (TKIP/AES)
Also make sure you are connecting to the 2.4GHz band on your network and using the password for that band.
If your router or access point has MAC address filtering enabled, register your product's MAC address so it is not filtered. Locate the MAC address on the network connection report and check your router or access point documentation for instructions.
If your router or access point is using shared authentication with WEP security, confirm that you are using the correct authentication key and index.
E8
Incorrect IP address is assigned to the printer. Confirm IP address setup of the network device (hub, router, or access point). Contact your network administrator for assistance.
If your router or access point limits the number of connected devices, raise the connection limit. See your router or access point documentation for instructions.
If your product's Obtain IP Address setting is set to Auto, enable DHCP on your router or access point. If it is set to Manual, the IP address may be out of range or on a different network segment; set a valid IP address using your product control panel or the Web Config utility.
You can also try turning off your product and the router or access point, waiting about 10 seconds, and turning them on again.
50
Error code and message Solution
E9
Confirm the connection and network setup of the PC or other device. Connection using the EpsonNet Setup is available. Contact your network administrator for assistance.
E10
Confirm IP address, subnet mask, and default gateway setup. Connection using the EpsonNet Setup is available. Contact your network administrator for assistance.
Make sure your computer or network device are turned on. Also make sure that you can access the internet and other devices on the same network from the devices you are trying to connect to your product.
If you still cannot connect to your product, turn off your router or access point, wait about 10 seconds, and turn it on again. Download and install your product software again to reset your network settings.
Make sure other devices on the network are turned on and do the following:
• If your product's Obtain IP Address setting is set to Manual, check the IP address, subnet mask, and default gateway addresses on the network connection report to see if they are correct. If not, correct the settings.
• If DHCP is enabled, set your product's Obtain IP Address setting to Auto. If you want to use the DHCP­assigned address as a static address, set the Obtain IP Address setting to Manual, enter the product's IP address as listed on the network connection report, and set the subnet mask to 255.255.255.0.
If you still cannot connect to your product, turn off your router or access point, wait about 10 seconds, and turn it on again.
E11
Setup is incomplete. Confirm default gateway setup. Connection using the EpsonNet Setup is available. Contact your network administrator for assistance.
If you set your product's TCP/IP Setup setting to Manual, check that the default gateway address listed on the network connection report is correct. Also turn on the device that is set as the default gateway.
51
Error code and message Solution
E12
Confirm the following
-Entered security key/password is correct
-Index of the security key/password is set to the first number
-IP address, subnet mask, or default gateway setup is correct
Contact your network administrator for assistance.
E13
Confirm the following
-Entered security key/password is correct
-Index of the security key/password is set to the first number
-Connection and network setup of the PC or other device is correct
Contact your network administrator for assistance.
Make sure other devices on the network are turned on and do the following:
• Make sure the IP address, subnet mask, and default gateway addresses are correct, if you are entering them manually.
• Confirm that the subnet mask and default gateway addresses for other devices are the same.
• Make sure the IP address does not conflict with other devices.
If you still cannot connect to your product, do the following:
• Turn off your router or access point, wait about 10 seconds, and turn it on again.
• Download and install your product software again to reset your network settings.
• If your router or access point uses WEP security with several registered passwords, make sure that the first registered password is set on your product.
Make sure your router, access point, and/or hub are turned on. Also make sure the TCP/IP setup on your router, access point, and/or hub is not set manually; this may cause your product's network settings to differ from the manually set up devices.
If you still cannot connect to your product, do the following:
• Turn off your router or access point, wait about 10 seconds, and turn it on again.
• Download and install your product software again to reset your network settings.
• If your router or access point uses WEP security with several registered passwords, make sure that the first registered password is set on your product.
52
Network Environment Messages
Message Solution
The same SSID may be set on several access points.
The Wi-Fi environment needs to be improved. Turn the wireless router off and then turn it on. If the connection does not improve, see the documentation for the wireless router.
*No more devices can be connected. Disconnect one of the connected devices if you want to add another one.
The same SSID as Wi-Fi Direct exists in the environment. Change the Wi-Fi Direct SSID if you cannot connect a smart device to the printer.
Parent topic: Printing a Network Connection Report
Check the settings on your router and other access points to make sure each one uses a different SSID.
Move your product closer to your router or access point, and remove any obstacles between them. Then turn off your router or access point, wait about 10 seconds, and turn it back on again. If you still cannot connect to your product, check the documentation that came with your router or access point for solutions.
You can connect up to 8 computers or other devices to your product using a Wi-Fi Direct (Simple AP) connection. If you want to add another device, disconnect an existing connected device first.
Change the Wi-Fi Direct SSID.

Changing or Updating Network Connections

See these sections to change or update how your product connects to a network.
Accessing the Web Config Utility Changing a USB Connection to a Wi-Fi Connection Connecting to a New Wi-Fi Router Disabling Wi-Fi Features
Parent topic: Wi-Fi Networking

Accessing the Web Config Utility

You can select your product's network settings and confirm its operating status using a web browser. You do this by accessing your product's built-in Web Config utility from a computer or other device that is connected to the same network as your product.
1. Print a network status sheet.
53
2. Locate the IP address for your product that is listed on the network status sheet.
3. On a computer or other device connected to the same network as your product, open a web browser.
4. Enter your product's IP address into the address bar.
You see the available Web Config utility options.
Parent topic: Changing or Updating Network Connections
Related tasks
Printing a Network Status Sheet

Changing a USB Connection to a Wi-Fi Connection

If you have already connected your product to your computer using a USB connection, you can change to a Wi-Fi connection.
1. Disconnect the USB cable from your product.
2. Uninstall your product software.
3. Download and install your product software from the Epson website using the instructions on the Start Here sheet.
Parent topic: Changing or Updating Network Connections
Related concepts
Uninstall Your Product Software

Connecting to a New Wi-Fi Router

If you change the wireless router you have been using on your network, you need to update your product's Wi-Fi connection to the new router.
Note: If you switch to a 5 GHz wireless router, set the router to operate in dual band (2.4 GHz and 5 GHz) mode. If your router uses a single network name (SSID) for both the 2.4 GHz and 5 GHz band, give each band its own network name (SSID) instead, such as Home Network 2.4 GHz and Home Network 5 GHz. See your router documentation for instructions.
1. Do one of the following:
• Windows: Uninstall your product software.
• Mac: Go to the next step.
54
2. Download and install your product software from the Epson website using the instructions on the Start Here sheet.
Parent topic: Changing or Updating Network Connections
Related concepts
Uninstall Your Product Software

Disabling Wi-Fi Features

You may need to disable your product's Wi-Fi features if you change your network connection type or need to solve a problem with your network connection.
Note: Before disabling Wi-Fi features, make a note of your product's SSID (network name) and password, and any network settings selected for the Epson Connect services you may use.
1. Press the home button, if necessary.
2. Select the icon.
You see a screen like this:
3. Select Wi-Fi (Recommended).
4. Select Change Settings.
5. Select Others.
6. Select Disable Wi-Fi.
55
7. Select Start Setup to disable Wi-Fi.
8. When finished, press the home button to return to the Home screen.
Parent topic: Changing or Updating Network Connections
Related tasks
Printing a Network Status Sheet
56

Loading Paper

Before you print, load paper for the type of printing you will do.
Loading Paper in the Rear Paper Feed Paper Loading Capacity Turning Off the Paper Setting Alert Double-sided Printing Capacity Compatible Epson Papers Borderless Paper Type Compatibility Paper or Media Type Settings - Printing Software Selecting the Paper Settings - Control Panel

Loading Paper in the Rear Paper Feed

You can print documents and photos on a variety of paper types and sizes.
1. Flip the feeder guard forward and pull out the paper support.
57
2. Pull out the output tray and open the paper stopper.
3. Slide the edge guides out all the way.
4. If you are inserting a stack of paper, fan the sheets first and tap the stack on a flat surface to even the edges.
Note: Do not fan or curl photo paper.
58
5. Do one of the following:
• Insert paper, glossy or printable side up and short edge first, in the center of the paper support.
• Load up to 10 envelopes in the center of the paper support. Load them printable side up and flap
edge left.
• Load a sheet of loose-leaf or other paper with holes facing as shown.
59
• To load a sheet of paper longer than legal size, close the paper support and flatten the leading
edge of the paper as shown.
6. Slide the edge guides against the paper, but not too tightly.
Always follow these paper loading guidelines:
• Load only the recommended number of sheets.
• Load paper short edge first, no matter which way your document faces.
• Load letterhead or pre-printed paper top edge first.
• Do not load paper above the arrow mark inside the edge guide.
• If you have trouble loading a stack of envelopes, press each envelope flat before loading it or load one
envelope at a time.
• Do not load envelopes that are curled, folded, or too thin, or that have plastic windows or exposed
adhesive flaps.
• Check the paper package for any additional loading instructions.
• If you use paper with binder holes, load only one sheet at a time in only these sizes: Letter (8.5 × 11
inches [216 × 279 mm]), A4 (8.3 × 11.7 inches [210 × 297 mm]), or Legal (8.5 × 14 inches [216 × 356 mm]).
60
Parent topic: Loading Paper
Related references
Printable Area Specifications Paper Specifications Paper Loading Capacity

Paper Loading Capacity

See the table here for the loading capacity of the rear paper feed.
Paper type Loading capacity
Plain paper
Copy paper
Letterhead
Epson Bright White Pro Paper 100 sheets
Epson Presentation Paper Matte 80 sheets
Epson Premium Presentation Paper Matte
Epson Photo Paper Glossy
Epson Premium Photo Paper Glossy
Epson Ultra Premium Photo Paper Glossy
Epson Premium Photo Paper Semi-gloss
Epson Premium Presentation Paper Matte Double-sided
Epson Photo Quality Self-adhesive Sheets
Envelopes 10 envelopes
Parent topic: Loading Paper

Turning Off the Paper Setting Alert

Letter (8.5 × 11 inches [216 × 279 mm]) or A4 (8.3 × 11.7 inches [210 × 297 mm]) size or smaller: 100 sheets
Legal (8.5 × 14 inches [216 × 356 mm]) size: 1 sheet
20 sheets
If paper feeds incorrectly, or printing is uneven or smeared, load 1 sheet at a time.
1 sheet
The paper setting alert warns you when the paper settings do not match the paper you loaded. You can turn off this feature from the product's control panel.
61
Note: You cannot turn on this setting if the Paper Configuration setting is disabled.
1. Press the home button, if necessary.
2. Select Settings.
3. Select Guide Functions.
You see a screen like this:
4. Select Paper Mismatch.
5. Set the Paper Mismatch setting to Off.
Parent topic: Loading Paper
Related tasks
Selecting the Paper Settings - Control Panel

Double-sided Printing Capacity

You can print double-sided using Auto or Manual mode on the paper types and sizes listed here.
62
Paper type Size Double-sided printing capacity
Auto Manual
Plain paper
Copy paper
Epson Bright White Pro Paper
You cannot print double-sided on the following paper types:
• Epson Presentation Paper Matte
• Epson Premium Presentation Paper Matte
• Epson Premium Presentation Paper Matte Double-sided
• Epson Ultra Premium Presentation Paper MatteEpson Photo Paper Glossy
• Epson Premium Photo Paper Glossy
• Epson Premium Photo Paper Semi-gloss
• Epson Ultra Premium Photo Paper Glossy
• Epson Photo Quality Self-adhesive Sheets
Letter (8.5 × 11 inches [216 × 279 mm]) or A4 (8.3 × 11.7 inches [210 × 297 mm]) size or smaller
Legal (8.5 × 14 inches [216 × 356 mm])
Letter (8.5 × 11 inches [216 × 279 mm])
100 sheets 30 sheets
— 1 sheet
100 sheets 30 sheets
• Letterhead
• Envelopes
Parent topic: Loading Paper

Compatible Epson Papers

You can purchase genuine Epson ink, maintenance boxes, and paper at epson.com (U.S. sales),
epson.ca (Canadian sales), or epson.com.jm (Caribbean sales). You can also purchase supplies from
an Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada.
63
Paper Type Size Part number Sheet count
Epson Bright White Pro Paper Letter (8.5 × 11 inches
S041586 500
[216 × 279 mm])
Epson Presentation Paper Matte Letter (8.5 × 11 inches
S041062 100
[216 × 279 mm])
Legal (8.5 × 14 inches
S041067 100
[216 × 356 mm])
Epson Premium Presentation Paper Matte
Epson Premium Presentation Paper Matte Double-sided
8 × 10 inches (203 × 254 mm) S041467 50
Letter (8.5 × 11 inches [216 × 279 mm])
Letter (8.5 × 11 inches
S041257
S042180
S041568 50
[216 × 279 mm])
Epson Photo Paper Glossy 4 × 6 inches (102 × 152 mm) S041809
S042038
Letter (8.5 × 11 inches [216 × 279 mm])
S041141
S041649
S041271
Epson Premium Photo Paper Glossy
4 × 6 inches (102 × 152 mm) S041727 100
16:9 wide (4 × 7.1 inches
S042109 20
[102 × 181 mm])
50
100
50
100
20
50
100
5 × 7 inches (127 × 178 mm) S041464 20
8 × 10 inches (203 × 254 mm) S041465 20
Letter (8.5 × 11 inches [216 × 279 mm])
64
S042183
S041667
25
50
Paper Type Size Part number Sheet count
Epson Ultra Premium Photo Paper Glossy
Epson Premium Photo Paper Semi-gloss
Epson Photo Quality Self-adhesive Sheets
Parent topic: Loading Paper
4 × 6 inches (102 × 152 mm) S042181
5 × 7 inches (127 × 178 mm) S041945 20
8 × 10 inches (203 × 254 mm) S041946 20
Letter (8.5 × 11 inches [216 × 279 mm])
4 × 6 inches (102 × 152 mm) S041982 40
Letter (8.5 × 11 inches [216 × 279 mm])
Letter (8.5 × 11 inches [216 × 279 mm])

Borderless Paper Type Compatibility

You can print borderless photos on compatible paper types in compatible sizes:
Borderless Paper Types
• Epson Bright White Pro Paper
60
S042174
S042182
S042175
S041331 20
S041106 10
100
25
50
• Epson Photo Paper Glossy
• Epson Premium Photo Paper Glossy
• Epson Ultra Premium Photo Paper Glossy
• Epson Premium Photo Paper Semi-gloss
• Epson Presentation Paper Matte
• Epson Premium Presentation Paper Matte
• Epson Premium Presentation Paper Matte Double-sided
Borderless Paper Sizes
• 4 × 6 inches (102 × 152 mm)
• 5 × 7 inches (127 × 178 mm)
65
• 8 × 10 inches (203 × 254 mm)
• 16:9 wide (4 × 7.1 inches [102 × 181 mm])
• A4 (8.3 × 11.7 inches [210 × 297 mm])
• Letter (8.5 × 11 inches [216 × 279 mm])
Parent topic: Loading Paper

Paper or Media Type Settings - Printing Software

For this paper Select this paper Type or Media Type setting
Plain paper
Epson Bright White Pro Paper
Epson Photo Quality Self-adhesive Sheets
Envelopes Envelope
Epson Ultra Premium Photo Paper Glossy Ultra Premium Photo Paper Glossy
Epson Premium Photo Paper Glossy Premium Photo Paper Glossy
Epson Photo Paper Glossy Photo Paper Glossy
Epson Premium Photo Paper Semi-gloss Premium Photo Paper Semi-Gloss
Epson Presentation Paper Matte Presentation Paper Matte
Epson Premium Presentation Paper Matte
Epson Premium Presentation Paper Matte Double­sided
Note: The settings listed here are available only when printing from your computer; they do not apply to your product's control panel settings.
Parent topic: Loading Paper
Related references
Paper Type Settings - Control Panel
Plain Paper / Bright White Paper
Premium Presentation Paper Matte

Selecting the Paper Settings - Control Panel

You can change the default paper size and paper type using the control panel on the product.
66
1. Press the home button, if necessary.
2. Select Settings > Printer Settings > Paper Source Settings.
You see a screen like this:
3. Make sure the Paper Configuration setting is set to On.
Note: Disabling this feature turns off the automatic display of the paper settings selection screen after you load paper in the cassette. If this setting is disabled, you cannot use AirPrint and you cannot turn on the Paper Mismatch setting.
4. Select Paper Setup.
67
You see a screen like this:
5. Do one of the following to select your paper settings:
• Select a Paper Size and Paper Type setting.
• Select Favorite Paper Settings to select from a list of saved presets.
Note: You can change your preset settings by highlighting a preset and pressing the right arrow button.
• Select the icon to change back to your previous paper settings.

Paper Type Settings - Control Panel

Parent topic: Loading Paper
Paper Type Settings - Control Panel
Select a Paper Type setting that matches the paper you loaded.
Paper type loaded Paper Type setting
Plain paper
Epson Bright White Pro Paper
Epson Photo Quality Self-adhesive Sheets
Envelopes Envelope
Plain Paper
68
Paper type loaded Paper Type setting
Epson Ultra Premium Photo Paper Glossy Ultra Glossy
Epson Premium Photo Paper Glossy Prem. Glossy
Epson Photo Paper Glossy Glossy
Epson Premium Photo Paper Semi-gloss Prem. Semi-Gloss
Epson Presentation Paper Matte Presentation Matte
Epson Ultra Premium Presentation Paper Matte
Prem. Matte
Epson Premium Presentation Paper Matte Double­sided
Parent topic: Selecting the Paper Settings - Control Panel
Related tasks
Turning Off the Paper Setting Alert
69

Placing Originals on the Product

Follow the instructions here to place your original documents or photos on the product.
Caution: Do not place anything on top of your product or use its cover as a writing surface to avoid damaging it.

Placing Originals on the Scanner Glass

Placing Originals on the Scanner Glass
You can place originals up to this size on the scanner glass: Letter (8.5 × 11 inches [216 × 279 mm]) or A4 (8.3 × 11.7 inches [210 × 297 mm]).
1. Open the document cover.
70
2. Do one of the following to place your originals:
• Single sheet: Place your original facedown on the scanner glass with the top facing into the
corner. Slide the original to the edges of the indicated corner.
Note: The area about 0.06 inch (1.5 mm) from the edges of the scanner glass is not scanned.
• ID card: Place an ID card 0.2 inch (5 mm) away from the corner of the scanner glass as shown.
• Multiple photos for copying: You can place multiple photos of different sizes on the scanner
glass to make separate copies. Make sure your photos are at least 0.2 inch (5 mm) away from
71
each other and from the corner of the scanner glass. You can place multiple photos up to this size: 4 × 6 inches (102 × 152 mm).
• Multiple photos for scanning: You can place multiple photos of different sizes on the scanner
glass and save them separately using Photo Mode in Epson Scan 2. Make sure your photos are at least 0.6 inch × 0.6 inch (15 × 15 mm) in size, and placed away from each other and from the edges of the scanner glass as shown.
1 0.2 inch (4.5 mm)
2 0.8 inch (20 mm)
Note: To view multiple scanned photos in Epson Scan 2, select the Thumbnail checkbox in the preview window.
72
3. Close the document cover gently to keep your original in place.
Caution: Do not push down on the document cover or scanner glass or you may damage the product.
Remove your originals after scanning. If you leave the originals on the scanner glass for a long time, they may stick to the glass surface.
Parent topic: Placing Originals on the Product
Related tasks
Scanning in Epson Scan 2
73

Copying

See the information here to copy documents or photos using your product.
Note: Copies may not be exactly the same size as your originals.
Copying Documents or Photos Copying Restored Photos Copying Books, ID Cards, or Borderless Photos Copying Options

Copying Documents or Photos

You can copy documents or photos onto various sizes and types of paper, including Epson special papers.
1. Place your original document or photo on the scanner glass.
2. Load the paper you want to print on.
3. Press the home button, if necessary.
4. Select Copy.
You see a screen like this:
74
5. To print more than one copy, press the + or – buttons to increase or decrease the number of copies.
Note: You can also select Copies and use the displayed numeric keypad to select the number of
copies (up to 99).
6. Change any of the displayed settings as necessary.
7. Select the Advanced Settings tab to view and change additional copy settings, if necessary.
8. When you are ready to copy, press the start button.
Note: To cancel printing, press the stop button.
Parent topic: Copying
Related references
Copying Options
Related tasks
Placing Originals on the Scanner Glass

Copying Restored Photos

You can restore the colors in faded photos as you make copies of them.
1. Place your original photo on the scanner glass.
2. Load the paper you want to print on.
3. Press the home button, if necessary.
4. Select Various prints.
5. Select Various copies.
75
You see a screen like this:
6. Select Copy/Restore Photos.
7. Make sure the Restore Color setting is set to On.
8. Select your other paper and print settings as necessary, then press the right arrow button.
9. Select Start Scanning.
Your originals are scanned and a preview appears on the LCD screen.
10. If you need to edit the copy, press the reset button and change any of these settings as necessary:
• Crop/Zoom: Zoom in and enlarge a part of the photo and crop it.
• Clear Edit: Resets your photo edits.
11. To print more than one copy, press the + or – buttons to increase or decrease the number of copies.
Note: You can also select Copies and use the displayed numeric keypad to select the number of copies (up to 99).
12. When you are ready to copy, press the start button.
Note: To cancel copying, press the stop button.
Parent topic: Copying
76
Related references
Copying Options
Related tasks
Placing Originals on the Scanner Glass

Copying Books, ID Cards, or Borderless Photos

You can copy two pages of a book or both sides of an ID card onto a single sheet of paper. You can also copy a photo and print it without any borders.
1. Place your original on the scanner glass.
2. Load the paper you want to print on.
3. Press the home button, if necessary.
4. Select Various prints.
5. Select Various copies.
You see a screen like this:
6. Select one of these options:
• ID Card to scan and copy both sides of an ID card onto one side of paper.
• Book Copy to copy two facing pages of a book onto a single sheet of paper.
77
Note: Make sure the first page of your original is placed on the scanner glass as described on the
LCD screen and press the OK button.
• Borderless Copy to make a copy without margins around the edges.
7. To print more than one copy, press the + or – buttons to increase or decrease the number of copies.
Note: You can also select Copies and use the displayed numeric keypad to select the number of copies (up to 99).
8. Change any of the displayed settings as necessary.
9. Select the Advanced Settings tab to view and change additional copy settings, if necessary.
10. When you are ready to copy, press the start button.
Note: To cancel copying, press the stop button.
11. Follow any on-screen instructions to place the rest of your originals and select Start Scanning.
Parent topic: Copying
Related references

Copying Options

Related tasks
Placing Originals on the Scanner Glass
Copying Options
Select the copying options you want to use for your copies.
Note: Not all options or settings may be available, depending on other copying settings.
Copy
Copying option Available settings Description
Color mode B&W Select whether to copy the original in color or black and
Color
white
78
Copying option Available settings Description
2-Sided 1>1-Sided Select to make 2-sided copies. When you select 1>2-Sided,
1>2-Sided
scroll down and also select the orientation and binding edge for your originals or copies.
Density selector Varying levels Adjusts the lightness or darkness of copies
Advanced Settings
Copying option Available settings Description
Reduce/Enlarge Actual Size Copies the original at its full size or 100% magnification
Auto Fit Page Automatically sizes the image to fit the paper size you
selected
5×7in>Letter and
Automatically converts from one size to another
other conversions
Paper Setting Various settings Selects the paper size and paper type
Multi-Page Single Page Copies each page of the original onto an individual sheet
2-up Copies 2 page documents onto one sheet. Scroll down and
select the document orientation and layout order settings as necessary.
Quality Draft Adjusts the quality of your copies
Standard
Best
Parent topic: Copying
79

Printing from a Computer

Before printing from your computer, make sure you have set up your product and installed its software as described on the Start Here sheet.
Note: If you have an Internet connection, it is a good idea to check for updates to your product software on Epson's support website. If you see a Software Update screen, select Enable automatic checking and click OK. The update scans your system to see if you have the latest product software. Follow the on-screen instructions.
Printing with Windows Printing with the Built-in Epson Driver - Windows 10 S Printing on a Mac Printing From a Chromebook Cancelling Printing Using a Product Button
Related tasks
Checking for Software Updates

Printing with Windows

You can print with your product using any Windows application, as described in these sections.
Note: If you are using your Epson product with the Windows 10 S operating system, you cannot use the software described in this section. You also cannot download and install any Epson product software from the Epson website for use with Windows 10 S; you must obtain software only from the Windows Store.
Selecting Basic Print Settings - Windows Selecting Double-sided Printing Settings - Windows Selecting Additional Layout and Print Options - Windows Selecting a Printing Preset - Windows Selecting Extended Settings - Windows Printing Your Document or Photo - Windows Selecting Default Print Settings - Windows Changing Automatic Update Options
Parent topic: Printing from a Computer
80

Selecting Basic Print Settings - Windows

Select the basic settings for the document or photo you want to print.
1. Open a photo or document for printing.
2. Select the print command in your application.
Note: You may need to select a print icon on your screen, the Print option in the File menu, or another command. See your application's help utility for details.
3. If necessary, select your product name as the printer you want to use.
Note: You may also need to select Properties or Preferences to view your print settings.
You see the Main tab of your printer settings window:
81
4. Select the size of the paper you loaded as the Document Size setting.
Note: You can also select the User-Defined setting to create a custom paper size, but you cannot
use the Borderless setting.
5. If you are printing a borderless photo, select Borderless. You can click Settings to access additional options for borderless printing.
Note: You must select a compatible borderless paper type and size to print without borders. Check the borderless paper compatibility list for details.
6. Select the orientation of your document.
Note: If you are printing an envelope, select Landscape.
7. Select the type of paper you loaded as the Paper Type setting.
Note: The setting may not exactly match the name of your paper. Check the paper type settings list for details.
8. Select the Quality setting that matches the print quality you want to use.
9. Select a Color option:
• To print a color document or photo, select the Color setting.
• To print text and graphics in black or shades of gray, select the Black/Grayscale setting.
10. To print on both sides of the paper, select a 2-Sided Printing option.
11. To print multiple pages on one sheet of paper, or print one image on multiple sheets of paper, select one of the settings in the Multi-Page menu and select the printing options you want.
12. To print multiple copies and arrange their print order, select the Copies options.
13. To reduce noise during printing when you select Plain Paper/Bright White Paper, turn on Quiet Mode (printing will be slower).
14. To preview your job before printing, select Print Preview.
15. To save your print job as a project that can be modified and combined with other print jobs, select Job Arranger Lite.
Print Quality Options - Windows Multi-Page Printing Options - Windows
82
Parent topic: Printing with Windows
Related references
Paper or Media Type Settings - Printing Software
Related tasks
Selecting Double-sided Printing Settings - Windows Selecting Additional Layout and Print Options - Windows Printing Your Document or Photo - Windows
Print Quality Options - Windows
You can select any of the available Quality options to fine-tune the quality of your print. Some settings may be unavailable, depending on the paper type and border setting you have chosen.
Draft
For draft printing on plain paper.
Standard
For everyday text and image printing.
Standard - Vivid
For text and graphics with good quality and print speed.
High
For photos and graphics with high print quality.
More Settings
Opens a window that lets you choose among levels of speed and quality.
Parent topic: Selecting Basic Print Settings - Windows
Multi-Page Printing Options - Windows
You can select any of the available options in the Multi-Page menu to set up your multi-page print job.
2-Up and 4-Up
Prints 2 or 4 pages on one sheet of paper. Click the Page Order button to select page layout and border options.
2×1 Poster, 2×2 Poster, 3×3 Poster, 4×4 Poster
Prints one image on multiple sheets of paper to create a larger poster. Click the Settings button to select image layout and guideline options.
Parent topic: Selecting Basic Print Settings - Windows
83

Selecting Double-sided Printing Settings - Windows

You can print on both sides of the paper by selecting one of the 2-Sided Printing options on the Main tab.
Note: Some options may be pre-selected or unavailable, depending on other settings you have chosen or if you are accessing the product over a network.
1. Select one of the following options for 2-Sided Printing:
• Auto (Long-edge binding) to print your double-sided print job by automatically flipping the paper
on the long edge.
• Auto (Short-edge binding) to print your double-sided print job by automatically flipping the paper
on the short edge.
• Manual (Long-edge binding) to print your double-sided print job by printing one side and
prompting you to flip the paper over on the long edge to print the other side (recommended for paper types that do not support automatic duplexing).
• Manual (Short-edge binding) to print your double-sided print job by printing one side and
prompting you to flip the paper over on the short edge to print the other side (recommended for paper types that do not support automatic duplexing).
2. Click the Settings button.
84
You see this window:
3. Select the double-sided printing options you want to use.
4. Click OK to return to the Main tab.
5. Click the Print Density button.
85
You see this window:
6. Select the type of document you are printing as the Document Type setting. The software automatically sets the Adjustments options for that document type.
7. If necessary, select the Adjustments options you want to use.
8. Click OK to return to the Main tab.
9. Print a test copy of your double-sided document to test the selected settings.
10. Follow any instructions displayed on the screen during printing.
Double-sided Printing Options - Windows Print Density Adjustments - Windows
Parent topic: Printing with Windows
Related tasks
Selecting Basic Print Settings - Windows
Double-sided Printing Options - Windows
You can select any of the available options on the 2-Sided Printing Settings window to set up your double-sided print job.
Binding Edge Options
Select a setting that orients double-sided print binding in the desired direction.
86
Binding Margin Options
Select options that define a wider margin to allow for binding.
Start Page
Selects whether printing starts on the front or back page.
Create Folded Booklet Options
Select the Booklet checkbox and a binding option to print double-sided pages as a booklet.
Parent topic: Selecting Double-sided Printing Settings - Windows
Print Density Adjustments - Windows
You can select any of the available options on the Print Density Adjustment window to adjust the print quality of your double-sided print job.
Print Density
Sets the level of ink coverage for double-sided printing.
Increase Ink Drying Time
Sets the amount of time required for drying ink after printing on one side of the paper before printing the other side in double-sided printing to prevent ink smearing.
Parent topic: Selecting Double-sided Printing Settings - Windows
87

Selecting Additional Layout and Print Options - Windows

You can select a variety of additional layout and printing options for your document or photo on the More Options tab.
1. To change the size of your printed document or photo, select the Reduce/Enlarge Document checkbox and select one of these sizing options:
• Select the Fit to Page option to size your image to fit the paper you loaded. Select the size of your
document or photo as the Document Size setting, and the size of your paper as the Output Paper setting. If you want to center your image on the paper, select the Center option.
• Select the Zoom to option to reduce or enlarge your document or photo by a specific percentage.
Select the percentage in the % menu.
2. Select one of the following Color Correction options:
• Select Automatic to automatically adjust the sharpness, brightness, contrast, and color saturation
for your image.
88
• Select Custom and click the Advanced button to manually adjust the color correction settings or
turn off color management in your printer software.
• Select Image Options to access additional settings for improving printed images.
3. To add the following features, click the Watermark Features button:
• Watermark: adds a visible watermark to your printout
• Header/Footer: adds information such as the date and time to the top or bottom of your printout
Note: Click the Settings button to customize the text and location of the header or footer.
4. Select any of the Additional Settings options to customize your print.
Custom Color Correction Options - Windows Image Options and Additional Settings - Windows Header/Footer Settings - Windows
Parent topic: Printing with Windows
Related tasks
Selecting Basic Print Settings - Windows
89
Custom Color Correction Options - Windows
You can select any of the available options in the Color Correction window to customize the image colors for your print job.
Color Controls
Lets you select a Color Mode setting, individual settings for Brightness, Contrast, Saturation, and Density, and individual color tones. Depending on the selected color mode, you can also adjust the midtone density using the Gamma setting.
Fix Photo
Improves the color, contrast, and sharpness of flawed photos.
Note: Fix Photo uses a sophisticated face recognition technology to optimize photos that include faces. For this to work, both eyes and the nose must be visible in the subject's face. If your photo includes a face with an intentional color cast, such as a statue, you may want to turn off Fix Photo to retain the special color effects.
90
ICM
Lets you manage color using installed color printing profiles.
No Color Adjustment
Turns off color management in your printer software so you can manage color using only your application software.
Parent topic: Selecting Additional Layout and Print Options - Windows
Image Options and Additional Settings - Windows
You can select any of the Image Options and Additional Settings to customize your print. Some options may be pre-selected or unavailable, depending on other settings you have chosen.
Image Options
Emphasize Text
Adjusts the weight of printed text to increase readability.
Emphasize Thin Lines
Adjusts the weight of printed lines to increase visibility.
Edge Smoothing
Smooths jagged edges in low-resolution images such as screen captures or images from the Web.
Fix Red-Eye
Reduces or removes red-eye in photos.
Print Text in Black
Prints colored text in black.
For Color Text
Prints colored text on a background pattern or underlined.
For Color Graphs and Images
Prints colored graphics and images with overlay patterns.
For Color Text, Graphs, and Images
Prints colored text, graphics, and images with overlay patterns.
Enhancement Options
Specifies Color Universal Print enhancement settings for text, graphics, and images.
Additional Settings Options
Rotate 180º
Prints the image rotated 180º from its original orientation.
91
High Speed
Speeds up printing but may reduce print quality.
Mirror Image
Flips the printed image left to right.
Parent topic: Selecting Additional Layout and Print Options - Windows
Header/Footer Settings - Windows
You can select any of the Header/Footer Settings options to add headers or footers when you print. The items are available to print at the top or bottom of your pages, in either the left, right, or center of the page.
Note: These settings are not saved with your document.
You can select to print the following information:
• User Name
• Computer Name
• Date
• Date/Time
• Collate Number (copy number)
Note: The user name, computer name, date, and time come from the Windows Control Panel on your computer.
Parent topic: Selecting Additional Layout and Print Options - Windows
92

Selecting a Printing Preset - Windows

For quick access to common groups of print settings, you can select a printing preset on the Main or More Options tab.
Note: You can create your own preset by clicking the Add/Remove Presets button.
1. Click the Main or More Options tab.
You see the available Printing Presets on the left:
2. Place your cursor over one of the Printing Presets to view its list of settings.
3. Click on a preset to change its settings, or use any of the available options on the screen to control your printing presets.
4. To choose a preset for printing, select it.
93
5. Click OK.
Parent topic: Printing with Windows

Selecting Extended Settings - Windows

You can select additional settings that apply to all the print jobs you send to your product.
1. Access the Windows Desktop and right-click the icon for your product in the right side of the Windows taskbar, or click the up arrow and right-click .
2. Select Printer Settings.
3. Click the Maintenance tab.
You see the maintenance options:
4. Click the Extended Settings button.
94
You see this window:
5. Select any of the extended settings to customize your print.
6. Click OK to close the Extended Settings window.
7. Click OK to close the printer software window.
Extended Settings - Windows
Parent topic: Printing with Windows
Extended Settings - Windows
You can select from these settings on the Extended Settings window.
Show Progress Meter
Displays the progress of print jobs as they are being printed.
Enable EPSON Status Monitor 3
Enables product monitoring for ink and paper supplies and other issues.
Separator Page
Before each document, prints a separator page containing the title, user, date, and time.
Remove white borders
Removes white margins that may appear when you print borderless photos.
95
Always Spool RAW Datatype
Increases print speed and may solve other printing problems.
Page Rendering Mode
Increases print speed when printing is extremely slow or the print head stops during printing.
Print as Bitmap
Increases print speed when printing is extremely slow or the print head stops during printing, and other settings do not help.
Skip Blank Page
Ensures that your product does not print pages that contain no text or images.
Change Standard Resolution
Reduces the resolution of print data to correct printing problems.
Refine screening pattern
Prints graphics with a finer screening pattern.
Allow Applications to Perform ICM Color Matching
Allows applications to perform ICM color matching.
Always Use the Driver's Paper Source Setting
Prints using the paper source setting in the printer driver, rather than the setting in your application.
Output 1 page documents facedown in 2-Sided mode
Outputs single-sided pages in a 2-sided print job facedown instead of faceup.
Output documents for filing
Outputs all landscape, portrait, 1-sided, and 2-sided documents in the same orientation for easier filing.
Barcode mode
Reduces bleeding when printing barcodes on plain paper, letterhead paper, recycled paper, preprinted paper, envelopes, and thick paper.
Parent topic: Selecting Extended Settings - Windows

Printing Your Document or Photo - Windows

Once you have selected your print settings, you are ready to save your settings and print.
1. Click OK to save your settings.
96
You see your application's Print window, such as this one:
2. Click OK or Print to start printing.
Checking Print Status - Windows
Parent topic: Printing with Windows
Related tasks
Selecting Basic Print Settings - Windows
97
Checking Print Status - Windows
During printing, you see this window showing the progress of your print job. It allows you to control printing and check ink cartridge status.
• To cancel printing, click Cancel.
• To see print jobs waiting to print, click Print Queue.
• To check ink status, click Consumables Status.
Parent topic: Printing Your Document or Photo - Windows

Selecting Default Print Settings - Windows

When you change your print settings in a program, the changes apply only while you are printing in that program session. If you want to change the print settings you use in all your Windows programs, you can select new default print settings.
1. Access the Windows Desktop and right-click the icon for your product in the right side of the Windows taskbar, or click the up arrow and right-click .
2. Select Printer Settings.
98
You see the printer settings window:
3. Select the print settings you want to use as defaults in all your Windows programs.
4. Click OK.
These settings are now the defaults selected for printing. You can still change them as needed for printing in any program session.
Changing the Language of the Printer Software Screens
Parent topic: Printing with Windows
Changing the Language of the Printer Software Screens
You can change the language used on the Windows printer software screens.
1. Access the Windows Desktop and right-click the icon for your product in the right side of the Windows taskbar, or click the up arrow and right-click .
2. Select Printer Settings.
99
You see the printer settings window.
3. Click the Maintenance tab.
You see the maintenance options:
4. Select the language you want to use as the Language setting.
5. Click OK to close the printer software window.
The printer software screens appear in the language you selected the next time you access them.
Parent topic: Selecting Default Print Settings - Windows

Changing Automatic Update Options

Your printer software for Windows automatically checks for updates to the product software. You can change how often the software checks for updates or disable this feature.
100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
