AM/FM STEREO CLOCK RADIO

with COMPACT DISC PLAYER

and DUAL ALARM SYSTEM

OWNER'S MANUAL

RET66TQ - RET66BK -

Blue

Black

Visit our web site at www.emersonradio.com

RET66_080504.p65

24



5/8/2004, 16:05





















CAUT I ON

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUT I O N

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER ( O R B A C K ) , N O U S E R SERVICEABLE PARTS INSIDE R E F E R S E R V I C I N G T O Q U A L I F I E D S E R V I C E PERSONNEL.

!

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1.) Read these instructions.

2.) Keep these instructions.

3.) Heed all warnings.

4.) Follow all instructions.

5.) Do not use this apparatus near water.

6.) Clean only with dry cloth.

7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.) Do not defeat the safety purpose of the polarized or grounding-typeplug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.) Only use attachments / accessories specified by the manufacturer.

12.) Unplug this apparatus during lightning storms or when unused for long periods of time.

13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supplycord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids such as vases shall be placed on the apparatus.

15.) Do not overload wall outlet. Use only power source as indicated. 16.) Use replacement parts as specified by the manufacturer.

17.) The product may be mounted to a wall only if recommended by the manufacturer.

18.) Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.

1

RET66_080504.p65

1



5/8/2004, 16:05





















Thank you… … …

for purchasing this Emerson dual alarm stereo clock radio CD player with 20 track programmable memory. The dual alarm system can be used to wake two people at two different times, or use one alarm for weekdays and the other for weekend wake-ups.In addition you have the choice of waking to an electronic ‘Buzzer’ alarm, the AM/FM radio, or your favorite CD. You can also fall asleep to music – either radio or CD – and the system will shut itself off automatically.

Of course there’s also a battery back up system to maintain your clock and alarm settings in the event of a power interruption.

This system was designed to give you many years of enjoyment with an absolute minimum of care and maintenance. Please read this Owners Manual carefully and completely to ensure that you get the maximum benefit from all the outstanding features we have included in this product. If you encounter any problem with the set up or operation of this model please do not return it to the retail store. Please call the Emerson Customer Service Hotline toll free at1-800-898-9020.One of our service technicians will try to diagnose the problem for you.

Once again thanks for choosing this Emerson audio product.

Model No: RET66TQ / RET66BK

Serial No:

2

RET66_080504.p65

2



5/8/2004, 16:05





















IMPORTANT NOTES

Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/ or humid or moist areas.

Do not attempt to clean this unit with chemical solvents as this might damage the finish. Use a clean dry cloth.

Operate controls and switches as described in the manual.

Before turning ‘On’ the power, make certain that power cord is properly installed.

Store your CDs, in a cool area to avoid damage from heat.

When moving the set, be sure to first disconnect the power cord.

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT APPAREIL Á LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM

This product contains a low power Laser Device.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received, including interference that may cause undesired operation.

3

RET66_080504.p65

3



5/8/2004, 16:05





















PREPARATION FOR USE

UNPACKING AND SET UP

Carefully remove the main unit and the accessories from the display carton and remove all the packing material from the unit.

Carefully remove any small strips of tape that may have been used to prevent the CD door from opening in transit.

Unwind the AC power cord and extend it to its full length. The FM antenna is built into the AC power cord.

This unit was shipped with a dummy CD transit card in the CD player. This dummy CD prevents the laser pick up from moving during shipment. This card must be removed before you can insert your own CDs. Press on the CD door in the area marked ‘OPEN’. Remove the transit card from the CD player and discard it.

Place the unit on a flat, level surface such as a table, desk, counter, shelf, etc, convenient to a 120V 60Hz AC outlet, out of direct sunlight, and away from sources of excess heat, dust, moisture, or strong magnet fields.

4

RET66_080504.p65

4



5/8/2004, 16:05





















BATTERY BACK UP SYSTEM

This model includes a battery back up circuit that will maintain the clock and alarm settings in the event of a temporary power interruption. The battery back up system requires one 9-Voltbattery, not included. The battery compartment is located on the back of the cabinet.

1.) Press downward on the battery door locking tab and remove the door.

2.) Attach a fresh 9-Voltalkaline battery to the battery contacts as shown, and push the battery back into the battery compartment.

3.) Replace the battery door.

If the power is interrupted the display will go off and the radio will not work. However the battery will maintain the clock and alarm settings in memory. When the power is restored the display will come on again and the clock and alarm settings will be correct.

The life of the battery will depend on the frequency and length of the power interruptions that you experience. For best results we suggest you install a fresh battery every 9 to 12 months. Always use a well-knownbrand of alkaline battery.

5

RET66_080504.p65

5



5/8/2004, 16:05





















AC Plug
AC Outlet

POWER SOURCE

This radio is designed to operate on 120V 60Hz AC only. Attempting to operate this radio on any other power source could cause damage to the unit and such damage is not covered by your warranty.

Make sure the radio is connected to an AC outlet that is always “live”. Do not connect the radio to an outlet that is controlled by a wall switch.

NOTE: This unit has a polarized AC plug with one wide blade and one narrow blade.

This plug will only fit into a matching polarized AC outlet. This is a safety feature to reduce the possibility of electric shock.

If this plug will not fit in your AC outlet, you probably have an outdated non-polarized

outlet. You should have your outdated

outlet changed by a qualified, licensed electrician. Do not file the wide blade on the plug, or use an adapter to make the plug fit into your outlet. This defeats the safety feature and could expose you to electric shock.

PROTECT YOUR FURNITURE

This model is equipped with non-skidrubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made fromnon-migratingrubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase smallself-adhesivefelt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber 'feet' before you place the product on fine wooden furniture.

6

RET66_080504.p65

6



5/8/2004, 16:05





















LOCATION OF CONTROLS AND INDICATORS

7

8

9 10

11

12

13

FRONT PANEL











6









14

5











4









15

3









16











2









2

1





















17

23

22

21

20

19

18

TOP PANEL

27

26

25

24

16

28

29

30

7

RET66_080504.p65

7



5/8/2004, 16:05





















1.) ALARM 1/ ALARM 2/ ALARM 1+2Selector Switch. 2.) Speakers.

3.) Dial Pointer.

4.) Alarm Mode BUZZ /AUTO /OFF Selector Switch. 5.) CD Control Buttons:

STOP / PLAY-PAUSE / R-SKIP(MIN) / F-SKIP(HOUR)

/ PROGRAM/ REPEAT.

6.) VOLUME Control.

7.) ALARM 1 Set Button.

8.) ALARM 2 Set Button.

9.) Alarm 1 ‘On’Indicator.

10.) Alarm 2 ‘On’Indicator.

11.) Clock Display.

12.) AM Indicator.

13.) TIME Set Button.

14.) FUNCTION (CD /FM-AUTO /AM) Selector Switch.

15.) FM Radio Dial.

16.) Tuning Knob.

17.) AM Radio Dial.

18.) PHONES Jack.

19.) REP (Repeat) Indicator.

20.) PROG (Program) ‘On’Indicator.

21.) SLEEP ‘On’Indicator.

22.) FM ST. ‘On’Indicator.

23.) POWER ‘On’Indicator.

24.) SLEEP ‘On’Button.

25.) CD Door.

26.) Back Up Battery Compartment (Back Cabinet).

27.) AC Power Cord.

28.) CD Door OPEN Position.

29.) POWER ON/OFFButton.

30.) SNOOZE Button.

8

RET66_080504.p65

8



5/8/2004, 16:05





















OPERATING INSTRUCTIONS

Make sure you have installed the back up battery in the battery compartment.

Make sure you have removed the dummy CD transit card from the CD compartment.

Connect the AC power cord plug to a 120V 60Hz AC outlet.

SETTING THE CLOCK

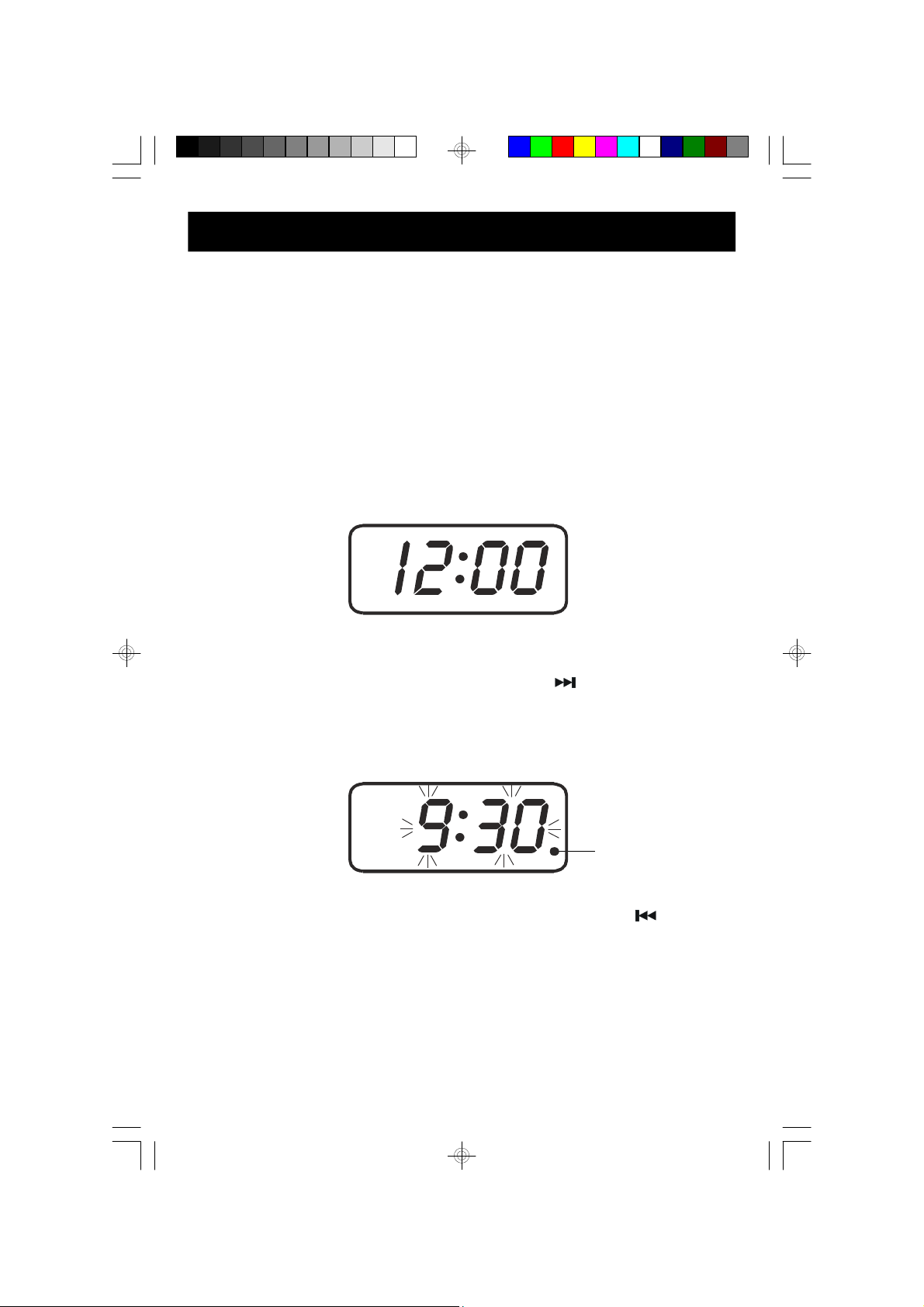

When the radio is connected to the AC outlet for the first time the display will show

1.) Depress and hold the TIME button until the display begins flashing. Continue to hold theTIME button and repeatedly press the/HOUR button to adjust the display to the correct hour, AM or PM.

Note: If the “AM” indicator is ‘On’, the time displayed is AM.

AM indicator

2.) Continue to depress the TIME button and repeatedly press the/MIN button to adjust the display to the correct minute.

3.) When the display shows the correct time release all the buttons.

9

RET66_080504.p65

9



5/8/2004, 16:05
