Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is resold, this operating manual must be handed over to the purchaser along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
Contents |
|
|
1 |
Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
.7 |
2 |
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
.7 |
3 |
Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
.9 |
4 |
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
5 |
Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
6 |
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
7 |
Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
8 |
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
9 |
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16 |
10 |
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16 |
11 |
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
6 |
EN |
|
CoolFun SC26, SCT26, SC30, SC38 |
Explanation of symbols |
1Explanation of symbols
!WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.
!CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
ANOTICE!
Failure to observe this instruction can cause material damage and impair the function of the product.
INOTE
Supplementary information for operating the product.
2Safety instructions
2.1General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
•This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
•Cleaning and user maintenance must not be carried out by children without supervision.
•Children must not play with the device.
EN |
7 |
|
|
|
|
Safety instructions |
CoolFun SC26, SCT26, SC30, SC38 |
•Children must be supervised to ensure that they do not play with the device.
•Always keep and use the device out of the reach of children under the age of 8 years.
•Do not store any explosive substances such as spray cans with a flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
–before each cleaning and maintenance
–after every use
•Food may only be stored in its original packaging or in suitable containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to that of the energy supply.
•Only connect the device as follows:
–With the DC cable to a DC plug socket in the vehicle (e. g. cigarette lighter)
–Or with the 230 V connection cable to the 230 V AC mains supply
•Never pull the plug out of the socket by the cable.
•If the cooler is connected to the DC socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
•If the cooler is connected to the DC socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
•The cooling device is not suitable for transporting caustic materials or materials containing solvents.
•The cooling device contains inflammable cyclopentane in the insulation. The gases in the insulation material require special disposal procedures. Deliver the device at the end of its life-cycle to an appropriate recycling.
8 |
EN |
|
CoolFun SC26, SCT26, SC30, SC38 |
Scope of delivery |
2.2Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3Scope of delivery
Quantity Description
1Thermoelectric cooler
1Instruction manual
EN |
9 |
|
|
|
|
Intended use |
CoolFun SC26, SCT26, SC30, SC38 |
4Intended use
The cooling device can be used to cool (SC26, SCT26, SC30, SC38) and keep foodstuffs warm (only SC30, SC38). It is possible to change between the heating and cooling operation by means of a switch (only SC30, SC38).
The device can be connected as follows:
•SC26: to 12 Vg
•SCT26: to 12 Vg or to 24 Vg
•SC30, SC38: to 12 Vg or to 230 Vw
The cooling device is intended to be used in household and similar applications such as
•staff kitchen areas in shops, offices and other working environments
•farm houses
•clients in hotels, motels and other residential type environments
•bed and breakfast type environments
•catering and similar non-retail applications
The appliance may also be used for camping use. The appliance shall not to be exposed to rain.
!CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.
5Technical description
The cooler is suitable for mobile use. You can cool products to a maximum of 18 °C under the ambient temperature (SC26, SCT26, SC30, SC38) or warm them to a maximum of 65 °C (SC30, SC38).
Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.
10 |
EN |
|
CoolFun SC26, SCT26, SC30, SC38 |
Technical description |
5.1Control elements
No. in
Description
fig. 2, page 3
1USB port for power supply
2Connection cable for DC connection
3Connection cable for AC connection
4Ventilation slots
5Cold/hot switch
6Cooling capacity control
7Handle
Only SC30, SC38:
The desired mode is selected with the cold/hot switch (fig. 2 5, page 3).
When the cooler is connected to an AC mains supply, it can be used in two different operating modes:
•ECO mode: the cooler consumes less energy
•MAX mode: the cooler reaches maximum cooling capacity
The desired cooling capacity is selected with the cooling capacity control (fig. 2 6, page 3):
To increase the cooling capacity, turn the cooling capacity control clockwise.
For the maximum cooling capacity turn the cooling capacity control clockwise all the way to the stop (MAX position).
To decrease the cooling capacity, turn the cooling capacity control counterclockwise.
To turn off the cooler, turn the cooling capacity control counterclockwise all the way to the stop (OFF position).
When the cooler is connected to the DC socket, the cooling capacity cannot be adjusted.
EN |
11 |
|
|
|
|
Operation |
CoolFun SC26, SCT26, SC30, SC38 |
6Operation
!CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable containers.
ANOTICE! Risk of damage
•Ensure that the objects placed in the cooler are suitable for cooling to the selected temperature.
•Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.
•Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.
INOTE
•Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 15).
•A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.
•If the handle is folded back of if the cooler is being carried, the lid is locked. You can only open the lid when the handle is folded forwards.
6.1Energy saving tips
•Choose a well ventilated installation location which is protected against direct sunlight.
•If you want to set an increased energy efficiency and a limited cooling capacity for the cooler device, use the device’s ECO mode.
•Allow warm food to cool down first before placing it in the cooling device to keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
12 |
EN |
|
CoolFun SC26, SCT26, SC30, SC38 |
Operation |
6.2Mounting the wheels (only SC38)
Mount the wheels as shown to the cooling device (fig. 3, page 4).
6.3Using the cooler in DC mode
INOTE

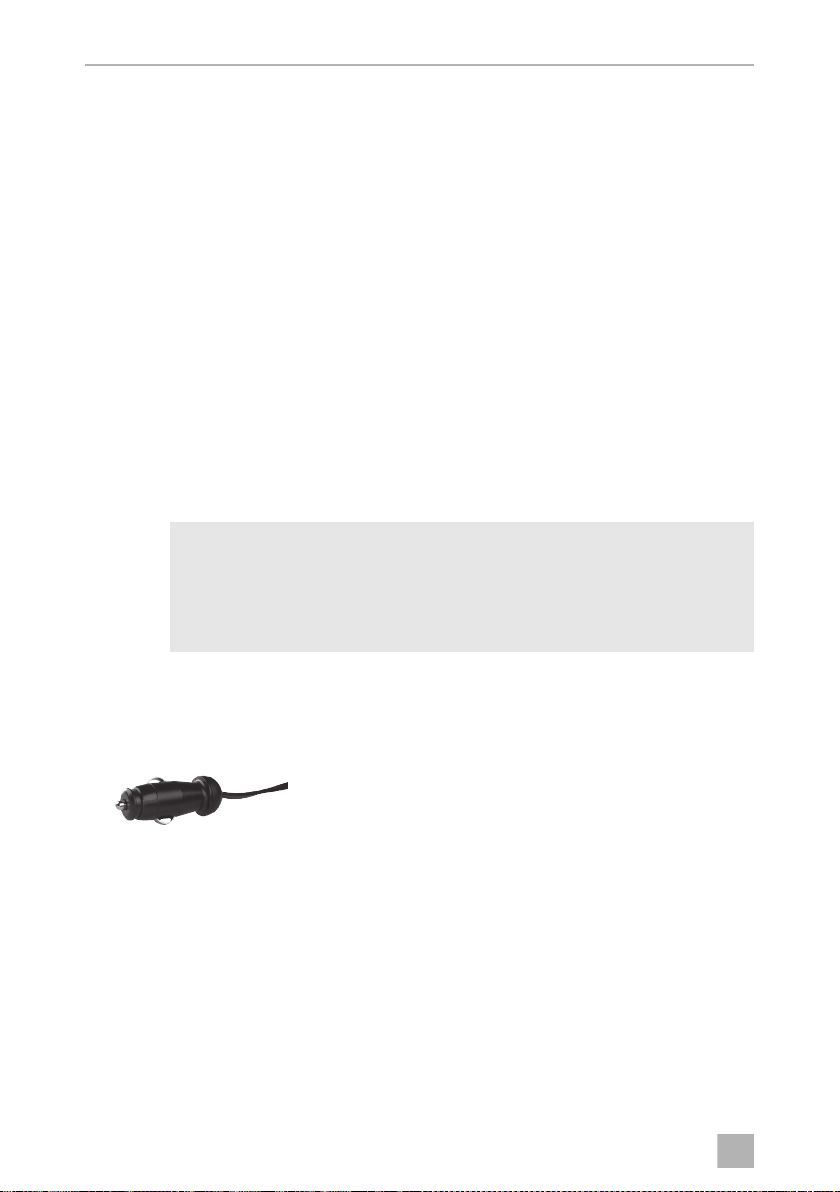

If you connect the cooler to the cigarette lighter of your vehicle, remember that the ignition must be turned on to supply it with power.
Place the device on a firm base.
Connect the DC connection cable to the cigarette lighter or the DC socket in the vehicle.
The device starts cooling/heating the interior.
To switch off the cooling device, disconnect the DC connection cable.
6.4Using the cooler in AC mode (only SC30, SC38)
Place the device on a firm base.
Connect the AC cable to the AC mains supply.
Turn the cooling capacity control (fig. 2 6, page 3) to the desired position.
Push the cold/hot switch (fig. 2 5, page 3) to the position “Cold” (cooling) or “Hot” (heating) to switch the device on.
The device starts cooling/heating the interior.
EN |
13 |
|
|
|
|
Operation |
CoolFun SC26, SCT26, SC30, SC38 |
6.5Devide the interior (only SC38)
You can devide the interior of the refrigerator as follows (fig. 4, page 4):
•No partition grille (A): Both coolers are actively cooled or heated.
•Open partition grille (B): The large cooling compartment is actively cooled or heated. The small cooling compartment is less cooled or heated.
•Closed partition grille (C): The big cooling compartment is actively cooled or heated. The small refrigerator compartment is passively cooled or heated.
INOTE
Mount the bar, even if you operate the cooling device without partition grille, so that the lids can close properly.
Mount the partition grille as shown (fig. 5, page 5).
6.6USB port for power supply
The USB port (fig. 2 1, page 3) allows you to charge small devices like mobile phones and mp3-players.
Using the USB port does not affect the cooling performance.
ANOTICE!
Ensure that any device connected to the USB port is compatible with 5 V/500 mA operation.
Proceed as follows (fig. 2, page 3):
Connect the DC connection cable (2) or the AC connection cable (3) of the cooling device with the power supply.
SC30, SC38: Turn the cooling capacity control (6) to the “MAX” position.
Connect your device to the USB port (1).
14 |
EN |
|
CoolFun SC26, SCT26, SC30, SC38 |
Cleaning and maintenance |
7Cleaning and maintenance
!WARNING!
Always disconnect the device from the power supply before you clean and service it.
ANOTICE! Risk of damage
•Never clean the cooler under running water or in dish water.
•Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.
Occasionally clean the device interior and exterior with a damp cloth.
Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.
8Guarantee
The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.
For repair and guarantee processing, please include the following documents when you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
EN |
15 |
|
|
|
|
Troubleshooting |
CoolFun SC26, SCT26, SC30, SC38 |
9Troubleshooting
Problem |
Possible cause |
Suggested remedy |
|
|
|
Your device is not work- |
There is no voltage |
The ignition must be switched on in |
ing (plug is inserted). |
flowing in the DC socket |
most vehicles to apply current to the |
|
in your vehicle. |
DC socket. |
|
|
|
|
No voltage present in |
Try using another plug socket. |
|
the AC voltage socket. |
|
|
|
|
The inner fan or the cooling element is defective.
This can only be repaired by an authorised repair centre.
When operating from the DC socket:
The ignition is on and the cooler is not working.
The fuse of the DC plug |
If the plug of your cooler becomes |
is dirty. This results in a |
very warm in the DC socket fitting, |
poor electrical contact. |
either the fitting must be cleaned or |
|
the plug has not been assembled |
|
correctly. |
|
|
The fuse of the DC plug |
Replace the fuse (fig. 61, page 5) |
has blown. |
of the DC plug with one of the same |
|
rating. |
|
|
The vehicle fuse has |
Replace the vehicle's DC socket fuse |
blown. |
(usually 15 A). Please refer to the |
|
operating manual of your vehicle. |
|
|
10 Disposal
Place the packaging material in the appropriate recycling waste bins wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
16 |
EN |
|
CoolFun SC26, SCT26, SC30, SC38 |
|
Technical data |
||
11 |
Technical data |
|
|
|
|
|
|
|
|
|
|
CoolFun SC26 |
|
CoolFun SCT26 |
|
|
|
|
|
Ref. number: |
9600000484 |
|
9600000485 |
|
|
|
|
|
|
Connection voltage: |
12 Vg |
|
12/24 V |
|
|
|
|
|
|
Power consumption: |
47 W |
|
47 W (12 Vg) |
|
|
|
|
|
55 W (24 Vg) |
|
|
|
||
Cooling capacity: |
max. 18 °C under ambient temperature |
|||
|
|
|
|
|
Gross capacity: |
25 l |
|
26 l |
|
|
|
|
|
|
Usable capacity: |
24 l |
|
25 l |
|
|
|
|
|
|
Climate class: |
|
N |
||
|
|
|||
Ambient temperature: |
+16 °C – +32 °C |
|||
|
|
|
|
|
Dimensions |
396 x 296 x 395 |
|
396 x 296 x 395 |
|
(W x H x D) in mm: |
|
|
|
|
|
|
|
|
|
Weight: |
|
ca. 3.7 kg |
|
ca. 4.0 kg |
|
|
|
|
|
Testing/certification: |
|
4 |
||
|
|
|
||
|
|
|
|
|
EN |
17 |
|
|
|
|
Technical data |
CoolFun SC26, SCT26, SC30, SC38 |
||
|
|
|
|
|
CoolFun SC30 |
|
CoolFun SC38 |
|
|
|
|
Ref. number: |
9600000486 |
|
9600000487 |
|
|
|
|
Connection voltage: |
|
12 Vg |
|
|
220 – 240 Vw, 50/60 Hz |
||
|
|
|
|
Power consumption |
|
|
|
12 Vg, cold mode: |
|
47 W |
|
12 Vg, hot mode: |
|
39 W |
|
230 Vw, cold mode: |
|
max. 55 W |
|
230 Vw, hot mode: |
|
39 W |
|
230 Vw, ECO mode: |
6.2 W |
|
7.5 W |
|
|||
|
|
|
|
Cooling capacity: |
max. 18 °C under ambient temperature |
||
|
|
|
|
Thermal energy: |
|
65 °C |
|
|
|
|
|
Category: |
|
Pantry |
|
|
|
|
|
Energy efficiency class: |
A+++ |
|
A++ |
|
|
|
|
Energy consumption: |
54 kWh/annum |
|
66 kWh/annum |
|
|
|
|
Gross capacity: |
30 l |
|
38 l |
|
|
|
|
Usable capacity: |
29 l |
|
37 l |
|
|
|
|
Climate class: |
|
ST |
|
|
|
||
Ambient temperature: |
+16 °C – +38 °C |
||
|
|
|
|
Noise emission: |
|
39 dB |
|
|
|
|
|
Dimensions |
396 x 296 x 445 |
|
565 x 391 x 295 |
(W x H x D) in mm: |
|
|
|
|
|
|
|
Weight: |
ca. 4.3 kg |
|
5.4 kg |
|
|
|
|
Testing/certification: |
|
4 |
|
|
|
||
|
|
|
|
18 |
EN |
|
CoolFun SC26, SCT26, SC30, SC38
Bitte lesen Sie diese Anleitung vor der Inbetriebnahme sorgfältig durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe des Gerätes an den Nutzer weiter.
Der Hersteller haftet nicht für Schäden, die durch nicht bestimmungsgemäßen Gebrauch oder falsche Bedienung verursacht werden.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 6 Bedienung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 7 Reinigung und Pflege . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 8 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 9 Störungsbeseitigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 10 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 11 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
DE |
19 |
|
|
|
|
Erklärung der Symbole |
CoolFun SC26, SCT26, SC30, SC38 |
1Erklärung der Symbole
!WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer Verletzung führen.
!VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
AACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des Produktes beeinträchtigen.
IHINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
2Sicherheitshinweise
2.1Allgemeine Sicherheit
!WARNUNG!
•Wenn das Kühlgerät sichtbare Beschädigungen aufweist, dürfen Sie es nicht in Betrieb nehmen.
•Wenn das Anschlusskabel dieses Kühlgerätes beschädigt wird, muss es durch den Hersteller, seinen Kundendienst oder eine ähnlich qualifizierte Person ersetzt werden, um Gefährdungen zu vermeiden.
•Reparaturen an diesem Kühlgerät dürfen nur von Fachkräften durchgeführt werden. Durch unsachgemäße Reparaturen können erhebliche Gefahren entstehen.
•Dieses Kühlgerät kann von Kindern ab 8 Jahren und darüber sowie von Personen mit verringerten physischen, sensorischen oder mentalen Fähigkeiten oder Mangel an Erfahrung und Wissen benutzt werden, wenn sie beaufsichtigt oder bezüglich des sicheren Gebrauchs des Kühlgerätes unterwiesen wurden und die daraus resultierenden Gefahren verstehen.
•Reinigung und Benutzer-Wartung dürfen nicht von Kindern ohne Beaufsichtigung durchgeführt werden.
20 |
DE |
|
CoolFun SC26, SCT26, SC30, SC38 |
Sicherheitshinweise |
•Kinder dürfen nicht mit dem Kühlgerät spielen.
•Kinder sollten beaufsichtigt werden, um sicherzustellen, dass sie nicht mit dem Kühlgerät spielen.
•Verwahren und benutzen Sie das Kühlgerät außerhalb der Reichweite von Kindern unter 8 Jahren.
•Lagern Sie keine explosionsfähigen Stoffe wie z. B. Sprühdosen mit brennbarem Treibgas im Kühlgerät.
!VORSICHT!
•Trennen Sie das Kühlgerät von der Stromversorgung
–vor jeder Reinigung und Pflege
–nach jedem Gebrauch
•Lebensmittel dürfen nur in Originalverpackungen oder geeigneten Behältern eingelagert werden.
AACHTUNG!
•Vergleichen Sie die Spannungsangabe auf dem Typenschild mit der vorhandenen Energieversorgung.
•Schließen Sie das Kühlgerät nur wie folgt an:
–mit dem Gleichstrom-Anschlusskabel an die Gleichstrom-Bord- steckdose (z. B. Zigarettenanzünder) im Fahrzeug
–oder mit dem Wechselstrom-Anschlusskabel an das Wechselstromnetz
•Ziehen Sie den Stecker nie am Anschlusskabel aus der Steckdose.
•Wenn das Kühlgerät an der Gleichstrom-Steckdose angeschlossen ist: Klemmen Sie Ihr Kühlgerät und andere Verbraucher von der Fahrzeugbatterie ab, bevor Sie ein Schnellladegerät anschließen.
•Wenn das Kühlgerät an der Gleichstrom-Steckdose angeschlossen ist: Trennen Sie die Verbindung oder schalten Sie das Kühlgerät aus, wenn Sie den Motor ausschalten. Sonst kann die Fahrzeugbatterie entladen werden.
•Das Kühlgerät ist nicht geeignet für den Transport ätzender oder lösungsmittelhaltiger Stoffe.
•Dieses Kühlgerät enthält in der Isolierung brennbares Zyklopentan. Die Gase im Isolationsmaterial erfordern ein besonderes Entsorgungsverfahren. Führen Sie das Kühlgerät am Ende seiner Lebensdauer einer ordnungsgemäßen Entsorgung zu.
DE |
21 |
|
|
|
|
Lieferumfang |
CoolFun SC26, SCT26, SC30, SC38 |
2.2Sicherheit beim Betrieb des Kühlgerätes
!VORSICHT!
•Achten Sie vor der Inbetriebnahme darauf, dass Zuleitung und Stecker trocken sind.
AACHTUNG!
•Benutzen Sie keine Elektrogeräte innerhalb des Kühlgerätes, außer wenn diese Elektrogeräte vom Hersteller dafür empfohlen werden.
•Stellen Sie das Kühlgerät nicht in der Nähe von offenen Flammen oder anderen Wärmequellen (Heizung, starke Sonneneinstrahlung, Gasöfen usw.) ab.
•Überhitzungsgefahr!
Achten Sie stets darauf, dass beim Betrieb entstehende Wärme ausreichend abgeführt werden kann. Sorgen Sie dafür, dass das Kühlgerät in ausreichendem Abstand zu Wänden oder Gegenständen steht, sodass die Luft zirkulieren kann.
•Achten Sie darauf, dass die Lüftungsöffnungen nicht abgedeckt werden.
•Füllen Sie keine Flüssigkeiten oder Eis in den Innenbehälter.
•Tauchen Sie das Kühlgerät nie in Wasser.
•Schützen Sie das Kühlgerät und die Kabel vor Hitze und Nässe.
3Lieferumfang
Menge Bezeichnung
1Thermoelektrische Kühlbox
1Bedienungsanleitung
22 |
DE |
|
CoolFun SC26, SCT26, SC30, SC38 |
Bestimmungsgemäßer Gebrauch |
4Bestimmungsgemäßer Gebrauch
Die thermoelektrische Kühlbox eignet sich zum Kühlen (SC26, SCT26, SC30, SC38) und Wärmen (nur SC30, SC38) von Lebensmitteln. Mit einem Schalter kann zwischen dem Heizbetrieb und dem Kühlbetrieb gewechselt werden (nur SC30, SC38).
Die Kühlbox kann wie folgt angeschlossen werden:
•SC26: an 12 Vg
•SCT26: an 12 Vg oder an 24 Vg
•SC30, SC38: an 12 Vg oder an 230 Vw
Das Kühlgerät ist für den Hausgebrauch und ähnliche Anwendungsbereiche vorgesehen wie zum Beispiel
•in Personalküchen von Läden, Büros und anderen Arbeitsbereichen
•in der Landwirtschaft
•von Gästen in Hotels, Motels oder anderen Unterkünften
•in Frühstückspensionen
•im Catering und ähnlichen Großhandelsanwendungen
Das Gerät ist auch für Camping-Zwecke geeignet. Das Gerät darf keinem Regen ausgesetzt werden.
!VORSICHT! Gesundheitsgefahr!
Prüfen Sie bitte, ob die Kühlleistung des Gerätes den Anforderungen der Lebensmittel oder Medikamente entspricht, die Sie kühlen wollen.
5Technische Beschreibung
Die Kühlbox ist für den mobilen Einsatz geeignet. Sie kann Waren bis max. 18 °C unter Umgebungstemperatur abkühlen bzw. kühl halten (SC26, SCT26, SC30, SC38) oder auf max. 65 °C wärmen (SC30, SC38).
Die Kühlung ist eine verschleißfreie Peltierkühlung mit Wärmeabfuhr durch einen Lüfter.
DE |
23 |
|
|
|
|
Technische Beschreibung |
CoolFun SC26, SCT26, SC30, SC38 |
5.1Bedienelemente
Pos. in
Bezeichnung
Abb. 2, Seite 3
1USB-Anschluss zur Stromversorgung
2Gleichstrom-Anschlusskabel
3Wechselstrom-Anschlusskabel
4Lüftungsöffnungen
5Betriebsmodusschalter
6Kühlleistungsregler
7Tragegriff
Nur SC30, SC38:
Wählen Sie mit dem Betriebsmodusschalter (Abb. 2 5, Seite 3) den gewünschten Modus (Cold = Kühlen; Hot = Wärmen).
Wenn das Kühlgerät am Wechselstromnetz angeschlossen ist, kann es in zwei verschiedenen Betriebsarten verwendet werden:
•ECO-Modus: das Kühlgerät verbraucht weniger Energie
•MAX-Modus: das Kühlgerät erreicht die maximale Kühlleistung
Die gewünschte Kühlleistung wird mit dem Kühlleistungsregler (Abb. 2 6, Seite 3) eingestellt:
Um die Kühlleistung zu erhöhen, drehen Sie den Kühlleistungsregler im Uhrzeigersinn.
Für die maximale Kühlleistung drehen Sie den Kühlleistungsregler bis zum Anschlag im Uhrzeigersinn (Position „MAX“).
Um die Kühlleistung zu verringern, drehen Sie den Kühlleistungsregler gegen den Uhrzeigersinn.
Um das Kühlgerät auszuschalten, drehen Sie den Kühlleistungsregler bis zum Anschlag gegen den Uhrzeigersinn (Position „OFF“).
Wenn das Kühlgerät an der Gleichstromsteckdose angeschlossen ist, kann die Kühlleistung nicht eingestellt werden.
24 |
DE |
|
CoolFun SC26, SCT26, SC30, SC38 |
Bedienung |
6Bedienung
!VORSICHT! Gesundheitsgefahr!
Lebensmittel dürfen nur in Originalverpackungen oder geeigneten Behältern eingelagert werden.
AACHTUNG! Beschädigungsgefahr!
•Achten Sie darauf, dass sich nur Gegenstände bzw. Waren im Kühlgerät befinden, die auf die gewählte Temperatur gekühlt werden dürfen.
•Achten Sie darauf, dass Sie Getränke oder Speisen in Glasbehältern nicht zu stark abkühlen. Beim Gefrieren dehnen sich Getränke oder flüssige Speisen aus. Dadurch können die Glasbehälter zerstört werden.
•Achten Sie darauf, dass das Kühlgerät gut belüftet wird, damit die entzogene Wärme abgeführt werden kann, andernfalls ist eine ordnungsgemäße Funktion nicht gewährleistet. Insbesondere dürfen die Lüftungsöffnungen nicht abgedeckt werden.
IHINWEIS
•Bevor Sie das neue Kühlgerät in Betrieb nehmen, sollten Sie es aus hygienischen Gründen innen und außen mit einem feuchten Tuch reinigen (siehe auch Kapitel „Reinigung und Pflege“ auf Seite 28).
•Ein paar Wassertropfen können sich im Inneren des Kühlgerätes absetzen, wenn es längere Zeit gekühlt hat. Dies ist normal, weil die Feuchtigkeit in der Luft zu Wassertropfen kondensiert, wenn die Temperatur im Kühlgerät abkühlt. Das Kühlgerät ist nicht defekt. Wischen Sie es ggf. mit einem trockenen Tuch aus.
•Wenn der Griff nach hinten umgelegt ist oder das Kühlgerät getragen wird, ist der Deckel verschlossen. Sie können den Deckel nur öffnen, wenn der Griff nach vorne umgelegt ist.
DE |
25 |
|
|
|
|
Bedienung |
CoolFun SC26, SCT26, SC30, SC38 |
6.1Tipps zum Energiesparen
•Wählen Sie einen gut belüfteten und vor Sonnenstrahlen geschützten Einsatzort.
•Wenn Sie eine erhöhte Energieeffizienz und eine begrenzte Kühlleistung für das Kühlgerät einrichten wollen, nutzen Sie den ECO-Modus des Kühlgerätes.
•Lassen Sie warme Speisen erst abkühlen, bevor Sie sie im Kühlgerät kühl halten.
•Öffnen Sie das Kühlgerät nicht häufiger als nötig.
•Lassen Sie das Kühlgerät nicht länger offen als nötig.
6.2Räder montieren (nur SC38)
Montieren Sie die Räder wie dargestellt an das Kühlgerät (Abb. 3, Seite 4).
6.3Kühlgerät im Gleichstrom-Betrieb verwenden
IHINWEIS
Wenn Sie das Kühlgerät an die Gleichstromsteckdose Ihres Fahrzeugs anschließen, beachten Sie, dass Sie ggf. die Zündung einschalten müssen, damit das Gerät mit Strom versorgt wird.
Stellen Sie das Kühlgerät auf eine feste Unterlage.
Schließen Sie das Gleichstrom-Anschlusskabel an die Gleichstromsteckdose im Fahrzeug an.
Das Gerät startet mit dem Kühlen oder Wärmen des Innenraums.
Ziehen Sie das Gleichstrom-Anschlusskabel heraus, um das Kühlgerät außer Betrieb zu nehmen.
26 |
DE |
|
CoolFun SC26, SCT26, SC30, SC38 |
Bedienung |
6.4Kühlgerät im Wechselstrom-Betrieb verwenden (nur SC30, SC38)
Stellen Sie das Gerät auf eine feste Unterlage.
Schließen Sie das Wechselstrom-Anschlusskabel an das Wechselstromnetz an.
Drehen Sie den Kühlleistungsregler (Abb. 2 6, Seite 3) in die gewünschte Stellung.
Schieben Sie den Betriebsmodusschalter (Abb. 2 5, Seite 3) in die Position „Cold“ (Kühlen) oder „Hot“ (Wärmen), um das Kühlgerät einzuschalten.
Das Kühlgerät startet mit dem Kühlen oder Wärmen des Innenraums.
6.5Innenraum aufteilen (nur SC38)
Sie können den Innenraum des Kühlgeräts wie folgt aufteilen (Abb. 4, Seite 4):
•Kein Trenngitter (A): Beide Kühlfächer werden aktiv gekühlt oder erwärmt.
•Offenes Trenngitter (B): Das große Kühlfach wird aktiv gekühlt oder erwärmt. Das kleine Kühlfach wird weniger gekühlt oder erwärmt.
•Geschlossenes Trenngitter (C): Das große Kühlfach wird aktiv gekühlt oder erwärmt. Das kleine Kühlfach wird nur passiv gekühlt oder erwärmt.
IHINWEIS
Montieren Sie den Steg auch, wenn Sie die Kühlgerät ohne Trenngitter betreiben, damit die Deckel richtig schließen.
Bauen Sie das Trenngitter wie dargestellt ein (Abb. 5, Seite 5).
DE |
27 |
|
|
|
|
Reinigung und Pflege |
CoolFun SC26, SCT26, SC30, SC38 |
6.6USB-Anschluss für Spannungsversorgung
Sie können den USB-Anschluss (Abb. 2 1, Seite 3) zum Laden von Kleingeräten (z. B. Mobiltelefone und MP3-Player) nutzen.
Die Benutzung der USB-Buchse beeinflusst nicht die Kühlleistung.
AACHTUNG!
Stellen Sie sicher, dass das an den USB-Anschluss angeschlossene Gerät für den Betrieb bei 5 V/500 mA geeignet ist.
Gehen Sie wie folgt vor (Abb. 2, Seite 3):
Verbinden Sie den Gleichstromstecker (2) oder Wechselstromstecker (3) des Kühlgerätes mit der Versorgungsspannung.
SC30, SC38: Drehen Sie den Kühlleistungsregler (6) in die „MAX“-Stellung.
Verbinden Sie Ihr Gerät mit der USB-Buchse (1).
7Reinigung und Pflege
!WARNUNG!
Trennen Sie vor jeder Reinigung und Pflege das Kühlgerät von der Stromversorgung.
AACHTUNG! Beschädigungsgefahr!
•Reinigen Sie das Kühlgerät niemals unter fließendem Wasser oder gar im Spülwasser.
•Verwenden Sie zur Reinigung keine scharfen Reinigungsmittel oder harten Gegenstände, da diese das Kühlgerät beschädigen können.
Reinigen Sie das Kühlgerät innen und außen gelegentlich mit einem feuchten Tuch.
Stellen Sie sicher, dass die Beund Entlüftungsöffnungen des Kühlgerätes frei von Staub und Verunreinigungen sind, damit die beim Betrieb entstehende Wärme abgeführt werden kann und das Kühlgerät keinen Schaden nimmt.
28 |
DE |
|
CoolFun SC26, SCT26, SC30, SC38 |
Gewährleistung |
8Gewährleistung
Es gilt die gesetzliche Gewährleistungsfrist. Sollte das Produkt defekt sein, wenden Sie sich bitte an die Niederlassung des Herstellers in Ihrem Land (Adressen siehe Rückseite der Anleitung) oder an Ihren Fachhändler.
Zur Reparaturbzw. Gewährleistungsbearbeitung müssen Sie folgende Unterlagen mitschicken:
•eine Kopie der Rechnung mit Kaufdatum,
•einen Reklamationsgrund oder eine Fehlerbeschreibung.
9Störungsbeseitigung
Störung |
Mögliche Ursache |
Lösungsvorschlag |
|
|
|
Ihr Gerät funktioniert |
An der Gleichstrom- |
In den meisten Fahrzeugen muss der |
nicht (Stecker ist einge- |
steckdose im Fahrzeug |
Zündschalter eingeschaltet sein, |
steckt). |
liegt keine Spannung |
damit die Gleichstromsteckdose |
|
an. |
Spannung hat. |
|
|
|
|
Die Wechselstrom- |
Versuchen Sie es an einer anderen |
|
steckdose führt keine |
Steckdose. |
|
Spannung. |
|
|
|
|
|
Der Innenlüfter oder das |
Die Reparatur kann nur von einem |
|
Kühlelement ist defekt. |
zugelassenen Kundendienstbetrieb |
|
|
durchgeführt werden. |
|
|
|
Beim Betrieb an der |
Die Fassung der Gleich- |
Wenn der Stecker in der Gleichstrom- |
Gleichstromsteckdose: |
stromsteckdose ist ver- |
steckdose sehr warm wird, muss ent- |
Die Zündung ist einge- |
schmutzt. Das hat einen |
weder die Fassung gereinigt werden, |
schaltet, und das Kühl- |
schlechten elektrischen |
oder der Stecker ist möglicherweise |
gerät funktioniert nicht. |
Kontakt zur Folge. |
nicht richtig zusammengebaut |
|
Die Sicherung des |
Tauschen Sie die Sicherung |
|
Gleichstromsteckers ist |
(Abb. 61, Seite 5) des Gleichstrom- |
|
durchgebrannt. |
steckers durch eine gleichwertige |
|
|
Sicherung aus |
|
|
|
|
Die Fahrzeug-Siche- |
Tauschen Sie die Fahrzeug-Sicherung |
|
rung ist durchgebrannt. |
der Gleichstromsteckdose (üblicher- |
|
|
weise 15 A) aus (Beachten Sie dazu die |
|
|
Bedienungsanleitung zu Ihrem KFZ). |
|
|
|
DE |
29 |
|
|
|
|
Entsorgung CoolFun SC26, SCT26, SC30, SC38
10 |
Entsorgung |
Geben Sie das Verpackungsmaterial möglichst in den entsprechenden |
|
Recycling-Müll. |
|
|
Wenn Sie das Produkt endgültig außer Betrieb nehmen, informieren Sie |
M sich bitte beim nächsten Recyclingcenter oder bei Ihrem Fachhändler |
|
|
über die zutreffenden Entsorgungsvorschriften. |
11 |
Technische Daten |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CoolFun SC26 |
|
|
|
CoolFun SCT26 |
|
|
|
|
|
|
|
Art.-Nr.: |
|
9600000484 |
|
|
9600000485 |
|
|
|
|
|
|
|
|
Anschlussspannung: |
12 Vg |
|
|
|
12/24 Vg |
|
|
|
|
|
|
|
|
Leistungsaufnahme: |
47 W |
|
|
|
47 W (12 Vg) |
|
|
|
|
|
|
|
55 W (24 Vg) |
|
|
|
|
|
||
Kühlleistung: |
max. 18 °C unter Umgebungstemperatur |
|||||
|
|
|
|
|
|
|
Bruttoinhalt: |
25 l |
|
|
|
26 l |
|
|
|
|
|
|
|
|
Nutzinhalt: |
24 l |
|
|
|
25 l |
|
|
|
|
|
|
|
|
Klimaklasse: |
|
|
N |
|||
|
|
|
|
|
||
Umgebungstemperatur: |
|
16 bis 32 °C |
||||
|
|
|
|
|
|
|
Abmessungen |
396 x 296 x 395 |
|
|
|
396 x 296 x 395 |
|
(B x H x T) in mm: |
|
|
|
|
|
|
|
|
|
|
|
|
|
Gewicht: |
|
ca. 3,7 kg |
|
|
|
ca. 4,0 kg |
|
|
|
|
|
|
|
Prüfung/Zertifikat: |
|
|
|
|
|
|
|
|
4 |
|
|||
|
|
|
|
|
||
|
|
|
|
|
|
|
30 |
DE |
|
