User Manual
HD Modular Network Camera
DCS-1201
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.
Revision Date Description
1.00 09/24/2015 DCS-1201 Revision A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2015 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
2D-Link DCS-1201 User Manual
Table of Contents
Product Overview ........................................................4
Package Contents ................................................................. 4
Introduction ............................................................................ 5
System Requirements ......................................................... 5
Features .................................................................................... 6
Hardware Overview ............................................................. 7
Back............................................................................................ 7
Front .......................................................................................... 8
Connecting the Camera ...................................................10
Conguring the Camera ...................................................12
Mounting the Camera .......................................................15
Conguration ............................................................17
Using the Conguration Interface ................................17
Live Video ..............................................................................19
Setup .......................................................................................21

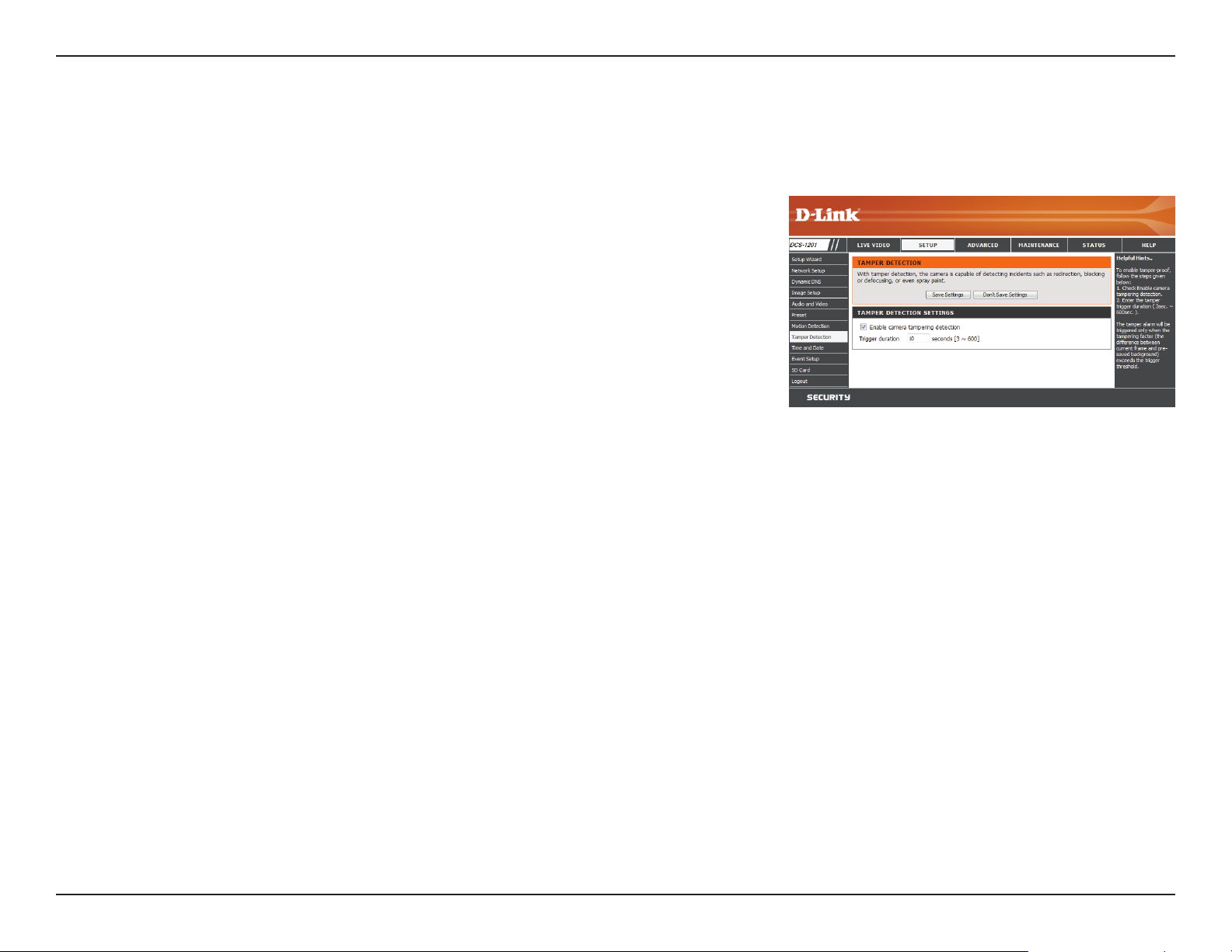

Tamper Detection ...........................................................38
Time and Date ..................................................................39

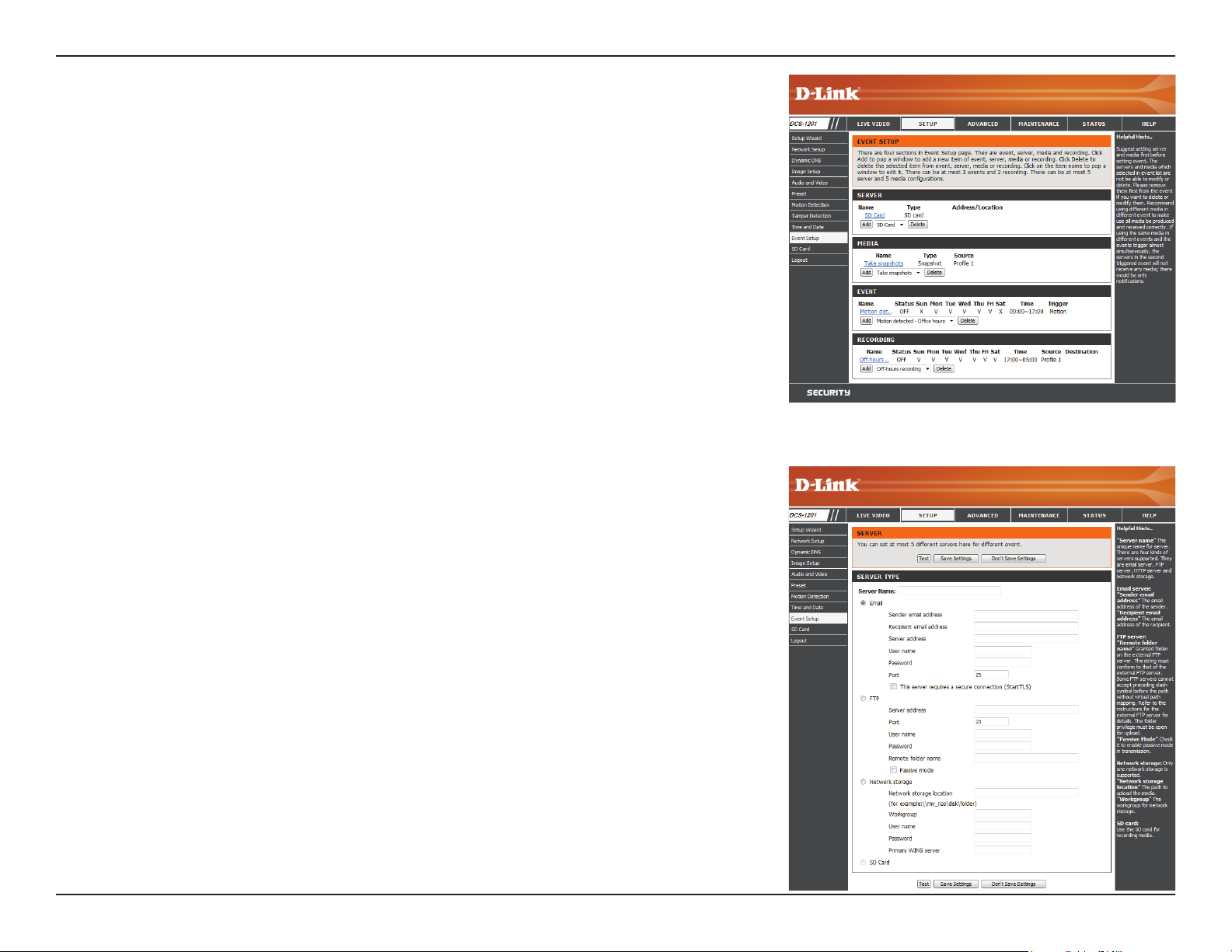

Event Setup .......................................................................40

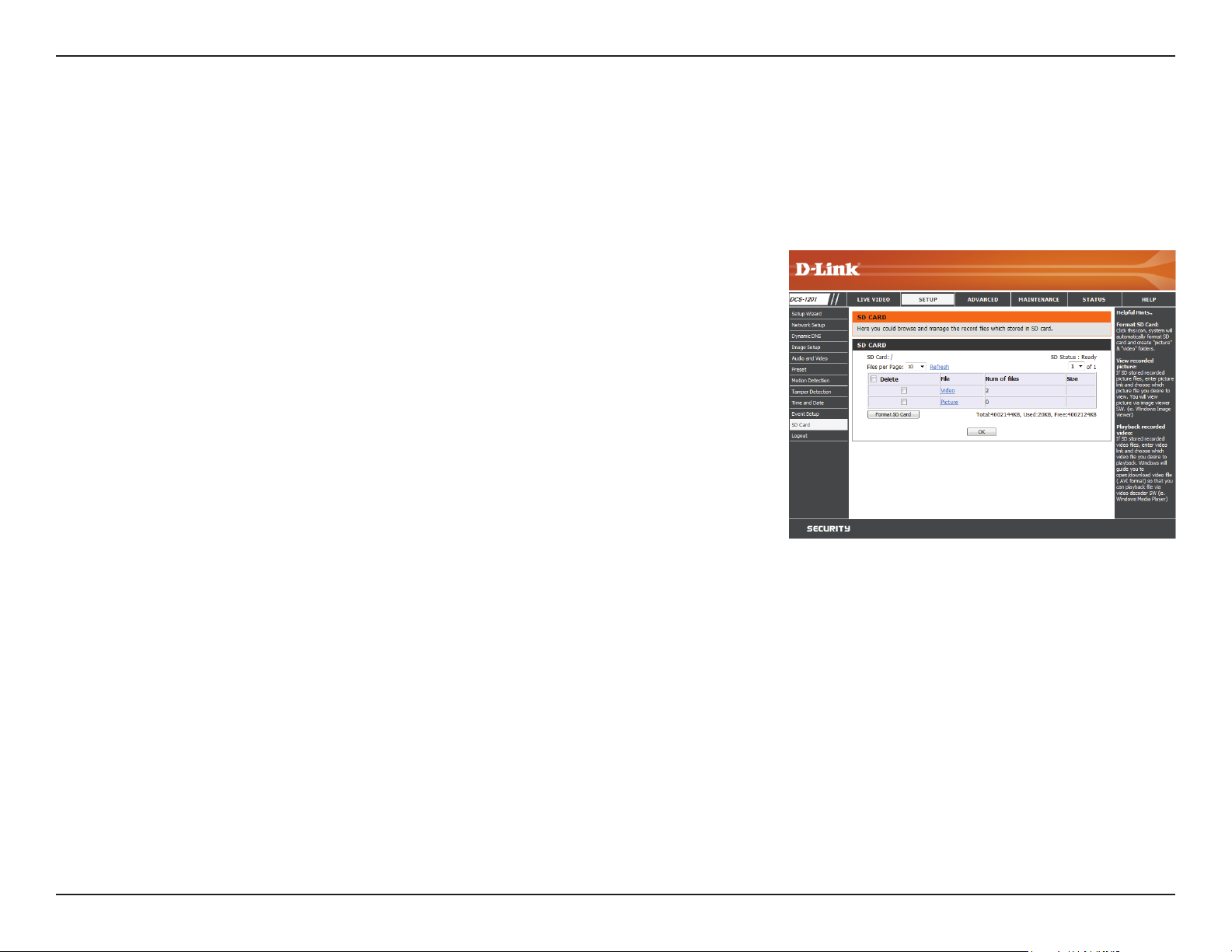

SD Card ...............................................................................48
Advanced ...............................................................................49
DI and DO ..........................................................................49
HTTPS .................................................................................. 50
Access List ..........................................................................51
SNMP ...................................................................................52
Maintenance .........................................................................54
Device Management .....................................................54

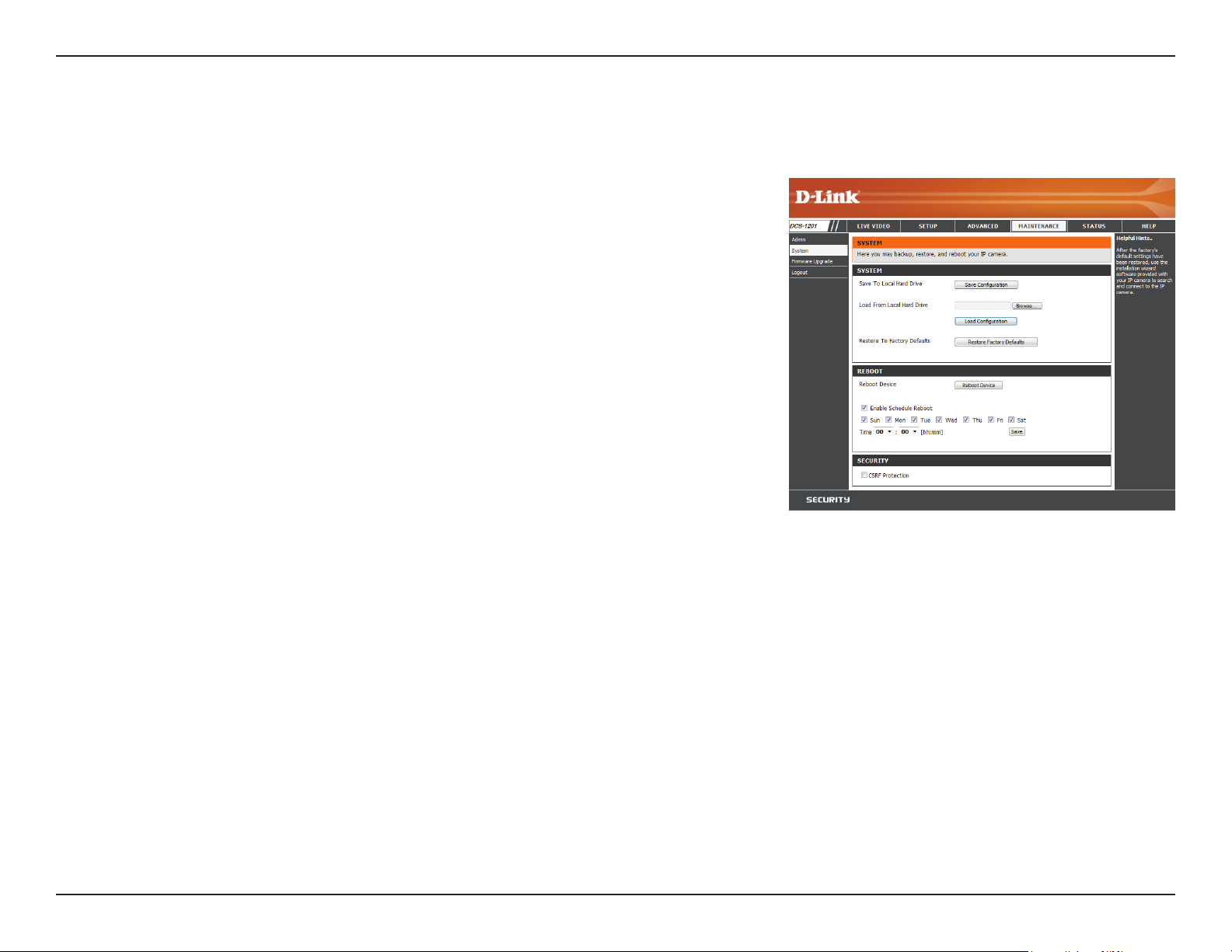

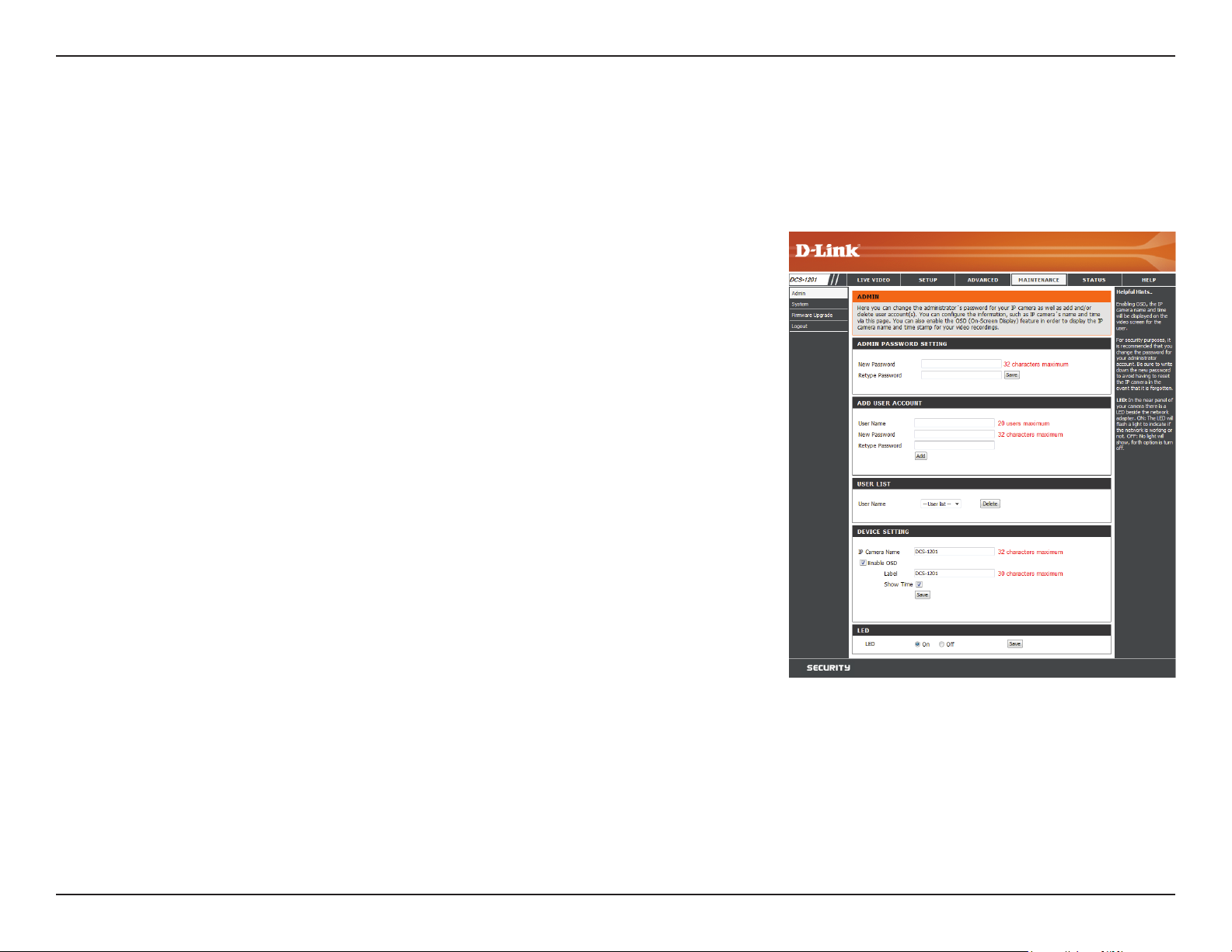

System ................................................................................55
Firmware Upgrade ..........................................................56
Status ......................................................................................57

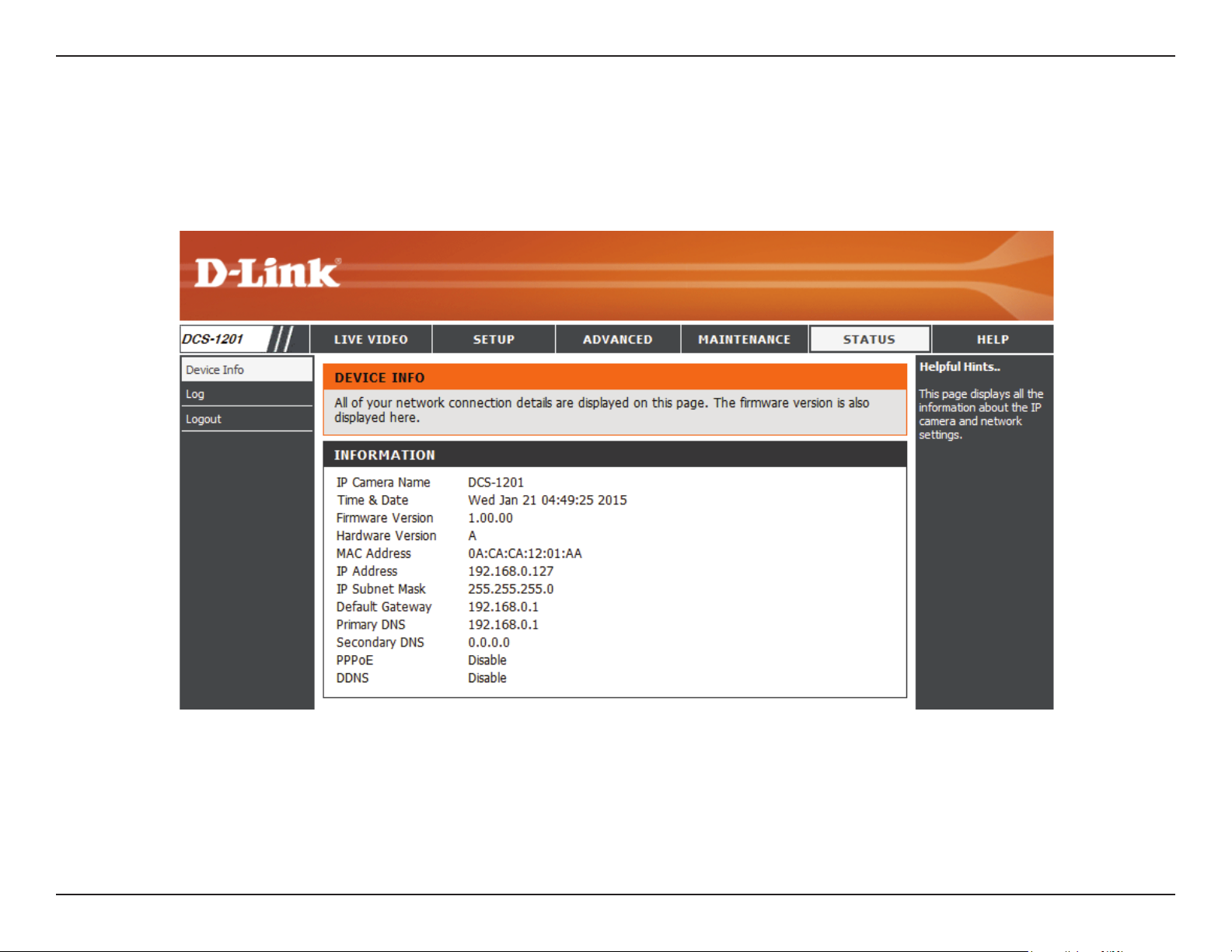

Device Info ........................................................................57
Setup Wizard ....................................................................21
Network Setup .................................................................26
Dynamic DNS ...................................................................29

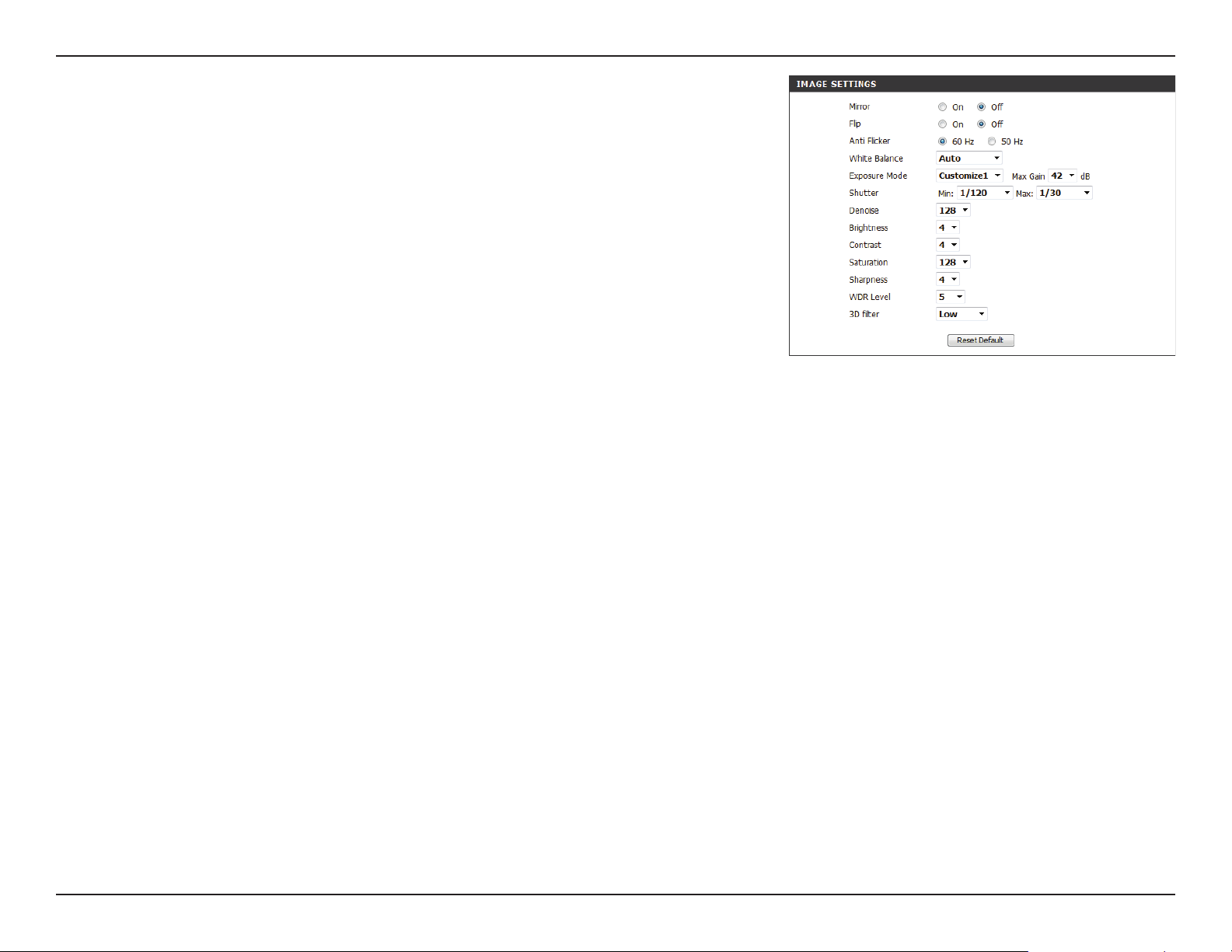

Image Setup .....................................................................30

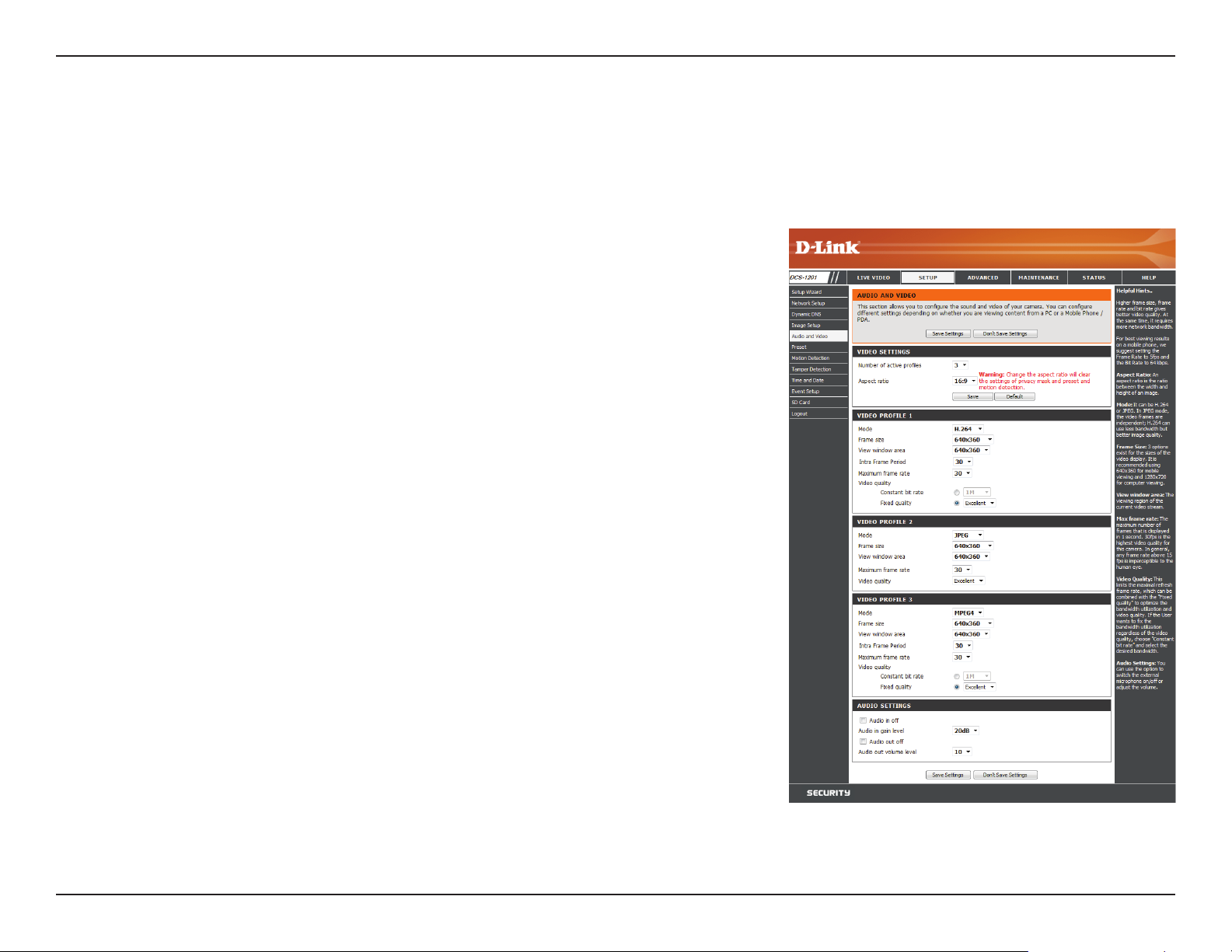

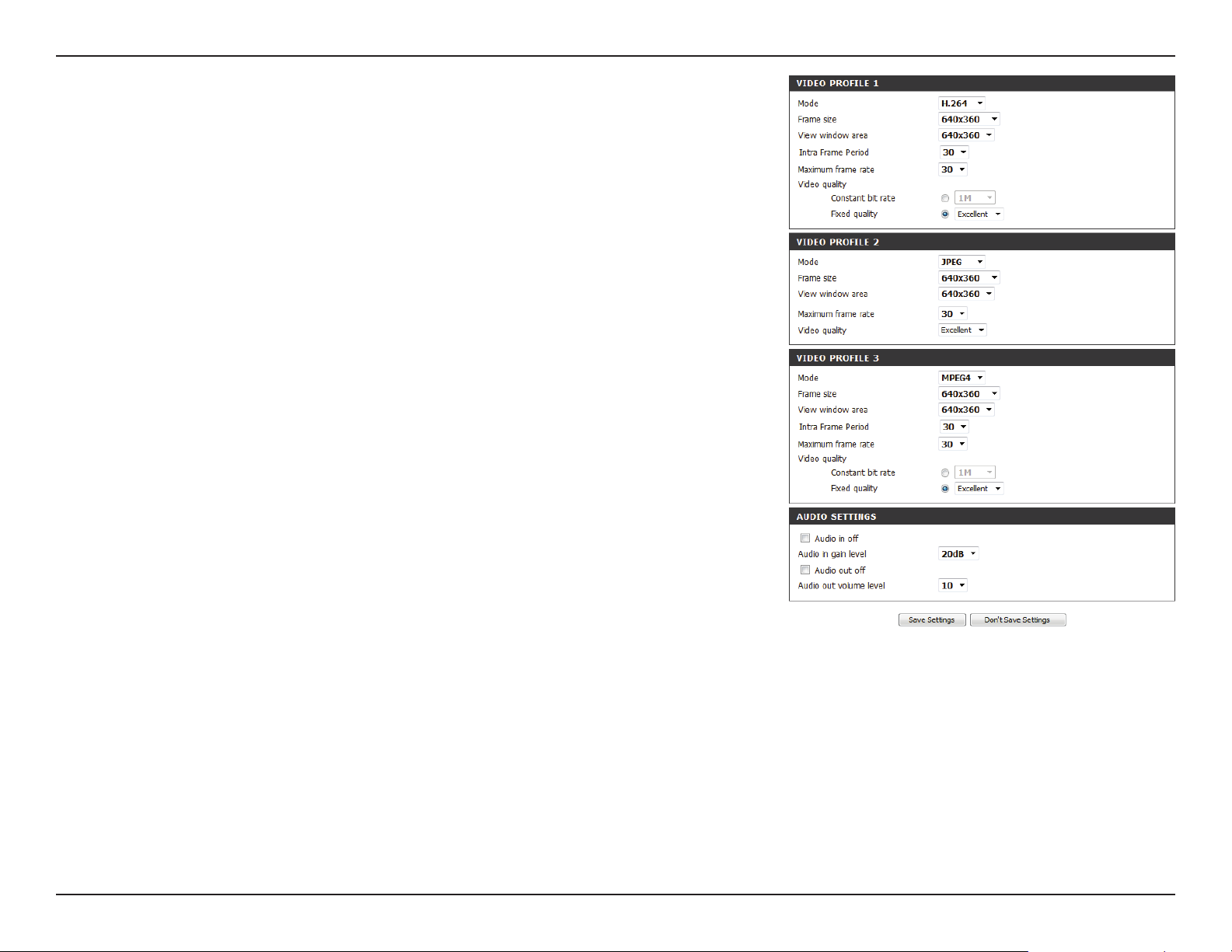

Audio and Video ..............................................................33

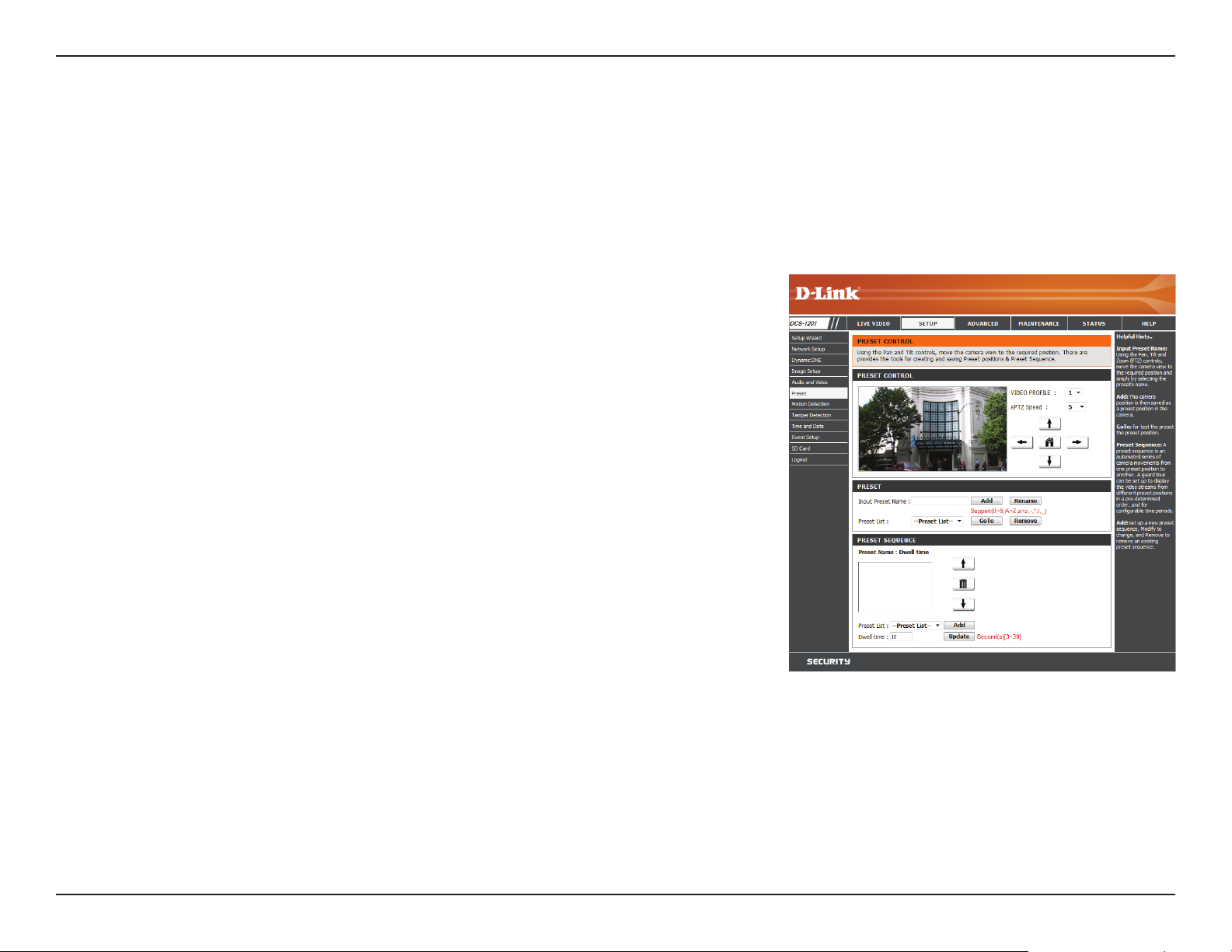

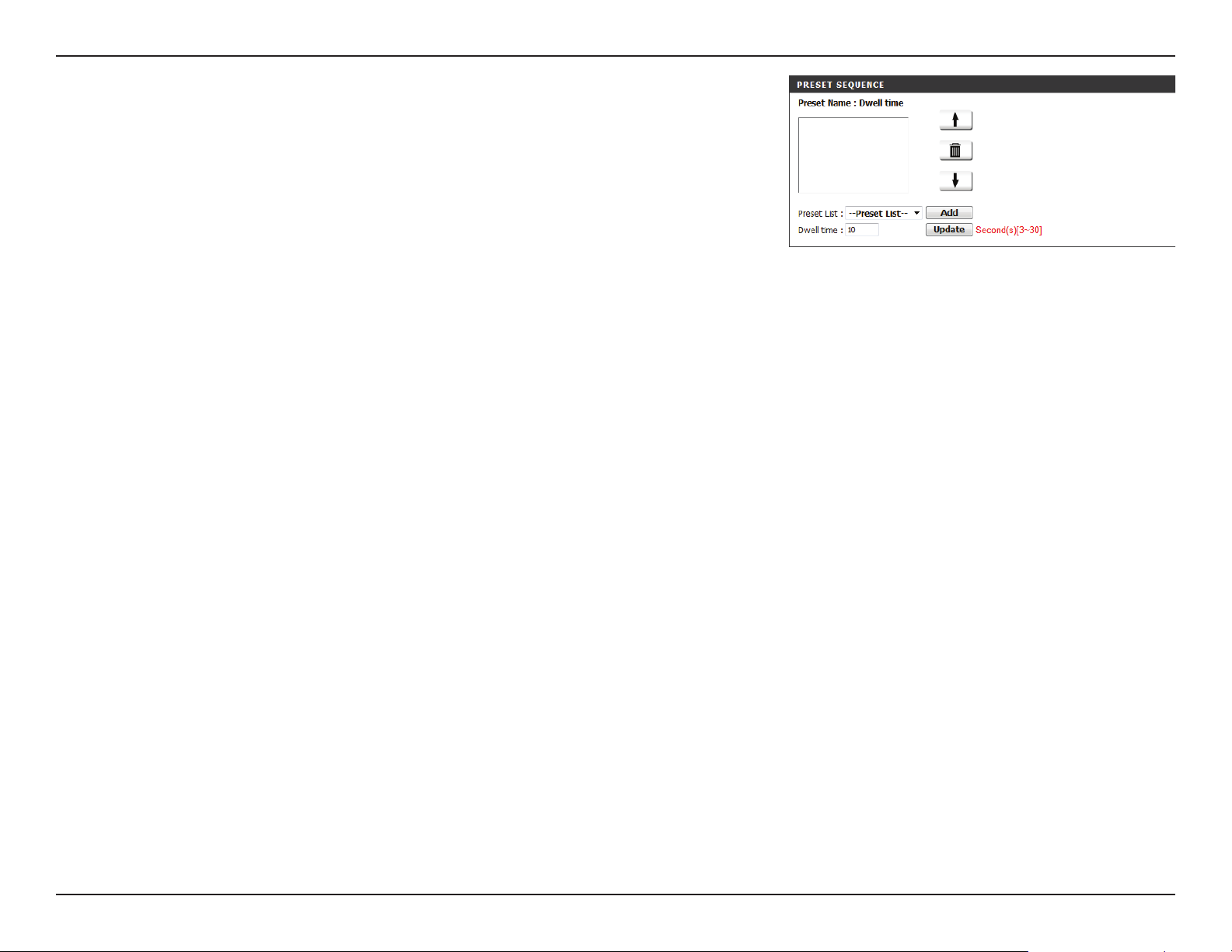

Preset ...................................................................................35

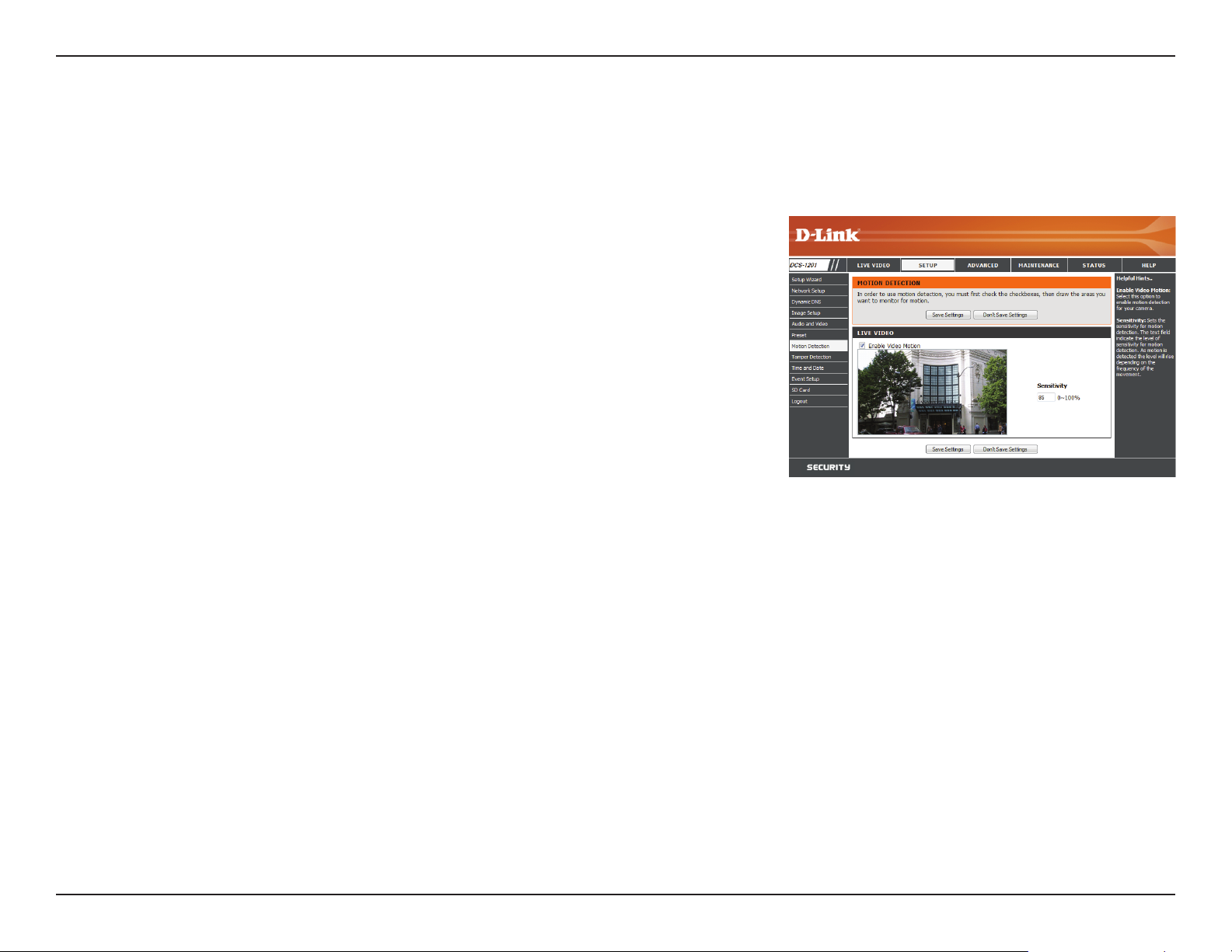

Motion Detection ...........................................................37
Logs .....................................................................................58

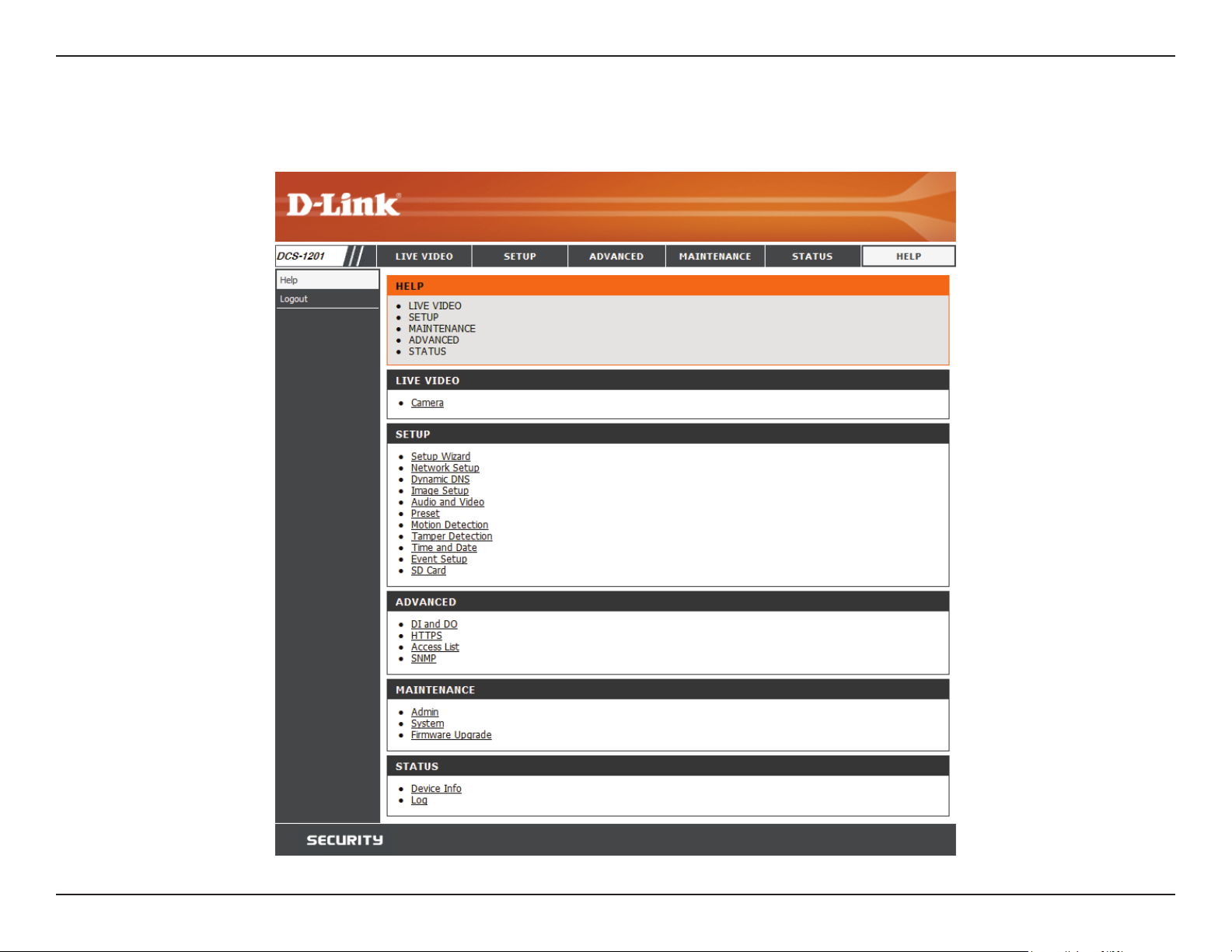

Help......................................................................................59
Technical Specications ............................................60
Regulatory Information ............................................ 64
3D-Link DCS-1201 User Manual
Section 1: Product Overview
DCS-1201 HD Modular Network Camera (includes control box and camera)
Camera cover
Flat mounting bracket
Angled mounting bracket
Product Overview

Package Contents

CD-ROM with User Manual and software
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Safety Notice: Installation and servicing should be done by certied technicians so as to conform to all local codes and prevent voiding your warranty.
4D-Link DCS-1201 User Manual
Section 1: Product Overview

Introduction

Congratulations on your purchase of the DCS-1201 HD Modular Network Camera. The DCS-1201 is a professional surveillance and security solution for small, medium, and large enterprises alike. It provides an excellent way to discreetly keep watch over an area without sacricing quality or functionality.
The DCS-1201 is a complete system with a built-in CPU and incorporates a web server, allowing it to transmit excellent real-time HD resolution video for security and outdoor surveillance. It incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling. It also includes audio in and out jacks, DI/DO connectors, and a microSD slot, making it an extremely versatile surveillance solution.
The DCS-1201 can be accessed remotely, controlled and congured from any PC/Notebook over your local network or through the Internet via a web browser. The simple installation and intuitive web-based interface oer easy conguration across the full range of its advanced feature set, including granular control over multiple video streams with dierent congurations and multicast video streams which helps you manage your network load.

System Requirements

• Computer with Microsoft Windows® 10, 8, 7, or Vista® (for CD-ROM Setup Wizard), Mac OS, or Linux
• Internet Explorer 8, Firefox 20, or Safari 6 or higher
• Existing 10/100 Ethernet-based network with an available 802.3af Power over Ethernet (PoE) port
5D-Link DCS-1201 User Manual
Section 1: Product Overview

Features

Installs Anywhere
This tiny camera can easily be placed in walls or ceilings, or in tight corners, and the 15 meter camera cable gives you a wealth of installation options.
High Quality Footage
The DCS-1201 camera may be small, but it delivers HD video at 720P, giving you a sharp image with the detail you need.
Simple to Maintain
The DCS-1201 is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-1201 can be viewed and managed through most web browsers, including Internet Explorer®.
Supports a Variety of Platforms
With support for TCP/IP networking, HTTP, and other Internet related protocols, the DCS-1201 can also be integrated easily into other Internet/Intranet applications because of its standards-based features. The DCS-1201 works with any 10/100 Ethernet network, making the DCS-1201 easy to integrate into your existing network environment.
Advanced Event Management
The DCS-1201 can be set up to send e-mail notications with snapshots when an event occurs, such as when motion is detected. Events can be triggered from several sources, such as motion detection and time based events.
PoE (Power over Ethernet) for Flexible Installation
The DCS-1201 can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to 32 cameras on one screen, and taking snapshots.
6D-Link DCS-1201 User Manual
Section 1: Product Overview

Hardware Overview

Back

1 2 3 4 5
1 DC power connector
2 Power terminal
3 LAN status LED Indicates connection to a wired network and trac status.
4 LAN (PoE) port
5 microSD card slot
Connects to an optional 12 V / 1.5 A power adapter (not included).
Connects to a power source. (Pin +: 8-28 V DC input, Pin -: Ground)
RJ-45 connector for Ethernet which can also be used to power the camera using Power over Ethernet (PoE).
Insert a microSD card for storing recorded images and video locally.
7D-Link DCS-1201 User Manual
Section 1: Product Overview

Front

6 7 8 9
6 Audio in jack Connects to a microphone.
7 Audio out jack
8 Status LED
9 Camera port Connects to camera cable.
10 DI/DO connectors
11 Reset button
Connects to a speaker.
Indicates the camera's current status.
I/O connectors for external devices.
Press and hold for 10 seconds to reset camera back to the factory default settings.
10 11
8D-Link DCS-1201 User Manual
Section 1: Product Overview
12
13
14
12 Camera lens
13 Mounting holes
14 Camera cable
15 Camera cover Snaps onto camera when mounted on a wall.
16 Flat mounting bracket
17 Angled mounting bracket
Fixed lens to record video of the surrounding area.
Used when mounting camera to a wall or the angled mounting bracket.
Connects to control box.
Holds camera when doing a discreet wall installation.
Allows camera to be mounted on a wall at an angle.
15 16 17
9D-Link DCS-1201 User Manual
Section 2: Installation

Connecting the Camera

Connect the camera cable to the CAM port on the control box.
You can power the DCS-1201 three dierent ways: through PoE, through the power terminal, or through a power adapter.
Powering the camera through PoE (Class 2):
Connect an Ethernet cable to the LAN (PoE) port on the control box. Connect the other end of the cable to your PoE switch or PoE injector.
10D-Link DCS-1201 User Manual
Section 2: Installation
Powering the camera through the power terminal:
Connect your power source to the power terminal on the control box. The specications for the power terminal are as shown below.
Pin + : 8-28 V DC input Pin - : Ground
Connect an Ethernet cable to the LAN (PoE) port on the control box. Connect the other end of the cable to your network.
Powering the camera through a power adapter (not included):
Connect a 12 V 1.5 A power adapter to the power connector of the control box.
Connect an Ethernet cable to the LAN (PoE) port on the control box. Connect the other end of the cable to your network.
11D-Link DCS-1201 User Manual
Section 2: Installation
Conguring the Camera
Step 1
Insert the DCS-1201 CD into your computer's CD-ROM drive. Click Setup Wizard and follow the instructions to install the Setup Wizard.
If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click the Start button and type D:\autorun.exe (where D: represents the drive letter of your CD-ROM drive) and press Enter.
Step 2
Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE).
12D-Link DCS-1201 User Manual
Section 2: Installation
Step 3
The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed. If your network does not use a DHCP server, the network camera's default static IP 192.168.0.20 will be displayed.
Select your camera, then click the Wizard button to continue.
Step 4
Enter the Admin ID and password. When logging in for the rst time, the default Admin ID is admin with the password left blank.
Click the checkboxes if you wish to change the admin ID and password for the camera, and enter the new ID and password you wish to use.
Click Next to continue.
13D-Link DCS-1201 User Manual
Section 2: Installation
Step 5
Select DHCP if your camera obtains an IP address automatically from a DHCP server such as a router. Select Static IP if you want to manually enter the IP settings for the camera.
Click Next to continue.
Step 6
Take a moment to conrm your settings and click Restart.
14D-Link DCS-1201 User Manual
Section 2: Installation

Mounting the Camera

It is highly recommended that you congure and test your camera before mounting it.
Mounting directly on a wall/ceiling
Use the included screws to mount the camera in the desired location, then attach the camera cover.
Mounting using the flat mounting bracket
Drill a hole 9 mm in diameter in the wall/ceiling, which should be no more than 5 mm thick. Peel o the adhesive backing on the at mounting bracket and attach it to the inside of the wall/ceiling. Insert the camera, and use the screw and washer to secure the camera in the mounting bracket as shown.
15D-Link DCS-1201 User Manual
Section 2: Installation
Mounting using the angled mounting bracket
Attach the angled mounting bracket to the wall/ceiling using the included screw. Attach the camera to the angled mounting bracket with the included screws as shown. You can adjust the pivot of the angled mounting bracket by using the included hex wrench.
Mounting the control box
Use 4 screws to attach the mounting plates to the control box, then use 2 screws to mount the control box in the desired location.
16D-Link DCS-1201 User Manual
Section 3: Conguration
Conguration
Using the Conguration Interface
After completing the Setup Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is designed to allow you to easily access and congure your DCS-1201. At the end of the wizard, click Link, or enter the IP address of your camera into a web browser, such as Firefox. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password, click OK.
Step 1
Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE).
Step 2
Select the camera and click Link to access the web conguration.
The Setup Wizard will automatically open your web browser to the IP address of the camera.
17D-Link DCS-1201 User Manual
Section 3: Conguration
Step 3
Enter admin as the default username and leave the password blank. Click OK to continue.
Step 4
This section displays your camera’s live video. You can select your video prole and view or operate the camera.
18D-Link DCS-1201 User Manual
Section 3: Conguration

Live Video

This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input Indicator
Motion Trigger Indicator
Recording Indicator
Control Pad
Auto Pan Starts the automatic panning function. The ROI will pan from
Stop Stops the camera ePTZ motion.
Preset Path Starts the camera's motion along the predened path.
ePTZ Speed:
You may select a value between 0 and 10. 0 is the slowest and 10 is the fastest.
This indicator will change color when a digital input signal is detected.
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be enabled.
When a recording is in progress, this indicator will change color.
This control pad can be used to electronically pan, tilt, and zoom (ePTZ) within the camera's predened view area, if one has been dened.
back and forth within the FOV.
Global View:
Language:
This window indicates the total eld of view (FOV) of the camera. The red box indicates the visible region of interest (ROI).
You may select the interface language using this menu.
19D-Link DCS-1201 User Manual
Section 3: Conguration
Video Prole 1
Video Prole 2
Full screen mode
Take a Snapshot
Record a Video Clip
Go To:
(Preset List)
If any presets have been dened, you can select them here to move the camera to the selected preset.
Set a Storage Folder
Enable/Mute Audio In (from a microphone)
Enable/Mute Audio Out (to a speaker)
Start/Stop Digital Output
20D-Link DCS-1201 User Manual
Section 3: Conguration

Setup

Setup Wizard

To congure your Network Camera, click Internet Connection Setup Wizard. Alternatively, you may click Manual Internet Connection Setup to manually congure your Network Camera and skip to "Network Setup" on page 26.

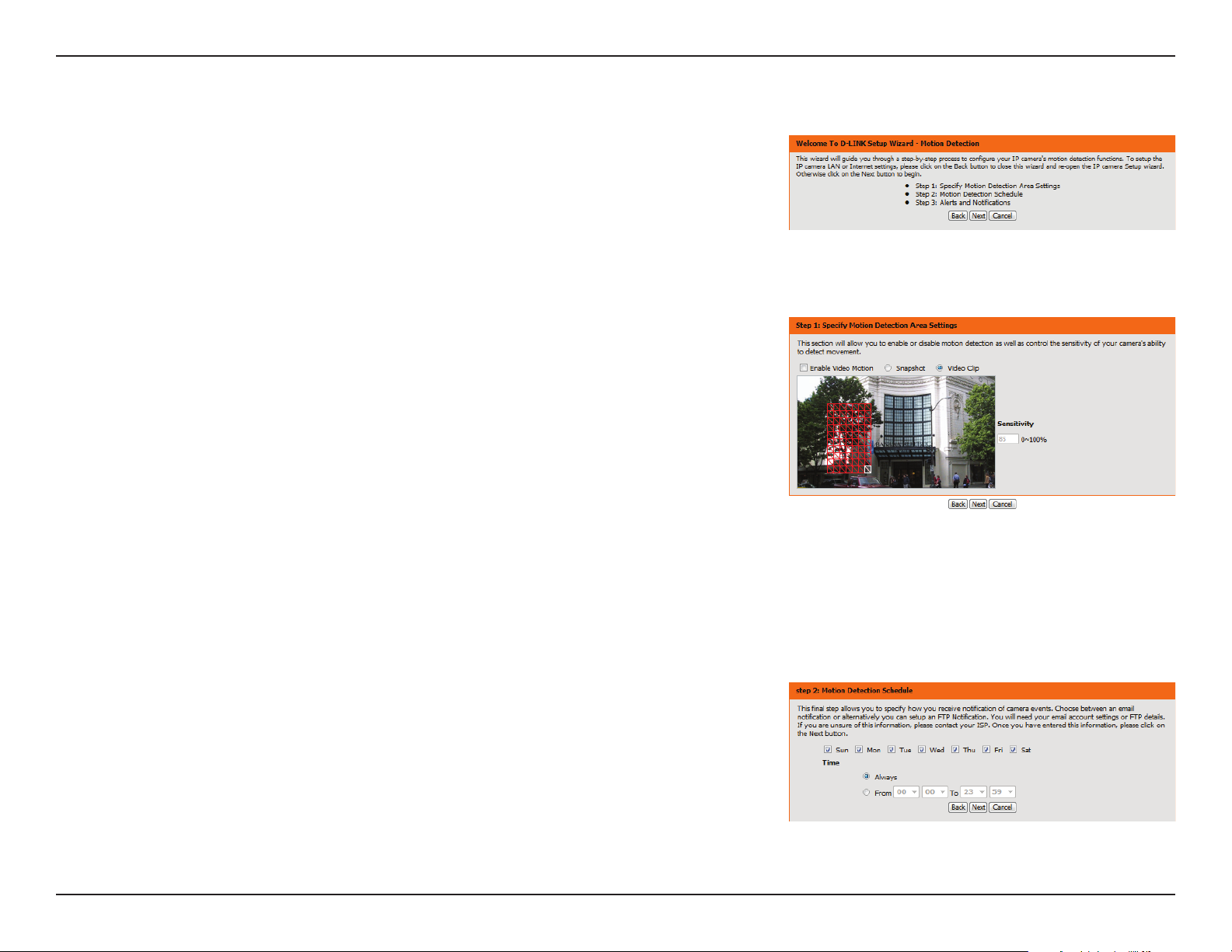

To quickly congure your Network Camera’s motion detection settings, click Motion
Detection Setup Wizard. If you want to enter your settings without running the wizard, click Manual Motion Detection Setup and skip to"Motion Detection" on page 37.
21D-Link DCS-1201 User Manual
Section 3: Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new D-Link Camera and connect the camera to the internet. Click Next to continue.
Select how the camera will connect to the Internet.
If your camera is connected to a router, or if you are unsure how your camera will connect to the Internet, select DHCP Connection.
Select Static IP if your Internet Service Provider has provided you with connection settings, or if you wish to set a static address within your home network. Enter the correct conguration information and click Next to continue.
If you are using PPPoE, select Enable PPPoE and enter your user name and password.
Click Next to continue.
22D-Link DCS-1201 User Manual
Section 3: Conguration
If you have a Dynamic DNS account and would like the camera to update your IP address automatically, Select Enable DDNS and enter your host information. Click Next to continue.
Enter a name for your camera and click Next to continue.
Congure the correct time to ensure that all events will be triggered as scheduled. Click Next to continue.
If you have selected DHCP, you will see a summary of your settings, including the camera's IP address. Please write down all of this information as you will need it in order to access your camera.
Click Apply to save your settings.
23D-Link DCS-1201 User Manual
Loading...
+ 51 hidden pages
