TABLE OF CONTENTS

Main Features ………………………………4

Before Using ………………………………5

Cautions on Installation ……………………5

Connecting the Included Antennas ………5

Connections…………………………………6

Part Names and Functions ……………7, 8

Remote Control Unit …………………9, 10

Cautions on Handling Discs ……………11

Listening to Radio Programs ………11 ~ 14

Using the Timer ……………………15 ~ 18

⁄0

•

ACCESSORIES

Check that the following parts are included in the package aside from the main unit:

qOperating instructions ……………………1 wService station list …………………………1 eFM antenna…………………………………1

MAIN FEATURES

1. Quality power for high quality sound

22W+22W (6 Ω/ohms, 1 kHz, T.H.D. 10%) high quality amplifier and terminals for large speakers.

2. MP3/WMA playback

Discs containing MP3 and/or WMA files can be played, and the track and artists names can be displayed during playback.

3. TONE and SDB control

TONE control is available for BASS and TREBLE separately and the SDB (Super Dynamic Bass) control enables powerful bass tones when listening at lower volume levels. This unit has Source Direct position to turn off the SDB/TONE.

Playing CDs …………………………19 ~ 22

⁄1

•

Normal Playback ………………………19

•

Various Playback Functions ……20 ~ 22

Playing MP3/WMA …………………23 ~ 25

⁄2

•

Normal Playback ……………………23, 24

•

Various Playback Functions ………24, 25

Auto On Function …………………………25

⁄3

Troubleshooting

⁄4

Specifications ……………………………26

⁄5

rAM loop antenna …………………………1 tRemote control unit (RC-999) ……………1 yR03/AAA batteries …………………………2

4. RDS compatible

Compatible with various RDS services, including program service name (PS) program type identification (PTY), traffic program identification (TP), clock time (CT) and radio text (RT).

…………………………

ENGLISH

BEFORE USING

Read the following before using the system.

• Before turning on the power

Check again that all connections are correct and that there are no problems with the connection cords. Be sure to unplug the power cord before connecting or disconnecting the connection cords. Humming may be produced if this system is set near a TV or other audio equipment. If this happens, try changing the position of the equipment or the connection cords.

• Moving the system

Be sure to remove CD before moving the system. If a CD is left in the CD receiver, it may be scratched. To prevent short-circuits or damage to the connection cords, always unplug the power cord and disconnect all connection cords to other audio equipment.

• Condensation (dew)

Condensation (water droplets) may be produced on internal optical lenses or discs in the following cases:

• Directly after a heater is turned on.

• When the system is in a steamy or humid room.

• When the system is moved abruptly from a cold place (room) to a warm room.

CAUTIONS ON INSTALLATION

Note: For heat dispersal, do not install this equipment in a confined space such as a book case or similar unit.

✽

Note

✽✽

• Should condensation occur:

The signals on the disc cannot be read and the system will not function properly. Remove the disc then let the system set with the power on. The condensation will evaporate in one hour or less, at which time the system will function normally.

• Store this instructions in safe place

After reading, store this instructions along with the warranty in a safe place. Also fill in the items on the back paper for your convenience.

• Illustrations in this manual

Note that some of the illustrations used for explanations in this manual may differ from the actual system.

✽

CONNECTING THE INCLUDED ANTENNAS

Installing the FM indoor antenna

Tune in FM station (see page 12), set the antenna so that distortion and noise is minimal, then secure the tip of the antenna in this position using tape or a pin.

AM loop antenna

Installing the AM loop antenna

Tune in an AM station (see page 12) and set the antenna as far from the system as possible to keep distortion and noise is minimal. In some cases, it is best to invert the polarities. AM broadcasts cannot be received well if the loop antenna is not connected or if it is set close to metal objects.

Assembling the AM loop antenna

FM antenna

Remove the vinyl tie and take out the connection line.

a. With the antenna

on top any stable surface.

b. With the antenna

attached to a wall.

Connecting an FM outdoor antenna

If good reception cannot be achieved with the included FM antenna, use an FM outdoor antenna. Connect an PAL-type connector to the coaxial cable and connect the antenna to the FM COAX. (75 Ω/ohms) terminal.

Selecting a place for the FM outdoor antenna

• Set the antenna so that it points towards the broadcast station’s transmitting antenna. Behind buildings or mountains, set the antenna in the position at which reception is best, and also try changing the direction of the antenna.

• Do not install the antenna under power lines. Doing so is extremely dangerous, as the power line could touch the antenna.

• Install the antenna away from roads or train tracks to avoid noise from cars or trains.

• Do not install the antenna too high, as it may be hit by lightning.

Installing an AM outdoor antenna

Connect the signal wire from the AM outdoor antenna to the antenna terminal. Be sure to connect the signal ground wire to the terminal. Also be sure to connect the included AM loop antenna.

AM outdoor antenna

Mount

Installation hole Mount on wall, etc.

Connection to the AM loop antenna terminals.

Bend in the reverse direction.

AM loop

Signal ground

antenna

ENGLISH

OUT

LINE

OUT

IN-2 IN-1

LINE

CONNECTIONS

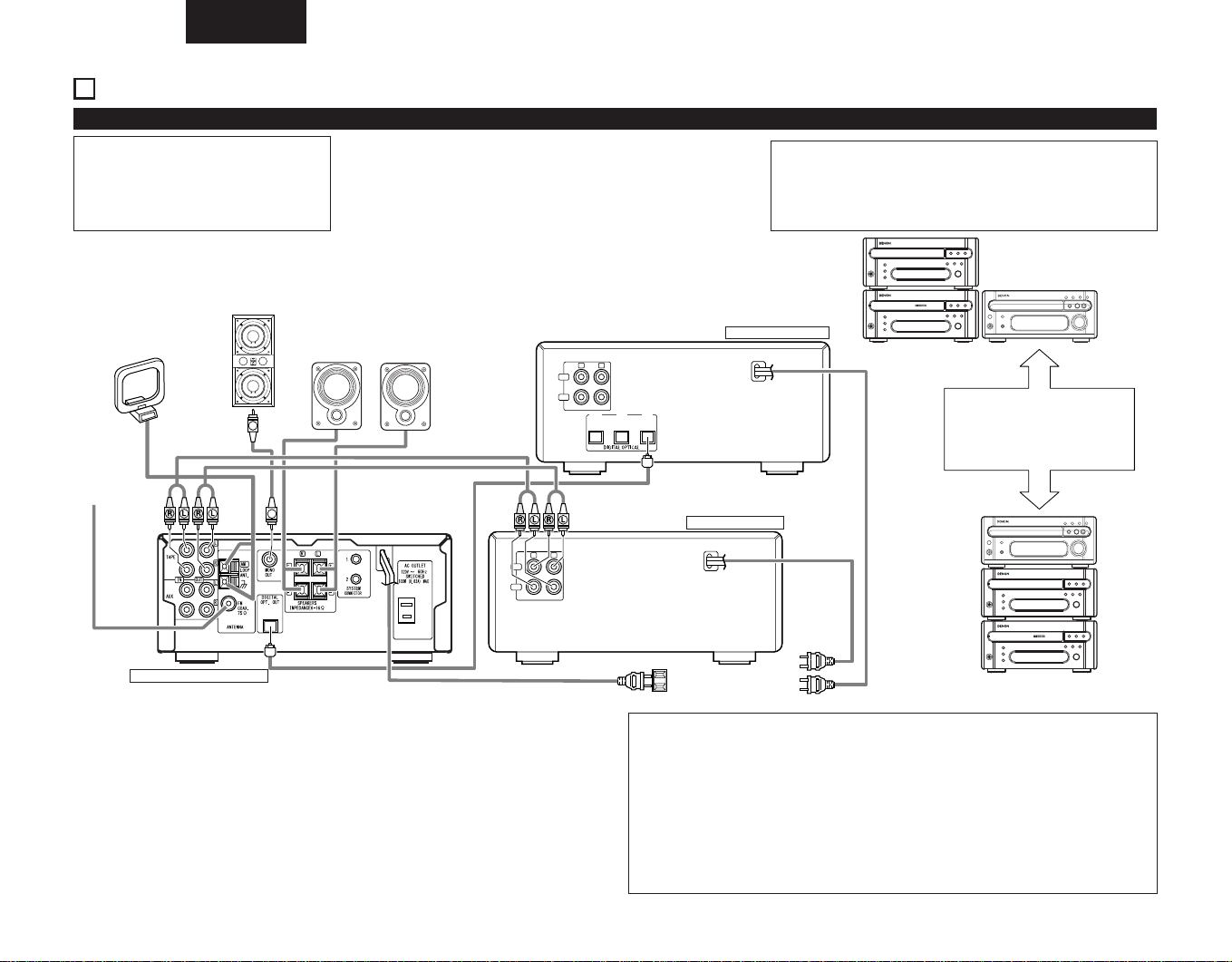

(1) Connecting to Cassette deck

NOTE:

• This system includes digital circuitry which may cause interference such as color blotching or changes in the color on TVs. If this happens, move the system and the TV as far apart as possible.

AM loop antenna

FM antenna

Subwoofer

Connecting the speaker systems

Connect the speaker system for the left channel (the left side as seen from the front) to the L terminals, the speaker system for the right channel to the R terminals. Refer to the instructions supplied with the speaker system for details. Be sure to use speaker systems with an impedance of 6 Ω/ohms or greater.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Speaker systems (SC-M53)

Right

Left

CD Recoder etc.

Cassette Deck

CAUTION:

• Whenever the power operation switch is in the STANDBY position, the unit is still connected to AC line voltage. Please be sure to unplug the power cord when you leave home for, e.g.,a vacation, etc.

CD Recoder etc.

Cassette Deck

Side by side installation

Install the sets as shown in one of these diagrams. In either case, be sure that the CD receiver’s ventilation holes are not obstructed.

RCD-M33

CD receiver (RCD-M33)

System operations

Such system operations as the timer and the auto power on functions, as well as remote control operations cannot be performed unless all the RCA pin-plug cords are connected between the units, so be sure to make all the connections properly as shown in the diagram. Be sure to unplug the power cord before changing connections.

CD Recoder etc.

Cassette Deck

Power plug

AC 120 V, 60 Hz (Plug into a power outlet)

Stacking installation

NOTES:

• Do not plug the power cord into the power outlet until all connections are completed. Be sure to interconnect the channels (L to L (white) and R to R (red)) properly, as shown on the diagram.

• Insert the plugs securely. Incomplete connections may result in noise.

• Be sure to connect the speaker cords between the speaker terminals and the speaker systems with the same polarities ( + to +, – to – ). If the polarities are switched, the sound at the center will be weak, the position of the different instruments will be unclear, and the stereo effect will be lost.

• After unplugging the power cord, wait about 5 seconds before plugging it back in.

• Note that setting the connection cords (pin-plug cords) next to the power cords may result in humming or other noise.

ENGLISH

CD TUNER TAPE AUX

SDB BASS S.DIRECTTREBLE

FM AUTO AMFM MONO

PART NAMES AND FUNCTIONS

(1) Front Panel

Power operation switch (ON/STANDBY)

• This turns the power for the entire system on and off.

• Press this once to turn the power on, then press again to set the power to STANDBY mode.

• The LED color changes as follows, according to the condition:

During power ON : green During STANDBY : red During TIMER STANDBY: orange

✻The muting mode is set when the main

unit’s power button is pressed and when the standby mode is canceled from the remote control unit. The power indicator flashes green when in the muting mode, then stops flashing and turns green once the set is in the operational mode.

✻If the indicator is flashing orange

(quickly): The protective circuit is activated. If this happens, unplug the power cord to turn the indicator off, then check the input and output terminals on the rear panel. Check in particular for shortcircuiting of the speaker cords. Once all connections have been corrected, plug the power cord. (Wait for at least 10 seconds after turning the power off before turning it back on.)

✻Power is supplied to the RCD-M33 even

when the power is in the standby mode (The clock is displayed in the clock display mode.)

Remote sensor

• When operating the remote control unit, point it at this sensor.

(See page 3.)

PHONES (headphones jack)

• Plug the headphones into this jack.

• No sound is produced from the speakers when headphones are plugged in.

FUNCTION button

• Use this to select the input (function).

• The input changes in the following order each time this button is pressed:

Display

• Refer to page 8.

1/ 3

(play/pause) button

• Press this button to start playing a disc. When the disc tray is closed, playback begins when this button is pressed.

• When pressed in STANDBY mode, the power automatically turns on and playback begins (Auto On function). Press this button again to stop playback temporarily.

VOLUME control

• Use this to adjust the overall volume (Rotary Encorder System).

• The volume increases when the control is turned clockwise (,) and decreases when it is turned counterclockwise (.).

• The volume increases and decreases in 35 steps from the minimum (VOLUME

00) to the maximum (VOLUME MAX).

NOTE:

• Care must be taken when you adjust

the volume as the CD receiver is equipped with an electronic volume control. Turn the VOLUME control slowly referring to the indication on the display to adjust the volume.

2 /BAND button

( 2 : CD stop button

BAND : TUNER band button)

• In CD function, press this button to stop playback.

• In TUNER function, each time this button is pressed, the band and FM reception mode change as follows:

SDB (Super Dynamic Bass)/TONE

button

• Press this button to select the preferred sound of TONE CONTROL/SDB. Each time this button is pressed, the display changes as follows:

• You can switch the SDB on/off by using the +/– (up/down) button.

• BASS and TREBLE can be adjusted by using the +/– (up/down) button.

• When you select S.DIRECT (Source Direct), SDB/TONE is switched off, and the sound characteristic becomes flat.

• SDB can be controlled powerful bass tones when listening at lower volume levels.

NOTE:

• The SDB should be deactivated when

listening at higher volume levels. Excessive bass at high volume levels will result in a distorted sound and may cause damage to your set and speaker system.

MENU/ SET button

• When pressed in the standby mode, the standby mode is switched (the clock display is switched on and off).

• When pressed while the clock is displayed, the manual time setting mode is set. (This cannot be set while the clock is displayed in the standby mode.)

• Switches the display of the timer setting menu on and off.

• When the function is set to FM and the CT tuning mode is set, the mode switches to the auto time setting mode.

• When the function is set to TUNER and an FM station is being received, if pressed for more than 1 second, the display switches to the AUTO PRESET menu.

8 /– , +/ 9 button

(8, 9 : CD automatic search

+ , – : TUNER up/down button)

• Use the 8 and 9 buttons to move to the beginning of a specific track while in CD function.

• Use the +/– button to select radio stations while in TUNER function.

• In TUNER function, press the 2 /BAND and + buttons at the same time to change the Preset mode, the 2 /BAND and – buttons at the same time to change the Tuning mode.

• Use the +/– button when you adjust tone control (BASS or TREBLE) and you select menu function (display, time, timer, or set up).

(open/close) button

• Press this button to open and close the disc tray.

• When pressed once, the disc tray opens out, and when pressed again, the disc tray closes. If a disc is loaded, the total number of tracks and total playing time of the disc are displayed several seconds after the disc tray is closed.

• When pressed in STANDBY mode, the CD receiver’s power turns on.

Disc tray

• Load discs here.

reverse/forward button

ENGLISH

qwe

rt y

o!0 !2

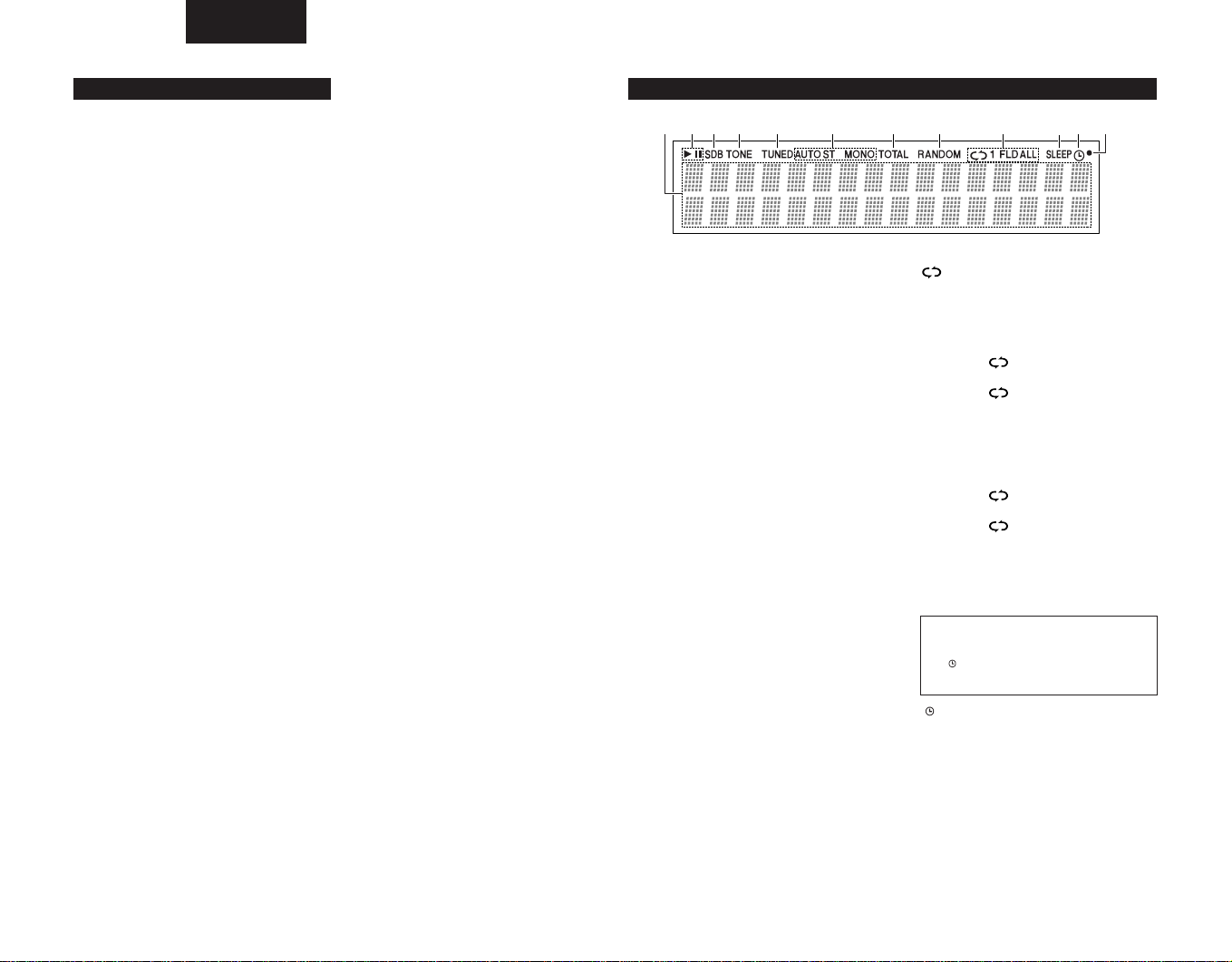

(2) Rear Panel (3) Display

AUX IN (analog input) jacks

• This is an input terminal.

AUX OUT (analog output) jacks

• This is an output terminal for recording.

FM antenna terminal

(ANTENNA TERMINAL FM)

• Connect the FM antenna here.

Digital output jack

(DIGITAL OPTICAL OUT)

• Digital data is output in optical form from this jack.

Speaker terminals (SPEAKERS)

• Use these to connect the speakers.

System connectors

(SYSTEM CONNECTOR 1 and 2)

• When connecting the cassette deck, connect these connectors to system connectors on other system components. (Use the system cords included with the other components.)

AC OUTLET

• When using in combination with the cassette deck, connect to the AC outlet on the CD receiver (RCD-M33) or one of the other components (100W MAX).

Power cord

• Plug this cord into a wall power outlet.

MONO OUT terminal (SUB WOOFER)

• Connector jack for subwoofer with builtin amplifier (super woofer), etc.

AM antenna terminal

(ANTENNA TERMINAL AM)

• Connect the AM antenna here.

TAPE OUT (analog output) jacks

• This is an output terminal for recording.

TAPE IN (analog input) jacks

• This is an input terminal.

Segment

The selected functions, volume, reception band, reception frequency, RDS data, time, and timer settings are displayed here.

1/ 3

1 (the play indicator) lights when a disc is

playing, and 3 (the pause indicator) lights when pause mode is set.

SDB

This lights when SDB mode is on.

TONE

This lights when the TONE is adjusted.

TUNED

This lights when a station is tuned in properly.

AUTO / ST / MONO

These display the FM reception mode. ST : This lights when a stereo

MONO : This lights when a monaural

AUTO : This lights when the BAND

TOTAL

Lights when the total remaining time or the total number of tracks remaining on the disc is displayed on the segment.

RANDOM

“RANDOM” lights during random play.

program is received in the FM AUTO mode.

program is received in the FM AUTO mode and when the BAND button is pressed, setting the FM MONO mode.

button is pressed, setting the FM AUTO mode.

/ 1 / FLD / ALL

This changes as follows each time the REPEAT button is pressed.

• When the function is set to CD and the mode is not the folder mode: 1st press : 1 (single-track repeat)

2nd press : ALL (1 disc all track

3rd press : Nothing is displayed.

• When the function is set to CD and the folder mode is set (only valid for discs containing MP3 and/or WMA files): 1st press : 1 (single-track repeat)

2nd press : FLD (all track in a

3rd press : Nothing is displayed.

SLEEP

This lights when the sleep timer is operating.

is displayed.

repeat) is displayed.

is displayed.

folder repeat) is displayed.

NOTE:

• The timer standby mark (“ ”) does not light if the current time and the timer have not been set.

The timer will operate when this is lit.

Remote control signal indicator

Flashes when remote control signals are received.

ENGLISH

30°

REMOTE CONTROL UNIT

The RCD-M33 comes with a system remote control unit (

• The supplied remote control unit (RC-999) is for use with the RCD-M33 unit only.

• If the cassette deck is connected to the main unit, you may operate each of the above components using its respective remote control unit (refer to pages 9, 10).

(1) Inserting the batteries

q Open the battery compartment cover of the

remote control unit. Press the knob and open the cover in the direction of the arrow.

w Insert the two R03 (AAA) batteries, following

the + and – marks in the battery compartment.

e Close the cover of the battery compartment.

(2) Using the Remote Control Unit

• The remote sensor is located on the CD receiver. Point the remote control unit at the remote sensor as shown on the diagram when operating it.

• The remote control unit will operate from a direct distance of approximately 7 meters, but this distance will be shortened if obstacles are present or if operated at an angle. (The remote control unit will operate at an angle of up to 30° in either direction.)

• Use R03 (AAA) batteries in this remote control unit.

• Replace the batteries with new ones after approximately 1 year, though this depends on the frequency with which the remote control unit is used.

• Replace the batteries with new ones if the unit does not operate when the remote control unit is operated from nearby, even if the batteries are less than a year old.

• Be sure to insert the batteries in the proper direction, following the “ < ” and “ > ” marks in the battery compartment.

• To avoid damage or leakage of battery fluid:

• Do not use a new battery with an old one.

• Do not use two different types of batteries.

• Do not short-circuit, take apart, heat or

dispose of batteries in flames.

• Remove the batteries when you do not plan to use the remote control unit for an extended period of time.

• If the battery fluid should leak, carefully wipe off the fluid from the inside of the battery compartment, then insert new batteries.

NOTES:

• The remote control unit may not operate if

the remote sensor is exposed to direct sunlight or the strong light from a lighting fixture, or if there is an obstacle between the remote control unit and the remote sensor.

• Do not press buttons on the remote control

unit and on the set at the same time. Doing so could result in malfunctions.

• If the remote control unit is pointed away

from the re-mote sensor during continuous operations (such as when turning the volume up or down), the operation will stop. If this happens, point the remote control unit at the remote sensor and press the button again.

RC-999

Cautions on Batteries

(3) Remote Control Unit Part Names and Functions

q SLEEP button

w r

q e

t u

w OFF button

e TUNER button

r CD button

t PROG/DIRECT button

y EDIT button

@4 @3

@1 !9

u CALL button

i Number buttons

@2 @0

o FOLDER (+ / –) button

!5 !7

!6 !8

• Press this button to set the sleep timer.

•Use this switch to set the power to STANDBY mode.

• Press this button to set the function TUNER mode.

• Press this button to set the function CD mode.

• Press this button to switch between PROGRAM and DIRECT play.

In CD function :

• Press this button for edited recording on a tape, dividing the tracks onto sides A and B according to the length of the tape.

In TUNER function :

• Press this button to input the station name.

• Use this button to confirm the programmed song.

In CD function :

• Press these buttons to specify the desired track.

In TUNER function :

• Press these buttons to recall preset station.

For MP3/WMA discs with the function set to CD:

• Select the folder.

• In the play and pause modes, the first track in the selected folder is selected.

ENGLISH

frequency

(PS)

PTY

file name Title / Artist

Title / Album

elapsed time

per track

remaining time

for the track

total remaining time

on the disc

RDS PTY TP

OFF

FM AUTO FM MONO

TAPE AUX

!0 MENU/ SET button

• When pressed in the standby mode, the standby mode is switched (the clock display is switched on and off).

• When pressed while the clock is displayed, the manual time setting mode is set. (This cannot be set while the clock is displayed in the standby mode.)

• Switches the display of the timer setting menu on and off.

• When the function is set to FM and the CT tuning mode is set, the mode switches to the auto time setting mode.

•When the function is set to TUNER and an FM station is being received, if pressed for more than 1 second, the display switches to the AUTO PRESET menu.

!1 ENTER/ MEMO button

• Press this button to enter editing settings.

• Press this button to preset memory.

!2 8 /CH–

(automatic search) button

In CD function :

• Move to the beginning of current Track or previous Track.

In TUNER function :

• Use this button to recall preset stations on the tuner.

!3 6 /TU–

(manual search / rewind) button

In CD function :

• The manual search operation is performed.

In TUNER function :

• Use this button to selecting the station.

In TAPE function :

• Press this button to rewind the front side of the tape. (The back side of the tape is fast-forwarded.) Also use this button to search for the beginning of the current selection when playing in the forward (1) direction, or to search for the beginning of the following selection when playing in the reverse (0) direction.

!4 SDB /TONE button

• Press this button to adjust SDB (Super Dynamic Bass) and TONE.

!5 DIMMER button

• Use this to adjust the brightness of the main unit‘s display. Can be switched in 4 steps, from OFF to always on.

!6 DAB/ RDS button

• Use this button to automatically tune to stations using the radio data system.

!7 0 (reverse play) button (TAPE)

• Not supported.

!8 1 (forward play) button (TAPE)

• Not supported.

(stop) button (TAPE)

• Not supported.

(play/pause) button (MD)

1/3

• Not supported.

@1 PTY button

• Press this button after selecting “PTY” with the RDS button to select one of the 24 program types.

@2 CLOCK button

• Press this to switch the clock display between on and off.

@3 TIME/ DISPLAY button

For audio CDs with the function set to CD:

• Press this button during the play or pause mode to switch the time display.

(During programmed playback, indicate the total remaining time of the programmed tracks.)

For MP3/WMA discs containing track information with the function set to CD:

• Press this button during the play or pause mode to switch the track information.

With the function set to TUNER, and in the FM and RDS modes:

• Press to switch the display below.

PS:This is displayed when the radio station

currently being received is one named using the procedure described in “P13 – Presetting or naming radio stations”.

@4 9 /CH+

(automatic search) button

In CD function :

• Move to the beginning of Next Track. In TUNER function :

• Use this button to recall preset stations on the tuner.

@5 7 /TU+

(manual search / fast-forward) button

In CD function :

• The manual search operation is performed.

In TUNER function :

• Use this button to selecting the station.

In TAPE function :

• Press this button to fast-forward the front side of the tape. (The back side of the tape is rewind.) Also use this button to search for the beginning of the following selection when playing in the forward ( direction, or to search for the beginning of the current selection when playing in the reverse (0) direction.

@6 MUTE button

• Mutes the speaker output. When operated while the output is muted, the mute mode is canceled.

(stop) /BAND button

• In CD function, press this button to stop playback.

• In TUNER function, use this button to selecting the band.

@8 VOLUME button

• Use these buttons to adjust the volume.

• The volume increases when the • button is pressed and decreases when the button is pressed.

@9 CD 1/ 3 (play/pause) button

• Press this button to play or pause of the CD player.

#0 CLEAR/ DEL button

In CD function :

• Press this button to clear the track from the program.

In TUNER function :

• Press this button to erase the station name.

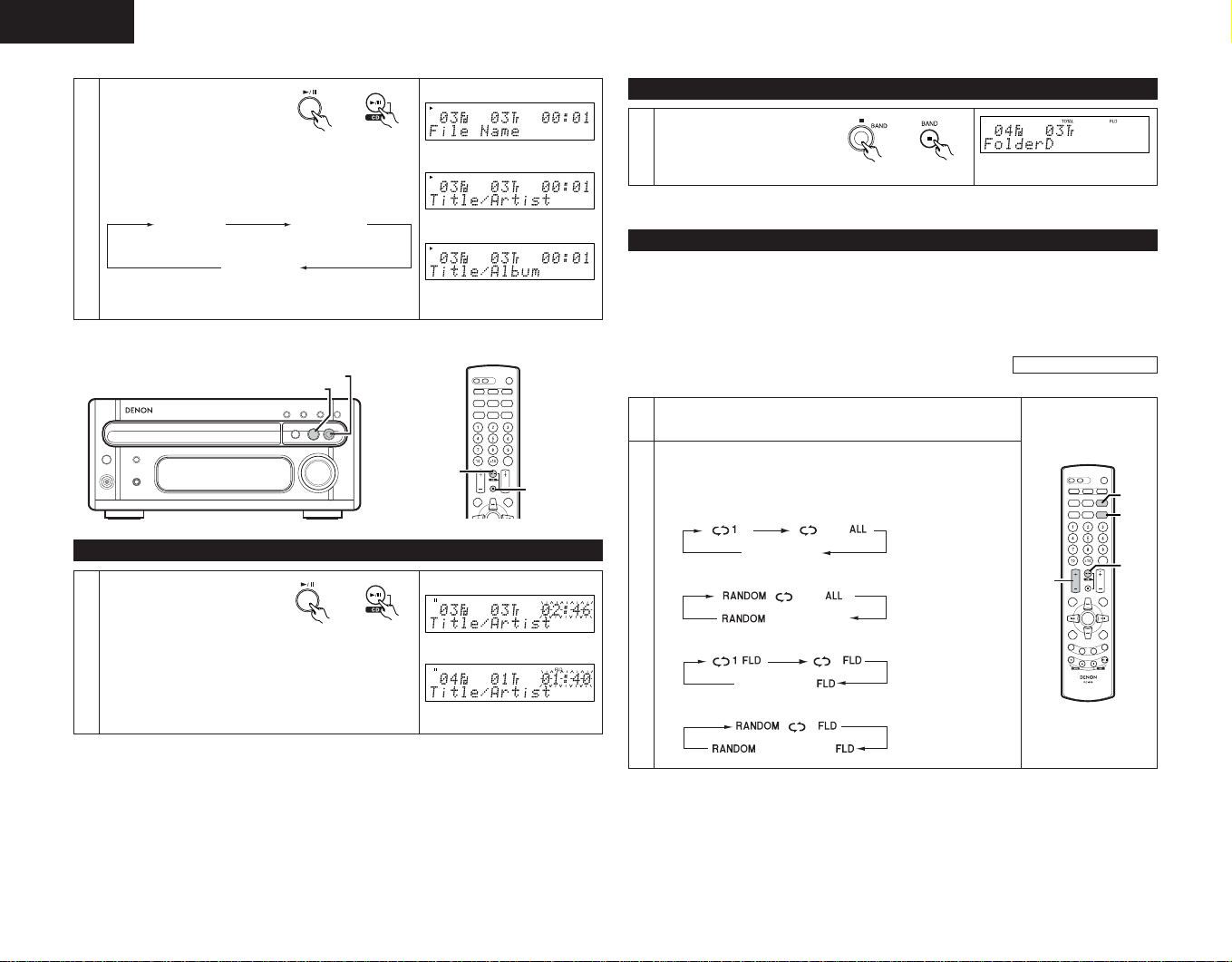

#1 FOLDER MODE button

• For MP3/WMA discs with the function set to CD, switches the play mode between disc and folder.

#2 REPEAT button

• Press this button for repeat playback.

#3 RANDOM button

• Press this button to set the tracks in random order.

#4 LINE button

• Press this button to switch the function LINE .

The input changes in the following order each time this button is pressed.

#5 POWER ON button

• Use this switch to turn on the power of

the entire system.

ENGLISH

4, 5

CAUTIONS ON HANDLING DISCS

About Compact Discs

Only discs with the mark can

Use compact discs that include the Cmark. CD’s with special shapes (heart-shaped CDs,

octagonal CDs etc.) cannot be played on this set. Attempting to do so may damage the set. Do not use such CDs.

• Removing discs from their cases

As shown on the diagram, grasp the outer edge of the disc with your fingers, insert a finger in the center hole, press gently, then lift the disc out of the case.

• Loading discs in the disc tray

Be sure to load the disc with the labelled side facing up. (Compact discs only play on one side.) For 8 cm CDs, set the disc in the sunken section in the center of the tray.

be played on the RCD-M33.

NOTES:

• The disc tray opens when the 5 (open/close) button is pressed once and closes when it is pressed again.

•When the disc tray is closed, the disc turns automatically for several seconds, then the total number of tracks and total playing time of that disc appear on the display.

• The disc tray can also be closed by pressing

1/ 3

the

(play /pause) button, in which case playback automatically starts from the first track on the disc (or if tracks are programmed, from the first programmed track).

Handling the Disc Tray:

• Do not turn off the power, stop the disc tray by hand or pull on it when it is moving. Doing so may damage it. If the headphones’ cord or some other object accidentally gets caught in the disc tray while it is closing and the disc tray stops, press the 5 (open/close) button again to open the tray and remove the obstacle. Do not set objects other than discs on the disc tray. Doing so may damage it.

LISTENING TO RADIO PROGRAMS

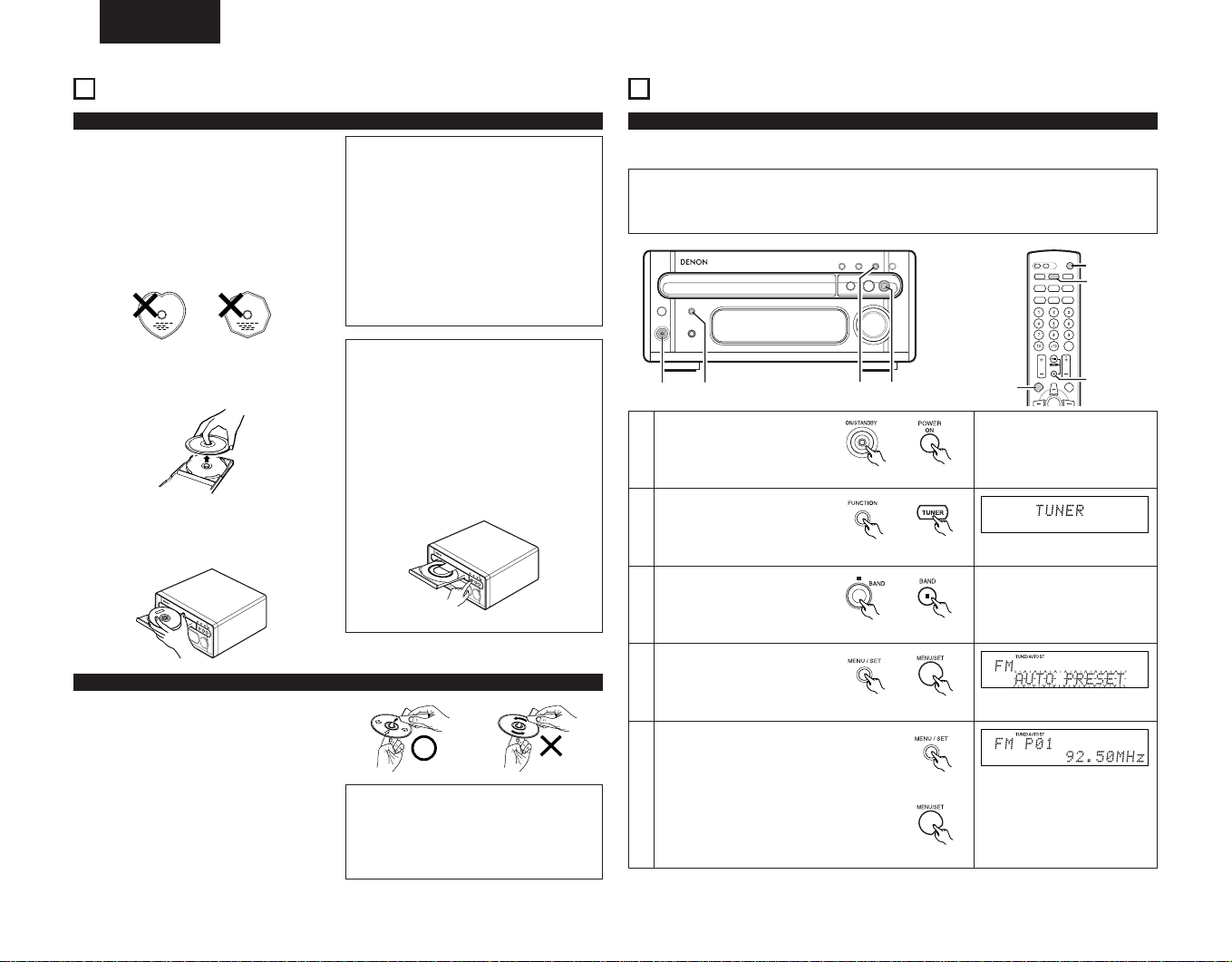

Auto tuner presets

Use this to automatically search for FM broadcasts and store up to 40 stations at preset channels 1 to 40.

NOTE:

If an FM station cannot be preset automatically due to poor reception, use the “Manual

• tuning” operation to tune in the station, then preset it using the manual “Preset memory” operation.

Press the power operation

switch to turn on the power.

Press the FUNCTION or TUNER button to select TUNER

mode.

Press the 2 /BAND button to

select FM AUTO or FM MONO.

4, 5

Main unit Remote control unit

Remote control unit

Main unit

Main unit Remote control unit

(Check the connections on pages 5, 6.)

Cleaning Discs

Dust, fingerprints or spit on the disc will result in noise or skipping. If the disc is dirty or if the CD receiver does not operate properly, use the following procedure to clean the disc:

• Hold the disc with the signal surface (the side opposite the labelled side) facing up, as shown in the diagram.

•Wipe the disc gently from the center towards the edge (in the direction of the arrow) with a soft cloth.

Do not clean discs with the following:

• Benzene, alcohol or other solvents

• Cleaner including an abrasive

• Sprays or cleaners designed for records

• Anti-static

NOTES:

• Do not wipe discs in the direction opposite the arrow or in a circular motion as with regular records.

• The disc’s signal surface is easily damaged, so do not wipe it with a hard cloth or rub it strongly.

Press the MENU/ SET button for at least 1 second.

Press the

• cancel.

Use the MENU/ SET button to start searching.

When auto presetting is completed, the

• station set at preset position 1 is

displayed. If you want to stop searching, press the

•

/BAND

button.

/BAND

button to

Main unit Remote control unit

Main unit

Remote control unit

ENGLISH

4 4

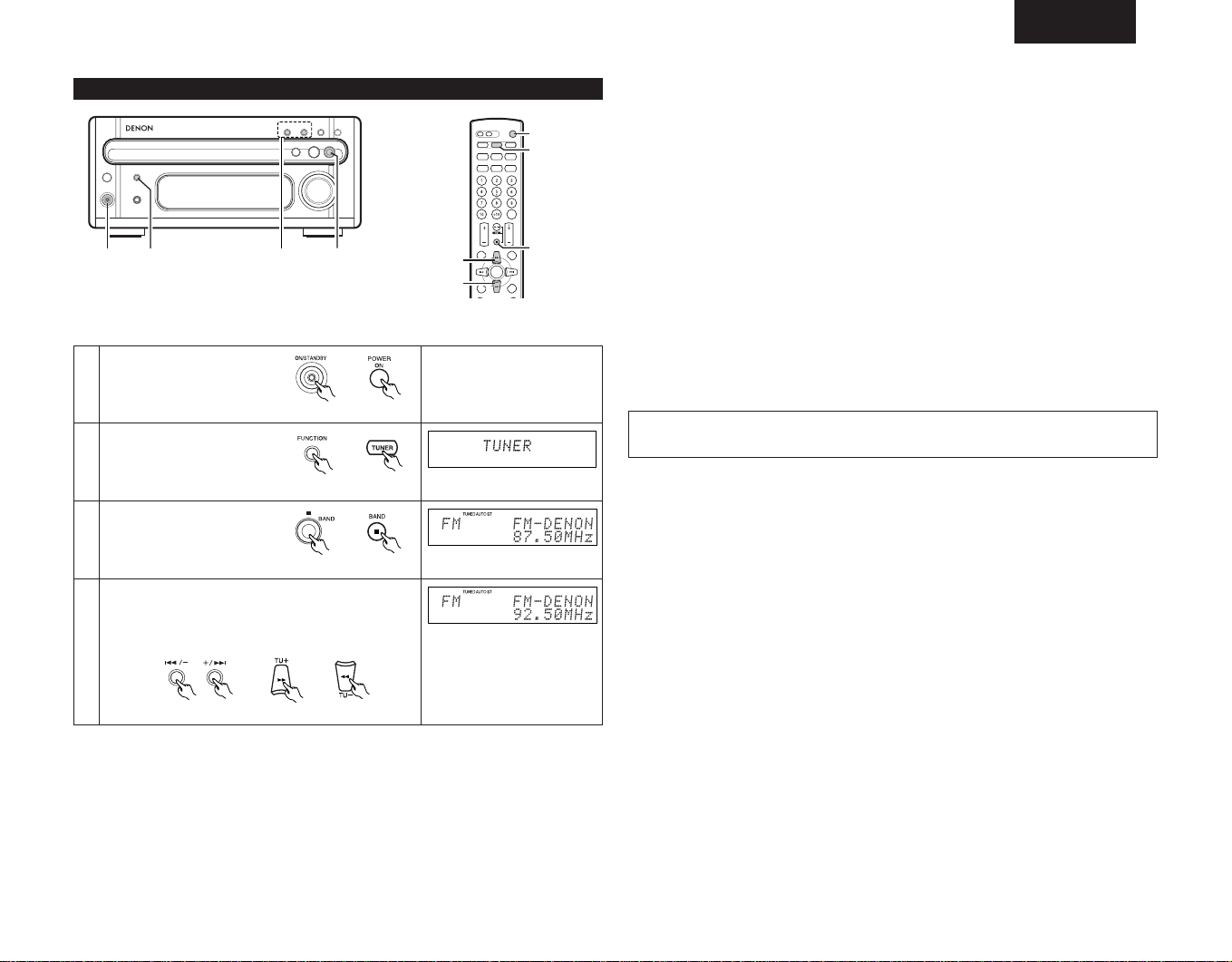

Manual tuning

Example: Tuning in FM 92.50 MHz (AM stations are tuned in using the same procedure.)

Press the power operation

switch to turn on the power.

Main unit Remote control unit

Press the FUNCTION or TUNER button to select TUNER

mode.

Press the the tuner to select the FM

AUTO.

Use the Tuning +/– (TU+/ TU–) button to tune the frequency to 92.50. Once the frequency is tuned in, adjust the volume to the desired level using the VOLUME control.

✽

/BAND

button on

Remote control unit

Main unit

Main unit Remote control unit

✽The function of the +/– button on the main unit may toggle between Tuning +/– and Preset +/–

functions.

• Pressing the – button while holding down the BAND button at the same time changes function of the +/– button to Tuning +/–. (“TUNING” flashes for 5 seconds.)

• Pressing the + button while holding down the BAND button at the same time changes the function of the +/– button to Preset +/–. (“PRESET” flashes for 5 seconds.)

• The +/– button is factory preset to function as a Tuning +/– button. However, be sure that the +/- buttons function as the Tuning +/– button before proceeding with step 4.

Auto Tuning

• When a program being broadcast in stereo is received, the “ST” indicator lights and the program is received in stereo.

• If reception is poor and there is much noise in the stereo signals, press the BAND button to set the FM MONO mode.

• When one of the Tuning +/– (TU+/ TU–) button is pressed, the frequency changes in steps of 200 kHz in the FM band, 10 kHz in the AM band.

• If one of the Tuning +/– (TU+/ TU–) button is held for over 1 second, the frequency continues to change when the button is released (auto tuning) and stops when a station is tuned in. Tuning will not stop at stations whose reception is poor.

• To stop the auto tuning function, press the Tuning +/– (TU+/ TU–) button once.

NOTE:

A humming sound may be heard when using a TV nearby while receiving AM programs. If

•

this happens, move the system as far from the TV as possible.

Main unit

Remote control unit

ENGLISH

ENTER/MEMO

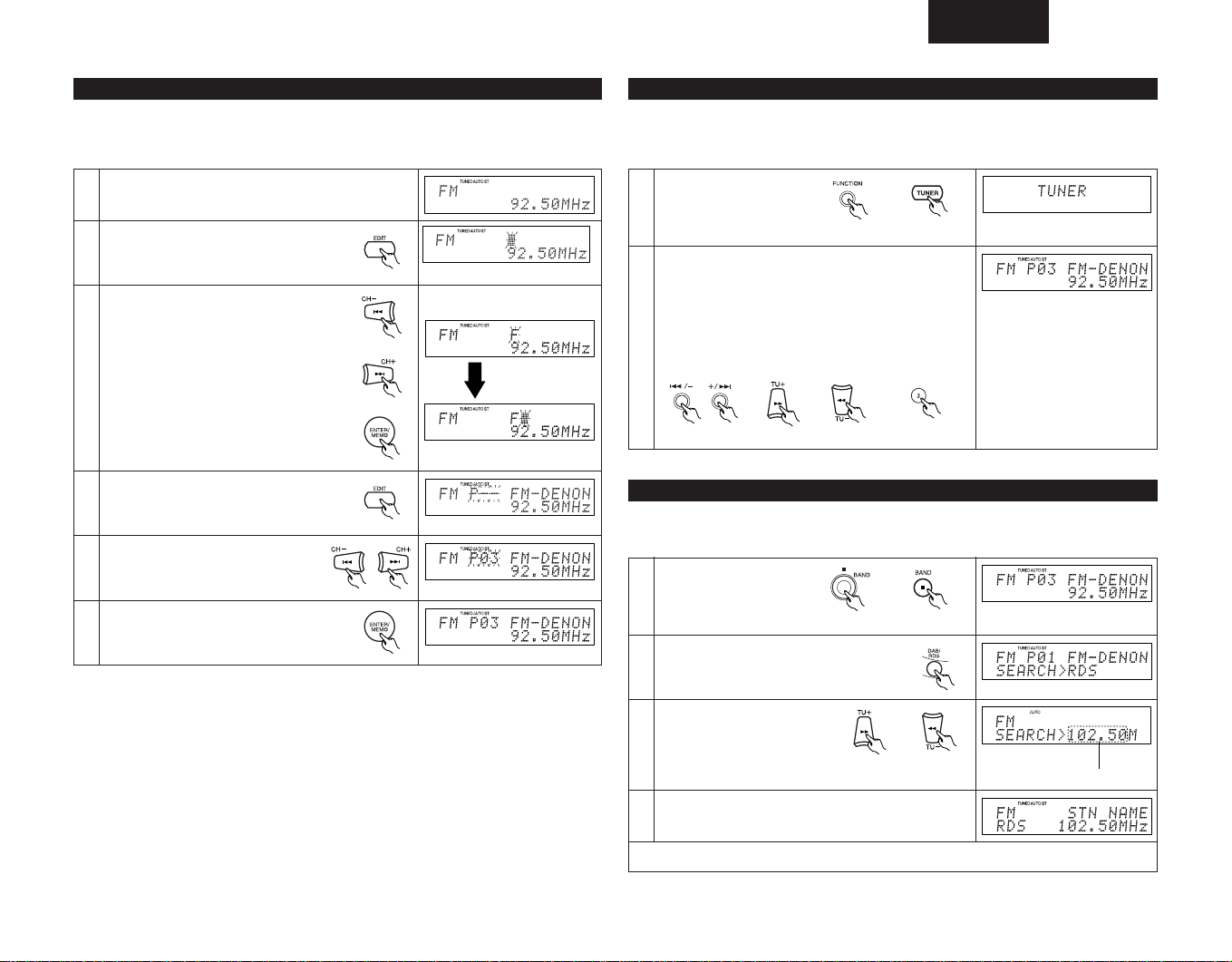

Presetting or naming radio stations

(This operation is only possible from the remote control unit.)

You can preset up to 40 FM/AM stations. You can name the preset stations (up to 8 characters each).

Tune in the desired preset station.

Press the EDIT button on the remote control unit.

You can now begin character input.

•

Press the 9 /8 button until the desired character appears on the display. Press the ENTER/ MEMO button on the remote control unit to store the input character.

Press the 7 button or the ENTER/

• MEMO button to store the input

character. The cursor will move to the next character space. Repeat step 3 until all the characters have been stored. You can move the cursor backward by

• pressing the 6 button to make corrections.

Press the EDIT button to confirm the

names of the preset stations..

Press the 9 /8 button on the remote control unit to tune in the

desired preset number.

Flashes

Next Flashes

Listening to Preset Stations

If the following operation is performed when the system power is off, the power automatically turns on and the radio is played. (Auto on function)

Example: Listening to the station preset at number 3

Press the FUNCTION or TUNER button to select TUNER

mode.

Use the “9” and “8 ” buttons to select preset number “3” or press the “3” button on the numeric keypad to display preset number “P03”.

The “9” and “8” buttons on the main unit can

• be selected when the preset mode has been set.

ress the 2 /BAND and + buttons at the same time to

change the Preset mode.)

Main unit Remote control unitRemote control unit

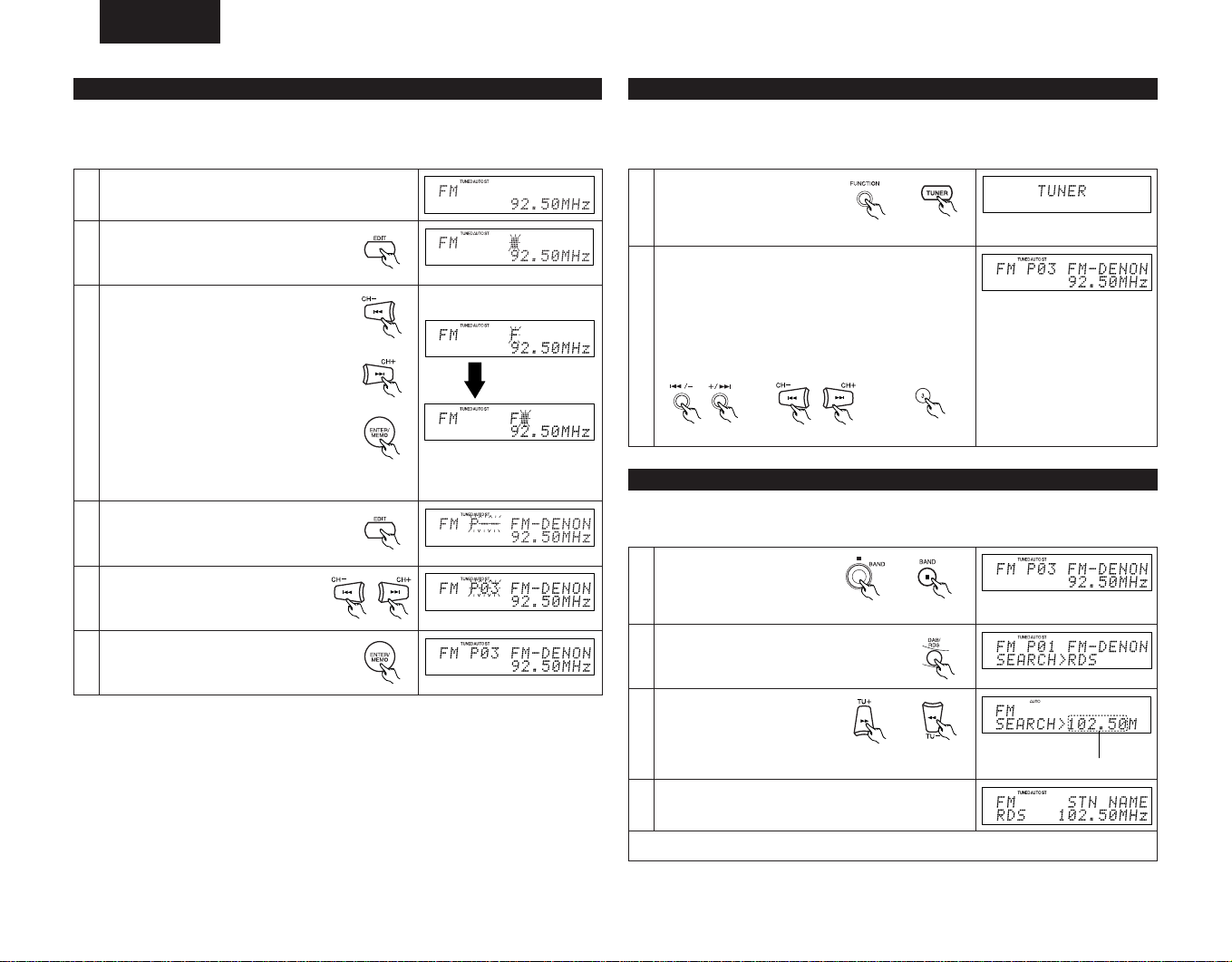

Using the RDS functions

(This operation is only possible from the remote control unit.) Receiving RDS broadcasts (FM only)

Press the BAND button and set

the FM AUTO.

Main unit Remote control unit

Press the ENTER/ MEMO button to confirm

the preset station number.

• To change a preset station name, press the CH+(9)/ CH–(8) to display the preset station you want to change, then press EDIT and use the same procedure as in step 3 above to change.

• To preset only the frequency of the radio station, start over from step 1. Then press the ENTER/ MEMO button and proceed to steps 5 through 6. The display shows the preset number, band and frequency.

Press the RDS button.

Press the TU+(7 ) or

TU–(6) button. (auto tuning)

The station is tuned in.

NOTE: If no RDS station is found, “ NO PROGRAM ” is displayed.

Reception frequency

ENGLISH

PTY Search

Press the RDS button twice.

Press the PTY button to select the type of program.

(One of the 24 types listed below can be selected.)

Press the TU+(7 ) or

TU–(6) button. (auto tuning)

Reception frequency

The station is tuned in.

NOTE: If no program of the specified type is found, “ NO PROGRAM ” is displayed.

Program Types

(News)

(Information)

(Sports)

(Talk)

(Rock)

(Classic Rock)

(Adult Hits)

(Soft Rock)

(Top 40)

(Country)

(Oldies)

(

)

Soft

(Nostalgia)

(Jazz)

(Classical)

(R&B)

(Soft R&B)

(Language)

(Religious Music)

(Religious Talk)

(Personality)

(Public)

(College)

(Weather)

TP Search

Press the RDS button 3 times.

Press the TU+(7 ) or

TU–(6) button. (auto tuning)

Reception frequency

The station is tuned in.

NOTE: “ NO PROGRAM ” is displayed when there is no traffic information broadcast station.

Radio Text

To set the RT mode, press the TIME/ DISPLAY button on the remote control unit

until “Radio Text” scrolls on the display.

When the station currently tuned in is offering a radio text message service, the

message scrolls on the display.

• When the RT mode is turned on while an RDS radio station not offering an RT service is tuned in, “NO TEXT” is displayed on the display, then the mode automatically switches to the PS mode.

• In the same way, the mode automatically switches to the PS mode when the RT service is finished. In this case, the mode automatically switches from the PS mode back to the RT mode when an RT broadcast is resumed.

• The RT mode cannot be set in the AM band or for FM stations not offering RDS broadcasts.

• To turn the RT mode off, press the TIME/ DISPLAY button and switch to the desired display mode.

Scrolling display

ENGLISH

2, 4, 6

3, 5

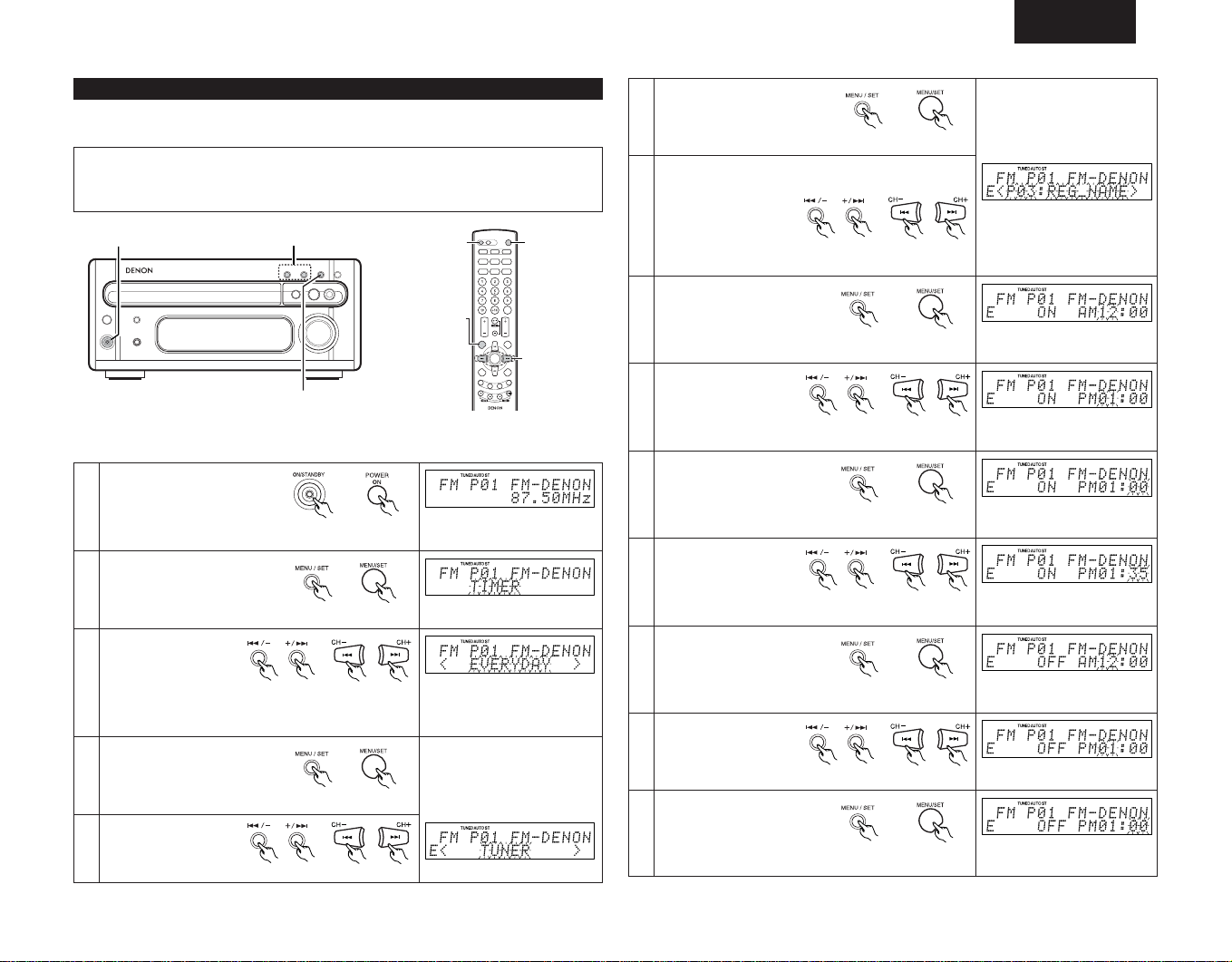

USING THE TIMER

The time and timer functions are incorporated in the CD receiver.

Timer Settings

Types of timer operations

EVERYDAY TIMER : Use this to turn the power on and standby at the same time every day. ONCE TIMER : Use this to turn the power on and standby once. SLEEP TIMER : Use this to set the power to turn standby after 10 to 90 minutes, in steps

Notes on timer settings

• Be sure to set the current time beforehand.

• To listen to or record a radio program (“air check”) using the timer, be sure to preset the station beforehand. (Refer to “Presetting or naming radio station” on page 13.)

Power Failures

If the power cord is unplugged or there is a power failure, the settings of the current time and once timer are erased and the time display will flash. If this happens, reset the current time and the once timer. Also check the timer and tuner presettings, and reset them if they have been cleared.

Checking the Settings

To check the timer settings, press the MENU/ SET button to select TIMER. Next, press the 9 or 8 button to select EVERYDAY or ONCE TIMER, then press the MENU/ SET and 9/ 8 button repeatedly to display in order: Timer Setting mode, Function selection, (when in TUNER mode) the reception band and preset channel number, Timer On time, Timer Off time and Timer ON/OFF. Press the MENU/ SET button again to return to the current mode display.

Changing the Settings

Repeat the timer setting operation to erase the previous settings and set the new settings.

Clearing the Settings

Press the MENU/ SET button to select TIMER. Next, press the 9/ 8 button to select EVERYDAY, then press the 2 (stop) button for at least 2 seconds while EVERYDAY is displayed to clear the everyday timer settings. Press the MENU/ SET button to select TIMER. Next, press the 9/ 8 button to select ONCE, then press the 2 (stop) button for at least 2 seconds while ONCE is displayed to clear the everyday timer settings.

Note on Setting the Timer

If the time set with the timer is reached while the system power is on, the operation switches to the operation set by the timer.

Turning the Timer Off

Follow the steps for “to turn on or turn off EVERYDAY/ONCE timer feature” to turn off the EVERYDAY/ONCE timer mode.

of 10 minutes (operated from the remote control unit).

Setting the Current Time

The time is displayed in the 12-hour mode.

2, 4, 63, 5

Example: Setting to 9:30 p.m.

Press the CLOCK button and select the

clock display mode.

Press the MENU/ SET button for at least 1 second to select the manual time setting mode.

(This cannot be set while the clock is displayed in the standby mode.)

Use the 9 or 8

button to set the hours.

Press the MENU/ SET button.

Use the 9 or 8 button to set the

minutes.

Press the MENU/ SET button at the cue of a separate clock or time service to start the clock.

The time display stops flashing and the clock starts

• running.

Main unit

Main unit Remote control unit

Remote control unit

Remote control unitMain unit

The hours place flashes. (If the hours have already been set, that number flashes.)

The hours place flashes.

The minutes place flashes. (If the minutes have already been set, that number flashes.)

The minutes place flashes.

The display stops flashing and the clock starts running from 00 seconds.

NOTE:

• Be sure to set the power to the standby mode when using the timer.

• If an RDS station offers a time service the time can be set by pressing the TIME/ DISPLAY and MENU/ SET buttons on the remote control unit while that station is tuned in.

ENGLISH

2, 4, 6, 8, 10, 12, 14, 16, 18

1, 19

3, 5, 7, 9, 11, 13, 15, 17

2, 4, 6, 8, 10, 12, 14, 16, 18

3, 5, 7, 9, 11, 13, 15, 17

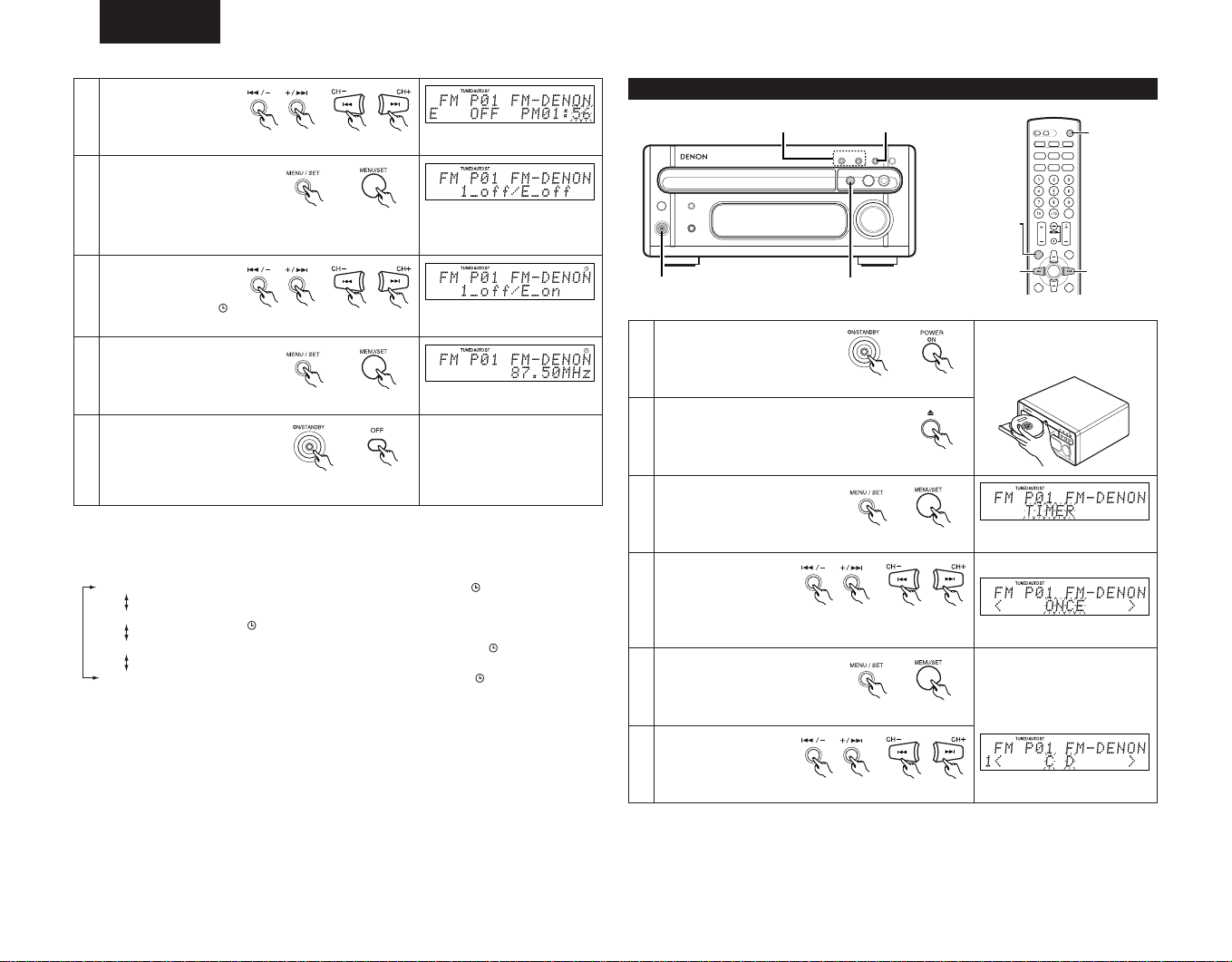

Setting the Timer

The power can be set to turn on and off at a specific time or at the same time everyday.

NOTE:

• Please do not change the setup function of this unit after performing the timer setup. In the event the setup function is changed, the timer start mode may not start properly.

Example: Setting the tuner to turn on at 1:35 p.m., off at 1:56 (with FM 92.50 MHz preset at

channel 3) with everyday timer.

Press the power operation

switch to turn on the power.

Main unit Remote control unit

Press the MENU/ SET button to

set the timer setting mode.

Main unit

Press either the 9 or

8 button as desired.

The everyday timer is selected and “EVERYDAY”

• appears in the display.

Press the MENU/ SET button.

Use the 9 or 8 button to set the

“TUNER” mode.

Main unit Remote control unit

Remote control unit

Remote control unitMain unit

Say that FM 87.5 MHz is tuned in preset channel number “ 1 ”.

Flashes

Press the MENU/ SET button.

Remote control unitMain unit

Use the 9/ 8 button to set the preset channel number.

Main unit Remote control unit

Press the MENU/ SET button.

Remote control unitMain unit

Use the 9 or 8 button to set the hours

for the timer on time.

Press the MENU/ SET button.

Use the 9 or 8 button to set the

minutes for the timer on time.

Press the MENU/ SET button.

Use the 9 or 8 button to set the hours

for the timer off time.

Press the MENU/ SET button.

Main unit Remote control unit

Remote control unitMain unit

Main unit Remote control unit

Remote control unitMain unit

Main unit Remote control unit

Remote control unitMain unit

Flashes

(If the timer has already been set, that number flashes.)

Flashes

ENGLISH

1 _ on / E _ on :

1 _ off / E _ on :

1 _ on / E _ off :

1 _ off / E _ off :

Use the 9 or 8 button to set the

minutes for the timer off time.

Press the MENU/ SET button.

Use the 9 or 8 button to select

✽

“1_off/E_on”.

The mark lights.

•

Press the MENU/ SET button.

Press the power operation switch to turn standby the system’s power.

The power switch indicator

• turns orange and display turns off.

✽Turning on and off the timer standby ON/OFF

• In TIMER STANDBY mode, each time the as follows;

Both timers are canceled. (The mark turns off.)

Both once and everyday timers are activated. (The mark lights.)

Only the everyday timer is activated. (The mark lights.)

Only the once timer is activated. (The mark lights.)

• When you complete the setting, the display automatically returns to the former state after 5 seconds.

• To change the settings of TIMER STANDBY, press MENU/ SET button to set the unit in TIMER STANDBY mode first, then use 9 or 8 button to make changes.

Main unit Remote control unit

Remote control unitMain unit

Main unit Remote control unit

Remote control unitMain unit

9 or 8 button is pressed, the setting changes

Displays the currently set timer ON or OFF mode.

Flashes

Various Timer Operations

4, 6, 8

Example: Playing a compact disc with the once timer

Press the power operation

switch to turn on the power.

Press the 5 (open/close) button and place a

disc on the disc tray. Close the disc tray.

Press the MENU/ SET button to

set the timer setting mode.

Press the 9 or 8 button. The once timer is selected and

“ONCE” appears in the display.

Press the MENU/ SET button.

Use the 9 or 8 button to set the “CD”

mode.

3, 5, 7, 8

Main unit Remote control unit

Main unit

Remote control unit

Main unit Remote control unit

Remote control unitMain unit

Main unit Remote control unit

3, 5, 7, 8

4, 6, 8

Flashes

ENGLISH

20:00 21:00

ON OFF

SLEEP

OFF

22:00

Press the MENU/ SET button.

Cancelling the Sleep Timer

Select OFF using the SLEEP button.

Remote control unitMain unit

The sleep timer is also canceled if the CD receiver‘s power operation switch or the power operation switch on the remote control unit is pressed, turning the system power off.

Now follow steps 8 to 18 under “Setting the Timer” on page 16.

• “The “E” indicating “EVERYDAY” switches to “1” indicating “ONCE”.

• Press the MENU/ SET and 9 or 8 button to select “1_on/E_off” and the mark lights in the step

17.

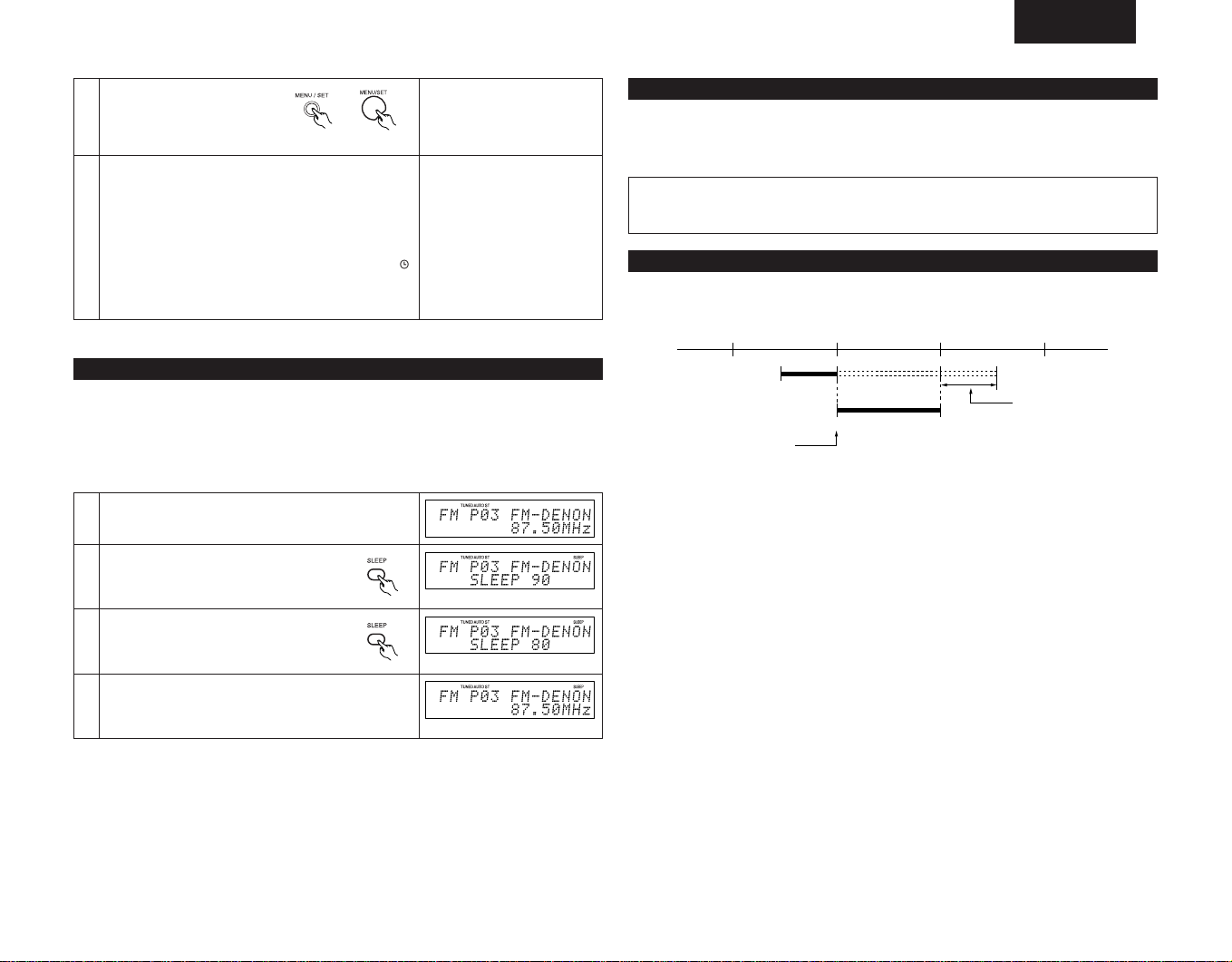

Setting the Sleep Timer

(This operation is only possible from the remote control unit.)

With this function, the power can be set to turn off after 10 to 90 minutes, in steps of 10 minutes, using the remote control unit.

Example: To turn the power off after 80 minutes when listening to FM 87.50 MHz

Tuner currently set to FM 87.50 MHz.

Press the SLEEP button.

Press the SLEEP button again while the

“SLEEP” indicator lights.

The previous display reappears after 5 seconds.

The “SLEEP” indicator remains lit, indicating that the

•

sleep timer is functioning.

NOTE:

If a several timer operations are set at once, the sleep timer has priority.

•

Order of priority of the sleep, everyday and once timers

The sleep timer has priority for the off time. (The system operates as indicated by the bold lines.)

Everyday or once timer set

The unit remains in the standby mode.

Sleep timer set to 60 minutes

Even when the power was turned on with the timer, the power turns off if the remaining time of the sleep timer reaches “00” before the off time set with the everyday or once timer is reached. If the everyday or once timer’s on time is reached while the sleep timer is functioning, the everyday or once timer does not function. When the setting times of the everyday and once timer overlap, the once timer has priority over the everyday timer and the everyday timer will be canceled.

• The time is reset to “OFF” if the SLEEP button is pressed again while the sleep timer is functioning.

PLAYING CDs

Normal Playback

1/ 3 (play/pause) button

2 (stop) button

ENGLISH

1, 3

Example: Playing a disc containing 15 tracks and with a playing time of 62 minutes, 3

seconds, starting from the first track.

Press the 5 (open/close) button to open the

disc tray.

Load the CD in the disc tray.

Press the 5 (open/close) button. The disc tray closes.

• After several seconds, the disc information is displayed.

Press the 1/ 3 (play/pause)

button.

Main unit

Main unit Remote control unit

1/ 3

(play/pause)

button

Interrupting playback temporarily

Press the 1/ 3 (play/pause) button. The “ 3 ” mark appears on the

display, and playback stops at the point where the button was pressed.

Resuming playback

Press the 1/ 3 (play/pause) button. The “ 3 ” mark turns off on the

display, and playback resumes from the point where the pause button was pressed.

Stopping playback

Press the 2 (stop) button.

NOTES:

• When a disc is loaded, “LOADING” is displayed on the display for several seconds while the data on the number of tracks and total playing time is being read from the innermost side of the disc, after which the number of tracks and total playing time appear.

• The CD SRS button of the cassette deck will not function if pressed while the disc is being read. Please press this button after the total playing time has been displayed.

• If no disc is loaded, if the disc is upside down, or if the data cannot be read properly due to scratches or dirt, the display reads as shown below and the disc will not play.

Main unit Remote control unit

2 (stop) button

ENGLISH

Various Playback Functions

In addition to the regular playback, the RCD-M33 also offers the following playback functions:

(1) Playing a specific track ………………………………………………………………………………

(Using the remote control unit)

Example: Playing the 8th track

Press the CD button on the remote control unit.

Press the button corresponding to the number of the track 8.

• “8” appears on the track number display and playback of track

number 8 begins.

• When the end of the track is reached, playback continues on the next track.

• To specify a track number of 11 or greater, say track 15, press then , and to specify a track number of 20 or greater, say track 23, press , , then . To play track 20, press then .

• The system is in program play mode if “Pxx (xx:program number)” lights in the display. To cancel the program play mode, press PROG/DIRECT button before you input the desired track number.

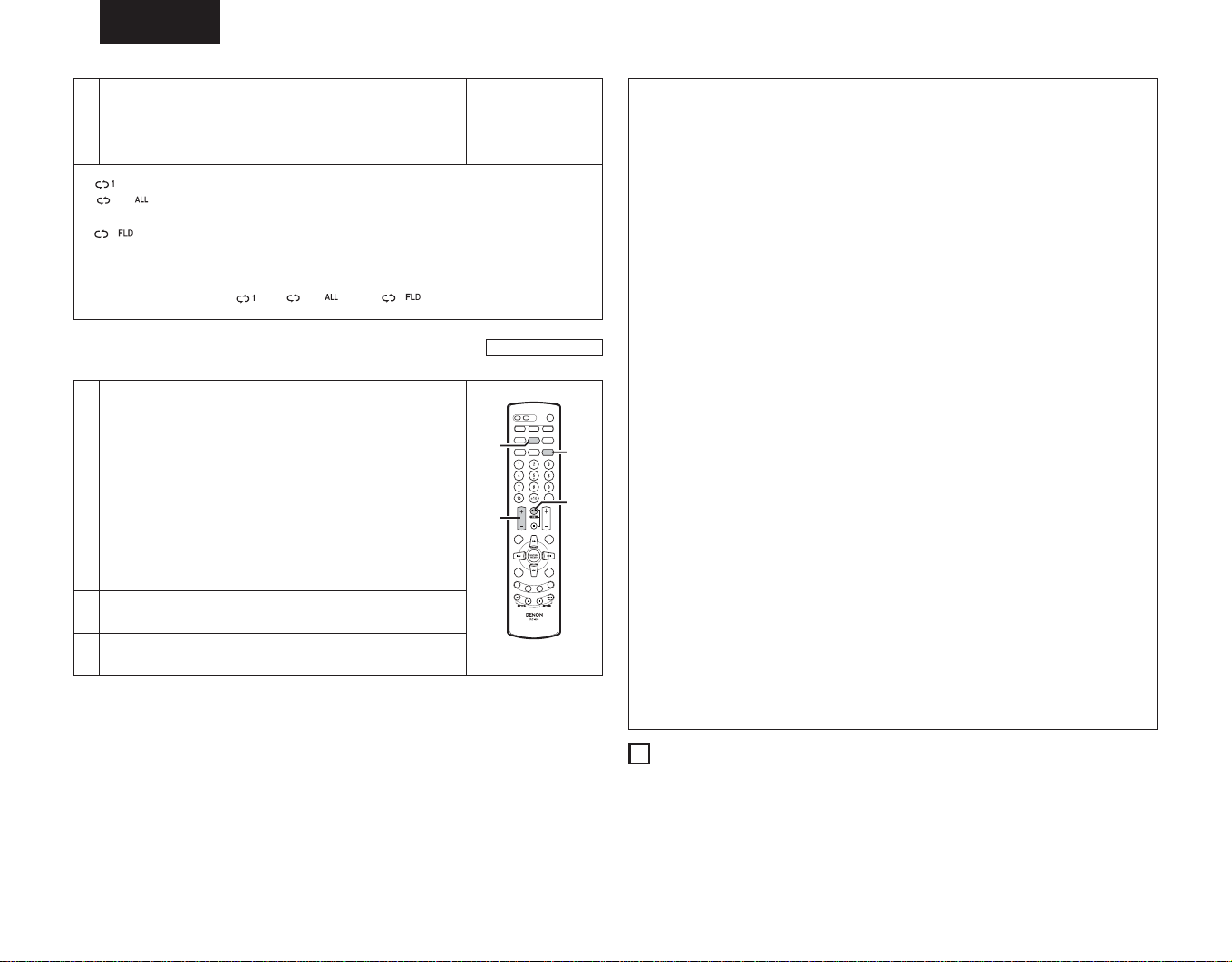

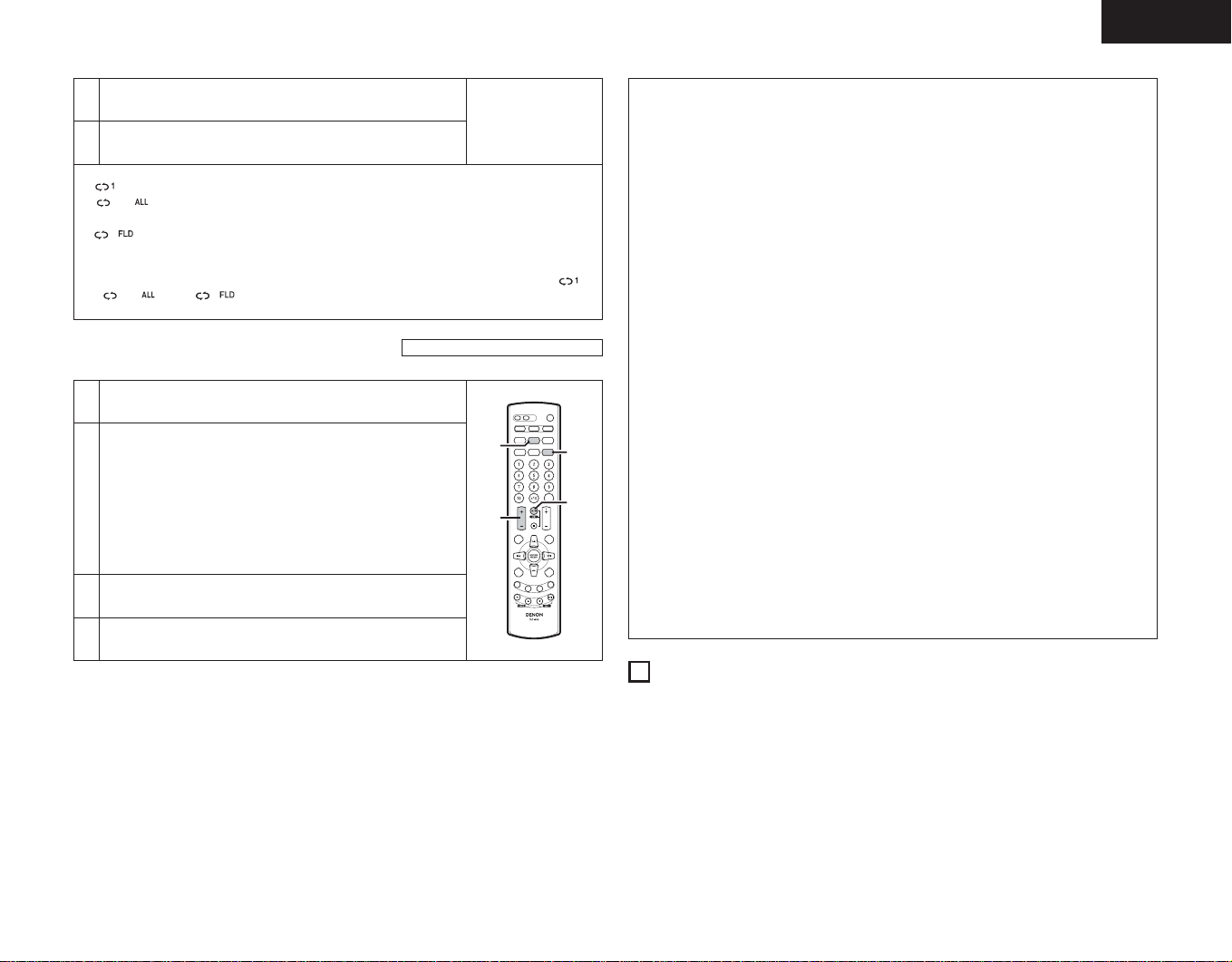

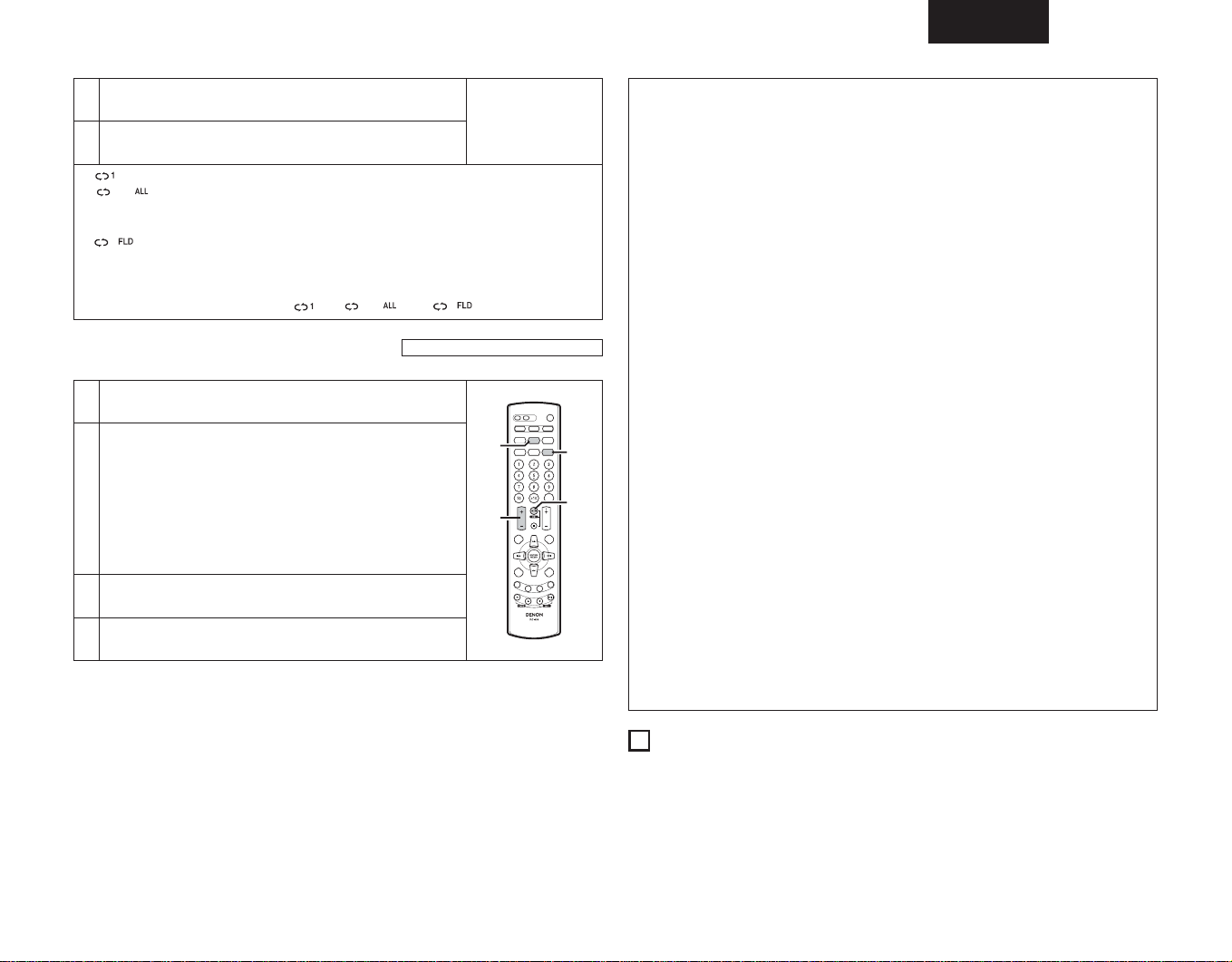

(2) Playing a single track repeatedly …………………………………………………………………

(Using the remote control unit)

When the REPEAT button is pressed once, “ ” appears on

the display and the single track repeat mode is set.

Use the 8 and 9 buttons to select the track to be repeated.

Direct Search

Single- track Repeat

(3) Playing all the tracks repeatedly ……………………………………………………………………

(Using the remote control unit)

When the REPEAT button is pressed twice, “ ” appears

on the display and the all-track repeat mode is set.

Press the 1/ 3 (play/pause) button to start playback.

• The all-track repeat mode can also be set by pressing the REPEAT button twice during playback.

• To cancel the all-track repeat mode, press the REPEAT button to turn the “ ” indicator off.

• If the REPEAT button is pressed during programmed playback, the tracks are played repeatedly in the programmed order.

All-track Repeat

Press the 1/ 3 (play/pause) button to start playback.

• When the end of the specified track is reached, playback starts over from the beginning of that track.

• The single-track repeat mode can also be set by pressing the REPEAT button once during playback.

• To cancel the single-track repeat mode, press the REPEAT button repeatedly until the “ ” indicator turns off.

ENGLISH

2 3

(4) Playing the tracks in a certain order ………………………………………………………………

(Using the remote control unit)

Press the PROG/ DIRECT button.

Displays when the 3rd track is set at the first place.

Press the number and +10 buttons to select the track to be programmed.

• For example, to program the 3rd track and the 12th track, press , , and .

Press the 1/ 3 (play/pause) button to start playback.

• The tracks are played in the programmed order.

• Press the PROG/DIRECT button again to resume normal playback during the stop mode.

• To cancel the entire program, press the PROG/DIRECT button or cancel the program one by one using the CLEAR button.

• If you program the wrong track, press the CLEAR button then program the right track. (The last track in the program is erased each time the CLEAR button is pressed.)

• To confirm the programmed playing order, press the CALL button. The programmed playing order appears in the display. Pressing the CLEAR button with a track number appearing in the display automatically erases that specific track from Program Play.

2+103

Displays the total number of programmed tracks and total playing time.

Displays when the 12th track is set at the second place.

Displays the total number of programmed tracks and total playing time.

Programmed Playback

after 5 seconds

Other operations possible during programmed playback:

Such operations as quick search, pause and skip monitor are also possible during programmed playback. For the quick search function, press the automatic search reverse button ( the beginning of the track, then press it again while the time display reads “00:00” to move back to the beginning of the preceding track. To move ahead to the beginning of the next track, press the automatic search forward button ( 9) regardless of the time display.

NOTES:

• With this CD receiver, you can program up to 25 tracks.

• The entire program is canceled when the 5(open/close) button is pressed.

• Set the stop mode when cancelling tracks from the program. To cancel the program mode, press the PROG/DIRECT button.

Automatic search forward button ( 9 )

Automatic search reverse button ( 8 )

(5) Moving ahead to the next track during playback ………………………………………………

Press the automatic search forward button ( 9 ).

(6) Moving back to the beginning of the track during playback …………………………………

Press the automatic search reverse button (

8 ).

) to move back to

Automatic search forward button (

Quick Search

9 )

ENGLISH

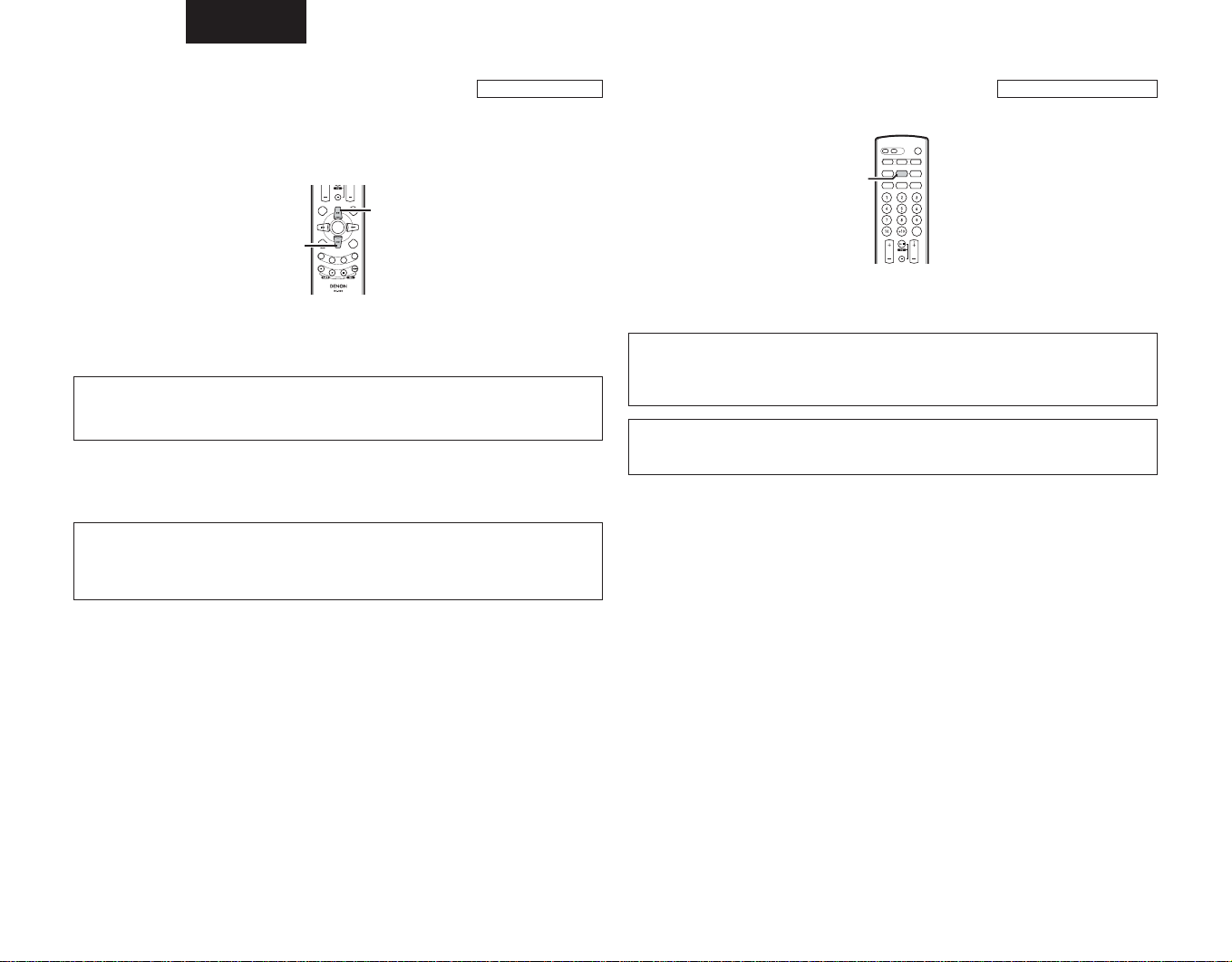

(7) Finding a certain spot on the disc while listening to the sound ……………………………

(Using the remote control unit)

• Use this function to skip through the disc while listening to the sound.

• When the desired spot is reached using the skip monitor function, release the manual search forward button ( from that point.

Manual search reverse button ( 6 )

Forward skip monitor (Using the remote control unit)

During playback, press and hold in the manual search forward button ( the disc in the forward direction while listening to the sound.

• The track currently being monitored and the elapsed time for that track are indicated on the

display.

• If the manual search forward button is held in until the end of the disc is reached, the stop

mode is set.

Reverse skip monitor (Using the remote control unit)

During playback, press and hold in the manual search reverse button ( 6 ) to skip through the disc in the reverse direction while listening to the sound.

• The track currently being monitored and the elapsed time for that track are indicated on the

display.

• If the manual search reverse button ( 6 ) is pressed continuously, it will reach the

beginning of the first track on the disc. Release the manual search reverse button ( 6 ) to resume normal playback.

7 ) or manual search reverse button ( 6 ) to resume normal playback

Manual search forward button (

Skip Monitor

7 )

7 ) to skip through

(8) Playing the tracks in random order ………………………………………………………………

(Using the remote control unit)

RANDOM button

• Use this function to play all the tracks on the disc once in random order.

• In the stop mode, simply press the RANDOM button to set random playback.

• “RANDOM” appears on the display.

• If the RANDOM button is pressed while the repeat mode is set, the tracks are each played once in random order, then played again in another order, and so on.

• The repeat mode is set to the all-track repeat mode when the RANDOM button is pressed during single-track repeat mode.

NOTES:

• The total remaining time cannot be displayed during the random playback mode.

• The random playback mode cannot be set during editing.

Random Playback

ENGLISH

-q

-w

-q

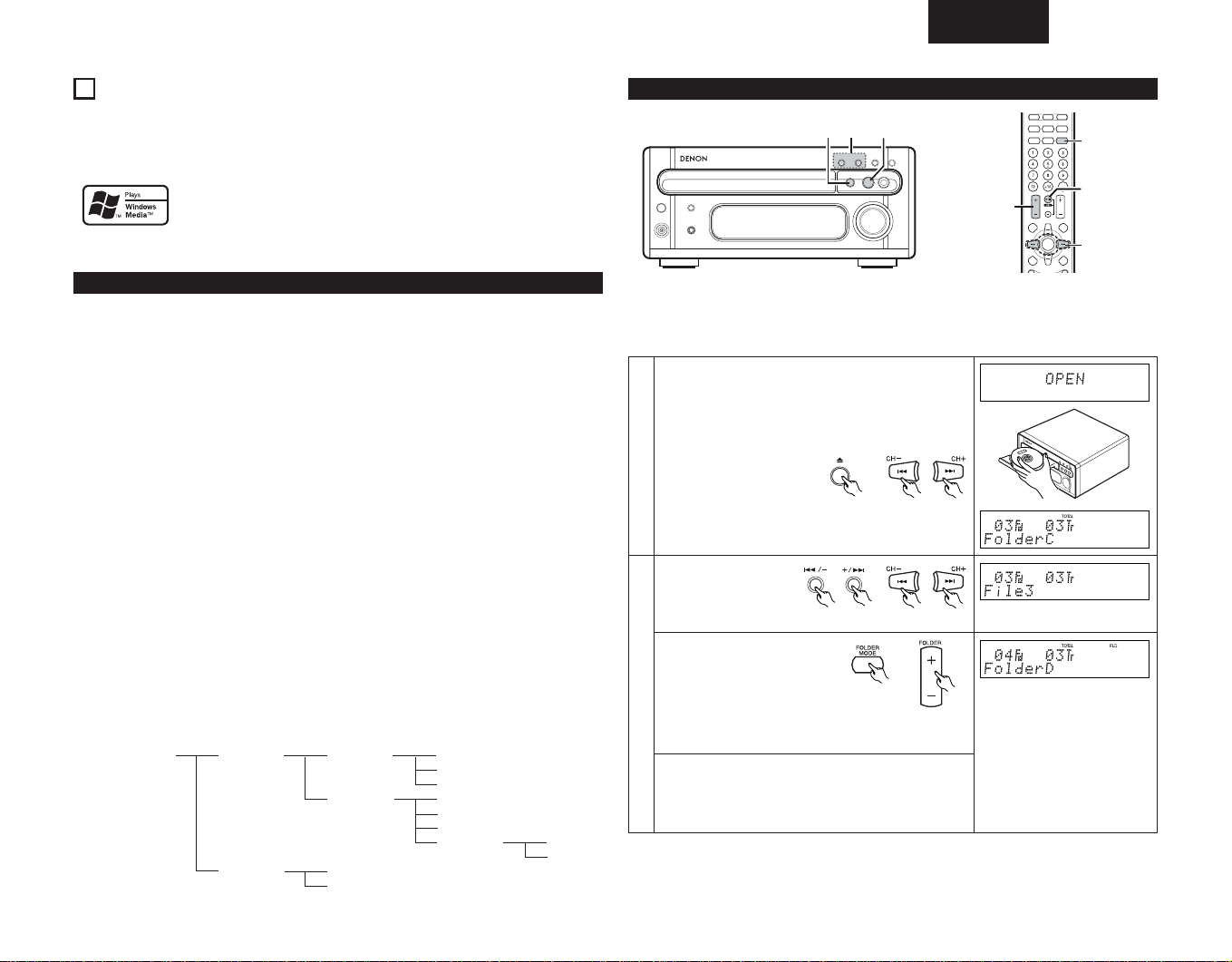

PLAYING MP3/WMA

Listening to Recorded MP3/WMA (Windows Media Audio) CD/CD-R/CD-RW

There are many music distribution sites on the internet from which music files in MP3/WMA (Windows Media Audio) audio compression format can be downloaded. Music downloaded as instructed on the site and written onto a CD-R/RW disc can be played on the RCD-M33.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Uses of recordings you have made other than for your personal enjoyment are not permitted under the Copyright Law without permission of the copyright holder.

About the folder playing order

If files in MP3 and/or WMA format are stored in multiple folders, the folder numbers are set automatically when the disc is loaded. When the FOLDER +/ – buttons are pressed, the folders switch according to the numbers set at this time. Folders not including any playback files are skipped, and the next folder is selected. Example :

How the folder numbers are set for a disc containing MP3/WMA files in the folder structure shown below

q The ROOT folder is set as Folder1. w For the folders in the ROOT folder (FolderA and FolderB), the folder that comes first in

the sequence information* stored on the disc is set as Folder2.

e For the folders in the FolderA (FolderC and FolderD), the folder that comes first in the

sequence information* stored on the disc is set as Folder3.

r FolderC does not contain any other folders, so FolderD is set as Folder4. t FolderE in FolderD is set as Folder5. y FolderB in the ROOT folder is set as Folder6.

*The folder and file sequence information stored on the disc depends on the writing

application used. For this reason the actual playback order may not be as expected.

The folder mode can be turned on (folder mode) and off (disc mode) using the FOLDER MODE button. The files that are played differ according to whether the folder or disc mode is set.

When the disc mode is set:

All the files in all the folders after the selected folder and file are played. When File3 in FolderC is selected, all the files after File3 are played.

When the folder mode is set:

All the files in the selected folder are played. When FolderD is selected, File4, File5 and File6 are played. FolderE inside FolderD is treated as a different folder, so File7 and File8 are not played.

ROOT FolderA FolderC File1 (Folder1)(Folder2)(Folder3) File2

FolderD File4 (Folder4) File5

FolderB File9 (Folder6) File10

File3

File6 FolderE File7 (Folder5) File8

Fig,12-1

Normal Playback

Example: For a CD containing MP3/WMA files with the structure shown in Fig. 12-1, (1) playback

from File3 in FolderC in the disc mode, (2) playback of FolderD in the folder mode.

Press the 5 (open/close) button to open the disc tray. Load the CD in the disc tray. Press the 5 (open/close) button to close the disc tray .

• After several seconds, the disc information is displayed.

Main unit

q Disc mode

Use the CH+(9) and CH–(8 ) buttons to select File3.

w Folder mode

Use the FOLDER MODE

button to select the folder mode, than use the FOLDER +/ – buttons to select FolderD.

• The FOLDER +/ – buttons can also be used in the play or pause modes to select the folder. The first track in the selected folder is played or paused.

Main unit

Remote control unit

+ 51 hidden pages

Denon RCD-M33 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ENGLISH

MAIN FEATURES

BEFORE USING

CAUTIONS ON INSTALLATION

CONNECTING THE INCLUDED ANTENNAS

CONNECTIONS

PART NAMES AND FUNCTIONS

REMOTE CONTROL UNIT

CAUTIONS ON HANDLING DISCS

LISTENING TO RADIO PROGRAMS

USING THE TIMER

PLAYING CDs

PLAYING MP3/WMA
