Denon S-101 User Manual

0 (0)

DVD HOME THEATER SYSTEM

S-101

OPERATING INSTRUCTIONS

INSTRUCCIONES DE OPERACION

2 SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FCC INFORMATION (For US customers)

1. PRODUCT

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

2.IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product.

3.NOTE

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the product into an outlet on a circuit different from that to which the receiver is connected.

Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help.

ESPAÑOL FRANCAIS ENGLISH

SAFETY INSTRUCTIONS

1.Read Instructions – All the safety and operating instructions should be read before the product is operated.

2.Retain Instructions – The safety and operating instructions should be retained for future reference.

3.Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

4.Follow Instructions – All operating and use instructions should be followed.

5.Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

6.Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7.Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8.Accessories – Do not place this product on an unstable cart, stand,

tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any

mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9.A product and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10.Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11.Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12.Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

FIGURE A



EXAMPLE OF ANTENNA GROUNDING



AS PER NATIONAL

ANTENNA

ELECTRICAL CODE

LEAD IN

GROUND

WIRE



CLAMP





ANTENNA



DISCHARGE UNIT

ELECTRIC

(NEC SECTION 810-20)

SERVICE



EQUIPMENT

GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMPS



POWER SERVICE GROUNDING

NEC – NATIONAL ELECTRICAL CODE

ELECTRODE SYSTEM

(NEC ART 250, PART H)



13.Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

15.Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

16.Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17.Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

18.Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

19.Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

20.Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21.Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a)When the power-supply cord or plug is damaged,

b)If liquid has been spilled, or objects have fallen into the product,

c)If the product has been exposed to rain or water,

d)If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,

e)If the product has been dropped or damaged in any way, and

f)When the product exhibits a distinct change in performance – this indicates a need for service.

22.Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

23.Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24.Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

25.Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

ENGLISH FRANCAIS ESPAÑOL

2 System setup menu / Menu de configuration système / Menú System Setup

page 43, 44

page 45

page 45 ~ 50

page 51 ~ 53

page 50, 51

page 53, 54

ENGLISH

Getting Started

Contents

Getting Started

Accessories ··············································································2

Before using·············································································3

Cautions on installation

DVD Surround receiver···························································3 Speaker system and subwoofer·········································3, 4

Cautions on handling

DVD Surround receiver···························································4 Speaker system ·····································································4

Subwoofer ·············································································4

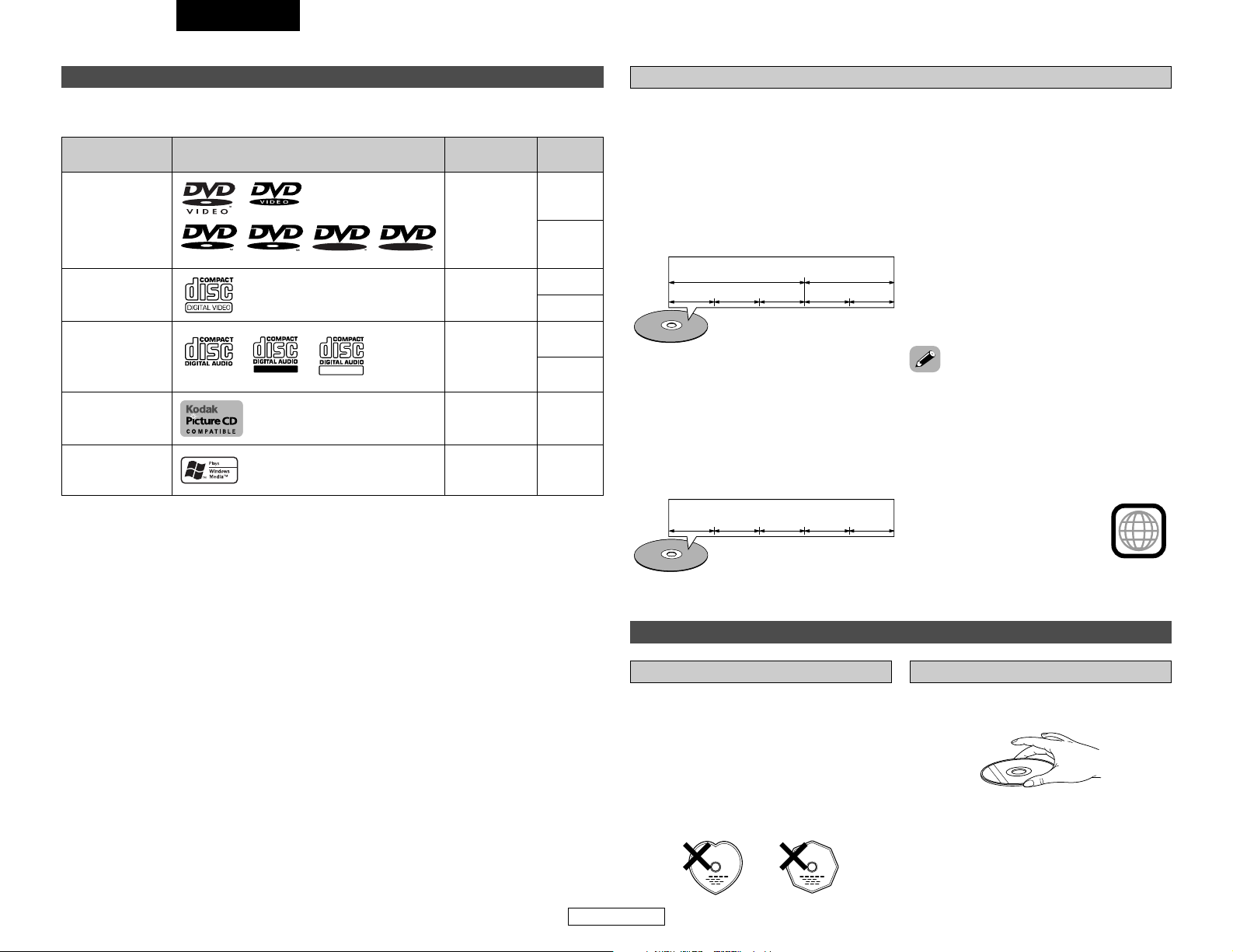

Discs ·························································································5

Disc terminology·····································································5

Cautions on handling disc

Discs·······················································································5 Holding discs ··········································································5

Cleaning discs·········································································6 Cautions on handling discs·····················································6 Storing discs ···········································································6

Loading discs··········································································6

Operating range of the remote control unit ························6

Part names and functions

DVD surround receiver front panel·········································7 Subwoofer rear panel ·····························································7

Display ····················································································7

Remote control unit····························································8, 9

Easy Setup and Operation

Connecting the system ························································10

Connecting the supplied antennas ·······································11

Connecting a TV ··································································11

Inserting the batteries ··························································12

Connecting the power supply cord ······································12

Playing a DVD disc··························································13, 14

Connecting Other Sources

Advanced setup options

Cable indications···································································14 Connecting a DBS/Cable tuner/VCR·····································15 Connecting a tape deck, MD recorder or CD recorder ········15

Connecting a S-Video connections

(Better picture quality) ··························································15

Connecting a component connections

(Better than S-Video picture quality)·····································16 To change the speaker cable················································16 Connecting the antenna terminals ·······································16

Basic Operation

Playing a disc

Playback··········································································17, 18 Stopping playback·································································18 Playing still pictures (Pausing) ··············································18

Forward / Reverse searching················································19 Skipping to the beginning of chapters or tracks···················19 Playing frame by frame (for DVDs and video CDs only) ······19

Slow playback (for DVDs and video CDs only)·····················19 Listening to recorded MP3 or WMA CD-R/CD-RW············20, 21 Playing still picture files (JPEG format) ··························22, 23

Listening to the radio

Manual tuning·······································································24 Auto tuner presets (for main unit only) ································24

Listening to preset stations··················································24 Presetting stations that have been tuned in

and giving names to stations

(for remote control unit only)················································25

Playing the iPod

Connecting the iPod ·····························································26

Playback················································································27 Viewing the slideshow ························································28

Disconnecting the iPod·························································28

Playing and recording other sources

Connecting the portable player ············································28

Playing a portable audio (stereo mini plug)···························28 About analog recording onto

an external audio component (AUX3)···································28 Function setting ······························································29, 30

Operating the surround functions

Playing Dolby Digital and DTS surround sound

(with digital inputs only)························································30 2-channel mode settings ······················································31

Paying in the DENON original surround modes ·············31, 32

Playback using the Dolby Headphone mode ·····················32

Using the “HELP” menu·······················································33

Using the sleep timer

Setting the clock (12-hour display) ·································33, 34 Setting the sleep timer·························································34

1

Getting Started

Advanced Operation

Using other playback function (playing the disc)

Playing repeatedly ································································35

Playing tracks in the desired order (Program) ······················36

Playing tracks in the random order·······································36 Playing in the zoom mode····················································36

Using the RDS (Radio Data System)

RDS (Radio Data System)·····················································37 RDS search···········································································37 PTY search············································································37 TP search··············································································38 RT (Radio Text) ·····································································38

On-screen display

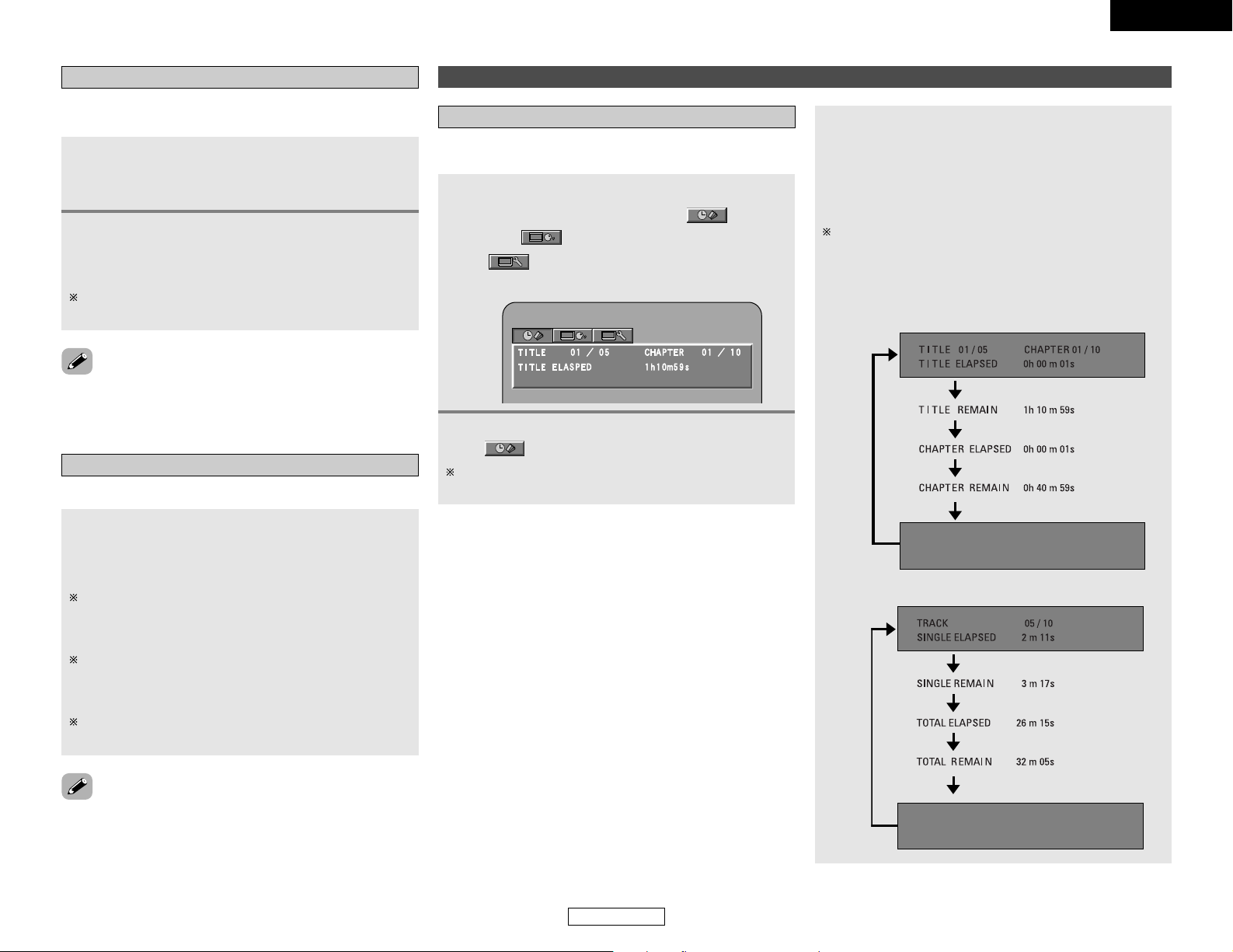

Operating using the disc information OSD ····················38, 39 Operating using the multiple audio,

subtitle and angle OSD···················································39, 40 Adjusting the picture quality·················································40

Other functions

Adjusting the sound quality (TONE/SDB) ·····························41

Auto power on function························································41 System functions··································································41 Initialization of the microprocessor·······································41

System Setup

Changing the default settings

System setup items ·····························································42

Setting “LANGUAGE SETUP” ·······································43, 44 Setting “VIDEO SETUP” ······················································45

Setting “AUDIO SETUP”·············································45 ~ 47 Setting “CHANNEL LEVEL”···········································47, 48 Setting “DISTANCE”······················································48, 49 Setting “SPEAKER LOCATION” ····································49, 50 Setting “RATINGS” ························································50, 51 Setting “OTHER SETUP” ············································51 ~ 53 Setting “TIMER SETUP”················································53, 54 After changing the system settings ·····································54

System setup items and default values

(set upon shipment from the factory) ····························55, 56

About digital audio signal output

When a disc is played on the S-101 (DIGITAL OUT)············57

Setting up the remote control unit

to control other audio / video devices

TV, cable tuner and satellite receiver

preset memories ··································································58

Operating the TV, cable tuner and satellite receiver after storing its remote control signals

in the preset memory···························································58 Special punch through setting··············································58

ENGLISH

Getting Started

Additional information

Surround ··········································································59, 60 Dolby Virtual Speaker ···························································60

Dolby Headphone ·································································60

Surround modes and parameters·········································61

HDCD (High Definition Compatible Digital) decoder·········61

AL24 Processing (Stereo mode only)··································61

Troubleshooting ······························································62, 63

Specifications ········································································64

List of preset codes ····································End of this manual

ENGLISH

Getting Started

Thank you for choosing the DENON S-101 DVD Home Theater System. This remarkable component has been engineered to provide superb surround sound listening with home theater sources such as DVD, as well as providing outstanding high fidelity reproduction of your favorite music sources.

As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding.

Accessories

Check that the following parts are included in addition to the S-101:

q Operating instructions



(with Quick setup sheet) ........................

1

w Warranty



(for North America model only) ..............

1

e Service station list ..................................

1

r Remote control unit (RC-1007) ...............

1

t R6P/AA batteries ....................................

2

y Power supply cord..................................

1

u System cable (D-SUB25P) ......................

1

i Speaker cable .........................................

2

r

t

o Video cable .............................................

1

!0iPod cable ...............................................

1

!1AM loop antenna ....................................

1

!2FM indoor antenna .................................

1

!3Speaker stand .........................................

2

!4Wall bracket ............................................

2

!5Screw......................................................

4

!6Cushion pad .......................

4 pcs./1 sheet

!7Hexagonal wrench ..................................

1

y

u

i

o

!0

!1

!2

!3

!4

!5

!6

!7

2

ENGLISH

ENGLISH

Getting Started

Before using

Pay attention to the following before using this unit:

• Handle the power supply cord carefully

• Before turning the power switch on

Do not damage or deform the power supply cord. If it is damaged or deformed, it may cause electric shock or malfunction when used. When removing from wall outlet, be sure to remove by holding the plug attachment and not by pulling the cord.

Do not open the top cover

In order to prevent electric shock, do not open the top cover.

Do not place anything inside

Do not place metal objects or spill liquid inside the DVD surround receiver.

Electric shock or malfunction may result.

Moving the set

Check once again that all connections are proper and that there are not problems with the connection cables. Always set the power switch to the standby position before connecting and disconnecting connection cables.

Store this instruction in a safe place.

After reading, store these instructions along in a safe place.

Note that the illustrations in this instruction may differ from the actual set for explanation purposes.

To prevent short circuits or damaged wires in the connection cables, always unplug the power supply cord and disconnect the connection cables between all other audio components when moving the set.

NOTE:

This DVD surround receiver uses the semiconductor laser. To allow you to enjoy music at a stable operation, it is recommended to use this in a room of 5 °C (41 °F) ~ 35 °C (95 °F).

Copyrights

It is prohibited by law to reproduce, broadcast, rent or play discs in public without the consent of the copyright holder.

Please, record and retain the Model name and serial number of your set shown on the rating label. Model name : S-101

Serial No.

Getting Started

Cautions on installation

DVD Surround receiver



Speaker system and subwoofer

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV.

If this happens, take the following steps:

Install this unit as far as possible from the tuner or TV.

Set the antenna wires from the tuner or TV away from this unit’s power supply cord and input/output connection cords.

Noise or disturbance tends to occur particularly when using indoor antennas or 300 Ω/ohms feeder wires. We recommend using outdoor antennas and 75 /ohms coaxial cables.

Note:

For heat dispersal, do not install this equipment in a confined space such as a book case or similar unit.

Note

The quality of the sound produced from the speaker system is affected by the size and type of the room, as well as by the method of installation. Consider the points listed below before installing the speaker system.

Note that placing the speaker system on the same stand or shelf as a record player may result in howling.

If there is a wall, glass door, etc., directly in front of or behind the speaker system, cover the wall or door with a thick curtain to prevent resonance and reflection.

The speaker systems are of the low-leakage- flux type and can be used near televisions, but depending on the TV there may be color blotching on the picture. If this happens, turn off the TV’s power, move the TV and speaker system a little apart, wait 15 to 30 minutes, then turn the TV’s power back on. The TV’s automatic degaussing circuit should reduce the blotching on the picture. If blotching persists, move the speaker and TV further away from each other.

Install on a firm, flat floor to prevent accidents due to toppling down.

Do not place a record player, CD player or other AV components on top of the subwoofer.

Wall

Wall

3

ENGLISH

Getting Started

2 Speaker stand installation

When mounting the speaker system (SCS101) on a speaker stand or wall bracket.

As shown in the diagram, fasten the speaker stand to the back of the speaker using the two included screws.

When mounting, be sure to install properly and securely.

When placing the included SC-S101 speakers on a rack or shelf, fasten the included speaker stand securely using the screws included with the SC-S101 speakers (left and right).

SC-S101

Screws

Speaker stand

SC-S101

Wall

Screws

Wall bracket

When placing the speaker system (SC-S101) on a stand, etc., stick the included cushion pads at the two corners of the bottom surface. (Refer to the illustration below.)

Bottom of SC-S101

Stick the cushion pad here.

NOTE:

To ensure safety, do not place any objects on top or lean objects against the speaker system.

The speaker may topple down or fall if force is applied to the sides. Be particularly careful to avoid this, as this could cause injury or other serious accidents.

When installing the speaker systems on the wall, to ensure safety, have specialists do the installation work.

Be sure to fasten the speaker cords to a wall, etc., to prevent people from tripping over them or otherwise pulling on them accidentally, causing the speaker systems to fall.

Be sure to check for safety after installing the speaker systems. Afterwards, perform safety inspections at regular intervals to be sure there is no danger that the speaker systems will fall. Denon will accept no responsibility for damages or accidents caused by inappropriate choice of the place of installation or improper installation procedures.

For your safety, do not put anything nor lean yourself on the loudspeakers.

Do not push the loudspeaker from aside to protect it from toppling that may cause serious accident.

Fix speaker cables to prevent being caught on it and making loudspeakers toppling down.

Cautions on handling

DVD Surround receiver

Switching the input function when input terminals are not connected.

A clicking noise may be produced if the input function is switched when nothing is connected to the input terminals. If this happens, either turn down the VOLUME knob or connect components to the input terminals.

Muting of HEADPHONE jack and SPEAKER terminals.

The HEADPHONE jack and SPEAKER terminals include a muting circuit. Because of this, the output signals are greatly reduced for several seconds after the power switch is turned on or input function, surround mode or any other-set-up is changed. If the volume is turned up during this time, the output will be very high after the muting circuit stops functioning. Always wait until the muting circuit turns off before adjusting the volume.

Whenever the power switch is in the STANDBY state, the apparatus is still connected on AC line voltage.

Please be sure to unplug the cord when you leave home for, say, a vacation.

ENGLISH

Getting Started

Speaker system

Magnetic force of speaker system.

Note that color blotching may occur on a TV, etc., due to interaction with the speaker system if there is a magnet or an object generating magnetic force nearby.

Example:

(a)When there are magnets on the door of the rack, stand, etc.

(b)When a health device, etc., equipped with magnets is placed nearby.

(c)When toys or other objects using magnets are placed nearby.

Subwoofer

Muting of after power is turned ON.

The built-in amplifier of the active subwoofer includes a muting circuit. The output signal is strongly attenuated for several seconds after the power is turned on. If the volume is adjusted during this time, the output may be extremely high when the muting circuit is deactivated. Be sure to wait for the muting circuit to be deactivated before adjusting the volume.

NOTE:

Be sure to fasten the power supply cord to a wall, etc., to prevent people from tripping over it or otherwise pulling on it accidentally, causing the subwoofer to fall.

4

ENGLISH

ENGLISH

Getting Started

Getting Started

Discs

The types of discs listed on the table below can be used on the S-101.

The marks are indicated on the disc labels or jackets.

Usable discs









Mark (logo)



Recorded

Disc size











signals



















DVD video

















12 cm

(NOTE 1)































Digital video



DVD-R













































(MPEG2)



DVD-RW



























R

R W



8 cm

(NOTE 2)









R W







R





























Video CD















Digital video

12 cm































(MPEG1)

8 cm























































CD















Digital audio

12 cm

CD-R















MP3

















CD-RW









Recordable

ReWritable



Digital picture

8 cm

(NOTE 3)











(JPEG)



















































Picture CD















Digital picture

12 cm















(JPEG)







































WMA



















(Windows Media















Digital audio

12 cm













Audio)







































• NOTE 1:

Video part which based on DVD-video specification only can be played.

• NOTE 2:

Playing DVD-R and DVD-RW discs

DVD-R and DVD-RW discs recorded in video format on a DVD recorder can be played on the S- 101.

Discs that have not be finalized cannot be played.

The S-101 cannot play DVD-R and -RW discs recorded in the “VR” mode or with “CPRM”. Depending on the disc’s recording status, the disc may not be accepted or may not be played normally (the picture or sound may be not be smooth, etc.).

• NOTE 3:

According to recording quality, some CD-R/CD-RW cannot be played.

“KODAK” is a trademark of Eastman Kodak Company.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

2 The following types of discs cannot be played on the S-101:

DVDs with region numbers other than “1” or “ALL”

DVD-ROM/RAMs

CVD

CD-ROMs (Only JPEG/MP3/WMA file can be played)

VSDs

CDVs (Only the audio part can be played.)

CD-Gs (Only the audio is output.)

Photo CDs (NEVER play such discs on the S-101)

5

Disc terminology

2 Titles and chapters (DVD-videos) 2 Playback control (video CDs)

DVD-videos are divided into several large sections called “titles” and smaller sections called “chapters”.

Numbers are allotted to these sections. These numbers are called “title numbers” and “chapter numbers”.

For example:





Title 1



Title2

Chapter 1 Chapter 2 Chapter 3



Chapter 1 Chapter 2





































2 Tracks (video and music CDs)

Video and music CDs are divided into sections called “tracks”.

Numbers are allotted to these sections. These numbers are called “track numbers”.

For example:

Video CDs including the words “playback control” on the disc or jacket are equipped with a function for displaying menus on the TV screen for selecting the desired position, displaying information, etc., in dialog fashion.

In this manual, playing video CDs using such menus is referred to “menu playback”.

Video CDs with playback control can be used on the S-101.

This DVD video player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc.

If the Region number described on the DVD disc does not correspond to the Region number of this DVD video player, this DVD video player cannot play this disc.

The Region number for this DVD

video player is 1.

1



Track 1





Track 2





Track 3





Track 4





Track 5

Cautions on handling discs

Discs

Only the discs including the marks shown on page 5 can be played on the S-101.

Note, however, that discs with special shapes (heart-shaped discs, hexagonal discs, etc.) cannot be played on the S-101. Do not attempt to play such discs, as they may damage the player.

Holding discs

Avoid touching the surface of discs when loading and unloading them.

Be careful not to get fingerprints on the signal surface (the side which shines in rainbow colors).

ENGLISH

Getting Started

Cleaning discs

Fingerprints or dirt on the disc may lower sound and picture quality or cause breaks in playback. Wipe off fingerprints or dirt.

Use a commercially available disc cleaning set or a soft cloth to wipe off fingerprints or dirt.

Storing discs

Always eject discs after playing them.

Keep discs in their cases to protect them from dust, scratches and warping.

Do not put discs in the following places:

1.Places exposed to direct sunlight for long periods of time

2.Humid or dusty places

3.Places exposed to heat from heaters, etc.

Wipe gently from the

Do not wipe with a

middle outwards.

circular motion.

NOTE:

Do not use record spray or antistatic. Also do not use volatile chemicals such as benzene or thinner.

Record Thinner Benzene

spray

Cautions on handling discs

Do not get fingerprints, grease or dirt on discs.

Be especially careful not to scratch discs when removing them from their cases.

Do not bend discs.

Do not heat discs.

Do not enlarge the center hole.

Do not write on the labeled (printed) side with a ball-point pen or a pencil.

Water droplets may form on the surface if the disc is moved suddenly from a cold place to a warm one. Do not use a hairdryer, etc., to dry the disc.

Loading discs

Only load one disc at a time. Loading one disc on top of another may result in damage or scratch the discs.

Load 8 cm discs securely in the disc guide, without using an adapter. If the disc is not properly loaded, it may slip out of the guide and block the disc tray.

Be careful not to let your fingers get caught when the disc tray is closing.

Do not place anything but discs in the disc tray.

Do not load cracked or warped discs or discs that have been fixed with adhesive, etc.

Do not use discs on which the adhesive part of cellophane tape or glue used to attach the label is exposed, or discs with traces of tape or labels that have been peeled off. Such discs may get stuck inside the player, resulting in damage.

ENGLISH

Getting Started

Operating range of the remote control unit

Point the remote control unit at the remote sensor on the main unit as shown on the diagram.

The remote control unit can be used from a straight distance of approximately 7 meters/22 feet from the main unit, but this distance will be shorter if there are obstacles in the way or if the remote control unit is not pointed directly at the remote sensor.

The remote control unit can be operated at a horizontal angle of up to 30 degrees with respect to the remote sensor.

30° 30°

Approx. 7m / 22 feet

NOTE:

It may be difficult to operate the remote control unit if the remote sensor is exposed to direct sunlight or strong artificial light.

Do not press buttons on the main unit and remote control unit simultaneously. Doing so may result in malfunction.

Neon signs or other devices emitting pulsetype noise nearby may result in malfunction, so keep the set as far away from such devices as possible.

6

ENGLISH

ENGLISH

Getting Started

Part names and functions

DVD surround receiver front panel

For details on the functions of these parts, refer to the pages given in parentheses ( ).

!4 !3 !2!1

q w e r t

y u i o !0

q Power ON/STANDBY switch ··············(13)

w iPod connector ·····································(26)

e OPEN/CLOSE (5) button·····················(13)

r Portable jack ········································(28)

t FUNCTION button································(29)

y Display ····················································(7)

u Remote control sensor··························(6)

i Display illuminance sensor ·················(51)

o VOLUME control knob ························(13)

!0Headphones jack (PHONES) ···············(32)

!1SKIP (8, 9) buttons····················(19)

TUNING +, – buttons ···························(24)

!2PLAY/PAUSE (1/3) button···········(17, 18)

!3STOP (2)/BAND button ················(18, 24)

!4Disc holder············································(13)

Subwoofer rear panel

q

w

q Power input (AC IN)

w PROTECT indicator

This indicator lights red when the system cable is not properly connected or the protection circuit in the subwoofer (DSWS101) is activated.

e SYSTEM CONNECTOR

r SPEAKER SYSTEMS connector

r

e

Getting Started

Display











!8 !6

!7!6

!3

!5!4!3

!2 !1!0 o i

q

w



e r

t y

u

q 1 (the play indicator) lights when a disc is playing, and 3 (the pause mode) is set.

w These light to indicate the names of sections of the disc being played.

e This lights when a station is tuned in properly.

r This lights when RDS broadcast has been received.

t This lights when the TONE is adjusted. y This lights when SDB mode is on.

u Displays the file, track number and elapsed time during playback.

i Flashes when remote control signals are received.

o The current volume is displayed.

!0This lights when the sleep timer is operating.

NOTE:

The timer standby mark does not light if the current time and the timer current time and the timer have not been set.

!1Lights when HDCD is playing.

!2Lights in the Dolby Virtual Speaker mode.

!3Lights to indicate the currently playing audio format.

!4These display the FM reception mode.

AUTO:

This lights when the BAND button is pressed, setting the “FM AUTO” mode.

ST:

This lights when a stereo program is received in the “FM AUTO” mode.

MONO:

This lights when a monaural program is received in the “FM AUTO” mode and when the BAND button is pressed, setting the “FM MONO” mode.

!5Lights in the Dolby Headphone mode.

!6Lights to indicate the currently playing disc.

!7Lights in the programmed play mode, random play mode and repeat play mode.

!8Lights when progressive video signals are being output.

7

ENGLISH

Denon S-101 User Manual

Getting Started

Remote control unit

For details on the functions of these parts, refer to the pages given in parentheses ( ).

SOURCE POWER button

Front

(for selected mode)



···································(58)

VIDEO INPUT button (for selected mode)

···································(58)

CHANNEL +/–buttons (for selected mode)

···································(58)

DVD button ··············(29)

TUNER button ··········(24)

PLAY (1) button·······(17)

STOP (2)/BAND button

·····························(18, 24)

SLOW/SEARCH (6, 7) buttons······················(19)

STEREO MUSIC button

···································(32)

DVS/CINEMA button

···································(31)

RETURN button

···································(17)

SLEEP button ···········(34)

ON/STANDBY button

···································(13)

AUX button ··············(29)

STILL/PAUSE (3) button

···································(18)

SKIP (8, 9) buttons······················(19)

TUNING +, – buttons

···································(24)

VOLUME +, – button

···································(13)

MENU/GUIDE button

···································(17)

CURSOR (0, 1, , ª) buttons······················(42)

PUSH ENTER button

···································(42)

MUTE button············(13)

HELP button ·············(42)

ENGLISH

NUMBER button

···································(17)

SEARCH MODE button

···································(19)

MODE button ···········(24)

MEMO button ··········(25)

ZOOM button ···········(23)

DISPLAY button ·······(38)

STATUS button ········(29)

TOP MENU button

···································(17)

RDS button···············(37)

AUDIO/PTY button

·····························(18, 37)

TONE/SDB button ···(41)

Getting Started

Rear

PROGRAM/DIRECT





button ······················(36)



RANDOM button



···································(36)



REP 1/ALL button



···································(35)



CALL button ·············(36)



CLEAR button···········(36)



SKIP (8, 9)



buttons······················(19)



TUNING +, – buttons



···································(24)



SURROUND button



···································(29)



ENTER button



···································(42)



CURSOR (0, 1, , ª)



buttons······················(42)



SURROUND PARAMETER



button ·······················(30)



ANGLE/CT button



·····························(18, 37)



SUBTITLE/RT button



·····························(18, 37)

NOTE:

If buttons on the front or rear are pressed strongly, the button on the opposite side will be activated too.

Side

TV ··········To operate the preset TV

DVD·······To operate this unit

CABLE ···To operate the preset cable tuner

DBS ·······To operate the preset satellite receiver

MODE SELECTOR switch························(58)

8

ENGLISH

ENGLISH

Getting Started





































































Getting Started

2 Valid buttons on the each functions



































































































































































































DVD function



















TUNER function





























AUX function



































































































































































































































































































































































































































































































































































































































































































9

ENGLISH

Easy Setup and Operation

With the S-101 it is possible to enjoy a home theater easily, simply by using the included cables to connect a subwoofer, speakers and your TV. “Easy setup and operation” offers an easy guide for the series of procedures from making connections to playing a DVD.

Connecting the system

Connect the speaker system for the left channel (the left side as seen from the front) to the L terminals, the speaker system for the right channel to the R terminals. Be sure to use speaker systems with an impedance of 4 Ω/ohms.

NOTE:

Do not plug the power supply cord into the power outlet until all connections are completed. Be sure to interconnect the channels (L to L (white) and R to R (red)) properly, as shown on the diagram.

DSW-S101



SC-S101





(L)

(R)

there is a bump

White













White

Red





Red



1

cable

2



System







Speaker cable













Speaker cable



there is a hole

ADV-S101

Protector circuit

This unit is equipped with a high-speed protection circuit. The purpose of this circuit is to protect the speakers under circumstances such as when the output of the power amplifier is inadvertently shortcircuited and a large current flows, when the temperature surrounding the unit becomes unusually high, or when the unit is used at high output over a long period which results in an extreme temperature rise.

When the protection circuit is activated, the speaker output is cut off and the power supply indicator LED flashes. Should this occur, please follow these steps: be sure to switch off the power of this unit, check whether there are any faults with the wiring of the speaker cables or input cables, and wait for the unit to cool down if it is very hot. Improve the ventilation condition around the unit and switch the power back on.

If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact a DENON service center.

Note on speaker impedance

The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance (for example speakers with an impedance of lower than 4 Ω/ohms) are connected. If the protector circuit is activated, the speaker output is cut off. Turn off the set’s power, wait for the set to cool down, improve the ventilation around the set, then turn the power back on.

10

ENGLISH

Easy Setup and Operation

Cautions on connecting

With this unit’s speaker outputs, signals with the reverse phase of the “+” side output terminal’s signals are also output from the “–” side output terminal.

Do not connect to a device for switching between multiple speakers (a speaker selector or audio channel selector) or connect in ways other than described in this manual. Doing so will result in damage.

Speaker system connections

Be sure to turn the amplifier’s power off when connecting the speaker systems.

Use the included speaker cables to connect the input terminals on the back of the speaker systems to the amplifier’s speaker output terminals. Connect the speaker system for the left channel to the amplifier’s “L” terminals, the one for the right channel to the amplifier’s “R” terminals.

MEMO

the plugs securely. Incomplete may result in noise.

or humming may be generated if a audio equipment is used without turning the power of on. If this happens, turn on the power

this unit.

system includes digital circuitry which cause interference such as color or changes in the color on TVs. If happens, move the system and the TV as

as possible.

the power operation switch is in STANDBY position, the unit is still

to AC line voltage.

be sure to unplug the power supply when you leave home for, e.g.,a

etc.

unplugging the power supply cord, wait 5 seconds before plugging it back in. that setting the connection cords (pincords etc.) next to the power supply may result in humming or other noise.

ENGLISH

ENGLISH

Easy Setup and Operation

Connecting the supplied antennas

FM indoor antenna AM loop antenna





Note to CATV system installer:

Black



This reminder is provided to call the CATV

White

system installer’s attention to Article 820-40





of the NEC which provides guidelines for





proper grounding and, in particular, specifies





that the cable ground shall be connected to





the grounding system of the building, as





close to the point of cable entry as practical.

AM loop antenna assembly

1

2

Remove the vinyl tie and take out the connection line.

4

a.With the antenna on top any stable

surface.

Mount

b.With the antenna attached to a wall.

3

Bend in the reverse direction.

Connection of AM antennas

1. Push the lever. 2. Insert the 3. Return the conductor. lever.

Installation hole Mount on wall, etc.

Easy Setup and Operation

Connecting a TV

• When making connections, also refer to the operating instructions of the TV or monitor.

TV

VIDEO

IN

WIDE/LB/PS

2 Setting the aspect ratio of your TV (DVD function only)

• Choose settings according to the TV to be connected.

• Set the WIDE/LB/PS switch on the ADV-S101’s rear panel to select the aspect ratio of the TV.

WIDE:

Select this to play wide DVDs in the full-screen mode.

LB:

Select this to play wide DVDs in the letter box mode (with black strips at the top and bottom).

PS:

Select this to play wide DVDs in the pan & scan mode (with the sides of the picture cut off). Discs for which pan & scan is not specified are played in the letter box mode.

ADV-S101’s image does not appear on the TV, check whether or not the switch on the ADV-S101’s rear panel is set to “INTERLACED”. If it is

“PROGRESSIVE”, set it back to “INTERLACED”.

TV is of the conventional size (4:3), select “LB” or “PS”. If you have a wide size TV (16:9), “WIDE”.

11

ENGLISH

Easy Setup and Operation

Inserting the batteries

qRemove the remote control unit’s rear cover.

wSet two R6P/AA batteries in the battery compartment in the indicated direction.

e Put the rear cover back on.

Notes on batteries:

Use R6P/AA batteries in the remote control unit.

The batteries should be replaced with new ones approximately once a year, though this depends on the frequency of usage.

Even if less than a year has passed, replace the batteries with new ones if the set does not operate even when the remote control unit is operated nearby the set. (The included battery is only for verifying operation. Replace it with a new battery as soon as possible.)

When inserting the batteries, be sure to do so in the proper direction, following the “<” and “>” marks in the battery compartment.

To prevent damage or leakage of battery fluid:

Do not use a new battery together with an old one.

Do not use two different types of batteries.

Do not short-circuit, disassemble, heat or dispose of batteries in flames.

Remove the batteries from the remote control unit when you do not plan to use it for an extended period of time.

If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.

When replacing the batteries, have the new batteries ready and insert them as quickly as possible.

Connecting the power supply cord

DSW-S101













The S-101 includes a built-in clock



















function, so plug its power supply



















cord into a wall AC outlet to

2

1







which electricity

is supplied







constantly.















































































































































































Power supply cord

AC outlets (wall)

AC 120 V, 60 Hz

12

ENGLISH

Easy Setup and Operation

ENGLISH

ENGLISH

Easy Setup and Operation Easy Setup and Operation









ON/STANDBY

6

Press the 1 button.























7





5

2

1

1



Adjust the volume.



























2

















VOLUME



(Main unit)

(Remote control unit)













ON/STANDBY

VOLUME

























The volume is shown on















the display.

MUTE

Playing a DVD disc

Pick up the disc carefully so as not to touch the signal surface and hold it with the labeled side facing up.

With the disc tray fully open, set the disc in the disc tray.

1 Check that all connections are correct.

2 Turn on your monitor (TV).

Switch the input selector on the TV to this unit.

3 Press the ON/STANDBY switch.

• The power indicator lights orange, the power turns on and the display lights.

Several seconds are required from the time the ON/STANDBY switch is pressed until the power turns on. This is due to the built-in muting circuit that turns off (mutes) the sound when the power is turned on and off. The power indicator flashes orange while the muting circuit is activated.

Even when the ON/STANDBY switch has been pressed again and the power has been set to the standby mode, power is still supplied to some circuits. When leaving home or traveling, be sure to unplug the power supply cord from the power outlet. In the standby mode, the power indicator is lights red. The indicator is yellow when the timer is set.

4 Press the 5 button to set the DVD disc in the disc tray.

Disc tray

5 Press the 5 button.

The disc tray can also be closed automatically to load the disc by pressing the 1 button. After this, playback starts automatically.

13

If appears on the TV screen while buttons are being operated, that operation is not possible on the S-101 or with

that disc.

The disc keeps turning while the menu screen is displayed on the TV screen.

NOTE:

Do not press the disc tray in by hand when the power is off. Doing so will damage it.

Do not place foreign objects in the disc tray. Doing so will damage it.

If a foreign object is caught in the disc tray during closing, simply press the 5 button again and the tray will open.

ENGLISH

ENGLISH

Connecting Other Sources

2 To mute the sound

Connecting Other Sources

Use this to turn off the audio output temporarily.

Advanced setup options

Press the MUTE button.

Cable indications

Cancelling MUTING mode:

q Press the MUTE button again.

w Press the VOLUME button on the remote control unit, or adjust the volume up or down via the front panel VOLUME control knob.

2 To stop the playback

During playback, press the 2 button.

2 To turn off the main unit

Press the ON/STANDBY switch.

The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).

When connecting other equipment, disconnect the power supply cord from the AC power outlet before connecting other equipment.





Audio cable







Video cable





A

Analog terminal (Stereo)





D

Video terminal









(White)

L



L

(Yellow)









(Red)















R



R















Pin-plug cable





Video cable (75 Ω/ohms video pin-plug cable)

















B

Digital terminal (Coaxial)





E

S-Video terminal









(Orange)





















Coaxial cable (75 Ω/ohms pin-plug cable)





S Video cable





C

Digital terminal (Optical)





F

Component video terminal

















(Green)





(Y)





Optical cable (Optical fiber cable)



(Blue)





(PB/CB)







(Red)





(PR/CR)





























Component video cable













Signal direction









Audio signal







Video signal











IN

OUT

OUT

IN

IN

OUT

OUT

IN

NOTE:

Do not plug in the power supply cord until all connections have been completed.

When making connections, also refer to the operating instructions of the other components.

Be sure to connect the left and right channels properly (left with left, right with right).

Note that binding pin-plug cables together with power supply cords or placing them near a power transformer will result in generating hum or other noise.

14

ENGLISH

ENGLISH

Connecting Other Sources

Connecting a DBS/Cable tuner/VCR

When making connections, also refer to the operating instructions of the other components.

If the device to be connected is equipped with a digital audio output (COAXIAL), connect it to the DIGITAL Input (COAXIAL) on the ADV-S101.

DBS / Cable Tuner/

VCR

E

S VIDEO

OUT

D

VIDEO

OUT

B

COAXIAL

OUT

A



AUDIO OUT

L

L

L



R

R

R

Connecting Other Sources

Connecting a tape deck, MD recorder or CD recorder

When making connections, also refer to the operating instructions of the other components.

Connect the tape deck’s audio output and audio input terminals to the ADV-S101’s AUX3 using pin-plug cords.



Tape deck /



MD recorder /

C

CD recorder









OPTICAL





OUT

C









OPTICAL





IN

A



AUDIO OUT

L

L

L

R

R

R





A



AUDIO IN

L

L

L

R

R

R

When there are multiple input signals, the input signals are detected and the input signal to be output from the video monitor output terminal is selected automatically in the following order: S- Video, composite video.

Connecting a S-Video connections (Better picture quality)

Monitor TV

E

S VIDEO

IN

15

ENGLISH

Connecting Other Sources

Connecting a component connections (Better than S-Video picture quality)



Monitor TV

DF

COMPONENT VIDEO IN



Y



PB/CB



PR/CR

PROGRESSIVE/INTERLACED

the “TV TYPE” in “VIDEO SETUP” in “SETUP” in “HELP” to comply with your TV’s video

. When the TV is NTSC formatted set to NTSC.

the PROGRESSIVE/INTERLACED switch on the ADV-S101’s rear panel is set to no video signals are output from the VIDEO OUT or S-VIDEO OUT terminals.

PROGRESSIVE/INTERLACED switch on the ADV-S101’s rear panel to “INTERLACED”, if you to use the VIDEO OUT or S-VIDEO OUT signals. ( page 11, 15).

ENGLISH

Connecting Other Sources

To change the speaker cable

Refer to the procedure below if you want to switch to a different speaker cable. This example describes how to mount the “+” side cable to the connector. Mount the “–“ side cable in the same way.

q Insert the included hexagonal wrench into the hole







at the side of the connector’s “+” side. (Arrow A)







w Turn the hexagonal wrench in the direction of







arrow B to loosen the cable.



A



e Pull out the old cable. Be careful not to leave any

C





broken wire parts inside the connector. (Arrow C)



E

r Peel off the cable’s sheath and insert the new

D

B

cable with the copper colored core wire twisted







tightly together into the connector. (Arrow D)







tTurn the hexagonal wrench in the direction of

Arrow E and tighten securely so that the cable cannot be pulled out. Be sure to connect both sides of the cable to the connectors with the proper polarities.

If the polarities are inverted, the phase may be off and the bass sound may be missing, resulting in an unnatural sound.

2 To switch from interlace to progressive

• Turn off the power before changing the switch.

• Choose settings according to the TV to be connected.

• Set the PROGRESSIVE/INTERLACED switch on the ADV-S101’s rear panel to select the type of the TV.

PROGRESSIVE:

Select this when using the ADV-S101 connected to a progressive type TV.

INTERLACED:

Select this when using the ADV-S101 connected to an interlace type TV.

the component output only, it is possible to switch between interlace image output and image output. It is not possible to specify progressive image output for the Video

connectors or S-Video output connector.

Connecting the antenna terminals

An F-type FM antenna cable plug can be connected directly.

If the FM antenna cable’s plug is not of the F-type, connect using the F-type antenna adapter (Option).

FM antenna





AM loop antenna

Direction of

Black

White

(Supplied)







broadcasting station







FM antenna

75 Ω/ohms

adapter

COAXIAL cable

(Option)

NOTE:

Do not connect two FM antennas simultaneously.

• Even if an external AM antenna is used, do







not disconnect the AM loop antenna.







• Make sure AM loop antenna lead terminals









AM outdoor

do not touch metal parts of the panel.



Ground

antenna



16

ENGLISH

ENGLISH

Basic Operation

Playing a disc

28, 9

1/ 3

Playback

Press the 1 button.

Playback will start from the first chapter or track of the disc. If the playback does not start automatically, press the 1 button.

1

3

2





CURSOR



MENU/GUIDE



ENTER

NUMBER



ENTER

CURSOR

TOP MENU





ANGLE/CT

AUDIO/PTY

SUBTITLE/RT

2 Using the top menu

For DVDs containing multiple titles, the desired title can be selected and played from the top menu.

1

During playback, press the TOP MENU button.

• The top menu screen appears.



Example:











TOP MENU

















Apple



Banana



















Orange



Strawberry



















Peach



Pineapple



2 Press the CURSOR or NUMBER buttons to select the desired title.

If you select the title number pressing the NUMBER buttons, skip step 3 below.

Example: When “Orange” is selected

TOP MENU

Apple Banana

Orange Strawberry

Peach Pineapple

Basic Operation

3 Press the ENTER button.

• Playback also starts if the 1 button is pressed.

Example:

Orange

You can return to the menu screen by pressing the TOP MENU button while the DVD is playing, though this depends on the disc.

Press the RETURN button during playback of a video CD to return to the menu screen.

2 Using the DVD menus

Some DVDs include special menus called DVD menus.

For example, DVDs with complex contents may contain guide menus, and DVDs with multiple languages may contain audio and subtitle language menus.

These menus are called “DVD menus”.

Here we describe the general procedure for using DVD menus.

1 Duringbutton. playback, press the MENU/GUIDE

• The DVD menu screen appears.

2 Press the CURSOR or NUMBER buttons to select the desired item.

If you select the title number pressing the NUMBER buttons, skip step 3 below.

3 Press the ENTER button.

• If more menus appear, repeat steps 2 and 3.

17

ENGLISH

Basic Operation

2 Switching the audio language

2 Switching the angle

(Multiple audio function)

(Multiple angle function)

With DVDs containing multiple audio language signals, the audio

With DVDs containing multiple angle signals, the angle can be

language can be switched during playback.

switched during playback.

1 During playback, Press the AUDIO/PTY button.

• The current audio language number is displayed.

2 Press the CURSOR or ª button to select the desired language.

The display turns off when the AUDIO/PTY button is pressed.

With some discs it is not possible to change the audio language during playback. In such cases, select from the “SETUP” menu.

The language selected in the default settings ( page 43) is set when the power is turned on and when the disc is replaced.

2Switching the subtitle language (Multiple subtitle function)

With DVDs containing multiple subtitle language signals, the subtitle language can be switched during playback.

1 During playback, Press the ANGLE/CT button.

• The current angle number is displayed.

2 Press the CURSOR or ª button to select the desired angle.

The display turns off when the ANGLE/CT button is pressed.

1 Duringbutton. playback, Press the SUBTITLE/RT

• The current audio language number is displayed.

2 Press the CURSOR or ª button to select the desired language.

The display turns off when the SUBTITLE/RT button is pressed.

18

ENGLISH

Basic Operation

Stopping playback

During playback, press the 2 button.

• Playback stops and wall paper is displayed.

2 Resume play memory function (DVD only)

With the S-101, when the 2 button is pressed, that position is stored in the memory. At this time, “1” flashes on the display. When the 1 button is pressed after pressing the 2 button, playback resumes from the position at which it was stopped. The resume play memory function is canceled if the disc tray is opened or the 2 button is pressed a second time.

The resume play memory function only works for discs for which the elapsed time is shown on the display during playback.

2 Auto power off function

The S-101 is equipped with a function that automatically switches the power to standby if no operation is performed for 30 minutes while in the stop mode with the function set to DVD.

This function is set to off upon shipment from the factory. If you wish to turn it on, set the “AUTO POWER MODE ” ( page 51) setting to “ON”.

Playing still pictures (Pausing)

During playback, press the 3 button.

• Press the 1 button to resume normal playback.

ENGLISH

ENGLISH

Basic Operation

2 8, 9

1/ 3

1 3

2 8, 9

6, 7

CURSOR

ENTER

NUMBER RANDOM

SEARCH MODE 8, 9

ENTER CURSOR

DISPLAY

Forward / Reverse searching

During playback, press the 6 or 7 button.

When pressed again, the search speed increases (DVD, VIDEO CD in seven steps, CD in four steps).

6 : Reverse direction

7 : Forward direction

Press the 1 button to resume normal playback.

In some cases the menu screen may reappear when the 6 or 7 button is pressed during menu playback on a video CD.

Skipping to the beginning of chapters or tracks

During playback, press the 8 or 9 button.

A number of chapters or tracks equal to the number of times the button is pressed is skipped.

When the 8 button is pressed once, the pickup returns to the beginning of the currently playing chapter or track.

8 : Reverse direction (Previous)

9 : Forward direction (Next)

Playing position

Chapter/Track Chapter/Track Chapter/Track Chapter/Track

Reverse direction ← →Forward direction (direction of playback)

Basic Operation

2 Cueing using the NUMBER buttons

1 Duringbutton. playback, press the SEARCH MODE

The mode switches as shown below each time the button is pressed:

For DVDs

: Title ← → Chapter

For CDs and video CDs

: Track (no switching)

The search mode set by pressing the SEARCH MODE button is stored in the memory until the power is turned off.

2 Press the NUMBER buttons to input the number of the title, chapter or track to be played.

Some DVDs or video CDs may be designed to operate in special ways and will not operate as described here.

Playing frame by frame

(for DVDs and video CDs only)

In the still mode, press the 3 button on the remote control unit.

The picture moves forward one frame each time the button is pressed.

Press the 1 button to resume normal playback.

Slow playback

(for DVDs and video CDs only)

In some cases the menu screen may reappear when the 8 or 9 button is pressed during menu playback on a video CD.

In the still mode, press the 6 or 7 button.

When pressed again, the slow play speed increases. (Four step) (Three step on video CDs)

6 : Reverse direction

7 : Forward direction

Press the 1 button to resume normal playback.

• Reverse slow play is not possible on video CDs.

19

ENGLISH

Basic Operation

Listening to recorded MP3 or WMA CD-R/CD-RW

There are many music distribution sites on the internet from which music files in MP3 format can be downloaded. Music downloaded as instructed on the site and written onto a CD- R/CD-RW disc can be played on the S-101.

If music recorded on commercially available music CDs is converted on a computer into MP3 files using an MP3 encoder (conversion software), the data on a 12 cm CD is reduced into about 1/10 the amount of the original data. Thus, when written in MP3 format, the data of about 10 music CDs can fit onto a single CD-R/CD-RW disc. A single CD-R/CD-RW disc can contain over 100 tracks.

Values when 5-minute tracks are converted with a standard bit rate of 128 kbps into MP3 files and using a CD-R/CD-RW disc with a capacity of 650 MB.

This unit can play CD-R/CD-RW music files that have been recorded in the WMA (Windows Media Audio)* audio compression format.

*WMA (Windows Media Audio): Coding of Microsoft Corporation (U.S.A.)

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

In the file display of the disc information screen, WMA files will be displayed with the “WMA” icon instead of the “MP3” icon. (Files for which the “WMA” icon is not displayed cannot be played.)

Uses of recordings you have made other than for your personal enjoyment are not permitted under the Copyright Law without permission of the copyright holder.

1 Load the CD-R/CD-RW disc on which the MP3 or WMA format music files have been written into this unit. ( page 13)

• The disc information screen appears.

If there are multiple folders, proceed to step 2.

If there are no folders on the disc (if the disc only contains MP3 or WMA files), proceed to step 3.

All the folders recorded on the disc are displayed. (The folders are not displayed by layer.)

2 Press the CURSOR or ª button to select the folder containing the file(s) you want to play, then press the ENTER button.

To change the folder

Press the CURSOR • button to select “ROOT” at the upper right of the screen, then press the ENTER button. The screen in step 1 reappears. Select the desired folder.

ENGLISH

Basic Operation

3 Press the CURSOR or ª button to select the MP3 or WMA file, then press the 1 button or

ENTER button.

The display can be switched between the single elapsed time, the single remaining time, track name, title name and artist name by pressing the DISPLAY button.

2 To change the MP3 or WMA file

1 Press the 2 button.

2 Press the CURSOR or ª button to reselect the desired MP3 or WMA file.

2 To set the random play mode

1 In the stop mode, press the RANDOM button.

2 Press the 1 button or ENTER button.

20

ENGLISH

ENGLISH

Basic Operation

2 8, 9

1/ 3

1 3

2 8, 9

CURSOR

ENTER

NUMBER

REP 1/ALL

8, 9

ENTER CURSOR

DISPLAY

2 To set the repeat

The repeat mode



time the REP 1/ALL

button is pressed.





FOLDER

TRACK REPEAT

FOLDER REPEAT

2 To return to the initial disc information screen

1 Press the 2 button.

2 Press the CURSOR button to select “ROOT” at the upper right of the screen, then press the ENTER button.

Programmed playback is not possible with MP3/WMA discs.

The S-101 is compatible with the “MPEG-1 Audio Layer 3” standards (sampling frequency of 32, 44.1 or 48 kHz). It is not compatible with such other standards as “MPEG-2 Audio Layer 3”, “MPEG-2.5 Audio Layer 3”, MP1, MP2, etc. WMA files recorded with a sampling frequency (fs) of 32, 44.1, and 48 kHz are supported.

It may not be possible to play some CD-R/CD-RW discs due to disc properties, dirt, warping, etc.

In general, the higher an MP3 file’s bit rate, the better the sound quality. On the S-101, we recommend using MP3 files recorded with bit rates of 128 kbps or greater.

Applicable bit rates: 32 to 320 kbps for MP3 files, 64 k to 160 kbps for WMA files.

The digital signals output when playing MP3 files are MP3 signals converted into PCM, regardless of whether the audio output presenting is set to “normal” or “PCM conversion”. The signals are output with the same sampling frequency as that of the music source.

MP3/WMA files may not be played in the expected order, since the writing software may change the position of the folders and the order of the files when writing them on the CD-R/CD-RW.

When writing MP3/WMA files on CD-R/CD-RW discs, select “ISO9660 level 1” as the writing software format. This may not be possible with some types of writing software. For details, refer to the writing software’s usage instructions.

With the S-101 it is possible to display folder names and file names on the screen like titles. The S-101 can display up to 63 characters, consisting of numbers, capital letters, small letters and the “_” (underscore) mark.

Basic Operation

If recorded in a format other than “ISO9660 level 1”, normal display and playback may not be possible. In addition, folder and file names including other symbols will not be displayed properly.

Be sure to add the extension “.MP3/WMA” to MP3/WMA files.

Files cannot be played if they have any extension other than

“.MP3/WMA” or if they have no extension. (with Macintosh computers, MP3/WMA files can be played by adding the extension “.MP3/WMA” after the file name consisting of up to 63 capital letters, small letters or numbers and recording the files on the CD-R/CD-RW.)

Do not apply stickers, tape, etc., to either the label side or the signal side of CD-R/CD-RW discs. If adhesive gets on the surface of a disc, the disc may get stuck inside the S-101 and be impossible to eject.

Copyright protected WMA files cannot be played. Also note that depending on the writing software and conditions, playback might not be possible, or the files might not be displayed properly.

While in the stop condition, the DISPLAY button of the remote control can be used to switch and display the title names and the artist names. (One folder has a capacity of up to 99 files.)

Recorded discs with no more than 99 files per folder are recommended. Multiple folder configurations are possible; however, depending on the configuration, playback of all the folders and files might not be possible.

Multi-session discs and CD-R/CD-RW that have not been finalized can also be played back; however, playback of discs that have had session closure within 10 sessions or have been finalized is recommended.

Direct track selection using the NUMBER button on the remote control unit can specify up to 999 tracks (999 files) per folder.

When 999 tracks are exceeded, while the unit is stopped press the CURSOR buttons at the disc information screen to select the files, and press the 1 button of the ENTER button to play.

The MP3 ID3-Tag (Ver. 1, Ver. 2) function is compatible with title and artist names.

The WMA meta tag function is compatible with title, artist and album names.

The S-101 is not compatible with packet write software.

The S-101 is not compatible with play lists.

The S-101 is not compatible with MP3 PRO.

21

ENGLISH

Basic Operation

Playing still picture files (JPEG format)

JPEG files stored on Kodak picture CDs, CD-Rs and CD-RWs can be played as a slide show and enjoyed on the S-101.

2 Playing picture CD

The S-101 can play Kodak Picture CDs so you can view the photographs stored on them on a TV screen.

(Picture CDs are CDs containing photographs taken on conventional silver film cameras which have been converted into digital data. For details on Kodak Picture CDs, please contact a store providing Kodak development services. For details on Fujicolor CDs, please contact a store providing Fuji Photo Film development services.)

Load the Picture CDs into the set.

Playback of the still pictures starts automatically when the disc is loaded.(For Picture CDs)

Press the 2 button to stop playback.

“KODAK” is the registered trademark of Eastman kodak Co.

2 Playing still pictures stored on CD-R/CD-RW

1 Load the CD-R/CD-RW on which the still pictures have been written into the S-101.

• The disc information screen appears.

If there are multiple folders, proceed to step 2.

If there are no folders on the disc, proceed to step 3.

2 Press the CURSOR or ª button to select the folder containing the file(s) you want to play, then press the ENTER button.

To change the folder

Press the CURSOR button to select “ROOT” at the upper right of the screen, then press the ENTER button.

The screen in step 1 reappears. Select the desired folder.

3 Press the CURSOR or ª button to select the still picture file, then press the 1 button or the

ENTER button.

Only the still picture files in the selected folder are played.

Once all the still picture files in the folder have been played, the disc information screen reappears.

ENGLISH

Basic Operation

2To view several of the still pictures stored on the disc at once

1 Press the 2 button to display up to 9 still pictures at once.

2 Press the CURSOR , ª, 0 or 1 button to select the desired still picture, then press the ENTER button.

2 To temporarily stop the slide show

Press the 3 button.

To resume the slide show, press the 1 button.

2To cue a still picture you want to view (from which you want to start the slide show)

During the slide show, press one of the 8 or 9 button.

8 button : Cue back to the previous still picture

9 button : Cue ahead to the next still picture

2 Flipping and rotating still pictures

Press the CURSOR , ª, 0 or 1 button to flip the still picture.

CURSOR button: The currently displayed still picture is flipped vertically.

CURSOR ª button: The currently displayed still picture is flipped horizontally.

CURSOR 0 button: The currently displayed still picture is rotate 90° counterclockwise.

CURSOR 1 button: The currently displayed still picture is rotate 90° clockwise.

Once all the still picture files in the folder have been played, the disc information screen reappears.

22

ENGLISH

ENGLISH

Basic Operation













BAND



+ ,

FUNCTION



1





































































TUNER

1

BAND TUNING +,

SLOW/SEARCH

6, 7

CURSOR

ENTER

NUMBER



MODE

SEARCH MODE

ZOOM



ENTER

CURSOR

2 Play the image in the zoom mode

Press the ZOOM button while playing a JPEG image, then press the 6 or 7 button to zoom in and zoom out.

• 6 button : zoom out

• 7 button : zoom in

Press the CURSOR , ª, 0 or 1 button (to move the zoomed picture.

Continuous playback (SLIDE SHOW) is not possible in the zoom mode.

2The way of switching to the next image during continuous JPEG image playback (SLIDE SHOW) can be selected

Press the SEARCH MODE button.

Select from SLIDE SHOW MODE 1 to MODE 11, MODE RAND and MODE OFF.

2Special play modes for MP3/WMA and JPEG files

1 Press the CURSOR 0 or 1 button to select the play mode.

2 Press the CURSOR or ª button to select the special play mode.

Basic Operation

FOLDER:

The MP3/WMA and JPEG files in the folder are played in order starting from the selected file.

FOLDER REPEAT:

All the MP3/WMA and JPEG files in the folder are played repeatedly starting from the selected file.

DISC:

All the MP3/WMA and JPEG files on the disc are played in order starting from the selected file

DISC REPEAT:

All the MP3/WMA and JPEG files on the disc are played repeatedly starting from the selected file

RANDOM ON:

All the MP3/WMA and JPEG files in the folder are played in random order starting from the selected file

TRACK REPEAT:

The select MP3/WMA or JPEG file is played repeatedly

The S-101 is compatible with image data stored in JPEG format, but Denon does not guarantee that all image data stored in JPEG format can be viewed.

Pictures with resolutions of up to 2048 x 1536 pixels can be displayed.

It may not be possible to play some CD-R/CD-RW due to disc properties, dirt, scratches, etc.

When storing JPEG files on the CD-R/CD-RW, set the writing program to store the files in the “ISO9660 level 1” format.

Be sure to give JPEG files the extension “.JPG” and “.JPE”. Files with other extensions or with no extensions cannot be viewed on the S-101.

Do not apply stickers, tape, etc., to either the label side or the signal side of CD-R/CD-RW discs. If adhesive gets on the surface of a disc, the disc may get stuck inside the S-101 and be impossible to eject.

Do not play CD-R/CD-RW discs containing any files other than music CD files (in CDA format), MP3/WMA and JPEG files. Doing so may result in malfunction or damage, depending on the type of file.

JPEG files written using Macintosh computers cannot be played.

23

ENGLISH

Basic Operation

Listening to the radio

Manual tuning

1 Set the input source to “TUNER”.

(Main unit)

(Remote control unit)

2 Press the BAND button on the main unit to select “FM AUTO”, “FM MONO” or “AM”.

When using the remote control, the BAND button is pressed to select “FM” or “AM”, then the MODE button is pressed to select “FM AUTO” and “FM MONO”.

3 Adjust the receiving frequency.

• When a station is received, the “TUNED” indication will light.

(Main unit)

(Remote control unit)

A humming sound may be heard when using a TV nearby while receiving AM programs. If this happens, move the system far from the TV as possible.

2 FM stereo perception

When a program being broadcast in “FM AUTO” is received, the “ST” indicator lights and the program is received in stereo.

If reception is poor and there is much noise in the stereo signals, set the “FM AUTO” mode.

2 About the tuning mode and the preset mode

The function of the + and buttons on the main unit can be switched so that they can be used for either tuning (selecting the reception frequency) or for selecting preset stations.

The buttons are set to the tuning mode upon shipment. The mode can be switched to the preset mode by pressing the + button while pressing in the BAND button. (When this is done, “PRESET” is flashes for approximately 5 seconds.)

Press the button while pressing in the BAND button to switch to the tuning mode. (When this is done, “TUNING” is flashes for approximately 5 seconds.)

2 Auto tuning

When one of the + or button on the main unit (or the SLOW/SEARCH button on the remote control unit) is pressed, the frequency changes in steps of 0.2 MHz in the FM band, 10 kHz in the AM band.

If one of the + or button on the main unit (or the SLOW/SEARCH button on the remote control unit) is held for over 1 second, the frequency continues to change when the button is released (Auto tuning) and stops when a station is tuned in. Tuning will

stop at stations whose reception is poor.

stop the auto tuning function, press the + or button on the unit (or the SLOW/SEARCH button on the remote control once.

The CURSOR 0 and 1 buttons function in the same way as the + and buttons on the main unit and remote control unit.

ENGLISH

Basic Operation

Auto tuner presets (for main unit only)

Use this to automatically search for FM broadcasts and store up to 60 stations at preset channels 1 to 60.

1 Set the input source to “TUNER”, then press and hold the 1 button for 2 seconds or longer.

“AUTO PRESET?” and “–:NO/+: START” will alternately appear on the display of the main unit.

Press the button to cancel.

2 Press the + button to select “START”.

• “SEARCH” flashes on the display and searching begins. “COMPLETED” appears once searching is completed.

• If an FM station cannot be preset automatically due to poor reception, use the “Manual tuning” ( page 24) operation to tune in the station, then preset it using the manual “Preset memory” ( page 25) operation.

• When the auto preset function is performed, the previously presettings are cleared and replaced with the new presettings.

Listening to preset stations

The buttons are set to the tuning mode upon shipment. The mode can be switched to the preset mode by pressing the + button while pressing in the BAND button. (When this is done, “PRESET” is flashes for approximately 5 seconds.)

Press the + or button on the main unit, or TUNING + or button on the remote control unit to select the preset number.

(Main unit)

(Remote control unit)

The preset number can also be input directly pressing the NUMBER buttons on the remote control unit.

The + and buttons on the main unit can be selected when the preset mode has been set.

24

ENGLISH

ENGLISH

Basic Operation

FUNCTION

AUX

CURSOR

ENTER

NUMBER

CLEAR

MODE

MEMO

ENTER CURSOR

Presetting stations that have been tuned in and giving names to stations (for remote control unit only)

A total of 60 stations (including both FM and AM stations) can be preset.

Preset stations can be given names with up to 8 characters (letters, numbers and symbols).

Preset stations using the including remote control unit.

1 Tune in the station you want to preset.

P0FM 2.50M

2 Press the MEMO button twice in a row.

• The name input mode is set.

Basic Operation

4 Press the ENTER button to enter the station name you have input.

• The preset number indicator, “P0– ”, flashes.

P0- FM-DENON

5 Press the CURSOR or ª button to select the preset number, then press the ENTER button to enter the preset number.

The preset number, band and reception frequency are displayed, then the station name appears.

The preset number can also be input directly pressing the NUMBER buttons on the remote control unit.

P03 FM-92.50M

P0- _

3 Press the CURSOR or ª button to select the character, then press the ENTER button to input that character.

P0- F

P0F_

When the CURSOR 1 button is pressed, the selected character is entered, the cursor moves to the next position and the next character can be input.

When the CURSOR 0 button is pressed, the selected character is entered, the cursor moves to the previous position. Use this to correct characters that have already been input.

P03 FM-DENON

To stop in the middle of the procedure, press the MODE button before pressing the ENTER button at step 4. Everything you have input is cleared.

To clear a station name that has been set in the memory, call out that station, set the name input mode in step 2, then press the CLEAR button. The station name is cleared and the preset channel frequency is displayed.

If you only want to preset a station, press the MEMO button once while the station is tuned in. The preset number indicator, “P0–”, flashes, and the preset number input mode is set. Press the CURSOR or ª button to select the preset number, then press the ENTER button again to store that station at the selected number. (The number can also be specified directly using the NUMBER buttons on the numeric keypad.)

25

ENGLISH

Basic Operation

Playing the iPod®









Connecting the iPod



Turn on the TV’s power. Set the TV’s input

Music on your iPod can be played by connecting the iPod to the 3 function to the ADV-S101 input.

ADV-S101’s iPod connector. The iPod can also be controlled with



the buttons on the remote control unit and on the main unit.



iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

iPod

Connect to the ADV-S101’s iPod connector in this direction.

Connect the ADV-S101 with the iPod with the marked side of the connector facing up.

1 Connect the ADV-S101 and iPod using the included iPod cable.

• Turn the iPod’s power on.

2 Press the FUNCTION button on the main unit or AUX button on the remote control unit to select “IN iPod”

IN iPod

Browse iPod

iPod screen

NOTE:

With the S-101, only iPod can be operated with the S-101’s remote control unit and the buttons on the main unit. In this case it is not possible to operate using the S-101’s remote control unit and the buttons on the main unit, but it is possible to play the tracks on the iPod.

If the screen in step 3 is not displayed, the iPod may not be properly connected. Reconnect it.

The maximum battery charge output from the iPod connector is 8W.

26

ENGLISH

Basic Operation

ENGLISH

ENGLISH

Basic Operation

FUNCTION

PHONES

AUX

1 3

2 8, 9

6, 7

CURSOR

RETURN MENU/GUIDE

ENTER

RANDOM

REP 1/ALL

8, 9

ENTER CURSOR

Playback

1 Use the CURSOR , ª and ENTER buttons to display the list of tracks.

2 Press the ENTER button to play.

The display can be switched between title name, album title, artist name, the elapsed time and the remaining time by pressing the DISPLAY button.

Basic Operation

on your iPod’s software version, it may not be to control your iPod from the S-101. We recommend the latest software version.

information and instructions on upgrading to the latest version, see the Apple Computer, Inc. website.

only the 1, 2, 3, 8, 9, 6 and 7 buttons when in the “Remote iPod” mode.

browse mode, when “Songs” is selected from the “TOP while a track is playing, the track stops.

“Remote iPod” mode, when the MENU button on the control unit is pressed for 2 seconds to turn the off, the backlight may turn back on, depending on the

at which the button is released.

in the “Remote iPod” mode, the 1 button on the control unit functions as the 13 button.

iPod operations, also refer to the iPod’s operating

.

2 The buttons on the remote control unit correspond to the buttons on the iPod as shown below.

Remote control unit buttons

iPod buttons

Operation on the S-101







1

13

Play the track.







2

Stop playback of the track.







3

13

Pause the track.







MENU/GUIDE

MENU

Display the menu or return to the previous menu.







9

9

Play the next track.







8

8

Play the track from the beginning.







7

7

Fast-forward the track.







6

6

Fast-reverse the track.







, ª, 0, 1

Click Wheel

Select an item.







ENTER

Select

Enter the selection or plays the track.







RETURN

Switch between the browse mode and the remote mode.







REP 1/ALL

Switch the repeat function.







RANDOM

Switch the shuffle function.







27

ENGLISH
