Delonghi ECAM37095TI Instruction manuals

ECAM37095

COFFEE MAKER

Instructions for use. Keep these instructions

Visit www.delonghi.com for a list of service

centers near you.

ELECTRIC CHARACTERISTICS

120 V~ 60 H z 1250 W

MACHINE À CAFÉ

Mode d’emploi . Conservez cette notice

Visitez www.delonghi.com pour y voir une liste

des centres de réparation proches de chez vous.

CARACTÉRISTIQUES ÉLECTRIQUES

120 V~ 60 H Z 1250 W

CAFETERA

Repase y guarde estas instrucciones.

Lea cuidadosamente este instructivo antes de

usar su aparato.

Visite www.delonghi.com para ver la lista de

centros de servicios cercanos a usted.

CARACTERISTICAS ELECTRICAS:

120 V~ 60 H Z 1250 W

A12

A13

B C

A10

A11

A22

A21

A20

A19

A16

A14

A15

A17

A18

B C

PROFILE 1

B1B9

CONTENTS

IMPORTANT SAFEGUARDS .................................5

SAVE THESE INSTRUCTIONS .................................................. 5

SHORT CORD INSTRUCTIONS .............................. 5

1. INTRODUCTION ........................................... 6

1.1 Letters in brackets .................................................... 6

1.2 Troubleshooting and repairs..................................... 6

1.3 Download the App! ..................................................6

2. DESCRIPTION ..............................................6

2.1 Description of the machine (page 2 - A) ................... 6

2.2 Description of the homepage (page 3 - B) ............... 6

2.3 Description of the control panel (page 3 - C) ............ 6

2.4 Description of the accessories (page 3 - D) ...............6

2.5 Description of the milk container (page 3 - E) .......... 7

9. MAKING MILKBASED RECIPES ........... 12

9.1 Filling and attaching the milk container ................ 12

9.2 Adjusting the amount of froth ............................... 12

9.3 Making milk-based recipes automatically .............. 13

9.4 Cleaning the milk container after use ................... 13

10. COFFEE CARAFE ......................................... 13

11.

12.

13.

DELIVERING HOT WATER .................... 14

CUSTOMISING THE BEVERAGES .14

MEMORISING YOUR OWN USER PROFILE .

............................................................... 14

4. TURNING THE MACHINE ON .................. 8

5. TURNING THE MACHINE OFF .........................8

6.1 Access the settings menu ......................................... 8

6.2 Exit the menu ........................................................... 8

6.3 Rinse ....................................................................... 8

6.4 Descaling ................................................................ 9

6.5 Water lter .............................................................. 9

6.6 Beverages settings ..................................................9

6.7 Auto-o (standby) .................................................. 9

6.8 Energy saving ......................................................... 9

6.9 Coee temperature ................................................. 9

6.10 Water hardness ....................................................... 9

6.11 Set language ...........................................................9

6.12 Beep ........................................................................ 9

6.13 Bluetooth ................................................................9

6.14 Default values ....................................................... 10

6.15 Statistics ................................................................ 10

6.16 Customise prole .................................................. 10

MENU SETTINGS .................................. 8

7. MAKING COFFEE ................................ 10

7.1 Making coee using coee beans .......................... 10

7.2 Selecting the coee strength ................................. 10

7.3 Selecting the coee quantity ................................. 10

7.4 Making coee using pre-ground coee.................. 11

7.5 Adjusting the coee grinder................................... 11

7.6 Tips for a hotter coee ........................................... 11

14.

14.1 Cleaning the machine ............................................ 15

14.2 Cleaning the internal circuit ................................... 15

14.3 Cleaning the coee grounds container ................... 15

14.4 Cleaning the drip tray and condensate tray ............ 15

14.5 Cleaning the inside of the coee machine ............. 16

14.6 Cleaning the water tank ......................................... 16

14.7 Cleaning the coee spouts .....................................16

14.8 Cleaning the pre-ground coee funnel .................. 16

14.9 Cleaning the infuser ............................................... 16

14.10 Cleaning the milk container ................................... 17

14.11 Cleaning the hot water nozzle ................................ 18

CLEANING ........................................15

15. DESCALING ...................................... 18

16.

16.1 Measuring water hardness ..................................... 19

16.2 Setting water hardness ......................................... 19

SETTING WATER HARDNESS .............. 19

17. WATER SOFTENER FILTER ................... 19

17.1 Installing the lter ................................................. 19

17.2 Replacing the lter................................................. 20

17.3 Removing the lter ................................................20

19. DISPLAYED MESSAGES ....................... 22

20.

TROUBLESHOOTING .......................... 26

IMPORTANT SAFEGUARDS

When using electrical machines, basic safety precautions should always be followed, including the following.

• Read all instructions carefully.

• Make sure the voltage of your electrical system corresponds to the voltage shown on the bottom of the machine.

• Do not touch hot surfaces. Use handles or knobs.

• To protect against re, electrical shock and personal injury, do not immerse cord, plug or machine in water or other liquid.

• Keep the machine out of the reach of children and do not leave machine unattended while in operation.

• Unplug from the outlet when not in use and before cleaning.

• Do not operate with a damaged cord or plug, or after the machine malfunctions, or has been damaged in any manner. Return the machine to the nearest authorized service facility for examination, repair or adjustment.

• The use of accessory attachments not recommended by the manufacturer may result in re, electrical shock, or personal injury.

• Do not use outdoors.

• Make sure the power cord does not hang over the edge of the table or counter-top to avoid getting accidentally caught or entangled.

•

Do not place the machine or its electrical parts on or near electric stoves, cooking surfaces, or gas burners.

• Plug cord into the wall outlet. To disconnect, rst turn machine “o”, then remove plug from wall outlet.

• Do not use the machine for other than the intended use. This machine is to be utilized for domestic use only. The manufacturer declines all responsibility for any damage caused by improper, incorrect, or irre-

sponsible use.

WARNING: To reduce the risk of re or electric shock, do not remove the cover or the exterior of the unit. Don’t attempt to repair or modify the machine, doing so will void the warranty. Repair should be done by authorized service personnel only!

SAVE THESE INSTRUCTIONS

THIS MACHINE IS FOR HOUSEHOLD USE ONLY

SHORT CORD INSTRUCTIONS

- A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

- Longer, detachable power supply cords or extension cords are available and may be used if care is exercised in their use.

- If an extension cord is used, the marked electrical rating should be at least as great as the electrical rating of the machine. If the machine is provided with 3- wire, grounding type cord, the extension should be a GROUNDING TYPE 3 - WIRE CORD. The longer cord should be arranged so that it will not drape over the counter-top or table top where it can be pulled on by children or tripped over.

- Your product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will t into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to t, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

1. INTRODUCTION

Thank you for choosing this fully automatic espresso machine. Take a few minutes to read this Instruction for Use. This will avoid all risks and damage to the machine.

1.1 Letters in brackets

The letters in brackets refer to the legend in the description of the machine on pages 2-3.

1.2 Troubleshooting and repairs

In the event of problems, rst try and resolve them by reading the information given in sections "19. Displayed messages" and "20. Troubleshooting". If this does not resolve the problem or you require further information, you should consult Customer Services by calling the number given on the warranty card.

1.3 Download the App!

A number of functions can be controlled remotely using the De’Longhi Coee Link App. In the App, you can also nd information, tips and curious facts about the world of coee, together with information on your machine at your ngertips.

This symbol highlights the functions you can control or

consult using the App. You can also create up to 3 new beverages and save them in your machine.

Please note:

• Check compatible devices on "compatibledevices.delonghi.

com".

• Advertencia: Los cambios o modicaciones no aprobados

expresamente por DE LONGHI podrían anular la autoridad del usuario para operar el equipo.

• Para cancelar un comando remoto, actúe directamente en

la pantalla de la máquina presionando Stop.

2. DESCRIPTION

2.1 Description of the machine

A1. Beans container lid A2. Pre-ground coee funnel lid A3. Beans container A4. Pre-ground coee funnel A5. Grinding adjustment dial

(page 2 - A)

A6. Cup shelf A7.

button: to turn the machine on and o (standby) A8. Hot water connection nozzle A9. Coee spouts (adjustable height) A10. Condensate tray A11. Coee grounds container A12. Cup tray A13. Drip tray water level indicator A14. Drip tray grille A15. Drip tray A16. Water tank lid A17. Water tank A18. Water softener lter housing A19. Infuser door A20. Infuser A21. Power cord A22. Main switch

2.2 Description of the homepage (page 3 - B)

B1. Bluetooth active symbol B2. Energy Saving active symbol B3. Selected strength B4. Directly selected beverages B5. Scroll arrow B6. Quantity selected B7. Descale required alarm B8. Milk container needs cleaning alarm B9. Filter needs replacing alarm

2.3 Description of the control panel (page 3 - C)

C1.

C2.

C3.

C4.

C5.

C6.

: beverage quantity selection

: prole selection

: machine settings menu

: press to exit from the selected function and go

back to the main menu

: My beverages selection menu. Unless previ-

ously programmed from the settings menu as described in chapter "12. Customising the beverages ", the beverage is

programmed directly the rst time you use the machine

: beverage strength selection

2.4 Description of the accessories (page 3 - D)

D1. Water hardness indicator paper (attached to page 2 of the

instructions) D2. Pre-ground measuring scoop D3. Descaler D4. Water softener lter (certain models only) D5. Cleaning brush D6. Hot water spout

2.5 Description of the milk container (page 3 - E)

E1. Froth adjustment and CLEAN dial E2. Milk container lid E3. Milk container E4. Milk intake tube E5. Frothed milk spout (adjustable)

3. BEFORE USE

3.1 Checking the machine

After removing the packaging, make sure the product is complete and undamaged and that all accessories (C) are present. Do not use the machine if it is visibly damaged. Contact De’Longhi Customer Services.

3.2 Installing the machine

Important!

When you install the machine, you should respect the following safety warnings:

• The machine gives o heat. After positioning the machine on the worktop, leave a space of at least 1.18 in / 3 cm between the surfaces of the machine and the side and rear walls and at least 5.9 in/15 above the coee maker.

• Water penetrating the coee machine could cause damage.

Do not place the machine near taps or sinks.

• The machine could be damaged if the water it contains freezes.

Do not install the machine in a room where the tempera-

ture could drop below freezing point.

• Arrange the power cord (A21) in such a way that it cannot be damaged by sharp edges or contact with hot surfaces (e.g. electric hot plates).

• You should customise water hardness as soon as possible following the instructions in section "16. Setting water hardness".

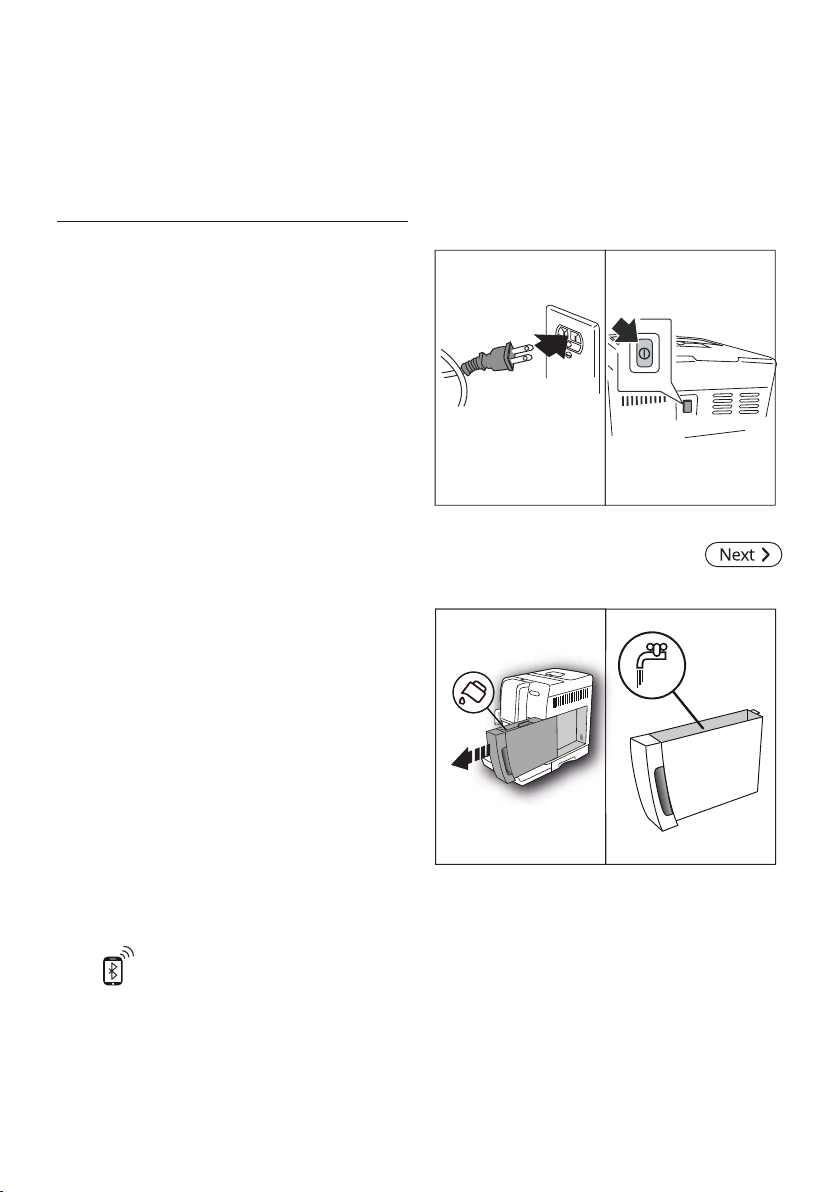

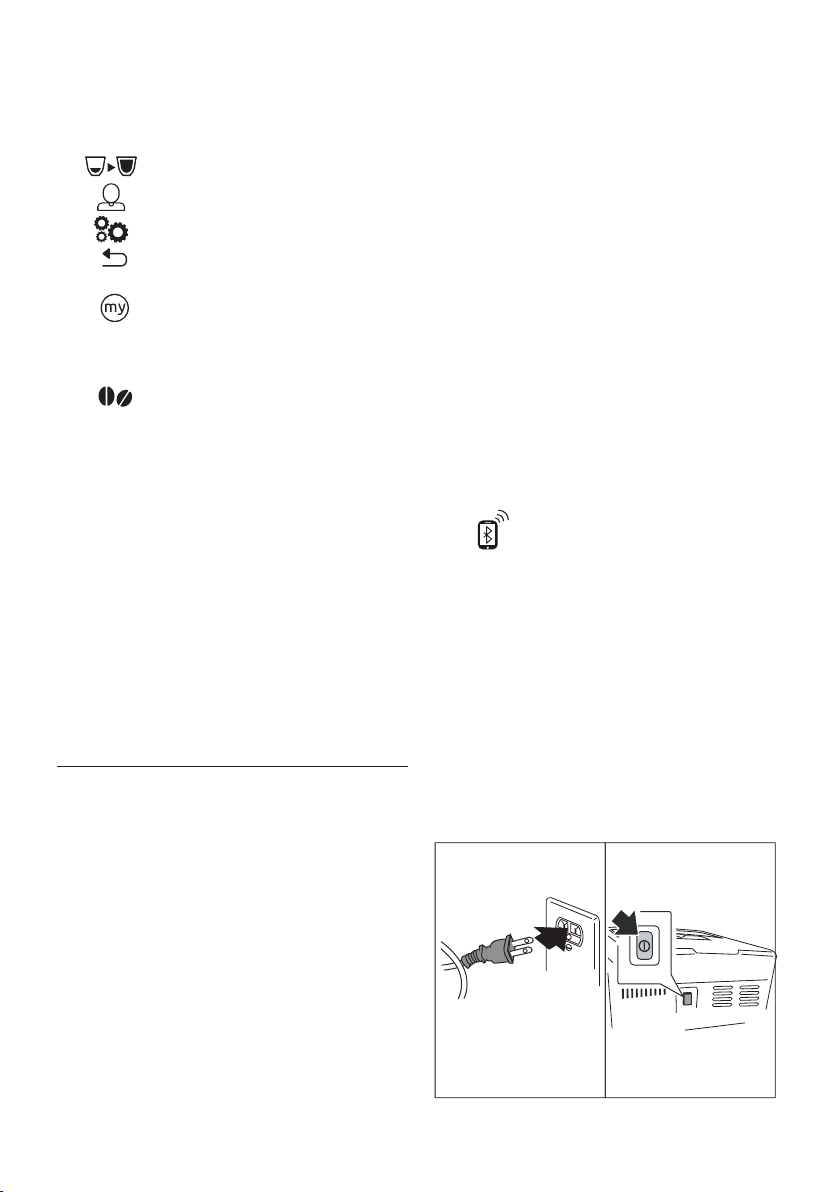

1. Connect the machine to the mains electricity supply (g.

1). Make sure the main switch (A22) at the back of the machine is pressed (g. 2);

Follow the instructions indicated on the machine display:

2. "SELECT LANGUAGE": Press and hold until the required language appears on the display, then press the ag corresponding to the language.

3.3 Connecting the machine

Important!

Check that the main power supply voltage corresponds to that indicated on the rating plate on the bottom of the machine. Connect the machine to an eciently earthed and correctly installed socket with a minimum current rating of 10A only. If the power socket does not match the plug on the machine, have the socket replaced with a suitable type by a qualied professional.

3.4 Setting up the machine

Please note!

• The rst time you use the machine, the water circuit is empty and the machine could be very noisy. The noise becomes less as the circuit lls.

• Coee has been used to factory test the machine and it is therefore completely normal for there to be traces of coee in the grinder. The machine is, however, guaranteed to be new.

433

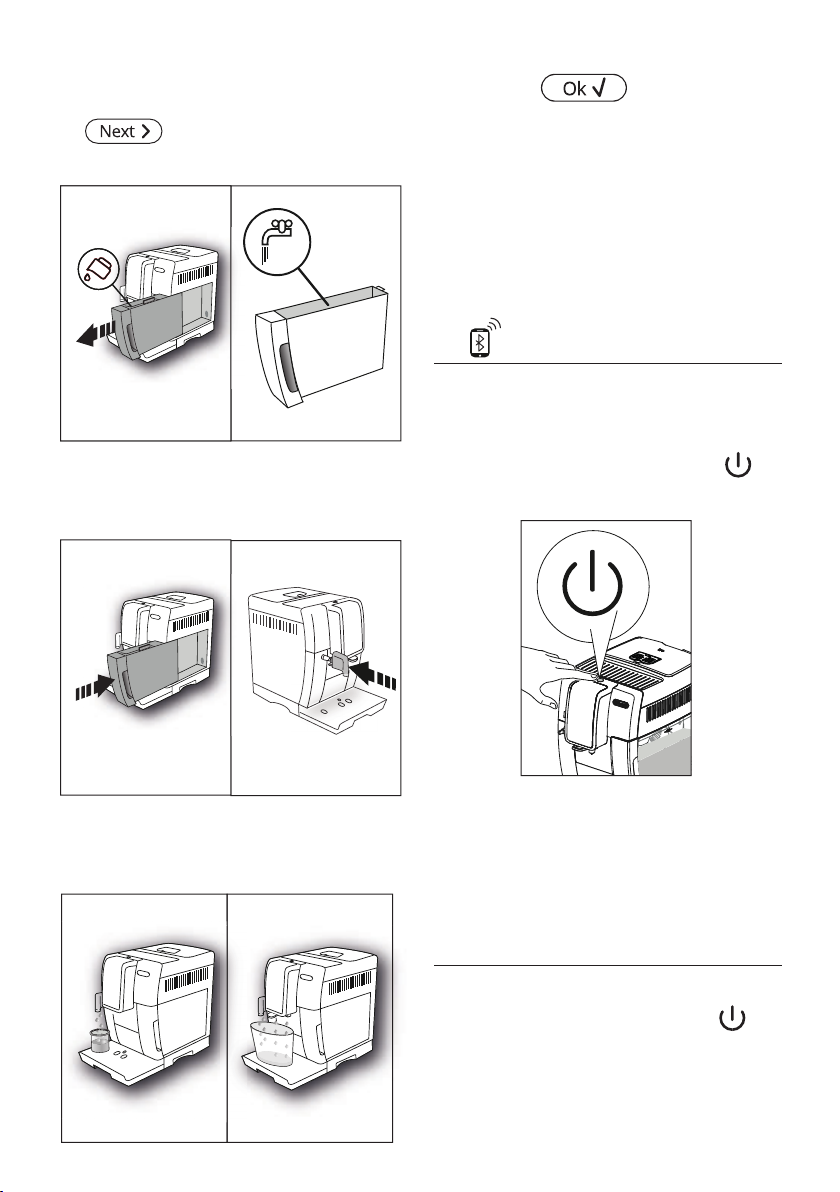

3. "FILL TANK WITH" "FRESH WATER": remove the water tank (A17) (g. 3), ll to the MAX line (marked on the tank) with fresh water (g. 4, then place back in machine (g. 5);

4. "INSERT WATER SPOUT": Check that the hot water spout (D6) is inserted on the connection nozzle (A8) (g. 6) and place a container holding a minimum of 3.38 oz/ 100 ml underneath (g. 7);

5. "WATER CIRCUIT EMPTY" "PRESS OK TO START": press

to conrm. The machine delivers hot water

from the spout (g. 8) then goes o automatically.

The coee machine is now ready for normal use.

Please note:

• The rst time you use the machine, you need to make 4-5 cappuccinos before it starts to give optimal results.

• To improve the performance of your machine, we recommend installing a water softener lter (D4) as described in section "17. Water softener lter".

4. TURNING THE MACHINE ON

Please note:

Before turning the machine on, make sure the main switch (A22) is pressed (g. 2). Each time the machine is turned on, it performs an automatic preheat and rinse cycle.

• To turn the machine on, press the button (A7) (g.

9). The message "HEATING UP UNDERWAY" "PLEASE WAIT"

appears on the display.

• When heating is complete, t

UNDERWAY" "PLEASE WAIT". As well as heating the boiler,

this also heats the internal circuits by circulating hot water. The machine is ready for use when the main screen (homepage) appears.

he message changes to: "RINSING

5. TURNING THE MACHINE OFF

Whenever the machine is turned o after being used to make espresso or coee, it performs an automatic rinse cycle.

• To turn the machine o, press the button (A15) (g. 9).

• The message

appears on the display, then (if envisaged) the machine

performs a rinse cycle and goes o (standby).

Please note:

If you will not be using the machine for some time, unplug from the mains socket:

• rst turn the machine o by pressing the

(g. 9);

• release the main switch (A22) at the back of the machine

(g. 2).

Important!

Never press the main switch while the machine is on.

"TURNING OFF UNDERWAY" "PLEASE WAIT"

6. MENU SETTINGS

6.1 Access the settings menu

1. Press the " " button (C3) to enter the menu;

2. Scroll through the menu items by pressing

until the required items is displayed;

3. Press the menu item you want to select.

6.2 Exit the menu

When you have made the adjustments, press until you are back on the homepage.

6.3 Rinse

Use this function to deliver hot water from the coee spouts (A9) and hot water spout (D6), if inserted, to clean and heat the machine’s internal circuit.

1. Place a container with a minimum capacity of 3.38 oz /

100ml under the coee and hot water spouts (g. 8).

2. A few seconds after the "RINSING" item has been selected,

hot water is delivered rst from the coee spouts and then

from the hot water spout (if inserted) (g. 7).

3. To stop rinsing, press or wait for rinsing to

stop automatically.

Please note:

• If the machine is not used for more than 3-4 days, when

you turn it on again, we strongly recommend performing

2/3 rinses before use;

button

• After cleaning, it is normal for the grounds container (A11) to contain water.

6.4 Descaling

For instructions on descaling, see section "15. Descaling".

6.5 Water lter

For instructions on how to install the lter (D4), see section "17. Water softener lter".

6.6 Beverages settings

In this section, you can consult your customised settings and, if you wish, reset the default values for each beverage and each prole.

1. Once in the settings menu, press "DRINK SETTINGS". The values for the rst beverage appear on the display;

2. The values are displayed on vertical bars. The default value

is indicated by the highlighted by the solid part of the vertical bar;

3. To go back to the settings menu, press scroll and display the beverages, press

4. To reset the default values for the beverage displayed, press

5. "CONFIRM RESET?": to conrm, press cancel, press

6. "DEFAULT VALUES""SET": press

The beverage has been reset to the default values. Proceed with the other beverages or go back to the homepage by pressing

twice.

Please note:

To change the beverages in another prole, go back to the homepage, select the required prole and repeat the procedure.

symbol, while the current value is

. To

;

(to

);

6.7 Auto-o (standby)

Auto-o can be set so that the machine goes o after 15 or 30 minutes, or 1, 2 or 3 hours. To programme Auto-o, proceed as follows:

1. Press "AUTO-OFF";

2. Select the required time interval by pressing the selection arrows

3. To conrm, press .

Auto-o is programmed.

(increase) or (decrease);

6.8 Energy saving

Use this function to enable or disable energy saving. When enabled, the function reduces energy consumption in compliance with European regulations. To disable or enable "Energy Saving", proceed as follows:

1. Press "ENERGY SAVING" to disable (

ble (

) the function; The corresponding symbol (B2) appears on the top bar of the homepage to indicate that the function has been enabled.

Please note:

If "Energy Saving" is active, you may have to wait a few seconds before delivery.

) or ena-

6.9 Coee temperature

To modify the temperature of the water used to make the coee, proceed as follows:

1. Press

2. Press the value you want to set (LOW, MEDIUM, HIGH,

"COFFEE TEMPERATURE"

appear on the display (B1) (the current value is underlined);

MAXIMUM).

. The selectable values

6.10 Water hardness

For instructions on setting water hardness, see section "16. Setting water hardness".

6.11 Set language

To modify the language of the display, proceed as follows:

1. Press

"SET LANGUAGE";

2. Press the ag corresponding to the language you want

to set (press available).

to display all the languages

6.12 Beep

This enables or disables the beep emitted by the machine each time an icon is pressed or an accessory is inserted/removed. To disable or enable the beep, proceed as follows:

1. Press "BEEP" to disable (

function;

) or enable ( ) the

6.13 Bluetooth

This function enables or disables the protection PIN to connect to the machine from a device.

1. Press "BLUETOOTH".

digits) and a 4 digit number (PIN) appear on the display (B1);

2. Press ( ) to enable or ( ) to disable the request for

the PIN when you connect via the App; The preset PIN is "0000". You are recommended to customise the PIN directly from the APP.

Please note:

The serial number of the machine, visible in the "Bluetooth" function, enables it to be identied unambiguously when an association is created with the APP.

The serial number of the machine (19

6.14 Default values

This resets all menu settings and programmed quantities for all proles back to the default values (with the exception of the language which remains as set). To reset the default values, proceed as follows:

1. Press "DEFAULT VALUES". "DEFAULT VALUES" is displayed. Press

cancel the operation);

2. "DEFAULT VALUES SET": press

to conrm (or press to

to conrm.

6.15 Statistics

This displays statistics relating to the machine. To view the statistics, proceed as follows:

1. Press "STATISTICS" and check all the statistics by scrolling through the items using

6.16 Customise prole

To customise the icon of the current prole, proceed as follows:

1. Press "CUSTOMISE PROFILE";

2. Press the desired icon. On the homepage, the top band is displayed with the colour of the icon.

7. MAKING COFFEE

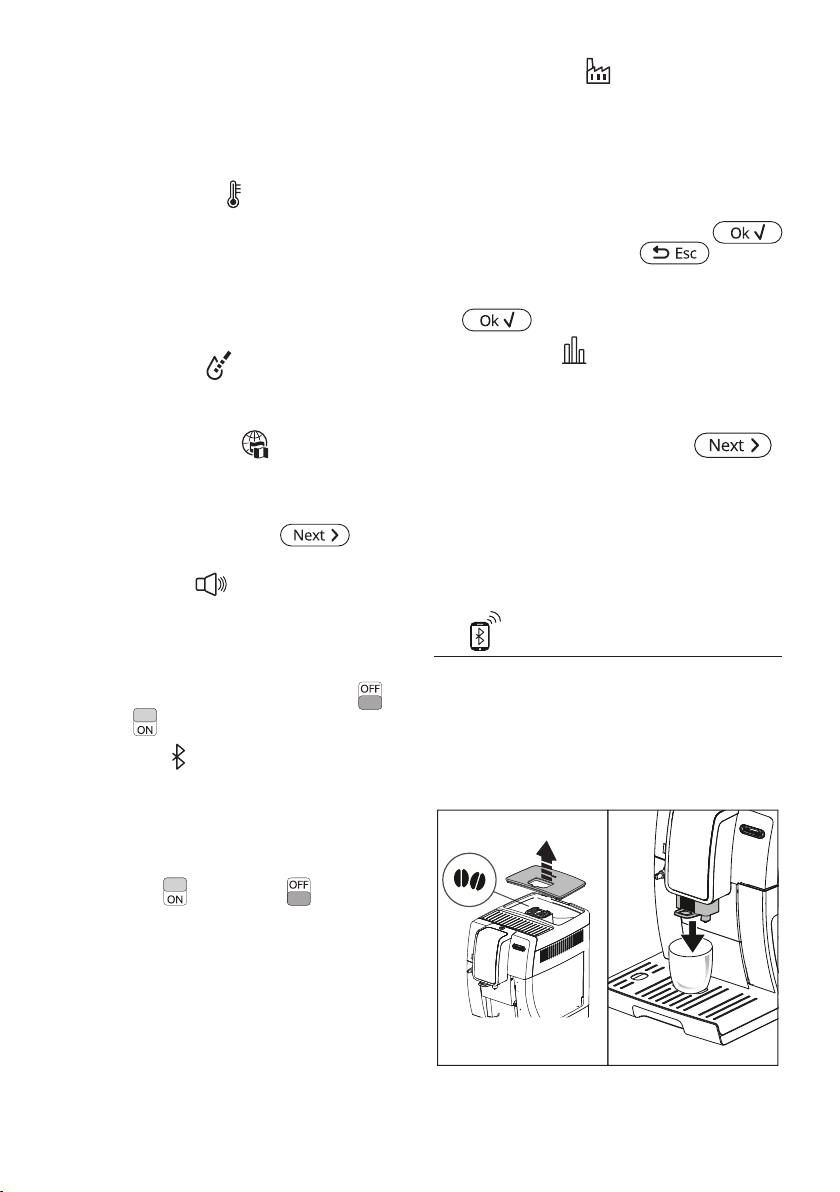

7.1 Making coee using coee beans

Important!

Do not use green, caramelised, avored or candied coee beans as they could stick to the coee grinder and make it unusable.

1. Fill the container (A3) with coee beans (g. 10);

• 2X ESPRESSO

5. Preparation begins. An image of the selected beverage appears on the display, together with a progress bar which gradually lls as preparation proceeds.

Please note:

• You can prepare 2 cups of ESPRESSO coee at the same

time by pressing "2X PRESSO (the image is displayed for a few seconds at the start of preparation).

• While the machine is making coee, delivery can be interrupted at any moment by pressing

Once the coee has been delivered, the machine will be ready for further use.

Please note!

• Various alarm messages could be displayed while using the machine (FILL TANK, EMPTY GROUNDS CONTAINER, ETC.). Their meaning is explained in section "19. Displayed messages".

• For hotter coee, see section "7.6 Tips for a hotter coee".

• If the coee is delivered a drop at a time, too weak and not creamy enough or too cold, read the tips in sections "7.5 Adjusting the coee grinder" and "20. Troubleshooting".

• Preparation of each coee can be customised (see sections "12. Customising the beverages

your own user prole").

" during preparation of 1 ES-

" and "13. Memorising

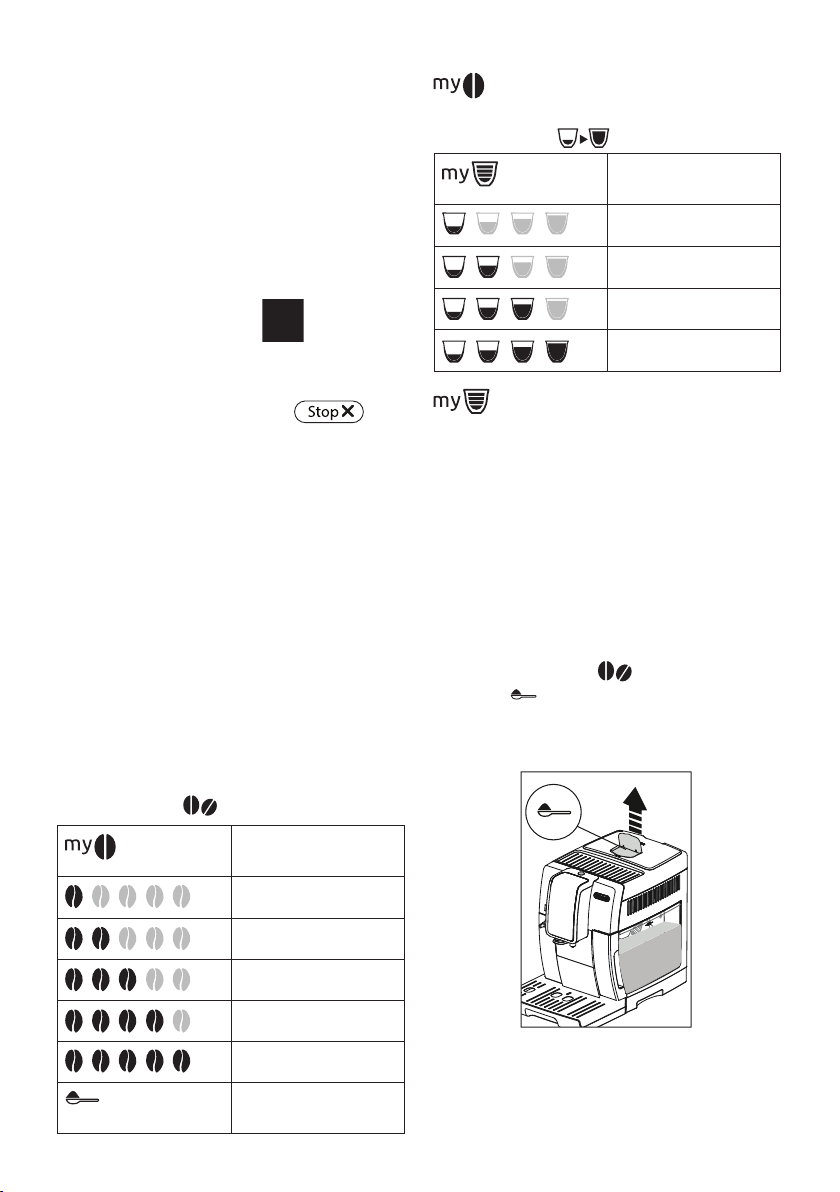

7.2 Selecting the coee strength

Press the button (C6):

Custom (if programmed) / Standard

EXTRA LIGHT

1110

2. Place a cup under the coee spouts (A9);

3. Lower the spouts as near as possible to the cup (g. 11). This makes a creamier coee;

4. Then select the desired recipe:

• ESPRESSO

• LONG

• COFFEE

• DOPPIO+

LIGHT

MEDIUM

STRONG

X-STRONG

(see "7.4 Making coee using pre-ground coee")

After delivering the beverage, the strength setting is reset to the

value.

7.3 Selecting the coee quantity

Press the button (C1):

Custom (if programmed) / Standard

SMALL SIZE

MEDIUM SIZE

LARGE SIZE

EXTRA-LARGE SIZE

After delivering the beverage, the quantity setting is reset to the

value

7.4

Making coee using pre-ground coee

Important!

• Never add pre-ground coee when the machine is o or it could spread through the inside of the machine and damage it.

• Never use more than 1 level measure (D2) as it could damage the machine or block the funnel (A4).

• When using pre-ground coee, only one cup can be made at a time.

1. Press the displayed.

2. Open the pre-ground coee funnel lid (A2).

3. Make sure the funnel(A4) is not blocked, then add one level measure of pre-ground coee (g. 12).

button (C6) until " " (ground) is

7.5 Adjusting the coee grinder

The coee grinder is set by default to prepare coee correctly and should not require regulating initially. However, if after making the rst few coees you nd that the coee is either too weak and not creamy enough or delivery is too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment dial (A5) (g. 13).

Please note:

The grinding adjustment dial must only be turned when the coee grinder is in operation during the initial phase of coee preparation.

If the coee is delivered too slowly or not at all, turn one click clockwisetowards 7.. For fuller bodied creamier coee, turn one click anticlockwise (do not turn more than one click at a time.

4. Place a cup under the coee spouts (A9).

5. Then select your required coee:

• ESPRESSO

• LONG

• COFFEE

6. Preparation begins. An image of the selected beverage appears on the display, together with a progress bar which gradually lls as preparation proceeds.

Once the coee has been delivered, the machine will be ready for further use. Important! Making LONG coee: Halfway through preparation, the message "ADD GROUND COFFEE" "MAX. ONE MEASURE" is displayed. Add one level measure of pre-ground coee and press

These adjustments will only be evident after at least 2 cups of coee have been delivered. If this adjustment does not produce the desired result, turn the dial another click.

7.6 Tips for a hotter coee

For hotter coee, proceed as follows:

• perform a rinse c ycle by selecting the "Rinsing" function in the settings menu (section "6.3 Rinse

• warm the cups with hot water using the hot water function (see section"11. Delivering hot water");

• increase the coee temperature in the settings menu

"(C3) (see section "6.9 Coee temperature ").

");

8. TRUEBREW OVER ICE™ COFFEE

1. Select "Brew over ice" on the homepage;

2. Select the desired quantity and strength by pressi "+" or "-": then press

3. Add ice to a large glass about half way full and place the glass under the brewing unit;

4. Press to start deliver y;

;

5. Add additional ice to the glass/coee plus any syrup, sweetener or milk desired and enjoy

Important!

Always use glasses resistant to thermal shock.

9. MAKING MILKBASED RECIPES

Please note:

To avoid milk with poor froth or large bubbles, always clean the milk container lid (E2) and hot water connection nozzle (A8) as described in sections "9.4 Cleaning the milk container after use", "14.10 Cleaning the milk container" and "14.11 Cleaning the hot water nozzle".

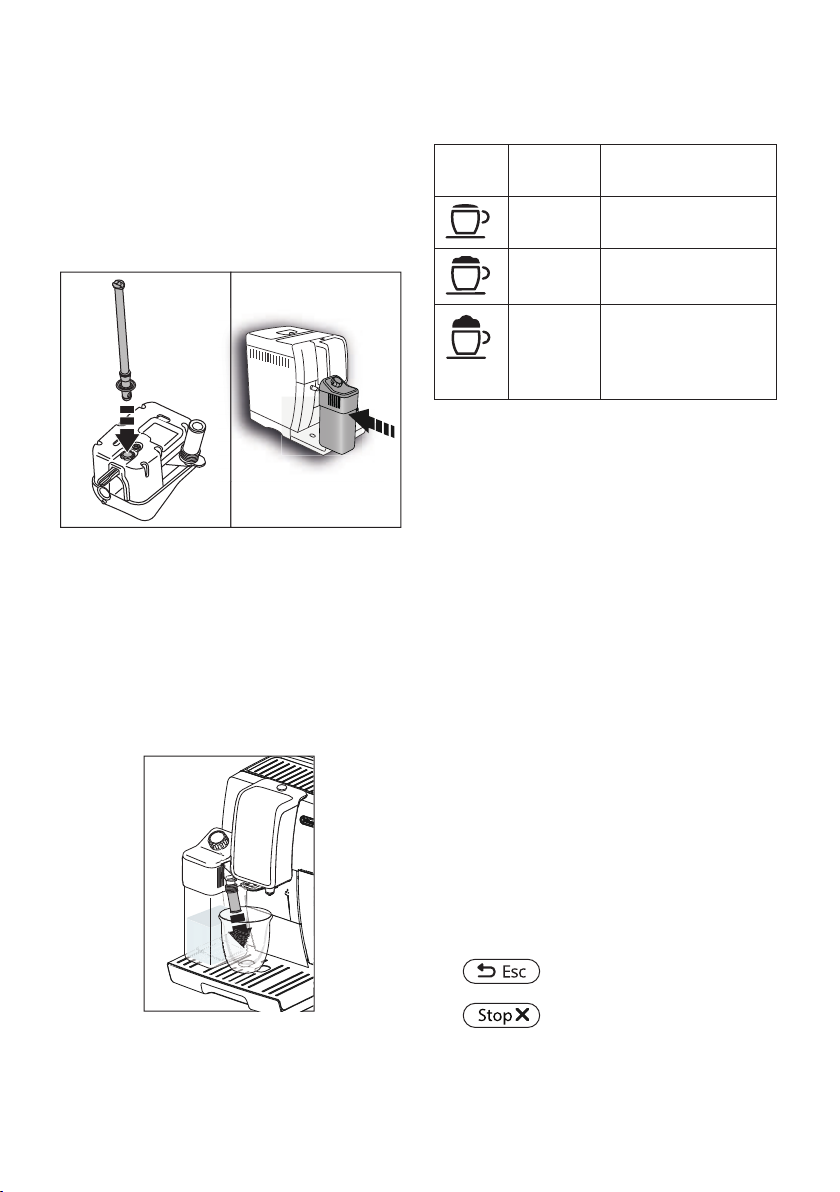

9.1 Filling and attaching the milk container

1. Remove the lid (E2) (g. 14);

MILK

16 17

4. Place the lid back on the milk container;

5. Remove the hot water spout (D6);

6. Attach the milk container (E) to the connection nozzle (A8) and push as far as it will go (g. 17). The machine emits a beep (if the beep function is enabled);

7. Place a suciently large cup under the coee spouts (A9) and the frothed milk spout (E5). Adjust the length of the milk spout. To move it nearer the cup, simply pull it downwards (g. 18).

2. Fill the milk container (E3) with a sucient quantity of milk, not exceeding the MAX level marked on the container (g.

15). Each mark on the side of the container corresponds to about

3.38 oz /

100 ml of milk;

Please note:

• For a denser more even froth, you must use skimmed or partially skimmed milk at refrigerator temperature (about 5°C).

• If "Energy Saving" mode is enabled, you may have to wait a few seconds before the beverage is delivered.

3. Make sure the milk intake tube (E4) is correctly inserted in the bottom of the milk container lid (g. 16);

8. Follow the instructions below for each function.

9.2 Adjusting the amount of froth

Turn the froth adjustment dial (E1) to adjust the amount of froth on the milk delivered while making cappuccinos and milk-based coees.

Dial position

Description Recommended for…

NO FROTH HOT MILK (not frothed) /

CAFFELATTE

MIN. FROTH latte macchiato/

FLAT WHITE

MAX. FROTH CAPPUCCINO / CAPPUCCI

NO+ / CAPPUCCINO MIX / ESPRESSO MACCHIATO / HOT MILK (frothed)

9.3 Making milk-based recipes automatically

1. Fill the milk container (E) and attach it as described above.

2. Select the required beverage:

• CAPPUCCINO

• LATTE MACCHIATO

• HOT MILK

• CAPPUCCINO+

• CAPPUCCINO MIX

• CAFFELATTE

• FLAT WHITE

• ESPRESSO MACCHIATO

3. A message on the display instructs you to turn the froth adjustment dial (E1) according to the froth required by the original recipe. Turn the dial on the milk container lid.

4. After a few seconds, preparation begins automatically and an image of the selected beverage appears on the display, together with a progress bar which gradually lls as preparation progresses.

Once the coee has been delivered, the machine will be ready for further use.

Please note: general indications when preparing all milkbased beverages

• and go back to the homepage.

• move on to the next delivery (if applicable) to complete the beverage.

• Preparation of each coee can be customised (see sections "12. Customising the beverages

your own user prole").

• Do not leave the milk container out of the refrigerator for long periods. The warmer the milk (5°C is ideal), the poorer the quality of froth produced.

: press to interrupt preparation completely

: press to interrupt milk or coee delivery and

" and "13. Memorising

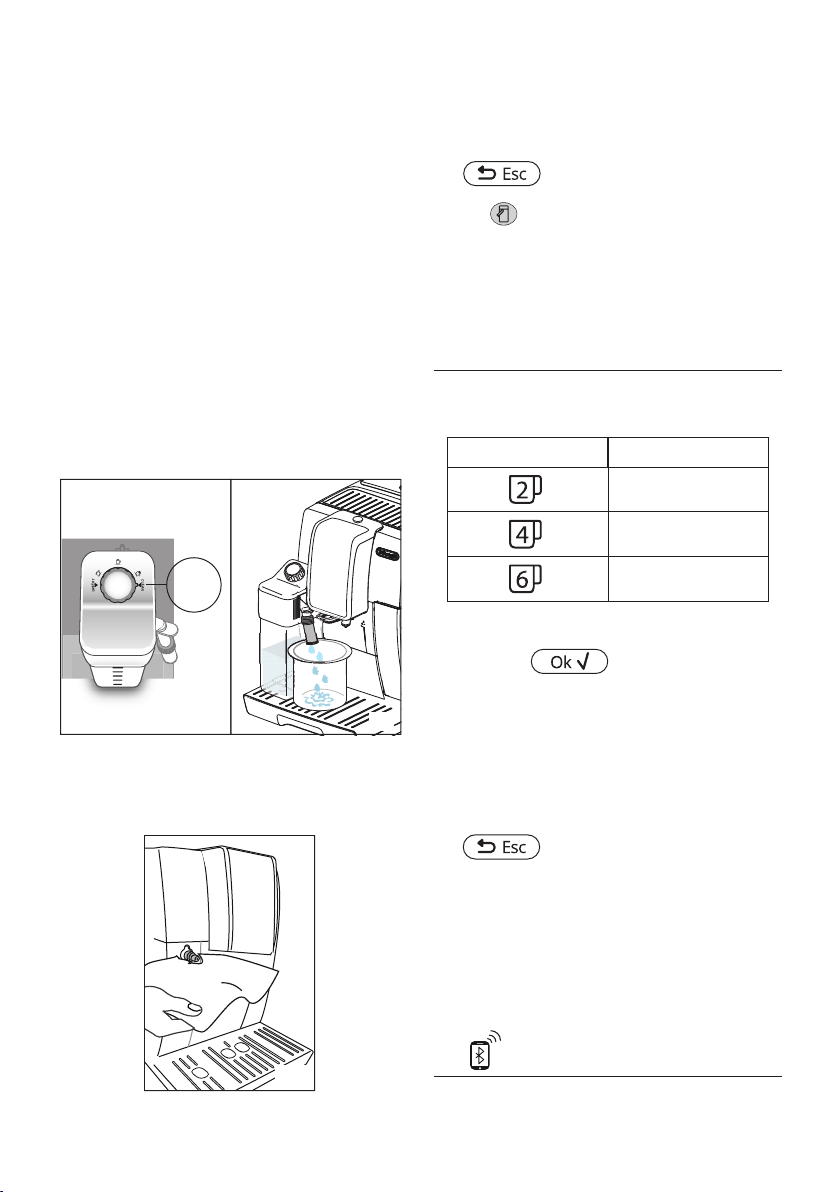

9.4 Cleaning the milk container after use

Each time you use a milk function, "TURN MILK FROTH ADJUSTMENT DIAL" "TO CLEAN POSITION" appears on the display and the milk frother lid must be cleaned:

1. Leave the milk container (E) in the machine (you do not need to empty it);

2. Place a cup or other recipient under the frothed milk spout;

3. Turn the froth adjustment dial (E1) to "CLEAN" (g. 19). "CLEANING UNDERWAY" "RECIPIENT UNDER SPOUT" appears on the display together with a bar which gradually lls as cleaning progresses (g. 20). Steam mixed with hot

water comes out of the frothed milk spout. Cleaning stops automatically;

CLEAN

4. Turn the dial back to one of the froth selections;

5. Remove the milk container and always clean the hot water connection nozzle (A8) with a sponge (g. 21).

Please note:

• To prepare a number of cappuccinos and milk based coffees, clean the milk container after you have prepared the last beverage only.

To proceed with making the next beverages, when the

CLEAN message is displayed, press .

• If you do not clean the milk container, the pears on the display to remind you that it needs cleaning.

• The milk container can be kept in the refrigerator.

• In some cases, to clean you must wait for the machine to heat up.

10. COFFEE CARAFE

1. Position a carafe under the coee spouts (A9). When choosing the carafe to use, bear in mind the quantity to be delivered, namely:

Selected quantity Quantity ( oz/ml)

symbol ap-

8.45 / 250

Selected quantity Quantity ( oz/ml)

16.9 / 500

25.4 / 750

2. Press "COFFEE POT", "SELECT Strength" "AND NUMBER OF CUPS";

3. Press

4. After a few seconds, preparation begins automatically and an image of the selected beverage appears on the display, together with a progress bar which gradually lls as preparation progresses.

Once the coee has been delivered, the machine will be ready for further use.

Please note:

• and go back to the homepage.

: press to interrupt preparation completely

SAFETY WARNING:

After making the pot of coee, leave the machine to cool for 5 minutes before making another beverage. Risk of overheating!

11. DELIVERING HOT WATER

1. Make sure the hot water spout (D6) is attached correctly to the hot water connection nozzle(A8);

2. Place a container under the spout (as close as possible to avoid splashes);

3. Press "HOT WATER";The corresponding image appears on the display, together with a progress bar which lls gradually as preparation proceeds;

4. The machine delivers hot water, then delivery stops automatically. To interrupt hot water delivery manually, press

Please note!

• If "Energy Saving" mode is active, you may have to wait a few seconds before the hot water is delivered.

• Preparation of hot water can be customised (see sections "12. Customising the beverages

your own user prole").

12. CUSTOMISING THE BEVERAGES

The strength (when required) and quantity of the beverages can be customised.

1. Make sure the user prole for which you want to customise the beverage is active. You can select "MY" beverages for each of the proles;

" and "13. Memorising

2. Press (C5);

3. To access the customising screen, choose the beverage you want to customise. The corresponding accessories must be inserted;

4. (Beverages including coee only) "CHOOSE COFFEE Strength": Select the required strength by pressing "-" or "+" and press "

5. "COFFEE QUANTITY" "STOP TO SAVE": Preparation begins and the machine displays the quantity customising screen in the form of a vertical bar. The star alongside the bar represents the current quantity;

6. When the amount reaches the minimum quantity you can set, is displayed;

7. Press is reached;

8. "SAVE NEW SETTINGS?": Press

to cancel). The machine conrms if the values have been saved or not (depending on the previous selection). Press . The machine goes back to the homepage.

Please note!

• Cappuccinos and milk-based coees: the coee

strength is saved rst, followed by the quantity of rst milk, then coee;

• Hot water: the machine delivers hot water. Press

to save the required quantity.

• You can also customise the beverages by connecting with

the DeLonghi Coee Link App.

• Press

not be saved.

Beverage quantity table Beverage Standard quan-

tity ( oz/ ml) ESPRESSO 1.3 / 40 0.7 - 6 / 20-180 LONG 5.4 / 160 3.9 - 8.4 / 115-250 COFFEE 6 / 180 3.4 - 8.1 / 100-240 DOPPIO+ 4 / 120 2.7 - 6 / 80-180 HOT WATER 8.4 / 250 0.7 - 14.2 / 20-420 TRUEBREW

OVER ICE COFFEE™

≃ 3.38 / 100 from ≃ 1.35/ 40 to

when the required quantity in the cup

to save (or

to exit programming. The values will

Programmable quantity ( oz/ ml)

≃8.11 / 240

13. MEMORISING YOUR OWN USER PROFILE

The machine allows you to memorise 3 dierent proles, each associated with a dierent icon.

The customised "MY" beverages "Strength" and "QUANTITY" values are saved in each prole (see section "12. Customising

the beverages displayed is based on the frequency of selection.

To select a prole, press

Please note!

GUEST" prole: select this prole to deliver beverages

• " with the default settings.

• You can rename your personal prole by connecting with the DeLonghi Coee Link App (only the rst three characters will be displayed).

• To customise the prole icon, see section "6.16 Customise prole".

"). The order in which all the beverages are

and select the desired prole.

14. CLEANING

14.1 Cleaning the machine

The following parts of the machine must be cleaned regularly:

• the machine’s internal circuit;

• coee grounds container (A11);

• drip tray (), condensate tray (A10), drip tray grille (A14) and tray full indicator (A13);

• water tank (A17);

• coee spouts (A9);

• pre-ground coee funnel (A4);

• infuser (A20), accessible after opening the infuser door (A19);

• milk container (E);

• hot water connection nozzle (A8);

• touch screen (B).

Important!

• Do not use solvents, abrasive detergents or alcohol to clean the coee machine. With De’Longhi superautomatic coee machines, no chemical products are required for cleaning purposes.

• None of the components of the machine can be washed in a dishwasher with the exception of the drip tray grille (A14) and milk container (E).

• Do not use metal objects to remove encrustations or coee deposits as they could scratch metal or plastic surfaces.

14.2 Cleaning the internal circuit

If the machine is not used for more than 3/4 days, before using it again, we strongly recommend switching it on and:

• performing 2/3 rinse cycles by selecting the "Rinse" function (section "6.3 Rinse ");

• delivering hot water for a few seconds (section "11. Delivering hot water").

Please note!

After cleaning, it is normal for the grounds container (A11) to contain water.

14.3 Cleaning the coee grounds container

When "EMPTY GROUNDS CONTAINER" appears on the display, the grounds container must be emptied and cleaned. The machine cannot be used to make coee until you have cleaned the grounds container (A11). Even if not full, the empty grounds container message is displayed 72 hours after the rst coee has been prepared. For the 72 hours to be calculated correctly, the machine must never be turned o with the main switch (A22).

Important! Danger of scalding

If you make a number of cappuccinos one after the other, the metal cup tray (A12) becomes hot. Wait for it to cool down before touching it and handle it from the front only. To clean (with the machine on):

1. Remove the drip tray (A15) (g. 22), empty and clean.

2. Empty the grounds container (A11) and clean thoroughly to remove all residues left on the bottom. This can be done using the spatula on the brush (D5) provided.

3. Check the condensate tray (A10) (red) and empty if necessary.

Important!

When removing the drip tray, the grounds container must be emptied, even if it contains few grounds. If this is not done, when you make the next coees, the grounds container may ll up more than expected and clog the machine.

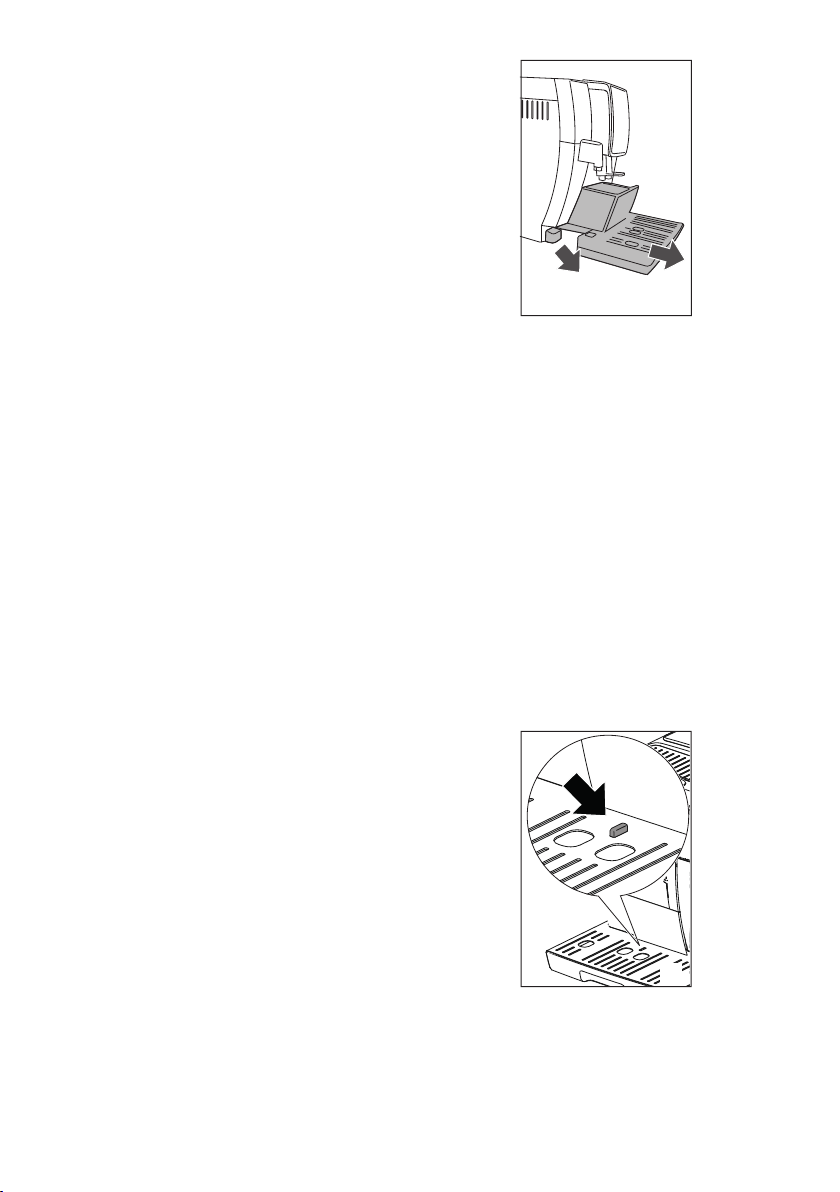

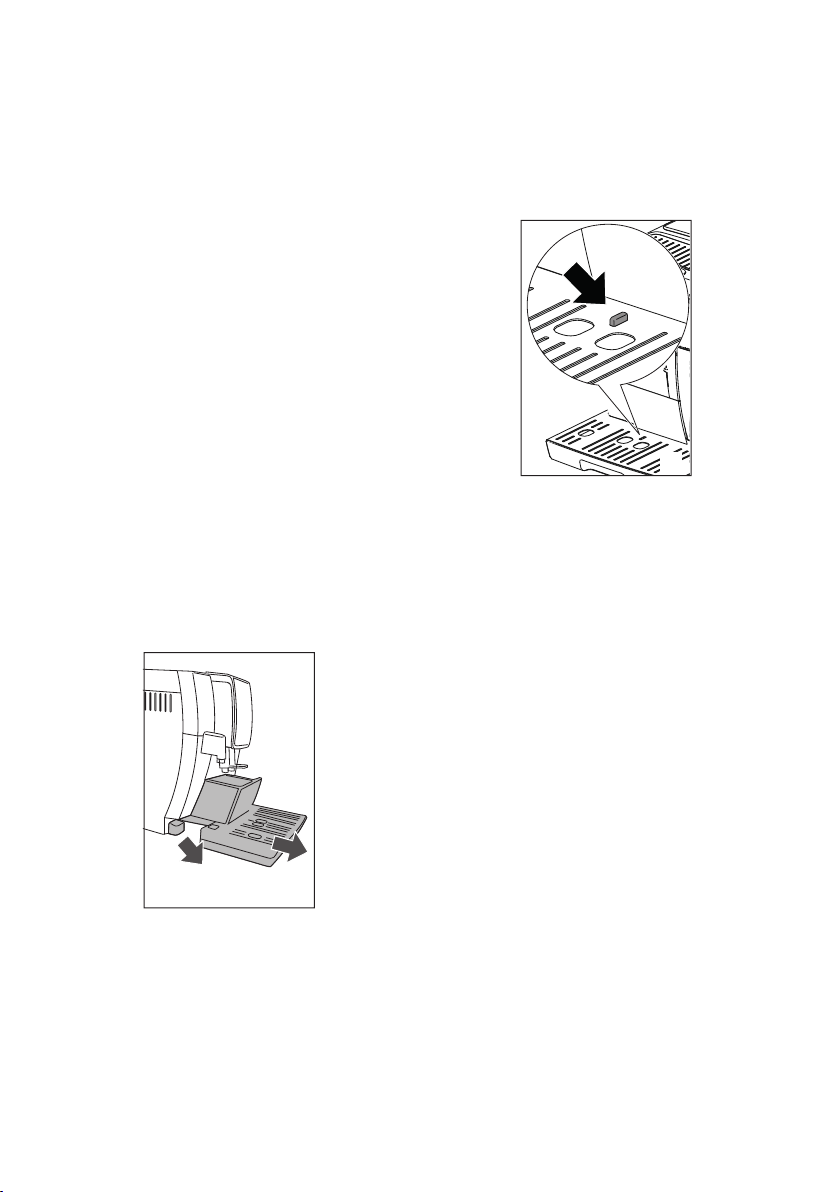

14.4 Cleaning the drip tray and condensate tray

Important!

The drip tray (A15) is tted with a level indicator (A13) (red) showing the amount of water it contains (g. 23).

Before the indicator protrudes from the cup tray (A12), the drip tray must be emptied and cleaned, otherwise the water may overow the edge and damage the machine, the surface it rests on or the surrounding area. To remove the drip tray, proceed as follows:

1. Remove the drip tray and coee grounds container (A11) (g. 22);

2. Remove the cup tray (A12) and drip tray grille (A14), then empty the drip tray and grounds container and wash all components.

3. Check the condensate tray (A15) (red) and empty if necessary;

4. Put the drip tray complete with grille and grounds container back in the machine.

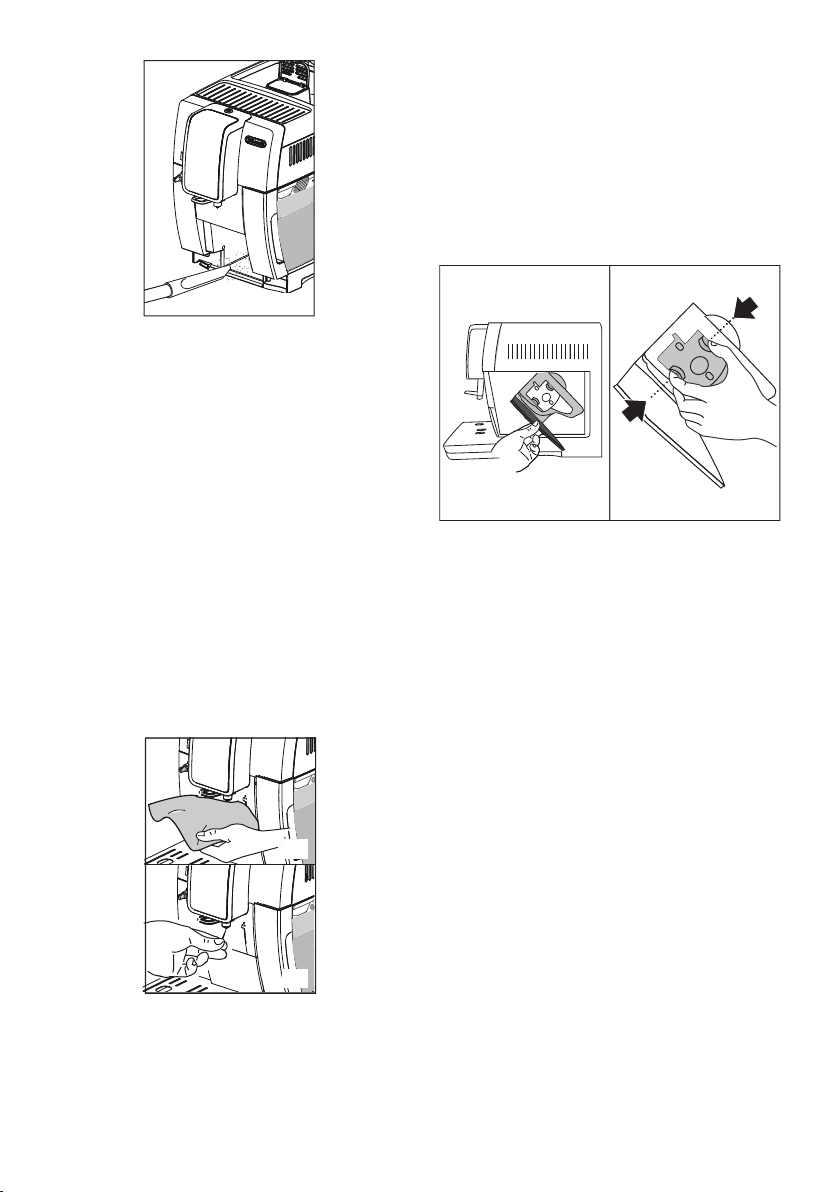

14.5 Cleaning the inside of the coee machine

Danger of electric shock!

Before cleaning internal parts, the machine must be turned o (see section "5. Turning the machine o") and unplugged from the mains power supply. Never immerse the machine in water.

1. Check regularly (about once a month) that the inside of the machine (accessible after removing the drip tray (A15)) is not dirty. If necessary, remove coee deposits with the brush (D5) supplied and a sponge.

2. Remove all residues with a vacuum cleaner (g. 24).

14.6 Cleaning the water tank

Clean the water tank (A17) regularly (about once a month) and whenever the water softener lter (D4) (if installed) is replaced with a damp cloth and a little mild washing up detergent. Rinse thoroughly before lling the tank and putting it back in the machine;

Remove the lter (if installed) and rinse with running water;

3. Replace the lter (if installed), ll the tank with fresh water and replace;

4. (Models with water softener lter only) Deliver about 3.38 oz / 100ml of hot water to reactivate the lter.

14.7 Cleaning the coee spouts

1. Clean the coee spouts (A9) regularly with a sponge or cloth (g. 25A);

2. Check the holes in the coee spouts are not blocked. If necessary, remove coee deposits with a toothpick (g. 25B).

25A

25B

14.8 Cleaning the pre-ground coee funnel

Check regularly (about once a month) that the pre-ground coee funnel (A4) is not blocked. If necessary, remove coee deposits with the brush (D5) supplied.

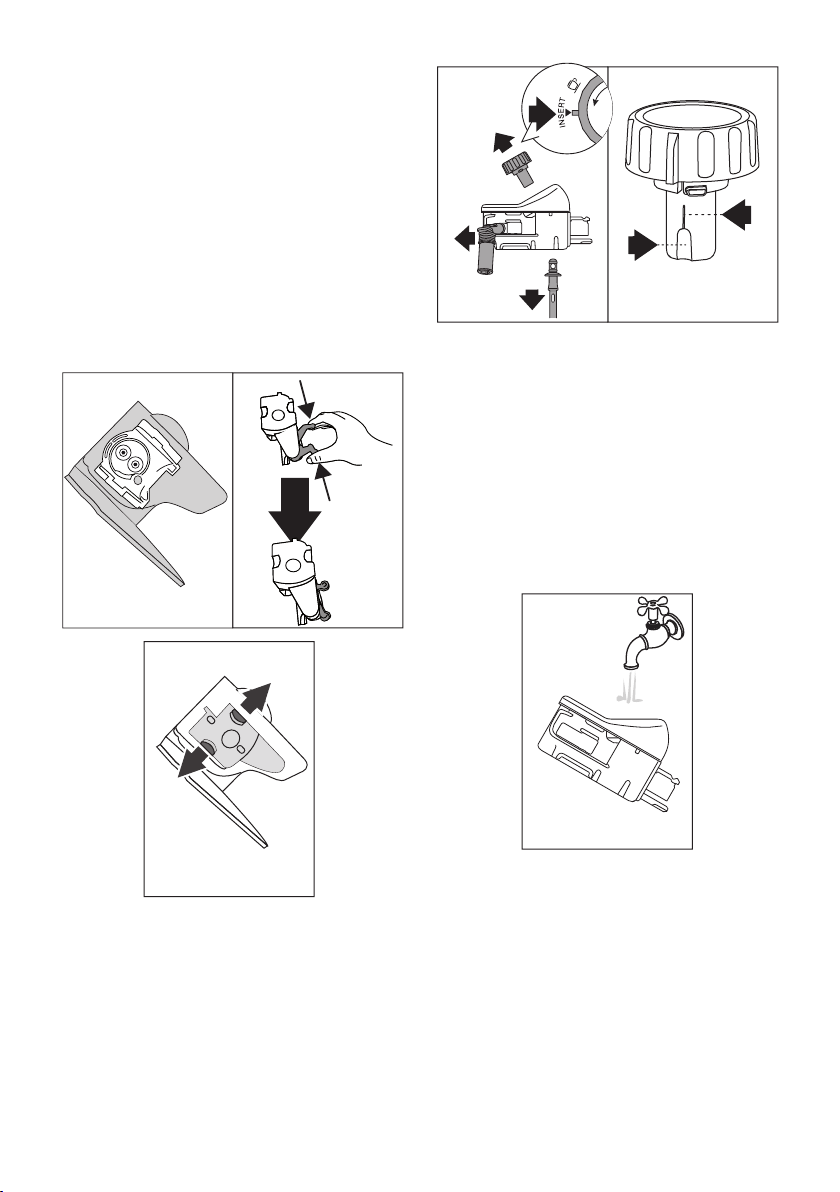

14.9 Cleaning the infuser

The infuser (A20) must be cleaned at least once a month.

Important!

The infuser cannot be removed when the machine is on.

1. Make sure the machine is correctly turned o (see section "5. Turning the machine o");

2. Remove the water tank (A17) (g. 3);

3. Open the infuser door (A19) (g. 26) on the right side of the machine;

PUSH

4. Press the two coloured release buttons inwards and at the same time pull the infuser outwards (g. 27);

5. Soak the infuser in water for about 5 minutes, then rinse under the tap;

Important!

RINSE WITH WATER ONLY NO WASHING UP DETERGENT  NO DISH WASHER Clean the infuser without using washing up detergent as it could be damaged.

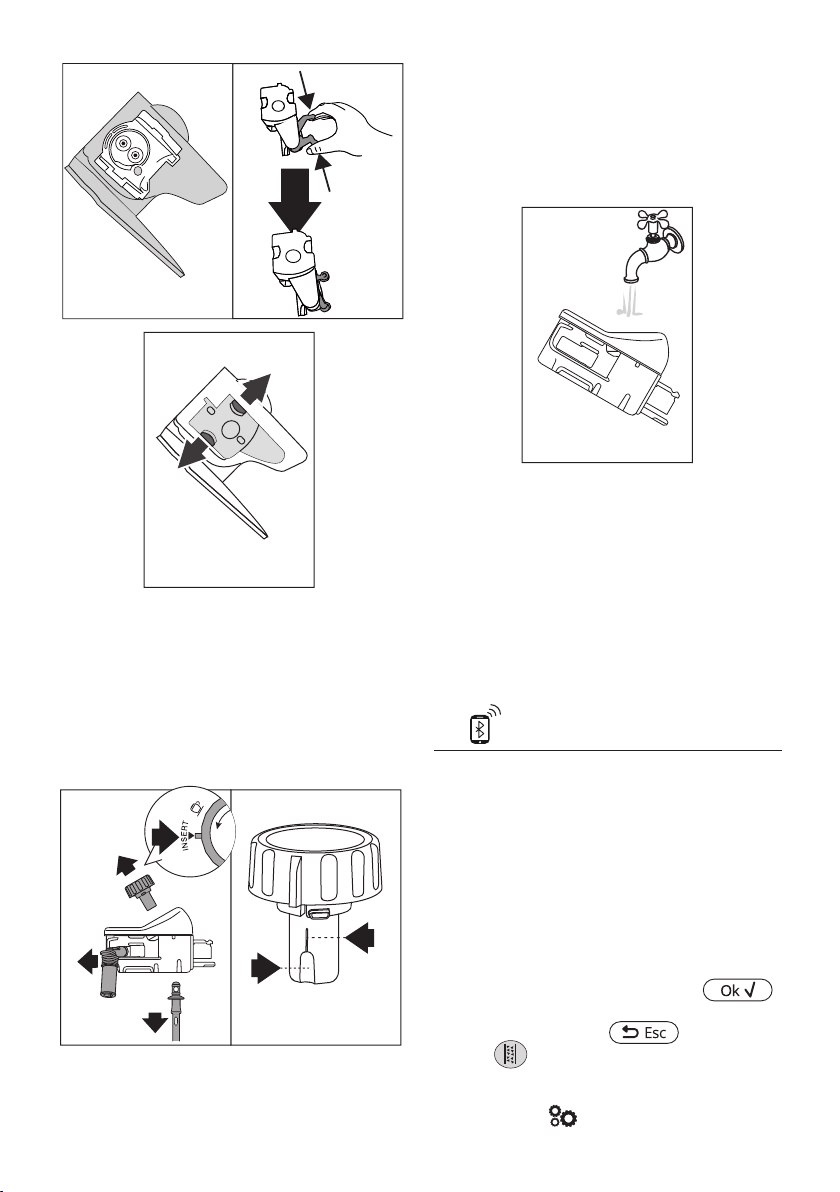

6. Use the brush (D5) to remove any coee residues left in the infuser housing, visible through the infuser door;

7. After cleaning, replace the infuser by sliding it onto the internal support (g. 28), then push the PUSH symbol fully in until it clicks into place;

Please note:

If the infuser is dicult to insert, before insertion, adapt it to the right size by pressing the two levers shown in g. 29.

8. Once inserted, make sure the two coloured buttons have snapped out (g. 30);

9. Close the infuser door;

10. Put the water tank back.

14.10 Cleaning the milk container

To keep the frother ecient, clean the milk container every two days as described below.

1. Remove the lid (E2);

2. Remove the milk spout (E5) and intake tube (E4) (g. 31);

3. Turn the froth adjustment dial (E1) anticlockwise to the "INSERT" position (g. 31) and pull it o upwards;

4. Wash all the components thoroughly with hot water and mild washing-up liquid. All components are dishwash-

er safe, but must be placed in the top basket of the dishwasher. Make sure there are no milk residues on the

hollow and groove under the dial (g. 32). If necessary, scrape the groove with a toothpick;

5. Rinse inside the froth adjustment dial seat with running water (g. 33);

3535

3434

A B

B A

6. Check that the intake tube and spout are not clogged with milk residues;

7. Replace the dial (in correspondence to the word "INSERT"), spout and milk intake tube;

8. Place the lid back on the milk container (E2).

14.11 Cleaning the hot water nozzle

Each time you prepare milk, clean the connection nozzle (A8) with a sponge to remove milk residues from the gaskets (g. 21).

15. DESCALING

Important!

• Before use, read the instructions and the labelling on the descaler pack.

• You should use De’Longhi descaler only. Using unsuitable descalers, or failing to perform the descale procedure correctly, could lead to the machine developing faults not covered by the manufacturer's guarantee.

Descale the machine when "DESCALING NEEDED" "PRESS OK TO START (~45min)" appears on the display: To descale immediately, press To descale the machine later, press . The symbol appears on the display to remind you that the machine needs descaling. (the message appears each time you turn the machine on). To access the descaling menu:

1. Pressthe "

2. Press "DESCALE" and follow the instructions on the display;

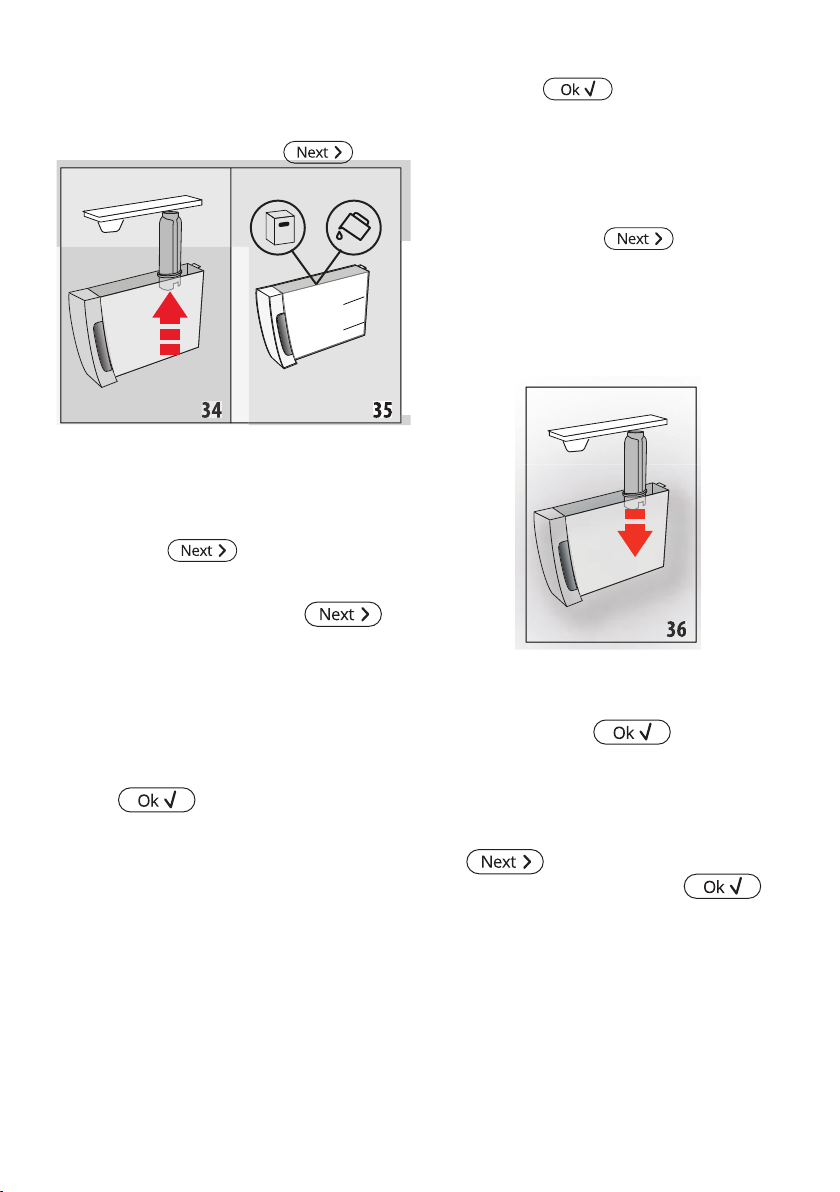

3. "REMOVE WATER FILTER" (g. 34): extract the water tank (A17), remove the water softener lter (D4) (if present) and empty the water tank. Press

and follow the operations from point 3.

" button (C3) to enter the menu;

;

34 35

4. "DESCALER (LEVEL A)" "AND WATER (LEVEL B)" (g. 35); Pour the descaler into the tank up to the level A marked inside the tank (equal to one 3.38 oz /100ml pack), then add water (one litre) up to level B and put the water tank back. Press

5. "EMPTY DRIP TRAY" (g. 22):

6. Remove, empty and replace the drip tray (A15) and grounds container (A11). Press

7. "POSITION 2l CONTAINER" "OK TO START":

Place an empty container with a minimum capacity of 67.6  oz/ 2 litres under the hot water spout (D6) and coee spouts (A9) (g. 8);

Important! Danger of scalding

Hot water containing acid ows from the hot water and coee spouts. Take care to avoid contact with splashes of this solution.

8. Press " the descaling solution. "DESCALING UNDERWAY" "PLEASE WAIT" is displayed: The descale programme starts and the descaler liquid comes out of the hot water and coee spouts. A series of rinses is performed automatically to remove all the scale residues inside the coee machine;

After about 25 minutes, descaling stops;

9. "RINSE AND FILL WATER TANK" "UP TO MAX LEVEL" (g.

4): the machine is now ready to rinse with fresh water. Empty the container used to collect the descaler solution. Extract the water tank, empty, rinse under running water, ll with fresh water up to the MAX level and put back in the machine;

10. "POSITION 2l CONTAINER" "OK TO START RINSING": Place the container used to collect the descaler solution empty under the coee spouts and hot water spout (g. 8) and press

11. Hot water is delivered rst from the coee spouts, then from the hot water spout and "RINSING UNDERWAY" is displayed;

;

" to conrm that you have added

;

12. When the water in the tank has run out, empty the con-

3636

tainer used to collect the rinsing water;

13. (If the lter is installed) "INSERT FILTER" "INTO ITS HOUSING" (g. 36). Press " water tank. Replace the water softener lter if removed previously;

14. "RINSE AND FILL WATER TANK" "UP TO MAX LEVEL" (g. 4): Fill the tank up to the MAX level with fresh water;

15. "INSERT WATER TANK" (g. 5): Put the water tank back in the machine;

16. "POSITION 2l CONTAINER" "OK TO START RINSING": Place the container used to collect the descaler solution empty under the hot water spout (g. 8) and press

17. Hot water is delivered from the hot water/steam spout and "RINSING UNDERWAY" "PLEASE WAIT" is displayed;

18. "EMPTY DRIP TRAY" (g. 22): At the end of the second rinse, remove, empty and replace the drip tray (A15) and grounds container (A11) and press ;

19. "DESCALE COMPLETE": press ;

20. "FILL TANK WITH" "FRESH WATER": empty the container used to collect the rinse water, remove the water tank and ll with fresh water up to the MAX level, then put back in the machine.

The descaling cycle is now complete.

Please note:

• If the descaling cycle is not completed correctly (e.g. no electricity) we recommend repeating the cycle;

• After descaling, it is normal for the grounds container (A11) to contain water.

• If the water tank has not been lled to the MAX level, at the end of descaling, the machine requests a third rinse to guarantee that the descaler solution has been completely eliminated from the machine's internal circuits. Before starting rinsing, remember to empty the drip tray;

• The machine may request descaling cycles at very short intervals. This is normal and due to the machine’s advanced control system.

" and extract the

16. SETTING WATER HARDNESS

The "DESCALING NEEDED" "PRESS OK TO START ~45MIN

" message is displayed after a period of time established according to water hardness. The machine is set by default for a hardness value of "4". The machine can also be programmed according to the hardness of the mains water in the various regions so that the machine needs to be descaled less often.

16.1 Measuring water hardness

1. Remove the TOTAL HARDNESS TEST indicator paper (D1)

from its pack (attached to the English instructions).

2. Immerse the paper completely in a glass of water for one

second.

3. Remove the paper from the water and shake lightly. After

about a minute, 1, 2, 3, or 4 red squares form, depending on the hardness of the water. Each square corresponds to one level.

Indicator paper Water hardness

Level 1 - soft water

Level 2 - slightly hard water

Level 3 - hard water

Level 4 - very hard water

16.2 Setting water hardness

1. Access the menu as described in section "6.1 Access the

settings menu";

2. Press "WATER HARDNESS";

3. "WATER HARDNESS" "CURRENT VALUE UNDERLINED": Press

the required level (Level 1 = soft water; Level 4 = very hard water);

4. Press " The machine is now reprogrammed with the new water hardness setting.

" to go back to the homepage.

17. WATER SOFTENER FILTER

Certain models are tted with a water softener lter (D4). If this is not the case with your model, you are recommended to purchase one from De’Longhi Customer Services. To use the lter correctly, follow the instructions below.

17.1 Installing the lter

1. Remove the lter (D4) from the packaging;

2. Access the menu as described in section "6.1 Access the

3939

settings menu";

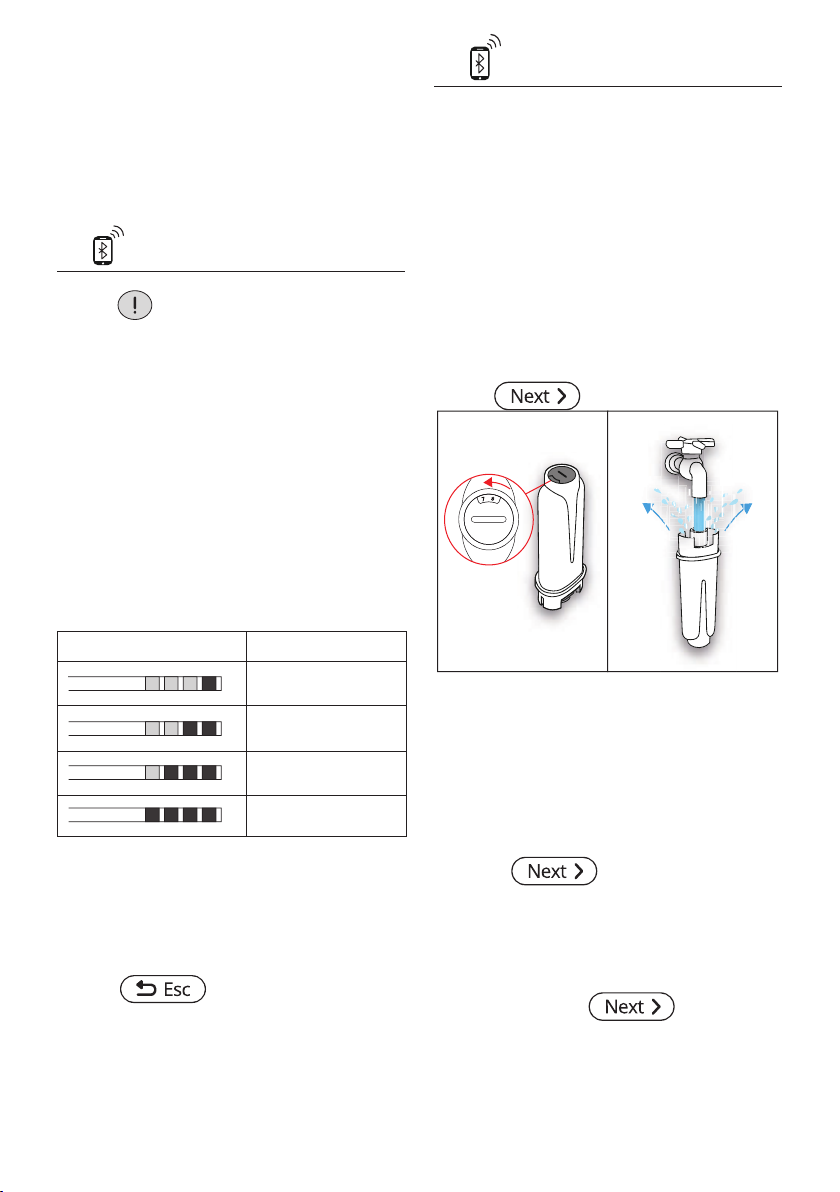

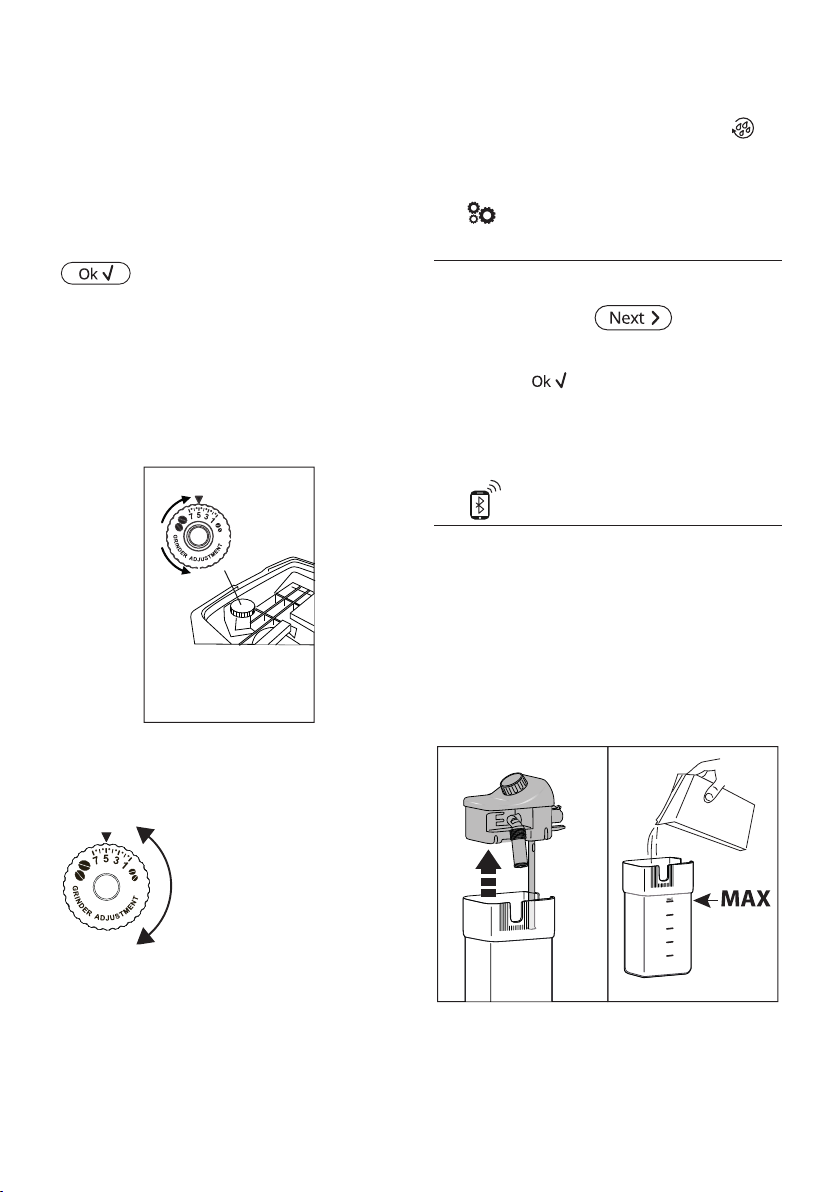

3. Press "WATER FILTER"; "TURN DATE INDICATOR TO NEXT 2 MONTHS" (g. 37): turn the date disk to display the next 2 months of use.

4. Press

;

37 38

Please note

The lter lasts about two months if the machine is used normally. If the coee machine is left unused with the lter installed, it will last a maximum of 3 weeks.

5. "RUN WATER INTO FILTER HOLE" "UNTIL IT COMES OUT" (g.

38): To activate the lter, run tap water through the hole in the lter as shown in the gure until water comes out of the openings at the side for more than a minute. Press

;

6. Extract the tank (A17) from the machine and ll with water.

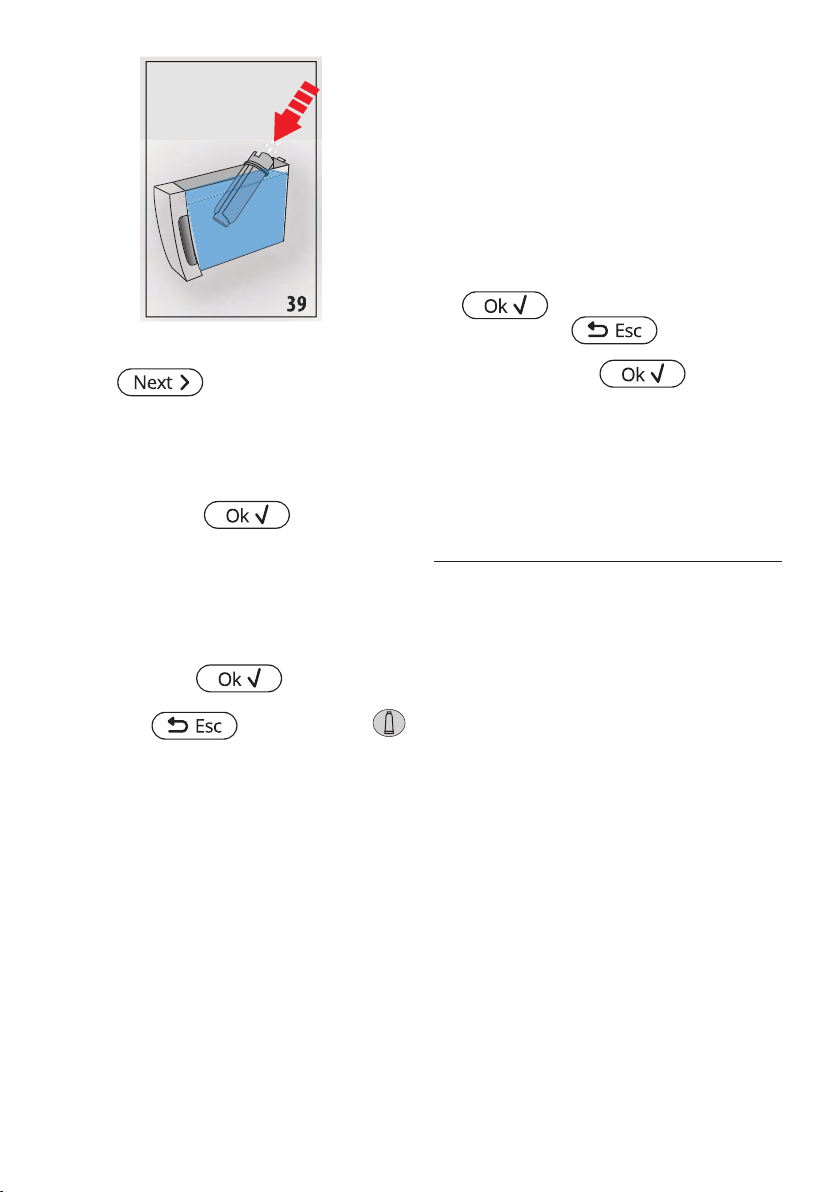

7. "IMMERSE FILTER TO" "EXPEL AIR BUBBLES" (g. 39): Insert the lter in the water tank and immerse it completely for about ten seconds, sloping it and pressing it lightly to ena-

ble the air bubbles to escape. Press

8. "INSERT FILTER" "IN HOUSING": Insert the lter (D4) in the lter housing (g. 36) and press as far as it will go. Press

;

9. "INSERT WATER TANK": Close the tank with the lid (A17), then put the tank back in the machine (g. 5);

10. "POSITION 0.5L CONTAINER" "OK TO ENABLE FILTER" (g. 7): Place the container under the hot water spout (D6) and press automatically.

The lter is now active and the coee machine can be used.

. Delivery begins and stops

17.2 Replacing the lter

Replace the lter (D4) when "REPLACE WATER FILTER" "PRESS OK TO START" appears on the display: to replace immediately, press

To replace the lter later, press bol appears on the display to remind you that the lter needs replacing. To replace, proceed as follows:

1. Extract the tank (A17) and exhausted lter;

2. Remove the new lter from the packaging;

3. Access the menu as described in section "6.1 Access the settings menu";

4. Follow the operations described in the previous section from point 3.

The lter is now active and the coee machine can be used.

Please note:

After two months (see date indicator) or when the machine has not been used for 3 weeks, you should replace the lter even if the message has not yet been displayed.

and follow the instructions from point 5.

. The sym-

17.3 Removing the lter

If you want to use the machine without the lter (D4), you must remove it and notify the machine of its removal. Proceed as follows:

1. Extract the tank (A17) and exhausted lter;

;

2. Access the menu as described in section "6.1 Access the settings menu";

3. PRESS "WATER FILTER";

4. Press the selector corresponding to " REMOVE WATER FILTER";

5. "CONFIRM FILTER REMOVAL": press press

6. "FILTER REMOVED": the change has been saved. Press

Please note:

After two months (see date indicator) or when the machine has not been used for 3 weeks, you should replace the lter even if the message has not yet been displayed.

to go back to the settings menu);

to go back to the homepage.

(or

18. REGULATORY COMPLIANCE

FCC for USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IC for CND

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

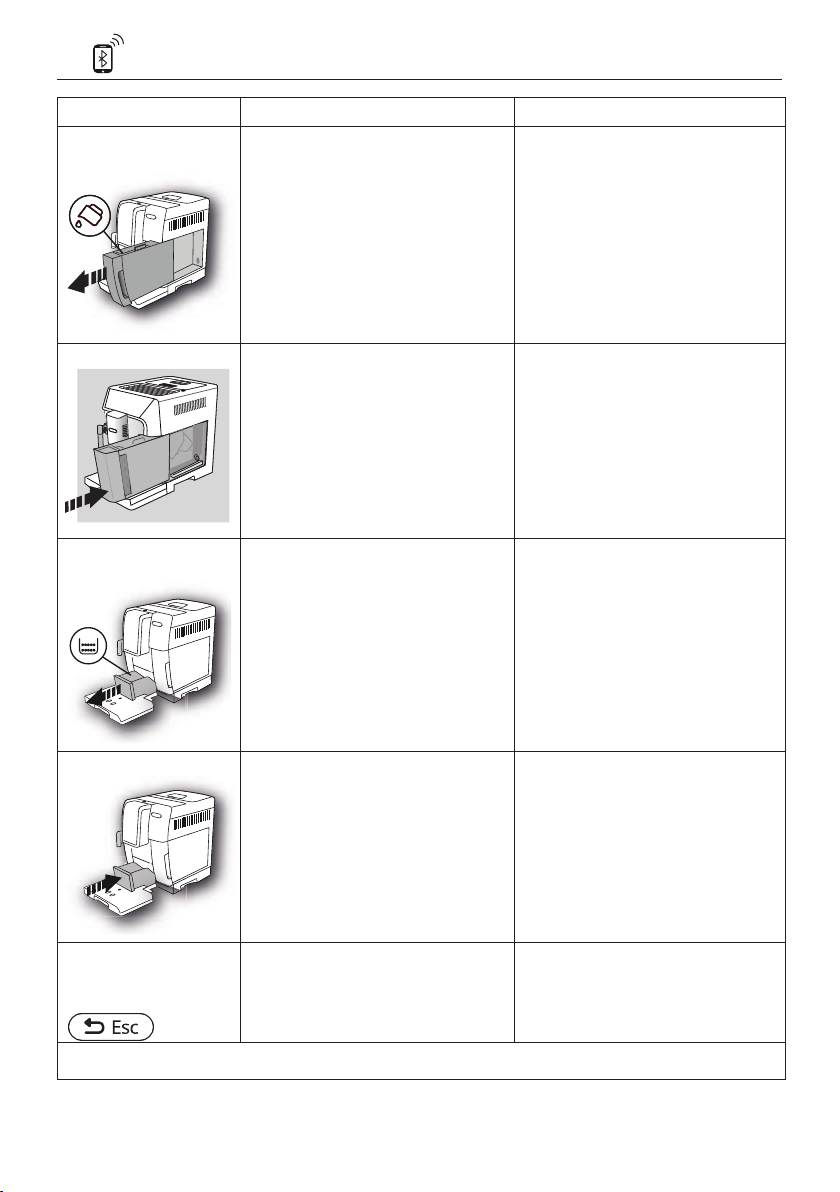

19. DISPLAYED MESSAGES

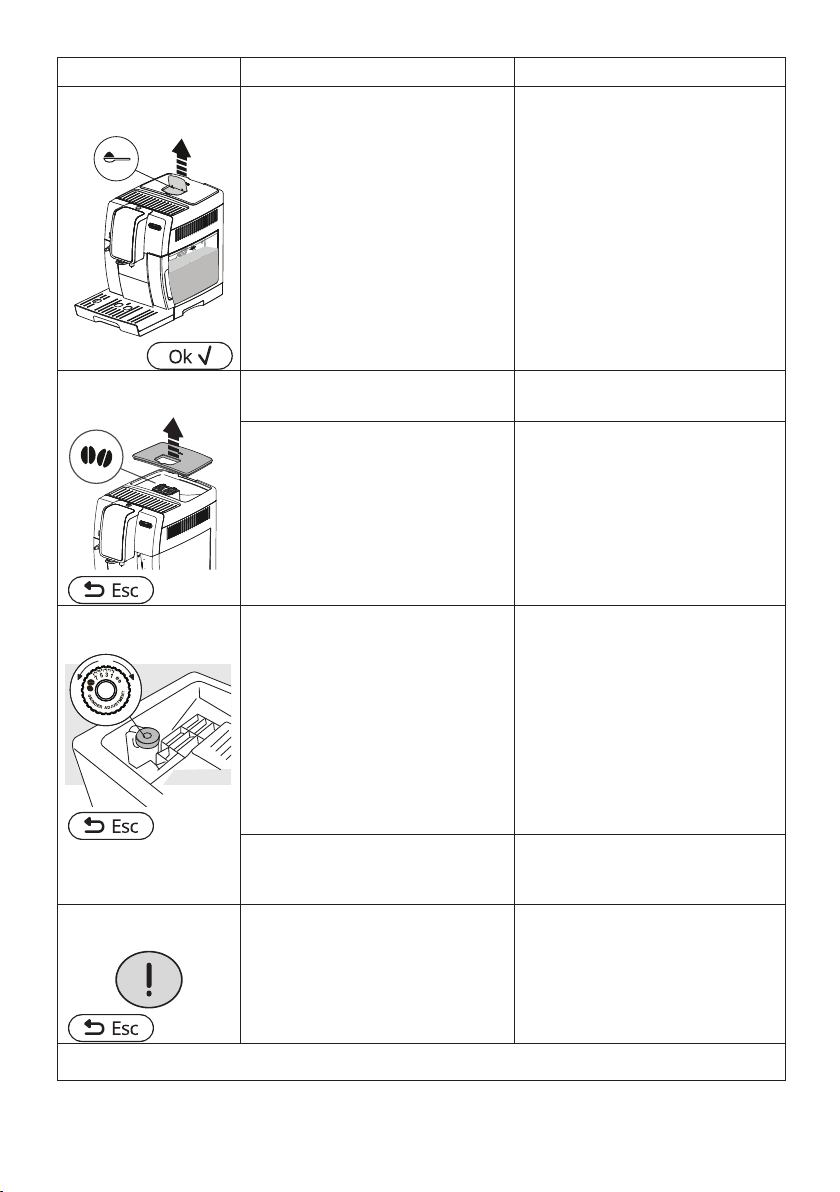

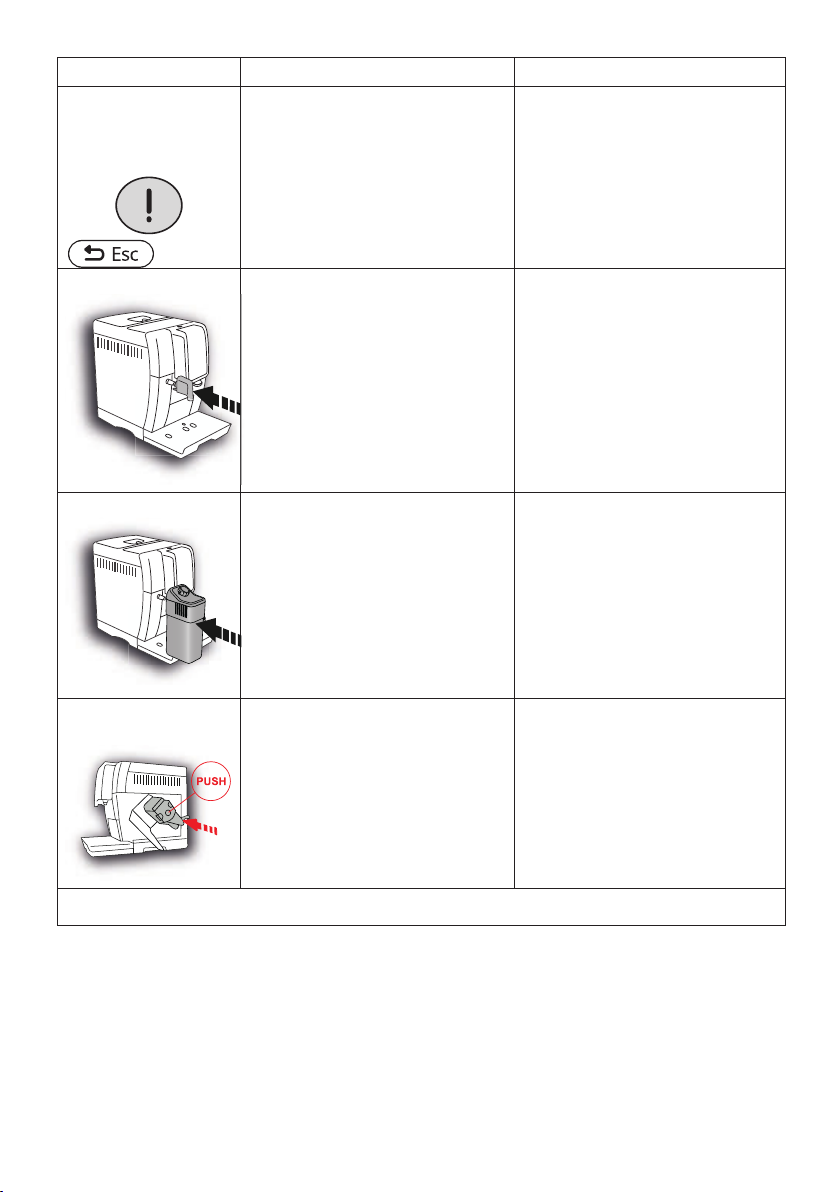

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

FILL TANK WITH FRESH WATER

Insucient water in the tank

(A17)

. Fill the tank with water and/or insert it correct-

ly, pushing it as far as it will go until it clicks into place.

INSERT WATER TANK

EMPTY GROUNDS CONTAINER

INSERT GROUNDS CONTAINER After cleaning, the grounds container

The tank

(A17)

is not correctly in place. Insert the tank correctly and press as far as it

The grounds container (A11) is full.

not been replaced.

(A11)

will go.

Empty the grounds container and drip tray (A15), clean and put back in the machine. Important: when removing the drip tray, the grounds container MUST be emptied, even if it contains few grounds. If this is not done, when you make the next coees, the grounds container may ll up more than expected and clog the machine.

has

Remove the drip tray (A15) and insert the grounds container.

ADD GROUND COFFEE MAX. ONE MEASURE

The pre-ground coee function has been selected without placing any pre-ground coee

(A4)

in the funnel

Place pre-ground coee in the funnel and repeat delivery

(g. 12)

→

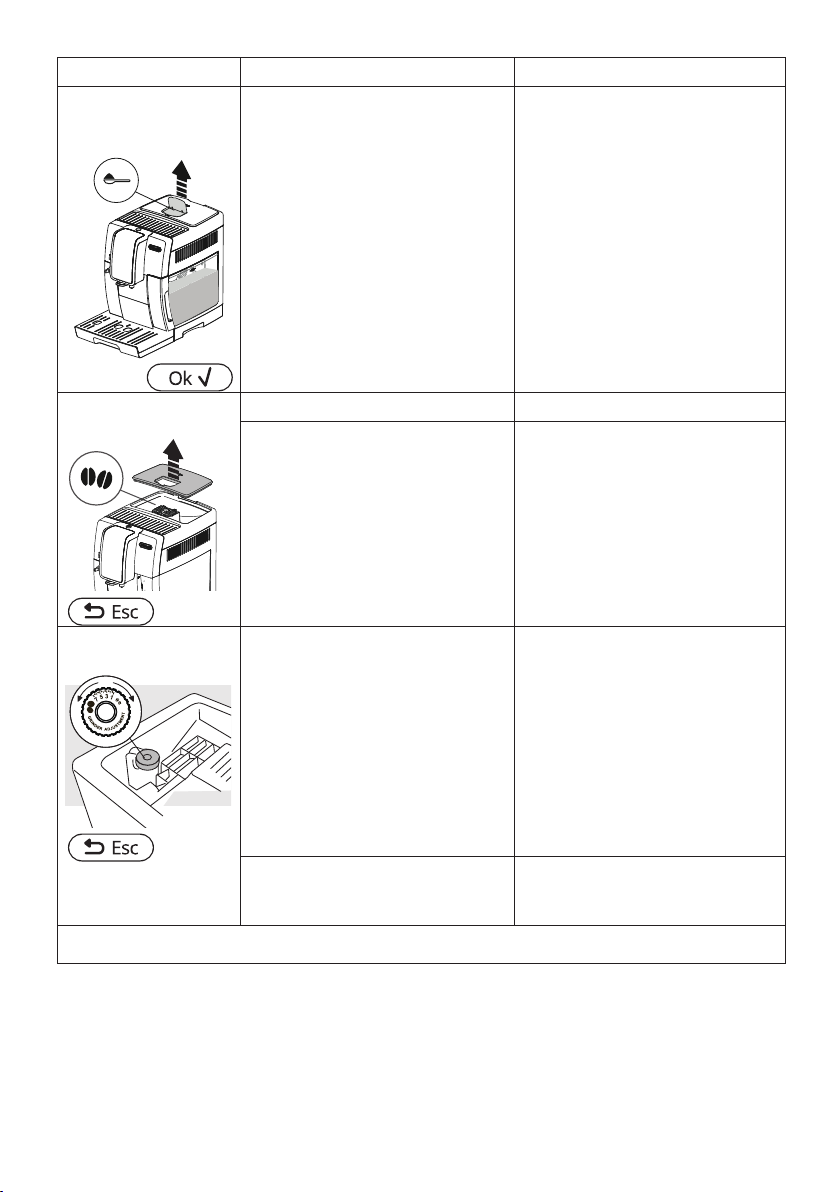

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

ADD GROUND COFFEE MAX. ONE MEASURE

A LONG coee with pre-ground coee has been requested

Place pre-ground coee in the funnel (A4) (g.

12) and press the selector corresponding to "OK" to continue and complete delivery.

FILL BEANS CONTAINER

GROUND TOO FINE. ADJUST GRINDER

SELECT A MILDER TASTE OR REDUCE COFFEE AMOUNT

The coee beans have run out. Fill the beans container

(A4)

The pre-ground coee funnel

The grinding is too ne and the coee is delivered too slowly or not at all.

If the water softener lter (D4) is present, an air bubble may have been released inside the circuit, obstructing delivery.

Too much coee has been used. Select a milder taste by pressing the "Strength"

is clogged. Empty the funnel with the help of the brush

(D5) as described in section "14.8 Cleaning the pre-ground coee funnel".

Repeat coee delivery and turn the grinding adjustment dial wise towards "7" while the coee grinder is in operation. If after making at least 2 coees delivery is still too slow, repeat the correction procedure, turning the grinding adjustment dial another click until delivery is correct (see section "7.5 Adjusting the coee grinder" the problem persists, make sure the water tank (A17) is fully inserted.

Insert the hot water spout (D6) in the machine and deliver a little water until the ow becomes regular.

button (C5) or reduce the quantity of ground coee (maximum 1 measure).

(A4) (g. 10)

(A5) (g. 13)

one click clock-

)

. If

→

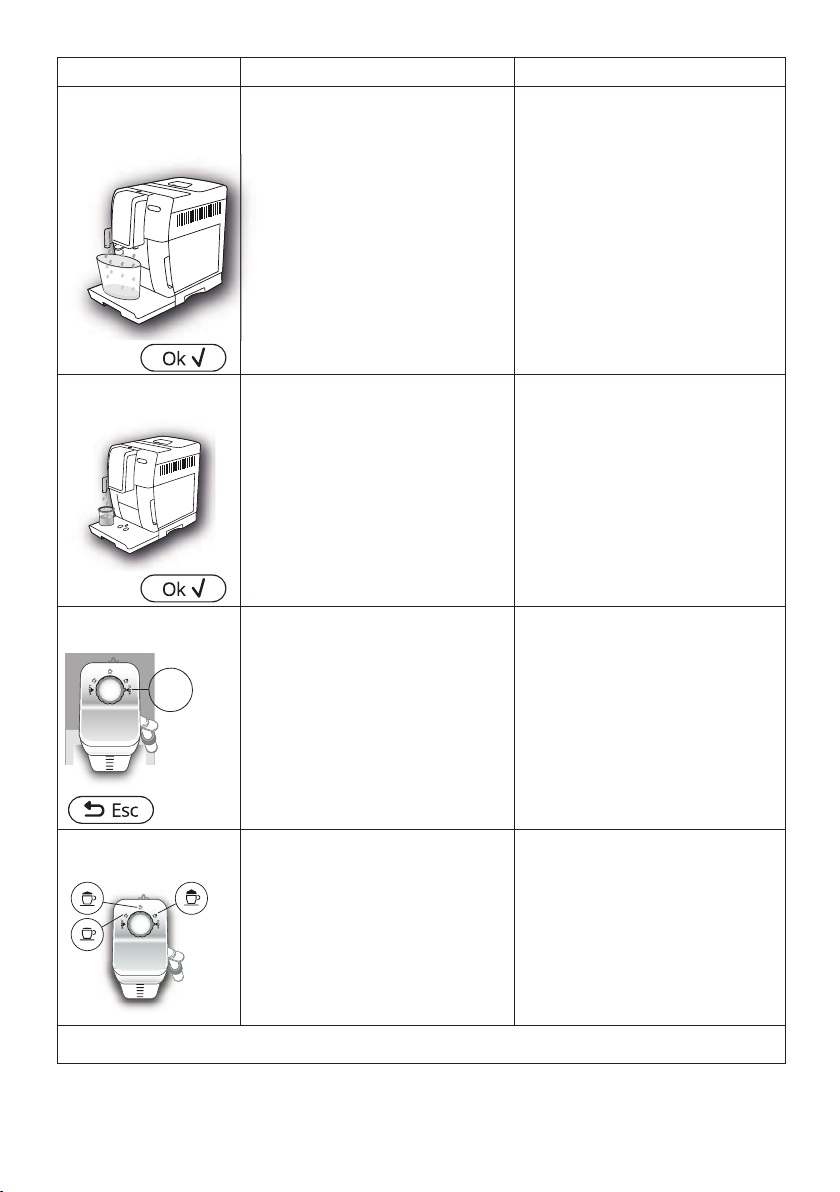

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

INSERT WATER SPOUT

The hot water spout (D6) is not inserted or is inserted incorrectly

Insert the water spout as far as it will go.

INSERT MILK CONTAINER

INSERT INFUSER ASSEMBLY

WATER CIRCUIT EMPTY PRESS OK TO START

The milk container (E) is not inserted correctly. Insert the milk container, pushing it as far as

it will go.

The infuser (A20) has not been replaced after cleaning.

The water circuit is empty Press the selector corresponding to "OK" to

Insert the infuser as described in section "14.9 Cleaning the infuser".

deliver water from the spout (D6) until it ows out normally. If the problem persists, make sure the water tank (A17) is fully inserted.

→

+ 56 hidden pages

Delonghi ECAM37095TI Instruction manuals

Specifications and Main Features

Frequently Asked Questions

User Manual
