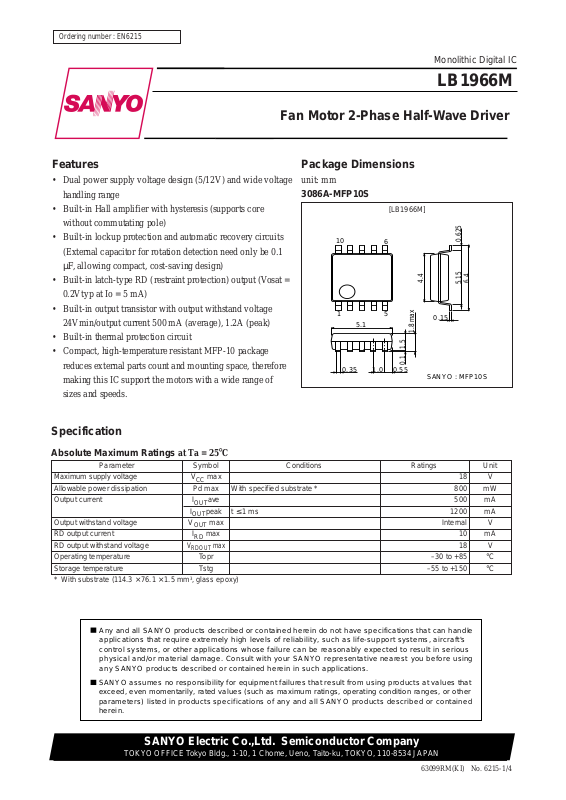

Page 1
Ordering number : EN6215
LB1966M
Monolithic Digital IC
LB1966M
Fan Motor 2-Phase Half-Wave Driver
Features
• Dual power supply voltage design (5/12V) and wide voltage
handling range
• Built-in Hall amplifier with hysteresis (supports core
without commutating pole)
• Built-in lockup protection and automatic recovery circuits
(External capacitor for rotation detection need only be 0.1
µF, allowing compact, cost-saving design)
• Built-in latch-type RD (restraint protection) output (Vosat =
0.2Vtyp at Io = 5 mA)
• Built-in output transistor with output withstand voltage
24Vmin/output current 500 mA (average), 1.2A (peak)
• Built-in thermal protection circuit
• Compact, high-temperature resistant MFP-10 package
reduces external parts count and mounting space, therefore
making this IC support the motors with a wide range of
sizes and speeds.
Specification
Package Dimensions
unit: mm
3086A-MFP10S
[LB1966M]
10
1
5.1
6
5
1.5
0.55
0.1
1.00.35
4.4
0.15
1.8max
SANYO : MFP10S
6.4
5.15 0.625
Absolute Maximum Ratings at Ta = 25°C
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCC max 18 V
Allowable power dissipation Pd max With specified substrate * 800 mW
Output current I
Output withstand voltage V
RD output current IRD max 10 mA
RD output withstand voltage
Operating temperature Topr –30 to +85 °C
Storage temperature Tstg –55 to +150 °C
* With substrate (114.3 × 76.1 × 1.5 mm3, glass epoxy)
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
ave 500 mA
OUT
I
peak t ≤ 1 ms 1200 mA
OUT
max Internal V
OUT
V
max
RDOUT
18 V
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
63099RM(KI)
No. 6215-1/4
Page 2
LB1966M
Allowable Operating Ranges at Ta = 25°C
Parameter Symbol Conditions Ratings Unit
Power supply voltage VCC1 3.6 to 17 V
Common mode input voltage range V
COM
Electrical Characteristics at Ta = 25°C, VCC = 12V
Parameter Symbol Conditions
Circuit current I
CT capacitor charge current ICT1VCT = 0.2V 0.8 1.2 2.0 µA
Capacitor discharge current ICT2VCT = 8V 0.16 0.24 0.4 µA
Capacitor discharge current ratio R
CT charge voltage VCT1 6.0 7.0 8.0 V
CT discharge voltage VCT2 1.2 1.6 2.0 V
Output limiter withstand voltage V
Output saturation voltage VOsat Io = 500 mA 1.0 1.3 V
Hall input sensitivity V
RD output saturation voltage VRDsat IRD = 5 mA 0.2 0.5 V
RD output leak current I
Thermal protection trigger temperature T
* Assured design target: Target value, not measured individually
OLM
RDL
TSD
In drive mode (CT = L) 4 6 mA
CC
In lockup protection mode (CT = H) 4 6 mA
R
CT
HN
= ICT1/ICT2 4.0 6.0 8.0 –
CT
Io = 10 mA 24.0 25.5 27.0 V
Including offset and hysteresis 10 18 mV
VRD = 14V 0.1 10 µA
Assured design target * 150 180 200 °C
min typ max
0.2 to VCC–2.3 V
Ratings
Unit
Truth Table
IN– IN+ CT OUT1 OUT2 RD Mode
H L L L H L Rotating
LH HLL
– – H off off H Lock-up protection activated
Pin Assignment
RD 1
–
LB1966M
4
10 V
9CTIN+2
8NCNC 3
7 OUT2IN
6 GNDOUT1 5
CC
Top view
No. 6215-2/4
Page 3
Sample Application Circuit
5/12V power supply (3.8 to 17V)
LB1966M
V
CC
OUT1
OUT2
RD
0.1µF
H
IN+
IN–
CT
GND
On-board parts
Precautions
• Wiring layout for IN– and OUT1 must be designed to prevent interference. (If oscillation occurs for example when
output phase is switched, connect a capacitor with 0.1 µF or less between IN– and IN+ pins.)
• If CT pin is connected to GND, the lockup protection and restart functions are disabled.
• In a circuit configuration as shown above, a power supply/GND reverse connection will cause a current to flow as
follows: GND -> OUT -> coil -> power supply. The magnitude of this current is limited by the coil resistance. If it
is less than 500 mA, the IC will not be destroyed. If required, insert a diode between VCC and the coil.
No. 6215-3/4
Page 4
LB1966M
Block Diagram and Sample Application Circuit
VCC
IN+
IN–
C1
0.1 to 1µF
Thermal
protection
circuit
Control block
H
RD
Constant
current
source
CT
L1 L2
OUT1
OUT2
GND
