Watch our FAQ Videos for help with setting up your Brother machine: solutions.brother.com/videos.
HL L2305W / HL L2315DW / HL L2340DW / HL L2360DN / |
|
|
HL L2360DW / HL L2361DN / HL L2365DW / HL L2366DW |
Not all models are available in all countries. |
|

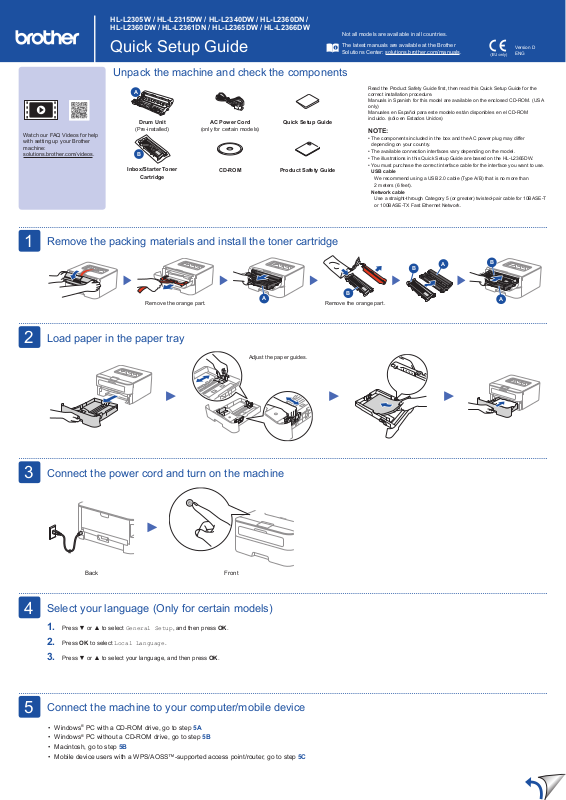

Quick Setup Guide |
|
|
The latest manuals are available at the Brother |
Version D |
|
Solutions Center: solutions.brother.com/manuals. |
ENG |
Unpack the machine and check the components
A
Drum Unit |
AC Power Cord |
Quick Setup Guide |
(Pre installed) |
(only for certain models) |
|
B |
|
|
Inbox/Starter Toner |
CD ROM |
Product Safety Guide |
Cartridge |
|
|
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct installation procedure.
Manuals in Spanish for this model are available on the enclosed CD-ROM. (USA only)
Manuales en Español para este modelo están disponibles en el CD-ROM incluido. (sólo en Estados Unidos)
NOTE:
•The components included in the box and the AC power plug may differ depending on your country.
•The available connection interfaces vary depending on the model.
•The illustrations in this Quick Setup Guide are based on the HL L2365DW.
•You must purchase the correct interface cable for the interface you want to use.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than 2 meters (6 feet).
Network cable
Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE T or 100BASE TX Fast Ethernet Network.
1 Remove the packing materials and install the toner cartridge
|
|
B |
A |
B |
|
|
|
|
|
|
A |
B |
|
A |
Remove the orange part. |
Remove the orange part. |
|
||
|
|
|
2 Load paper in the paper tray
Adjust the paper guides.
3 Connect the power cord and turn on the machine
Back Front
4 Select your language (Only for certain models)
1.
2.
3.
Press ▼ or ▲ to select General Setup, and then press OK. Press OK to select Local Language.
Press ▼ or ▲ to select your language, and then press OK.
5 Connect the machine to your computer/mobile device
•Windows® PC with a CD-ROM drive, go to step 5A
•Windows® PC without a CD-ROM drive, go to step 5B
•Macintosh, go to step 5B
•Mobile device users with a WPS/AOSS™-supported access point/router, go to step 5C
5A |
Configuration using the CD-ROM (Windows®) |
NOTE:
If the Brother screen does not appear automatically, go to Computer (My Computer).
(For Windows® 8: click the (File Explorer) icon on the taskbar, and then go to Computer.) Double-click the CD-ROM icon, and then double-click start.exe.
Connection Type
For USB Connection
For Wired Network Connection
Connect a network cable first.
For Wireless Network Connection
We recommend preparing a USB cable to use temporarily during the wireless setup.
Wireless Network Connection
Follow the on-screen instructions until the
Connection Type screen appears.
Follow the on-screen |
|
|
Finish |
|
|
instructions to continue |
|
|
installation. |
|
|
|
|
NOTE:
If connection is unsuccessful, repeat this step.
[Recommended]
Select this option if you have a USB cable to use temporarily for wireless setup.
Select this option if you do not have a USB cable.
NOTE:
If connection is unsuccessful, repeat this step.
Follow the on-screen |
|
|
Finish |
|
|
instructions to continue |
|
|
installation. |
|
|
|
|
For Network Users: Important Notice for Network Security
The default Web Based Management password is located on the back of the machine and marked “Pwd”. We recommend immediately changing the default password to use network tools/utilities securely and to protect your machine from unauthorized access.
5B
5C
Configuration without using the CD-ROM (Windows® without CD-ROM drive or Macintosh)
Download the full driver and software package from the Brother Solutions Center. (For Windows®) solutions.brother.com/windows
(For Macintosh) solutions.brother.com/mac
After you download the driver and software package, follow the on-screen instructions until the Connection Type screen appears. Refer to 5A Configuration using the CD-ROM (Windows®).
One-push wireless setup for mobile devices (Wireless models only)
If your wireless LAN access point/router supports automatic wireless (one-push) setup (WPS/AOSS™), you can set up your machine without using a computer.
Wireless setup is now complete.
NOTE:
Before you can use your machine with your mobile device, download “Brother iPrint&Scan.”
Press the WPS or AOSS™ button on your |
Press the WiFi button on your machine. |
wireless LAN access point/router. |
|
Print using your mobile device
Download “Brother iPrint&Scan” to start using your machine with mobile devices.
solutions.brother.com/ips
Brother support web site http://support.brother.com
