Bosch SHPM78W52N/10, SHX863WB5N/10, SHXM78W55N/10, SHV863WD3N/10, SHS863WD2N/10 Installation Guide

en Installation Instructions fr Notice d’installation

es Instrucciones de instalación

Customer Service:	These instuctions are intended
1-800-944-2904	for use by qualified installers only

2

Safety Definitions

! WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

! CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

Table of Contents

Safety Instructions. . . . . . . . . . . . . . . . . . . . . 3

Avoiding General Hazards. .		. . . . . . . .	. . . . . . .	. 4
Tools & Materials. .	. . . . . . . . . . .		. . . . . . . .	5
Enclosure Requirements. . . . . . . . . .			. . . . . . . .	8
Electrial Connections	. . . . . . . . . . . .		. . . . . . .	11
Installation of Mounting Brackets.. . . . . . .			. . . . . . . 16
Positioning the Dishwasher. . . . . . . . . . . . . . . . . 18
Securing the Dishwasher. .		. . . . . . . .	. . . . . . . . 22
Water Inlet Connection. . . . .		. . . . . . . . . . . . .		23
Drain Connection.. . . . . . . . . . . . . . . . . . . . 24
Attaching the Toe Panel . . . .		. . . . . . . . . . . . .		28
Customer Service. . . .	. . . . . . .	. . . . . . . . .		31

3

Important Safety Instructions: Please READ and SAVE this information

To avoid possible injury or property damage, OBSERVE ALL WARNINGS AND CAUTIONS.

These instructions are intended for use by qualified installers only. The dishwasher must be installed by a qualified service technician or installer.

•In addition to these instructions, the dishwasher shall be installed to meet all electrical and plumbing codes and ordinances (both national and local).

Read these installation instructions completely and follow them carefully.

They will save you time and effort and help to ensure safety and optimum dishwasher performance.

IMPORTANT

•The dishwasher drain hose must be installed with a portion of it at least

33″ (84 cm) off the cabinet floor; otherwise the dishwasher may not drain properly.

•This dishwasher is intended for indoor residential use only, and should not be used in commercial food service establishments.

•This dishwasher is designed to be enclosed on the top and both sides by cabinetry.

•NEW INSTALLATION - If the dishwasher is a new installation, ensure all connections are properly made before the dishwasher is moved into place.

•REPLACEMENT - If the dishwasher is replacing another dishwasher, check the existing dishwasher connections for compatibility with the new dishwasher, and replace parts as necessary.

•This appliance has been found to be in compliance with CAN/CSA-C22.2 No. 167/UL 749. It is the responsibility of the owner and the installer to determine if additional requirements and standards apply in specific installations.

•Not for outdoor use.

Inspect the Dishwasher

After unpacking the dishwasher and prior to installation, thoroughly inspect the dishwasher for possible freight or cosmetic damage. Report any damage immediately. Cosmetic defects must be reported within 30 days of installation. NOTE: Do not discard any bags or items that come with the original package until after the entire installation has been completed.

4

WARNING

Avoiding General Hazards

To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.

Do not use the dishwasher until it is completely installed. When opening the door on an uninstalled dishwasher, carefully open the door while supporting the rear of the unit. Failure to follow this warning can cause the dishwasher to tip over and result in serious injury.

Before installing the supplied counter top mounting brackets, decide which method will be used to secure the dishwasher into its opening. Once these mounting brackets are installed on the dishwasher, removing them is difficult and will damage the mounting brackets and the dishwasher.

In some conditions, hydrogen gas can form in a hot water system that has not been used for weeks. Hydrogen gas is explosive. Before filling a dishwasher from a system that has been off for weeks, run the water from a nearby faucet in a well ventilated area until there is no sound or evidence of gas.

Removing any cover or pulling the dishwasher from the cabinet can expose hot water connections, electrical power and sharp edges or points. Handle with care.

5

Tools and Materials Needed

ø1/16 in (2 mm)

Adjustable Wrench Drill Hole Saw Tape Measure

Wire Cutter

Wire Stripper

Pliers

Needle Nose Pliers

PhillipsScrewdriver	FlatScrewdriver		Level

Elbow connection with 3/4” female hose threads on one end and fits your water supply line (copper tubing, compression fitting, or braided hose) on the other.

Electrical Supply Cable - Minimum #14 AWG, 2 conductor, 1 ground, insulated copper conductors rated 75° C or higher.

Only needed if house electrical line is not adequate.

Hot Water Supply Line - Minimum 3/8″ O.D. copper tubing or metal braided dishwasher supply line.

Onlyneededifhousewatersupplylineisnotsufficient.

Shut-offvalveandfittingsappropriateforhotwatersupplyline

(copper tubing/compression fitting, or braided hose).

UL listed conduit connector or strain relief is required if you attach the field wiring directly to the terminal block.

6

Materials supplied (All Models)

A	Junction Box

B	Edge Protector

C	Screw Clamp (for drain hose)

D	Mounting Brackets

E	Mounting Bracket Screws Ø 4x13 mm

F	AdhesiveBackedCordClip

7

Materials Supplied

(Model Dependent; your dishwasher is supplied with one of the toe panel kits shown below)

Installation Guide for Fully Integrated Door Panel

G	Slotted Toe Panel

H	Slotted Toe Panel Screws Ø 4x16 mm

I	Non-Slotted Toe Panel

	J	Non-SlottedToePanelScrews-Blackorsilver
		depending on toe panel color

	K	Toe Panel Mounting Brackets (used with non-slotted
		toepanelshownabove)

L	Plastic Toe Panel

M	Slotted Toe Panel (used with Plastic Toe Panel
	andØ4x16screws,H,listedabove)

8

Enclosure Requirements

! WARNING

Avoid Scalding or Electrical Shock Hazard!

Make sure the water supply and electrical supply are shut off before installation or service.

Avoid Electrical Shock/Fire Hazard!

Do not allow the electrical and supply lines to touch.

1

min 24"

(610 mm)

min 34"

(864 mm)

235/8" - 241/4"

(600 - 616 mm)

Note: This dishwasher is designed to be enclosed on the top, back and both sides by standard residential kitchen cabinetry.

•Select a location as close to the sink as possible for easy access to water supply and drain lines.

•For proper dishwasher operation and appearance, ensure that the enclosure is square and has the dimensions shown.

2

•If the dishwasher is to be installed in a corner, ensure that there is adequate clearance to open the door as shown.

9

3

7"

(177.8 mm)

•After locating the proper place for your dishwasher, create required openings in your cabinets in order to allow for water, drain and electrical lines on the appropriate side.

•The holes should be cut within the 7 x 2.5" area shown.

4	B

•If the opening is made through wood, sand it smooth.

•If the opening is made through metal, use the provided edge protector

(B) or other approved method to protect wiring from damage.

10

5

1

•Pull the drain hose out of the packaging base as shown.

•Set toe panel aside for later use.

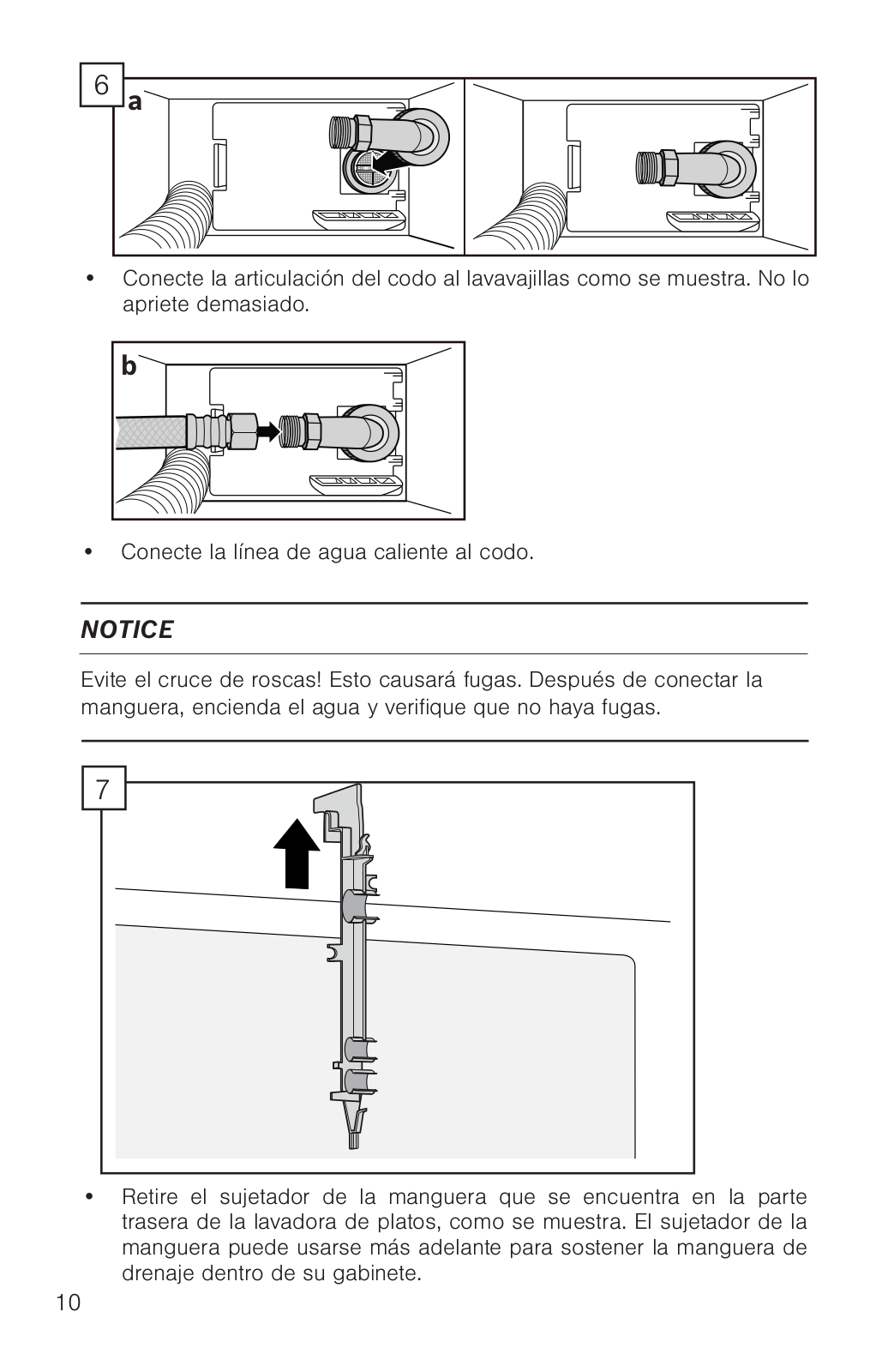

6 a

•Attach elbow joint to dishwasher as shown. Do not overtighten.

b

•Attach hot water line to elbow.

NOTICE

Avoid cross-threading! It will cause leaks. After attaching hose, turn on water and check for leaks.

11

7

•Remove the hose clip at the back of the dishwasher as shown. The hose clip may be used later to hold the drain hose inside your cabinet.

Electrical Connection

! WARNING

Avoid Electrical Shock Hazard!

Do not work on an energized circuit. Doing so could result in serious injury or death. Only qualified electricians should perform electrical work. Do not attempt any work on the dishwasher electric supply circuit until you are certain the circuit is deenergized.

To avoid possible injury or property damage, care should be exercised when the dishwasher is installed or removed to reduce the likelihood of damage to the power cord.

Avoid Fire Hazard!

Make sure electrical work is properly installed and checked by qualified electricians.

Make sure there are no loose electrical connections. Make sure all electrical connections are properly made.

12

Electrical Supply

The customer has the responsibility of ensuring that the dishwasher electrical installation is in compliance with all national and local electrical codes and ordinances. The dishwasher is designed for an electrical supply of 120V, 60 Hz, AC, connected to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or breaker rated for 15 amps. Electrical supply conductors shall be a minimum #14 AWG copper wire rated at 75°C (167°F) or higher.

	Dishwasher Electrical Rating
		Volts	Hertz	Amperes	Watts
		120	60	12	1,440
					(max)

Grounding Instructions

The dishwasher must be properly grounded before operating. This appliance must be connected to a grounded metal permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. Make sure that the dishwasher is connected to a suitable ground in compliance with all local codes or, in the absence of a local code, with the NATIONAL ELECTRICAL CODE in the United States or the CANADIAN ELECTRIC CODE C22.1-latest edition in Canada as well as any provincial/ state or municipal or local codes that apply.

Note: Installations employing a Receptacle - The accessory cord kit, Model SMZPC002UC, designed for connection to a receptacle is not provided, but can be ordered through Customer Service by calling 1-800-944-2904. Make sure the household receptacle meets the electrical supply requirements as well as national and local codes. If you choose to permanently connect to hardwiring, follow the next steps.

13

8

•Turn off any electricity to installation area.

•Remove screws and cover from junction box (A) and set aside for later use.

•Remove outer casing and insulation of the hardwiring/power cord as shown.

! WARNING

Loose and improperly installed electrical connections can result in overheating!

Carefully review terminal block installation instructions.

14

9	a
	c

strain relief

A

b

white (N)	green (G)

black (L)

1-2 mm

d

arrow

ADVERTENCIA

ESTRICTAMENTE SIGA TODAS LAS INSTRUCCIONES DE ESTE MANUAL.

UTILICE SÓLO EL 14 O 12 DE ALAMBRE DE COBRE AWG CON UN GRADO DE LA TEMPERATURA MÍNIMA DE 75 ° C (167 ° F).

COLOQUE TODOS LOS CABLES EN LA CAJA DE LA FUENTE DE ALIMENTACIÓN Y LA INSTALACIÓN DE LA CUBIERTA. TORNILLOS DE CONEXIÓN NO SON EXTRAIBLES.

1/2" (13 mm)

WIRE STRIP GAGE

CALIBRE DE POUR DÉNUDER

INDICADOR DE CABLE PELADO

WARNING

STRICTLY FOLLOW ALL INSTRUCTIONS IN THIS MANUAL.

USE ONLY 14 OR 12 AWG COPPER WIRE WITH A MIN. TEMP. RATING

OF 75°C (167°F).

PLACE ALL WIRING IN THE POWER SUPPLY BOX AND INSTALL COVER.

CONNECTION SCREWS ARE NOT REMOVABLE.

AVERTISSEMENT

OBSERVER TOUTES LES INSTRUCTIONS DE CE GUIDE.

UTILISER SEULEMENT DU FIL DE CUIVRE 14 OU 12 AWG AVEC UNE

COTE DE TEMPÉRATURE MINIMALE DE 75°C (167°F).

PLACER TOUS LES FILS DANS LA BOÌTE D‘ALIMENTATION ET

REMETTRE LE COUVERCLE.

LES VIS DE CONNEXIONS NE SONT PAS AMOVIBLES.

view with cover installed

•Attach an approved strain relief (not provided) to opposite side of junction box.

•Without adjusting the terminal screws, insert the wires properly in the terminal. Make sure that the black wire connects with the black (L) and the white connects with the white (N) and the green or bare copper wire with the green (G or ). (See box b)

•Do NOT insert wire underneath the screw clamp. (see box a)

•Be certain the wire insulation is not trapped in the terminal. 1-2 mm of wire must be visible (See box b)

•After inserting wire, completely tighten the terminal screws by turning clockwise. (See box c)

•After tightening the terminal screws, pull on each wire to ensure that they are secure. Wire should not be loose in the terminal after correct installation.

•Secure the wire in the junction box with the strain relief.

Note: The arrow (shown in box d above) should align with the power cord.

15

10	A

•Mount the dishwasher electrical supply junction box (A) and dedicated receptacle in an accessible cabinet adjacent to the dishwasher (do not mount the junction box or receptacle behind the dishwasher).

Note: Screws are not provided for mounting electrical supply junction box.

11
Strap		A
		lternate
			cable
		Clip	routing
		o
		rientation
CLICK
5"	(127 mm)	Leg Adjuster
Adhesive
backed
cord clip

•Check all electrical connections to ensure they are secure and then reattach the junction box cover.

•Place adhesive backed cord clip (provided in the installation kit) 5 inches from leg adjuster as shown in the figure above and route power cord through the clip. Note:The length of cord measured from the plastic back strap to the receptacle should be ≤ 47.25” (1,200 mm).

•Plug the end of the supply cord into the back of the dishwasher as shown until it clicks.

16

Installation of Mounting Brackets

! WARNING

Avoid Tip Over Hazard!

Do not use the dishwasher until it is completely installed. When opening the door on an uninstalled dishwasher, carefully open the door while supporting the rear of the unit. Failure to follow this warning can result in serious injury.

Note: Before installing the supplied counter top mounting brackets, decide which method of securing the dishwasher into its enclosure will be used.

Once the mounting brackets are installed on the dishwasher, removing them is difficult and will damage the mounting brackets and the dishwasher.

If you have a Fully Integrated Panel, do not attach mounting brackets until after attaching the panel to the door.

12

•Top Mount is used for counter tops made of wood or other materials that can be easily drilled. If you have solid surface, marble, granite, or other very hard countertops, skip to step 13 now.

•If insulation is covering the area in 12a, fold it back.

•Orient the mounting brackets (D) for top mounting as shown in12b.

•Using pliers, bend side flanges down as shown in 12c and 12d so the bracket will not slip out of slot in frame. Do not attach to cabinet yet.

17

13

•Side Mount is used for counter tops made of marble, granite, or other very hard materials that cannot be easily drilled.

•Grasp mounting bracket (D) with pliers and fold bracket at the perforation over onto itself as shown in 13a.

•Slip bracket flange through side slots in frame as shown in 13b.

•Using pliers, bend side flanges down as shown in 12c and 12d so the bracket will not slip out of slot in frame. Do not attach to cabinet yet.

18

Positioning the Dishwasher

14

•If your sink is to the right side of where you are installing the dishwasher, you will need to reposition the hoses and power cord behind the dishwasher before installing.

•To do so, unhook the strap that the hoses are running through on the back of the dishwasher base and position them per your requirements.

•If your sink is to the left side, leave the hoses and power cord as they came and skip to step 16.

19
