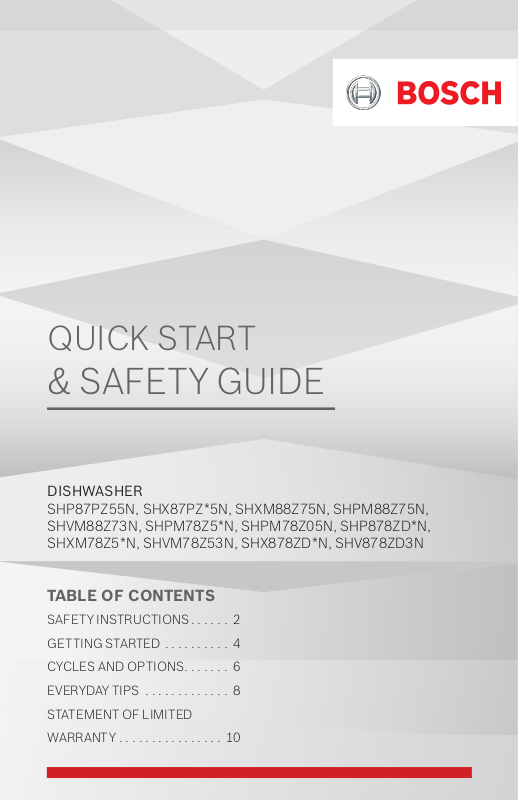

QUICK START
& SAFETY GUIDE
DISHWASHER
SHP87PZ55N, SHX87PZ*5N, SHXM88Z75N, SHPM88Z75N, SHVM88Z73N, SHPM78Z5*N, SHPM78Z05N, SHP878ZD*N, SHXM78Z5*N, SHVM78Z53N, SHX878ZD*N, SHV878ZD3N
TABLE OF CONTENTS
SAFETY INSTRUCTIONS.. . . . . . 2
GETTING STARTED. . . . . . . . . . . 4
CYCLES AND OPTIONS. . . . . . . 6
EVERYDAY TIPS . . . . . . . . . . . . . . 8
STATEMENT OF LIMITED
WARRANTY. . . . . . . . . . . . . . . . . 10
! IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND SAVE THESE INSTRUCTIONS
ThisQuickStartandSafetyGuideexplainsthebasicsofoperatingyourdishwasher andthosesafetymeasuresthatmustbefollowed.
For complete product information refer to the Use and Care Manual available online at www.bosch-home.com/us/service/get-support/owner-manuals.
Safety Definitions:
! WARNING: This indicates that death or serious injuries may occur as a result of non-observance of this warning.
! CAUTION: This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.
WARNING: TIP OVER HAZARD!
Dishwasher must be installed immediately and secured with mounting brackets to avoid tip over. A child can tip the dishwasher and be seriously injured if the door is opened before it is installed. (see Installation Guide for instructions)
WARNING: SAFE OPERATION
•Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware rated as dishwasher safe.
•DISHWASHER MUST BE ELECTRONICALLY GROUNDED. See Installation Guide for instructions.
•The sharp points and edges of knives and other sharp utensils can cause serious injury. Load knives and other sharp utensils with edges down.
•To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided.
•Misuse of the dishwasher can result in serious injury or death. Do not use the dishwasher in any way not covered in the Use and Care Manual or for any purpose other than those explained in the following pages.
•Never use harsh chemicals to clean your dishwasher. Some bleach-based products can damage your dishwasher and may present health hazards!
•Usecautionwhenremovingpartsforcleaningassomedebrismaybesharp.
•Do not abuse, sit or stand on the door or dish racks of the dishwasher.
•RISK OF EXPLOSION - Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.
•RISK OF EXPLOSION - When cleaning your dishwasher with any cleaning agent, remove all cookware, utensils or any foreign material from inside. Some cleaning agents are highly acidic and/or caustic alkaline, which can cause Hydrogen gas to form if aluminum material is also inside the
2 |
dishwasher tub. Hydrogen gas is explosive. Refer to the Care and |
|
Maintenance section of the dishwasher Use and Care manual for |
instructions on how to properly clean your dishwasher.
! IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ AND SAVE THESE INSTRUCTIONS
•To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.
WARNING: CHILD SAFETY
•Keep detergents or rinsing agents out of the reach of children.
•To reduce risk of injury, do not allow children to play in or on the dishwasher.
•Do not allow children to handle or play near knives and sharp utensils.
•When children become old enough to operate the appliance, it is the responsibility of the parents/legal guardians to ensure the
children are instructed in safe practices by qualified persons.
CAUTION
•When loading items to be washed:
•Locate sharp items so they are not likely to damage the door seal.
•Do not wash plastic items unless they are marked “dishwasher safe” or theequivalent.Otherwise,checkthemanufacturer’srecommendations.
•Donotoperate yourdishwasherunlessallenclosure panelsareinplace.
•Do not tamper with or override controls and interlocks.
•Dishes can be very hot immediately after cycle ends. Open the door slightly and allow dishes to cool for a few minutes before unloading.
•This dishwasher is intended for use up to a maximum altitude of 13,000 ft (4,000 meters) above sea level.
•Useonlydetergentsorrinsingagentsrecommendedforuseinadishwasher.
WARNING
•End of Life Disposal - Remove the dishwasher door to the washing compartment when removing an old dishwasher from service or discarding.
NOTICE
•It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or contact your installer for more information.
CAUSES OF DAMAGE
•Detergent will destroy the water softening system! Never pour detergent into the salt dispenser.
•To avoid oversudsing or clogging, do not overfill the rinse aid dispenser. Wipe up any spills with a damp cloth.
•Do not allow water to remain in your dishwasher systems through extended periods of freezing temperatures. Freezing temperatures can damage the water fill valve and potentially other components of your dishwasher.
•Never use steam cleaning products to clean your dishwasher. The manufacturer will not be responsible for the possible damages or consequences.
•Do not use harsh chemicals, bleach-based wipes, abrasive cleaners, scouring pads (metal or plastic), or abrasive cloths/paper towels to clean your dishwasher’s exterior door panel. These could damage your dishwasher’s exterior door panel.
•Donotloadthedishwasherwithpaperproducts,plasticbags,packingmaterialsoranythingotherthannormal,dishwashersafedishwareandkitchenware.3
GETTING STARTED
LOADING TIPS FOR OPTIMAL CLEANING
Lower Rack
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Load plates and bowls in lower |
Load pots and pans and other large |
|||||||
rack leaning inward.. |
items upside down. |
Upper rack
|
|
|
|
|
|
|
|
|
For small plates, glasses and cups. |
The cup shelf also serves as |
|||||||
Small cups fit on cup shelf. |
stemware support. |
|||||||
3rd rack |
Cutlery basket |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
! WARNING
•Load sharp items (knives, skewers, etc.) pointing down. Failure to do so may result in injury.
•To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided.
ADD DETERGENT
Usedetergenttabs,freshpowdereddetergentorliquiddetergent. FortheGlass cycle, use 1-1.75Tbsp.ofdetergentorusedetergenttabswithglassware protection.
Tip:dispenserlidshouldslideclosedeasily.
LAY TABS FLAT |
DETERGENT AMOUNTS |
3 Tbsp. max. |
1.75 Tbsp. (25 ml) |
1 Tbsp. (15 ml) |
TO CLOSE THE COVER
CLICK |
USAGE TIPS FOR BEST RESULTS
Do not place objects in detergent tray or block it with dishes
Scrape off food, but donot rinse.
Userinse |
Adjust |
aid |
upperrack |
forbetter |
asneeded |
drying. |
forlarge |
|
items. |
|
PUSH |
