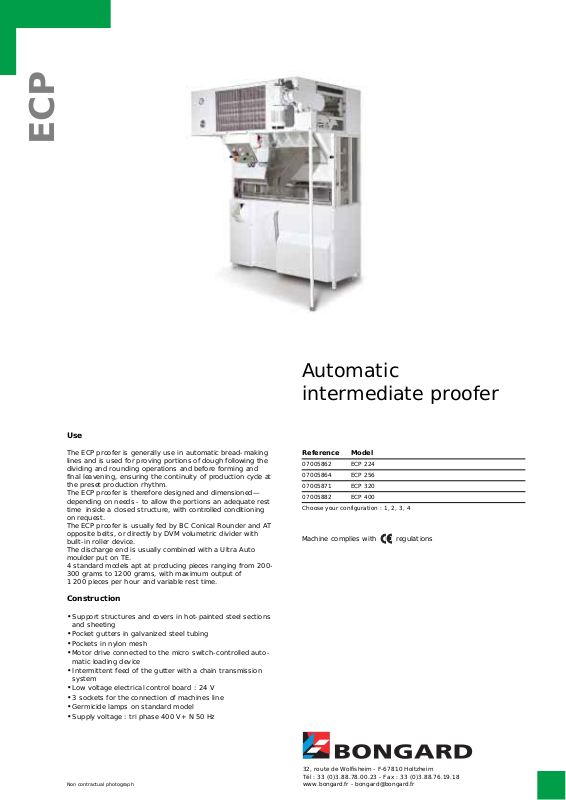

Bongard ECP 256 User Manual

ECP

Automatic
in termediate pr oofer

Use

The ECP proofer is generally use in automatic bread-making
lines and is used for proving portions of dough following the
dividing and rounding operations and before forming and
final leavening, ensuring the continuity of production cycle at
the preset production rhythm.
The ECP proofer is therefore designed and dimensioned—
depending on needs - to allow the portions an adequate rest
time inside a closed structure, with controlled conditioning
on request.
The ECP proofer is usually fed by BC Conical Round er and AT
o pposite belts, or directly by DVM volumetric divider with
built-in roller device.
The discharge end is usually combined with a Ultra Auto
moulder put on TE.
4 standard models apt at producing pieces ranging from 200­300 grams to 1200 grams, with maximum output of
1 200 pieces per hour and variable rest time.

Construction

• Support structures and covers in hot-painted steel sections

and sheeting

• Pocket gutters in galvanized steel tubing

• Pockets in nylon me sh

• Motor drive connected to the micro switch-controlled auto-

matic load ing device

• Intermittent feed of the gutter with a chain transmission

system

• Lo w voltage electrical control board : 24 V

• 3 sockets f or the connection of machines line

• Germicide lamps on standar d model

• Supply voltage : tri phase 400 V+ N 50 Hz

Reference

07005862 ECP 224
07005864 ECP 256
07005871 ECP 320
07005882 ECP 400
Choose your config uration : 1, 2, 3, 4

Machine complies with regu lations

Model

81 Non con t ract ual photograph

32, route de Wol fisheim - F -67810 Holtzheim
Tél : [phone] - Fax : [phone]
www.bongard.fr - bongar [e-mail]

ECP Autom atic intermediate proofer

General features

Model ECP 224 ECP 256 ECP 320 ECP 400
Reference 07005862 07005864 07005871 07005882
Performance

Total pock ets 224 256 320 400
Usable pockets 192 224 288 368
Power demand 0.6 kW 0.6 kW 0.6 kW 0.6 kW
Power demand with CTU 2.6 kW 2.6 kW 2.6 kW 2.6 kW
Dimensions and weight
Depth 1450 mm 1910 mm 2850 mm 3960 mm
Width 1835 mm 1835 mm 1835 mm 1835 mm
Heigh t 2590 mm 2590 mm 2590 mm 2590 mm
Packing volume 11.3 m
Weight 745 kg 790 kg 1025 k g 1230 k g

3

12.2 m3 9.3 m3 15.3 m3

The proofer can be ordered as follows

Entry Entry

Entry Exit Exit Entry

Exit Exit

1 2 3 4
