P4M800 Pro-M7
1
CHAPTER 1: INTRODUCTION
1.1 FEATURES
CPU
Supports LGA 775.
Supports Intel Pentium 4 processor up to 3.8GHz.
Supports Dual Core CPU.
Front side bus at the following frequency ranges:
- 400MHz (100MHz Core Clock)
- 533MHz (133MHz Core Clock)
- 800MHz (200MHz Core Clock)
- 1066MHz (266MHz Core Clock)
Supports Hyper-Threading Technology.
WARNING!
Warranty will be void if the pin protection cap is not in place to protect the socket pin
when sending this mainboard for service.
Chipset
North Bridge: VIA P4M800 Pro.
South Bridge: VIA VT8237R PLUS.
Dimension
Micro ATX Form Factor: 24.38cm (L) x 20.17cm (W)
Operating Systems
Supports Windows 2000 and Windows XP.
Note: Does not support Windows 98SE and Windows ME.
Main Memory
Supports up to two DDR2 devices.
Supports DDR2-400/533.
Maximum memory size is up to 2GB. (Following table is only for
reference.)
DIMM Socket
Location
DDR Module
Total
Memory Size
DDR_A1 64MB/128MB/256MB/512MB/1GB *1
DDR_A2 64MB/128MB/256MB/512MB/1GB *1
Max is 2GB.
P4M800 Pro-M7
2
Super I/O
Chip: ITE IT8705AF
Provides the most commonly used legacy super I/O
functionality.
Environment Control initiatives:
- H/W Monitor.
- Fan Speed Controller.
- ITE “Smart Guardian” function.
On Board IDE
Support 4 IDE disk drives.
Supports PIO Mode 0~4.
Supports Ultra DMA 33/66/100/133 Bus Master Mode.
10/100 LAN PHY
PHY: RealTek RTL8201BL/RTL8201CL.
Supports 10/100 Mb/s auto-negotiation operation.
Half/Full duplex capability.
Supports ACPI, PCI power management.
Serial ATA
Integrated in VT8237R PLUS.
Supports RAID 0 and RAID 1 functions.
Supports 2 serial ATA (SATA) ports.
- Compliant with SATA Version 1.0 specification.
- Data transfer rates up to 150 MB/s.
Onboard AC’97 Sound Codec
Chip: ALC655
Supports 6 channels.
Supports S/PDIF out function.
Compliant with AC’97 Version 2.3 specification.
Slot
3 PCI bus master slots.
1 AGP 4x/8x compatible slot.
1 CNR slot.
P4M800 Pro-M7
3
Front Side Onboard Peripherals
1 front panel header supports front panel facilities.
1 S/PDIF out connector supports digital audio out function.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 front audio header supports front panel audio function.
1 chassis open header supports PC case-opened warning
function.
1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M
and 2.88Mbytes.
2 USB headers support 4 USB 2.0 ports.
2 IDE connectors support 4 hard disk devices.
2 serial ATA connectors support 2 SATA devices.
Rear Side Connectors
4 USB 2.0 ports.
1 VGA port.
1 Serial port.
1 Printer port.
1 RJ-45 LAN jack.
1 PS/2 Mouse & Keyboard port.
1 vertical audio port including 1 line-in connector, 1 line-out
connector, and 1 MIC-in connector.
PS/2
Keyboard
PS/2
Mouse
COM
Printer Port
LAN
USB x2
Line In/
Surround
Line Out
Mic In 1/
Bass/Center
USB x2
VGA
1.2 PACKAGE LIST
FDD cable x1
HDD cable x1
User’s Manual x1
Fully Setup Driver CD x1
Rear I/O panel for ATX case x1
USB 2.0 cable x1 (optional)
Serial ATA cable x2 (optional)
S/PDIF out cable x1 (optional)
P4M800 Pro-M7
4
1.3 LAYOUT
BIOS
PCI1
FDD1
CNR1
BAT1
PCI3
PCI2
IDE1
IDE2
JATXPWR1
JCFAN1
JSFAN1
JUSBV2
JCMOS1
JUSB2
JUSB3
JSATA2
JCI1
JPANEL1
JSATA1
VT8237R
PLUS
P4M800 Pro
JFAUDIO1
JCDIN1
JSPDIFO1
Code c
AGP1
LGA775
CPU 1
LAN
DDR2 _A2
DDR2 _A1
JKBMS1
JUSB1
JAUDI O1
JATXPWR2
JUSBV1
Super
I/O
JPRNT1
JVGA1
J
C
O
M
1
JUSBLAN1
JAUX1
(o pt io na l)
Note: ■ represents the 1
st
pin.
P4M800 Pro-M7
5
Pin Cap
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

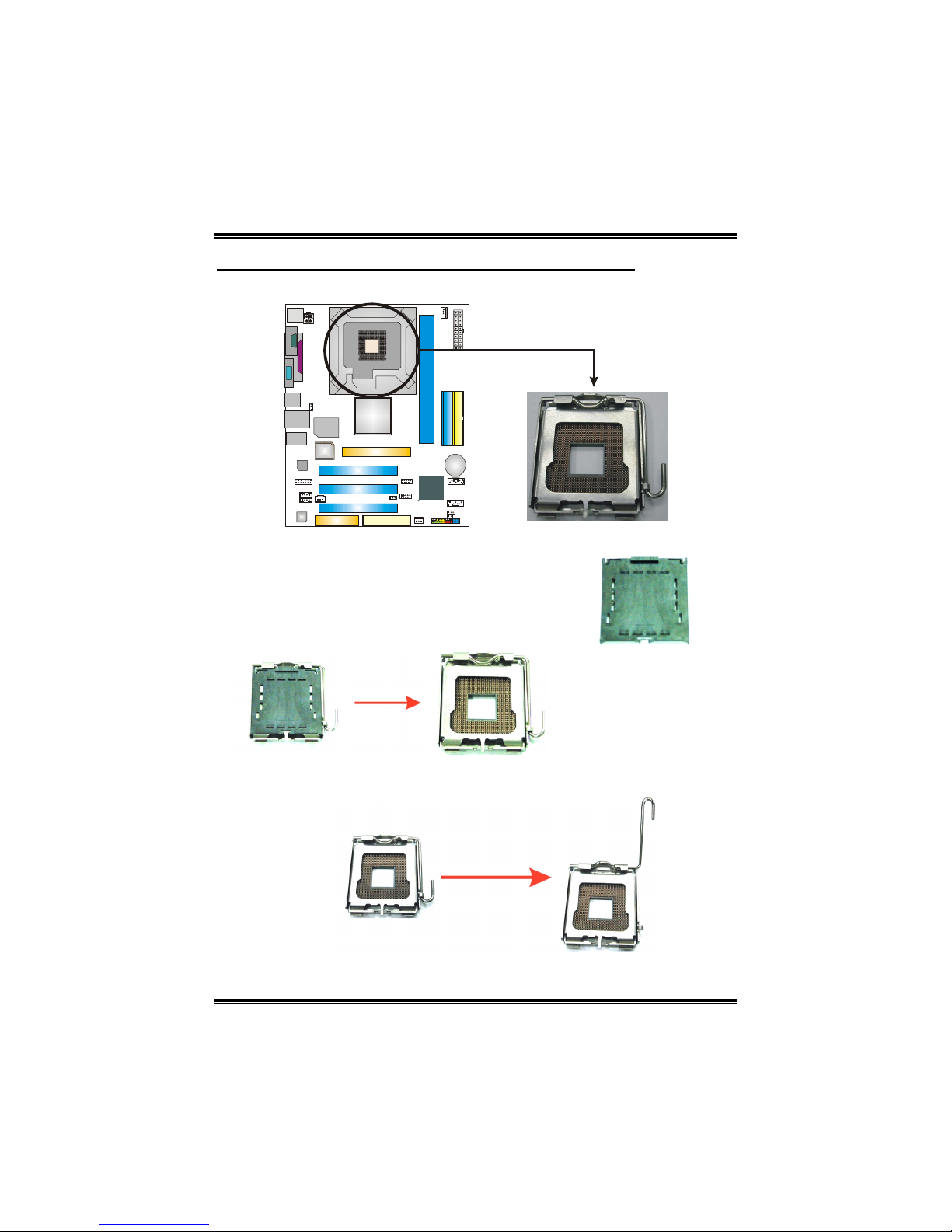

Step 1: Pull the socket locking lever out from the socket and then raise
the lever up to a 90-degree angle.
Special Notice:
Remove Pin Cap before installation, and make
good preservation for future use. When the CPU
is removed, cover the Pin Cap on the empty
socket to ensure pin legs won’t be damaged.
P4M800 Pro-M7
6
Step 2: Look for the triangular cut edge on socket, and the golden dot on
CPU should point forwards this triangular cut edge. The CPU will
fit only in the correct orientation.
Step 2-1:
Step 2-2:
Step 3: Hold the CPU down firmly, and then lower the lever to locked
position to complete the installation.
Step 4: Put the CPU Fan and heatsink assembly on the CPU and buckle it
on the retention frame. Connect the CPU FAN power cable into
the JCFAN1. This completes the installation.
P4M800 Pro-M7
7

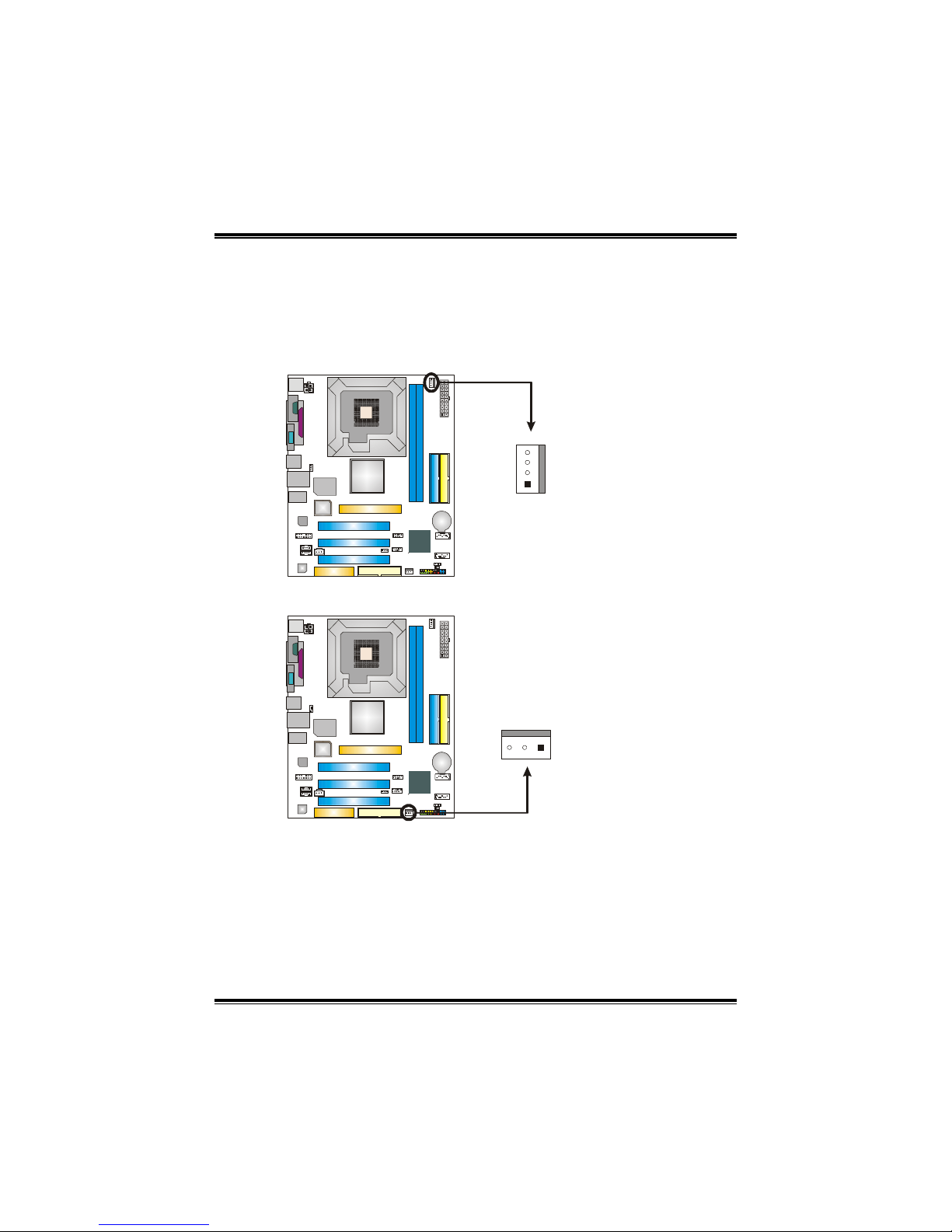

2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
Pin
Assignment
1 Ground
2 Power (+12V)
3 FAN RPM rate sense
4
1
4 Smart Fan Control
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 Power (+12V)
1
3
3 FAN RPM rate sense
Note:
The JCFAN1 reserves system cooling fan with Smart Fan Control utility. It supports 4-pin
head connector. When connecting with wires onto connectors, please note that the red
wire is the positive and should be connected to pin#2, and the black wire is Ground and
should be connected to GND.
P4M800 Pro-M7
8

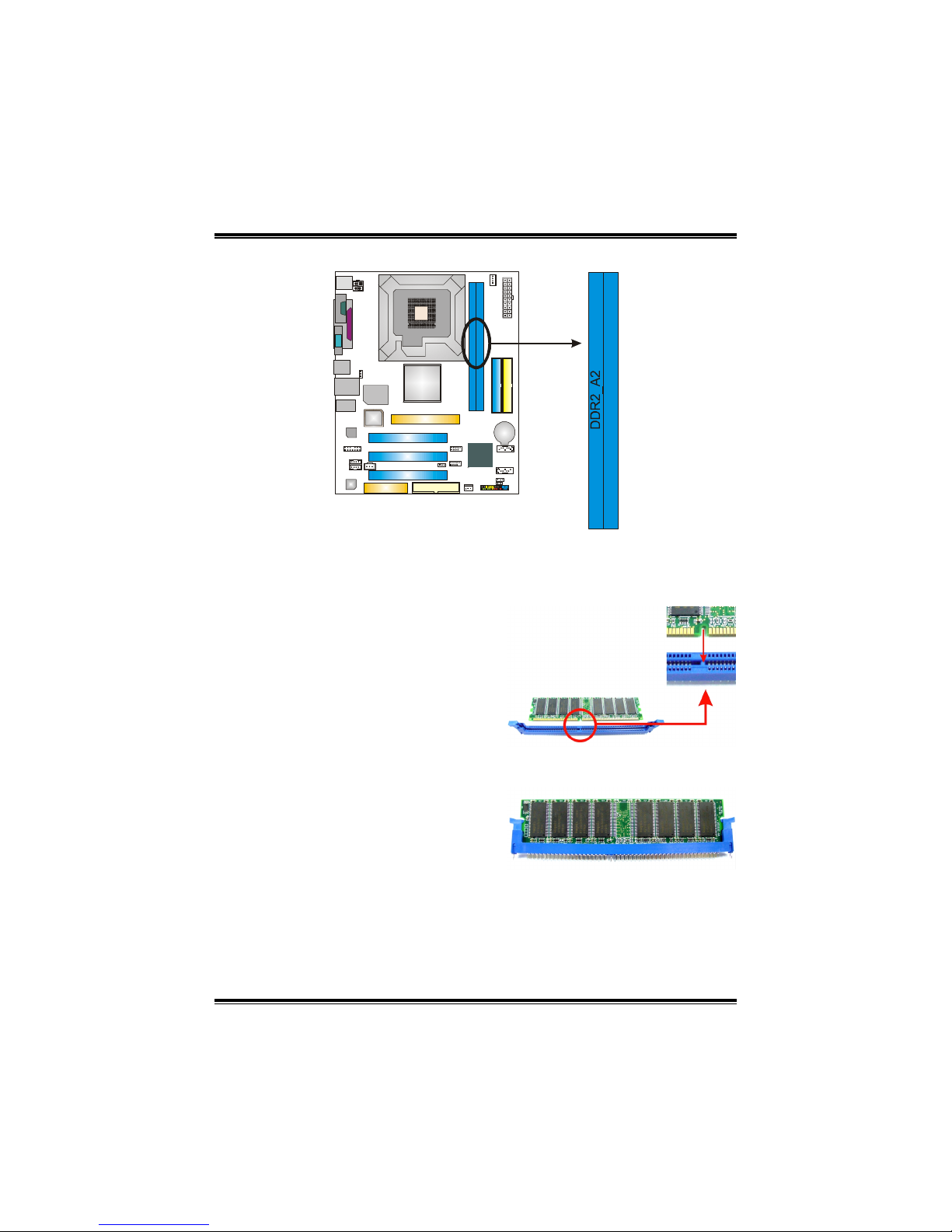

2.3 INSTALLING SYSTEM MEMORY
DDR2_A1
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the break
on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
