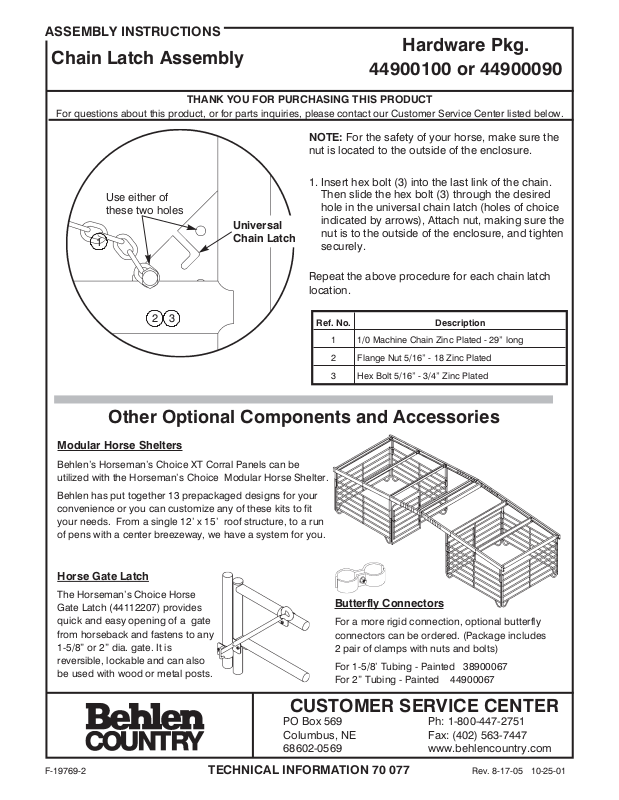

ASSEMBLY INSTRUCTIONS

Hardware Pkg.

Chain Latch Assembly

44900100 or 44900090

THANK YOU FOR PURCHASING THIS PRODUCT

For questions about this product, or for parts inquiries, please contact our Customer Service Center listed below.

NOTE: For the safety of your horse, make sure the
nut is located to the outside of the enclosure.

1. Insert hex bolt (3) into the last link of the chain.

Use either of
these two holes

1

2

Universal
Chain Latch

3

Then slide the hex bolt (3) through the desired
hole in the universal chain latch (holes of choice
indicated by arrows), Attach nut, making sure the
nut is to the outside of the enclosure, and tighten
securely.

Repeat the above procedure for each chain latch
location.

Ref. No. Description

Other Optional Components and Accessories

Modular Horse Shelters

Behlen’s Horseman’s Choice XT Corral Panels can be
utilized with the Horseman’s Choice Modular Horse Shelter.

Behlen has put together 13 prepackaged designs for your
convenience or you can customize any of these kits to fit
your needs. From a single 12’ x 15’ roof structure, to a run
of pens with a center breezeway, we have a system for you.

Horse Gate Latch

The Horseman’s Choice Horse
Gate Latch (44112207) provides
quick and easy opening of a gate
from horseback and fastens to any
1-5/8” or 2” dia. gate. It is
reversible, lockable and can also
be used with wood or metal posts.

1 1/0 Machine Chain Zinc Plated - 29” long

2 Flange Nut 5/16” - 18 Zinc Plated

3 Hex Bolt 5/16” - 3/4” Zinc Plated

Butterfly Connectors

For a more rigid connection, optional butterfly
connectors can be ordered. (Package includes
2 pair of clamps with nuts and bolts)

For 1-5/8’ Tubing - Painted 38900067
For 2” Tubing - Painted 44900067

CUSTOMER SERVICE CENTER

PO Box 569
Columbus, NE
68602-0569

F-19769-2 TECHNICAL INFORMATION 70 077 Rev. 8-17-05 10-25-01
