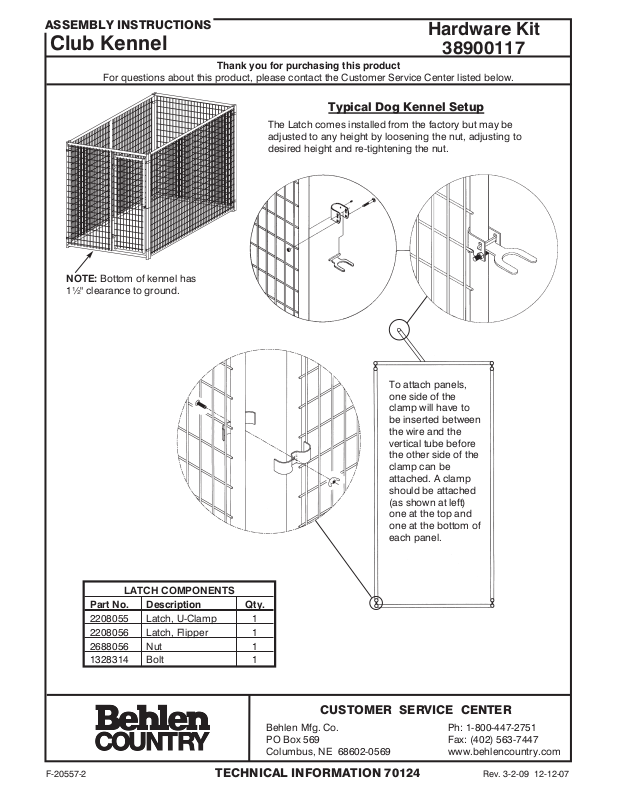

ASSEMBLY INSTRUCTIONS
Club Kennel
For questions about this product, please contact the Customer Service Center listed below.
NOTE: Bottom of kennel has
1½" clearance to ground.
Hardware Kit
38900117
Thank you for purchasing this product
Typical Dog Kennel Setup
The Latch comes installed from the factory but may be
adjusted to any height by loosening the nut, adjusting to
desired height and re-tightening the nut.
LATCH COMPONENTS
Part No. Description Qty.
2208055 Latch, U-Clamp 1
2208056 Latch, Flipper 1
2688056 Nut 1
1328314 Bolt 1
To attach panels,
one side of the
clamp will have to
be inserted between
the wire and the
vertical tube before
the other side of the
clamp can be
attached. A clamp
should be attached
(as shown at left)
one at the top and
one at the bottom of
each panel.
CUSTOMER SERVICE CENTER
Behlen Mfg. Co. Ph: 1-800-447-2751
PO Box 569 Fax: (402) 563-7447
Columbus, NE 68602-0569 www.behlencountry.com
F-20557-2 TECHNICAL INFORMATION 70124 Rev. 3-2-09 12-12-07
