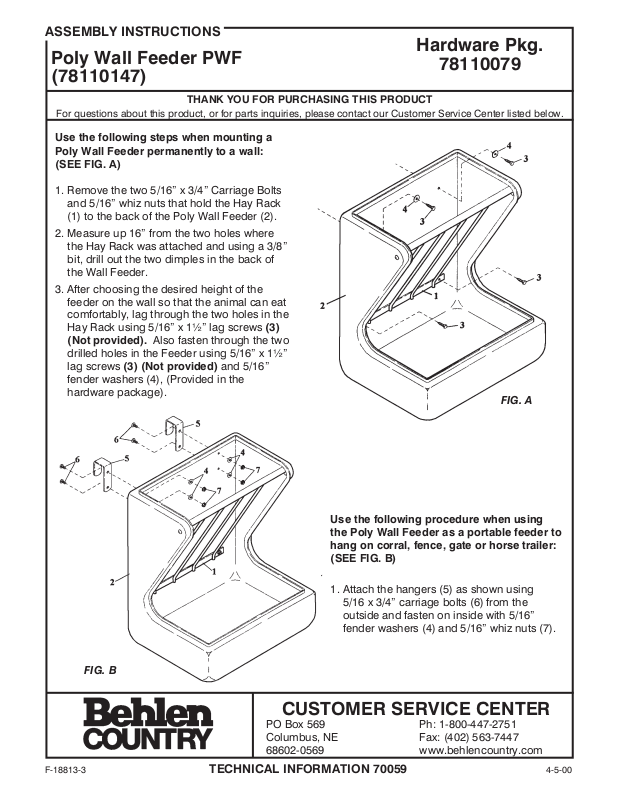

ASSEMBLY INSTRUCTIONS
Hardware Pkg.
Poly Wall Feeder PWF
78110079
(78110147)
THANK YOU FOR PURCHASING THIS PRODUCT
For questions about this product, or for parts inquiries, please contact our Customer Service Center listed below.
Use the following steps when mounting a
Poly Wall Feeder permanently to a wall:
(SEE FIG. A)
1. Remove the two 5/16” x 3/4” Carriage Bolts
and 5/16” whiz nuts that hold the Hay Rack
(1) to the back of the Poly Wall Feeder (2).
2. Measure up 16” from the two holes where
the Hay Rack was attached and using a 3/8”
bit, drill out the two dimples in the back of
the Wall Feeder.
3. After choosing the desired height of the
feeder on the wall so that the animal can eat
comfortably, lag through the two holes in the
Hay Rack using 5/16” x 1½” lag screws (3)
(Not provided). Also fasten through the two
drilled holes in the Feeder using 5/16” x 1½”
lag screws (3) (Not provided) and 5/16”
fender washers (4), (Provided in the
hardware package).
FIG. A
Use the following procedure when using
the Poly Wall Feeder as a portable feeder to
hang on corral, fence, gate or horse trailer:
(SEE FIG. B)
1. Attach the hangers (5) as shown using
5/16 x 3/4” carriage bolts (6) from the
outside and fasten on inside with 5/16”
fender washers (4) and 5/16” whiz nuts (7).
FIG. B
CUSTOMER SERVICE CENTER
PO Box 569
Columbus, NE
68602-0569
F-18813-3 TECHNICAL INFORMATION 70059 4-5-00
Ph: 1-800-447-2751
Fax: (402) 563-7447
www.behlencountry.com
