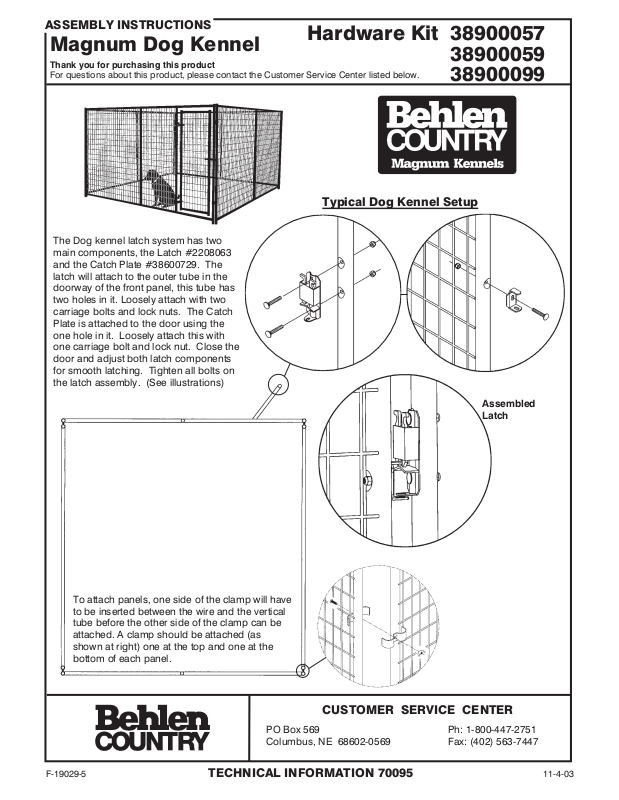

ASSEMBLY INSTRUCTIONS
Hardware Kit 38900057
Magnum Dog Kennel
Thank you for purchasing this product
For questions about this product, please contact the Customer Service Center listed below.

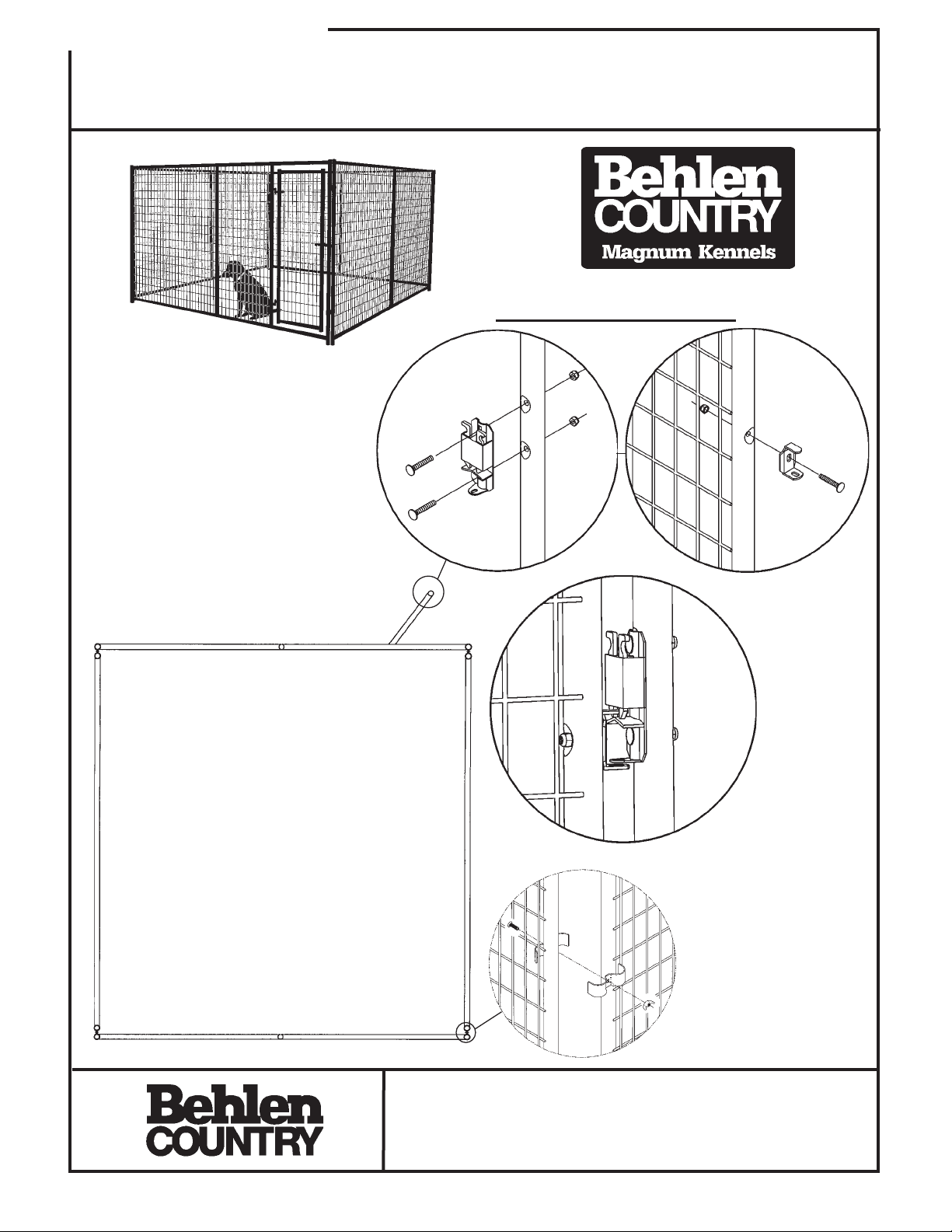

Typical Dog Kennel Setup
The Dog kennel latch system has two
main components, the Latch #2208063
and the Catch Plate #38600729. The
latch will attach to the outer tube in the
doorway of the front panel, this tube has
two holes in it. Loosely attach with two
carriage bolts and lock nuts. The Catch
Plate is attached to the door using the
one hole in it. Loosely attach this with
one carriage bolt and lock nut. Close the
door and adjust both latch components
for smooth latching. Tighten all bolts on
the latch assembly. (See illustrations)
38900059
38900099
To attach panels, one side of the clamp will have
to be inserted between the wire and the vertical
tube before the other side of the clamp can be
attached. A clamp should be attached (as
shown at right) one at the top and one at the
bottom of each panel.
Assembled
Latch
CUSTOMER SERVICE CENTER
PO Box 569 Ph: 1-800-447-2751
Columbus, NE 68602-0569 Fax: (402) 563-7447
F-19029-5 TECHNICAL INFORMATION 70095 11-4-03
Page 2

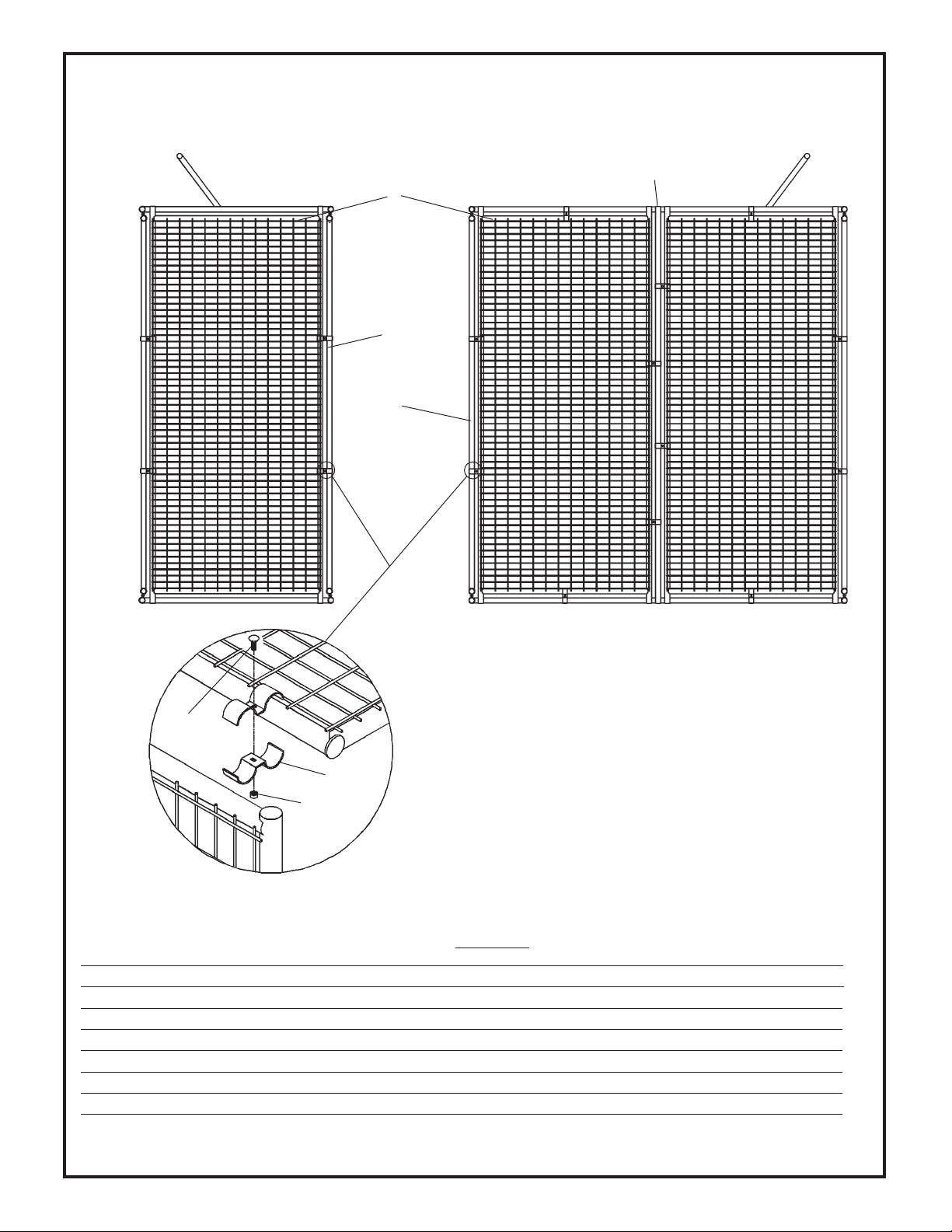

Optional Wire Mesh Top for 5’ x 10’ Dog Kennel 38140017
Optional Wire Mesh Top for 10’ x 10’ Dog Kennel 38140027
6
4
5
7
• For proper setup, have the wire facing the
outside of the kennel. For tops to fit properly,
dog kennels must be set up as shown.
1
• Each top panel will have to be attached by using
the butterfly clamps supplied.
2
3
• To attach the clamp, one side of the clamp will
have to be inserted between the wire and the
vertical tube before the other side of the clamp
can be attached. A clamp should be attached at
each location shown in the diagram.
PARTS LISTING
PART NO.
ITEM DESCRIPTION PAINTED PLATED 10x10 QTY 5x10 QTY
1 Bolt, Carriage 3/8” x 1” ZP 1328327 12 4
2 1-5/8” Butterfly Connector 38600407 38600409 24 8
3 High Wing Nut 3/8” 2688306 12 4
4 Wire Mesh Top 38400197 2 1
5 10 x 10 Dog Kennel -- 1 -6 Kennel Top Center Brace 38600397 1 -7 5 x 10 Dog Kennel -- -- 1
NOTE: Wire Mesh Tops are an optional accessory and come in gray powder coat only.
F-19030E Rev. 11-4-03 4-1-99
