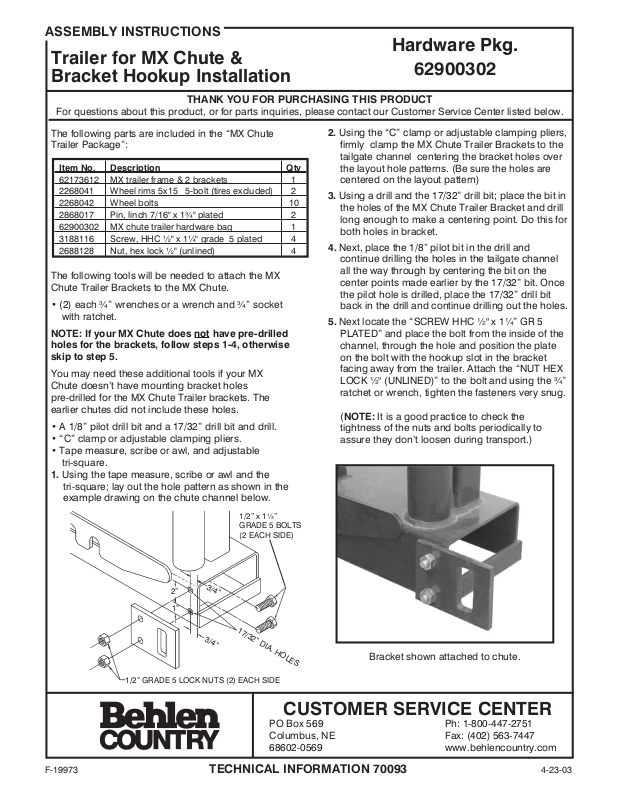

ASSEMBLY INSTRUCTIONS

Hardware Pkg.

Trailer for MX Chute &
Bracket Hookup Installation

THANK YOU FOR PURCHASING THIS PRODUCT

For questions about this product, or for parts inquiries, please contact our Customer Service Center listed below.

62900302

The following parts are included in the “MX Chute
Trailer Package”:

Item No. Description Qty

62173612 MX trailer frame & 2 brackets 1
2268041 Wheel rims 5x15 5-bolt (tires excluded) 2
2268042 Wheel bolts 10
2868017 Pin, linch 7/16" x 1¾" plated 2
62900302 MX chute trailer hardware bag 1
3188116 Screw, HHC ½" x 1¼" grade 5 plated 4
2688128 Nut, hex lock ½" (unlined) 4

The following tools will be needed to attach the MX
Chute Trailer Brackets to the MX Chute.

• (2) each ¾” wrenches or a wrench and ¾” socket
with ratchet.

NOTE: If your MX Chute does not
holes for the brackets, follow steps 1-4, otherwise
skip to step 5.

You may need these additional tools if your MX
Chute doesn’t have mounting bracket holes
pre-drilled for the MX Chute Trailer brackets. The
earlier chutes did not include these holes.

• A 1/8” pilot drill bit and a 17/32” drill bit and drill.

• “C” clamp or adjustable clamping pliers.

• Tape measure, scribe or awl, and adjustable
tri-square.

1. Using the tape measure, scribe or awl and the

tri-square; lay out the hole pattern as shown in the
example drawing on the chute channel below.

have pre-drilled

2. Using the “C” clamp or adjustable clamping pliers,

firmly clamp the MX Chute Trailer Brackets to the
tailgate channel centering the bracket holes over
the layout hole patterns. (Be sure the holes are
centered on the layout pattern)

3. Using a drill and the 17/32” drill bit; place the bit in
the holes of the MX Chute Trailer Bracket and drill
long enough to make a centering point. Do this for
both holes in bracket.

4. Next, place the 1/8” pilot bit in the drill and
continue drilling the holes in the tailgate channel
all the way through by centering the bit on the
center points made earlier by the 17/32” bit. Once
the pilot hole is drilled, place the 17/32” drill bit
back in the drill and continue drilling out the holes.

5. Next locate the “SCREW HHC ½" x 1¼” GR 5
PLATED” and place the bolt from the inside of the
channel, through the hole and position the plate
on the bolt with the hookup slot in the bracket
facing away from the trailer. Attach the “NUT HEX
LOCK ½" (UNLINED)” to the bolt and using the ¾”
ratchet or wrench, tighten the fasteners very snug.

(NOTE: It is a good practice to check the
tightness of the nuts and bolts periodically to
assure they don’t loosen during transport.)

1/2” x 1¼”
GRADE 5 BOLTS
(2 EACH SIDE)

2”

1”

1/2” GRADE 5 LOCK NUTS (2) EACH SIDE

3/4”

17/32” DIA. HOLES

3/4”

Bracket shown attached to chute.

CUSTOMER SERVICE CENTER

PO Box 569
Columbus, NE
68602-0569

F-19973 TECHNICAL INFORMATION 70093 4-23-03

Ph: 1-800-447-2751
Fax: [phone]
www.behlencountry.com

ASSEMBLY INSTRUCTIONS

6. After the trailer brackets have been attached,

move the trailer to the chute by hand and hook
the rear cogs in the chute trailer to the newly
attached chute brackets. (See Below)

Rotate the slide pins towards the rear of the chute
lining up the safety pin holes and insert a lynch
pin on each side to secure the slide pins.

Once these are in place, apply downward
pressure to the hitch area of the trailer and insert
the slide pins in the front channel of the trailer on
each side. (See Below)

PLEASE NOTE:

The coupler hitch requires a 2” ball to tow the
trailer and chute.

15” tires are to be provided by the end user.

CAUTION! TOWING SPEED NOT TO EXCEED 20
MPH - NOT INTENDED FOR HIGHWAY USE

The safety chain provided must
the towing vehicle.

be attached to

The chute and
trailer have been
designed to be
evenly balanced
for easy
maneuverability.

Applying
downward
pressure to the
rear of the attached
chute will easily
raise the tongue.
