Installation and Operating instructions for

Control Cabinet PC C6250 up to -0060

Version: 1.6 Date: 2018-02-16

Table of contents

General instructions 3

Notes on the Documentation 3

Liability Conditions 3 Trademarks 3 Patent Pending 3 Copyright 3 State at Delivery 3 Delivery conditions 3

Description of safety symbols 4 Basic safety measures 4 Operator's obligation to exercise diligence 5 Operator requirements 5 Appropriate Use 5

Product Description 6

Appropriate Use 6 Structure 6 Interfaces up to C6250-0050 8

PS/2 connections 8 Parallel interface 8 Serial interfaces 8 Video connection 8 USB interfaces 8 Network connection 8 Sound-On-Board 8 Additional plug-in cards (optional) 8

Interfaces C6250-0060 9

PS/2 connections 9 Serial interfaces 9 USB interfaces 9 Network connection 9 Sound-On-Board 9 DVI-I (Digital Visual Interface) 9 DVI-D (Digital Visual Interface) 9 DisplayPort 9 Additional plug-in cards (optional) 9

Installation Instructions 10

Transport and Installation 10

Transport 10 Unpacking 10

Installation of the PC in the control cabinet 11

Earthing measures 11

Power Supply Connection 12 Fitting the Power Supply Cable 13

Pin assignment and cable requirements 14

Connecting devices 15

Connecting cables 15 Check voltage rating and connect. 15

Operating Instructions 16

Switching the Industrial PC on and off 16

First switching on and driver installation 16

Maintenance 17

Cleaning the Industrial PC 17 Replacing the battery on the motherboard 17 Servicing 17

Shutting down 17

Disposal 17

C6250 1

Table of contents

Troubleshooting 18

Fault correction 18 Service and Support 19

Beckhoff's branch offices and representatives 19 Beckhoff headquarters 19 Beckhoff Support 19 Beckhoff Service 19

Assembly dimensions 20 Appendix 22

Technical data 22 Approvals 22

FCC: Federal Communications Commission 22 Radio Frequency Interference Statement 22 FCC: Canadian Notice 22

2 C6250

General instructions

Notes on the Documentation

This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components. The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards.

Liability Conditions

The documentation has been prepared with care. The products described are, however, constantly under development. For that reason the documentation is not in every case checked for consistency with performance data, standards or other characteristics. In the event that it contains technical or editorial errors, we retain the right to make alterations at any time and without warning. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation. All pictures shown in the documentation are exemplary. Illustrated configurations can differ from standard.

Trademarks

Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®

and XFC® are registered trademarks of and licensed by Beckhoff Automation GmbH. Other designations used in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owners.

Patent Pending

The EtherCAT Technology is covered, including but not limited to the

following patent applications and patents: EP1590927, EP1789857, DE102004044764, DE102007017835 with corresponding applications or registrations in various other countries. The TwinCAT Technology is covered, including but not limited to the following patent applications and patents: EP0851348, US6167425 with corresponding applications or registrations in various other countries.

The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design.

State at Delivery

All the components are supplied in particular hardware and software

configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co.KG.

Delivery conditions

In addition, the general delivery conditions of the company Beckhoff

Automation GmbH & Co.KG apply.

C6250 3

General instructions

Description of safety symbols

The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions.

Danger

This symbol is intended to highlight risks for the life or health of personnel.

Warning

This symbol is intended to highlight risks for equipment, materials or the environment.

Note

This symbol indicates information that contributes to better understanding.

Basic safety measures

Only switch the PC off after closing the software

Before the Industrial PC is switched off, software that is running must be properly closed.

Otherwise it is possible that data on the hard disk is lost. Please read the section on Switching the Industrial PC on and off.

Warning

Switch off all parts of the equipment, then uncouple the fieldbus!

Before opening the housing of the PC, and whenever the PC is being used for purposes other than plant control, such as during functional tests following repair, all parts of the equipment must first be switched off, after which the Industrial PC can be uncoupled from the plant.

Pulling out the fieldbus connection plug uncouples the PC (optional).

Items of equipment that have been switched off must be secured against being switched on again.

The Industrial PC’s power supply unit must be supplied with 100-240 VAC or 24 V

(optional).

Danger

Do not open the power supply unit while voltage is applied!

The supply voltage must be switched off before the power supply unit housing is opened.

Do not exchange any parts when under power!

When components are being fitted or removed, the supply voltage must be switched off.

Fitting work on the Industrial PC can result in damage:

• If metal objects such as screws or tools fall onto operating circuit boards.

• If connecting cables internal to the PC are removed or inserted during operation.

• If plug-in cards are removed or inserted when the PC is switched on.

4 C6250

General instructions

Operator's obligation to exercise diligence

The operator must ensure that

• the Industrial PC is only used for its intended use (see also

Product Description).

• the Industrial PC is in a sound condition and in working order during operation.

• the operation manual is in good condition and complete, and always available for reference at the location of the Industrial PC.

• the Industrial PC is operated, maintained and repaired only by sufficiently qualified and authorised personnel.

• the personnel is instructed regularly about relevant occupational safety and environmental protection aspects, and is familiar with the operating manual and in particular the safety notes contained herein.

• none of the safety and warning notes attached to the Industrial PC are removed, and that all notes remain legible.

National regulations depending on the machine type

Depending on the type of machine and plant in which the Industrial PC is being used, there will be national regulations for the control of such machines and plant that the operator must observe. These regulations cover, amongst other things, the intervals between inspections of the controller.

The operator must initiate such inspections in good time.

Warning

Only trained persons may open the Industrial PC housing!

The operator is responsible for ensuring that only trained electrical staff opens the housing of the Industrial PC.

Procedure in the event of a fault

In the event of a fault in the Industrial PC, appropriate measures can be determined with the aid of the list in the Fault correction section.

Operator requirements

Read the operating instructions

Every user of the Industrial PC must have read these operating instructions.

Software knowledge

Every user must be familiar with any of the functions of the software installed on the PC that he can reach.

Appropriate Use

The C6250 Industrial PC is designed for mounting in control cabinets in machine and plant engineering applications. The ambient conditions specified in the technical data (see Appendix) must be observed for both operation and storage of the C6250 Industrial PC.

C6250 5

Product Description

Appropriate Use

Structure

Front view of the C6250 (Similar photograph)

Opening the housing

To open the PC housing, initially rotate the two fast closing screws (see photograph above) by 90 degrees in either direction using a screwdriver. The inner chassis can now be pulled out on telescopic guide supports (see photograph below).

Removable inner chassis

Undo the two screws (1) of the upper housing cover (2). The upper housing cover can now be tilted upwards (see photograph below), thus providing access to the disk drive, the 3 ½ inch hard disk, the processor, the memory and the plug-in cards.

6 C6250

Product Description

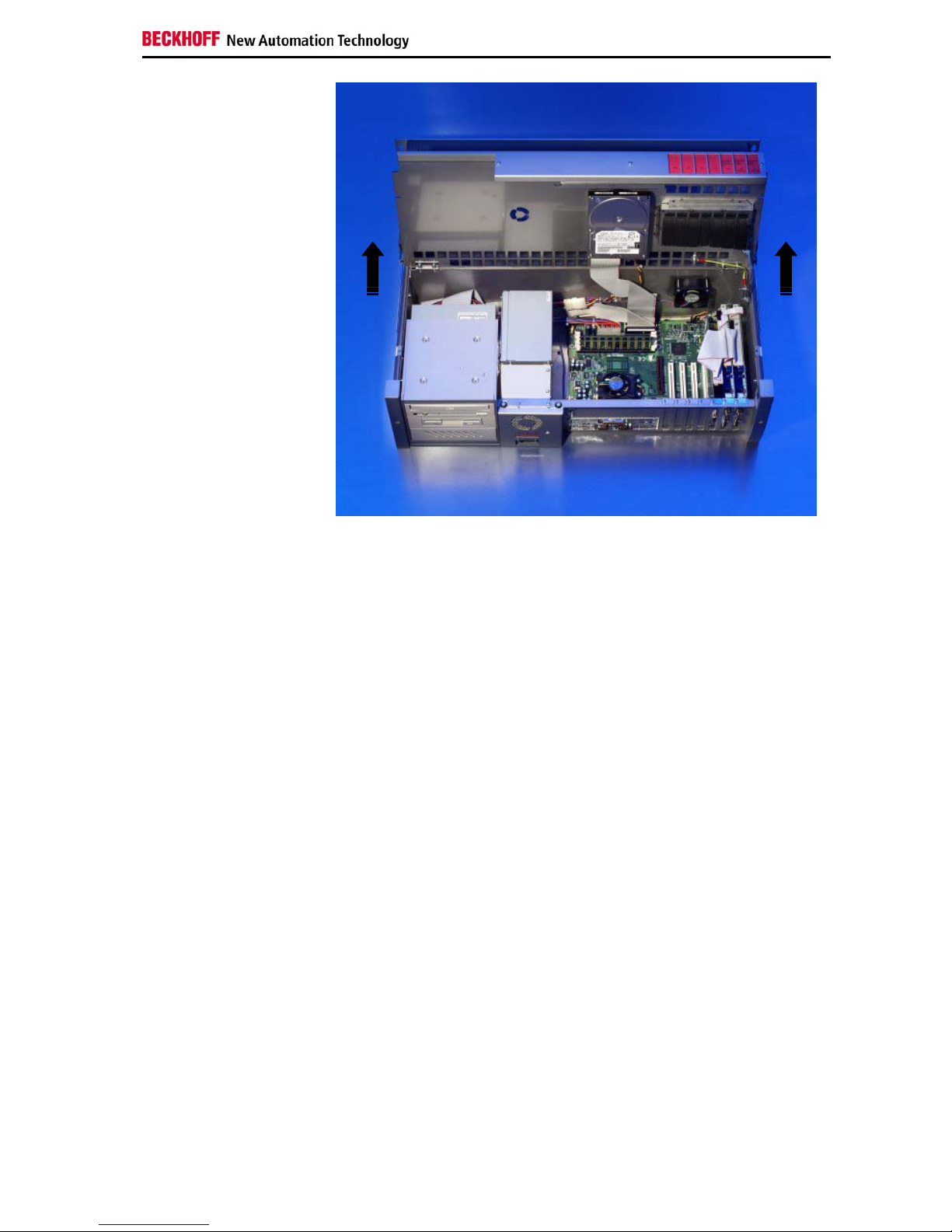

View of the open PC

Under the housing cover (1) is a 7 slot computer core with standard ATX motherboard (2) and power supply unit (3). The connections are located at the front of the housing (4).

C6250 7

Product Description

Interfaces up to C6250-0050

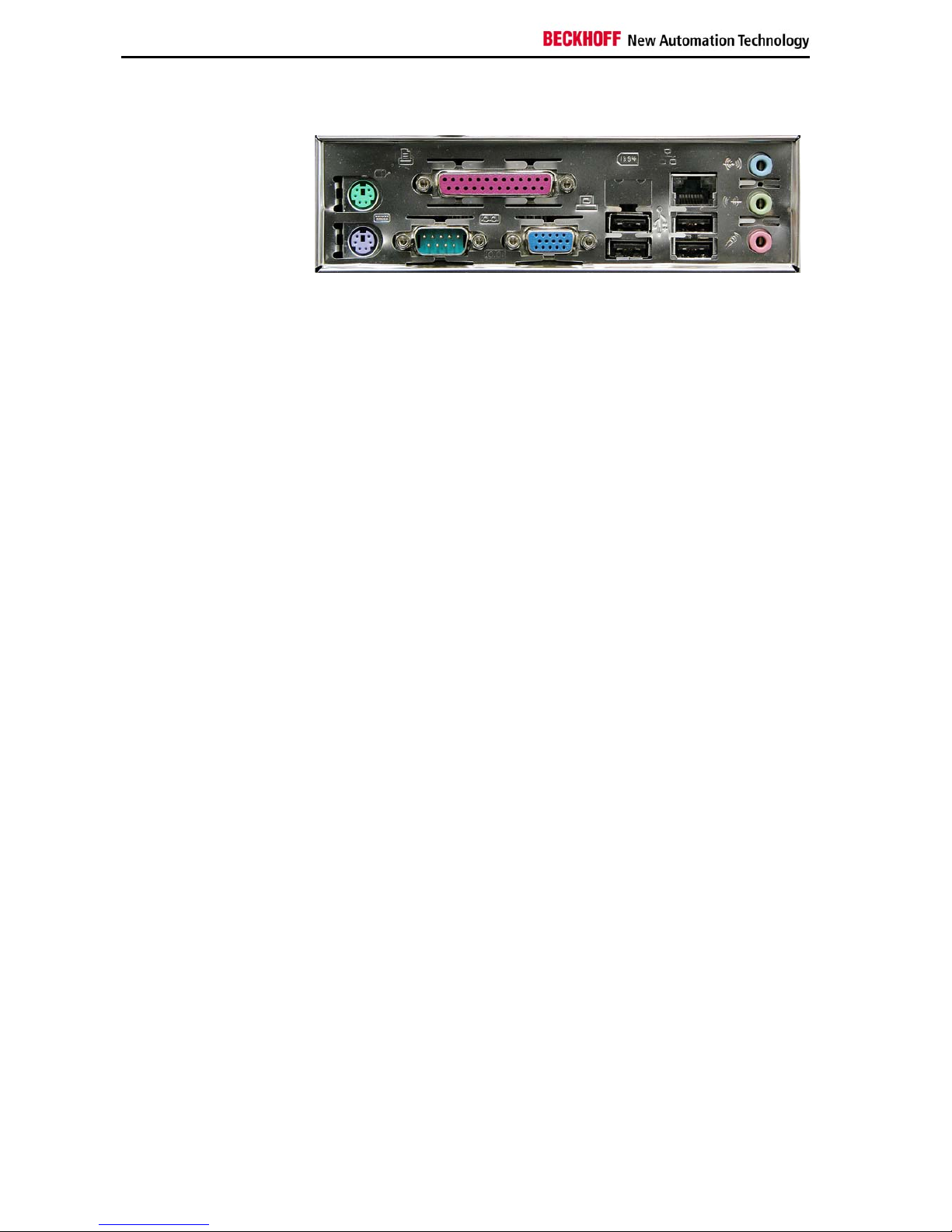

ATX motherboard interfaces

PS/2 connections

PS/2

The upper PS/2 connector (1) allows a PS/2 mouse to be used, while a PC keyboard can be connected to the lower PS/2 connector (2).

Parallel interface

Printer LPT1

The parallel interface (3) corresponds to the Centronics standard, and is addressed by the software as LPT1.

Serial interfaces

RS 232 COM1 - COM2

The basic version of the Industrial PC has two serial interfaces, COM1 (4) and COM2, using the type RS 232, which are each brought to a 9 pin SUB-D plug connector. The interface COM2 is located in the upper part of the first slot right beside the ATX-slot.

Video connection

Video

A 15-pin SUB-D socket connector (5) allows a VGA monitor to be connected.

USB interfaces

USB1 – USB4

The four USB interfaces (6 - 9) are used to connect peripheral devices with USB connections.

Network connection

Network

The RJ-45 connector (10) allows the PC to be connected to a Local Area Network (LAN).

Sound-On-Board

Sound

The Industrial PC has a on-board-interface with the following connectors: Line In jack (11), Line Out jack (12) and Microphone jack (13).

Additional plug-in cards (optional)

Type plate

There is a type plate on the top of the Industrial PC which provides information about the hardware configuration of the Industrial PC at the time it was supplied.

8 C6250

Product Description

Interfaces C6250-0060

ATX motherboard interfaces

PS/2 connections

PS/2

The upper PS/2 connector (X104) allows a PS/2 mouse to be used, while a PC keyboard can be connected to the lower PS/2 connector (X103).

Serial interfaces

RS 232 COM1 - COM2

The basic version of the Industrial PC has two serial interfaces, COM1 (X105) and COM2, using the type RS 232, which are each brought to a 9 pin SUB-D plug connector. The interface COM2 is located in the upper part of the first slot right beside the ATX-slot.

USB interfaces

USB1 – USB4

The four USB interfaces (X108 – X111) are used to connect peripheral devices with USB 2.0 connections.

Network connection

LAN1

The RJ-45 connector (X112) allows the PC to be connected to a 10/100/1000BASE-T Local Area Network (LAN).

LAN2

The RJ-45 connector (X113) allows the PC to be connected to a 10/100/1000BASE-T Local Area Network (LAN).

Sound-On-Board

Sound

The Industrial PC has a on-board-interface with the following connectors: Line In (X116), Line Out (X115) and Microphone jack (X114).

DVI-I (Digital Visual Interface)

DVI-I out

The DVI connection (X117) is used for transferring the video signal. DVI-I standard is supported.

DVI-D (Digital Visual Interface)

DVI-D out

The DVI connection (X118) is used for transferring the video signal. DVI-D standard is supported.

DisplayPort

The DisplayPort (X119) is used for transferring the video signal.

X116

X105

X104

X117

X115

X112

X113

X103

X118 X109

X111

X114

X119

X108

X110

Additional plug-in cards (optional)

Type plate

There is a type plate on the top of the Industrial PC which provides information about the hardware configuration of the Industrial PC at the time it was supplied.

C6250 9

Installation Instructions

Please also refer to chapter General instructions.

Transport and Installation

The specified storage conditions must be observed (see chapter Technical

data).

Transport

Despite the robust design of the unit, the components are sensitive to strong vibrations and impacts. During transport, your Industrial PC should therefore be protected from excessive mechanical stress. Therefore, please use the original packaging.

Warning

Danger of damage to the unit! If the device is transported in cold weather or is exposed to extreme variations in temperature, make sure that moisture (condensation) does not form on or inside the device.

Prior to operation, the unit must be allowed to slowly adjust to room temperature. Should condensation occur, a delay time of approximately 12 hours must be allowed before the unit is switched on.

Unpacking

Proceed as follows to unpack the unit:

1. Remove packaging.

2. Do not discard the original packaging. Keep it for future relocation.

3. Check the delivery for completeness by comparing it with your order.

4. Please keep the associated paperwork. It contains important information for handling the unit.

5. Check the contents for visible shipping damage.

6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service.

10 C6250

Installation Instructions

Installation of the PC in the control cabinet

The C6250 Industrial PC is designed for mounting in control cabinets in machine and plant engineering applications.

The ambient conditions specified for operation must be observed (see the section on Technical data).

Preparation of the control cabinet

Four holes for the fixing bolts have to be provided in the control cabinet according to the dimensions of the PC (see chapter Assembly dimensions).

Note

When the unit is installed in an enclosure, adequate space for ventilation and for opening the PC must be provided.

The clearance above and below the housing must be at least 50 mm in order to ensure adequate ventilation of the PC.

Warning

Extreme environmental conditions should be avoided as far as possible. Protect the PC from dust, moisture and heat.

The ventilation slots of the PC must not be covered.

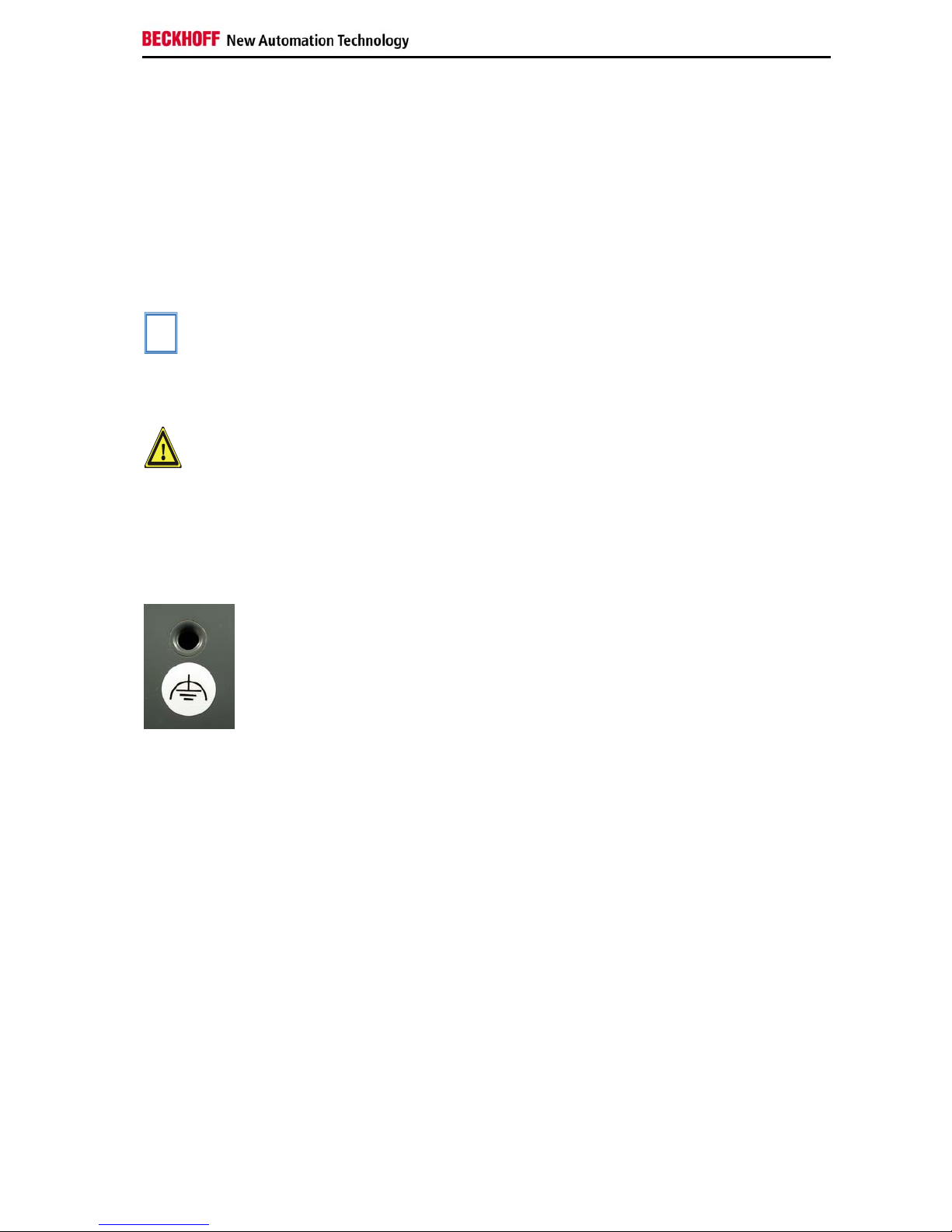

Earthing measures

Earthing connections dissipate interference from external power supply cables, signal cables or cables to peripheral equipment.

Establish a low-impedance connection from the earthing point on the PC housing to the central earthing point on the control cabinet wall, in which the computer is being installed.

C6250 11

Installation Instructions

Power Supply Connection

The 5-pin CAGE CLAMP plug connector and mounting flange illustrated is located on the PC housing in order to connect the power supply.

Socket at the PC housing

Technical data Connecting socket

Number of contacts

Contact spacing

5 mm

Minimum conductor cross-section

1.5 mm²

Minimum conductor cross-section

(AWG)

Rated voltage (EN)

250 V

Rated voltage (CSA)

300 V

Current EN [A]

12 A

Current CSA [A]

15 A

Length of stripped conductor

8 to 9 mm

Supplied mains power unit

The Industrial PCs is either fitted with a 100-240 V, 50-60 Hz power supply unit (standard) or with a 24 VDC power supply unit (with the option of an uninterruptible power supply, UPS).

Current carrying capacity of the 100-240 V power supply unit

Output voltages from

the 100-240 V power

supply unit

Current loading maximum

+3,3 V

16 A

+5 V stand by

2 A

+5 V

25 A

-5 V

0,3 A

+12 V

13 A

-12 V

0,8 A

Current carrying capacity of the 24 V power supply unit

Output voltages from

the 24 V power supply

unit

Current loading maximum

+5 V

25 A

-5 V

1 A

+12 V

10 A

-12 V

1,5 A

12 C6250

Installation Instructions

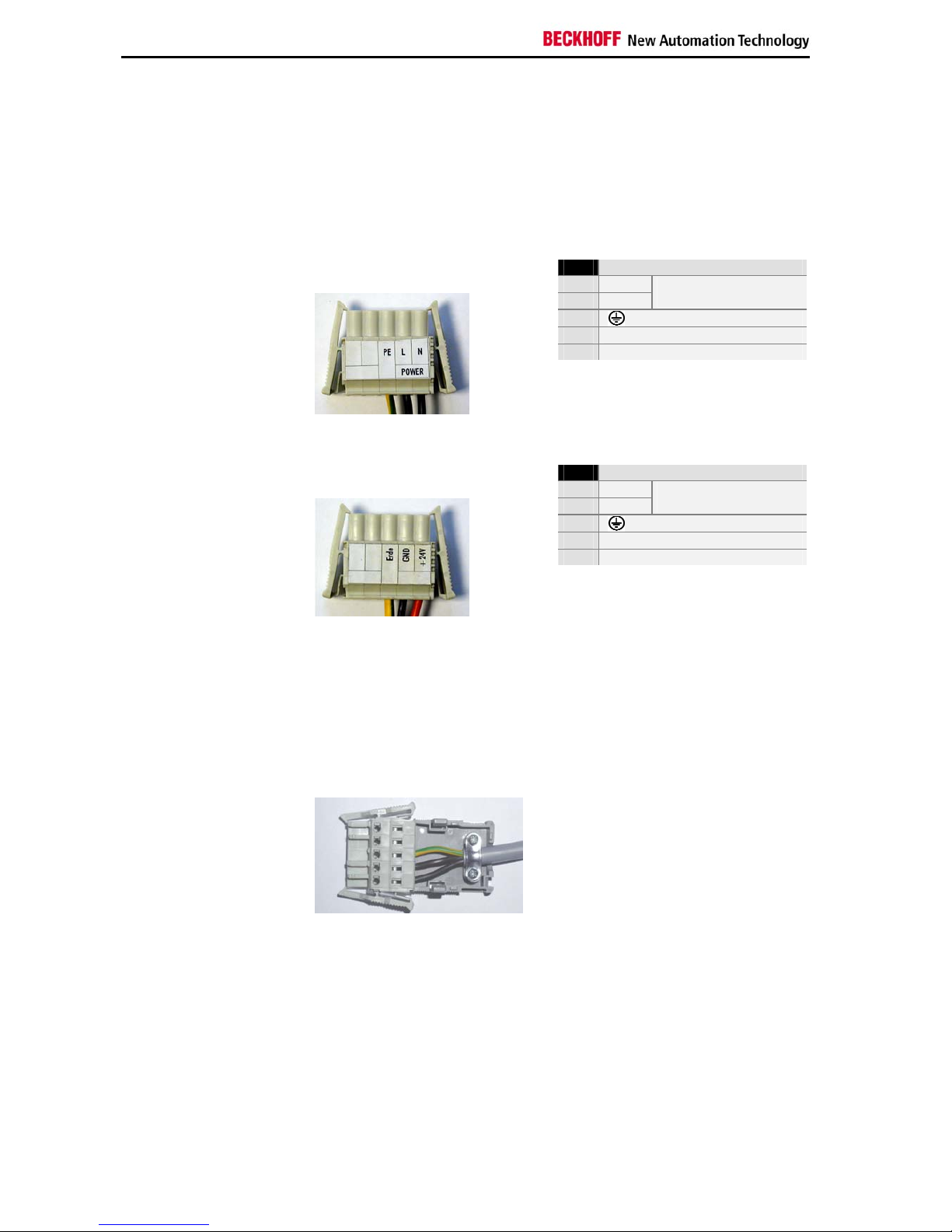

Fitting the Power Supply Cable

Coding pieces

The connectors are coded differently at the factory, using snap-on coding pieces, according to the power supply unit that has been fitted.

Differently coded plug connectors

Coding for the 100-240 V

50-60 Hz power supply unit

Coding for the 24 V

power supply

unit

A 5-pin female plug connector with CAGE CLAMP connection and insertion

catches is supplied along with a snap-on strain relief housing in order to assemble the PC power supply cable.

Materials for assembly of the connector

Female plug connector

Strain relief housing

Female plug connector is correspondingly coded

This female plug connector is also coded at the factory, according to the type of power supply fitted, so that the plug, when assembled, will fit the Industrial PC's connecting socket.

Technical data Female plug connector

Number of contacts

Contact spacing

5 mm

Minimum conductor cross-section

1.5 mm²

Minimum conductor cross-section

(AWG)

Rated voltage (EN)

250 V

Rated voltage (CSA)

300 V

Current (EN)

16 A

Current (CSA)

15 A

Length of stripped conductor

8 to 9 mm

C6250 13

Installation Instructions

Pin assignment and cable requirements

Pin assignment

There is an adhesive label with the pin assignments on the top of the female plug connector. The minimum permitted conductive cross- section is 1.5 mm², fused for 10 A (AWG 16).

Industrial PCs with 100-240 VAC, 50-60 Hz power supply unit

Pin assignment for the 100-240 V, 50-60 Hz power supply unit

Pin Function

100 – 240V

Power supply

3 4

not used

4 2

3 1

Industrial PCs with 24 V

power supply unit

Pin assignment for the 24 V

power supply unit

Pin Function

24V

Power supply

3 4

not used

4 2

3 1

Fitting the connector to the cable

The plug is fitted to the cable as follows:

1. Strip insulation from the cable ends. Follow the technical data for

the female plug connector in the above table!

2. Push the conductors into their mountings, simply by pushing them

in as indicated on the pin assignment label.

3. Push the lower part (part A) of the strain relief housing onto the top

of the female plug connector until it snaps into place.

4. Relieve the strain on the supply cable by fixing it in place with the

cable clamp (part C) and fixing screws (part D).

Applying the strain relief

Fix the upper part (part B) of the strain relief housing by snapping it onto the lower part.

14 C6250

Installation Instructions

Connecting devices

Warning

The power supply plug must be withdrawn!

Please read the documentation for the external devices prior to connecting them.

During thunderstorms, plug connector must neither be inserted nor removed.

When disconnecting a plug connector, always handle it at the plug. Do not pull the cable!

Connecting cables

The connections are located on the front of the Industrial PC, and are documented in the section where the product is described.

When connecting the cables to the Industrial PC, proceed according to the following sequence:

• Switch off all the devices that are to be connected.

• Disconnect all the devices that are to be connected from the power

supply.

• Connect all the cables between the Industrial PC and to the devices that are to be connected.

• Connect all data transfer cables (if present) to the appropriate plug-in receptacles of the data/telecommunication networks.

• Reconnect all devices to the power supply.

Check voltage rating and connect.

With Standard ATX power supply 100-240 VAC 50/60 Hz:

1. Check that the mains voltage is correct.

2. Insert the power supply cable that you have assembled (see the section on Fitting the Power Supply Cable) into the Industrial PC's power supply socket. Then connect it to a power socket with a grounded earth connection.

When fitted with the (optional) 24 V

power supply unit:

1. Check that the external power supply is providing the correct voltage.

2. Insert the power supply cable that you have assembled (see the section on Fitting the Power Supply Cable) into the Industrial PC's power supply socket. Then connect it to your external 24 V power supply.

Warning

If a 24 V UPS is installed, the correct type of rechargeable battery must be used.

C6250 15

Operating Instructions

Please also refer to chapter General instructions.

Switching the Industrial PC on and off

Switch on

The Industrial PC does not have its own mains switch. When the plant is switched on, or when it is connected to its power supply, the Industrial PC will start up.

Shutting down and switching off

When the plant is switched off, or when it is disconnected from its power supply, the Industrial PC will be switched off.

Control software such as is typically used on Industrial PCs permits various users to be given different rights. A user who may not close software may also not switch the Industrial PC off, since data can be lost from the hard disk by switching off while software is running.

Warning

First shut down, then switch off the PC!

If the Industrial PC is switched off as the software is writing a file to the hard disk, the file will be destroyed. Control software typically writes something to the hard disk every few seconds, so that the probability of causing damage by switching off while the software is running is very high.

Warning

When you have shut down the Industrial PC, you have to switch off power supply for at least 10 seconds before rebooting the system. After resetting power supply the PC will start booting automatically.

First switching on and driver installation

When you switch on the Industrial PC for the first time, the pre-installed operating system (optional) will be started. In this case, all the required drivers for any additional, optional hardware components ordered with the PC will already have been installed.

If the PC was ordered without operating system, you have to install the operating system and the driver software for any auxiliary hardware yourself. Please follow the instructions in the documentation for the operating system and the additional devices.

16 C6250

Operating Instructions

Maintenance

Please also refer to chapter General instructions.

Cleaning the Industrial PC

Danger

Switch off the Industrial PC and all connected devices, and disconnect the Industrial PC from the power supply.

The Industrial PC can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches.

Replacing the battery on the motherboard

A used battery on the motherboard has to be replaced.

Danger of Explosion!

Danger

Replace battery only with the identical type or an alternative type recommended by the manufacturer. Notice correct polarity!

Handling of Lithium Batteries

Danger

Lithium Batteries should not be recharged, exposed to fire, opened and they should be protected against sunlight and moisture.

The used battery must be disposed of in accordance with national electronics scrap regulations.

Servicing

The Industrial PC requires no maintenance.

Shutting down

Disposal

Dismantling the Industrial PC

Observe national electronics scrap regulations

The device must be fully dismantled in order to dispose of it. The housing can be sent for metal recycling.

Electronic parts such as disk drives and circuit boards must be disposed of in accordance with national electronics scrap regulations.

C6250 17

Troubleshooting

Please also refer to chapter General instructions.

Fault correction

Fault Cause Procedure

Nothing happens after the Industrial PC has been switched on

No power supply to the Industrial PC.

Other cause.

Check power supply cable.

Call Beckhoff Service.

The Industrial PC does not boot fully

Floppy disk or CD in the drive.

Setup settings are incorrect.

Other cause.

Remove floppy disk or CD and press any key.

Check the setup settings.

Call Beckhoff Service.

Computer boots, software starts, but control does not operate correctly

Cause of the fault is either in the software or in parts of the plant outside the Industrial PC.

Call the manufacturer of the machine or the software.

Error during floppy disk access Faulty disk or CD.

Faulty disk drive.

Check disk or CD in another drive.

Call Beckhoff Service.

The Industrial PC functions only partially or only part of the time, e.g. no or dark picture, but disk drive responds when switching on

Defective components in the Industrial PC.

Call Beckhoff Service.

18 C6250

Service and Support

Beckhoff and their partners around the world offer comprehensive service and support, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.

Beckhoff's branch offices and representatives

Please contact your Beckhoff branch office or representative for local

support and service on Beckhoff products!

The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages:

http://www.beckhoff.com

You will also find further documentation

for Beckhoff components there.

Beckhoff headquarters

Beckhoff Automation GmbH & Co. KG Huelshorstweg 20 D-33415 Verl Germany

Phone:

+49(0)5246/963-0

Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com

Beckhoff Support

Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services:

• world-wide support

• design, programming and commissioning of complex automation

systems

• and extensive training program for Beckhoff system components

Hotline:

+49(0)5246/963-157

Fax: +49(0)5246/963-9157 e-mail: support@beckhoff.com

Beckhoff Service

The Beckhoff Service Center supports you in all matters of after-sales service:

• on-site service

• repair service

• spare parts service

• hotline service

Hotline:

+49(0)5246/963-460

Fax: +49(0)5246/963-479 e-mail: service@beckhoff.com

Quote the project number

If servicing is required, please quote the project number of your Industrial PC.

C6250 19

Assembly dimensions

The following pages show diagrams of the Industrial PC, with dimensions in mm.

Warning

The assembly of the unit must take place with the orientation diagrammed here.

Horizontal Installation

Side View Front View

Top View

20 C6250

Warning

The assembly of the unit must take place with the orientation diagrammed here.

Vertical Installation

Side View Front View

Top View

C6250 21

Appendix

22 C6250

Appendix

Technical data

Dimensions

Dimensions (W x H x D): 680 x 184 x 268 mm

Weight: 22.2 kg (basic configuration)

Do not use the PC in areas of explosive hazard

The Industrial PC may not be used in areas of explosive hazard.

The following conditions must be observed during operation: Environmental conditions

Ambient temperature: 0 to 55°C Atmospheric humidity: Maximum 95%, non-condensing

Shock resistance Sinusoidal vibration:

(EN 60068-2-6)

10 to 58 Hz: 0.035 mm

58 to 500 Hz: 0.5 G (~ 5 m/ s2)

During reading of CD-ROM:

10 to 58 Hz: 0.019 mm

58 to 500 Hz: 0.25 G (~ 2.5 m/ s

)

Impact: (EN 60068-2-27)

5 G (~ 50 m/ s²), duration: 30 ms

During reading of CD-ROM: 5 G (~ 50 m/ s²), duration: 11 ms

Protection class

Protection class: IP20

Power supply 100-240 V

power supply

unit

Supply voltage: 100-240 V 50-60 Hz Power consumption: 100 W for the basic version

Power supply 24 V

power supply unit

(optional)

Supply voltage: 22 - 30 VDC Power consumption: 100 W for the basic version

Electromagnetic Compatibility (EMC)

Interference resistance: according to EN 61000-6-2

Emitted resistance: according to EN 61000-6-4

Transport and storage

The same values for atmospheric humidity and shock resistance are to be observed during transport and storage as in operation. The shock resistance during transport can be improved by means of suitably packing the Industrial PC. The ambient temperature during storage and transport must be between -20°C and +65°C.

Approvals

FCC: Federal Communications Commission Radio Frequency Interference Statement

FCC Approval for USA

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC: Canadian Notice

FCC Approval for Canada

This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications.

Beckhoff C6250-0060, C6250-0050 Installation And Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
