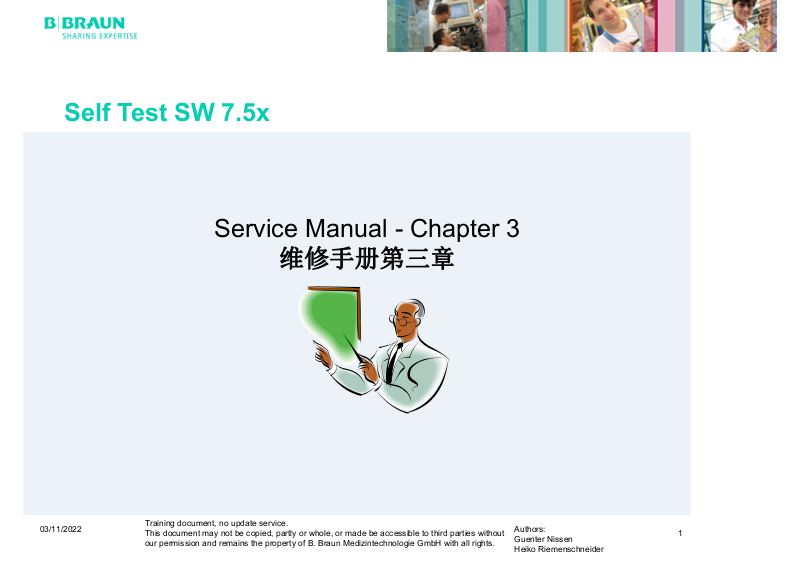

Self Test SW 7.5x
Service Manual - Chapter 3
维修手册第三章
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
1
常规
通常每次开机后进入治疗前都必须进行自检。
所有关系到安全的功能都将被测试，确保治疗安全进行。
治疗开始前不可跳过自检。
仅在自检程序完全通过后开始治疗程序才是安全可靠的。
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
2
安全第一 - 自检程序步骤
自动或
手动开机
1. 开机后
软件和定标数据检查
上次消毒记录检查
4. 消毒冲洗
消毒：温度、浓度达到要求
+
冲洗
ok
2. 治疗前自检
safety system
安全报警系统
internal hydraulic
blood leak
Heater
Temperature
Conductivity
Ultrafiltration
SAD
漏血传感器
加热器
温度传感器
电导度传感器
超滤部分
空气传感器
pressure sensors
进水
血路压力
03/11/2022
3.治疗
同时传感器不间断的监测
并由独立的监测系统处理器计算报警临界值
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
3
开机初始化
开机信号发送到SMPS
03/11/2022
TLC
主板BIOS程序启动
从硬盘启动程序
报警信息: RAM/ROM Error 或 CRC calibration Error 如果自检失败
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
LLC
初始化硬件
装载程序
装载定标数据
启动 Diabus通讯
检查检测板开关K1位置 0 - 2 - 3
启动与开关位置相应的程序
Therapy - TSM - Software Update
LLS
初始化硬件
装载程序
装载定标数据
Authors:
Guenter Nissen
Heiko Riemenschneider
4
治疗之前
• 冲洗水路
填充水箱 ，冲洗整个水路
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
5
自检
• 所有测试步骤都由控制板控制完成
• 监测板通过自己的传感器监测整个过程。
• 监测板测试 D24V 和 B24V 电压继电器各 3 秒。
• 打开 24V 继电器，给控制板进行下一步测试提供电压。
• 任一自检步骤如失败将自动循环监测该步骤。
• 维修界面有自检程序代码，显示自检程序进度。
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
6
自检 – 维修界面 chapter 3 page 36-38
自检代码
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
7
自检 – 自检代码总览
Code Test Code
00xxx No tests or rinsing
16xxx Sound and LED test (from SW 7.51)
17xxx LLC DFS Test 18 (analog voltage test from SW 7.51 and sup. version 3)
11xxx Blood leak detector
12xxx DFS leakage test
15xxx HDF online 完整性测试 (only for Dialog HDF online)
20xxx UF pump
21xxx Conductivity
22xxx Temperature TSD
30xxx SAD: level test
31xxx SAD: counter test
32xxx Pressure sensors blood side: equality test for blood side pressure sensors
33xxx Pressure sensors blood side: blood side pressure test
34xxx Substitution pump HDF bag (only for Dialog HDF bag)
35xxx Flow detector HDF bag (only for Dialog HDF bag)
36xxx Load cell HDF bag (only for Dialog HDF bag)
37xxx Disinfection valve VD
40xxx Leakage test substitution line S online HDF online
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
8
自检状态 chapter 3 page 36
子代码格式
TTSSx:
TT
SS
x
举例:
10020
LLC t est code t o LLS 测试步骤
Per f o r med t est st ep 执行测试进度
Number of perf ormed repeats 循环测试次数
0 x < repeats until error message 失败后即重复自检
During the first test of the heater relay test LLS did not
answer in 10 s with the test code 10.
23050
Blood l eak det ector compensation: 2 min no wat er
before t est start .
33701
Second BS pressure test terminated, because during
aut oprimi ng, e.g. an LF error occured.
37991
VD t est passed af t er t he secon d t i me.
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
9
自检 – 显示状态
TTSSS:
TT
SSS
LLC Subcode Third (x = 0, 1, 2) blood l eak detector t est: Send signal t o blood leak det ect or
11102
( TTSSx )
LLS Subcode Blood l eak detector t est: Measurement of red and green level
11004
( TTSSS)
Code LLC LLS Code
1. 1102x Prerequisit es for Test :
Upline tank must be filled
Timeout 2 min
2.
3.
1110x
4. Single measurement of green,
5. Acknowledge wit h swit ch- off VGD 11005 –
6. 1120x Wait f or D24OFF (timeout 30 s) 11011
7. VGD ON 11012
8. 1130x Wait f or D24ON (timeout 30 s)
9 . 1199x Compl et ed
Test code = 11 t o LLS Test code = 11 back to LLC
EV_ TEST_BLOODLEAK_ ON ON Bl oo dl ea k Tas k I D Test i ni t i al i s a t i on ( VGD ON) 1 10 0 0 –
LLS t est code t o LLC
Perf ormed test step
task
(See table, LLC code column.)
(See table, LLS code column.)
Single measurement of red,
t hen compari son of : red
no timeout
green + 0.2 V
11003
11004
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
10
Sound and LED Test 报警声光测试
Code LLC 1610x - 1699x / SUP 16001 - 16028
• LLS 通过电流进行测试, 两个OSD (Optical Status Display)板上的红
色 LED灯 发光 同时 扬声器发出报警声 (software version 7.5x)。
03/11/2022
可能测试到的配件 :
- LED / OSD Board defective
- 扬声器
- 触发器 (主板或FPB板)
- 连线导电不良或接头松动
-SMPS的维修跳线P101短路
- SMPS 的继电器 VGB 或 VGD
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
11
控制板 水路12V电压测试
• 检测 +/- 12 V 避免电压过高或过低
仅适用于使用3型检测板并 SW >7.5x的机器
Code LLC 1710x – 1799x / SUP 17001 - 12036
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
12
漏血传感器 2型
LED电路开关和
红绿光信号放大电路
漏血测试:
1. 测试 „绿光“信号
2. 测试 „红光“信号
3. 比较红绿信号
Code LLC 1102x - 1199x / SUP 11000 - 11012
ok
ok
额外的接收管LED，
提供自动定标参数
LED 发光管
red / green
自动定标:
自动定标，补偿漂移
03/11/2022
接收管
透析液
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
LED
Authors:
Guenter Nissen
Heiko Riemenschneider
13
Dialog+DFS 透析液通路漏气测试 SW 7.xx
DFS – 透析液通路压力测试
DFS测试程序中，以下部件将被测试是否漏气 :
• 平衡腔包括所有阀门和平衡腔膜片
• 冲洗桥整体:
- 漏血传感器
-VDE, VDA
- 消毒阀门和透析器接头
• 空气分离室, UF pump
03/11/2022
• 自FPE到 RVDA的所有软管， 接头， 管夹等。
• 对于HDF Online机器: 可测试出是否破裂或接口漏气。
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
14
Dialog+DFS 透析液通路漏气测试 SW 7.xx
备注
• 简化图例只显示两个腔体中的一个平衡腔体
• 正压由 FPE正压泵提供， 压力的测量和监测由PDA压力
传感器负责
• 要漏气测试成功必须首先冲洗整个水路并保持水路无空气
• 可能的故障:
1) UF pump超滤泵漏气或故障
2) 任何微小泻漏，水路不通
•
03/11/2022
可尝试动作: 增加RVFPE高压保护阀的压力至1.5 bar 可能
通过DFS 测试
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
15
Dialog+DFS 透析液通路漏气测试 SW 7.xx
DDE
VLA
VD
M
03/11/2022
RVFPE
RVFPA
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
BL
为简化图例，没
有显示出如下与
DFS压力测试关
系不密切的部件
阀门打开
:
- 空气分离室
- 冲洗桥
- 消毒阀
阀门关闭
- 漏血传感器
- RVFPA, DDE
Authors:
Guenter Nissen
Heiko Riemenschneider
16
Dialog+DFS 透析液通路漏气测试 SW 7.xx
RVFPE
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
阀门打开
阀门关闭
Authors:
Guenter Nissen
Heiko Riemenschneider
17
Dialog+DFS 透析液通路漏气测试 SW 7.xx
Pressure build-up at VDABK
RVFPE
~ 16000 µs
???µs
Code LLC 1220x / SUP 12002
预计PDA > 425 mmHg
PDA压力达
不到预计值
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
则可能:
FPE/RVFPE
故障,，
VDABK1/2漏
气，
膜片漏气
18
Dialog+DFS 透析液通路漏气测试 SW 7.xx
UF pump test
RVFPE
Code LLC 1225x / SUP 12002 - 12016
~ 16000 µs
此时LLS 必需
检测到超滤泵转动
5圈
否则可能是超滤泵
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
传感器故障
或超滤泵卡死
Authors:
Guenter Nissen
Heiko Riemenschneider
19
Dialog+DFS 透析液通路漏气测试 SW 7.xx
Pressure decrease at VDABK by UFP
~ 16000 µs
RVFPE
Code LLC 1230x / SUP 12021
380mmHg
PDA < 380mmHg
压力不能降低则
可能:
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
超滤泵故障或
RVDA阀门需调整
, 排水管打折或
VDEBK1/2 漏气
Authors:
Guenter Nissen
Heiko Riemenschneider
20
Dialog+DFS 透析液通路漏气测试 SW 7.xx
VBP / VDE valve test
~ 16000 µs
Code LLC 1235x / SUP 12021 - 12053
380mmHg
PDA 300...380mmHg
若 PDA压力升高，则可能:
VDE 或 VBP阀门漏气
若PDA压力过低，则可能:
03/11/2022
VDABK1 或 VDABK2 漏气
或 UFP超滤泵漏气
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
21
Dialog+DFS 透析液通路漏气测试 SW 7.xx
VDA valve test
Code LLC 1240x / SUP 12061 - 12093
~ 16000 µs
PDA 300...380mmHg
若 PDA压力过高则可能:
VDA 漏气
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
22
Dialog+DFS 透析液通路漏气测试 SW 7.xx
Pressure build-up at VDABK
~ 16000 µs
Code LLC 1245x / SUP 12101
PDA > 425 mmHg
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
阀门打开
阀门关闭
Authors:
Guenter Nissen
Heiko Riemenschneider
23
Dialog+DFS 透析液通路漏气测试 SW 7.xx
Pressure decrease by UFP
~16000 µs
Code LLC 1250x / SUP 12101
380mmHg
PDA < 380 mmHg
如果PDA压力60秒
内不能如预计减低
03/11/2022
到380mmHg以下
则可能 VDEBK1 或
VDEBK2漏气
超滤泵故障
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
24
Dialog+DFS 透析液通路漏气测试 SW 7.xx
Diaphragm test
Code LLC 1255x / SUP 12101 - 12148
~16000 µs
PDA < 380 mmHg
如压力升高则可能:
一个或两个膜片漏气
03/11/2022
如压力过低则可能:
VABK1 或 VABK2 漏气
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
25
Dialog+DFS 透析液通路漏气测试 SW 7.xx
Pressure build-up at VABK
Code LLC 1260x / SUP 12151
~16000 µs
PDA >425mmHg
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
阀门打开
阀门关闭
Authors:
Guenter Nissen
Heiko Riemenschneider
26
Dialog+DFS 透析液通路漏气测试 SW 7.xx
液体按膜片移动的方向进入平衡腔
~ 32000 µs
Code LLC 1265x / SUP 12151
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
27
Dialog+DFS 透析液通路漏气测试 SW 7.xx
利用UFP超滤泵降低 VABK阀门处的压力
~32000 µs
Code LLC 1270x / SUP 12151
PDA < 380 mmHg
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
28
Dialog+DFS 透析液通路漏气测试 SW 7.xx
VEBK test
1,3bar
~ 32000 µs
Code LLC 1275x / SUP 12151 - 12188
1,3bar
PDA 300 - 450 mmHg
若 PDA压力过高则说明 :
VEBK1 或 VEBK2 漏气
03/11/2022
若PDA压力过低则说明:
VABK1 或 VABK2 漏气
300 - 340 mmHg
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
29
Dialog+DFS 透析液通路漏气测试 SW 7.xx
完成DFS测试压力释放
Code LLC 1280x / SUP 12000
~ 32000 µs
打开所有阀门并控制泵
使PDA 压力调节在
03/11/2022
-200和 +200 mmHg之间
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
30
Dialog+DFS 透析液通路漏气测试 SW 7.xx
HDF Online Dialog
对于HDF Online机器，DFS压力测试后，还有一些部件是可能漏气的:
如超净滤器，或阀门 VBE 、VSAE
、 VSAA等
所以还有HDF Online 测试
RVFPE
FPE
RVDA
UF
DF Filter
VLA
FPA
RVFPA
VDFF
HFB
VBE
VSB
HDF Filter
VSAE
VSAA
DDE
VBP
VDA
VDE
BL
VD
M
PDA
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
31
Dialog+DFS 透析液通路漏气测试 SW 7.xx
平衡腔概要
可能故障:
• DFS-测试失败
– 软管/管路连接处漏气
– 阀门漏气 (需逐个判断)
– 膜片漏气
– 水路内空气过多
• 初始化错误 – 报警提示“膜移动”（membrane movement）
– 膜位移传感器板或线圈故障 (应总是对称运动)
03/11/2022
– FPE/FPA老化，或故障
– 某个阀门不能打开
– 软管打折，水路堵塞
– 水路内空气过多
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
32
Dialog+DFS 透析液通路漏气测试 SW 7.xx
平衡腔膜片 (如何判断膜片破裂漏气)
检查破片时需使用维修程序 TSM, Low Level Test 1.13
• 打开阀门 VEBK1, VEBK2, VABK1, VABK2
• 关闭阀门 VDEBK1, VDEBK2, VDABK1, VDABK2
• 取下连接到过滤网 FBK1 并用三通连接注射器和压力
表和过滤网 (如图所示)
FBK1
03/11/2022
RVDA
1,3 bar
• 用注射器向管路内加压力至1.3bar，然后用夹子夹住
注射器侧软管
• 如果任一膜片破裂漏气则压力快速降低 (需同时更换
两块膜片)
1,3 bar
0,4bar
UF
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
33
Dialog+DFS 透析液通路漏气测试 SW 7.xx
平衡腔 (由于漏气而大量气泡进入水路时)
检查外部漏气进水路的方法，进入维修程序 TSM, low level test 1.23
– 关闭阀门 VVB 和 VBICP
– 取下连接过滤网 FBK1 的软管并通过三通连接注射器和压力表 (如
图所示)
– 用注射器向 DF透析液模块（水槽）方向打水加压，观察哪里漏水
出来。
03/11/2022
FBK1
1,3 bar
Manometer
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
34
Dialog+DFS 透析液通路漏气测试 SW 7.xx
冲洗桥
可能故障:
• DFS-测试失败
– 消毒阀漏气
– 透析器接头膜片/密封圈漏气
– VDE, PDA 或 BLD 等部件可能漏气
• 机器吸消毒液量不足，电导度过低等
– 吸管端口没有完全沉入消毒液
03/11/2022
– 吸管端口滤网堵塞
– 消毒液桶空了
– 消毒阀等部件漏气 (检查更换弹簧密封圈等)
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
35
Dialog+DFS 透析液通路漏气测试 SW 7.xx
消毒阀和透析器接头及软管
DFS 测试失败
– 用软管旁路透析器接头软管（如图连接），从而避免冲洗桥内部
件（消毒阀、透析器接头、软管）对DFS测试的影响。
如果再次测试DFS通过说明消毒
阀或透析器接头漏气。
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
36
Dialog+DFS 透析液通路漏气测试 SW 7.xx
平衡腔 (膜移动)
关注 位移传感器MSBK1、MSBK2 和 除气泵EP, 正压泵FPE及负压泵FPA
• FPA泵速过快
– 内部水路不通畅或水路漏气
– FPA泵头老化
• FPE泵速过快伴有电导度、温度报警
– 水路不通场或排水管打折
– 突然缺水，内部漏水/漏气等(停止加热并泵停转)
– FPE泵头老化
• EP 转速达 3000 rpm
– 泵头或RVE除气比例阀老化，或除气压力PE故障
– 水路漏气
• 位移传感器线圈 MSBK1 、 MSBK2或信号放大板故障
– 工作范围 15000 至 30000 µs之间 (总是对称变化)
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
37
DFS 漏气测试 HDF Online
Code LLC - 1502x - 1599x
• Online超净滤器的破裂相关的安全测试, 机内置换液系统的漏气测试, 附加
阀门 VBE/VSAE/VSAA的漏气测试.
• 完整性测试:
在负压低于 -500 mmHg时 空气不能通过超净滤器内的半透膜.
检测 HDF 滤器是否破膜: 滤器内一侧充满空气; 另一侧调节压力到 < -270
mmHg.
如果压力在3分钟内变化小于 20 mmHg说明半透膜完好.
最终打开 旁路阀VBP ，LLS监测板通过 PDA压力变化可检测到， 以此确
定有空气充入滤器，且VBE阀门打开。
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
38
DFS Pressure Test HDF Online
Supervisor code 15001 - 15018 VBE 测试
Code LLC - 1502x - 1515x
VBE阀门测试
RVFPE
FPE
RVDA
DF Filter
VLA
FPA
RVFPA
VDFF
HFB
VBE
VSB
HDF Filter
VSAE
VSAA
DDE
VDE
VBP
VDA
PDA
03/11/2022
压力升高则: VBE 漏气
pressurebuild‐upto‐300mmHg
UF
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
其它部件的漏气也可能导致压力降低 ! 需多观察分析
Authors:
Guenter Nissen
Heiko Riemenschneider
39
DFS Pressure Test HDF Online
Supervisor code 15021 - 15032 VSAE测试
Code LLC - 1520x - 1525x
VSAE阀门测试
RVFPE
FPE
RVDA
DF Filter
VLA
FPA
RVFPA
VDFF
HFB
HDF Filter
VBE
VSB
VSAE
VSAA
PDA出压力提高
DDE
VDE
VBP
VDA
PDA
03/11/2022
- VSAE 漏气
UF
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
40
DFS Pressure Test HDF Online
Supervisor code 15033 - 15039 OSP置换液泵测试
Code LLC - 1525x
OSP置换液泵测试:
LLC控制板 和 LLS监测板转速反馈信号对比
RVFPE
DF Filter
FPE
RVDA
VLA
FPA
RVFPA
VDFF
HFB
VBE
VSB
测试失败:
HDF Filter
VSAE
VSAA
DDE
OSP
VDE
VBP
VDA
PDA
03/11/2022
- 泵定标错误
UF
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
- 置换液泵速传感器故障
Authors:
Guenter Nissen
Heiko Riemenschneider
41
DFS Pressure Test HDF Online
Supervisor code 15041 - 15058 VSAA test
HFB
Code LLC - 1530x - 1535x
RVFPE
FPE
RVDA
通过压力测试 VSAA阀门
DF Filter
FPA
UF
VLA
VDFF
RVFPA
HDF Filter
VBE
VSB
VSAE
VSAA
如 PDA压力值升高
- 则VSAA 漏气
DDE
VDE
VBP
VDA
PDA
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
42
DFS Pressure Test HDF Online
Supervisor code 15101 - 15118 超净滤器测试
Code LLC - 1540x - 1560x
空气应不能通过滤器内的半透膜
air
HDF Filter
DF Filter
FPA
03/11/2022
压力提高量如高于 50mmHg
UF
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
pressurebuiltupbyFPAandUP
- 则滤器内破膜
Authors:
Guenter Nissen
Heiko Riemenschneider
PDA
‐150mmHg
‐320mmHg
43
DFS Pressure Test HDF-Online
Supervisor code 15120 - 15127 HFB test
Code LLC - 1565x - 1599x
打开旁路阀VBP 确认滤器内确实充满空气.
RVFPE
DF Filter
FPE
RVDA
VLA
FPA
RVFPA
VDFF
HFB
VBE
VSB
PDA压力从
HDF Filter
VSAE
VSAA
DDE
VDE
VBP
VDA
PDA
03/11/2022
-320mmHg 提高到 -100mmHg.
UF
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
44
超滤泵测试
• LLS 监测板在 DFS 测试中至少应监测到超滤泵转过5圈。
可能故障:
监测板接收不到速度传感器信号，传感器故障或信号通路故障。
Code LLC - 2002x - 2099x
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
45
总电导度测试
Code LLC - 2110x - 2199x
• DFS 测试中测量到的电导度值必需约等于 0 mS/cm (进水) 因为
此时没有浓缩液进入机器。
• 吸入浓缩液后电导度可升高并稳定到以下范围内
(11,5 mS/cm to 17,5 mS/cm)
• 差别必需 > 5 mS/cm
可能故障:
03/11/2022
定标电导度是零点定标错误。
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
46
温度传感器测试
• 透析液应可加热到 > +41 °C
• 监测板可识别到高温度点。
可能故障:
温度传感器定标错误或传感器故障
Code LLC - 2202x - 2299x
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
47
SAD 测试
60
50
40
30
20
Code LLC - 3002x - 3199x
测试水平 = KS + 5
KS临界值
判断接收信号
03/11/2022
10
0
LED 不亮: SAD 故障
LED 常亮: 监测到空气
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
每1.2 秒发出一次测试脉冲.
LED会指示信号发出
Authors:
Guenter Nissen
Heiko Riemenschneider
报警水平
48
SAD 测试
监测板测试步骤 30000 - 30009 水平测试
SAD 测试分为两个步骤
1. SAD 水平测试
测量测试水平与定标水平进行比较。
重启动机器或重新定标SAD。
如果已经放入血路管，不会影响该测试。
2. 计数测试
检查测试脉冲的长短。
Code LLC - 3002x - 3099x
测试脉冲是由控制板发出的测试信号，监测板同时监测接收计数。
计数失败则说明LLC, LLS 或 SAD硬件故障
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
49
血路压力传感器测试
Code LLC - 3202x - 3299x
• PA 和 PV的值进行比较
•PA和PV的差别不应高于 40 mmHg
• PA 和 PV 的值将通过内部电阻变化提高到 >180 mmHg (仅适用
于 Software > 7.5x 且使用3型监测板的机器) 再次比较
可能故障:
• 压力传感器定标错误或传感器故障
• 没有连接测量或保护罩堵塞，管路故障
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
50
血泵测试
• 血泵转速 200 ml/min
• 监测信号通过光电二极管识别正确的血泵转速
可能故障:
• 泵没有转动
• 定标错误
• 监测信号识别故障
Code LLC - 3302x - 3320x
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
51
血路部分压力测试
Code LLC - 3330x - 3399x
• 监测板发出信号关闭静脉安全夹 (SAKV) ，同时血泵转动产生高于
400 mmHg的压力
• 血泵停转, 控制板发信号控制 SAKV
• 监测板发出信号释放 SAKV， 控制板信号保持SAKV关闭。
•PV压力应保持高于 150 mmHg ， PV压降速率 < 20 mmHg/10
sec. 保持 5 sec.
可能故障:
• 来自控自制板或监测板的SAKV控制信号故障
• SAKV 装配故障 (如间隙过大)
• 血泵头故障，泵管漏气
• 传感器或管路部分漏气
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
52
置换液管路的漏气测试
(仅 HDF Online Machines 自动冲洗血路管时进行)
Code LLC - 4002x - 4099x
• 在置换液出口与置换液泵之间产生 >270 mmHg 的压力
•PA压力值
在10秒内降低不可大于20 mmHg
可能的故障:
• BPV 泵头/泵管漏气
• 管路或保护罩漏气
•DF 或 HDF 滤器漏气
• DDE 功能故障 或旁路微孔故障(0.7 mm)
• FPE 和FPA 间驱动力差别过大
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
53
消毒阀门 VD测试
Code LLC - 3710x - 3799x
• 阀门动作和传感器的测试
• LLC 打开和关闭阀门 ， LLS 必需探测到传感器反馈信号的变化。
03/11/2022
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
54
挂袋式HDF机器 (仅HDF选项被选中的机器适用 )
Code LLC - 3402x - 3599x
• 置换液泵 BPV转动 (min. 1.5 转)
监测板必须能够通过光电二极管正确检测到泵转动
• 通过测试电阻测试秤的误差
监测板检测出的误差需小于 4%
• 转动提供流速 (80 ml/min 和 10 ml/min)
监测板必需能够通过流量计正确检测到水流
• 控制信号禁止超滤 (UF超滤泵停转)
03/11/2022
监测板必需能够通过流量计正确检测到此时无水流
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
55
消毒程序中的VBICP自检
该测试是为了避免对病人感染的风险，保证所有水路都被充分消毒和冲
洗而检测VVB和VBICP阀门的。消毒结束后， 如果测试失败， 可在消
毒历史记录中查看。
VVB valves
03/11/2022
VBICP valves
LAB 2 chamber
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
56
消毒程序中的VBICP自检
该自检分为两步:
1. VVB 和 VBICP的漏气测试
2. VBICP打开的通透性测试
可能故障:
• VBICP 或 VVB 漏气, 或 VBICP 不能打开或堵塞
• FPA 驱动力高于 FPE太多（如FPE老化或堵塞）
03/11/2022
• VBKO 不能打开
• 没有水流从除气通路进入干粉筒支架水路 (水路故障,
DBK)
• HDF online 滤器充满空气
Training document, no update service.
This document may not be copied, partly or whole, or made be accessible to third parties without
our permission and remains the property of B. Braun Medizintechnologie GmbH with all rights.
Authors:
Guenter Nissen
Heiko Riemenschneider
57
Loading...
