AirLive WMU-6500FS User Manual

0 (0)

WMU-6500FS

3.5” Wireless AP Storage

User’s Manual

This device uses software which is partly or completely licensed under the terms of the GNU General Public License. The author of the software does not provide any warranty. This does not affect the warranty for the product itself.

To get source codes please contact: OvisLink Corp., 5F, No. 96, Min-Chuan Rd, Hsin-Tien City, Taipei, Taiwan, R.O.C. A fee will be charged for production and shipment for each copy of the source code.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of

these conditions:

a)You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b)You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c)If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a)Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b)Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c)Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5.You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6.Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7.If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8.If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9.The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11.BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS

IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE

PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL

ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

one line to give the program's name and an idea of what it does. Copyright (C) yyyy name of author

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details.

The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is

a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

Trademarks

All products, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B.

2	AirLive WMU-6500FS User’s Manual

Table of Contents

Chapter 1: Introduction.......................................................................		4
1.1	Overview................................................................................	4
1.2	Features.................................................................................	5
1.3	System Requirements .........................................................	6
1.4	Package List..........................................................................	6
1.5	Hardware Ports and Buttons ..............................................	7
1.6	LED Indicators ......................................................................	8
Chapter 2: Getting Started.................................................................		9
2.1	Hard Disk installation ...........................................................	9
2.2	Making Connections ..........................................................	11
	2.2.2 Wired Ethernet Connection ...................................	12
	2.2.3 Wireless Connection...............................................	15
2.3	File sharing..........................................................................	16
2.3.1 Accessing the network hard drive via my network places ........			17
	2.3.2 Searching the computers.......................................	17
	2.3.3 Search the “Entire Network” Manually.................	17
	2.3.4 Accessing Files via FTP.........................................	18
Chapter 3: Making Configuration....................................................		19

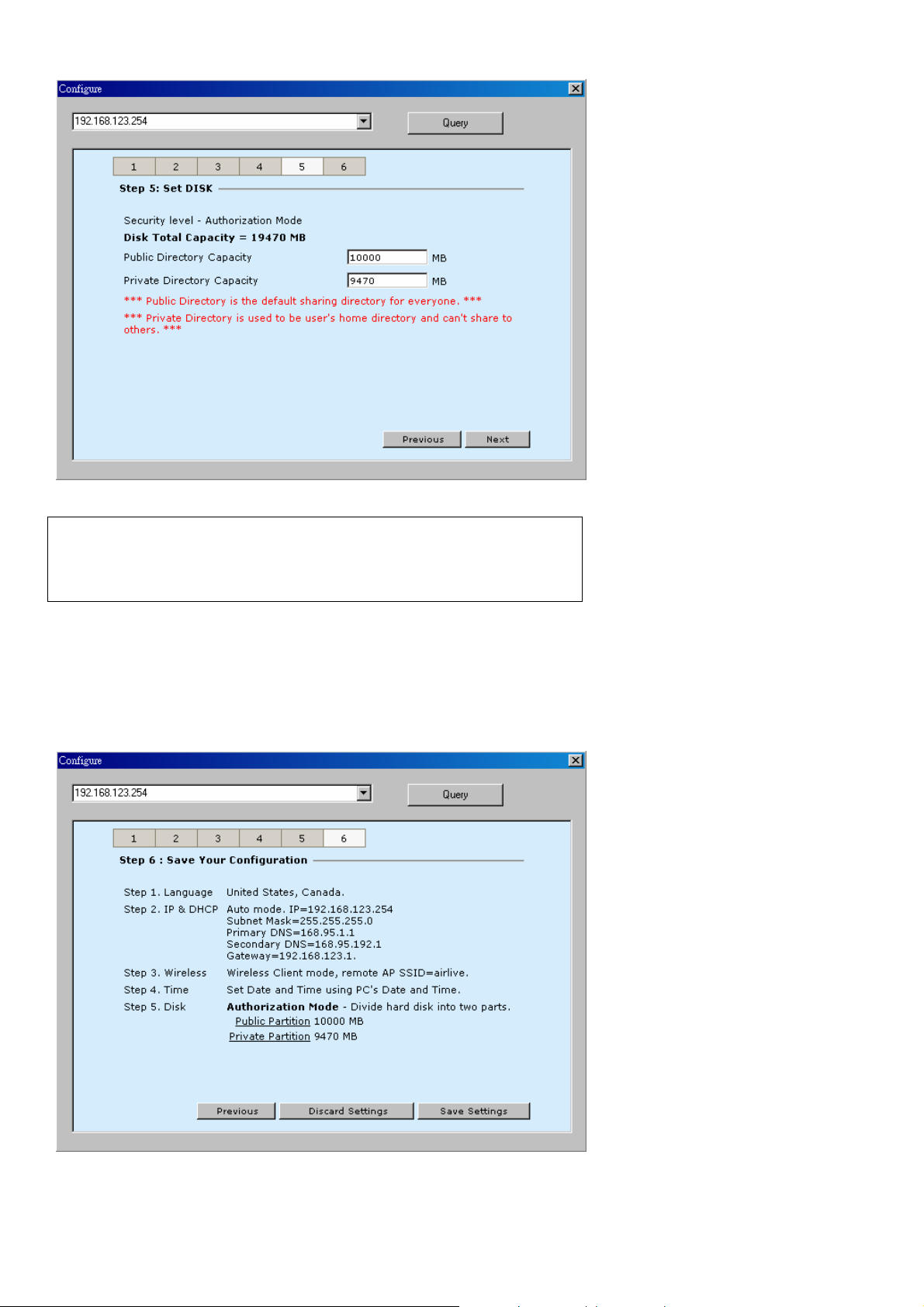

3.1	Configuration Wizard .........................................................	19

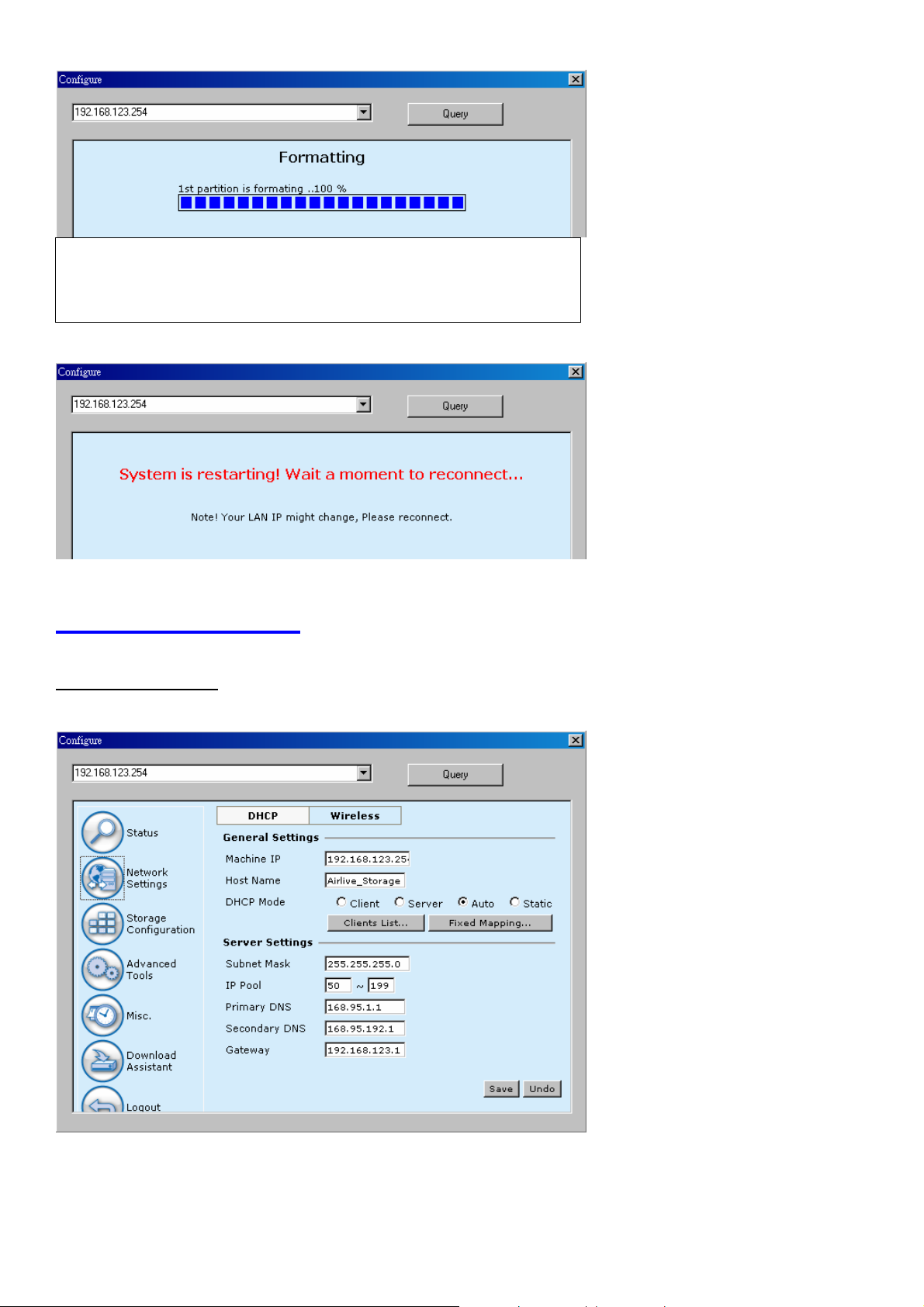

3.2	Network Settings ................................................................	27
	3.2.1 DHCP Setting ..........................................................	27

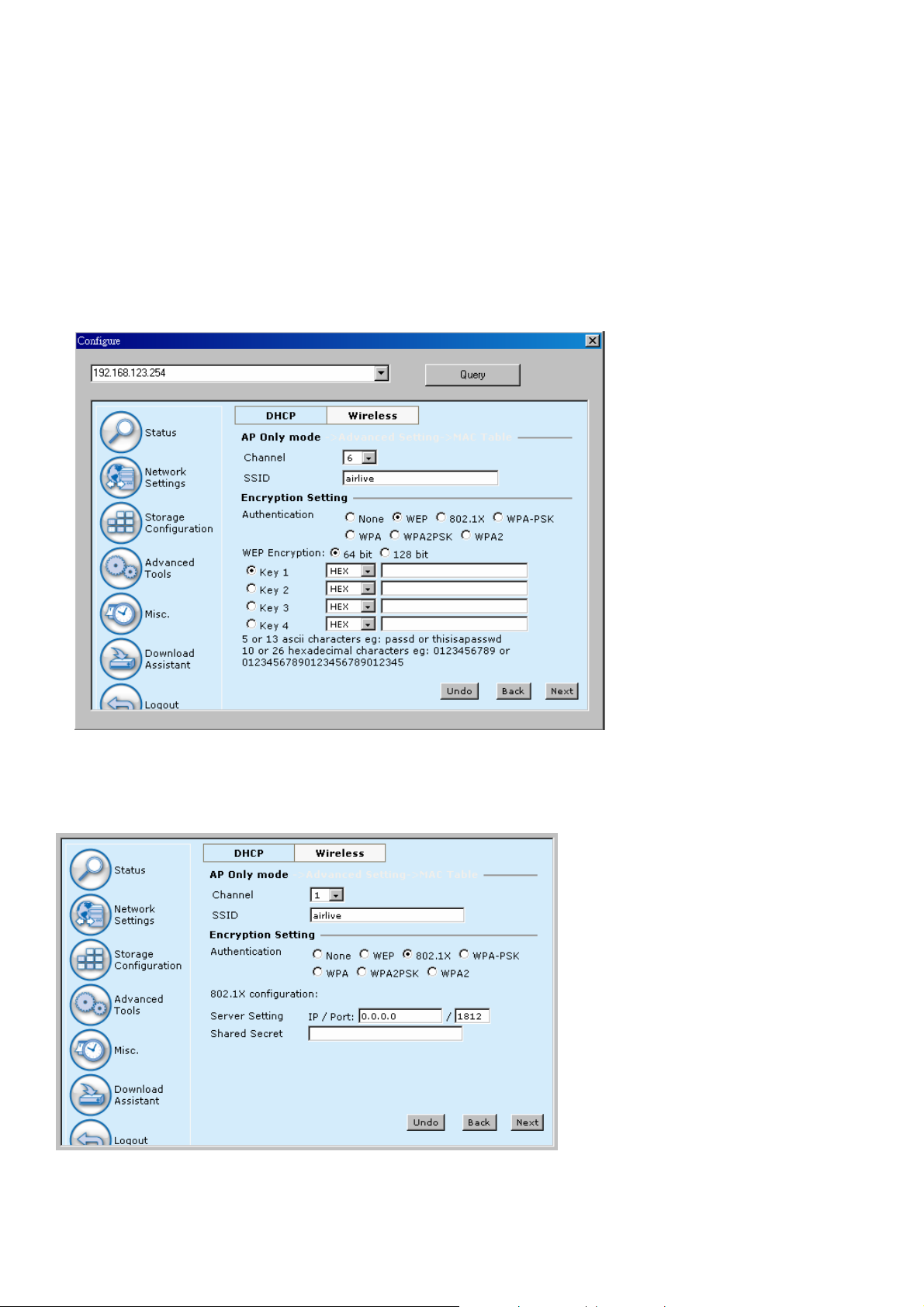

	3.2.2 Wireless Setting ......................................................	28
Chapter 4: Storage Configuration...................................................		42

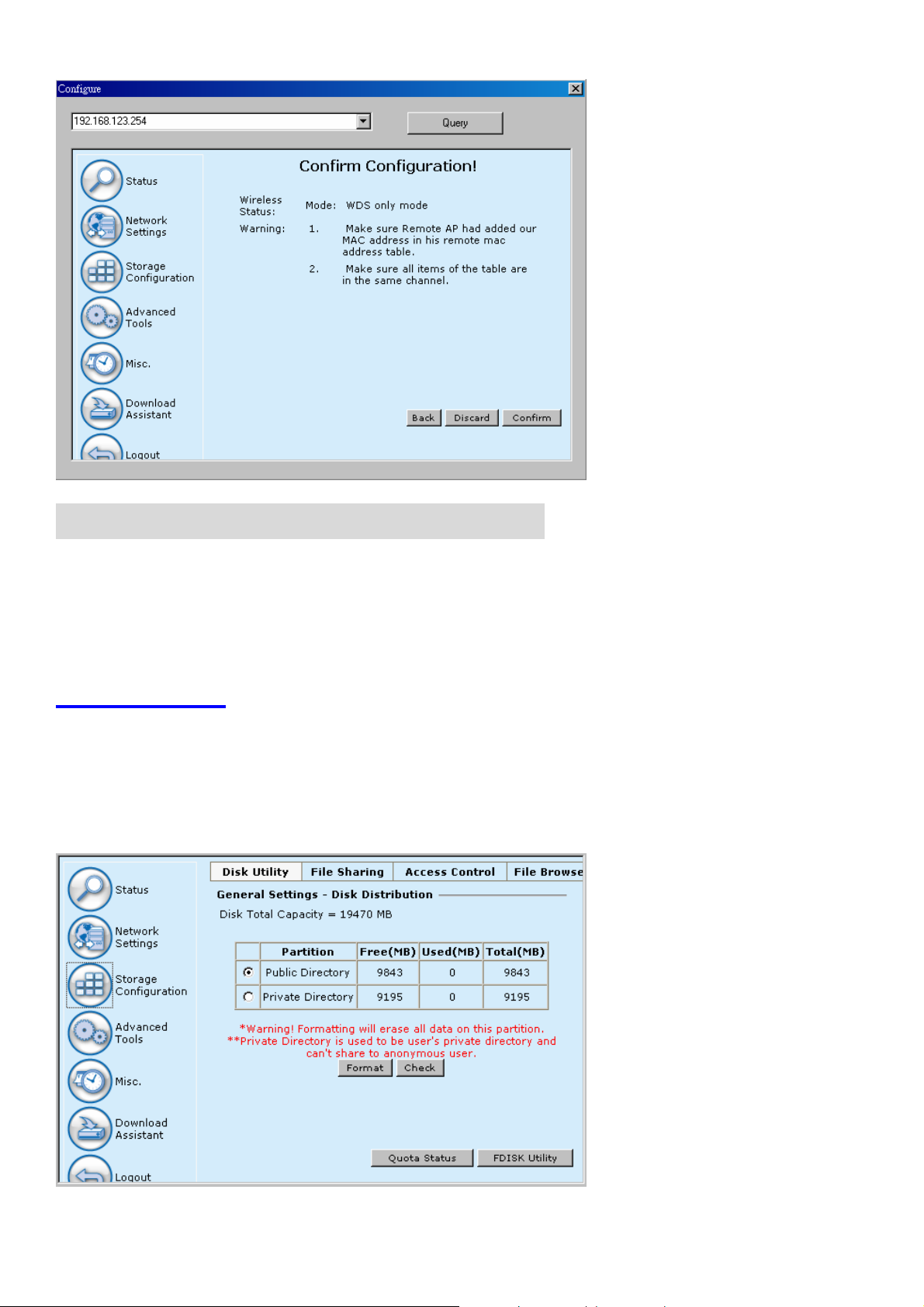

4.1	Disk Utility............................................................................	42
4.2	File Sharing .........................................................................	43
4.3 Access Control....................................................................		44
4.4	File Browser ........................................................................	46

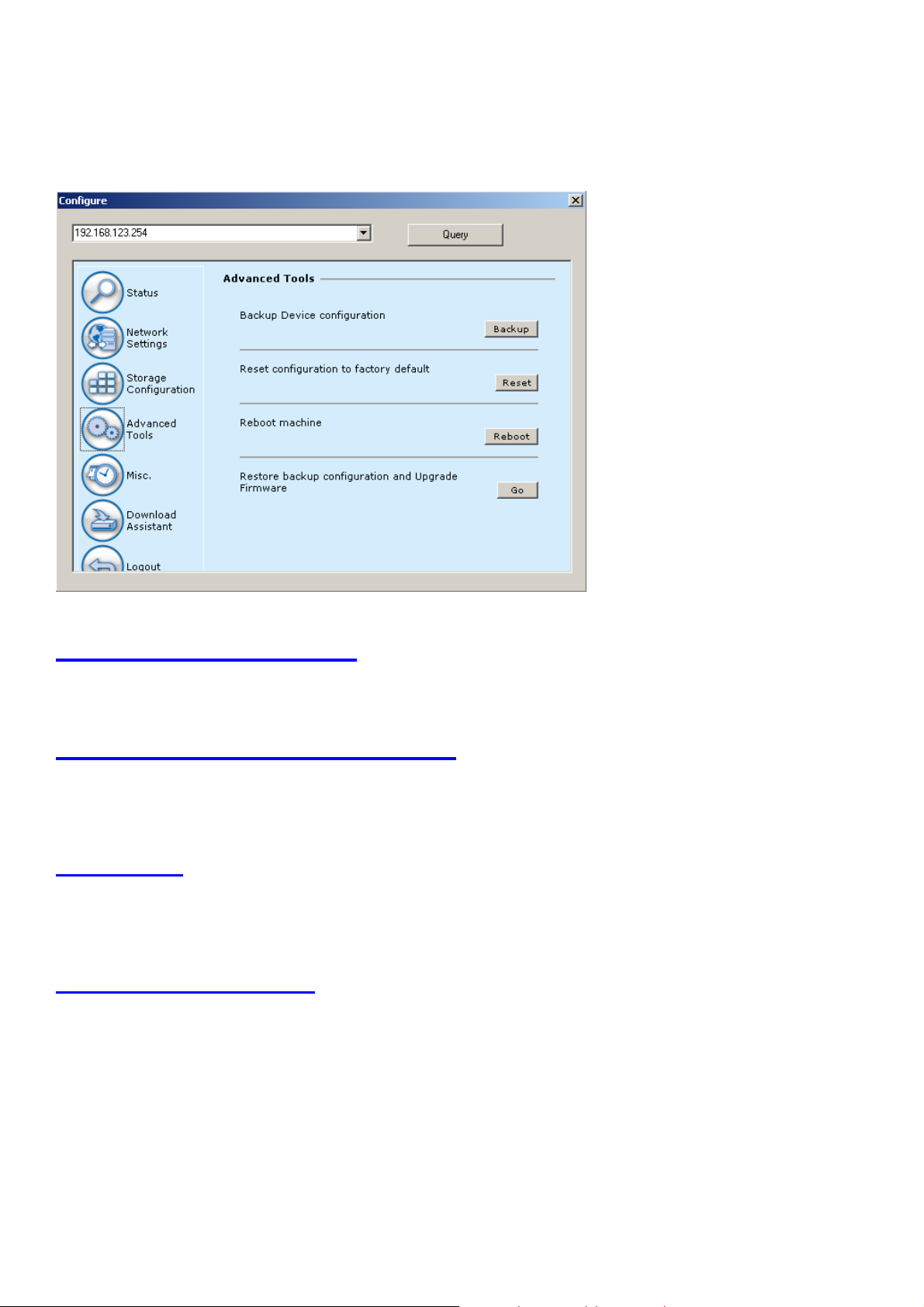

Chapter 5: Advanced Tools.............................................................		47
5.1	Backup Configuration ........................................................	48
5.2	Reset Configuration to Default.........................................	48
5.3	Reboot..................................................................................	48
5.4	Firmware Upgrade .............................................................	48
Chapter 6: MISC ...............................................................................		49
6.1 Time Setting ........................................................................		49
6.2	Login Setting .......................................................................	50
6.3	System Log .........................................................................	51
Chapter 7: Download Assistant ......................................................		52
7.1	FTP.......................................................................................	52
7.2 HTTP ....................................................................................		53

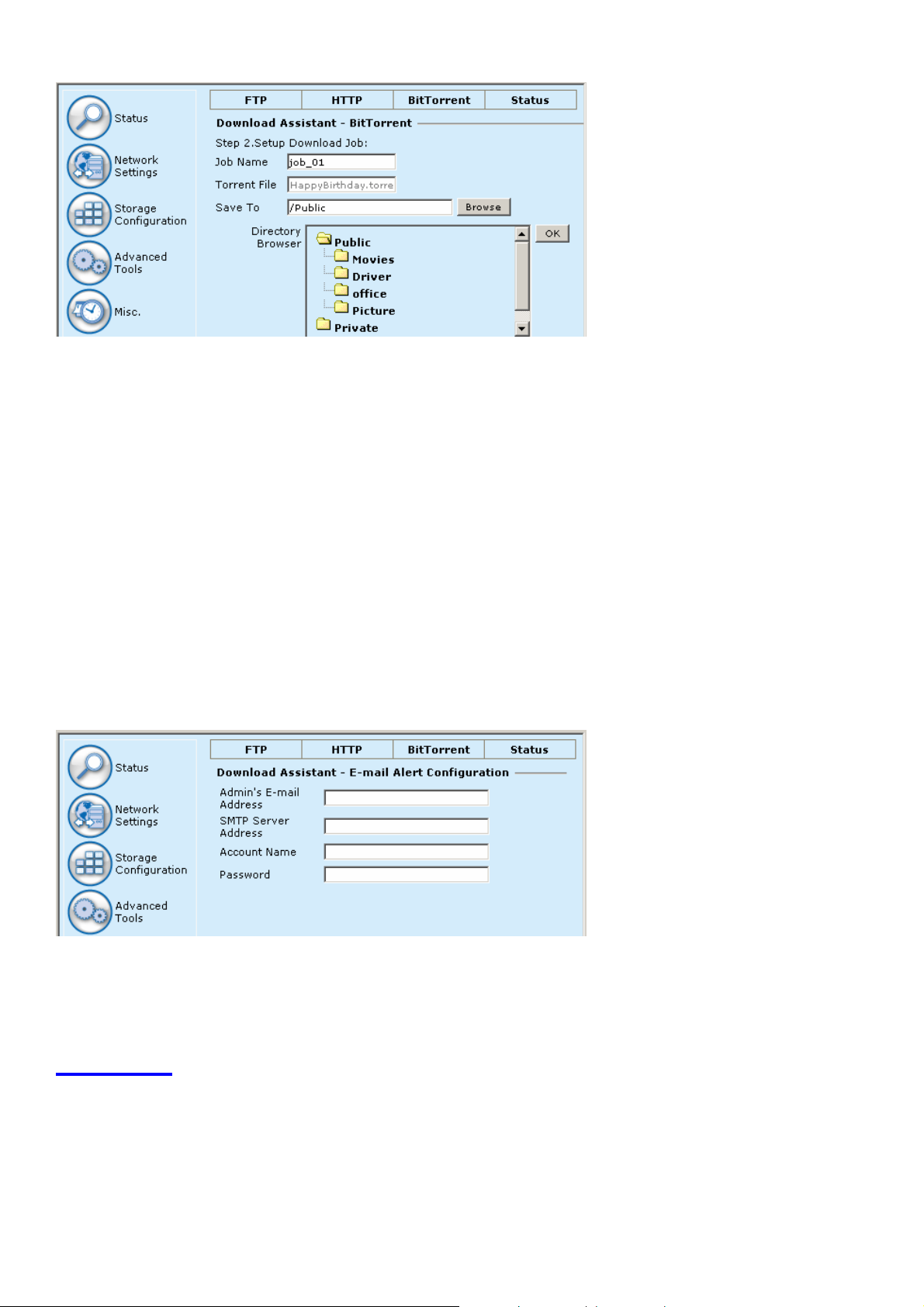

7.3	BitTorrent .............................................................................	55
7.4	Status ...................................................................................	56
Chapter 8: FAQ & Trouble Shooting..............................................		57
8.1	What can I do when I have some trouble?.....................	57

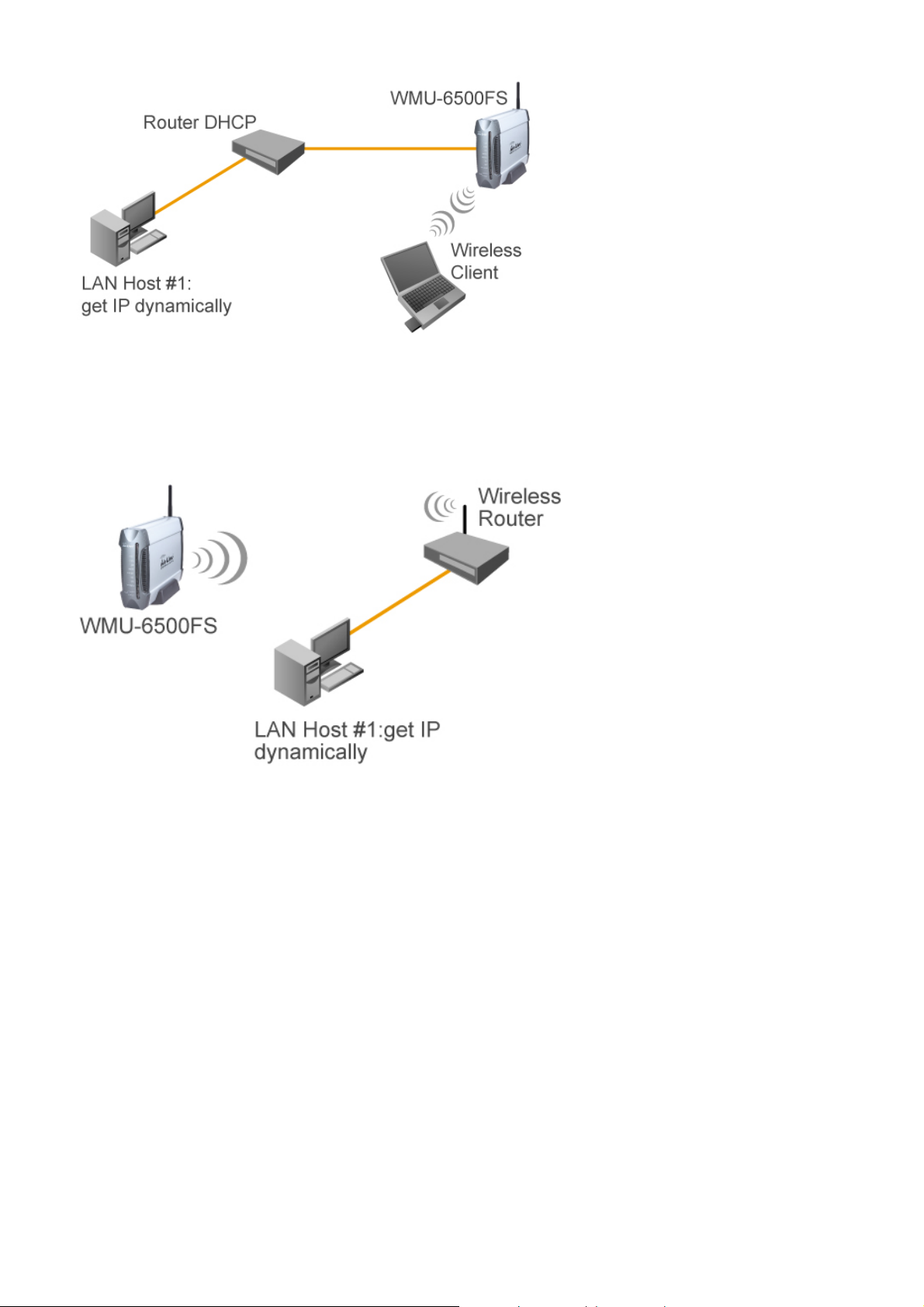

8.2	How to setup wireless function? ......................................	59
8.3	How to map network drive in Windows? ........................	66

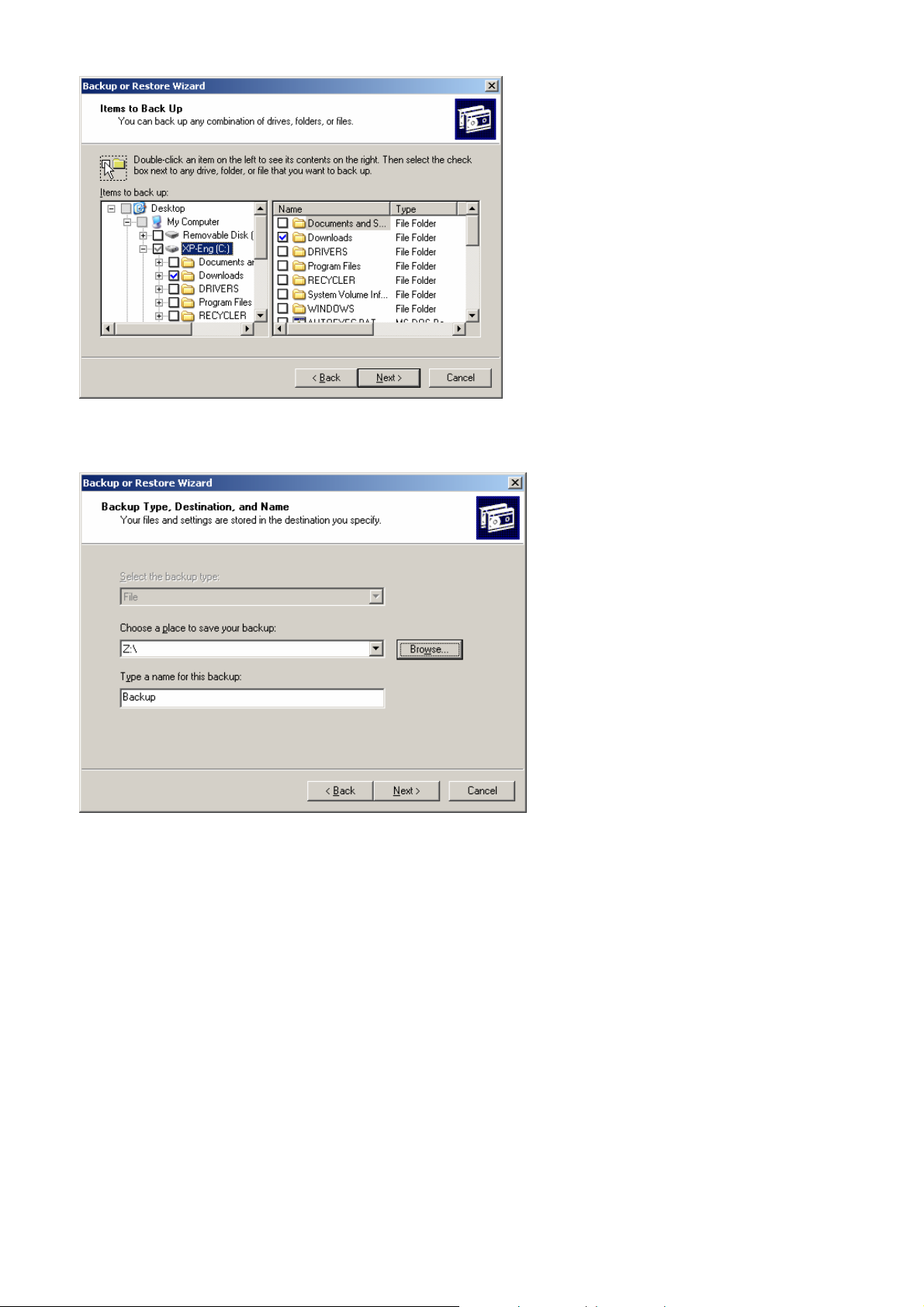

8.4	How to backup data by using Microsoft backup utility?68

3	AirLive WMU-6500FS User’s Manual

Chapter 1: Introduction

Congratulations on your purchase of AirLive WMU-6500FS. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product.

1.1 Overview

The AirLive WMU-6500FS is designed for 3.5” IDE and serial-ATA (SATA) hard disk drive use. It is an ideal device for small-medium companies and home users who need to backup and share files more efficiently and easily anytime and anywhere. Additionally, with its WLAN* feature which is fully compliant with IEEE 802.11b/g will also let you share files easily.

*The WLAN feature is depended on the specified model only.

The AirLive WMU-6500FS offers WLAN mobility for home user and business people to maintain continuous network connectivity. Home users can stay connected to the network anywhere through a building without being limited by LAN cables via its AP functionality. This device also has the additional advantage of providing AirLive WMU-6500FS with its 3.5-inch hard disk which allows you to share information and storage capacity via wireless or wired network. The AirLive WMU-6500FS supports the UPnP content directories and users can share the music and video files easily. Besides, the click-and-copying of files from a flash drive to the AirLive WMU-6500FS hard disk make the user backup files efficiently. Please refer to the following application diagram.

4	AirLive WMU-6500FS User’s Manual

1.2 Features

Basic Functions

zAdapt for one 3.5-inch IDE or Serial-ATA(SATA) hard disk drive.

zNetwork File Storage and File Sharing via My Network Places in Windows or Samba in Linux and Mac OS.

zBackup files easily: compliant with Windows backup utility.

zSupport FAT, FAT32, and Ext2 files system and can read from NTFS file system.

zSupport security level as Guest or Authorization user for file sharing.

zReal time clock to synchronize the computer time setting.

zEasy to upgrade: using web browser or windows application to upgrade new version of firmware.

zBrowser-based interface configuration and management: OS independent, easy-to-use for consumer installation.

zSupport HDD sleeping mode to save power consumption.

zBuilt-in FTP server.

zUPnP (Universal Plug and Play) AV content directory support.

zScheduling download assistant.

zAluminum housing provides better effect for heat-release. (It’s normal that aluminum housing getting warm when AirLive WMU-6500FS is working.)

5	AirLive WMU-6500FS User’s Manual

USB Device

zBuilt-in USB2.0 host to connect to USB mass storage device, like USB flash drive, USB hard drive, etc.

zEasy copy button: Offer the button to copy folders and files from USB device to internal HDD.

Wireless Functions

zUp to 54Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing (OFDM).

zIEEE 802.11b compatible (11Mbps): Allowing inter-operation among multiple vendors.

zIEEE 802.11g compatible (54Mbps): Allowing inter-operation among multiple vendors.

zWireless data rate supported: 6/12/18/24/36/48/54 Mbps in 802.11g mode; 1/2/5.5/11Mbps in 802.11b mode.

zSupport 64/128-bit WEP encryption.

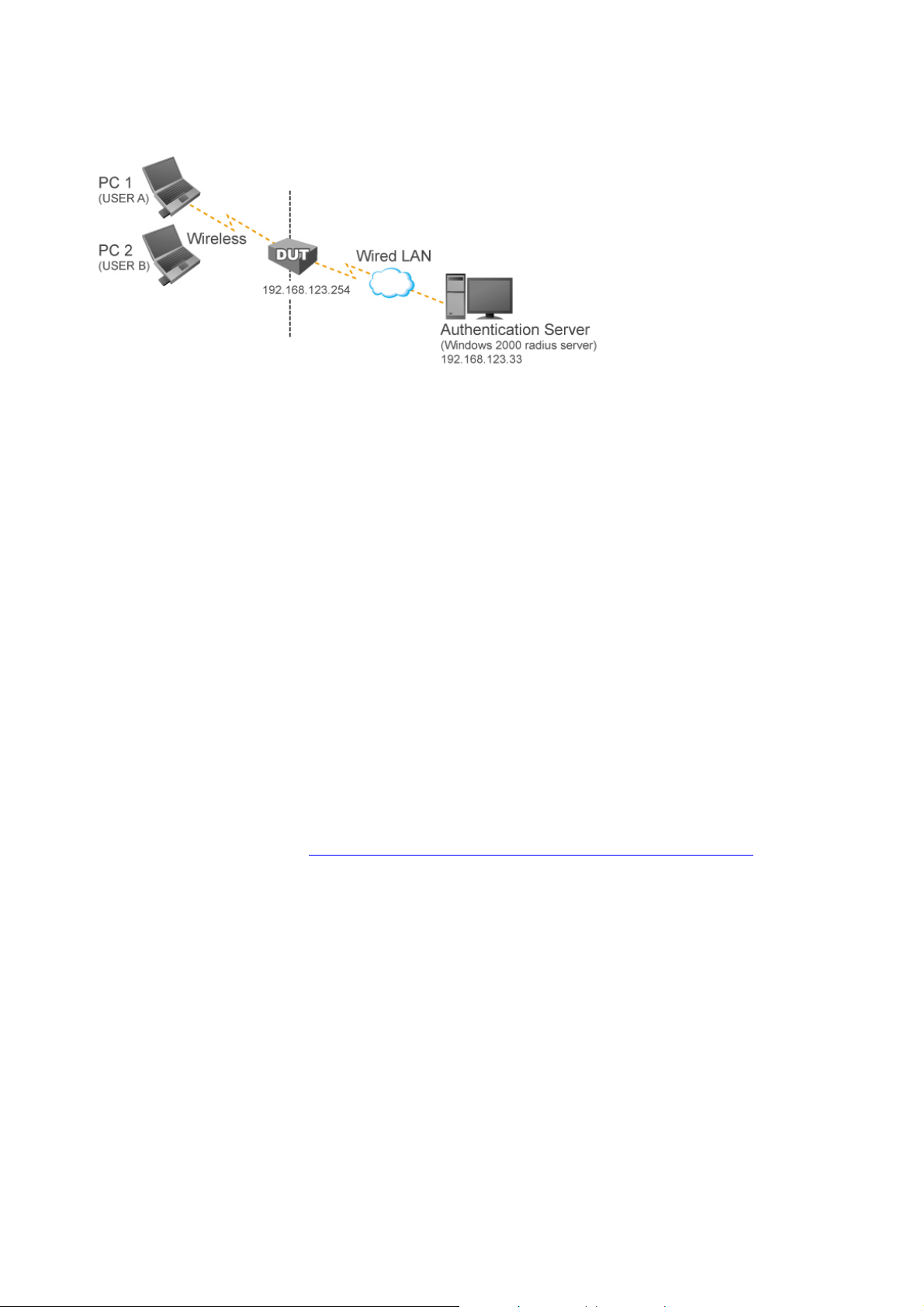

zSupport 802.1X authentication.

zSupport WPA, WPA-PSK with TKIP and AES encryption.

zSupport WPA2, WPA2-PSK with TKIP and AES encryption.

zSupport Client, AP, WDS, and WDS Hybrid wireless modes.

(NOTE. Only AP mode and Hybrid mode can support WPA and WPA2.)

Scheduling Download Assistant

zScheduling download assistant allows users to download files via FTP, HTTP, and BitTorrent without turning on computer.

1.3System Requirements

To start to use the AirLive WMU-6500FS, your system must have the following minimum requirements:

zWindows 95 / 98 / ME / 2000 / XP, or any other operating system can support Samba.

zAn Ethernet (10BaseT or 10/100BaseT) adapter for wired client.

zAt least one WLAN client adapter of 802.11g (54Mbps) or 802.11b (11Mbps) for wireless connection.

zTCP/IP and NetBIOS network protocol installed.

zWeb browser installed.

The AirLive WMU-6500FS requires an external 12V, 4A power supply which is included in the package. For safe operation, please only use the power adapter which is provided by this product.

1.4 Package List

6	AirLive WMU-6500FS User’s Manual

The AirLive WMU-6500FS package contains the following items:

	Item	Quantity

	AirLive WMU-6500FS	1

	Stand	1

	IDE cable (inside the device)	1

	SATA cable (inside the device)	1

	Power cable to connect IDE or SATA HDD	1
	(inside the device)	1
	(inside the device)

	2.4GHz dipole antenna	1

	Power adapter (12 Volts DC, 4A)	1

	Power cord	1

	RJ-45 Ethernet cable	1

	Quick installation guide	1

	CD (utilities and user manual)	1

	Screws (For fixing HDD)	4

	Rubber feet	4

1.5 Hardware Ports and Buttons

Front Buttons:

Buttons	Description
Shutdown	Press the button for 4 seconds to shut down the
	whole system before power-off.

7	AirLive WMU-6500FS User’s Manual

Backup		Press the button for 4 seconds to copy data from
		attached USB device to HDD.

Reset		Press the buttons of “Shutdown” and “Backup”
		simultaneously for 6 seconds to reset the system
		setting to factory default.

Rear Ports:

Ports		Description
Antenna		Connect 2.4GHz dipole antenna.

LAN		Automatically MDI / MDIX LAN port can sense the
		cable type when connecting to Ethernet-enabled
		computer, network of hub, switch, or router.

USB1 / USB2		The ports where you can connect to USB disk, digital
		camera, or card reader.

Power Switch		Switch on/off the device.

Power Jack		12V / 4A power inlet.

1.6 LED Indicators

LED	Light Off	Solid Light	Blinking

Power	Power off	Power on

W.LAN	No packet	On transmitting

LAN	No device	Linked	On transmitting.

HDD R/W	Not in use	HDD read/write

HDD Status	No HDD	HDD full or error	More	blinking
			quickly,	fewer
			available	HDD
			capacity.

USB 1	No device	USB drive ready

USB 2	No device	USB drive ready

8	AirLive WMU-6500FS User’s Manual

Status (Backup)	1. Blinking once
	per	second
	when	device
	works
	normally.
	2. Blinking
	quickly	when
	“Backup”
	button	is
	pressed.

Chapter 2: Getting Started

2.1 Hard Disk installation

Follow the steps below to insert the 3.5-inch hard disk and assemble the device before using the AirLive WMU-6500FS.

WARNING:

The AirLive WMU-6500FS is not hot-swappable. Please make sure that it is turned off and not connected to the power outlet when performing the following assembly procedure.

Step 1: Unfasten two screws at the rear side of AirLive WMU-6500FS, and pull out the back cover.

Step 2: Pull out the front panel.

9	AirLive WMU-6500FS User’s Manual

Step 3: Put the 3.5-inch IDE or SATA hard disk into the slot, and connect proper data (the red cable is used for SATA hard disk and the gray one is for IDE hard disk) and power cable to the hard disk. Then fasten the screws that are included in the package to fix hard disk.

Step 4: Put the front panel back.

10	AirLive WMU-6500FS User’s Manual

Step 5: Put the back cover back, and assemble tightly. Finally, fasten two screws.

2.2 Making Connections

In order to access the AirLive WMU-6500FS as the AirLive WMU-6500FS drive or as a wireless AP, you need to configure the TCP/IP settings correctly in advance. Either the “Wired Ethernet Connection” or “Wireless Connection” can be used to connect to AirLive WMU-6500FS.

2.2.1 Install Necessary Communication Protocols

Follow the steps below to install “Client for Microsoft Networks”, “File and Printer Sharing for Microsoft Networks”, and “Internet Protocol (TCP/IP)” on your computer.

Step 1: Select the “My Network Places” on the desktop menu, and right click on the icon to choose “Properties”.

11	AirLive WMU-6500FS User’s Manual

Step 2: You may see there are many connections in your computer. Just select one which you will use it to connect to AirLive WMU-6500FS. Then choose the “Properties” of that connection.

Step 3: Check the “Client for Microsoft Networks”, “File and Printer Sharing for Microsoft Networks”, and

“Internet Protocol (TCP/IP)” are installed or not. If not, please install those communication protocols.

If you use other operating system, such as Linux, X-window or Mac OS, please refer to original manual of your OS to finish the configurations of TCP/IP and other required communication protocols.

2.2.2 Wired Ethernet Connection

Use one Ethernet cable to connect the AirLive WMU-6500FS and your computer directly. Then power on the AirLive WMU-6500FS.

Ethernet cable

The AirLive WMU-6500FS will detect automatically if there is any DHCP server nearby. If yes, it will get an IP address from DHCP server. But if there is no DHCP server in your environment, the AirLive WMU-6500FS will become a DHCP server, and assign IP address to your computer. You can get some information as below shown.

Then go to command prompt mode from Start Menu->Programs-> Accessories, and type “ipconfig”. If the IP address and subnet mask are shown 0.0.0.0, please type “ipconfig /renew” to retrieve an IP address.

12	AirLive WMU-6500FS User’s Manual

In addition, you can also allocate a static IP address on your computer as below:

Step 1: Find the Internet Protocol (TCP/IP) Properties from My Network Places and check the Properties of Local Area Network Connection. Choose “Use the following IP address”, and assign one IP address which can be from 192.168.123.1 to 192.168.123.253. Here we use the 192.168.123.88 as the IP address. The Subnet mask must be 255.255.255.0, and the Default gateway must be 192.168.123.254. Then click “OK” button to complete TCP/IP setup.

NOTE. The IP address of default gateway must be same as IP address of AirLive WMU-6500FS.

Step 2: Then go to command prompt mode from Start Menu->Programs-> Accessories. Type “ipconfig” and press the “Enter”. Then the following message should be found. Check the IP address, Subnet Mask, and Default Gateway addresses are same as previous settings. If same, you are successful to setup the network configuration.

13	AirLive WMU-6500FS User’s Manual

There are three methods to configure AirLive WMU-6500FS. Please refer to the following instructions, and choose one which is most convenient to you.

Method 1: Use Configuration Tool to Setup

Before you can do this, you need to install the configuration tool from installation CD first. After that, please use the configuration tool to “Query” and you will see the status page and input “airlive” to login.

NOTE. The default login password is “airlive”.

If there is any DHCP server in the network, AirLive WMU-6500FS will be as the client and get one IP address from existed DHCP server. You can also use configuration utility to Query to find the IP address that AirLive WMU-6500FS gets.

About other operating systems, such as Linux X-window or Mac OS, please use web browser to configure.

Method 2: Use Web Browser to Setup

Launch any web browser, such as Internet Explorer or Netscape on your computer, and then input IP address of AirLive WMU-6500FS in the address field. For an example, type “http://192.168.123.254” and press “Enter”, then you can see the configuration page of AirLive WMU-6500FS

NOTE. You have to know the IP address of AirLive WMU-6500FS when you use this method. The default IP address is “192.168.123.254”.

14	AirLive WMU-6500FS User’s Manual

Method 3: Use “My Network Places” to Search and Setup

First, go to My Network Places and search “airlive_Storage”.

NOTE. The default host name of AirLive WMU-6500FS is “airlive_Storage”.

Double click on “samba server (airlive_Storage)”, and you will see two folders. Then double click the folder “Configure”.

You can find there is a “Configure.html” in the folder, just double click on “Configure.html” directly to see configuration page.

2.2.3 Wireless Connection

Follow the steps below to connect to the AirLive WMU-6500FS in a wireless environment. We assume that there is at

15	AirLive WMU-6500FS User’s Manual

least one WLAN card installed on your computer, and AirLive WMU-6500FS is powered on.

Step 1: Enabling the WLAN card first, and check the Wireless f Connection properties from My Network Places.

Step 2: Select the Wireless Networks icon after entering the “Wireless Network Connection Properties”. You will find the airlive_Storage in the available network list, then select the airlive_Storage, and click Connect button to connect. Otherwise, if you can’t find airlive_Storage, please refresh network list again.

NOTE. The default network name(SSID) of AirLive WMU-6500FS is “airlive”.

Step 3: Then go to command prompt mode from Start Menu->Programs-> Accessories. Type “ipconfig” in the command prompt window and press the “Enter”. Then the messages of IP address, Subnet Mask, and Default Gateway should be found.

Step 4: After you connect to AirLive WMU-6500FS successfully, you can use method 1~3 that have been described in section 2.2.2 to configure AirLive WMU-6500FS.

WARNING:

We strongly recommended that you enable wireless encryption feature, or add User Access rules on AirLive WMU-6500FS. Otherwise, everyone can connect to it wirelessly and access data which is stored in your hard drive.

2.3 File sharing

The AirLive WMU-6500FS can be a shared network hard drive in an existing wireless or wired network environment. The users in the same network area can read or write data from the device as required. The following various steps are for users to start using the network hard drive.

16	AirLive WMU-6500FS User’s Manual

2.3.1 Accessing the network hard drive via my network places

Select the “My Network Places” and type the address of “\\airlive_Storage” and press “Enter”. Then you will find the

Storage icon.

Click the “Storage” icon, and you will find the “C” folder as below. The folder “C” is the root directory of attached hard disk drive.

NOTE. The other folder “USB” is the root directory of attached USB drive.

2.3.2 Searching the computers

Open “My Computer” on the desktop menu, and use the “Search” function to search the computer of “airlive_Storage” as below.

2.3.3 Search the “Entire Network” Manually

Open Windows Explorer, and then click the My Network Places icon. Double click the Entire Network to view the components of the network. Select and click the Microsoft Windows Network icon, then the various network components showed in the list. The default workgroup of AirLive WMU-6500FS is Mshome.

17	AirLive WMU-6500FS User’s Manual

2.3.4 Accessing Files via FTP

The AirLive WMU-6500FS offers FTP service for the clients which don’t support Microsoft Windows File sharing. You can use any FTP client utility to connect to AirLive WMU-6500FS with anonymous username and password (username: ftp, and without password) when the Security Level is set to “Guest mode”. But if you change to “Authorization mode”, the accessing permission is limited, and then users have to input specified username and password to access any permitted folders. The rule of access control would be explained in much detail in chapter 4. NOTE. The FTP service of AirLive WMU-6500FS can be switched off.

18	AirLive WMU-6500FS User’s Manual

Chapter 3: Making Configuration

The AirLive WMU-6500FS can be configured various settings through the proprietary Configuration Tool or general web browser. Even you don’t know which IP is being used by AirLive WMU-6500FS, the Configuration Tool will help you to find it. All you have to do is click the “Query” button of the Configuration Tool.

NOTE. You need to know the IP address of AirLive WMU-6500FS if you want to configure it by web browser. The default IP address of AirLive WMU-6500FS is 192.168.123.254.

When you enter the configuration mode, you are requested to provide the “System Password” to activate the configurations. The default login password is “airlive”.

After login, you could see these buttons:

Press “Wizard” button if you want to do basic settings with simpler way. (Please check section 3.1)

Press “General” button if you want to make some advanced settings. (Please check each item from section 3.2) Press “Logout” button if you don’t want to do anything.

3.1 Configuration Wizard

19	AirLive WMU-6500FS User’s Manual

With wizard setting steps, you could configure AirLive WMU-6500FS in a very simple way. This configuration wizard includes settings of Language, IP & DHCP, Wireless, Time, and Disk. Press “Next” button to start configuration.

Step 1: Select which language will be used for folder/file name in the hard disk. Incorrect language setting may cause folder/file name unreadable.

Step 2: If you don’t know how to set DHCP option, just keep it as Auto.

20	AirLive WMU-6500FS User’s Manual

If you choose Server/Auto/Static mode, you need to set some TCP/IP settings for AirLive WMU-6500FS. If you are not sure about these values, please ask your network administrator or ISP.

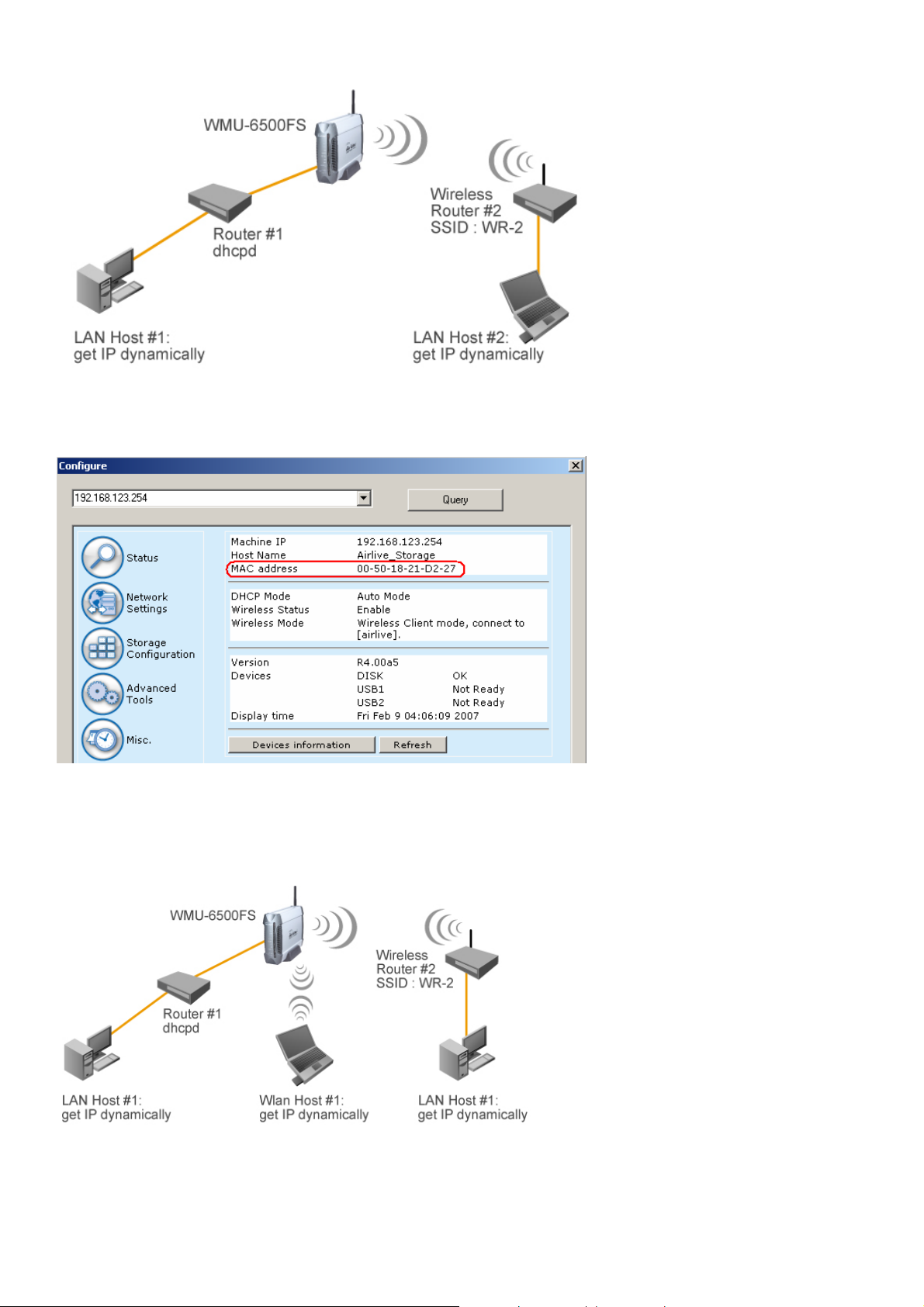

Step 3: Choose which wireless mode that you want to use. You can also disable wireless feature of AirLive WMU-6500FS.

If you choose AP Only Mode, in next page, you could specify the SSID and the wireless channel number for AirLive WMU-6500FS.

21	AirLive WMU-6500FS User’s Manual
