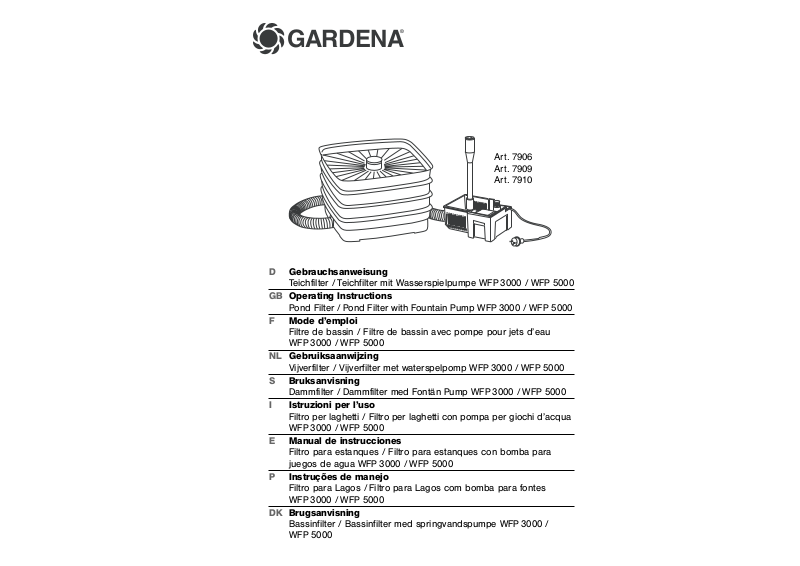

GARDENA

®

Art. 7906
Art. 7909
Art. 7910

D Gebrauchsanweisung

Teichfilter / Teichfilter mit Wasserspielpumpe WFP 3000 / WFP 5000

GB Operating Instructions

Pond Filter / Pond Filter with Fountain Pump WFP 3000 / WFP 5000

F Mode d’emploi

Filtre de bassin / Filtre de bassin avec pompe pour jets d’eau
WFP 3000 / WFP 5000

NL Gebruiksaanwijzing

Vijverfilter / Vijverfilter met waterspelpomp WFP 3000 / WFP 5000

S Bruksanvisning

Dammfilter / Dammfilter med Fontän Pump WFP 3000 / WFP 5000

I Istruzioni per l’uso

Filtro per laghetti / Filtro per laghetti con pompa per giochi d’acqua
WFP 3000 / WFP 5000

E Manual de instrucciones

Filtro para estanques / Filtro para estanques con bomba para
juegos de agua WFP 3000 / WFP 5000

P Instruções de manejo

Filtro para Lagos / Filtro para Lagos com bomba para fontes
WFP 3000 / WFP 5000

DK Brugsanvisning

Bassinfilter / Bassinfilter med springvandspumpe WFP 3000 /
WFP 5000

13

G

GARDENA Pond Filter /
Pond Filter with Fountain Pump WFP 3000 /
WFP 5000

Welcome to GARDENA aquamotion ...

Part I: Operating Instructions for Pond Filter
Part II: Operating Instructions for Pumps WFP 3000/5000

Part I: Operating Instructions for Pond Filter

Please read these operating instructions carefully and observe
the notes given.
Use the instructions to familiarise yourself with the equipment,
the operating controls, their correct use, and the notes on safety.

For safety reasons, children under 16 as well as persons not
familiar with these operating instructions should not use these
Pond Filters.

v Keep these operating instructions in a safe place.

1. Where to Use Your Pond Filter

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3. What You Should Know About Ponds and Filters

. . . . . . . . . . . . 14

4. How the Pond Filter Works

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5. Using the Pond Filter for the First Time . . . . . . . . . . . . . . . . . . . . . 15

6. Pond Filter Maintenance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7. Trouble-Shooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

8. Storing the Pond Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

9. Service

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

1. Where to Use Your Pond Filter

The GARDENA Pond Filter is designed exclusively for use in gar­den ponds in private, domestic gardens. It is intended for cleaning
ponds either with or without fish.

The Pond Filter must not be used for industrial applications and
in conjunction with chemicals, food, flammable and explosive
substances.

Contents of instructions
for Pond Filter

Intended purpose

Attention

Please note

2. For Your Safety

Position the Pond Filter in the garden pond so that the Pond
Filter is completely covered by water.

Please comply with local noise protection regulations.

Positioning
the Pond Filter

Comply with noise
protection regulations

Cleaning the Pond Filter:

15

G

14

G

3. What You Should Know About Ponds and Filters

Garden ponds are not as deep as natural water features.The lack
of depth means that a garden pond heats up and cools down
much more quickly. These changes in temperature and environ­mental factors such as fertilisers, plant residues etc., are among
the main causes of excess levels of nutrients and hence of growth
of algae.

In garden ponds the density of fish stock per cubic meter is usually
higher than in natural ponds. As the fish usually also receive more
food than in their natural environment, the amount of pollution due
to excrement is very high.

Excess growth of algae, as well as the high level of pollution due
to fish excrement causes a lack of oxygen in your pond; its bio­logical balance has been disturbed.

➔ Problem : the level of nutrients in your pond is too high.
The most effective solution to this problem is to decrease the
level of nutrients available by means of a biological process and
to remove excess nutrients while at the same time increasing
the oxygen supply.

The growth of algae can be restricted by installing a filter. Floating
substances (e.g. floating algae), which cause the water to be
murky, are filtered out and the water is purified. This helps the
pond to regain its biological balance. However, existing algae (e.g.
thread algae) visible at the time of installation must be skimmed off
(e.g. with the GARDENA combisystem Pond Net, Art. No. 7933).

4. How the Pond Filter Works

!

Water inlet

Connection for connecting the hose to the pump in the pond.

"

Mechanical coarse filtering

Large particles of dirt are filtered out of the water by the
foam filtering elements.

§

Mechanical fine filtering with Zeolith

GARDENA Zeolith increases the surface area for more
efficient cleaning.

$

Second connection

For connecting two Pond Filters in parallel (the second
connection is sealed with a plug at the factory).

Excess growth of algae –
murky pond

High density of fish stock

Decrease the level of
nutrients and increase
the oxygen supply

Installing a filter

5. Using the Pond Filter for the First Time

1. Screw the hose clockwise onto the thread G 3/4 (26,5 mm)
of the pump.

2. Screw the hose clockwise onto the thread G 3/4 (26,5 mm)
of the Pond Filter.

3. Position the Pond Filter and Pump in the garden pond so that
the Pond Filter and basket of the pump are completely covered
by water.

You can fill the pump basket with stones to make the pump
more stable.

You can achieve the best cleaning results by using your Pond
Filter in the dirtiest area of the pond.

We recommend using two filters for ponds larger than 16 m

3

with slightly dirty water or for ponds larger than 8 m3with very
dirty water (ponds containing fish).

Operating two filters in parallel:

1. Screw another hose clockwise onto the second connection
of the first Pond Filter.

2. Screw the other end of the hose onto the connection of the
second Pond Filter.

Operating two filters in series:

1. Press out the cap

a

of the lower Pond Filter from the inside.

2. Remove the lowest part of the filter bfrom the top Pond Filter.

3. Position the second Pond Filter on top of the first Pond Filter.

6. Pond Filter Maintenance

The GARDENA Pond Filter is largely maintenance-free.
However, it may require cleaning from time to time.

1. Unplug the pump from the mains.

2. Remove the Pond Filter from the pond.

3. Unscrew the hose clockwise.

4. Empty the Pond Filter completely.

5. Press in both clips

1

at the same time and remove the top

part of the filter.

6. Remove all other parts of the filter in the same way.

7. Remove the foam filter elements

2

from the filter and rinse

under running water.

8. Also clean the round foam filter element

3

under running water.

9. Remove the Zeolith

4

from the bottom part of the filter and

clean (using saltwater, for example).

10. Reassemble the Pond Filter in the opposite order.

11. Screw the hoses back onto the Pond Filter and position in

the pond (see “Using the Pond Filter for the First Time –
Initial Operation”).

To ensure the zeolith functions correctly, we recommend you
replace or clean it every 6 months (e.g. in salt water).

GARDENA Zeolith, 1 l Art. No. 7914
GARDENA Zeolith, 5 l Art. No. 7915

$

!

"

§

a

b

Initial operation:

Second filter:

2

3
4

1

Contents of instructions
for Pump

17

G

16

G

Intended purpose

Attention

2. For Your Safety

The pump should be operated via a residual current device
with a residual current rating of ≤ 30 mA (DIN VDE 0100-702
and 0100-738). The pump must be placed on solid, even ground.
Please ask your electrician for his advice.

Mains power cables should not have a smaller cross-section
than a rubber sheathed cable of the designation H05 RNF.
Extension cables must meet the requirements of DIN VDE 0620.

In Austria power cables should correspond to ÖVE-EM 42,
T 2 (2000) /1979 § 22 according to § 2022.1. According to this
standard pumps used in swimming pools and ponds should only
be operated via an isolating transformer. Please contact your
electrician.

In Switzerland mobile appliances which are used outdoors,
must be connected via a residual-current device.

Before operating the pump, look to see if there is any damage
of the pump (esp. regarding power cable and plug). A damaged
pump must not be used. In case of damage, please have the
pump checked by our GARDENA Service Centre or by an autho­rised electrician.

Check line voltage. Data indicated on the type plate must match
technical data of the mains supply.

The pump must not be operated when there are people in the
water.

Swimming pools and garden ponds should be designed accord­ing to international and national design regulations. Please
consult a professional electrician.

Do not use the power cable to carry the pump or to pull the plug
out of the socket. Protect the power cable from heat, oil and
sharp edges.

Please unplug the pump after operation and before carrying out
any maintenance works.

The temperature of the liquid used must not be below 4°C or
above 35°C.

Sand and other abrasive substances in the liquid cause in­creased wear and reduce the output of the pump.

Please observe the local noise prevention regulations.

Operating the pump

Mains power cables

For Austria

For Switzerland

Visual check

Check line voltage

Do not operate pump
when there are people
in the water

Swimming pools
and garden ponds

Do not use power cable
to carry the pump

Disconnect plug

Temperature of the liquid
used

Wear and reduced output

Observe local noise
prevention regulations

1. The Applications Range of the GARDENA Fountain Pump

GARDENA Fountain Pumps have been designed for private use.
They are not designed for operating watering tools and systems.
The pumps may be used indoors as well as outdoors.

GARDENA Fountain Pumps have not been designed for con­stant use in the industrial sector. Corrosive, easily combustible,
aggressive or explosive substances (e.g. petrol, petroleum, nitro
thinner) as well as salt-water or food / drinking water must not
be pumped.

7. Trouble-Shooting

Problem Probable cause Remedy

Water is not clear. The floating material in the v Remove algae and leaves

pond is brown and sinks to from the pond, e.g. using
the bottom. the GARDENA combi-

system Pond Net, Art. 7933.

The pond is extremely dirty 1. Check the nitrate level,
and full of excess nutrients. e.g. using the GARDENA

Pond Test Set, Art. 7920.

2. If necessary, replace the wa­ter and clean the pond shell.

Excess density of fish As a guideline for fish stock
and animal stock. the following rule applies:

maximum length of fish 60 cm
in 1m3of pond water.

If you have any problems with your Pond Filter, please contact our Service.

8. Storing the Pond Filter

1. Remove the Pond Filter from the pond, unscrew the hose
clockwise and empty the Pond Filter completely.

2. Store the Pond Filter away from frost.

Wintering:

Part II: Operating Instructions

for Fountain Pump WFP 3000 / 5000

Please read these operating instructions carefully and observe
the notes given. Use the instructions to familiarise yourself with
the equipment, the operating controls, their correct use, and the
notes on safety.

For safety reasons, children under 16 as well as persons not
familiar with these operating instructions should not use these
pumps.

v Keep these operating instructions in a safe place.

1. The Applications Range of the GARDENA

Fountain Pump

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3. Applications: Examples – System extensions –

Product Recommendations

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4. Using Your Pump for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5. Pump Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6. Storing the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

7. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9. Service

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

1

2

3

4

Where to store

Blocked feed impeller

Pay attention to
minimum water depth

Installing
the pump:

Adjusting fountain:

Starting the pump

Water
Bell Cascade

19

G

18

G

Adaptable lamps

Remote control

Information

3. Applications:
Examples – System extensions – Product Recommendations

➔ Example for application:

Underwater lighting of water jets and pond edges.

➔ Products:
GARDENA Underwater Light Art. No. 7951
GARDENA

lightline

Transformers

➔ Example for application:

For operating water jets from the comfort of your patio or
your living room.

➔ Products:
GARDENA Remote Control Set Art. No. 7874
GARDENA Remote Control Socket Art. No. 7875

.

Always unplug the pump first before working on it.

.

Follow the Safety and Assembly Information attached to the
operating instructions.

4. Using the Pump for the First Time

Please note the maximum submersion depth (see “Technical Data”).

1. Place the pump in the tank.

2. Position the pump on a firm surface so that the upper edge
of the basket is completely covered by water.

3. Screw the fountain onto the throttle valve.

4. Screw the fountain with throttle valve onto the pump.

1. Screw the fountain insert you want to install (either Water Bell
or Cascade) into fountain.

2. Screw throttle valve on pump anti-clockwise (approx. one turn)
until fountain is adjusted to correct position.

3. Only if installing Water Bell:
Screw Water Bell fountain insert into fountain until Waterbell
creates the shape you want.

Connect the power cable to a 230 V AC socket.

A Caution! Pump will start running immediately!

Avoid dry operation of the pump as dry running will produce
undesirable heat and destroy the pump.

5. Pump Maintenance

The tank and pump must be free of dirt.

1. Unplug the pump from the mains.

2. Remove the pump from the water.

3. Rinse the pump and tank with a jet of water.

Information: Do not use any hard objects or strong detergents!

1. Unplug the pump from the mains.

2. Remove the pump from the water.

3. Unscrew the hose clockwise from the threaded adapter.

4. Raise the pump slightly, twist and remove upwards.

5. Screw the pump housing

1

anticlockwise as far as it

will go and remove (do not tilt).

6. Pull the rotating unit 2out of the motor housing 4.

7. Remove all dirt deposits from the parts of the pump.

8. Insert the seal 3into the groove of the motor housing 4.

9. Push the rotating unit

2

back into the motor housing 4.

10. Fit the pump housing 1ensur­ing that the threaded adapter
is in a horizontal position and
then screw the housing down
(pay attention to the markings).

6. Storing the Pump

A The pump should be stored out of the reach of children.

1. Remove the pump from the pond and store away from frost
before the first frost sets in.

2. Clean and check the pump carefully.

3. Store the pump in a container filled with water.

The mains plug must not be submerged.

7. Trouble-Shooting

If the feed impeller becomes blocked, the pump and the filter
should be cleaned (see “Pump Maintenance”).

If you have any problems with your Pump, please contact our
Service.

Cleaning the pump
and tank:

Removing dirt deposits
from the pump:

Avoid dry operation

21

G

20

G

We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our units
if it is due to improper repair or if parts exchanged are not original
GARDENA parts or parts approved by us, and, if the repairs were
not carried out by a GARDENA Service Centre or an authorised
specialist. The same applies to spare parts and accessories.

Product liability

Guarantee

8. Technical Data

Type WFP 3000 WFP 5000
Art. No. 7909 7910

Rated power 7.5 W 9.5 W
Flow 16.5 l/min 30.5 l/min
Max. delivery head 1.6 m 2.0 m
Max. submersion depth 1.0 m 1.0 m
Power cable 10 m H05 RNF 10 m H05 RNF
Fitting 26,5 mm (G 3/4) male thread 26,5 mm (G 3/4) male thread
Max. media temperature 35°C 35 °C
Mains voltage 230 V 230 V
Frequency 50 Hz 50 Hz

Noise level L

WA

1)

48 dB(A) 48 dB(A)

1) Measuring method according to EN 60335-1

Performance characteristics

EU Certificate of Conformity

The undersigned
GARDENA Kress + Kastner GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm
hereby certifies that, when leaving our factory, the units indicated below are in accordance with the

harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the units are modified without our approval.

m

2,5

2,0

1,5

1,0

0,5

0

0 10203040

l/ min

bar

0,25

0,2

0,15

0,1

0,05

WFP 3000

WFP 5000

9. Service

GARDENA guarantees this product for 12 months (from date of
purchase). This guarantee covers all serious defects of the unit
that can be proved to be material or manufacturing faults. Under
warranty we will either replace the unit or repair it free of charge
if the following conditions apply:

• The unit must have been handled properly and in keeping with
the requirements of the operating in-structions.

• Neither the purchaser or a non-authorised third party have
attempted to repair the unit.

Parts subject to wear (e.g. rotating unit) are excluded from this
guarantee.

This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer/seller.

If you have any problems with your Fountain Pump, please con­tact our Service or return the defective unit together with a short
description of the problem – in case of guarantee, with a copy
of the receipt – postage paid to one of the GARDENA Service
Centres listed on the back of this leaflet.

Description of the units: Fountain Pumps
Type: WFP 3000 / WFP 5000
Art. No. : 7909 / 7910
EU directives: Machinery Directive 98/ 37/EC

Electromagnetic Compatibility 89/336/EC
Low Voltage Directive 73/23/EC
Directive 93/68/EC

Harmonised
European standards: EN 292-1 Ulm, 20.11.2000

EN 292-2
EN 60335-1
EN 60335-2-41

Year of CE marking: 2000 Thomas Heinl

Technical Dept. Manager

Deutschland

GARDENA Kress + Kastner GmbH
GARDENA Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen: (07 31) 490 - 123
Reparaturen: (07 31) 490 - 290

Argentina

Argensem S.A.
Venezuela 1075
(1618) El Talar - Buenos Aires

Australia

NYLEX Corporation Ltd.
25-29 Nepean Highway
P.O. Box 68
Mentone, Victoria 3194

Austria

GARDENA Österreich Ges. m.b.H.
Stettnerweg 11-15
2100 Korneuburg

Belgium

MARKT (Belgium) NV/SA
Sterrebeekstraat 163
1930 Zaventem

Brazil

M. Cassab
Av. das Nações Unidas, 20.882
Santo Amaro, CEP 04795-000
São Paulo - S.P.

Bulgaria / България

ДЕНЕКС ООД
бул. „Черни връх“ 43
София 1407

Canada

GARDENA Canada Ltd.
100, Summerlea Road
Brampton, Ontario
Canada L6T 4X3

Chile

Antonio Martinic Y CIA. LTDA.
Gilberto Fuenzalida 185 Loc.
Las Condes - Santiago de Chile

Costa Rica

Compania Exim
Euroiberoamericana S.A.
350 Sur del Automercado
Los Yoses
San Pedro

Cyprus

FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia

Czech Republic

GARDENA spol. s.r.o.
Ripská 20
62700 Brno

Denmark

GARDENA Danmark A/S
Naverland 8
2600 Glostrup

Finland

Habitec Oy
Martinkyläntie 52
01720 Vantaa

France

GARDENA France
Service Après-Vente
BP 50080
95948 ROISSY CDG Cedex

Great Britain

GARDENA UK Ltd.
27- 28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne
NE13 6DS

Greece

Agrokip G. Psomadopoulos & Co.
20, Lykourgou str.
Kallithea - Athens

Hungary

GARDENA Magyarország Kft.
Késmárk utca 22
1158 Budapest

Iceland

Heimilistaeki hf
Saetun 8
P.O. Box 5340
125 Reykjavik

Republic of Ireland

Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12

Italy

GARDENA Italia S.r.l.
Via Donizetti 22
20020 Lainate (Mi)

Japan

KAKUDAI Mfg. Co. Ltd.
1-4-4, Itachibori Nishi-ku
Osaka 550

Luxembourg

Magasins Jules Neuberg
Grand Rue 30
Case Postale No. 12
Luxembourg 2010

Netherlands

MARKT (Holland) BV
Postbus 219
1380 AE Weesp

Neth. Antilles

Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao

New Zealand

NYLEX New Zealand Limited
Private Bag 94001
South Auckland Mail Centre
10 Offenhauser Drive
East Tamaki, Manukau

Norway

GARDENA Norge A/S
Postboks 214
2013 Skjetten

Poland

GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha

Portugal

MARKT (Portugal), Lda.
Recta da Granja do Marquês
Edif. GARDENA
Algueirão
2725-596 Mem Martins

Russia / Россия

АО АМИДА ТТЦ
ул. Моcфилмовcкая 66
117330 Моcква

Singapore

Variware
Holland Road Shopping Centre
227-A 1st Fl., Unit 29
Holland Avenue
Singapore 1027

Slowenia / Croatia

Silk d.o.o. Trgovina
Brodišče 15
1236 Trzin

South Africa

GARDENA South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686

Spain

ANMI Andreu y Miriam S.A.
Calle Pere IV, 111
08018 Barcelona

Sweden

GARDENA Svenska AB
Box 9003
20039 Malmö

Switzerland

GARDENA Kress + Kastner AG
Bitziberg 1
8184 Bachenbülach

Ukraine / Украина

АОЗТ АЛЬЦЕСТ
ул. Гайдара 50
г. Киев 01033

Turkey

Dost Diþ Ticaret Mümessillik A.Þ.
Yeþilbaðlar Mah. Baþkent
Cad. No. 26
Pendik - Ýstanbul

USA

GARDENA
3085 Shawnee Drive
Winchester, VA 22604

7906- 20.960.02 /0011

GARDENA Kress + Kastner GmbH
Postfach 27 47, D-89070 Ulm
http: //www.gardena.de

T305 512650 / Id.23701 / 03 J
