RADEON™ 9200 FSC Series
User’s Guide
P/N 137-40465-10
Copyright © 2003, ATI Technologies Inc. All rights reserved.
ATI and all ATI product and product feature names are trademarks and/or registered trademarks of ATI Technologies Inc. All other company and/or product names are trademarks and/or registered trademarks of their respective owners. Features, performance and specifications are subject to change without notice. Product may not be exactly as shown in the diagrams.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of ATI Technologies Inc. is strictly prohibited.
Disclaimer
While every precaution has been taken in the preparation of this document, ATI Technologies Inc. assumes no liability with respect to the operation or use of ATI hardware, software or other products and documentation described herein, for any act or omission of ATI concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the ATI hardware, software, or other products and documentation provided herein.
ATI Technologies Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design. With respect to ATI products which this document relates, ATI disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
Product Notice
MACROVISION
A.Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing users only.
B.In the printed collateral material that accompanies the Product, the following notice must be printed in an appropriate place in such materials:
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
i
Table of Contents |
|
Disclaimer ............................................................................................... |
i |
Product Notice......................................................................................... |
i |
MACROVISION..................................................................................... |
i |
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
1 |
Features At A Glance .................................................................................. |
2 |
RADEON 9200 FSC Series ................................................................... |
2 |
ATI’s Catalyst™ Software Suite ................................................................ |
3 |
Multiple Displays and 3D Gaming Experience...................................... |
3 |
Direct 3D® and OpenGL® .................................................................... |
3 |
HydraVision™ ....................................................................................... |
4 |
Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . |
5 |
Display Configurations................................................................................ |
6 |
Catalyst™ Software Suite . . . . . . . . . . . . . . . . . . . . . . |
7 |
ATI Displays Tab......................................................................................... |
7 |
Enabling/Disabling Secondary Displays (optional) ............................... |
8 |
Enabling Extended Desktop Mode (optional) ........................................ |
8 |
Dynamic Display Reassignment (optional)............................................ |
8 |
Virtually Repositioning Your Displays (optional) ................................. |
9 |
ATI Color Tab ........................................................................................... |
10 |
ATI Options Tab........................................................................................ |
12 |
ATI Overlay Tab ....................................................................................... |
14 |

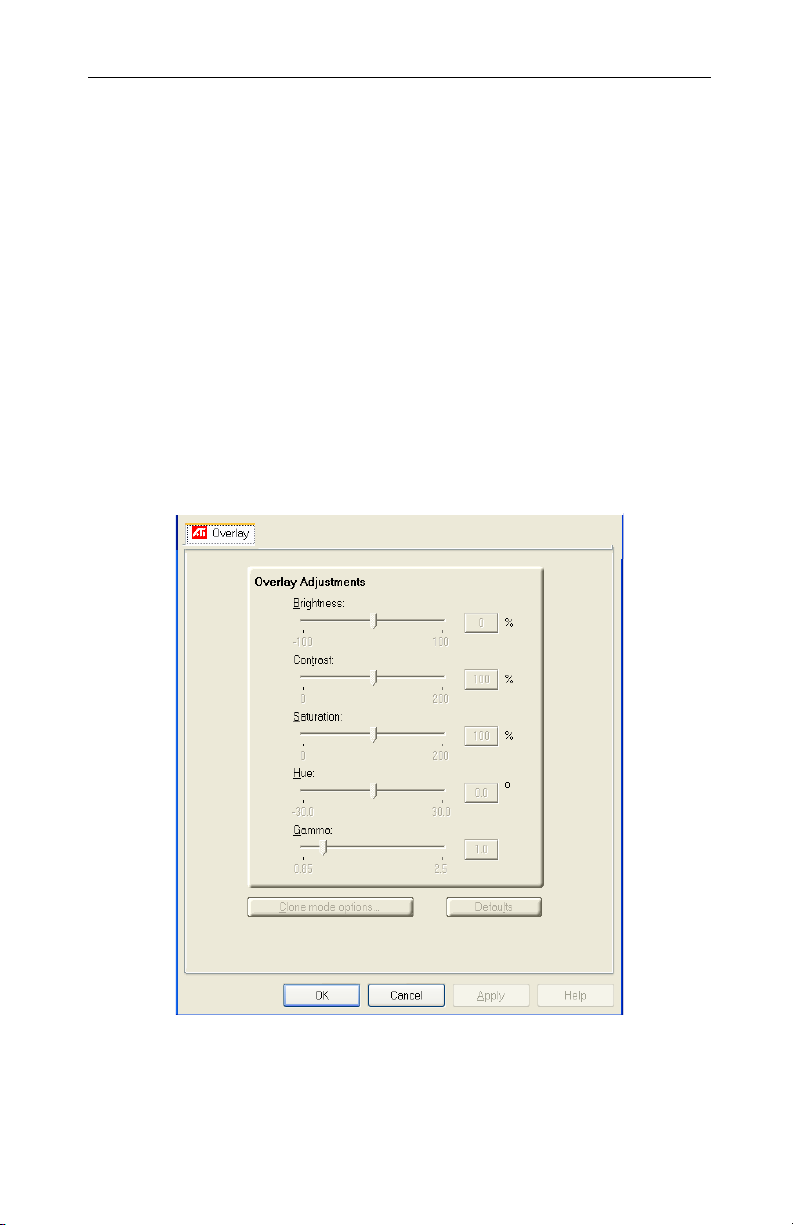

Video Overlay ...................................................................................... |
14 |
Clone Mode Settings ............................................................................ |
15 |
OpenGL® Control Panel . . . . . . . . . . . . . . . . . . . . . . |
17 |
Main and Custom Settings........................................................................ |
17 |
OpenGL® Compatibility Settings............................................................ |
20 |
Direct 3D® Control Panel. . . . . . . . . . . . . . . . . . . . . . |
22 |

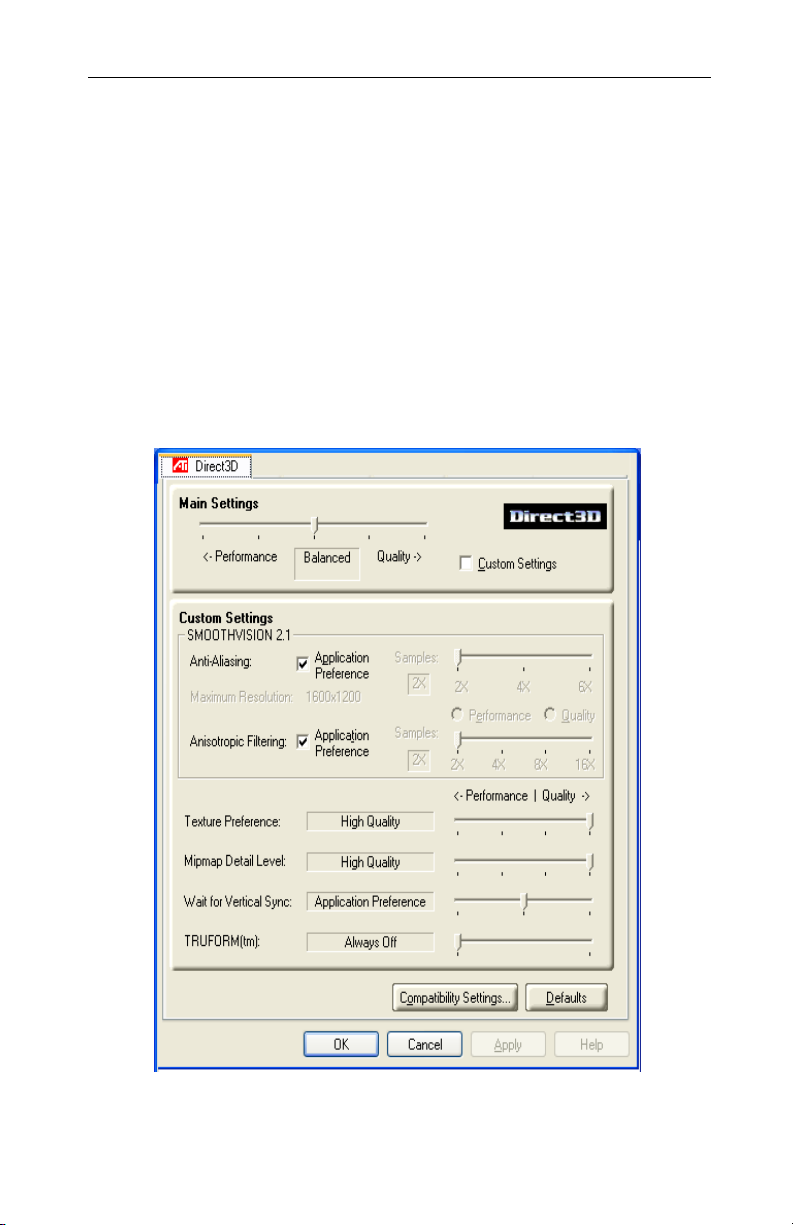

Main and Custom Settings........................................................................ |
22 |

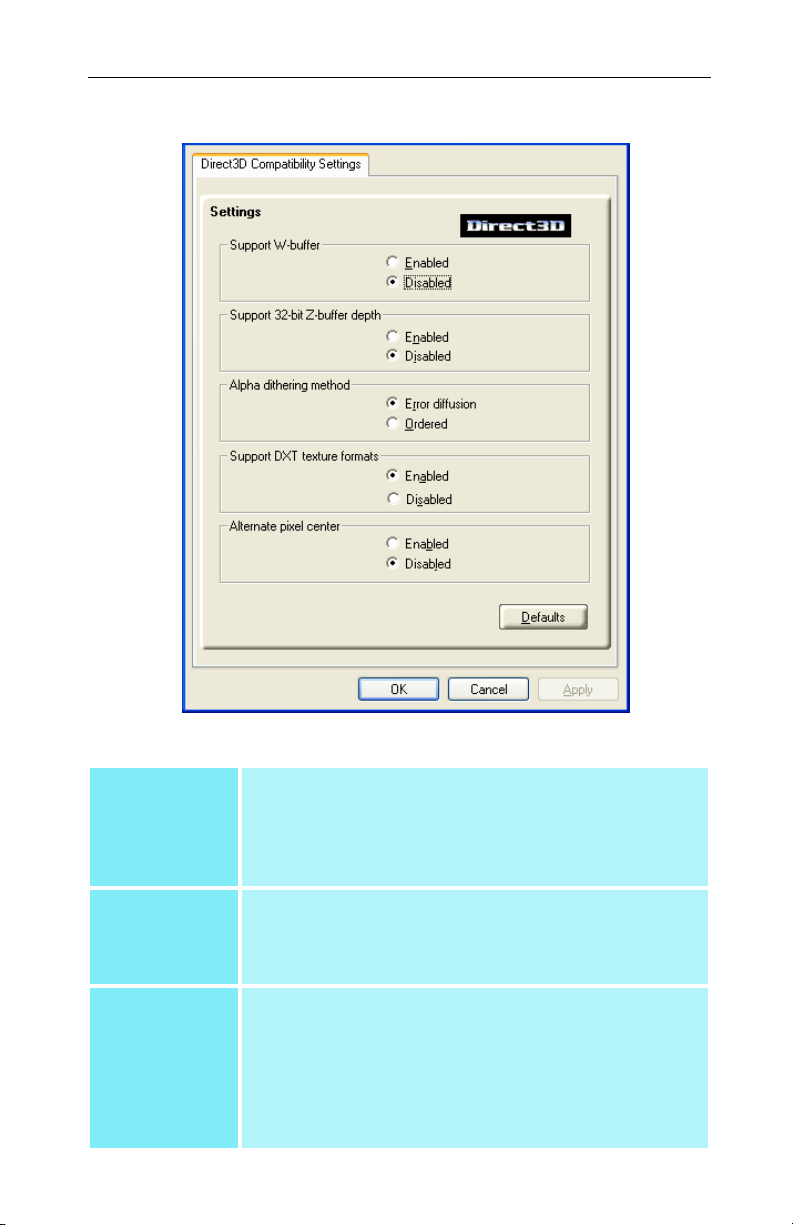

Direct 3D® Compatibility Settings .......................................................... |
25 |
Using TV Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
27 |
View your PC’s display on a TV.......................................................... |
27 |
Connecting to a TV or a VCR .................................................................. |
28 |
Starting Windows® with TV Display Enabled .................................... |
30 |
Using SCART Connectors for European TVs ..................................... |
30 |
How To Enable/Disable The TV Display ............................................ |
31 |
ii |
|
Using and Adjusting TV Out................................................................ |
31 |
How TV Display Cannot Be Used ....................................................... |
31 |
Using a Monitor vs. Using the TV Display.......................................... |
32 |
Adjusting Monitor Display................................................................... |
32 |
Viewing Text on a TV.......................................................................... |
33 |
Reducing Edge Distortion .................................................................... |
33 |
Changing Display Configurations ........................................................ |
35 |
Using Games and Applications ............................................................ |
35 |

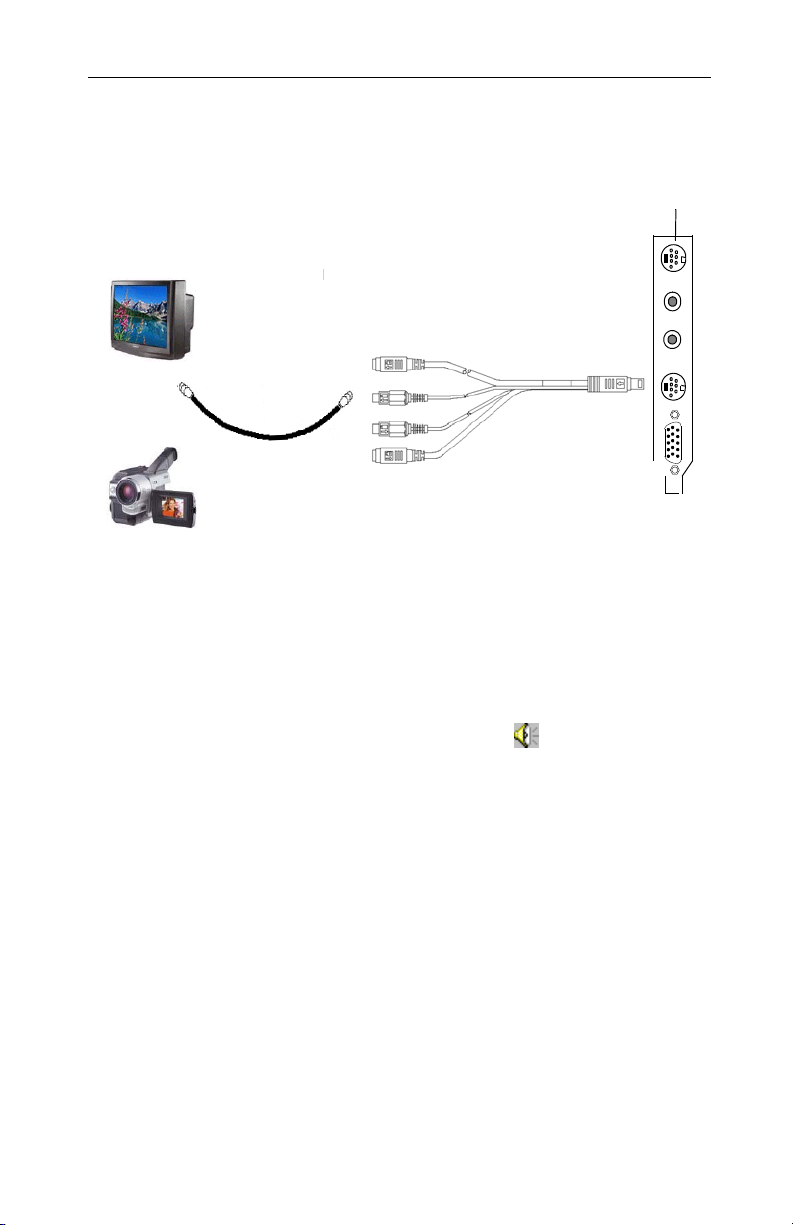

Connect to a TV, VCR, or Camcorder |
|
for video capturing .................................................................................... |
37 |
Windows® Volume Control................................................................. |
38 |
Capturing video using |
|
Windows® Movie Maker..................................................................... |
40 |
iii
1
Introduction
The RADEON™ 9200 FSC Series graphic accelerators delivers ground breaking 3D graphics performance.
•Designed and built by ATI Technologies Inc.
•Powered by the RADEON™ 9200 Series Graphics Processing Units (GPU).
•Awesome 3D gaming performance.
•Support for OpenGL® applications.
•Support for Direct 3D® applications.
•High resolution in 3D up to 2048x1536.
•Best performance for today’s and tomorrow’s applications.
•Supports TV-out to connect your PC to your TV or VCR.
2
Features At A Glance
RADEON 9200 FSC Series
The RADEON 9200 FSC Series provides high performance acceleration for today's demanding 3D graphic applications. Its main features are:
•VIDEO IMMERSION™ II which provides industry-leading DVD playback and digital TV decode capability.
•CHARISMA ENGINE™ II which is the main GPU, providing the necessary power to accelerate today’s 3D games and applications.
•SMARTSHADER™ technology which can realistically create the visual properties of any material, like glass, metal, wood, and produce 3D depth by rendering the object’s shadows.
•SMOOTHVISION™ which provides users with various degrees of jagged edge removal from 3D images, allowing users to configure their own high quality or high performance gaming experience.
•PIXEL TAPESTRY™ II which provides even greater 3D rendering power.
•Dual monitor support (optional).
•TV output support.
3
ATI’s Catalyst™ Software Suite
Multiple Displays and 3D Gaming Experience
ATI’s Catalyst Software Suite provides multiple display functionality for those computers with support for more than one installed monitor, and the advanced graphic features, such as SMARTSHADER, for the ultimate 3D gaming experience. For help on installing the Catalyst™ Software Suite, refer to the Getting Started Guide.
The Catalyst™ Software Suite installs the ATI display tabs. These tabs are accessed through the Windows® Display Control Panel, through the Advanced... button located on the Settings tab. For a detailed explanation of each ATI tab, refer to
Catalyst™ Software Suite on page 7.
Direct 3D® and OpenGL®
The Catalyst Software Suite also supports the latest versions of Direct 3D® and OpenGL®. Many new 3D game titles, and the latest versions of older titles, will virtually come to life as they utilize their advanced Direct 3D® or OpenGL® features. Gamers can fine-tune their settings for the ultimate experience in 3D image quality or 3D gaming performance.
ATI’s Direct 3D® and OpenGL® tabs are available through the Windows® Display Control Panel, through the Advanced... button located on the
Settings tab.
For a detailed explanation of the Direct 3D® and OpenGL® tabs, refer to Direct 3D® Control Panel on page 22, and OpenGL® Control Panel on page 17.
4
HydraVision™ (Optional)
In addition to the multiple display functionality available with ATI’s Catalyst Software Suite for those computers with support for more than one installed monitor, you can also use HydraVision™ for advanced multi-monitor management. For more information on HydraVision, please refer to the
HydraVision User’s Guide PDF located on your ATI Installation CD.
5
Connecting Your Monitor
The RADEON 9200 FSC Series provides hardware support for one VGA monitor. It also provides TV Output via a S-Video out or a Composite out connector.
Plug the monitor cable into your card then turn on the PC and monitor(s).
S-Video |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Composite |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Composite |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VGA |
|
|||||
S-Video |
|
|
|
|
|
|
CONNECTOR |
|
||||||
|
|
|
|
|
|
|
FROM |
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
MONITOR |
|
|||||
STANDARD VGA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MONITOR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CONNECTOR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Or
|
|
VGA |
S-Video |
|
CONNECTOR |
|
FROM |
|
|
|
|
|
|
MONITOR |
STANDARD VGA
MONITOR
CONNECTOR
6
Display Configurations
The following table lists the different ways you can connect displays to your card.
Display |
Connector(s) Used |
Comments |
|
Configuration |
|||
|
|
||
|
|
|
|
One CRT display |
VGA connector |
CRTcathode ray tube analog |
|
display |
|||
|
|
||
|
|
Cards with S-Video out also |
|
|
|
support Composite out via a |
|
|
|
S-Video-to-Composite |
|
One TV |
TV Output |
adapter*. Cards with |
|
|
|
Composite out DO NOT |
|
|
|
support connection to TVs with |
|
|
|
S-Video Input. |
|
CRT display + |
VGA connector + |
|
|
TV |
TV Output |
|
|
|
|
|
7
Catalyst™ Software Suite
The following section provides an explanation of each ATI tab available after installing the Catalyst Software Suite.
Features presented in the following pages may not
i |
be supported in all operating systems and/or may |
appear differently.
ATI Displays Tab
The ATI Displays tab provides the multi monitor features for those computers with support for more than one installed monitor. Here you can enable/disable display devices and swap the assignment of Primary and Secondary displays.
8
Enabling/Disabling Secondary Displays (optional)
1Access the Windows® Control Panel. Doubleclick Display.
2Click on the Settings tab and then the
Advanced... button.
3Click on the ATI Displays tab.
4Click the enable/disable button
for the display device you want to enable/disable.
5Click OK or Apply to save the changes.
Enabling Extended Desktop Mode (optional)
1Access the Windows® Control Panel. Doubleclick Display.
2Click on the Settings tab.
3Click the monitor icon for the display onto which you want to extend your desktop.
4Click Yes to enable the selected display.
5Checkmark the Extend my Windows desktop onto this monitor check box (Windows® may automatically place it there).
6Click OK or Apply to save the changes.
Dynamic Display Reassignment (optional)
You can change the assignment of your Primary and Secondary display on the fly, without rebooting. However, before you can change the assignment of the Primary display, at least one Secondary display must be enabled, and Extended Desktop mode must be enabled.
To enable a Secondary display, refer to the section Enabling/Disabling Secondary Displays (optional).
9
To enable Extended Desktop Mode, refer to the section Enabling Extended Desktop Mode (optional).
1Access the Windows® Control Panel. Doubleclick Display.
2Click on the Settings tab and then the
Advanced... button.
3Click on the ATI Displays tab.
The ATI Displays tab shows you the display(s) that are active. The Primary display has the
button depressed. To change the display assignment, you can click the Primary display’s
button or you can click the
button of the other display device.
4 Click OK or Apply to save the changes.
Virtually Repositioning Your Displays (optional)
1On the Settings tab, click and drag the appropriate monitor icon to the desired position. For example, the secondary display can be dragged to the left of the primary display, allowing it to be virtually on the left, as shown below.
2Click OK or Apply to save the changes.
10
ATI Color Tab
The ATI Color tab is used to adjust the color settings. You can change the red, green and blue display colors. Desktop brightness and Game Gamma (brightness) can also be changed.
ATI Color Tab
Desktop |
This increases or decreases the brightness of your |
|
desktop. The higher the gamma value, the higher the |
||
Brightness |
||
brightness of your display. |
||
|
||
Color Curve |
This adjusts the selected color (red, green or blue check |
|
button) by moving the color curve with your mouse. |
||
|
||

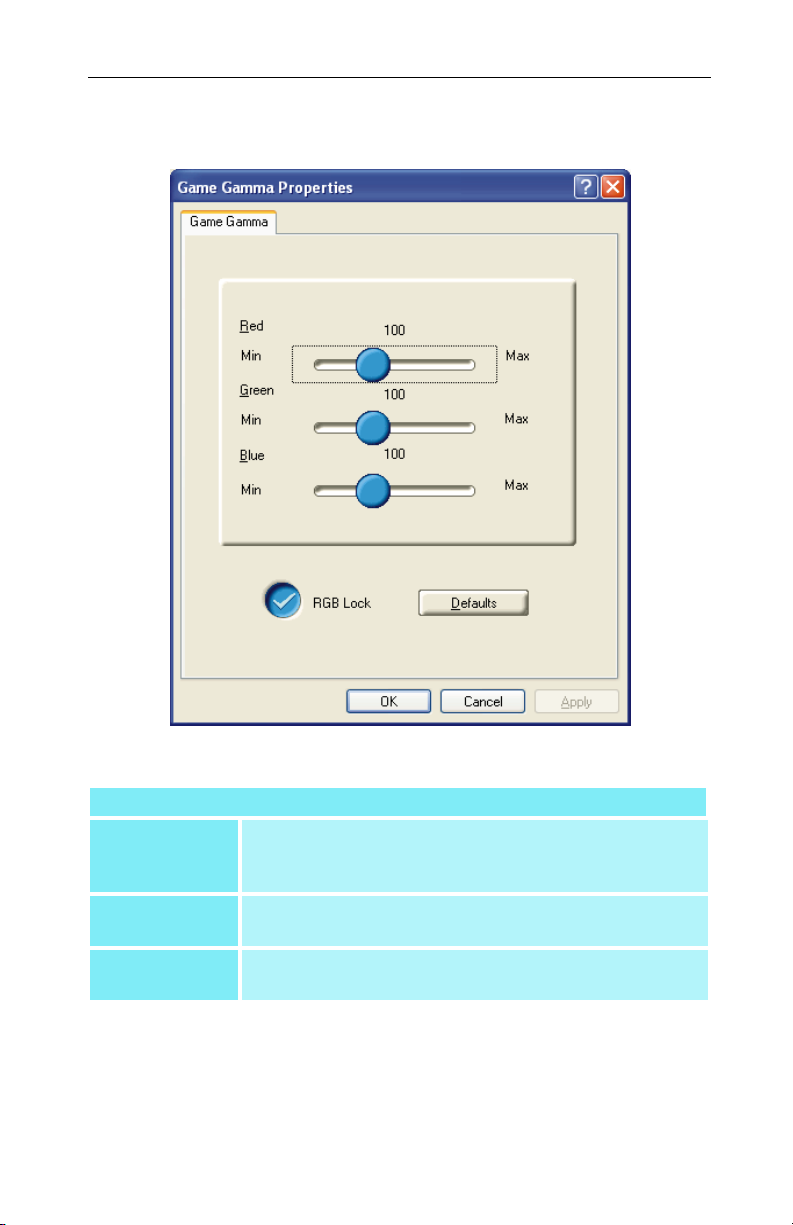

Game Gamma |
This accesses Game Gamma Properties. |
|
button |
||
|
||
Defaults |
This allows you to reset the desktop brightness and |
|
button |
color settings to default values. |
|
|
|
