Bosch 11245EVS User Manual

BM 1619929472 2-05 2/17/05 11:52 PM Page 1

IMPORTANT:	IMPORTANT :	IMPORTANTE:
Read Before Using	Lire avant usage	Leer antes de usar

Operating/Safety Instructions Consignes de fonctionnement/sécurité

Instrucciones de funcionamiento y seguridad

11245EVS

Call Toll Free	Pour renseignement des	Llame gratis para
for Consumer Information	consommateurs et centres	obtener información
& Service Locations	de service, appelez au	para el consumidor y
	numéro gratuit :	ubicaciones de servicio

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

For English	Parlez-vous français?	¿Habla español?
See page 2	Voir page 10	Ver página 18

BM 1619929472 2-05 2/17/05 11:52 PM Page 2

Power Tool Safety Rules

! WARNING Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

Keep your work area clean and well lit.

Cluttered benches and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

Keep by-standers, children, and visitors away while operating a power tool.

Distractions can cause you to lose control.

Electrical Safety

Double Insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double Insulation eliminates the need for the three wire grounded power cord and grounded power supply system. Before plugging in the tool, be certain the outlet voltage supplied is within the voltage marked on the nameplate. Do not use “AC only” rated tools with a DC power supply.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. If operating the power tool in damp locations is unavoidable, a Ground Fault Circuit Interrupter must be used to supply the power to your tool. Electrician’s rubber gloves and footwear will further enhance your personal safety.

Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.

When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W." These cords are rated for outdoor use and reduce the risk of electric shock. Refer to “Recommended sizes of Extension Cords” in the Accessory section of this manual.

Personal Safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Keep handles dry, clean and free from oil and grease.

Avoid accidental starting. Be sure switch is “OFF” before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch “ON” invites accidents.

Remove adjusting keys or wrenches before turning the tool “ON”. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.

Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

Tool Use and Care

Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

Do not force tool. Use the correct tool for your application. The correct tool will do the

-2-

BM 1619929472 2-05 2/17/05 11:52 PM Page 3

job better and safer at the rate for which it is designed.

Do not use tool if switch does not turn it “ON” or “OFF”. Any tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.

Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control. Any alteration or modification is a misuse and may result in a dangerous condition.

Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool

serviced before using. Many accidents are caused by poorly maintained tools. Develop a periodic maintenance schedule for your tool.

Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

Service

Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. For example: internal wires may be misplaced or pinched, safety guard return springs may be improperly mounted.

When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.

Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of electric shock or injury. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Rotary Hammer Safety Rules

Hold tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or it own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator. Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If this situation is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.

Wear ear protectors when using the tool for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.

Use a metal detector to determine if there are gas or water pipes hidden in the work area or call the local utility company for assistance before beginning the operation.

Striking or cutting into a gas line will result in explosion. Water entering an electrical device may cause electrocution.

Always use the side handle for maximum control over torque reaction or kick-back. Never attempt to operate this tool with one hand. The slip clutch engages if you firmly control the tool during a torque reaction or kickback.

Always wear safety goggles or eye protection when using this tool. Use a dust mask or respirator for applications which generate dust. Safety goggles or eye protection will help deflect fragments of the material that may be thrown toward your face and eyes. Dust generated or gases released from the material you are cutting (i.e. asbestos insulated pipes, radon) may cause respiratory difficulties.

Use thick cushioned gloves and limit the exposure time by taking frequent rest periods. Vibration caused by hammer-drill action may be harmful to your hands and arms.

Position the cord clear of rotating bit. Do not wrap the cord around your arm or wrist.

If cord becomes entangled with the spinning bit it could entrap you causing serious personal injury.

Position yourself to avoid being caught between the tool or side handle and walls or posts. Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your hand or leg.

-3-

BM 1619929472 2-05 2/17/05 11:52 PM Page 4

Do not strike the bit with a handheld hammer or sledge hammer when attempting to dislodge a bound or jammed bit. Fragments of metal from the bit could dislodge and strike you or bystanders.

Never place the tool down until the bit or accessory have come to a complete stop.

Do not use dull or damaged bits and accessories. Dull or damaged bits have a greater tendency to bind in the workpiece.

When removing the bit from the tool avoid contact with skin and use proper protective gloves when grasping the bit or accessory.

Accessories may be hot after prolonged use.

Do not run the tool while carrying it at your side. The spinning drill bit may become entangled with clothing and injury may result.

Some dust created by ! WARNING power sanding, sawing,

grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

•Lead from lead-based paints,

•Crystalline silica from bricks and cement and other masonry products, and

•Arsenic and chromium from chemicallytreated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

-4-

BM 1619929472 2-05 2/17/05 11:52 PM Page 5

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol						Name	Designation/Explanation
	V					Volts	Voltage (potential)
	A					Amperes	Current
Hz						Hertz	Frequency (cycles per second)
W						Watt	Power
kg						Kilograms	Weight
min						Minutes	Time
	s					Seconds	Time
						Diameter	Size of drill bits, grinding wheels, etc.
n0						No load speed	Rotational speed, at no load
.../min						Revolutions or reciprocation per minute	Revolutions, strokes, surface speed,
							orbits etc. per minute
0						Off position	Zero speed, zero torque...
1, 2, 3, ...						Selector settings	Speed, torque or position settings.
I, II, III,							Higher number means greater speed
0						Infinitely variable selector with off	Speed is increasing from 0 setting
						Arrow	Action in the direction of arrow
						Alternating current	Type or a characteristic of current
						Direct current	Type or a characteristic of current
						Alternating or direct current	Type or a characteristic of current
						Class II construction	Designates Double Insulated
							Construction tools.
						Earthing terminal	Grounding terminal
						Warning symbol	Alerts user to warning messages
						Ni-Cad RBRC seal	Designates Ni-Cad battery recycling
							program

This symbol designates that this tool is listed by Underwriters Laboratories.

This symbol designates that this tool is listed by the Canadian Standards Association.

This symbol designates that this tool is listed to Canadian Standards by Underwriters Laboratories.

This symbol designates that this tool is listed by Underwriters Laboratories, and listed to Canadian Standards by Underwriters Laboratories.

This symbol designates that

this tool complies to NOM Mexican Standards.

-5-

BM 1619929472 2-05 2/17/05 11:52 PM Page 6

Functional Description and Specifications

! WARNING Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety

measures reduce the risk of starting the tool accidentally.

Rotary Hammer

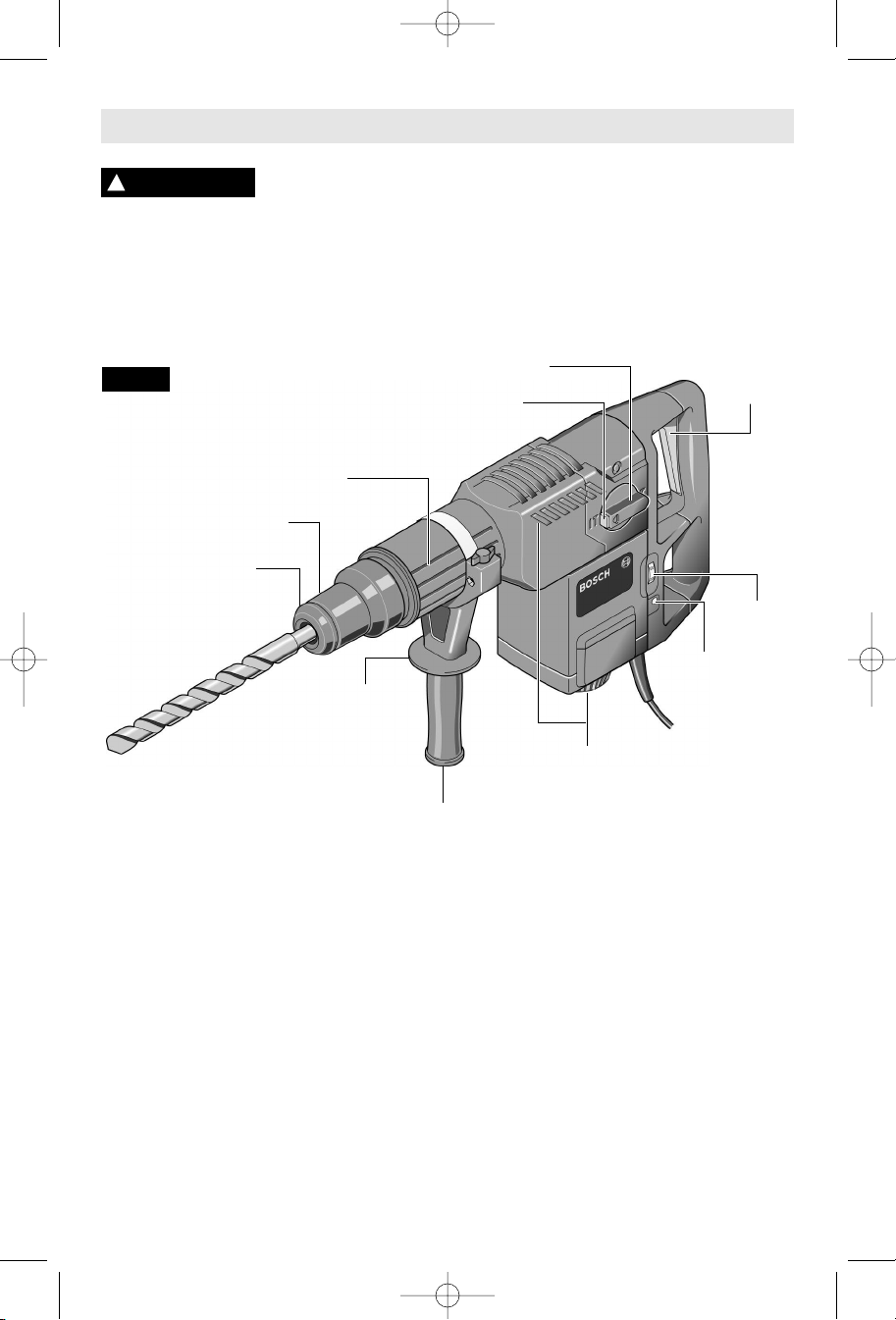

FIG. 1	SELECTOR LEVER
		TRIGGER
	RELEASE BUTTON
		SWITCH

VENTILATION OPENINGS

LOCKING SLEEVE

DUST SHIELD

VARIABLE

SPEED DIAL

SERVICE

REMINDER

AUXILIARY LIGHT

HANDLE

VENTILATION

OPENINGS

HAND GRIP

Model number	11245EVS
Shank style	SDS Max
Maximum Capacities:	2”
Carbide tipped bits
Thin wall core bits	6”

NOTE: For tool specifications refer to the nameplate on your tool.

-6-

BM 1619929472 2-05 2/17/05 11:52 PM Page 7

Operating Instructions

	TRIGGER "ON-OFF" SWITCH	selected impact rate and rotating speed
	To turn the tool “ON” squeeze the trigger	virtually constant between no-load and load
	switch. To turn the tool “OFF”, release the	conditions.
	trigger switch, which is spring loaded and will	INSTALLING ACCESSORIES
	return to the “OFF” position automatically.
		Clean the insert shank end of the accessory
	To increase switch life, do not turn switch on
		to remove any debris, then lightly grease with
	and off while tool is under load.	a light oil or lubricant.

	VARIABLE SPEED DIAL		Insert accessory into the tool holder through
	Your tool is equipped with a variable speed		the dust shield, while twisting and pushing
	dial. The impact rate (BPM) and rotating		inward until it locks automatically into place.
	speed (RPM) can be varied according to the		Pull outward on the accessory to be certain it
	type of work being performed by setting the		is locked into the tool holder (Fig. 2).
	variable speed dial to the selected setting.		NOTE: The high efficiency available from the
	The chart below will help you to determine		rotary hammers can only be obtained if sharp
	which setting to use for your application.
			and undamaged accessories are used. The
	However, a pre-test will determine the best
			"cost" to maintain sharp and undamaged
	speed setting, as the chart is intended only
			accessories is more than offset by the "time
	as a guide. Once the proper setting is
			saved" in operating the tool with sharp
	determined the impact rate and rotating
			accessories.
	speed is kept constant by means of the
			REMOVING ACCESSORIES
	"Electronic Feedback Circuitry". The variable
	speed dial can be adjusted while the motor is		! WARNING	Accessories may be hot after
	running with the tool free from work, allowing			use. Avoid contact with skin
	the operator to adjust the impact rate and		and use proper protective gloves or cloth to
	rotating speed according to the actual		remove.
	application.		To remove an accessory, pull and hold
	CHIPPING (DEMOLITION)		locking sleeve backward and pull bit forward.
	Area of application	Control setting	All accessories should be wiped clean after
			removing.
	Plaster work	1 - 2		FIG. 2
	Removing tiles	3
	Brick work	4
	Concrete	5 - 6
	DRILLING HOLES
	Lower speeds	Higher speeds
	Accurate starts	Faster penetration
	Minimize breakouts
	when the bit exits
	the material.
	ELECTRONIC FEEDBACK CIRCUITRY
	(EFC)		LOCKING SLEEVE
	The internal electronic feedback system
	provides a "soft start", which will reduce the
	stresses that occur from a high torque start.
	The system also helps to keep the pre-
			-7-

BM 1619929472 2-05 2/17/05 11:52 PM Page 8

SELECTOR LEVER

The selector lever allows the tool to be set for various applications as listed in the following chart, (Fig. 3).

When using demolition or chipping bits such as bull points, chisels, spades, gouges, etc. the “Hammer Only” mode must be selected.

SELECTOR LEVER - “VARIO-LOCK”

The vario-lock can be set in any one of twelve positions (30˚ increments). Choose a position which is best suited for your operation. The

Vario-Lock position is intended for use with chipping bits such as bull points, spades, gouges, etc.

Depress release button and turn the selector lever, to the “vario-lock” setting. Next, rotate the locking sleeve, along with the accessory, to the desired position. Then turn the selector lever to the “hammer only” setting and slightly turn the locking sleeve to have it automatically lock into a definite position.

FIG. 3

Drilling/Hammering:

Vario-Lock:

Hammering Only:

used for drilling with solid

allows chisel to be set in

used for chipping

carbide bits and core bits

one of 12 positions

and demolition work

(right or left “0” position)

SLIP CLUTCH

The tool has a internal pre-set slip clutch. The output spindle will stop rotating if the accessory binds and overloads the tool.

AUXILIARY HANDLE

The tool must be supported with the auxiliary handle , which can be swiveled 360˚. To reposition and/or swivel the handle, loosen the hand grip, move the handle to the desired position along the barrel and securely retighten the hand grip.

"TOOL TIPS"

For the best penetration rates in concrete, run the tool with a steady pressure, but do not use excessive force as this will decrease the efficiency of the tool.

All grease packed hammers require a short period of time to warm up. Depending on the room temperature, this time may vary from approximately 15 seconds (90˚F) to 2 minutes (32˚F). A new hammer requires a break-in period before full performance is realized. This period may require up to 5 hours of operation.

A rotary hammer is likely to be the most expensive portable tool at the construction job. The long wear and efficient operation of the BOSCH hammers will more than justify the cost for tools of this type. As earlier pointed out, sharp accessories as well as clean air vents are necessary for efficient operation. Establish and follow a set maintenance program.

-8-

BM 1619929472 2-05 2/17/05 11:52 PM Page 9

Maintenance

Service

Preventive maintenance ! WARNING performed by unauth-

orized personnel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station.

SERVICE REMINDER LIGHT

When the service reminder light lights up or blinks, this will indicate that the cut-out carbon brushes will switch off the tool in approximately 8 hours. After that period, the light will go off and the tool will stop running. The tool must then be sent to a service center for service.

TOOL LUBRICATION

Your Bosch tool has been properly lubricated and is ready to use. It is recommended that tools with gears be regreased with a special gear lubricant at every brush change.

CARBON BRUSHES

The brushes and commutator in your tool have been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend every two to six months the brushes be examined. Only genuine Bosch replacement brushes

specially designed for your tool should be used.

BEARINGS

Every second brush change, the bearings should be replaced at Bosch Factory Service Center or Authorized Bosch Service Station. Bearings which become noisy (due to heavy load or very abrasive material cutting) should be replaced at once to avoid overheating or motor failure.

Cleaning

! WARNING To avoid accidents always disconnect the tool from

the power supply before cleaning or performing any maintenance. The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through openings.

! CAUTION Certain cleaning agents and solvents damage

plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

Accessories

! WARNING	If an extension cord is
	necessary, a cord with

adequate size conductors that is capable of carrying the current necessary for your tool must be used. This will prevent excessive voltage drop, loss of power or overheating. Grounded tools must use 3-wire extension cords that have 3-prong plugs and receptacles.

NOTE: The smaller the gauge number, the heavier the cord.

RECOMMENDED SIZES OF EXTENSION CORDS 120 VOLT ALTERNATING CURRENT TOOLS

	Tool’s	Cord Size in A.W.G.				Wire Sizes in mm2
	Ampere
		Cord Length in Feet				Cord Length in Meters
	Rating
		25	50	100	150	15	30	60	120
	3-6
		18	16	16	14	0.75	0.75	1.5	2.5
	6-8	18	16	14	12	0.75	1.0	2.5	4.0
	8-10	18	16	14	12	0.75	1.0	2.5	4.0
	10-12	16	16	14	12	1.0	2.5	4.0	—
	12-16	14	12	—	—	—	—	—	—

Auxiliary Handle*	(*= standard equipment)
Carrying case*	(**= optional accessories)

-9-
