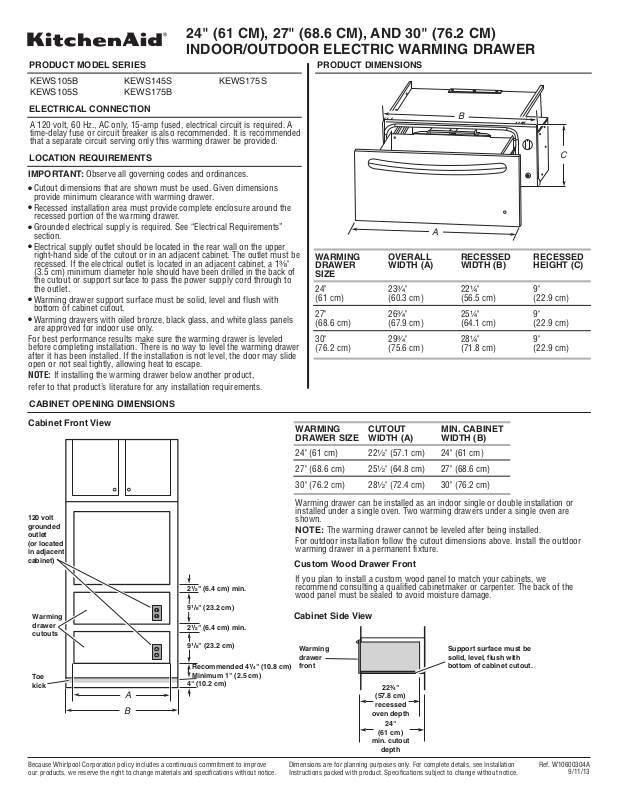

24" (61 CM), 27" (68.6 CM), AND 30" (76.2 CM) |
|
|
INDOOR/OUTDOOR ELECTRIC WARMING DRAWER |
PRODUCT MODEL SERIES |
PRODUCT DIMENSIONS |
|
KEWS105B |
KEWS145S |
KEWS175S |
KEWS105S |
KEWS175B |
|
ELECTRICAL CONNECTION |
B |
|
|
|
|
A 120 volt, 60 Hz., AC only, 15-amp fused, electrical circuit is required. A |
||
time-delay fuse or circuit breaker is also recommended. It is recommended |
||
that a separate circuit serving only this warming drawer be provided. |
||
LOCATION REQUIREMENTS |
C |
|
|
||
IMPORTANT: Observe all governing codes and ordinances. |
|
|
|
|
|
|
|
|
|
||||||
● Cutout dimensions that are shown must be used. Given dimensions |
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|||||||
provide minimum clearance with warming drawer. |
|
|
|
|
|
|
|
|
|
||||||
● Recessed installation area must provide complete enclosure around the |
|
|
|
|
|
|
|
|
|
||||||
recessed portion of the warming drawer. |
|
|
|
|
|
|
|
|
|
||||||
● Grounded electrical supply is required. See “Electrical Requirements” |
|
|
|
|
|
|
|
|
|
||||||
|
|
|
A |
|
|
|
|
|
|||||||
section. |
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|||||||
● Electrical supply outlet should be located in the rear wall on the upper |
|
|
|
|
|
|
|
|
|
||||||
right-hand side of the cutout or in an adjacent cabinet. The outlet must be |
|
WARMING |
OVERALL |
|
RECESSED |
RECESSED |
|||||||||
recessed. If the electrical outlet is located in an adjacent cabinet, a 1³⁄ " |
|
DRAWER |
WIDTH (A) |
|
WIDTH (B) |
HEIGHT (C) |
|||||||||
(3.5 cm) minimum diameter hole should have been drilled in the back of |
|
SIZE |
|
|
|
|
|
|
|
||||||
the cutout or support surface to pass the power supply cord through to |
|
|
|
|
|
|
|
|
|
||||||
the outlet. |
24" |
23³⁄ " |
|
22¹⁄ " |
9" |
|
|||||||||
● Warming drawer support surface must be solid, level and flush with |
|
(61 cm) |
(60.3 cm) |
|
(56.5 cm) |
(22.9 cm) |
|||||||||
bottom of cabinet cutout. |
27" |
26³⁄ " |
|
25¹⁄ " |
9" |
|
|||||||||
● Warming drawers with oiled bronze, black glass, and white glass panels |
|
|
|||||||||||||
|
(68.6 cm) |
(67.9 cm) |
|
(64.1 cm) |
(22.9 cm) |
||||||||||
are approved for indoor use only. |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|||||||
For best performance results make sure the warming drawer is leveled |
30" |
29³⁄ " |
|
28¹⁄ " |
9" |
|
|||||||||
before completing installation. There is no way to level the warming drawer |
|
(76.2 cm) |
(75.6 cm) |
|
(71.8 cm) |
(22.9 cm) |
|||||||||
after it has been installed. If the installation is not level, the door may slide |
|
|
|
|
|
|
|
|
|
||||||
open or not seal tightly, allowing heat to escape. |
|
|
|
|
|
|
|
|
|
||||||
NOTE: If installing the warming drawer below another product, |
|
|
|
|
|
|
|
|
|
||||||
refer to that product’s literature for any installation requirements. |
|
|
|
|
|
|
|
|
|
||||||
CABINET OPENING DIMENSIONS |
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cabinet Front View |
|
|
|
|
|
|
|
|
|
|
|||||
WARMING |
CUTOUT |
MIN. CABINET |
|
|
|||||||||||
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
DRAWER SIZE |
WIDTH (A) |
WIDTH (B) |
|
|
|
||||
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
24" (61 cm) |
22¹⁄ " (57.1 cm) |
24" (61 cm) |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
27" (68.6 cm) |
25¹⁄ " (64.8 cm) |
27" (68.6 cm) |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
30" (76.2 cm) |
28¹⁄ " (72.4 cm) |
30" (76.2 cm) |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
120 volt grounded outlet
(or located in adjacent cabinet)
Warming drawer cutouts
Toe kick
Warming drawer can be installed as an indoor single or double installation or installed under a single oven. Two warming drawers under a single oven are shown.
NOTE: The warming drawer cannot be leveled after being installed.
For outdoor installation follow the cutout dimensions above. Install the outdoor warming drawer in a permanent fixture.
Custom Wood Drawer Front
If you plan to install a custom wood panel to match your cabinets, we recommend consulting a qualified cabinetmaker or carpenter. The back of the wood panel must be sealed to avoid moisture damage.
Cabinet Side View
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9¹/ " (23.2 |
cm) |
Warming |
|
|
|
|
|
|
|
|
Support surface must be |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
drawer |
|
|
|
|
|
|
|
|
solid, level, flush with |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Recommended 4¹/ " (10.8 cm) front |
|
|
|
|
|
|
|
|
bottom of cabinet cutout. |
||
|
|
|
|
|
|
|
|
Minimum 1" (2.5 cm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
4" (10.2 cm) |
|
|
|
|
22³⁄" |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
|
|
|
|
|
|
|
|
|
(57.8 cm) |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
recessed |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
B |
|
|
|
|
|
|
|
|
|
|
|
|
oven depth |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
24" |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(61 cm) |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
min. cutout |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
depth |
|||||
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation |
Ref. W10600304A |
Instructions packed with product. Specifications subject to change without notice. |
9/11/13 |
