INSTRUCTIONS FOR USE
SLIM RANGE SINGLE SPLIT AIR
CONDITIONER WITH ECOLOGICAL GAS
AND WITH GAS R22
PREPARATION BEFORE USE
SAFETY PRECAUTIONS
IDENTIFICATION OF PARTS
REMOTE CONTROL
OPERATION INSTRUCTIONS
MAINTENANCE
TROUBLESHOOTING
PROTECTION
INSTALLATION INSTRUCTIONS
SLIM RANGE R22
SLIM RANGE
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical
and Electronic Equipment.
4
33933049GB.fm Page 5 Monday, January 10, 2005 5:27 PM
PREPARATION BEFORE USE
Before using the air conditioner, be sure to check and preset the following.
Remote Control presetting
The remote control is NOT preset as Cooling Only Air Conditioner or Heat Pump by manufacturer.
Each time the remote control batteries are replaced, the Cooling indicator and Heating indicator will flash
alternately on the remote control LCD.
The user can preset the remote control depending on the air conditioner type purchased as follows:
Pressing any button when flashes, Heat Pump is set.
Pressing any button when flashes, Cooling Only is set.
If you don’t press any button within 12 seconds, the remote control is preset as Heat Pump automatically.
Note:
If the air conditioner you purchased is a Cooling Only one, but you preset the remote control as Heat
Pump, it doesn’t matter. But if the air conditioner you purchased is a Heat Pump one, and you preset the
remote control as Cooling Only, then you CANNOT preset the Heating operation with the remote
control.
Back-light function (optional)
Pressing any button of the remote control for about 2 seconds, the back-light turns on. Once the button is released,
it automatically turns off after 10 seconds.
Note: Back-light is an optional function.
Auto Restart Presetting
The Auto restart function is not preset by the manufacturer. To set the auto restart function, press the Emergency
button (ON/OFF) on the indoor unit for at least 5 seconds. A buzz sound will signal that the auto restart function is
set and the air conditioner is in standby.
To cancel the auto restart function, press the Emergency button (ON/OFF) on the indoor unit for at least 5 seconds.
A buzz sound will signal that the auto restart function is cancelled and the air conditioner is in standby.
SAFETY PRECAUTIONS
Be sure not to do the following.
It is harmful to your health if the cool air reaches you for a long time. It is
advisable to let the air flow be deflected to all the room.
Prevent the air flow from reaching the gas burners and stove.
Do not touch the operation buttons when your hands are wet.
Pay attention to such a situation.
Do not repair the appliance by yourself. If this is done incorrectly, it may
cause an electric shock, etc.
Be sure to follow this instruction.
Do not put any objects on the outdoor unit.
Earthing is essential.
It is the user’s responsibility to have the appliance be earthed according to
local laws by a qualified technician.
Warning: Incorrect handling could cause a serious hazard, such as
death, serious injury, etc.
Use correct power supply in accordance with the rating plate
requirement. Don't use any extension cord for power supply. Otherwise,
serious faults or hazard may occur or a fire may break out.
Keep the power supply circuit breaker or plug from dirt. Connect the
power supply cord to it firmly and correctly, lest an electric shock or a fire
break out due to insufficient contact.
Do not use the power supply circuit breaker or pull off the plug to turn it
off during operation. This may cause a fire due to spark, etc.
Do not twist, pull or press the power supply cord, lest the power supply
cord be broken. An electric shock or fire is probably caused by a broken
power supply cord.
Never insert a stick or similar obstacle in the unit. Since the fan rotates at
high speed, this may cause an injury.
Turn off the appliance with remote control first before cutting off power
supply if malfunction occurs.
5
33933049GB.fm Page 6 Monday, January 10, 2005 5:27 PM
IDENTIFICATION OF PARTS
I
M
G
H
E
F
A
B
Indoor unit
R
C
L
Outdoor unit
D
N
O
P
Q
Indoor unit
A
- Air Intake
B
- Front Panel
C
- Operation Panel
D
- Display
E
- Air Outlet
F
- Vertical Adjustment Louver
G
- Horizontal Adjustment Louver
H
- Charcoal Filter (optional)
I
- Electrostatic Filter (optional)
L
- Remote Control
M
- Air Filter
NOTE:
The figure above is only a simple presentation of the unit, it may not match the external appearance of the
unit you purchased.
Outdoor unit
N
- Air Intake
O
- Pipes and Power Connection Cord
P
- Drain Hose
Note: Condensate water drains
at COOLING or DRY operation.
Q
- Air Outlet
R
- Rating plate (product tecnical data)
6
33933049GB.fm Page 7 Monday, January 10, 2005 5:27 PM
Operating and Display
1
For SLIM model
without LED only
2
3
1. Compressor indicator
It lights up when compressor is running.
2. Timer Indicator
It lights up during the set time.
3. Run Indicator
It is on during operation. It flashes during defrosting.
4
5
4. Signal Receptor
Receives signal from the remote control.
5. Emergency button
Used to control the unit when the remote control is
out of work. Used to set or cancel auto restart
function. (
Note: The shape and position of the switches and
indicators may vary from different models, but their
function are similar.
See page 5
)
7
33933049GB.fm Page 8 Monday, January 10, 2005 5:27 PM
Operating and Display
SILM model without LED
1. Compressor indicator (Red)
It lights up when compressor is running.
2. Signal receptor
Receive signal from the remote control.
3. Sleep indicator (Yellow)
It lights up when unit is in sleep mode.
SLIM model with LED
4. Timer Indicator (Orange)
It lights up during the set time.
5. LED display
Display set temperature when temperature is being
set. Display room temperature in other time.
6. Run Indicator (Green)
It is on during operation.
8
33933049GB.fm Page 9 Monday, January 10, 2005 5:27 PM
REMOTE CONTROL
The remote control transmits signals to the system.
A. ON/OFF button
The appliance will be started when it is energized or will be stopped
when it is in operation, if you press this button.
B. MODE button
Used to select the operation mode.
C. FAN button
Used to select fan speed in sequence auto, high, medium or low.
D. ROOM TEMPERATURE SETTING buttons
Used to select the room temperature.
Used to set time in TIMER mode.
E. SWING button
Used to stop or start vertical adjustment louver swinging and set the
desired up/down airflow direction.
F. 6th Sense button
Used to enter fuzzy logic operation directly , regardless of the unit is on
or off.
G. TIMER SET/CANCEL button
Used to set or cancel the timer operation.
H. SLEEP button
Used to set or cancel Sleep Mode operation.
I. JET button
Used to start or stop the fast cooling.
(Fast cooling operates at high fan speed with 18°C set temp automatically).
I
D
E
C
H
F
B
G
A
Indication symbols on
LCD:
Jet indicator
6th Sense indicator
Sleep indicator
Signal transmit
NOTE: The remote control display continues indicating even when the unit has run down.
How to insert the batteries
Remove the battery cover in the direction of the arrow.
Insert new batteries making sure that the (+) and (-) of battery are
matched correctly.
Refit the cover by sliding it back into position.
NOTE:
Use 2 LR03 AAA (1.5 V) batteries. Do not use rechargeable batteries.
Replace batteries with new ones of the same type when the display
becomes dim.
If the replacement is done within 1 minute, the remote control will keep
original presetting. However, if you want to change the presetting from
Heat Pump to Cool Only or Cool Only to Heat Pump, you should reload
batteries 3 minutes after removing the old ones.
(Please refer to page 5 for details.)
Storage and tips for using the remote control
The remote control can be stored in a holder mounted on the wall.
NOTE:
The remote control holder is an optional part.
How to use the remote control
To operate the room air conditioner, point the remote control at the signal
receiver. The remote control will operate the air conditioner at a distance of
up to 7 m when pointing at the signal receiver of the indoor unit.
Choose cooling only remote control or heat pump.
Please refer to page 5 “Preparation before use“ for details.
Back-light function (optional)
Please refer to page 5 “Preparation before use“ for details.
Cooling indicator
Dry indicator
Fan only indicator
*Heating indicator
Auto fan speed
High fan speed
Medium fan speed
Low fan speed
Display set temperature
Display set timer
Remote control holder
Used to regulate
High
temperature in 6th
Sense mode or Dry
mode (See page 11
“6th Sense mode” for
Low
details)
Signal receiver
9
33933049GB.fm Page 10 Monday, January 10, 2005 5:27 PM
OPERATION INSTRUCTIONS
Operating modes
1. Selecting mode
Each time
sequence:
COOLING DRY FAN ONLY HEATING
IMPORTANT:
Heating mode is NOT available for cooling only air conditioner.
2. “FAN” mode
Each time the “FAN” button is pressed, the fan speed is changed in
sequence:
AUTO HIGH MEDIUM LOW
IMPORTANT:
3. Setting temperature
Range of available set temperature:
*HEATING, COOLING 18°C ~ 32°C
DRY room temperature ± 2°C
FAN ONLY unable to set
*NOTE: Heating mode is NOT available for cooling only models.
4. Turning on
Press button, when the appliance receives the signal, the RUN
indicator of the indoor unit lights up.
SWING, 6th Sense, TIMER, SLEEP and JET operation modes will be
specified in the following pages.
IMPORTANT:
Changing modes during operation, sometimes the unit does not
response at once. Wait 3 minutes.
During heating operation, air flow is not discharged at the beginning.
After 2-5 minutes, the air flow will be discharged until temperature
of indoor heat exchanger rises.
Wait 3 minutes before restarting the appliance.
Airflow direction control
5. Airflow direction control
Vertical airflow is automatically adjusted to a certain angle in accordance
with the operation mode after turning on the unit.
The direction of airflow can also be adjusted to your own requirement by
pressing the “SWING” button of the remote control.
MODE
button is pressed, the operation mode is changed in
In “FAN ONLY” mode, only “High”, ”Medium” and “Low” are available.
In “DRY” mode, airflow is set at “Low” automatically, “FAN” button is
ineffective in this case.
Press once to raise temperature setting by 1°C
Press once to lower temperature setting by 1°C
operation mode direction of airflow
COOLING, DRY
*HEATING, FAN ONLY
horizontal
downward
5
2
1
3
4
*Heating mode is only available for heat pump models.
Vertical airflow control (using the remote control)
Use the remote control to set the flow angles.
Swinging airflow.
Pressing the “SWING” button once, the vertical adjustment louver will swing up and down automatically.
Desired airflow direction.
Press the “SWING” button again when the louvers swing to a suitable angle as desired.
10
33933049GB.fm Page 11 Monday, January 10, 2005 5:27 PM
Horizontal airflow control (with hands)
Turn the control rods of the horizontal adjustment louvers to change horizontal
air flow as shown.
Note: The shape of the unit may look different from that of the air
conditioner you have selected.
Important:
Do not turn the vertical adjustment louvers manually, otherwise malfunction may occur. If that happens,
first turn off the unit and cut off the power supply, then restore the power supply again.
It is better not to let the vertical adjustment louver tilt downward for a long time at COOLING or DRY
mode to prevent condensed water from dripping.
ù
Control rods of horizontal
adjustment louver
6th Sense mode
Pressing the 6th Sense button, the unit enters fuzzy logic operation directly regardless whether the unit is on or off. In
this mode, temperature and fan speed are automatically set according to the actual room temperature.
Operation mode and temperature are determined by indoor temperature
Heat pump models
Indoor temperature
21°C or below HEATING 22°C
21°C - 26°C DRY
Over 26 COOLING 26°C
Cooling only models
Indoor temperature
26°C or below DRY
Over 26 COOLING 26°C
Important: 6th Sense button is ineffective in JET mode.
Note: Temperature, airflow and direction are controlled automatically in 6th Sense mode. However, a
decrease or rise of up to 2°C can be set with the remote control if you still feel uncomfortable.
A decrease or increase up to 2°C can be set in 6th Sense mode
Your feeling Button Adjustment procedure
Slightly warmer
A decrease up to 2°C can be set
Operation
mode
Operation
mode
Target temperature
Room temperature decreases 1.5°C after
operating for 3 minutes
Target temperature
Room temperature decreases 1.5°C after
operating for 3 minutes
Press once to lower the set temp by 1°C
Press twice to lower the set temp by 2°C
Slightly cooler
A rise up to 2°C can be set
Uncomfortable because of unsuitable air flow
volume.
Uncomfortable because of unsuitable flow
direction.
Press once to raise the set temp by 1°C
Press twice to raise the set temp by 2°C
Indoor fan speed alternates among High,
Medium and Low each time this button is
pressed.
Press it once, the vertical adjustment louver
swings to change vertical airflow direction. Press
it again, swings stops. For horizontal airflow
direction, please refer to the previous page for
details.
11
33933049GB.fm Page 12 Monday, January 10, 2005 5:27 PM
Timer mode
It is convenient to set the timer on with TIMER button when you go out in
the morning to achieve a comfortable room temperature at the time you get
home. You can also set timer off at night to enjoy a good sleep.
Timer setting
Set a switch-on timer when the appliance is off.
Set a switch-off timer during operation.
As time goes by, the LCD on the remote control only displays the
remaining time, not the set temperature.
The previous set time is stored and the next set time begins with the
previous setting.
On- timer and off-timer can not be set at the same time.
The room may not reach your desired temperature within the preset
time; this depends on the size of the room.
1. E.g. setting the next operation after 9.5 hours
Set the desired operating mode, temperature and indoor fan speed,
then press the TIMER button (1); “h” will flash on the LCD.
2
2
1
2. E.g. setting the next operation after 9.5 hours
Point the remote control at the signal receiver of the indoor unit, and
press the or button (2) when “h” flashes. Choose the time you
desire, then press the TIMER button.
A “beep” can be heard:
Timer indicator on the indoor unit lights up.
“h” stops flashing.
Important: Press the TIMER button, “h” flashes on the LCD,
then you can set the time. Each time the or button is
pressed:
If the desired time is within 10 hours, the set time increases or
decreases by 0.5 hour.
If the desired time is beyond 10 hours, the set time increases or
decreases by 1 hour.
The time that can be set ranges between 0.5 and 24 hours.
3. E.g. cancelling the switch-on time after 9.5 hours
To cancel the set time: press the TIMER button again, a “beep” can be
heard and the timer indicator on the indoor unit lights off.
JET mode
JET mode is used to start or stop fast cooling.
Fast cooling operates at high fan speed, changing the set temperature
automatically to 18°C.
JET mode can be set when the appliance is in operation or energized.
In JET mode, you can set airflow direction and timer. If you want to quit
from JET mode, press any-JET, MODE, FAN, ON/OFF or
TEMPERATURE SETTING button, the display will return to the original
mode.
Note:
SLEEP and 6th Sense buttons are not available in JET mode.
12
33933049GB.fm Page 13 Monday, January 10, 2005 5:27 PM
Sleep mode
SLEEP mode can be set in COOLING or HEATING operation mode.
This function gives you a more comfortable environment for sleep.
In SLEEP mode,
The appliance will stop operation automatically after operating for
8hours.
Fan speed is automatically set at low speed.

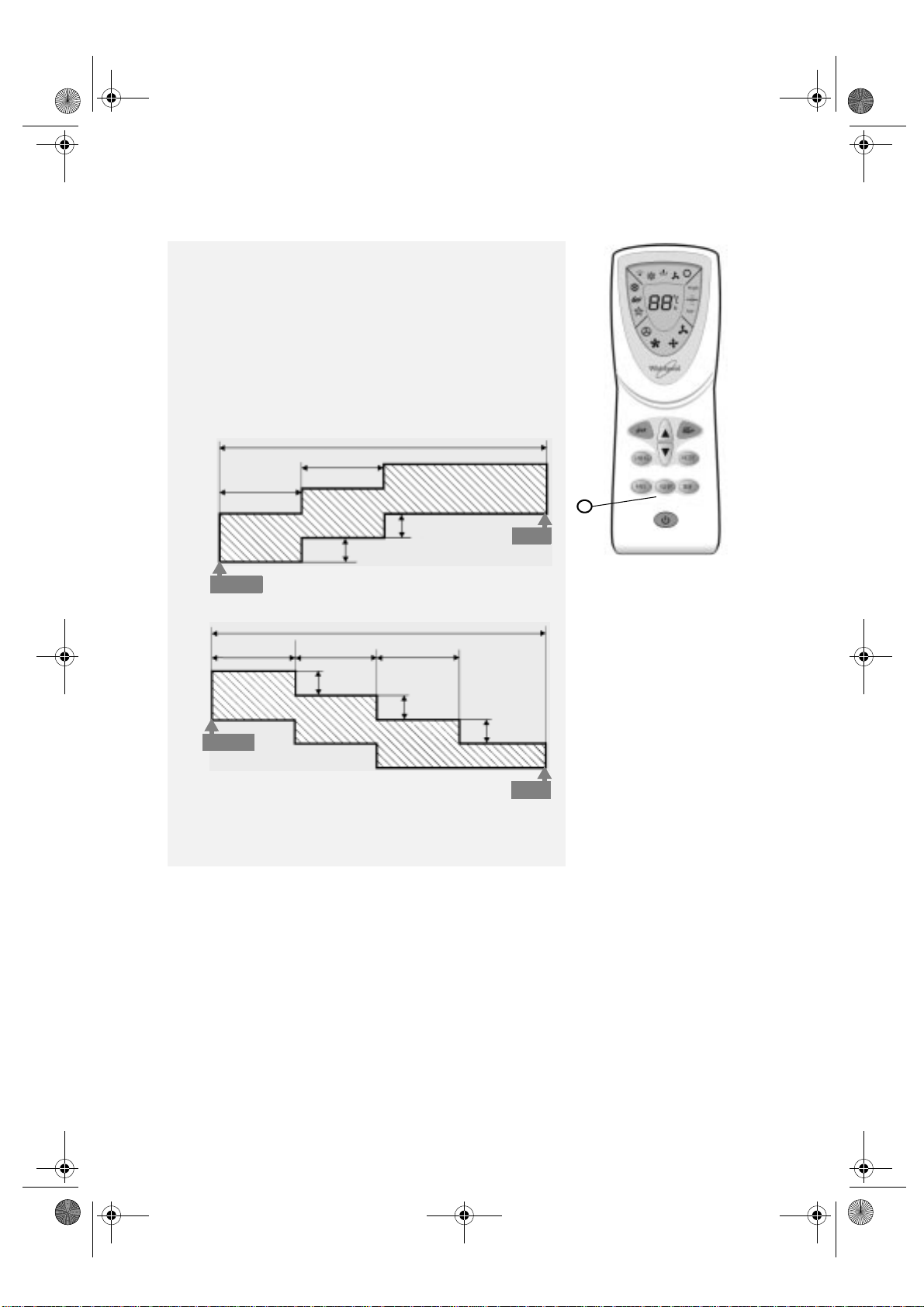

*The set temperature will rise by max. 1°C if the appliance operates in
cooling mode for two hours, then it will remain constant.
The set temperature will decrease by max 3°C is the appliance operates
in heating mode for 3 hours, then it will remain constant.
COOLING
8 hours timer
1 hour
1 hour
Rise by 0.5°C
SET
TEMP.
Rise by 0.5°C
1
STOP
START
**HEATING
8 hours timer
SET
TEMP.
START
1 hour
1 hour
Decrease by
1°C
1 hour
Decrease
by
Decrease
by
STOP
*: In cooling mode, if room temperature is 26°C or above, set
temperature will not change.
**: Heating is NOT available for cooling only air conditioner.
13
33933049GB.fm Page 14 Monday, January 10, 2005 5:27 PM
MAINTENANCE
Appliance maintenance
Unplug from the power supply
Stop the appliance before unplugging.
To remove the front panel pull it outwards as shown in the figure (a)
Wipe with a soft, dry cloth
Use lukewarm water (below 40°C) to clean the appliance when it is very
dirty.
Use a dry and soft cloth to clean it.
Never use volatile substances such as gasoline or polishing powder to
clean the unit.
Never sprinkle water on the indoor unit
Danger! Electric shock!
Refit and close the front panel
Refit and close the front panel by pushing it downwards as shown in the
figure (b).
Clean the air filter
It is advisable to clean the air filter after approx. 100 hours of operation.
Stop the appliance and remove the air filter
Open the front panel.
1.
Press the air filter handle gently, the filter will spring out.
2.
Pull out the filter.
3.
Replace the filter in its original position after cleaning
If the filter is very dirty, clean it with a solution of lukewarm water and
neutral detergent, then dry it in the air.
Close the front panel.
IMPORTANT:
Clean the air filter every two weeks when the air conditioner is
operated in a dusty environment.
TROUBLESHOOTING
Trouble Analysis
Does not run
No cool or warm air
Ineffective control
Does not operate immediately
Peculiar smell
A sound of running-water
A “pixi” sound can be heard
Spray mist from the outlet
The compressor indicator (red) lights up
constantly, and the indoor fan stops.
14
Is the protection device or fuse blown?
Sometimes it stops working to protect the appliance.
Are the remote control batteries low?
Is the plug unplugged?
Is the air filter dirty?
Are the intakes and outlets of the air conditioner obstructed.
Is the temperature set properly.
If there is a strong interference (from excessive static electricity discharge, power
supply voltage abnormality) presents, operation will be abnormal. In this case,
unplug from the power supply and plug in after 2-3 seconds.
Changing mode in operation, there may be a delay of 3 minutes.
This odour may come from another source such as furniture or others.
Caused by the flow of refrigerant in the air conditioner, not a fault.
Caused by the expansion or contraction of the front panel because of
temperature changing, not a fault.
Mist appears when the room air becomes very cold as during operation in
“COOLING” or “DRY” mode.
The unit is shifting from heating mode to defrost.
The indicator will turn off within ten minutes and return to heating mode.
33933049GB.fm Page 15 Monday, January 10, 2005 5:27 PM
PROTECTION
Operating condition
The protective device may trip and stop the appliance in the cases listed below.
Outdoor air temperature is over 24°C
*HEATING
COOLING
DRY
*For Tropical (T3) Climate condition models, the temperature point is 52°C instead of 43°C.
If the air conditioner runs in “COOLING” or “DRY” mode with door and/or window open when relative
humidity is higher than 80%, dew will drip down from the outlet.
Features of protection device
Outdoor air temperature is below -7°C
Room temperature is over 27°C
Outdoor air temperature is over* 43°C
Room temperature is below 21°C
Room temperature is below 18°C
The protection device will trip in the following cases:
Restarting the unit at once after operation stops or changing mode during operation, you need to wait 3 minutes.
-
After connecting to power supply and turning on the appliance immediately, there may be a delay of 20 seconds
-
before it starts to operate.
If all operation has stopped, press ON/OFF button again to restart, Timer should be set again if it has been cancelled.
-
Noise pollution
Install the air conditioner in a place that can bear its weight in order to operate more quietly.
Install the outdoor unit in a place where the air discharged and the operating noise do not annoy your neighbours.
Do not place an obstacle in front of the outlet of the outdoor unit as it may affect the air conditioner operation and
increase the noise level.
HEATING mode features
Preheating
2-5 minutes are necessary to preheat the evaporator at the beginning of HEATING operation, so that cold air is not
discharged.
Defrosting
In HEATING mode the appliance will defrost automatically to raise efficiency. This procedure usually takes
2-10 minutes. During defrosting, fans stop operation. After defrosting completes, it returns to HEATING mode
automatically.
Note: Heating is NOT available for cooling only air conditioner models.
15
33933049GB.fm Page 16 Monday, January 10, 2005 5:27 PM
INSTALLATION INSTRUCTIONS
Distance from ceiling
should be over 50 mm
Distance from wall
should be over 50 mm
Air intake distance
from the wall should
be over 250 mm
Installation diagram
Distance from the wall
should be over 50 mm
Distance from floor
should be over 2500 mm
Air intake distance from the wall
should be over 250 mm
A
i
r
o
ut
s
h
l
ou
e
t
l
dist
d be
a
nc
o
v
e
e
f
r
ro
5
m
0
0m
t
he
m
w
a
l
l
NOTE:
The figure above is only a simple presentation of the unit, it may not match the external appearance of the
unit you purchased.
Installation must be performed in accordance with the national wiring standards by authorised personne l
only.
Over
250 mm
16
r
33933049GB.fm Page 17 Monday, January 10, 2005 5:27 PM
Select the best location
Location for Installing the Indoor Unit
Where there is no obstacle near the air outlet and air can easily be blown
to every corner.
Where piping and wall hole can easily be arranged.
Observe the required distance from ceiling and wall according to the
wiring diagram.
Where the air filter can easily be removed.
Keep the unit and remote control 1 m or more from the television, radio
etc.
To prevent the effects of a fluorescent lamp, keep the unit as far as
possible.
Do not put anything near the air inlet that could obstruct it.
In a place that can bear the weight and will not increase operating noise
and vibrations.
Height should
Indoor unit
Pipe length
max 15 m
Outdoor
unit
be less than 5 m
Location for Installing the Outdoor Unit
Install in a convenient and well-ventilated place; avoid installing it where
flammable gas could leak.
Observe the required distance from the wall.
Do not install the outdoor unit in a dirty or greasy place, near a
vulcanization gas exit or highly salty seashore.
Avoid installing it at the roadside where it could be soiled with muddy
water.
A fixed base where operating noise will not increase.
Where the air outlet is not obstructed.
Outdoor unit installation
Install Drain Port and Drain Hose (for heat-pump model
1.
only)
The condensate drains from the outdoor unit when the unit operates in
heating mode. In order not to disturb your neighbours and protect the
environment, install a drain port and a drain hose to direct the
condensate water. Just install the drain port and rubber washer on the
chassis of the outdoor unit, then connect a drain hose to the port as
shown in the figure on the right.
2. Install and Fix Outdoor Unit
Fix with bolts and nuts tightly on a flat and strong floor. If installed on
the wall or roof, make sure to fix the support well to prevent it from
shaking due to serious vibrations or strong wind.
3. Outdoor Unit Piping Connection
Remove the valve caps from the 2-way and 3-way valve. Connect the
pipes to the 2-way and 3-way valves separately according to the
required torque.
4. Outdoor Unit Cable Connection (see page 21)
Pipe length
max 15 m
Indoor unit
Drain port
Outdoor unit
Height should
be less than 5 m
Washe
Drain hose
(prepare by user)
17
e
33933049GB.fm Page 18 Monday, January 10, 2005 5:27 PM
Indoor unit installation
1. Installing the Mounting Plate
Select a location to install the mounting plate according to the indoor
unit location and piping direction.
Adjust the mounting plate horizontally with a horizontal ruler or
plumb line.
Drill holes 32 mm deep on the wall to fix the plate.
Insert the plastic plugs in the hole, then fix the mounting plate with
tapping screws.
Check that the mounting plate is well fixed. Then drill a hole for the
piping.
NOTE:
The shape of your mounting plate may be different from the one
above, but installation method is similar.
2. Drill a Hole for Piping
Decide the position of the hole for piping according to the location of
the mounting plate.
Drill a hole on the wall. The hole should slightly be inclined downward
toward outside.
Install a sleeve through the wall hole to keep the wall tidy and clean.
3. Indoor Unit Piping Installation
Fit the piping (liquid and gas pipe) and cables through the wall hole
from outside or fit them from inside after completing indoor piping
and cables connections so as to connect to outdoor unit.
Decide whether to saw off the plastic part in accordance with the
piping direction (as shown below).
NOTE:
When fixing the pipe along directions 1, 2 or 4, saw the
corresponding plastic part off the indoor unit base.
After connecting the piping as required, install the drain hose. Then
connect the power cords. After connecting, wrap the piping, cords
and drain hose together with thermal insulating materials.
IMPORTANT:
Piping Joints Thermal Insulation:
Wrap the piping joints with thermal insulating materials and then
cover with vinyl tape.
Hook the line here
Mounting
plate
Indoor
Piping direction
trough
Plastic
part
Saw off the plastic
part along the
trough
Thermal insulation
Line drops from her
Plumb line
Holes for fixing
Wall hole sleeve
(hard polythene tube
prepared by user)
Outdoor
5 mm
(downward
inclination)
18
wrapped with vinyl tape
33933049GB.fm Page 19 Monday, January 10, 2005 5:27 PM
Thermal Insulation Piping:
Place the drain hose under the piping.
Insulating material: polythene foam over 6 mm in thickness.
NOTE: Drain hose is prepared by user.
Drain pipe should point downward for easy drain flow.
Do not twist the drain pipe, leave it sticking out or waving around, and do
not immerse the end in water. If an extension drain hose is connected to
the drain pipe, make sure it is thermally insulated when passing it through
the indoor unit.
When the piping is directed to the right, piping, power cord and drain pipe
should be thermally insulated and fixed at the rear of the unit with a piping
fixer.
1. Insert the pipe fixer into the slot.
2. Press to hook the pipe fixer onto the base.
Piping Connection:
Connect the indoor unit pipes using two wrenches. Pay special attention
to the torque allowed as shown below to prevent the pipes, connectors
and flare nuts from being deformed and damaged.
At first finger-tighten them, then use the wrenches.
Model Pipe size Torque Nut width
7-9-12-18 K Liquid Side (ø 6 or ¼ inch) 1.8 Kg.m 17 mm
22-24 K Liquid Side (ø 10 or 3/8 inch) 3.5 Kg.m 22 mm
7-9 K Gas Side (ø 10 or 3/8 inch) 3.5 Kg.m 22 mm
12-18 K Gas Side (ø 12 or ½ inch) 5.5 Kg.m 24 mm
22-24 K Gas Side (ø 16 or 5/8 inch) 7.5 Kg.m 27 mm
Large pipe
Power cord
Defrost
cable (for
heat-pump)
Base
Base
Drain
hose
Insert here
Large
pipe
Small
pipe
Piping fixer
Thermally insulated
tube
Small pipe
Drain hose
(prepared by user)
Piping fixer
Hook here
For T3 climate kind models, 18 K and 24 K Liquid Side is (ø 6 or ¼ inch).
How to Purge Air Tubes
Unscrew and remove caps from 2 and 3-way valves.
Unscrew and remove cap from service valve.
Connect vacuum pump flexible hose to the service valve.
Start the vacuum pump for 10-15 minutes until it reaches an absolute vacuum of 10 mm Hg.
With the vacuum pump still running close the low pressure knob on the vacuum pump manifold. Then stop the
vacuum pump.
Open the 2-way valve ¼ turn, then close it after 10 seconds. Check tightness of all joints using liquid soap or an
electronic leak detector.
Turn the 2 and 3-way valves stem. Disconnect the vacuum pump flexible hose.
Replace and tighten all valve caps.
NOTES:
Please read this manual before installing and using the appliance.
Do not let air enter the refrigerating system or discharge refrigerant when moving the air conditioner.
Test run the air conditioner after finishing installation, and record details of operation.
Type of fuse used on indoor unit control for 7 K, 9 K, 12 K is 50 T, with rating 2.5 A,T,250 V.
For 18 K, 22 K, 24 K models use 5 A, T, 250 V.
The fuse for the whole unit is to be provided by the user according to the current at maximum power input or use
another over-current protective device instead.
Accessibility to the plug must be guaranteed even after the installation of the appliance to disconnect it if necessary.
If this is not possible, connect the appliance to a double-pole switching device with contact distance of at least 3 mm
placed in an accessible position even after installation.
19
33933049GB.fm Page 20 Monday, January 10, 2005 5:27 PM
4. Connecting the Cable
Indoor Unit
Connect the power cord to the indoor unit by connecting the wires
to the terminals on the control board individually in accordance with
the outdoor unit connection.
NOTE:
It is necessary to remove the cabinet to perform connections with
the indoor unit terminal.
Outdoor Unit
-
Remove the access door from the unit by loosening the screw.
Connect the wires to the terminals on the control board individually
as follows.
-
Secure the power connecting cord on the control board with a cable
clamp.
-
Refit the access door in the original position and tighten the screw.
-
Use a recognized circuit breaker for 24 K model between the power
source and the unit. A disconnecting device to adequately disconnect
all supply lines must be fitted.
CAUTION:
1. Use an individual power circuit specifically for the air
conditioner. As for the wiring method, refer to the circuit
diagram on the inside of the access door.
2. Check that the cable thickness conforms to the power
source specification.
(See the cable specification table below)
3. Check the wires and make sure that they are all tightly
fastened after cable connection.
4. Be sure to install an earth leakage circuit breaker in a wet
or moist area.
Cable Specifications
Front panel
Indoor Unit
Outdoor Unit
Terminal (inside)
Cabinet
Chassis
Access
door
Terminal
(inside)
Power connecting cord
(for heat pump)
Type
H07RN-F
H07RN-F
H07RN-F
H07RN-F
2
X 3
H07RN-F
2
X 4
Normal cross
- section area
0.75 mm2 X 2
0.75 mm2 X 2
0.75 mm2 X 2
0.75 mm2 X 2
0.75 mm
Capacity
(Btu/h)
7K-9K H05VV-F
Type
12 K H05VV-F
18 K H05VV-F
22 K H05VV-F
24 K H07RN-F
Power cord Power connecting cord
Normal cross
- section area
2
1.0 mm
X 3
2
1.5 mm
X 3
2
2.0 mm
X 3
2
2.0 mm
X 3
2
X 3
2.5 mm
H07RN-F
H07RN-F
H07RN-F
H07RN-F
H07RN-F
Type
Normal cross
- section area
1.5 mm2 X 3
1.5 mm2 X 3
1.5 mm2 X 3
1.5 mm2 X 3
1.5 mm
(heat pump)
2.5 mm
(cool only)
Attention:
Accessibility to the plug must be guaranteed even after the
installation of the appliance to disconnect it in case of need. If not
possible, connect appliance to a double-pole switching device with
contact separation of at least 3 mm
2
placed in an accessible position
even after installation.
20
2
X 3
HEAT PUMP COOLING ONLY
33933049GB.fm Page 21 Monday, January 10, 2005 5:27 PM
Wiring Diagram
Make sure that the colour of wires of the outdoor unit and the terminal number are the same as those of
the indoor unit.
7 K,9 K,12 K,18 K,22 K Model
HEAT PUMP COOLING ONLY
Indoor unit Indoor unit
Terminal
Brown
Blue Blue
Power connecting cord I
Brown Brown
Outdoor unit
Terminal
Brown
Terminal Terminal
Brown Brown
Blue Blue
Outdoor unit
Blue
Power connecting cord
Blue
Yellow/GreenYellow/Green
Power connecting cord
Yellow/Green Yellow/Green
24 K Model
For 24 K model, the power supply is connected from the outdoor unit, with a circuit breaker. Other models from the
indoor unit.
Indoor unit Indoor unit Outdoor unitOutdoor unit
Orange
Power connecting cord I
Violet Violet
low/Gre
l
e
Y
e
Power connecting cord
n
Brown Brown
Yell
ow/
Power supply
Orange
BlackBlack
BlueBlue
G
r
een
TerminalTerminal
Terminal Terminal
OrangeOrange
Brown Brown
Blue Blue
Terminal
Power connecting cord
Yellow/Green Yellow/Green
Power supply
Terminal
Defrost Cable (for heat pump air conditioner only)
Defrost wire (indoor) Defrost wire (outdoor)
Defrost cable (for heat-pump models only)
21
33933049GB.fm Page 22 Monday, January 10, 2005 5:27 PM
Air purging
Air containing moisture remaining in the refrigerant cycle may cause a malfunction of the compressor. After connecting
the indoor and outdoor units, evacuate air and moisture from refrigerant cycle using a vacuum pump, as shown below.
Vacuum pump
Indoor unit
Service
port
(2) Turn
(8) Tighten
3-way valve diagram
Refrigerant flow direction
3-way valve
(7) Turn to fully open the valve
Valve cap
Connect
to outdoor
unit
Valve core
(1) Turn
2-way valve
(6) Open 1/4 turn
(7) Turn to fully open the valve
Valve cap
(1) Turn
(8) Tighten
(8) Tighten
Connect to indoor unit
Open position
Spindle
Needle
Service port cap
Note:
Because the system pressure is high and also to protect the environment, be sure not to discharge the
refrigerant to the air directly.
22
Loading...
