SERVICE
Model AMB 785/WP
Version 8528 785 10000 Page
Whirlpool Europe
Customer Services
AMB 785/WP
Service Manual
Air Conditioner
Window Type
AMB 785/WP
Technical data 2
Spare part list 3
Exploded view 4
Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 12.10.2000 Subject to modification
Document-No.: 4812 721 16652
Page 2
12.10.2000 / Page 2 AMB 785/WP Whirlpool Europe
Doc. No: 4812 721 16652 8528 785 10000 Customer Service
Technical data
Operation type
Cooling / Heating
Dimensions
Height 455 mm
Width 670 mm
Depth 705 mm
Weight
64 kg / net
Electrical connection
Voltage 220 - 240 V
Frequency 50 Hz
SERVICE
Power Supply
Input 2120 W
Running Current
8,5 A
Refrigerant
Type R 22
Quantity 1260 g
Cooling / Heating Capacity
5000 Watt
4260 kJ/h
17050 BTU
Airflow / Evaporator Airvolume
800 m3 /h
Dehumidifying Capacity
4.5 l/h
Working temp. range
Indoor 16 - 30 ˚C
Outdoor 21 - 43 ˚C
Page 3
Whirlpool Europe AMB 785/WP 12.10.2000 / Page 3
SERVICE
Customer Service 8528 785 10000 Doc. No: 4812 721 16652
Spare part list
Model AMB 785/WP
Service No. 852878510000
Version 852878510000
Pos. No. 12NC Code Description
001 0 4812 440 48279 Cabinet
004 0 4812 530 78045 Panel,front
004 1 4812 442 29061 Plate, bottom
020 0 4812 418 28124 Grid ,inner
021 0 4812 907 08078 Filter
022 0 4812 442 29059 Front
024 0 4812 442 29071 Half-door set
301 0 4812 452 88017 Cover Control panel
301 1 4812 452 28126 Control panel
301 2 4812 440 48268 Cover control box
301 3 4812 440 48269 Plate
301 4 4812 462 28161 Connectionblock
331 0 4812 410 78093 Knob
402 0 4812 360 38678 Compressor SHX 33 SA 4 UU
402 1 4812 282 38035 Thermostat ,defrost
420 0 4812 120 28008 Capacitor
420 1 4812 440 48267 Bracket Capacitor
421 0 4812 511 38137 Evaporator
440 0 4812 361 38035 Motor
440 1 4812 361 38036 Motor fan
440 2 4812 440 48272 Holder
440 3 4812 361 38044 Driver level
443 0 4812 361 18307 Fan wheel
443 1 4812 442 29062 Cabinet
443 2 4812 440 48278 Housing
443 3 4812 361 18308 Fan wheel
443 4 4812 440 48277 Housing
443 5 4812 440 48276 Cover
443 6 4812 440 48274 Holder
443 7 4812 442 29063 Cover
443 8 4812 440 48273 Bracket
443 9 4812 440 48275 Housing
554 0 4812 282 08009 Thermostat
572 0 4812 360 58218 Valve , 4 way
572 1 4812 360 58163 Valve
621 0 4812 280 78001 Switch
622 0 4812 410 78092 Switch
651 0 4812 290 88076 Lamp
651 1 4812 440 48265 Bracket
651 2 4812 440 48266 Shaft
740 0 4812 360 38696 Condenser , condenser-kit
740 1 4812 360 38693 Tube outlet condens.
745 1 4812 360 38694 Tube , inlet evaporator
745 2 4812 360 38695 Tube , inlet evaporator2
745 3 4812 360 68219 Tube
761 0 4812 907 08079 Filter
783 0 4812 360 38697 Capillary tube
783 1 4812 360 38698 Tube , outlet
900 2 4812 530 78033 Clip
900 3 4812 440 48271 Flap
910 0 4812 530 78044 Flap
Page 4
12.10.2000 / Page 4 AMB 785/WP Whirlpool Europe
Doc. No: 4812 721 16652 8528 785 10000 Customer Service
Exploded view
SERVICE
Page 5
SERVICE

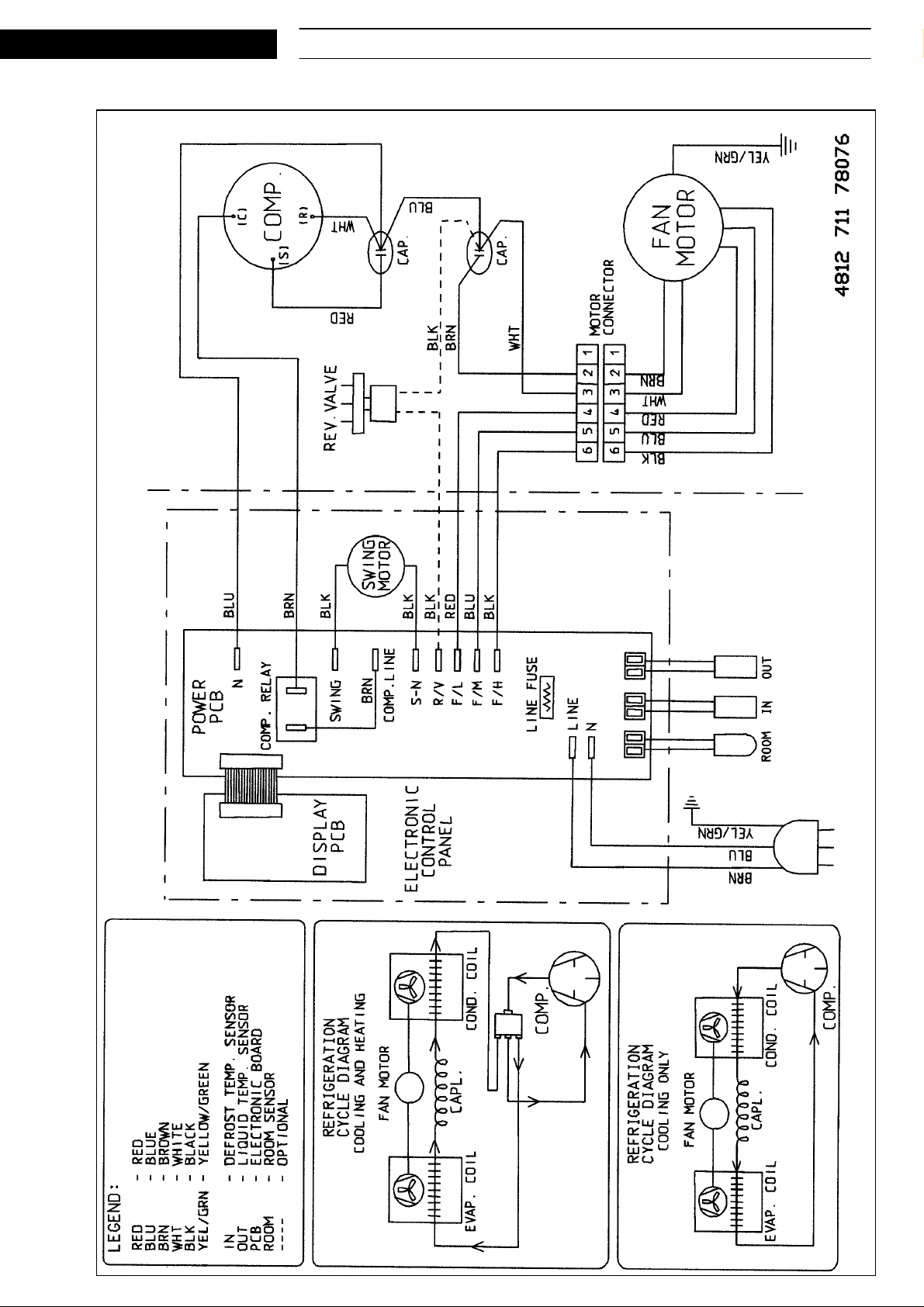

Wiring diagram
Whirlpool Europe AMB 785/WP 12.10.2000 / Page 5
Customer Service 8528 785 10000 Doc. No: 4812 721 16652
