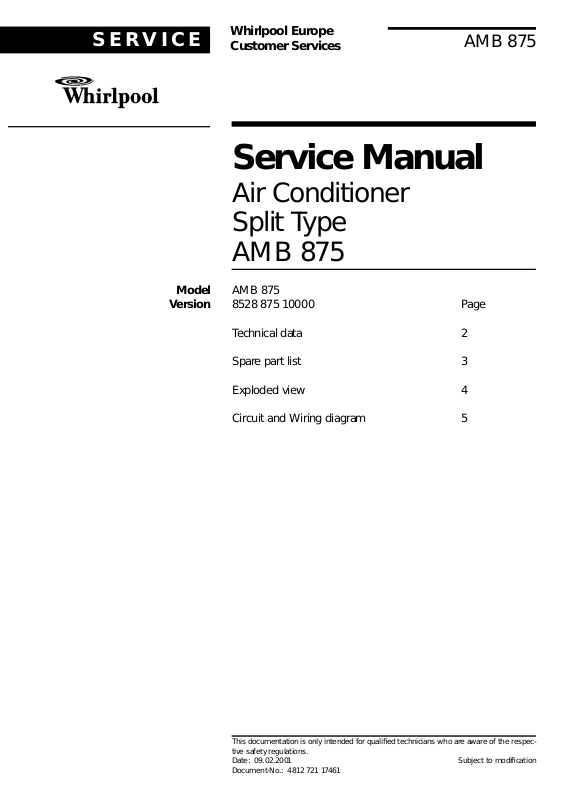

Page 1
SERVICE
Model AMB 875
Version 8528 875 10000 Page
Whirlpool Europe
Customer Services
AMB 875
Service Manual
Air Conditioner
Split Type
AMB 875
Technical data 2
Spare part list 3
Exploded view 4
Circuit and Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 09.02.2001 Subject to modification
Document-No.: 4812 721 17461
Page 2
09.02.2001 / Page 2 AMB 875 Whirlpool Europe
Doc. No: 4812 721 17461 8528 875 10000 Customer Service
Technical data
SERVICE
Operation type
Cooling / Heating
Dimensions
Indoor - unit
Height 1045 mm
Width 330 mm
Depth 200 mm
Outdoor - unit
Height 800 mm
Width 637 mm
Depth 268 mm
Weight
Indoor - unit 14 kg / net
Outdoor - unit 56 kg / net
Electrical connection
Cooling / Heating Capacity
5200 Watt
18000 BTU / h
Airflow / Evaporator Airvolume
660 m3 / h
Dehumidifying Capacity
2.5 l / h
Noise Level
Indoor - unit 45 dB(A)
Outdoor - unit 57 dB(A)
Outdoor IP class
IPX 4
Voltage 220 V
Frequency 50 Hz
Rated Current 9,0 A
Power Supply
Input (max.) 2200 W
Power Consumption
Cooling / Heating 2000 W
Refrigerant
Type R 22
Quantity 1600 g
Page 3
SERVICE
Spare part list
Model AMB 875
Service No. 852887510000
Version 852887510000
Pos. No. 12NC Code Description
021 0 4812 440 29354 Cabinet
021 1 4812 440 98086 Grille
021 2 4812 440 98084 Insulation
024 0 4812 440 10407 Cabinet
033 0 4812 440 69099 Small plate
033 1 4812 440 98085 Sealing plate
034 0 4812 440 98087 Small plate rechts
034 1 4812 440 29353 Small plate left
034 2 4812 462 28213 Cover set control
065 1 4812 462 28208 Cover
065 2 4812 440 48285 Bracket pipe
065 3 4812 462 28211 Cover control
065 5 4812 530 38037 Angle iron
074 1 4812 530 38034 Insulation
303 0 4812 440 48284 Bracket
Whirlpool Europe AMB 875 09.02.2001 / Page 3
Customer Service 8528 875 10000 Doc. No: 4812 721 17461
303 1 4812 462 28204 Clamp cord clamp
303 2 4812 462 28212 Cover motor panel
303 3 4812 452 28164 Microswitch
303 4 4812 462 28209 Drainhose panel
320 0 4812 452 28163 Control panel assembly
402 0 4812 360 38731 Compressor
440 0 4812 361 18325 Motor fan outdoor
440 1 4812 442 18018 Bracket
443 0 4812 282 68029 Fan
443 1 4812 280 48622 Capacitor motor
443 2 4812 530 29103 Set screw fan
491 0 4812 452 10754 Control unit
491 1 4812 290 68242 Terminal Board 2U
491 2 4812 280 78006 Terminal Board (5PU)
491 2 4812 452 28152 Terminal Board (3PU)
521 3 4812 290 68244 Control unit
521 4 4812 452 88019 Control board (CB)
554 0 4812 271 28474 Thermostat defr. (n.shown)
561 0 4812 280 48621 Capacitor compressor
561 1 4812 440 78974 Fixation capacitor band
740 0 4812 360 58255 Condenser
741 1 4812 530 29106 Flap vertical a
741 3 4812 530 29104 Flap air outlet
741 4 4812 404 18159 Lever air deflector
741 5 4812 530 29105 Flap air inlet
745 0 4812 511 38159 Evaporator
764 0 4812 481 28162 Air clean filter
781 0 4812 530 38022 Valve
781 1 4812 530 38033 Valve rev. (n.shown)
781 3 4812 530 38025 Valve (n.shown)
781 4 4812 530 38032 Valve 3 way (n.shown)
910 1 4812 404 38588 Clamp cord
910 2 4812 404 38586 Thermister holder
910 3 4812 404 38589 Thermister set
910 4 4812 530 38036 Hose, draining
910 6 4812 530 78058 Arm, lifting left
910 7 4812 530 78059 Arm, lifting rechts
921 1 4812 462 28207 Bearing set
993 0 4812 690 28024 Remote control
Page 4
09.02.2001 / Page 4 AMB 875 Whirlpool Europe
Doc. No: 4812 721 17461 8528 875 10000 Customer Service

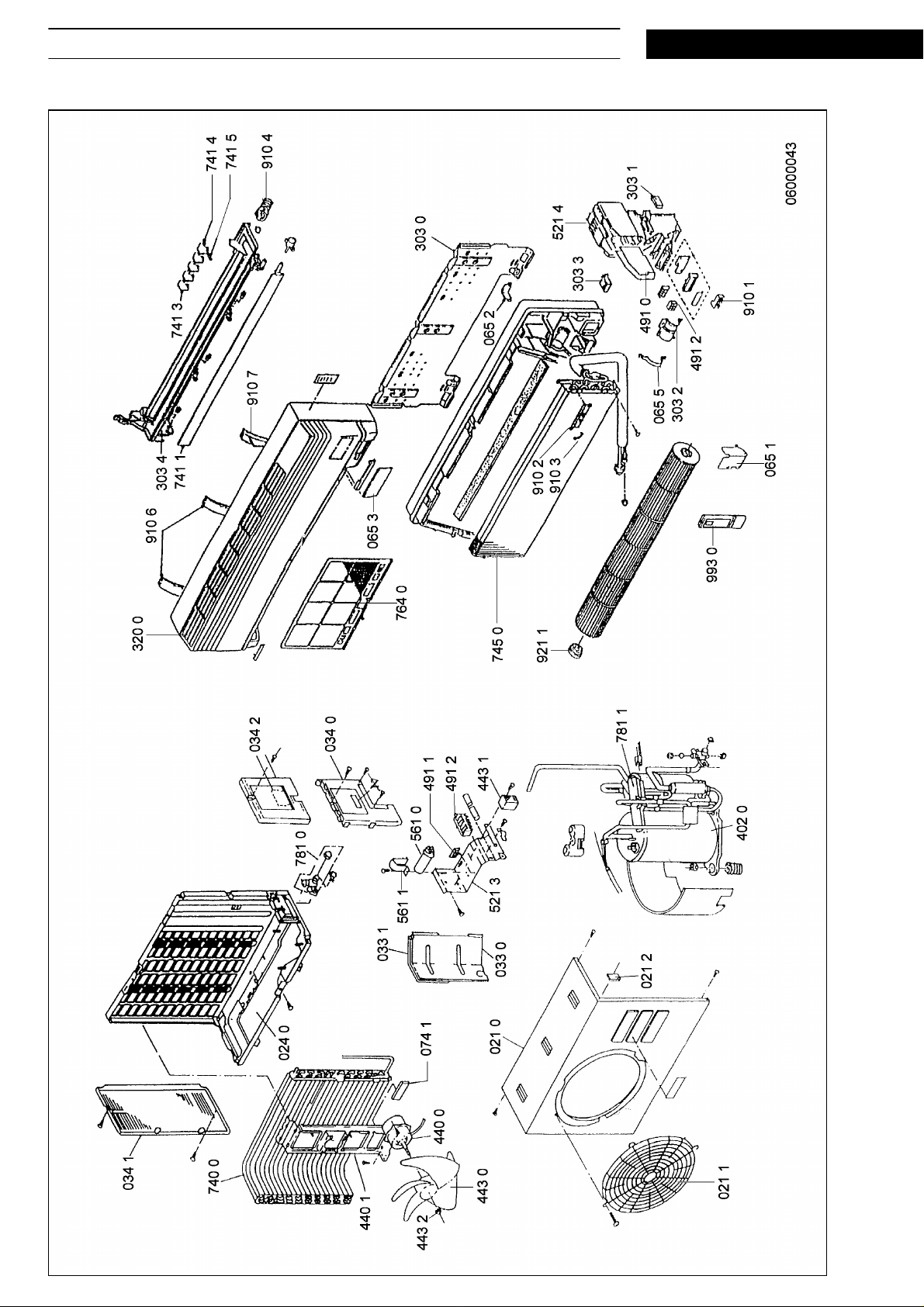

Exploded view
SERVICE
Page 5
SERVICE
Whirlpool Europe AMB 875 09.02.2001 / Page 5
Customer Service 8528 875 10000 Doc. No: 4812 721 17461

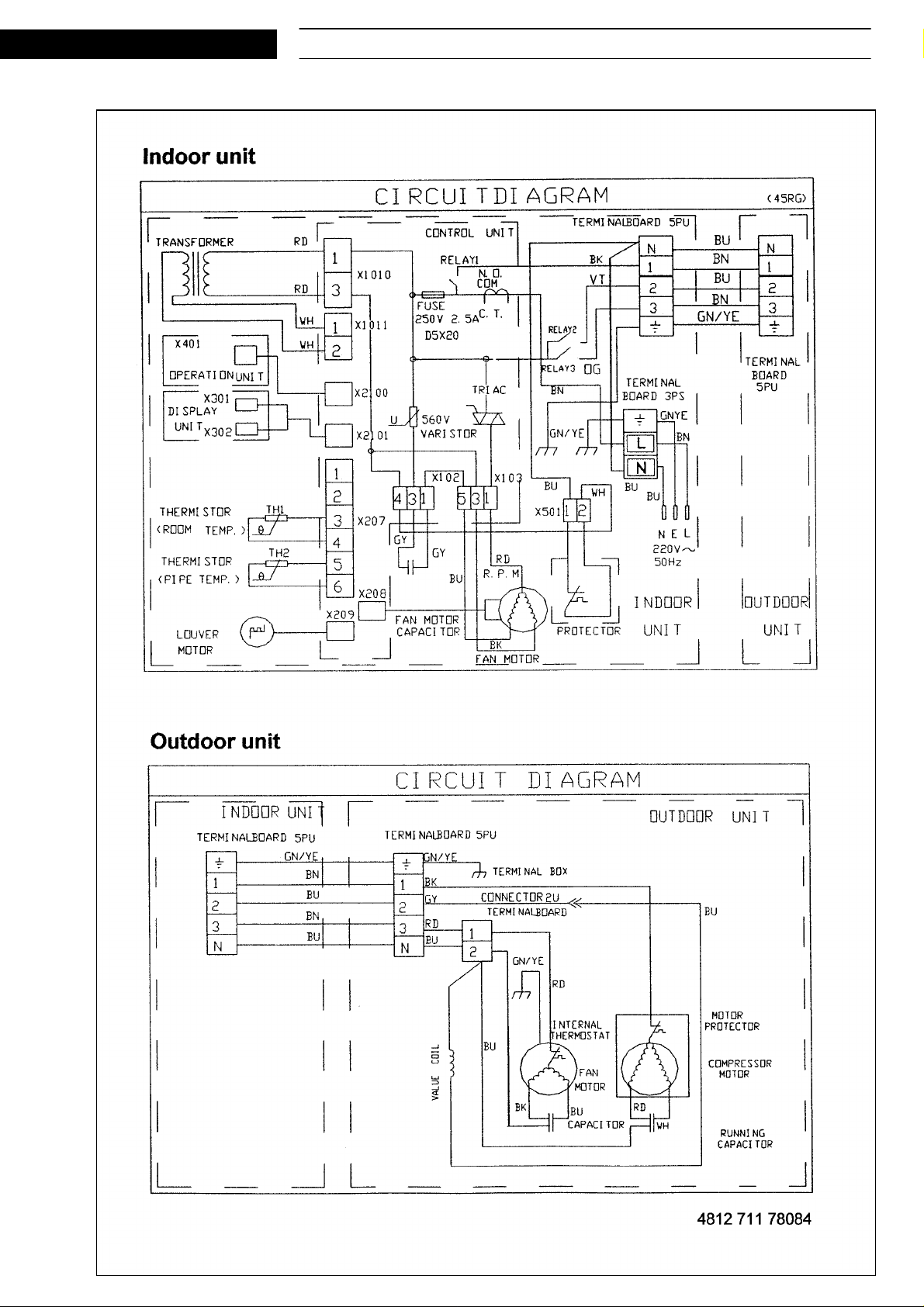

Circuit and Wiring diagram
