Whirlpool 3366875 User Manual
Three speed
automatic washers
A Note to You............ 2
Washer Safety .......... 3
Parts and Features ... 4
Operating Your
Washer......................5
Caring for Your
Washer....................12
Troubleshooting ...... 13
Requesting
Assistance or
Service ....................17
3366875
Index .......................19
Warranty ................. 20
*
Home Appliances
A NOTE TO YOU
Thank you for buying a WHIRLPOOL* appliance.
Because your life is getting busier and more complicated, WHIRLPOOL washers are easy to use, save time, and
help you manage your home better. To ensure that you enjoy years of trouble-free operation, we developed this
Use and Care Guide. It is full of valuable information about how to operate and maintain your appliance properly
and safely. Please read it carefully.
Also, complete and mail the Ownership Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance, you need to know your complete model number
and serial number. You can find this information on the
model and serial number label (see the diagram on the
“Parts and Features” page for the location of the label).
Also, record the other information shown in the next
column.
Keep this book and the sales slip together in a safe place for future reference.
Model Number __________________________________
Serial Number ___________________________________
Purchase Date __________________________________
Dealer Name ____________________________________
Dealer Address __________________________________
Dealer Phone ___________________________________
2
WASHER SAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
You will be killed or seriously injured if you don’t
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
WARNING – To reduce the risk of fire, electric shock, or injury to persons when using
the washer, follow basic precautions, including the following:
Read all instructions before using the
•
washer.
Do not wash articles that have been
•
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable, or explosive
substances as they give off vapors that
could ignite or explode.
Do not add gasoline, dry-cleaning sol-
•
vents, or other flammable, or explosive
substances to the wash water. These
substances give off vapors that could
ignite or explode.
Under certain conditions, hydrogen gas
•
may be produced in a hot water system
that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been used
for such a period, before using the washing machine, turn on all hot water faucets
and let the water flow from each for
several minutes. This will release any
accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an
open flame during this time.
Do not allow children to play on or in the
•
washer. Close supervision of children is
necessary when the washer is used near
children.
Before the washer is removed from service
•
or discarded, remove the door.
Do not reach into the washer if the tub or
•
agitator is moving.
Do not install or store the washer where it
•
will be exposed to the weather.
Do not tamper with controls.
•
Do not repair or replace any part of the
•
washer or attempt any servicing unless
specifically recommended in this Use and
Care Guide or in published user-repair
instructions that you understand and have
the skills to carry out.
See Installation Instructions for grounding
•
requirements.
– SAVE THESE INSTRUCTIONS –
3

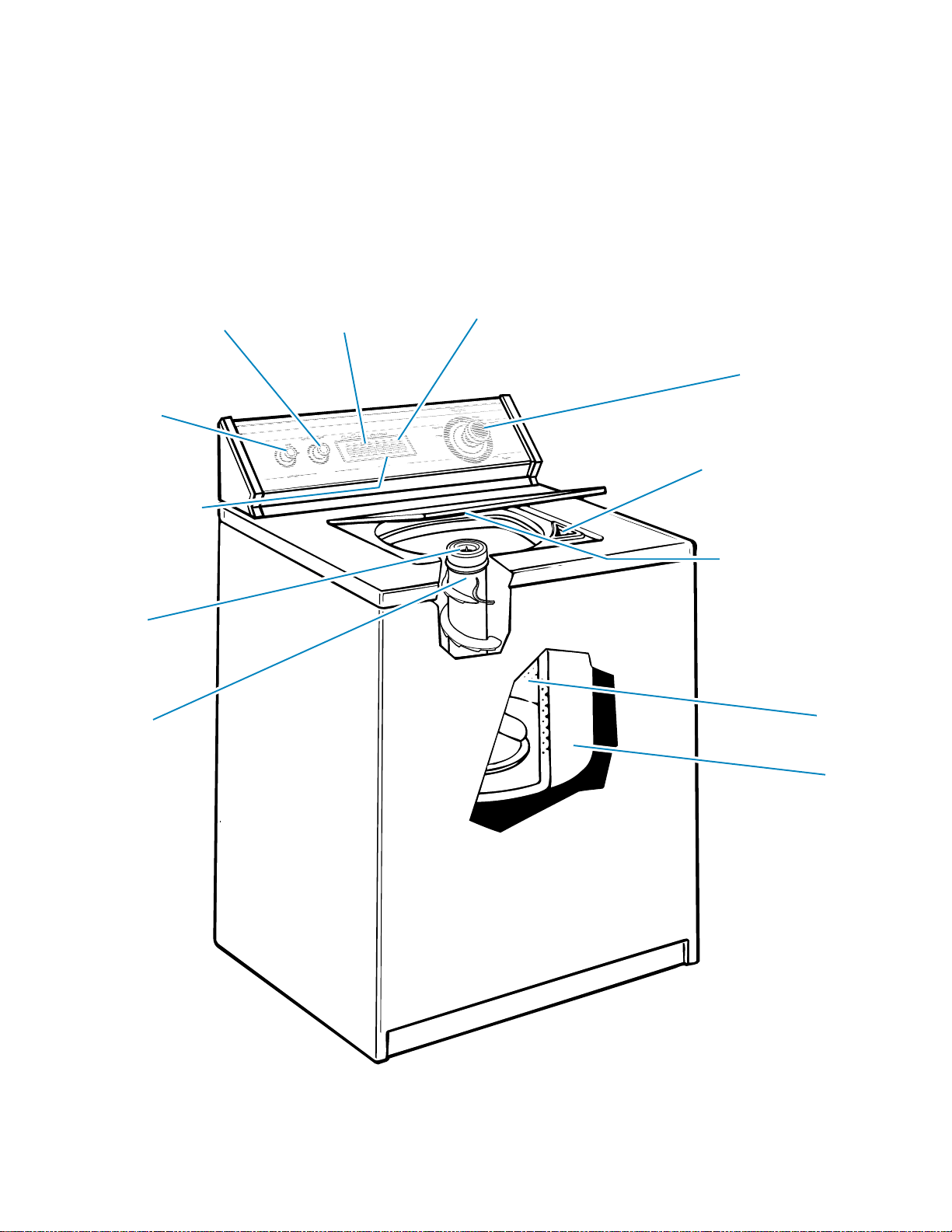

PARTS AND FEATURES
The parts and features of your washer are illustrated on this page. Become familiar with all parts
and features before using your washer. Page references are included next to some features. Refer
to those pages for more information about the features.
NOTE: The drawings in this book may vary from your washer model. They are designed to show
the different features of all models covered by this book. Your model may not include all features.
Load size
selector
(p. 6)
CLEAN TOUCH*
panel
Liquid fabric
softener
dispenser
(pp. 6, 12)
Agitator
Cycle signal selector
(p. 6)
Heavy Duty • Large Capacity Heavy Duty • Large Capacity
End of Cycle SignalEnd of Cycle Signal
Off
On
Large
MediumMedium
Off
Extra
Off
Large
SmallSmall
Load SizeLoad Size
On
Off
Speed SelectSpeed Select
†
Water temperature
selector
†
Extra rinse selector
(p. 6)
(p. 6)
Cycle control knob
Normal
ExtraExtra
RinseRinse
Spin
Light
Spin
Off
Off
Normal
9
6
Rinse
3
Permanent
PausePause
Press
Regular
Heavy
6
9
12
15
PausePause
18
Off
Spin
Hand WashablesHand Washables
Cool
Down
Rinse
Spin
Off
Extra Extra
RinseRinse
Spin
Rinse
Pull Start
Push Stop
Off
6
3
Normal
6
Off
Delicates
Rinse
Spin
Light
X-RinseRinse
Off
Low High
Agitate
Speed SelectSpeed Select
Soft WashSoft Wash
Super WashSuper Wash
Spin
8 Cycle - 2 Speed 8 Cycle - 2 Speed
High Low
HotHot WarmWarm WarmWarm ColdCold
On
On
Cold Warm Cold Warm
Wash
Rinse
Temperature
High High Low Low
(pp. 7-10)
Liquid chlorine
bleach dispenser
(p. 5)
Model and serial
number label
(under lid)
Basket
Tub
MAGIC CLEAN*
lint filter
(bottom of
washer basket)
(p. 10)
†
CLEAN TOUCH panel on some models;
other models have rotary knob.
4

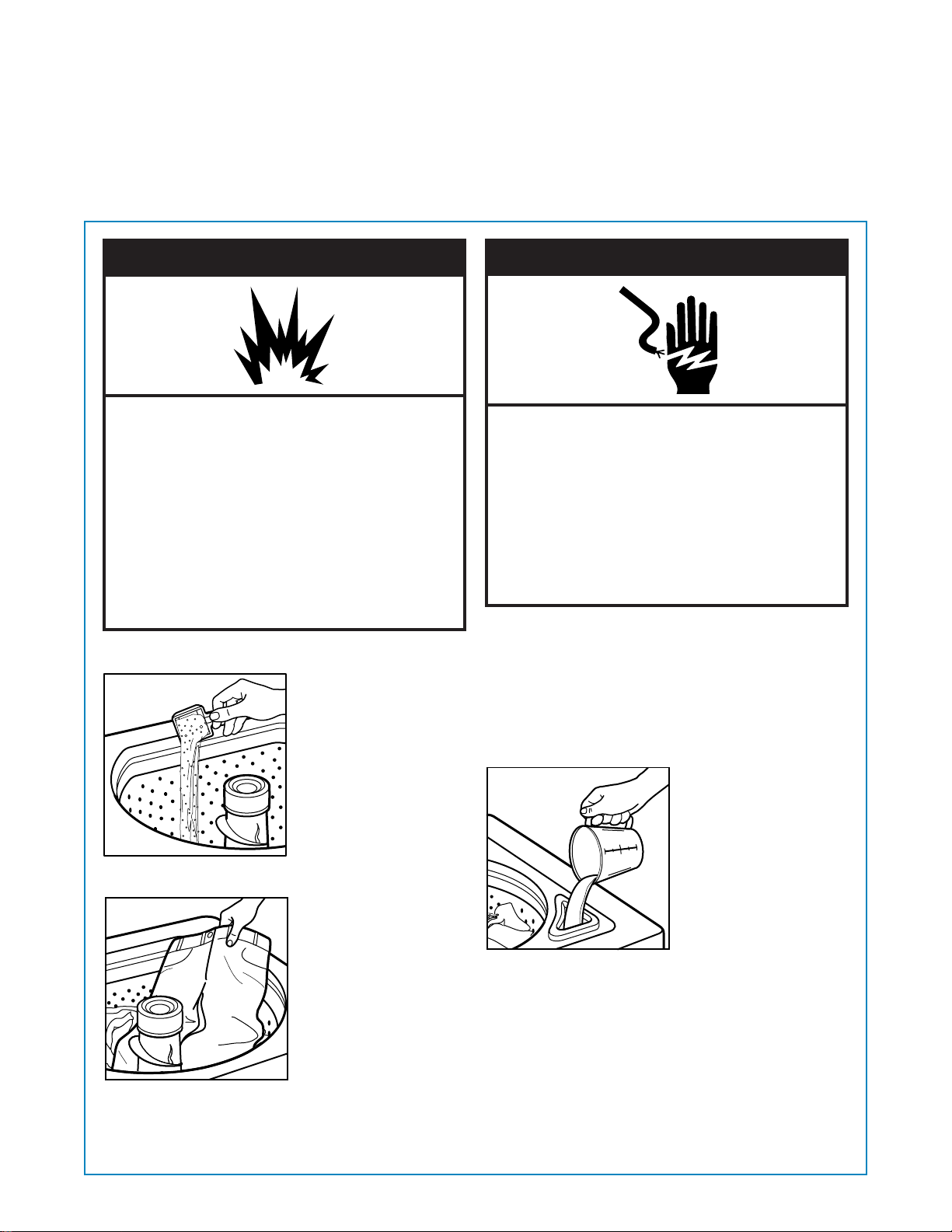

OPERATING YOUR WASHER
To get the best washing results possible, you must use your washer correctly. This section tells
you how to use your washer properly and efficiently.
USING YOUR WASHER
wWARNING
Explosion Hazard
Never place items in the washer that are
dampened with gasoline or other
flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any
type of oil on it (including cooking oils).
Doing so can result in death, explosion,
or fire.
1. Measure detergent and pour it into the washer.
If desired, you may
•
also add powder or
liquid color safe bleach.
Add extra detergent
•
for the Super Wash
cycle.
2. Drop a sorted load of clothes loosely into your
washer, filling to the
top row of holes.
Load evenly to main-
•
tain washer balance.
Mix large and small
items.
Items should move
•
easily through the wash
water. Overloading can
cause poor cleaning.
To reduce wrinkling
of permanent press clothes and some synthetic
knits, use a large load size to provide more space
(see step 6).
•
wWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
3. (OPTIONAL STEP) Pour measured liquid chlorine
bleach into the liquid
chlorine bleach dispenser. Bleach will
be diluted automatically
during the wash part of
the cycle.
Never use more than
•
1 cup (250 mL) for a full
load. Use less with a
smaller load size.
Follow the manufac-
turer’s directions for safe use.
To avoid spilling, use a cup with a pouring spout.
•
Do not let bleach splash, drip, or run down into the
washer basket.
Make sure you use only liquid chlorine bleach in
•
this dispenser.
•
continued on next page
5
OPERATING YOUR WASHER
USING YOUR WASHER (CONT.)

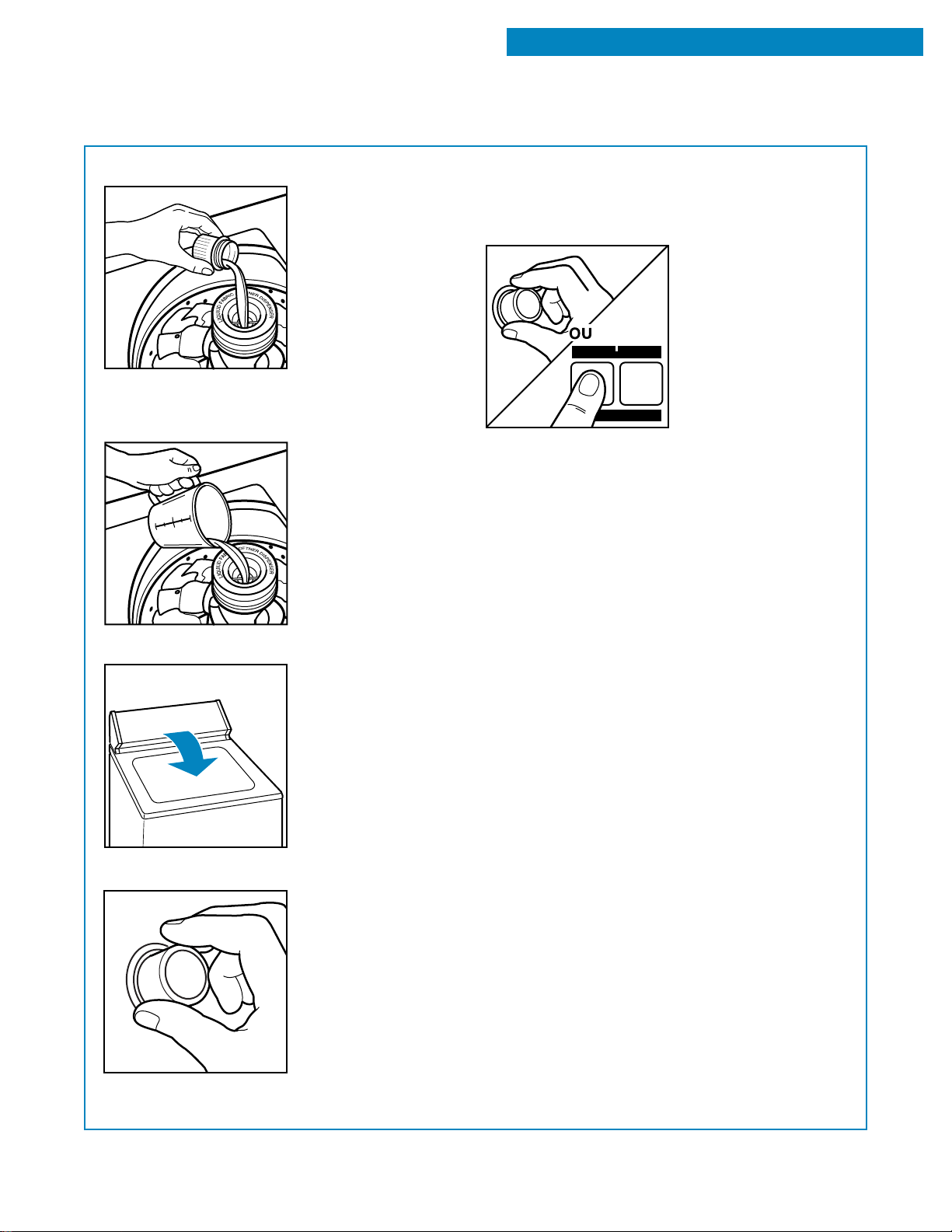

4. (OPTIONAL STEP) Pour measured liquid fabric
softener into the fabric
softener dispenser.
Do not spill or drip
•
any fabric softener on
the clothes.
Make sure you use
•
only liquid fabric
softener in this
dispenser.
Dilute liquid fabric softener by filling the dis-
•
penser with warm
water until liquid
reaches the
crossbar in the
opening.
Softener is added
•
automatically during
the rinse portion of
the cycle.
5. Close the washer lid.
7. Set the Water Temperature selector to the
correct setting for the
type of fabric and soils
being washed.
Use the warmest
•
water safe for fabric.
Follow garment label instructions.
•
HOT: 130°F (54°C) or above.
– Whites and pastels.
– Heavy and greasy soils.
WARM: 90 to 110°F (32 to 44°C).
– Bright colors.
– Moderate to light soils.
COLD: 70 to 90°F (21 to 32°C).
– Colors that bleed or fade.
– Light soils.
8. (OPTIONAL STEP) For an additional rinse and
spin at the end of a wash cycle, set the Extra
Rinse selector to On.
9. (OPTIONAL STEP) Set the Cycle Signal selector
to On if you want your washer to sound a signal
when the wash cycle is finished. This signal is
helpful when you are washing items that should
be removed from the washer as soon as the
cycle ends.
6. Turn the Load Size selector to the correct setting
for your wash load and
the type of fabric being
washed.
Your washer has five
•
load size settings.
Choose a load size
•
that allows the load to
move freely for best
fabric care. See the
“Loading” section.
Change the setting
after the washer has started filling by turning the
selector to a different setting.
6
•
USING YOUR WASHER (CONT.)
OPERATING YOUR WASHER

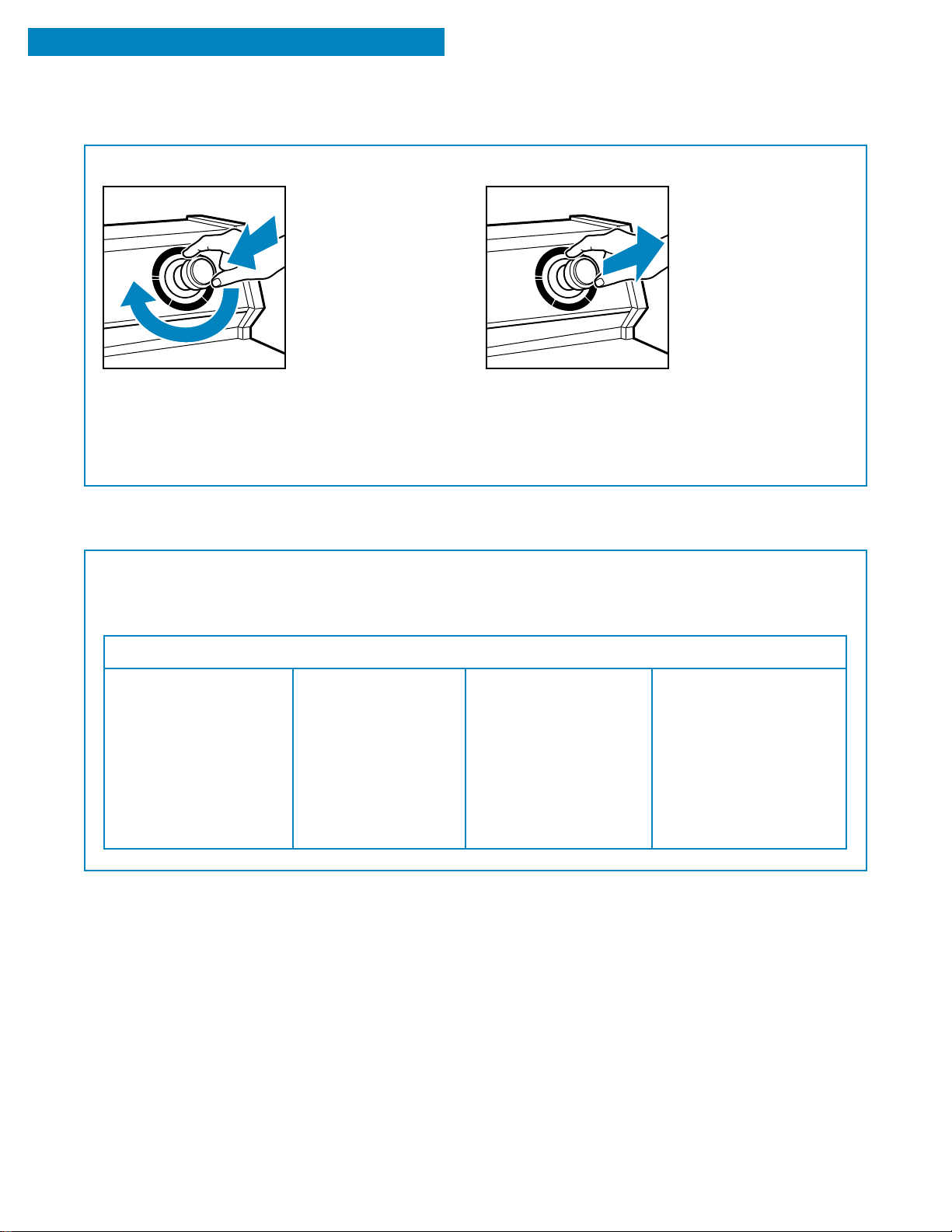

10. Push in the Cycle Control Knob and turn it
clockwise to the wash
cycle you want. See
the “Cycle Descriptions” section.
Reduce the wash
•
time when using a
small load size setting.
11. Pull out the Cycle Control Knob to start the
washer.
NOTE: To stop the washer at any time, push in the
Cycle Control Knob. To restart the washer, close
the lid (if open) and pull out the Cycle Control Knob.
LOADING
Loading suggestions
For these suggested full-sized loads, set the Load Size selector to the highest load size setting.
SUPER CAPACITY PLUS WASHERS
Heavy Work Clothes
3 pair pants
3 shirts
4 pair jeans
1 coverall
1 overall
Delicates
3 camisoles
1 quilted robe
4 slips
4 panties
2 bras
2 nighties
1 baby’s dress
Towels
10 bath towels
10 hand towels
14 wash cloths
1 bath mat
Mixed Load
3 double sheets
4 pillowcases
8 T-shirts
6 pair shorts
2 shirts
2 blouses
8 handkerchiefs
SELECTING A CYCLE AND TIME
This section describes the available wash cycles
and will help you make the best cycle selections
for your wash loads. Each cycle is designed for
different types of fabric and soil levels.
The washer pauses briefly throughout each cycle.
•
These pauses are normal. Refer to “Understanding
normal washer sounds” to learn more about the
sounds you may hear during a wash cycle.

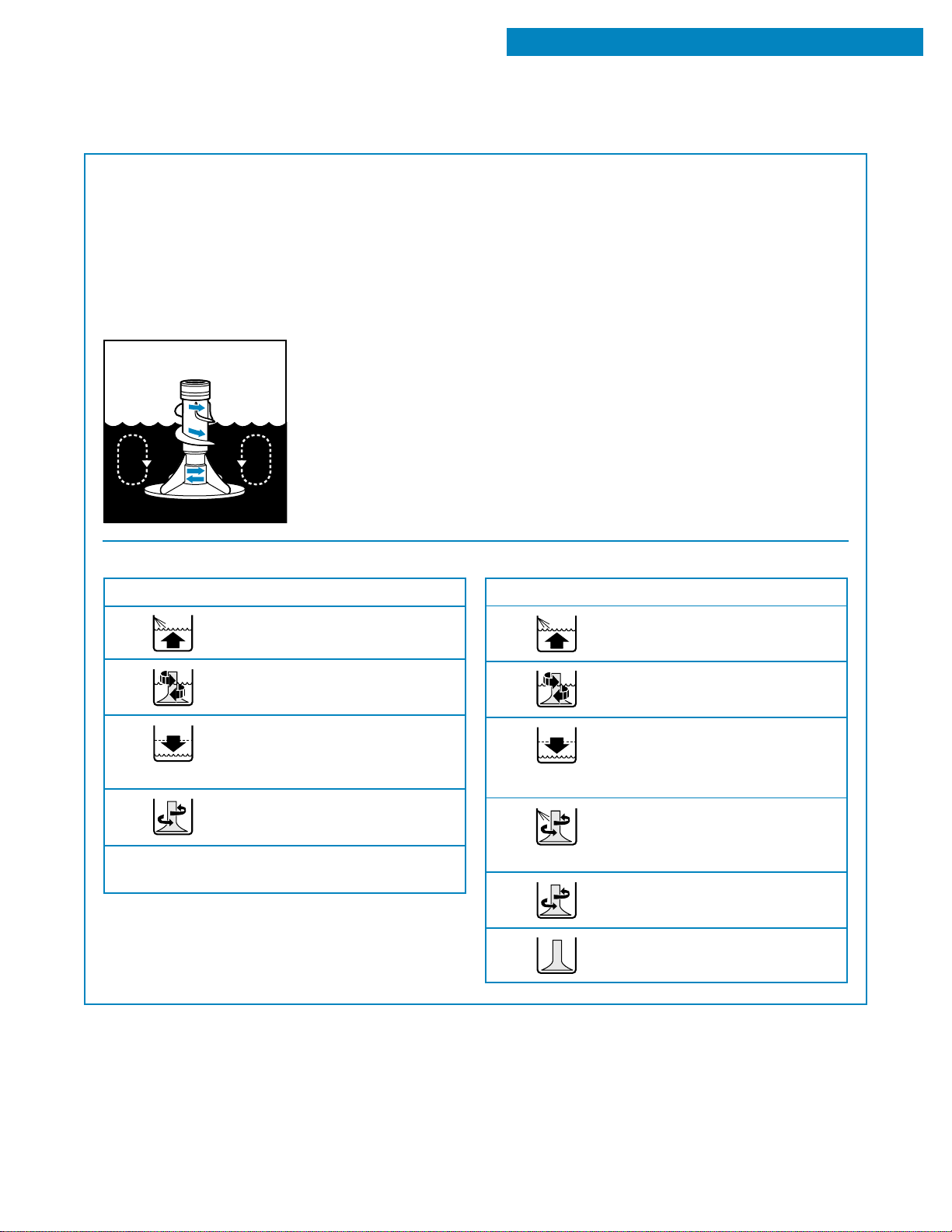

Refer to “Understanding what happens in each
•
cycle” to learn what happens during a wash cycle.
7
OPERATING YOUR WASHER

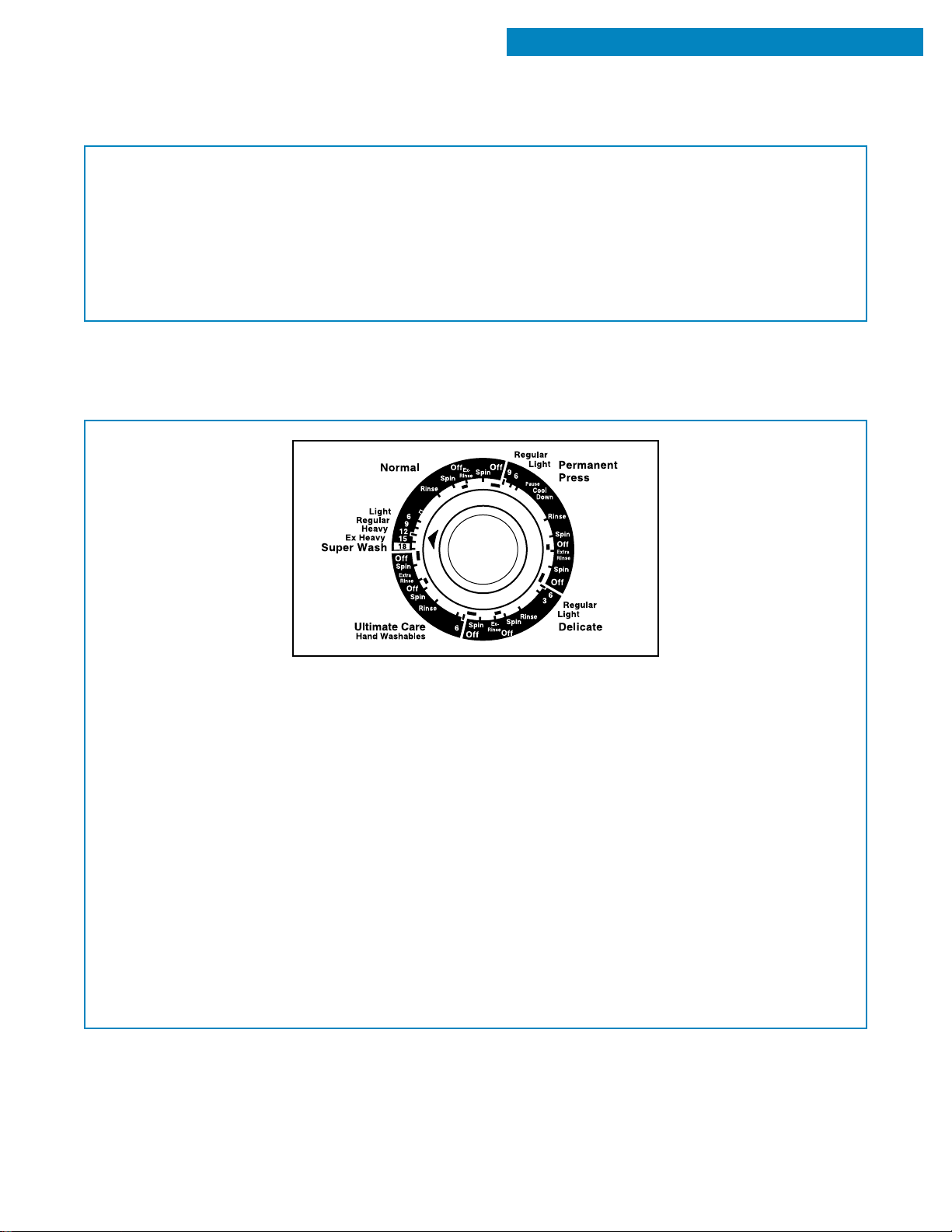

CYCLE DESCRIPTIONS
(Models LSL9345, LSC9345, LSL9355, LSC9355)
Cycles may vary with model
Normal cycle
(Models LSL9355 and LSC9355)
The Normal cycle features extended high speed
agitation followed by a brief period of low speed
agitation for cleaning cottons and linens. High spin
speeds shorten drying times. Select 9 (Regular),
12 (Heavy), or 15 (Ex Heavy) minutes of wash time,
depending on whether your load is moderately or
heavily soiled. For lightly soiled cotton and linen
fabrics, use the 6-minute Light setting.
Super Wash – Select the 18-minute Super Wash
feature to wash heavily soiled loads that need
maximum soil removal. Use two times the amount
of recommended detergent for this cycle.
Normal cycle
(Models LSL9345 and LSC9345)
The Normal cycle features high speed agitation for
cleaning cottons and linens. High spin speeds
shorten drying times. Select 9 (Regular), 12 (Heavy),
or 15 (Ex Heavy) minutes of wash time, depending
on whether your load is moderately or heavily
soiled. For lightly soiled cotton and linen fabrics,
use the 6-minute Light setting.
Super Wash – Select the 18-minute Super Wash
feature to wash heavily soiled loads that need
maximum soil removal. Use two times the amount
of recommended detergent for this cycle.
Permanent Press cycle
The Permanent Press cycle starts with high speed
agitation and then steps down to low speed
agitation for cleaning permanent press blends and
synthetic fabrics. To minimize wrinkling, this cycle
features a cool down rinse and a low speed final
spin. Select 6 (Light) or 9 (Regular) minutes to clean
light to moderately soiled loads.
Delicate cycle
The Delicate cycle features an extra low speed
agitation for gentle soil removal from delicate items
and washable knits. Low spin speeds minimize
wrinkling. Select 3 (Light) or 6 (Regular) minutes to
clean light to moderately soiled loads.
Ultimate Care cycle
(Hand Washables)
The Ultimate Care (Hand Washables) cycle features
a series of brief, extra low speed agitations
(7 seconds) and short soaks (13 seconds) to gently
clean special-care items. Low spin speeds minimize
wrinkling. Use 6 minutes of wash time to clean lightly
soiled hand washables.
Garments are labeled “Hand Wash” because:
The fiber or construction may be sensitive to
•
agitation.
The fabric contains sensitive dyes that may bleed.
•
Properly sort and then use your Hand Washables
cycle for gentle washing. Follow care label directions for drying. Items that may shrink should be
dried flat. Block these items by gently stretching to
original measurements. Woolens tend to shrink
more the first time they are washed.
If items appear to be floating due to trapped air,
•
stop the washer by pushing in the Cycle Control
Knob. Push items down into the water. Restart the
washer.
8

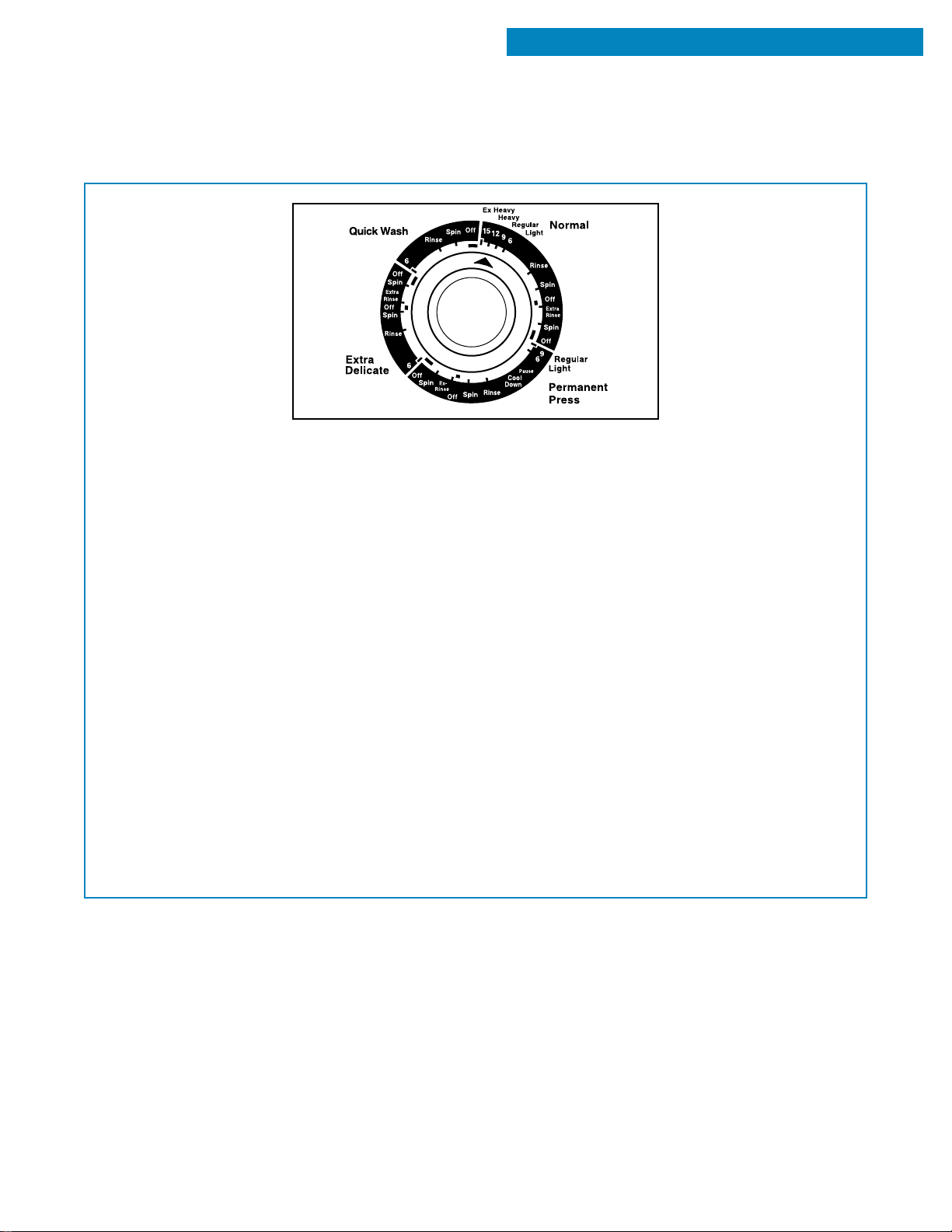

CYCLE DESCRIPTIONS
(Model LSR8300)
OPERATING YOUR WASHER
Normal cycle
The Normal cycle features extended high speed
agitation followed by a brief period of low speed
agitation for cleaning cottons and linens. High spin
speeds shorten drying times. Select 9 (Regular), 12
(Heavy), or 15 (Ex Heavy) minutes of wash time,
depending on whether your load is moderately
or heavily soiled. For lightly soiled cotton and
linen fabrics, use the 6-minute Light setting.
Permanent Press cycle
The Permanent Press cycle starts with high speed
agitation and then steps down to low speed
agitation for cleaning permanent press blends and
synthetic fabrics. To minimize wrinkling, this cycle
features a cool-down rinse and a low speed final
spin. Select 6 (Light) or 9 (Regular) minutes to
clean light to moderately soiled loads.
Extra Delicate
The Extra Delicate cycle features an extra low speed
agitation for gentle soil removal from delicate items
and washable knits. Low spin speeds minimize
wrinkling. Select this 6-minute cycle to clean light
to moderately soiled loads.
Quick Wash
The Quick Wash cycle features low agitation speed
for gentle soil removal, while providing shortened
wash/rinse, drain, and spin times. High spin speeds
shorten drying times. Use this 6-minute cycle with a
low water level and a warm wash to quickly clean
a few lightly soiled items.
9
OPERATING YOUR WASHER
RINSE/DRAIN AND SPIN
Rinse and Spin feature
When using extra detergent for heavily soiled
clothes, or washing special-care items, you may
find an extra rinse and spin is needed.
For an additional rinse and spin, push in the
•
Cycle Control Knob and turn it clockwise to any
of the Rinse settings. The washer fills to the
selected load size, agitates, drains, and spins.
NOTE: An Extra Rinse option is also available. See
“Using your washer.”

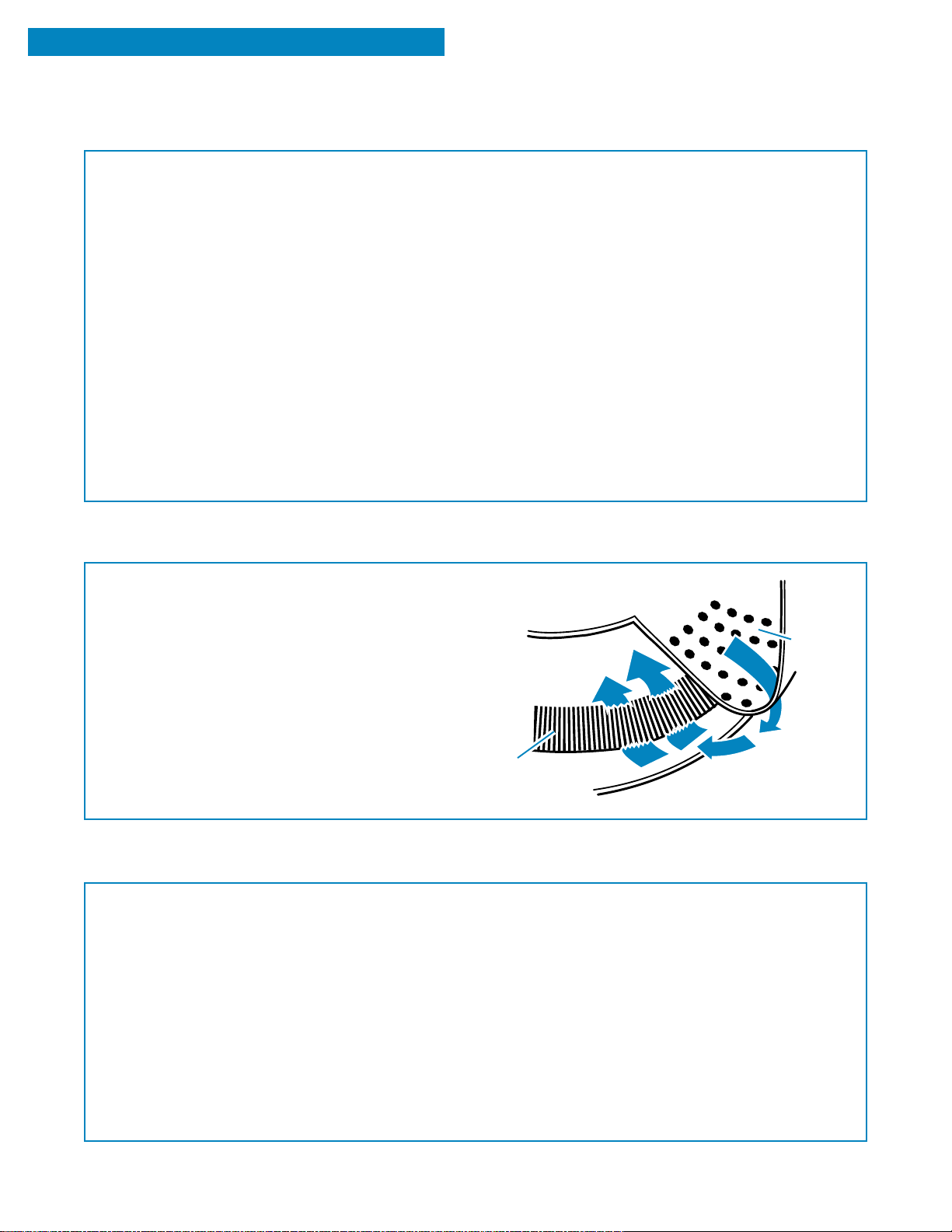

MAGIC CLEAN* LINT FILTER
Your washer has a self-cleaning lint filter at the
bottom of the basket. Wash and rinse water flow
over the filter during agitation, separating the lint
from the water. The lint spins out of the system
during the spin part of the cycle.
If your washer drains into a tub, remove any lint
collected in the tub or strainer.
Drain and Spin feature
A drain and spin may help shorten drying times for
some heavy fabrics or special-care items by removing excess water.
For a drain and spin, push in the Cycle Control
•
Knob and turn it clockwise to any of the Spin
settings. Then pull out the Cycle Control Knob.
The washer drains, then spins.
Basket
interior
MAGIC CLEAN lint filter
UNDERSTANDING NORMAL WASHER SOUNDS
Your new washer may make sounds your old one
didn’t. Because the sounds may be unfamiliar, you
may be concerned about them. Don’t be; most of
them are normal.
The following describes some of the sounds you
may hear and what causes them.
During washing
When you select a small load size setting, your
washer has a lower water level. This may cause a
clicking sound from the upper part of the agitator.
During drain
If water is drained quickly from your washer (depending on your installation), you may hear air being
pulled through the pump during the end of draining.
After drain and before spin
When the cycle changes from draining to spinning,
you may hear gears engaging.
10
UNDERSTANDING WHAT HAPPENS IN EACH CYCLE
OPERATING YOUR WASHER
When the Cycle Control Knob is set to a number
and pulled out, the washer fills (to the selected load
size) before agitation and timing start. The washer
begins agitating immediately after filling; agitation
occurs with the washer lid up or down.
During agitation, the XTRA ROLL ACTION* agitator
creates a continuous
rollover action that provides a thorough cleaning
of the wash load.
Sequence of cycles
WASH
Fill
▼
After agitation starts, the Cycle Control Knob turns
clockwise until it points to an Off area and the
cycle ends.
NOTE: The washer pauses briefly throughout
each cycle. These pauses are normal for washer
operation.
RINSE
Fill
▼
Wash selected time
†
The Permanent Press cycle partially drains, fills, agitates
briefly, and drains.
▼
†
Drain
No agitation
▼
Spin
▼
Rinse
▼
Drain-No agitation
▼
Spin-Spray rinse
▼
Spin
▼
Off
11
CARING FOR YOUR WASHER
Proper care of your washer can extend its life. This section explains how to care for your washer
properly and safely.
CLEANING YOUR WASHER
Cleaning the exterior
Use a soft, damp cloth or sponge to wipe up any
spills such as detergent or bleach.
Occasionally wipe the outside of
your washer to keep it looking new.
Cleaning the liquid fabric softener dispenser
Flush dispenser periodically with warm water, as
shown. Remove the dispenser by grasping the top
of the dispenser with both hands and squeezing
and pushing upwards with thumbs. Clean the
dispenser by rinsing it under a water faucet.
Replace it after cleaning.
NOTE: Do not wash clothes with this dispenser
removed. Do not add detergent or bleach to this
dispenser; it is for liquid fabric softener use only.
Cleaning the interior
Clean your washer interior by mixing 1 cup (250 mL)
of chlorine bleach and 2 cups (500 mL) of detergent.
Pour this into your washer and run it through a complete cycle using hot water. Repeat this process if
necessary.
NOTE: Remove any hard water deposits using
only cleaners labeled as washer safe.
WINTER STORAGE, MOVING, VACATION CARE
Install and store your washer where it will not
freeze. Because some water may stay in the hoses,
freezing can damage your washer. If storing or
moving your washer during freezing weather,
winterize it.
To winterize washer:
1. Shut off both water faucets.
2. Disconnect and drain water inlet hoses.
3. Put 1 quart (1 L) of R.V.-type antifreeze in the
basket.
4. Run washer on a drain and spin setting (see
“Drain and spin”) for about 30 seconds to mix
the antifreeze and water.
5. Unplug the power supply cord.
12
To use washer again:
1. Flush water pipes and hoses.
2. Reconnect water inlet hoses.
3. Turn on both water faucets.
4. Reconnect power supply cord.
5. Run the washer through a complete cycle with
1 cup (250 mL) of detergent to clean out antifreeze.
Non-use or vacation care:
Operate your washer only when you are at home. If
you will be on vacation or not using your washer for
an extended period of time, you should:
Unplug the power supply cord or turn off electrical
•
power to the washer.
Turn off the water supply to the washer. This helps
•
avoid accidental flooding (due to a water pressure
surge) while you are away.
TROUBLESHOOTING
Most laundering problems are easily solved if you understand the cause. Check the following list
for common washing problems. If you need further assistance, see the “Requesting Assistance
or Service” section.
COMMON WASHING PROBLEMS
Problem...
Washer leaks
NOTE: After
checking these,
check household
plumbing.
Washer won’t
drain/spin
Cause...
Fill hoses not tight.
•
Fill hose washers not properly seated.
•
Drain hose clamp not properly installed
•
or is off.
Drain is clogged.
•
Tub moved forward during unloading,
•
causing water to deflect off of tub ring.
Unit not level, causing water to deflect
•
off of tub ring.
Fill or spray rinses are deflecting off of
•
load. Washer is overloaded or load is
unbalanced.
Drain hose is clogged.
•
Lid is open.
•
End of drain hose more than
•
72 inches (190.9 cm) above floor.
Too much detergent – excessive sudsing.
•
Low voltage or using an extension cord.
•
Solution...
Tighten hoses. See Installation
•
Instructions.
Reseat (reposition) washers. See
•
Installation Instructions.
Clamp drain hose.
•
Unclog drain. Sink and standpipe
•
must be able to handle 17 gallons
(64.6 L) of water per minute.
Ensure tub is centered before
•
starting washer.
Ensure front feet are installed and
•
nuts are tightened. Level washer.
Redistribute the load, or reduce
•
load size.
Unclog hose. See Installation
•
Instructions for proper installation
of drain hose.
Close the lid.
•
Lower drain hose.
•
Use less detergent.
•
Check electrical source or call
•
electrician. Do not use extension
cords.
Wet loads
Washer continues
to fill/drain or
cycle stuck
NOTE: Washer
pauses briefly
throughout each
cycle. This is normal.
Washer makes
noise
Wrong cycle for load being washed.
•
Cold rinses.
•
Top of drain hose is lower than water
•
level in washer.
Drain hose fits too tightly into standpipe.
•
Drain hose taped into standpipe.
•
Load is unbalanced.
•
Washer is not level.
•
Nuts on front feet not tight.
•
Yellow shipping strap with cotter pins
•
not completely removed.
Choose a cycle with a higher spin
•
speed.
Cold rinses leave loads wetter than
•
warm rinses. This is normal.
Raise the drain hose. It must be
•
higher for proper operation.
Adjust drain hose for loose yet
•
secure fit. See Installation
Instructions.
Do not seal off drain hose with
•
tape. The hose needs an air gap.
Redistribute load.
•
Level washer. Reset rear leveling
•
legs. See Installation Instructions.
Tighten nuts.
•
See Installation Instructions.
•
continued on next page
13
TROUBLESHOOTING
COMMON WASHING PROBLEMS (CONT.)
Problem...
Washer makes noise
(cont.)
Won’t fill/rinse/agitate
or wrong temperature
Washer stops
Agitator operation
Water level seems
too low or washer
not completely filling
Cause...
Gears engaging after drain and
•
before spin.
Upper part of agitator clicks during wash.
•
Power cord not plugged in.
•
Timer dial is not lined up.
•
Water inlet valve screens are plugged.
•
Water is turned off.
•
Hot and cold hoses are reversed.
•
Inlet hose is kinked.
•
Power cord not plugged in.
•
No power at plug.
•
Fuse blown or circuit breaker open.
•
Using an extension cord.
•
Timer dial is not lined up.
•
Timer knob not pulled out.
•
Washer at pause in Permanent Press
•
cycle (approximately 2 minutes).
Machine is overloaded.
•
The top of the agitator moves only in one
•
direction.
The top of the agitator is loose.
•
The top of the agitator is much higher
•
than the highest water level. This creates
a perception of the washer not being full.
Solution...
This is normal.
•
This is normal.
•
Plug in power cord.
•
Turn timer knob to the right
•
slightly and pull to start.
Clean screens.
•
Turn on water.
•
Reverse hoses.
•
Straighten hoses.
•
Plug in power cord.
•
Check electrical source or call
•
electrician.
Replace fuse or reset circuit
•
breaker. If problem continues,
call electrician.
Do not use extension cords.
•
Turn timer to the right slightly
•
and pull to start.
Set and pull out knob.
•
Allow cycle to continue.
•
Wash smaller loads.
•
This is normal.
•
This is normal.
•
This is normal.
•
Washer tub is crooked
14
Tub is pulled forward when unloading.
•
Tub moves.
•
Unit not level.
•
Push tub to center before
•
starting.
This is normal.
•
Ensure front feet are installed
•
and nuts tightened. Level
washer. Reset rear leveling legs.
See Installation Instructions.
Loading...
