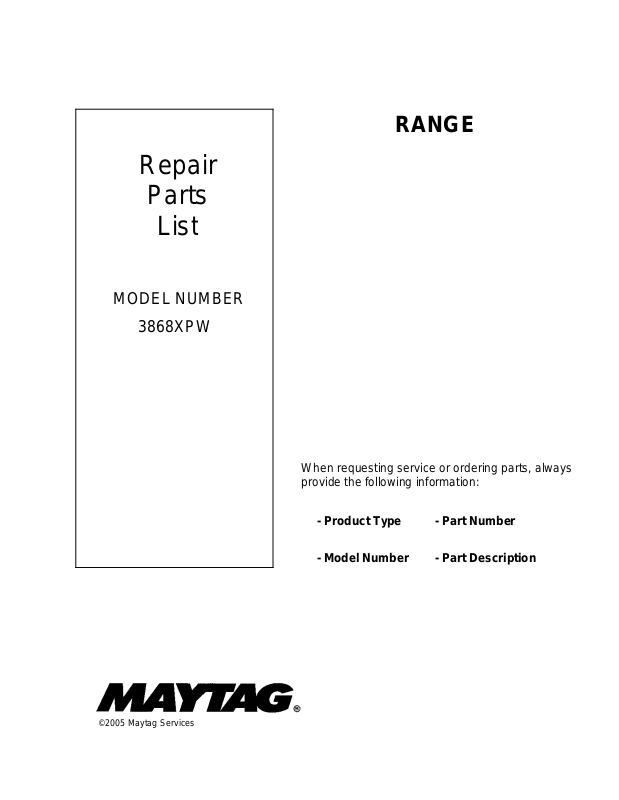

Page 1
Repair
List
Parts
MODEL NUMBER
3868XPW
RANGE
©2005 Maytag Services
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
Page 2
Section: CONTROL PANEL
1
Model: 3868XPW
C10-155
Page 3
Section:
2
CONTROL PANEL
No. Part No. Description
1 4001F089-51 HOUSING, BACKGUARD Note: HOUSING 01 1
- N 2612W039-09 BACKSPLASH Note: BACKSPLASH (XP MODELS) 01 1
2 N 3807F424-51 SUPPORT, HOUSING (LT) Note: (LF) 01 1
- N 7118P015-60 SCREW, HOUSING Note: SCREW 01 19
2 N 3807F423-51 SUPPORT, HOUSING (RT) Note: SUPPO RT, HINGE (RT) 01 1
3 N 3802F087-51 BRACE, LWR BKGD Note: B RA CE, CONTROL PANEL 01 1
- N 7703P502-60 PANEL, BACKGUARD Note: PANEL, BA CKGUARD (WOODGRA I N) 01 1
4 N 7703P272-60 PANEL BACKGUARD Not e: PANEL, BACKGUARD 01 1
4 N 7703P501-60 PANEL, CTRL Note: PA NE L, BACKGUARD 10 1
5 7118P019-60 SCRE W Note: SCREW, PANE L 01 4
6 4001F064-51 EXTENSION, CONTROL PANEL Note: EXTENS I ON 01 1
7 7403P239-60 SWITCH, INFI NITE (LRG ELEMENT) Note: (8") 01 2
7 7403P238-60 SWITCH, INFI NITE (SML ELEMENT) Note: SWITCH, INFINIT E (6") 01 1
8 4876S024-59 CONTROL PANEL ASSY Note: GLASS PANEL ASSY. 10 1
8 4876S023-59 CONTROL PANEL ASSY Note: GLASS PANEL ASSY. 01 1
9 N 7720P156-60 TRIM, RETAINER Note: RETAI NE R 01 2
10 7740P018-60 BE Z E L, KNOB Note: BEZEL, K NOB 01 4
11 7731P082-60 KNOB , T HERM/BURNER (BLK) Note: KNOB, INFINITE 01 4
- N 7601P192-60 CLOCK Note: CLOCK (G PREFIX ONLY) 01 1
12 N 7601P171-60 CLOCK Note: CLOCK 01 1
12 7601P209-60 CLOCK Note: CLOCK (INCL. RELAY) 10 1
- 7101P148-60 SCREW, SWITCH Note: SCRE W, CLOCK 01 4
13 7711P431-60 KNOB , CLOCK (BLK) Note: KNOB, CLOCK 01 1
- 7730P012-60 LENS, INDICATOR LIGHT 10 1
14 7407P090-60 LAMP S I GNA L Note: LIGHT, INDICAT OR 01 1
15 7428P013-60 RELA Y BOARD Note: BOARD, RELAY 01-0 1
16 8004P020-60 SUP P O RT, RELAY BOARD Note: S UPPORT, RELAY 01-0 4
17 N 3604F201-80 SHIELD, S IGHT Note: SHIELD 01 1
18 7403P109-60 SWITCH, PUSH (BLK) Note: SWITCH, OVEN LIGHT 01 2
19 7214P007-60 SLEEVE, SW ITCH (BLK) Note: SLEEVE, SWITCH 01 2
20 N 7726P035-60 TRIM, END CAP (LT) Note: CAP, E ND (LT) 01 1
- 7103P129-60 NUT, SPEED Note: NUT 01 2
20 N 7726P036-60 TRIM, END CAP (RT) Note: (RT) 01 1
21 8010P083-60 SPACER Note: SPACER 01 2
- N 5170P162-60 HARNESS, SENS OR & LOCK 10 1
- N 5170P124-60 HARNESS CTRL TO RELAY 10 1
- N 5170D165-60 HARNESS Note: HARNESS, BKGD. 01 1
- N 16000329 GUIDE, QUICK REF. - MAGIC CHE F Note: GUIDE, QUICK REFERENCE 01 1
- 8113P026-60 INS E RT, INSTR SHEET (CLOCK) Note : INSERT, USE & CARE (CLOCK) 01 1
- 8113P008-60 MANUA L, USE & CARE Note: MANUA L CARE & USE 01 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N =Not Available
Page 4
Section: TOP ASSEMBLY (3868XP)
3
Model: 3868XPW
C15-30
Page 5
Section:
4
TOP ASSEMBLY (3868XP)
No. Part No. Description
1 5706A011-60 MAIN TOP, GLASS Note: TOP ASSY., GLASS 01 1
2 7101P290-60 SCRE W Note: SCREW, BRACKET 01 4
- 3801F305-80 BRACKET, MAIN TOP Note: BRACKET, MAIN TOP 01 1
2 N 3801F271-45 BRACKET S I GNAL LAMPS Note: BRACKET, LIGHT 01 1
3 7406P073-60 ELEME NT W/RECEPT A CLE (8" ) Note: ELEMENT (8") 01 2
- 12500040 LIMITER KIT (8") 01 1
4 7406P074-60 ELEME NT W/RECEPT A CLE (6" ) Note: ELEMENT (6") 01 2
- 12500041 LIMITER KIT (6") 01 1
5 7113P013-60 PI N, E LEMENT Note: PIN, ELEMENT SUPPORT 01 12
6 N 7803P066-60 S PRING, ELEMENT SUPPORT Note: SPRING, PIN 01 12
7 N 3819F013-45 CLIP, ELEMENT Note: BRACKET, ELE MENT S UP P ORT 01 12
- 7101P076-60 SCREW Note: S CREW, BRACK E T 01 12
8 7112P091-60 CLIP , RE TAINER Note: CLIP, PI N 01 12
9 N 7407P089-60 LIGHT, INDICATOR Note: LIGHT, INDICATOR 01 1
10 04000063 LIMITE R (8" ELEMENT) Note: LIMITER (8") 01 2
- 8308P002-60 CLEANER, ELCO Note: CLEANER , ELCO 01 1
- 8312P001-60 SCRAPER, RAZOR Note: SCRAPER, RAZOR 01 1
- 5175D052-60 HARNESS, BURNER BOX Note: HARNESS, BURNER BOX 01 1
11 04000064 LIMITE R (6" ELEMENT) Note: LIMITER (6") 01 2
- 8112P105-60 MANUAL, USE & CARE-INSERT No te : I NS E RT, USE & CARE(SMOOTH TOP) 01 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N =Not Available
Page 6

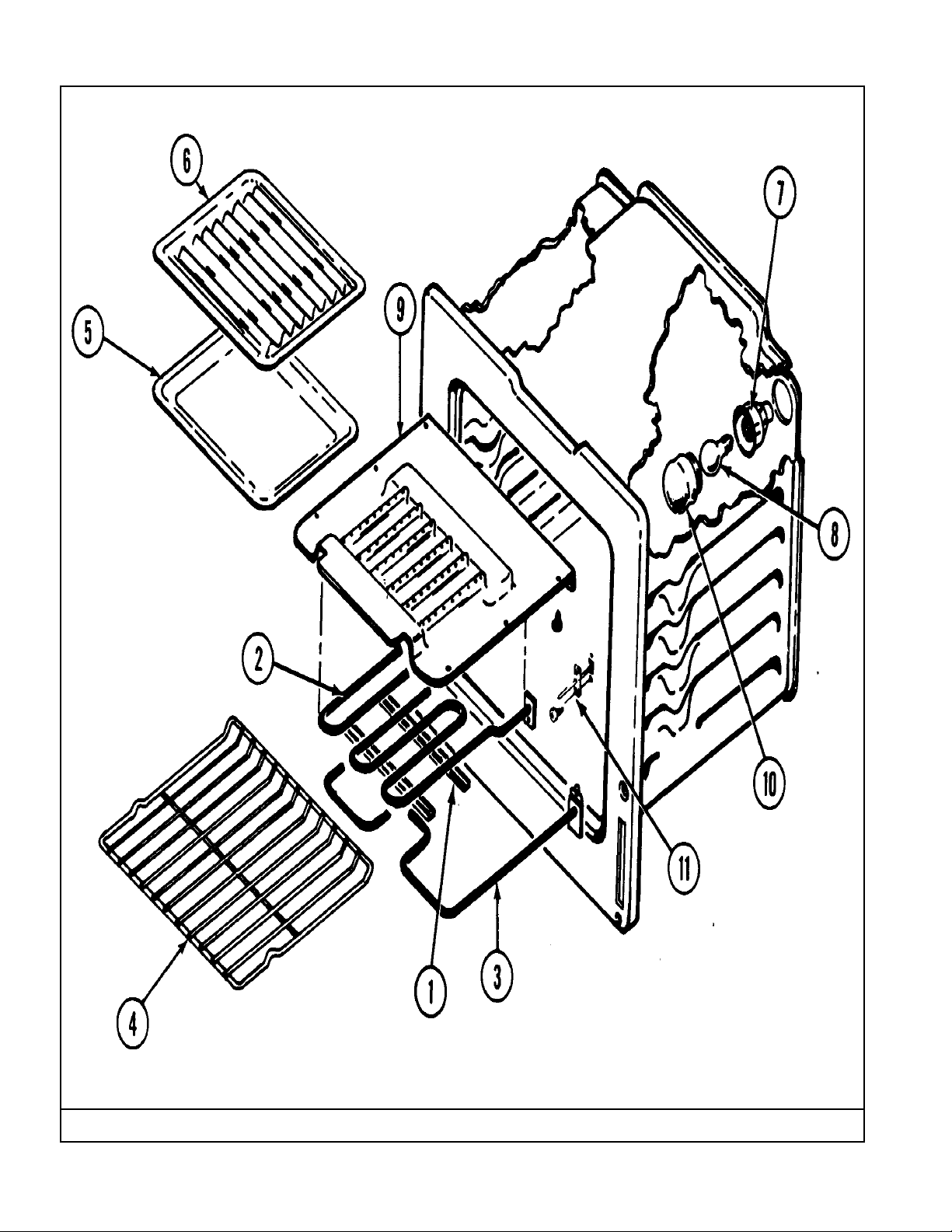

Section: OVEN
5
Model: 3868XPW
C12-3
Page 7
Section:
6
OVEN
No. Part No. Description
- 7101P290-60 SCREW Note: S CREW (#8A X 1/2") 01 10
- 7101P300-60 SCREW Note: S CREW (#8A X 1/2") 01 4
1 3807F387-45 SUPPORT, BROIL ELEMENT Note: SUPPORT, BROIL ELEMENT 01 1
2 7406P065-60 ELEMENT, BROIL Note: ELEMENT, BROIL 01 1
3 7406P064-60 ELEMENT, BAKE Note: ELEMENT, BAKE 01 1
4 7801P036-60 RACK , OVEN Note: RACK, WIRE 01 2
5 Y3401F02019 PAN, BROIL Note: PAN, BROIL 01 1
6 Y3413F01619 INSERT, BROIL PAN Note: INSERT, BROIL PAN 01 1
7 7407P088-60 RECE P T A CLE, BULB Note: RECEP TACLE & HOUSING, LA MP 01 1
8 7407P091-60 LAMP, OV EN Note: LAMP, OVEN 01 1
9 3601F202-45 BAFFLE. BROIL Note: BAFFLE, B ROIL 01 1
10 7724P047-60 COVE R, B ULB Note: COVER, OVEN BUL B 01 1
11 7430P009-60 PROBE, OVEN SENSOR Note: P ROBE, OVEN SENSOR 01 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N =Not Available
Page 8

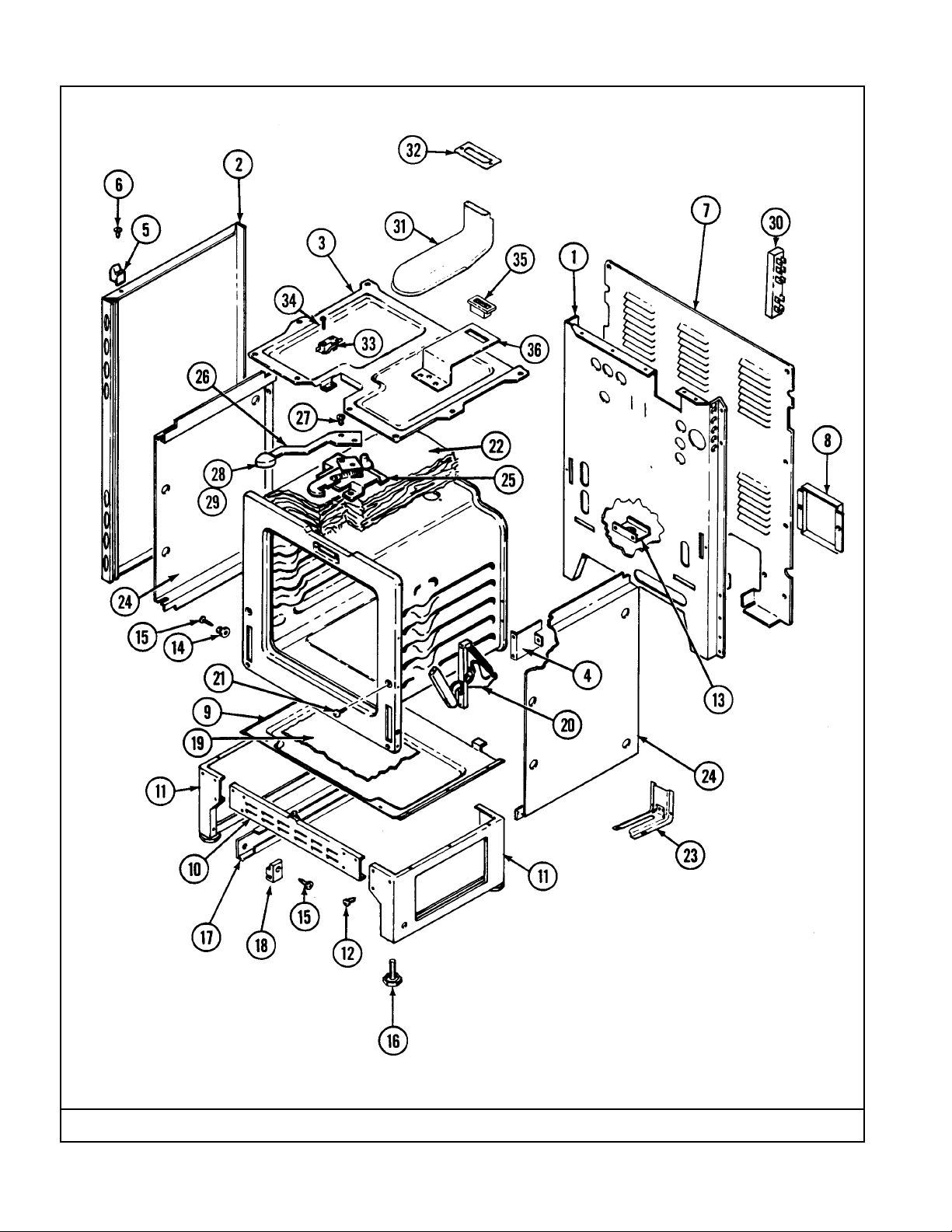

Section: BODY
7
Model: 3868XPW
C14-27
Page 9
Section:
8
BODY
No. Part No. Description
1 4002F184-80 BACK, MAIN Note: BACK, MAIN 01 1
2 N 2618F085-71 PANEL, SIDE (WHT) Not e: PANEL, SIDE (WHT) 01 2
2 2618F099-71 PANEL, SIDE (WHT) 15 2
3 N 4011F207-19 BOX, BURNER Note: BOX, BURNER 01 1
4 3807F400-51 SUPPORT, OVEN REA R Not e: S UPPORT, OVEN (REAR) 01 2
5 8010P087-60 SPACER, MAIN TOP (LT) Note: SPACER, MAIN TOP (LT) 01 1
5 8010P088-60 SPACER, MAIN TOP (RT) Note: (RT) 01 1
6 7118P013-60 SCRE W Note: SCREW 01 2
7 4005F348-51 COVER, MAIN BACK WIRE Note: COV E R, MA I N B ACK WIRE 01 1
8 4005F376-51 COVER, TERMINAL BLOCK ACCE S Note: COVER, TERMINAL BLOCK A CCESS 01 1
9 3804F109-51 RETAINER, BOTTOM INSULATION Note: RETA I NER, B OTTOM INSULATION 01 1
10 4020F001-80 PEDESTAL, FRONT/REAR Note: P E DESTAL (FRONT & REAR) 01 2
11 N 4020W007-80 PEDESTAL, SIDE Note: PEDESTAL (SIDES) 01 2
12 7101P290-60 SCRE W Note: SCREW 01 15
13 N 3605F174-51 PLATE , CONDUIT TUBING Note: PLATE, CONDUIT 01 1
14 8004P024-60 SPACER, SIDE PANEL Note: SPACER, SIDE PANEL 01 2
15 7101P300-60 SCRE W Note: SCREW 01 8
16 7101P306-60 LEG, LEVELING Note: LEG, LEVELING 01 4
17 N 3406F028-51 RUNNER, DRAWER Note: RUNNE R, DRAWER 01 2
18 8004P025-60 SUP PORT, DRAW ER Note: SUPPORT, DRA WER 01 2
19 N 8312P058-60 FOI L, I NS ULATION RETAINER Note: FOIL, RE TA INER 01 1
20 7106P033-60 HINGE, DOOR Note: HINGE ASSY., DOOR 01 2
21 7101P017-60 SCRE W, HINGE Not e: SCREW 01 4
- N 4804F015-60 INSULATION, B A CK Note: INSULATION, BACK & B OTTOM 01 2
22 N 4804F016-60 INSULATION, WRAP Note: I NS ULA TION, WRAP 01 1
- 7101P289-60 SCRE W, BRACKET Note: SCREW , BRACKET 01 2
23 3801F218-51 BRACKET, ANTI-TIP Not e: BRACKET, ANTI-TIP 01 1
24 N 3804F103-51 RETAINER , IN S ULA TI ON (S I DE ) Note: RETAINER, INSULATI ON (SIDE) 01 2
25 8002P025-60 LATCH ASSY. Note: CATCH ASSY. 01 1
- 7101P280-60 SCREW W/WA S HER (BLK) Note: SCREW W/ WASHER 01 2
26 8009P016-60 LEVER, LOCK Note: LEVER 01 1
- 7109P015-60 WASHER Note: WASHER (1/2") 01 1
27 7101P230-60 SCRE W, LEVER Note: SCREW 01 2
28 7112P003-60 CLIP , LATCH HANDLE Note: CLIP, CATCH HANDLE 01 1
29 7701P088-60 HANDLE, LATCH (BLK) Note: HANDLE, LATCH ASSY.(BLK) 01 1
30 7401P039-60 BLOCK , TE RMINAL Note: BOARD, TE RMINA L 01 1
31 N 4006W107-45 VENT BOX ASSY. Note: BOX ASSY. VENT 01 1
- 7403P160-60 SWITCH, HI -LIMIT Note: SW I T CH, HIGH LIMIT 01 1
- 3826W014-45 EXTENSION, VENT Note: EXTENSION, VENT ASSY. 01 1
32 7201P054-60 GASKET, VENT Note: GASKET, VENT 01 1
33 N 7403P228-60 SWITCH, DOOR LATCH Note: SWITCH, DOOR LOCK 01 1
34 7101P103-60 SCRE W Note: SCREW 01 1
35 N 7407P089-60 LIGHT, INDICATOR Note: LAMP I NDICATOR (HOT SURFACE) 01 1
36 N 3801F302-45 BRACKE T , IND. Note: BRACKET, I NDICATOR 01 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N =Not Available
Page 10

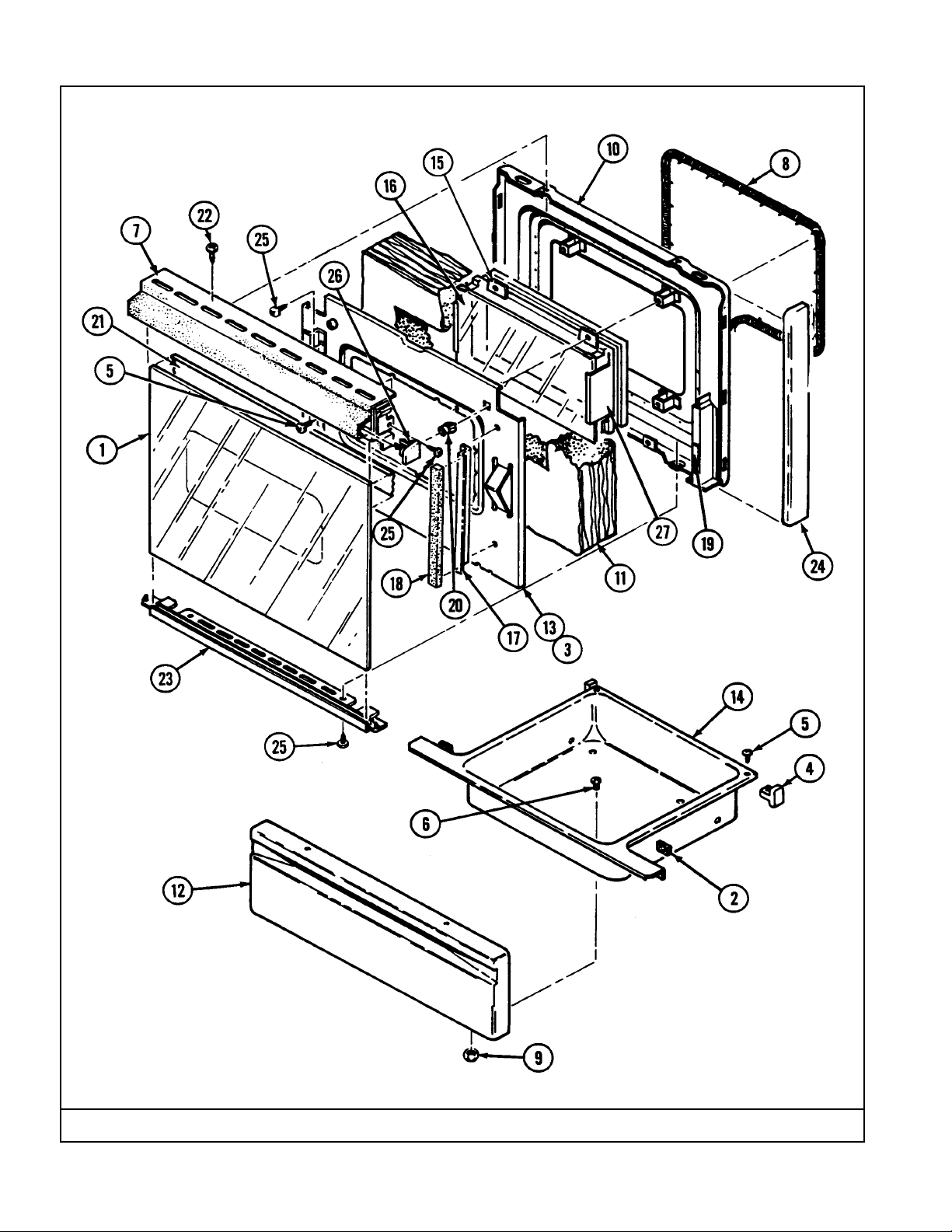

Section: DOOR/DRAWER
9
Model: 3868XPW
C11-6
Page 11
Section:
10
DOOR/DRAWER
No. Part No. Description
1 7902P321-60 GLASS, DOOR (BLK) Note: GLASS, DOOR (BLK) 01 1
2 8010P086-60 SPACER, RUBBER Note: SPACER, RUBBER 01 2
3 8010P085-60 SPACER, RUBBER Note: SPACER, RUBBER 01 2
4 8004P026-60 SUP P O RT, DRAWER (REAR) Note: SUPPORT, RE A R 01 2
5 7101P291-60 SCRE W Note: SCREW (#8 X 5/8") 01 4
6 7101P115-60 SCRE W Note: SCREW (#10 - 24 X 1/") 01 1
7 7701P096-60 HANDLE , DOOR (BLK) Note: HANDL E , DOOR (BLK) 01 1
7 7701P144-60 HANDLE, DOOR (BLK) 18 1
8 7201P046-60 GASKET, DOOR Note: SEAL, DOOR (GASKET) 01 1
9 7103P085-60 NUT, LOCK Note: NUT, LOCK 01 4
10 N 2402W202-19 LINING, DOOR Note: LINING, DOOR 01 1
11 4804F012-60 INSULATION DOOR Note: INSULATIO N, DOOR 01 1
12 2416F039-64 PANEL, DRAWER (ALM) Note: (ALM) 01 1
12 2416F039-62 PANEL, DRAWER (WHT) Note: PANEL, DRAWER (WHT) 01 1
12 2416F039-65 PANEL, DRAWER (BLK) Note: (BLK)(X MODELS) 01 1
13 N 3601F232-45 BAFFLE, DOOR Note: BAFFLE 01 1
14 N 3405F015-80 DRAWER, STORAG E Note: DRAWER, ASSY. 01 1
15 N 7907P009-60 FRAME, WINDO W Note: FRAME, WINDOW 01 1
16 7907P014-60 GLASS ASY, OVEN DOOR Note: WI NDOW ASSY. 01 1
17 3818F052-51 CHANNEL, AIR Note: CHA NNEL, AIR 01 2
18 7208P002-60 SEAL Note: SEAL, FOAM 01 2
19 7208P011-60 SEAL, RUBBER Note: SEAL, DOOR GLASS 01 2
20 N 8010P075-60 SPACER Note: SPACER, HANDLE 01 2
21 8270P090-60 TAPE, FOIL (3" WIDE) Note: TAPE, FOIL (3" WIDE) 01 1
22 7101P040-60 SCRE W (1/2") Note: S CREW (8-18 X 1/2") 01 2
23 N 7744P105-60 TRIM, BOTTOM (BLK)----NA Not e: T RIM, BOTTOM (BLK) 01 1
24 7744P055-60 END CA P, OVEN DOOR (BLK) Note : TRIM, SIDE (BLK) 01 2
25 7101P290-60 SCRE W Note: SCREW 01 13
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N =Not Available
