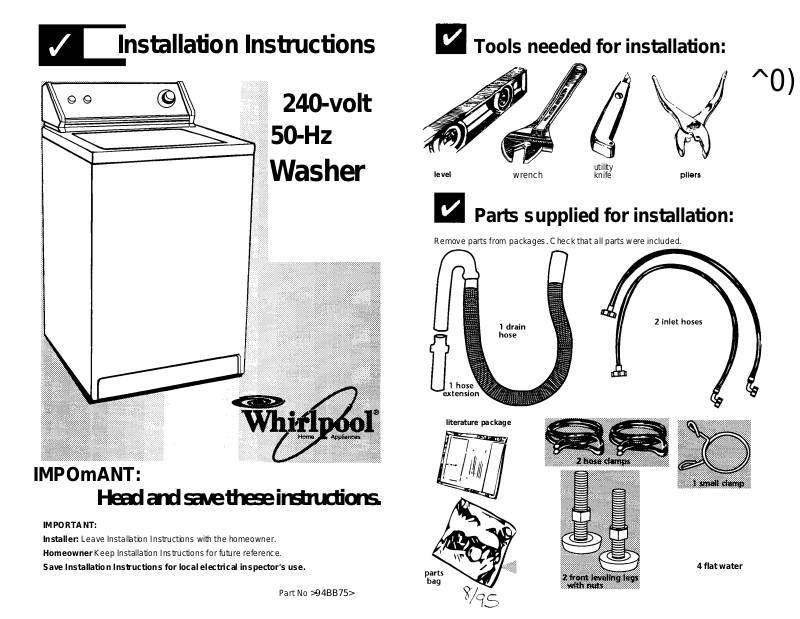

Page 1
✓
Installation Instructions
240-volt
50-Hz
Tools needed for installation:
^0)
Washer
level
wrench
utility
knife
Parts supplied for installation:
Remove parts from packages. Check that all parts were included.
literature package
IMPOmANT:
Head and save these instructions.
IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner Keep Installation Instructions for future reference.
Save Installation Instructions for local electrical inspector's use.
4 flat water
Part No >94BB75>
Page 2
E
Before you start...
Location of washer:
Earthed electrical
outlet is required. See
"Electrical requirements.
Panel A.
The hot and cold water
inlets on the back of the
washer have 3/4 — 11-1/2
American hose coupling
standard threads.
Support: Floor must be
sturdy enough to support
washer weight of 143kg
(315 pounds).
Check location where washer will be installed. Make sure you have everything necessary
for correct installation. Proper installation is your responsibility.
Hot and cold water
faucets: Must be
within 122cm (4 feet)
of the back of the
washer and provide
water pressure
34.5-1200 kPa
(5-175 PSI).
Water heater: Set to
deliver 60°C(140°F)
water to washer.
Recessed area instructions...
This washer may be installed in a recessed area or closet.
The installation dimensions shown
are the minimum spaces
allowable. Additional spacing
should be considered for ease of
installation and servicing.
If closet door is installed, the
minimum air openings in top
Minimum instaiiation spacing
* Additional clearances for wall, door and floor moldings may be required.
and bottom of door are required.
Louvered doors with air openings
in top and bottom are
acceptable.
Companion appliance spacing
should be considered.
Front view
Do Not store or operate washer below 0°C (32°F)
(some water may remain in washer).
See Use & Care Guide for "Winterizing" information.
Drain system:
1. Laundry tub drain system:
Needs a 76-liter (20-gallon) laundry tub.
Level floor: Maximum
slope under entire washer ■
2.5cm (1 inch).
Untape and open washer lid. Remove packages, hoses and literature rack from washer.
2. Floor drain system:
3. Standpipe drain system:
Needs a 51-mm (two-inch) minimum diameter standpipe with minimum
carry-away capacity of 64 liters (17 gallons) per minute.
Floor standpipe
drain
Top of
standpipe
must oe at
least 86cm
(34 inches)
high and no
higher than
183cm
(72 inches)
from bottom
of washer.
Wall
standpipe
drain
86cm
(34 inches) min.
183cm
72 inches) max.
rom end of
drain hose to
bottom of
washer.
If a longer drain hose is needed, use drain hose extension kit (Part No. 285702). If drain hose must be shortened, use kit (Part No. 285442).
Both kits are available from Whirlpool-authorized parts distributors.
Electrical requirements
Recommended earthing method
round earthing-
Electrical earth is required
on this appliance.
Do Not earth to a gas pipe.
Do Not change the power
supply cord plug. If it does
not fit the outlet, have a
tr
If codes permit and a separate
earthing wire is used, it is
recommended that a qualified
electrician determine that the
earthing path is adequate.
proper outlet installed by
a qualified electrician.
Failure to follow these instructions could result in
death or serious injury.
Panel A
Awarning
Electrical
Shock Hazard
Do Not use an extension cord
with this appliance.
Do Not have a fuse in the
neutral or earthing circuit.
Check with a qualified
electrician if you are in doubt
as to whether the appliance is
properly earthed.
A 240-volt, 50-Hz, 8-amp, fused electrical
supply is required. Time-delay fuse or
circuit breaker is recommended. It is
recommended that a separate circuit
serving only this appliance be provided.
For your personal safety, this appliance must
be earthed. This appliance is equipped with a
power supply cord having an earthing plug.
If the power supply cord of this washer is
damaged, it must be replaced by a special
cord, (Part No. 3353308), available from the
dealer from whom you purchased the washer,
or an authorized Whirlpool service company.
To minimize possible shock hazard, the cord
must be plugged into a mating earthing-type
wall receptacle, earthed in accordance with
local codes and ordinances. If a mating wall
receptacle is not available, it is the personal
responsibility and obligation of the customer
to have the proper earthed wall receptacle
installed by a qualified electrician. See Figure
1 to determine the proper mating wall
receptacle for the power supply cord plug
Page 3
E

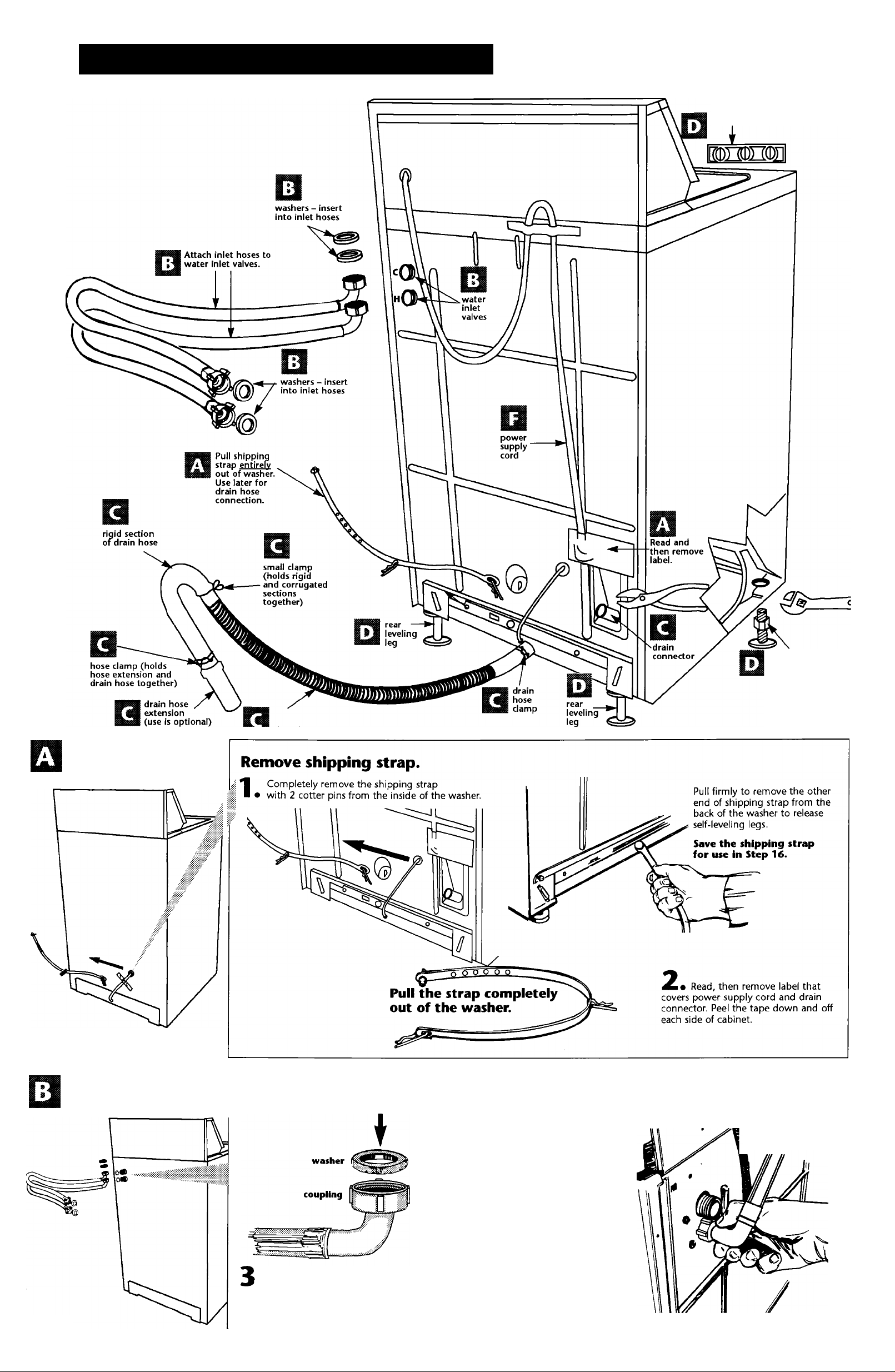

Now start... With washer in laundry area.
level washer
Preparation:
corrugated
section of
drain hose
DO NOT TIGHTEN
NUTS ON FRONT
LEGS UNTIL
WASHER HAS
BEEN LEVELED.
Panel B
Inlet hose connection:
Use new hoses and washers that came with your washer.
Attach hose to bottom inlet
• valve opening first; then
4
second hose to top inlet, Tighten
couplings. DO NOT OVERTIGHTEN;
this could cause damage to couplings.
Elbow end of hoses attaches to
washer.
' • Insert a flat washer into each end
of the inlet hoses. Check that washers are
firmly seated in couplings.
Inlets are plastic.
DO NOT STRIP OR
CROSSTHREAD.
Page 4

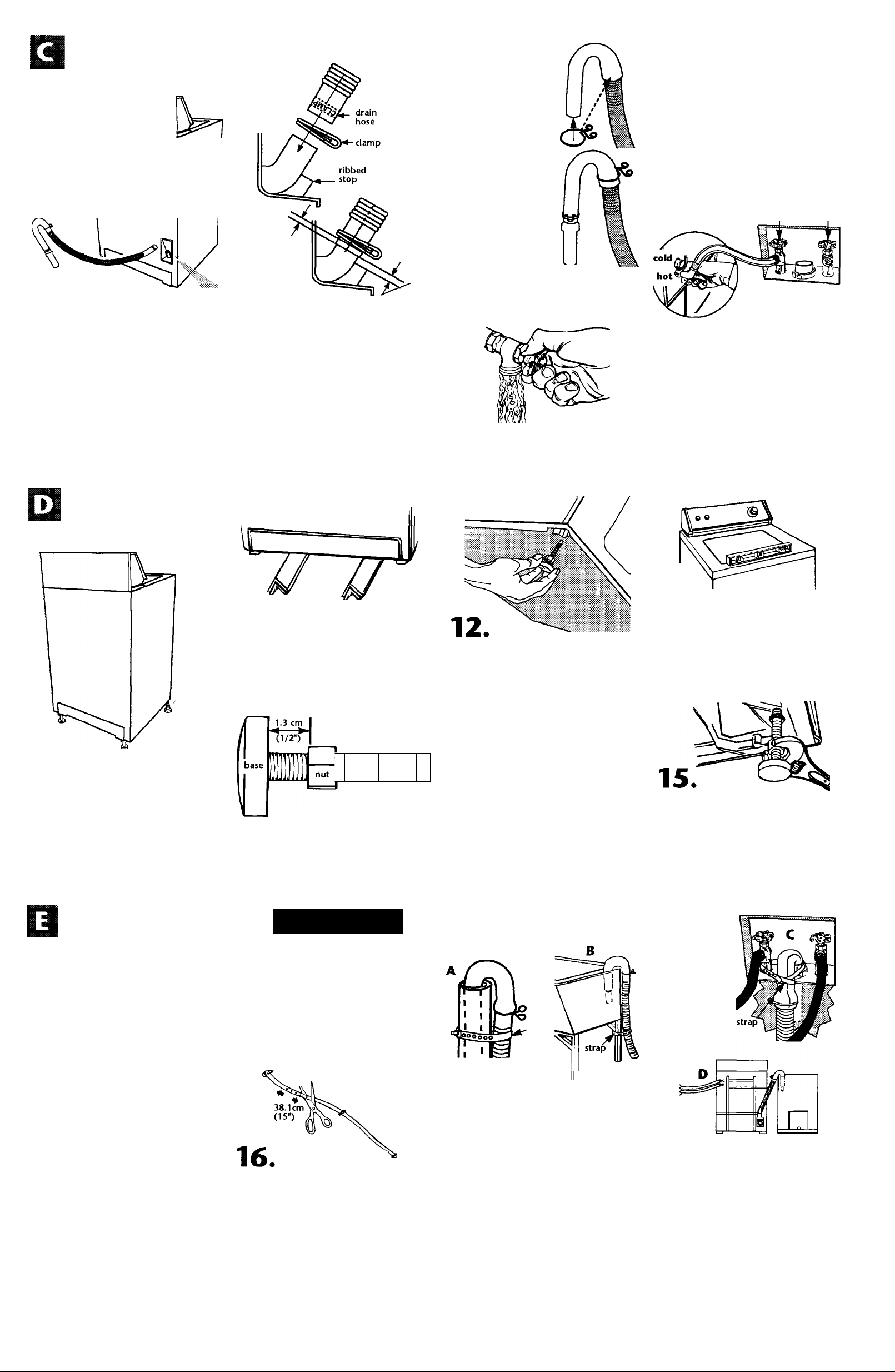

Drain hose
connection:
IMPORTANT: T>IIS PROCEDURE MUST
BE FOLLOWED TO ASSURE PROPER
INSTALLATION.
Open small clamp
• and slide over
6
"hook" end of drain hose
to secure the rigid and
corrugated sections
together.
SLIDE WASHER ONTO CARDBOARD
OR HARDBOARD BEFORE MOVING
ACROSS FLOOR.
Move washer close to final
• position. Put "hook" end of drain
8
hose into laundry tub or standpipe.
Check for proper length of drain hose.
0.64cm
0/4")
To prevent the drain hose from
• coming off or leaking, it must be
5
installed per the following instructions.
• Wet the inside end of the drain hose
with tap water. DO NOT USE ANY
OTHER LUBRICANT.
• Squeeze ears of one hose clamp with
pliers to open and place clamp over the
end of the drain hose.
• Open clamp and push end of drain hose
onto drain connector until hose contacts
ribbed stop.
• Place clamp over area marked "clamp".
Release clamp.
0.64cm
(1/4" max.)
ribbed
stop
If drain hose does not
fit into standpipe or is
being placed over the
edge of a laundry tub,
open other hose clamp
with pliers and place
clamp over rigid end of
drain hose.
Insert end of hose
extension into rigid end of drain hose up
to stops on the sides of hose extension.
Secure with clamp.
Run water through both faucets
• into a bucket to get rid of
7
particles in the water lines that might
clog hoses. Mark the hot water faucet.
DO NOT FORCE EXCESS LENGTH OF
DRAIN HOSE DOWN THE STANDPIPE.
THIS COULD CAUSE SIPHONING.
DO NOT STRIP OR
CROSSTHREAD.
9
top hose (inlet marked "C") to cold water
faucet. Adapters may be necessary to
connect the hoses to the faucets.
Tighten couplings to faucets. DO NOT
OVERTIGHTEN; this could cause
damage to couplings.
i plasi
Attach bottom hose (inlet marked
• "H") to hot water faucet. Attach
hot cold
Leveling
washer:
^ Stack two corner posts on top
1 \M • of each other. Tilt washer
backwards and insert corner posts 7.6 cm
(3 inches) from one side of washer as
shown. Repeat with other corner posts
on other side of washer.
11J
’HI
1 Jjjl
11
ly
J
ll
Screw nut down on legs to
within 1.3 cm (1/2 inch) of base.
Insert legs into correct holes at each front
corner of washer until nuts touch washer.
DO NOT
^ ^ Tilt washer backward and
I
lower washer to floor.
T|.l
Move washer to its final location.
Remove cardboard or hardboard
from under washer.
tighten nuts until Step 15.
remove corner posts. Gently
^ ^ Tilt washer forward, raising
back legs 2.5 cm (1 inch) off
of floor to adjust rear self-leveling legs.
Gently lower washer to floor. Check
levelness of the washer by placing a
carpenter's level on top of the washer,
first side to side; then front to back.
If washer is not level, adjust the
front legs up or down. Repeat Step 14.
When washer is ievel, use wrench
to turn nuts on front legs up
tightly against washer base. If nuts
are not tight against wasber base,
the washer may vibrate.
Securing
drain hose:
^WARNING
Injury Hazard
Use shipping strap to secure
drain hose. Water pressure could
cause drain hose to come out of
standpipe or iaundry tub if drain
hose is not secured.
Failure to secure drain hose could
result in injuries from slipping
and falling in water on floor.
After strap has been removed from
washer (Step 1), measure and mark a
point approximately 38.1cm (15 inches)
from the plug end of the shipping strap.
Cut the shipping strap at this point.
Check that hose is not twisted or
kinked and is securely in place.
strap
Put "hook" end of drain hosie in laundry
tub or standpipe. Tightly wrap the
shipping strap around the drain hose and
laundry tub or standpipe or inlet hose as
shown in Figures A-B. Push plug into the
nearest hole in the shipping strap.
If the water inlet faucets and drain
standing pipe are recessed, put "hook"
end of drain hose in tub or standpipe.
Tightly wrap the shipping strap around
the drain hose and faucet body (not the
handles or stems) as shown in Figure C.
Push plug into
the nearest hole
in the shipping
strap.
If a longer drain hose is needed, drain
hose extension kit (Part No. 285702) is
available from authorized parts
distributors. If drain hose must be
shortened, use hose kit (Part No.
285442).
Note: If washer is moved to adjust
drain hose, the washer must be
leveied again. Repeat Steps 14-15.
Place cardboard under the washer
and carefully move washer to
avoid damaging floor covering.
Panel C
Page 5
Completing
Installation
17,• CHECK ELECTRICAL
REQUIREMENTS. BE SURE YOU HAVE
CORRECT ELECTRICAL SUPPLY AND
RECOMMENDED EARTHING METHOD.

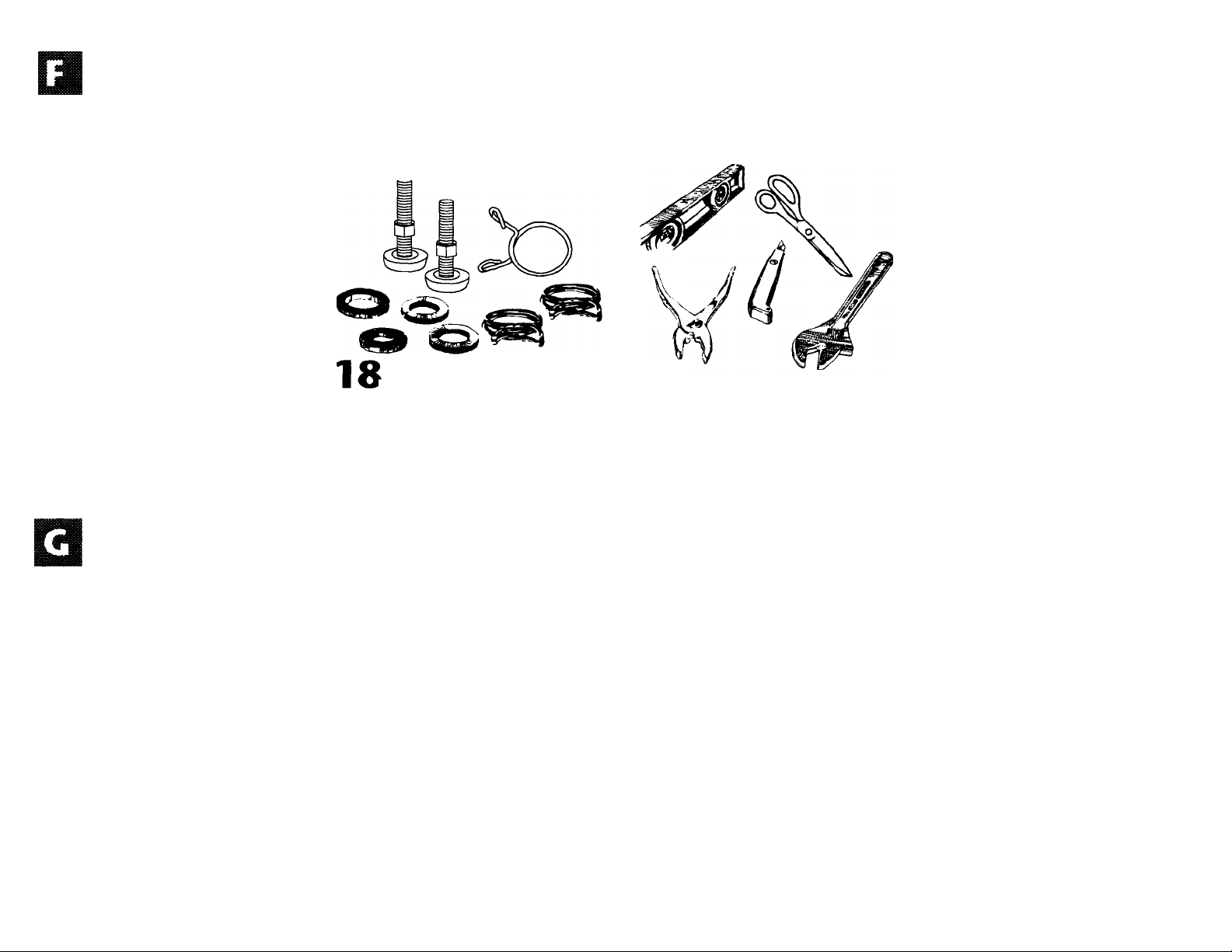

'• Check that all parts are now
installed. If there is an extra part, go back
through steps to see which step was
skipped.
19.
check for leaks. Tighten couplings if there
is leaking. DO NOT OVERTIGHTEN; this
could cause damage to couplings.
Turn on water faucets and
20. Check that you have all of
your tools. Check that the shipping strap
was removed from the back of the washer
and used to secure the drain hose.
21
supply cord into earthed outlet.
• Untape and plug power
22. Read the Use and Care
Guide. Start the washer and allow it to
complete the regular cycle.
Congratulations!
You have successfully installed
your new Whirlpool washer. To get
the most efficient use from your new
washer, read your Whirlpool Use
and Care Guide.
Keep Installation Instructions
and Guide.
Need
Assistance?
Part No. 3948875
© 1995 Whirlpool Corporation
Call your dealer or local authorized
service company.
When you call, you will need the washer
model number and serial number. Both
numbers are on the model/serial rating
plate located under the washer lid and
on the top of the washer.
AVhiriDvol
Prepared by Whirlpool Corporation, Benton Harbor, Michigan 49022
. C0»O«AriON
Printed in U.S.A.
Loading...
