Night Train 15H G2
Night Train 15C1
1
IMPORTANT SAFETY INSTRUCTIONS
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Mains powered apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. (for USA and Canada)
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer.
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Turning off the power switch does not completely isolate this product from the power line so remove the plug from the socket if not using it for extended periods of time.
•Install this product near the wall socket and keep the power plug easily accessible.
•WARNING—This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
•Do not install this equipment on the far position from wall outlet and/or convenience receptacle.
•Do not install this equipment in a confined space such as a box for the conveyance or similar unit.
•Excessive sound pressure from earphones and headphones can cause hearing loss.
•Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
*All product names and company names are the trademarks or registered trademarks of their respective owners.
A ALWAYS use the supplied mains lead, if a replacement is required please contact your authorized Vox Dealer.
B DO NOT switch the amplifier on without a loudspeaker connected.
C ENSURE that any extension cabinets used are of the correct impedance.
D NEVER attempt to bypass the fuses or fit ones of the incorrect values.
E DO NOT attempt to remove the amplifier chassis, there are no user serviceable parts.
F Refer all servicing to qualified service personnel including replacement of fuses and valves. Servicing is required when the apparatus has been damaged in any way, such as when the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance may void the users authority to operate the equipment.
Note: It is recommended that all audio cables, with the exception of the speaker lead, used to connect to the Night Train is of a high quality, screened type. These should not exceed 10 metres in length. Always use a non-screened Vox approved speaker lead with the Night Train Amplifier and extension cabinets.
WARNING: Do not obstruct ventilation grilles and always ensure free movement of air around the amplifier!
Notice regarding disposal (EU only)
When this“crossed-out wheeled bin”symbol is displayed on the product, owner’s manual, battery, or battery package, it signifies that when you wish to dispose of this product, manual, package or battery you must do so in an approved manner. Do not discard this product, manual, package or battery along with ordinary household waste. Disposing in the correct manner will prevent harm to human health and potential damage to the
environment. Since the correct method of disposal will depend on the applicable laws and regulations in your locality, please contact your local administrative body for details. If the battery contains heavy metals in excess of the regulated amount, a chemical symbol is displayed below the “crossed-out wheeled bin” symbol on the battery or battery package.
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated“dangerous voltage”within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
THE FCC REGULATION WARNING (for USA)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
If items such as cables are included with this equipment, you must use those included items.
Unauthorized changes or modification to this system can void the user’s authority to operate this equipment.
2
INTRODUCTION
Congratulations on your purchase of the VOX Night Train 15, the latest edition to the Night Train range. The Night Train 15 is an evolution of the original Night Train, meaning it’s even more versatile. With two footswitchable channels, a much requested footswitchable thick mode and a studio quality Reverb. We’ve also added an FX loop meaning you can run any of your favourite effects, such as delays, in the correct part of the signal chain.
Whether you’re a session player or a wanna-be rock God, your tone is the most important thing. This is a fully functional 15 Watt all-tube head so diverse that you can play blues one night, country after that and full on ROCK the next!
The Night Train 15 features two channels. Bright and Girth. Bright will give you chimey clean tones synonymous with VOX, but you can then kick it up a notch by switching to “Thick” and add a whole new dimension of gain... The Bright channel features a Gain control and a footswitchable preamp mode switch (Thick). Girth is a whole new level of high gain, for searing lead tones that will have your ears bleeding for more! The Girth channel features a Gain control and a channel Volume.
The Tone section features, a fully functional global tone stack (Treble, Middle and Bass).
The Master section features a Master Volume, a “Dark” mode switch and a Reverb Level control.
Welcome aboard the Night Train to tone!
The VOX Amplification Team.

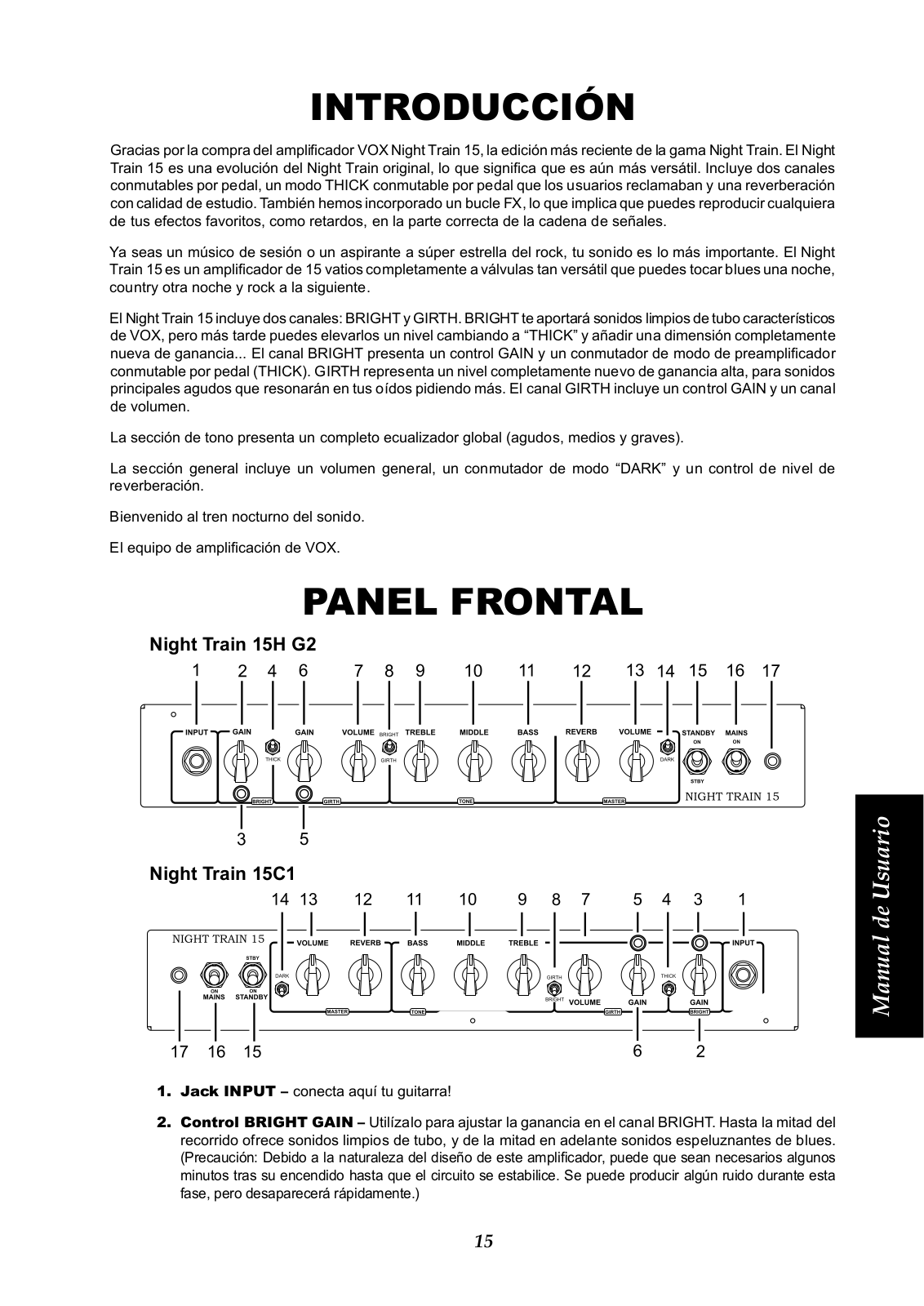

FRONT PANEL LAYOUT
Night Train 15H G2
Night Train 15C1
Owner’s manual
1.INPUT Jack – Insert Guitar here!
2.BRIGHT GAIN Control – Use this to adjust the gain on the BRIGHT channel. Chimey cleans before 12 o’clock and hairy blues tones when cranked. (Note: Because of the nature of the design of this amplifier, it may take a few minutes until the circuit becomes stable after the power is turned on. Some noise might occur during this time but it soon disappears.)
3
3.BRIGHT CHANNEL Indictor – When using the BRIGHT channel, this is illuminated GREEN. When using THICK mode, the indictor becomes ORANGE.
4.THICK Switch – When THICK mode is engaged, TONE controls are bypassed to give a big boost in gain. This mode is foostwitchable using the optional VFS2A footswitch. Set to “THICK on” when using the optional VFS2A footswitch. (NOTE: THICK mode only works on the BRIGHT channel. When this is on, the tone controls aren’t!)
5.GIRTH CHANNEL Indicator – When using the GIRTH channel, this is illuminated RED.
6.GIRTH GAIN Control – Use this to adjust the gain on the GIRTH channel. Crunchy Rock tones before 12 o’clock and searing Lead tones when fully cranked.
(NOTE: Because of the nature of the design of this amplifier, it may take a few minutes until the circuit becomes stable after the power is turned on. Some noise might occur during this time but it soon disappears.)
7.GIRTH VOLUME Control – Use this to control the overall level of the GIRTH channel, helping to balance the outputs of both channels.
8.BRIGHT / GIRTH Channel Switch – Use this to change channel. This is footswitchable using the optional VFS2A footswitch. Set Channel Switch to GIRTH when using the footswitch.
9.TREBLE Control – This controls the treble (high) frequencies in your sound - from soft and round when turned down (counter-clockwise) to bright and cutting when cranked (clockwise) and all points in-between.
10.MIDDLE Control – This controls the middle (mid range) frequencies in your sound. From hollow when turned down (counter-clockwise) to full and rich when cranked (clockwise) and all points in between.
11.BASS Control – This controls the bass (low) frequencies in your sound - from warm and light when turned down (counter-clockwise) to dark and heavy when cranked (clockwise) and all points in between.
12.REVERB Control – Use this to add ambience to your tone, subtle when turned down (counter-clockwise) and “surfy” when cranked (clockwise) and everywhere in between.
13.MASTER VOLUME Control – Use this to control the overall level of the amplifier, whilst retaining all the tonal characteristics.
14.DARK Switch - Use this to tame the higher frequencies, giving the Amplifier a whole different character.
15.STANDBY Switch – Puts the Amplifier into STANDBY Mode. Meaning no output, just nicely warmed Tubes.
16.MAINS Switch – Turns the Amplifier On or Off!
17.MAINS Indicator – Shows whether your Amplifier is On or Off.

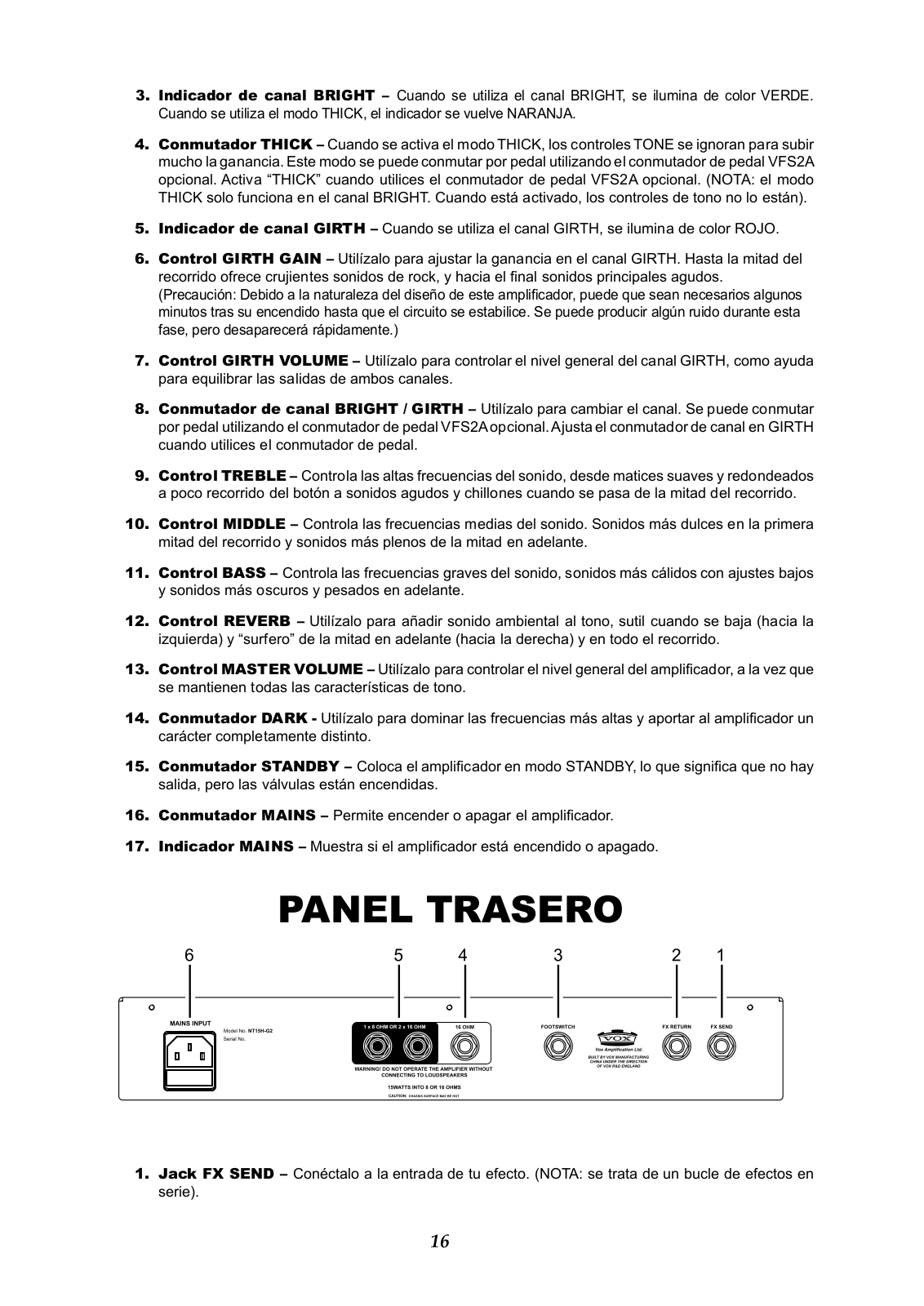

REAR PANEL LAYOUT
1.FX SEND Jack – Connect this to the input of your effect. (NOTE: This is a series effects loop).
2.FX RETURN Jack – Connect this to the output of you effect.
3.FOOTSWITCH Jack – Connect the optional VFS2A footswitch here, allowing for hands free control of mode and channel switching.
4.16 OHM Speaker Jack – Use this to connect the Night Train to any 16 ohm Cabinet.
4
5.8 OHM Speaker Jack–Use this to connect the Night Train to one 8 ohm Cabinet or two 16 ohm Cabinets. (Night Train 15C1 NOTE: If using a 16ohm extension cabinet, both the internal speaker and the external cabinet must be connected to the 8 ohm jacks)
WARNING ! Always use a non-screenedVOX approved speaker lead with the NightTrain amplifier and cabinet.
WARNING ! Please ensure that your amplifier is connected to the correct mains power voltage— please check the rear panel rating plate. If in doubt consult dealer.
WARNING ! NEVER operate this amplifier without the loudspeaker load being connected. Serious damage can occur otherwise.
WARNING ! This amplifier must always be earthed (grounded) to prevent the risk of electrical shock.
WARNING ! Do not connect speaker cabinets to both 8ohm and 16ohm jacks at the same time.
6. MAINS INPUT – Connect your electricity here with the supplied, detachable Mains (power) cord.
SPECIFICATIONS
Night Train 15H G2
Power Output: 15 Watts RMS into 8 or 16 ohm
Dimensions (W x H x D): 370 x 155 x 180 mm (14.57 x 6.10 x 7.09 inches)
Weight: |
7.3Kg (16.09 lbs) |
Included items: |
Power cable, Owner’s manual, Speaker cable |
Options: |
VFS2A Footswitch |
Night Train 15C1
Power Output: |
15 Watts RMS into 8 or 16 ohm |
Speaker: |
Celestion 16 ohm G12M Greenback |
Dimensions (W x H x D): 495 x 260 x 410 mm (19.49 x 10.24 x 16.14 inches)
Weight: |
17.5Kg (38.58 lbs) |
Included items: |
Power cable, Owner’s manual |
Options: |
VFS2A Footswitch |
|
The badge ensures over 50 years of VOX Tube Amplifier Design Expertise. |
Owner’s manual
Specifications and appearance are subject to change without notice for improvement. |
www.voxamps.com |
5

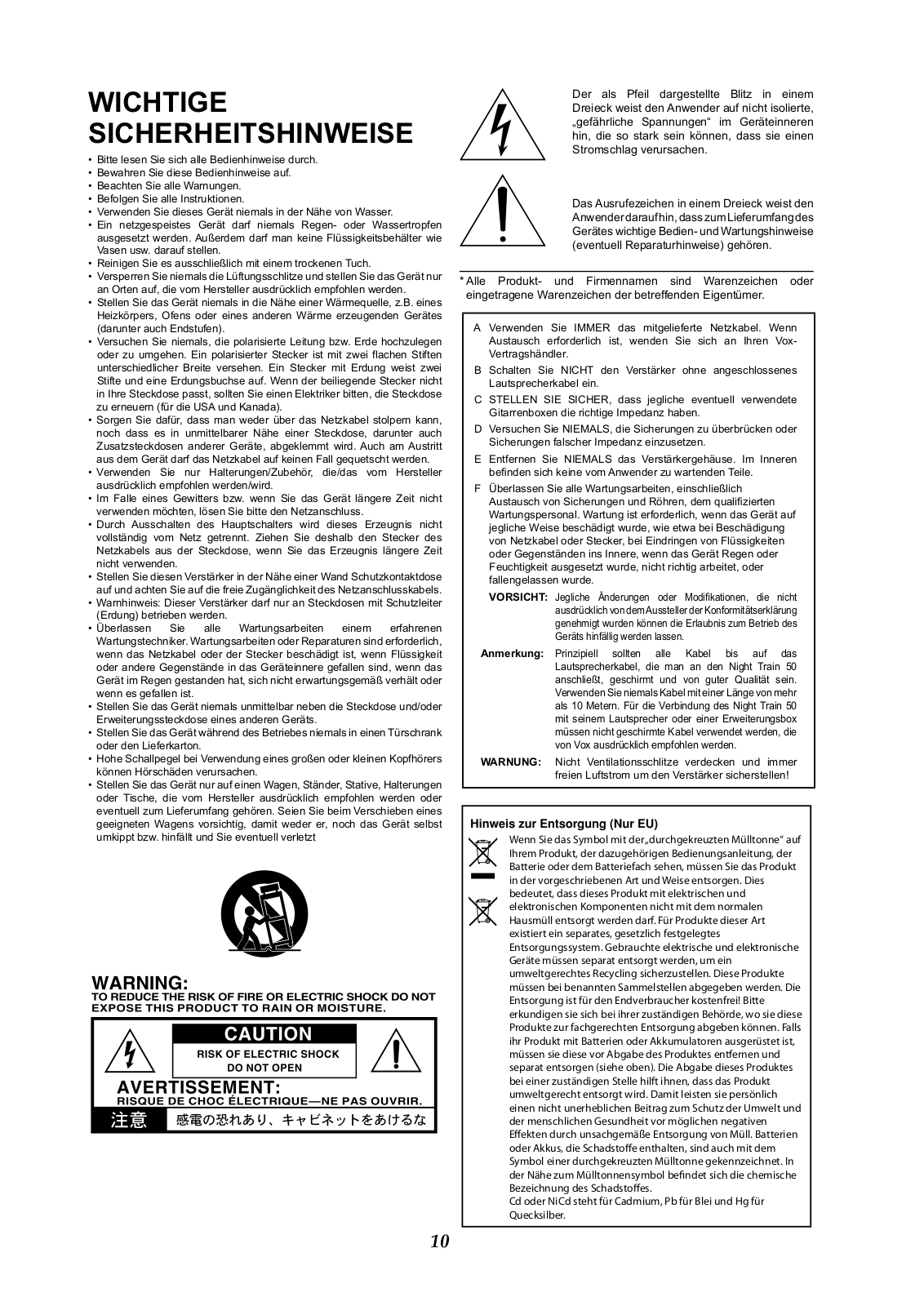

INFORMATIONS IMPORTANTES DE SECURITE
•Lisez attentivement ces instructions.
•Veuillez conserver ces instructions.
•Observez tous les avertissements.
•Suivez toutes les consignes à la lettre.
•N’utilisez jamais cetappareildans unendroithumideniàproximité d’eau.
•L’appareil alimenté par courant électrique ne peut pas être exposé à des éclaboussures; évite en outre de placer des récipients contenant des liquides, comme un vase (ou un verre de bière), sur l’appareil.
•Nettoyez uniquement l’appareil avec un chiffon doux et sec.
•Ne bloquez jamais les orifices de ventilation de l’appareil et installez-le toujours conformément aux instructions du fabricant.
•N’installez jamais l’appareil à proximité d’une source de chaleur, telle que des radiateurs, poêles ou tout autre dispositif (y compris des amplificateurs) générant de la chaleur.
•N’essayez jamais de contourner le dispositif de sécurité d’une prise de type polarisée ou d’une prise de terre. Une prise dite polarisée dispose de deux broches, dont l’une est plus large que l’autre. Une prise de terre comporte trois broches, dont une de mise à la terre. Cette broche plus large ou broche de mise à la terre vise à assurer votre sécurité. Si la fiche du cordon d’alimentation ne correspond pas au type de prise de courant de votre région, faites remplacer la prise obsolète par un électricien qualifié (pour les Etats-Unis et le Canada).
•Placez toujours le cordon d’alimentation de sorte qu’on ne risque pas de marcher dessus ni de le pincer. Cette précaution vise tout spécialement la fiche du cordon et sa sortie de l’appareil.
•Utilisezexclusivementlesfixations/accessoirespréconisésparlefabricant.
•S’il y a risque d’orage ou que vous ne comptez pas utiliser l’appareil pendant une période prolongée, débranchez-le du secteur.
•La mise sur OFF de l’interrupteur d’alimentation n’isole pas totalement ce produit de la ligne secteur; aussi, retirez la fiche de la prise s’il doit rester inutilisé pendant une période prolongée.
•Installez ce produit près de la prise électrique murale et gardez un accès facile à la prise électrique et au cordon d’alimentation.
•ATTENTION: Cet appareil doit absolument être connecté à une prise électrique reliée à la terre.
•Confiez tout travail de réparation uniquement à un S.A.V. qualifié. Faites appel au S.A.V. si l’appareil a subi tout endommagement, comme par exemple si sa fiche secteur ou son cordon d’alimentation sont endommagés, si de l’eau ou des objets ont pénétré à l’intérieur de l’appareil, si celui-ci a été exposé à la pluie ou à la moisissure, s’il est tombé ou présente tout signe de dysfonctionnement.
•N’utilisez jamais d’allonge trop longue avec cet appareil et ne l’alimentez jamais via les prises secteur équipant d’autres dispositifs.
•N’installez jamais cet appareil dans un endroit confiné comme une caisse de transport ou tout autre récipient similaire.
•Des niveaux d’écoute trop importants lors de l’utilisation d’un casque ou d’écouteurs peuvent entraîner des pertes d’audition.
•Utilisez l’appareil uniquement avec le chariot, stand, trépied, fixation ou table spécifiés par le fabricant ou fourni avec l’appareil. Si vous avez placé l’appareil sur un chariot, soyez très prudent quand vous déplacez le chariot, afin d’éviter une chute et des blessures.
L’éclair dans le triangle est un symbole destiné à attirer l’attention de l’utilisateur sur la présence de parties non isolées et de“tension dangereuse” à l’intérieur de l’appareil, qui posent des risques d’électrocution pour l’utilisateur.
Le point d’exclamation dans un triangle est un symbole destiné à attirer l’attention de l’utilisateur sur des sections de ce manuel contenant des informations importantes, liées à l’utilisation et à l’entretien de ce produit.
*Tous les noms de produits et de sociétés sont des marques commerciales ou déposées de leur détenteur respectif.
A Utilisez TOUJOURS le cordon d’alimentation fourni. Si vous devez remplacer le cordon, veuillez contacter votre revendeur agréé Vox.
B NE mettez PAS l’amplificateur sous tension quand un hautparleur lui est raccordé.
C ASSUREZ-VOUS que l’impédance de toutes les enceintes supplémentaires utilisées sont correctes
D N’essayez JAMAIS de contourner les fusibles ou mettre en place de nouveaux dont les valeurs ne sont pas correctes.
E N’essayez JAMAIS de déposer le châssis de l’amplificateur.
Aucune partie ne peut être réparée par l’utilisateur.
F Confiez toutes les réparations à un personnel qualifié, y compris pour le remplacement des fusibles et des lampes. Des réparations seront nécessaires si l’appareil est endommagé de quelque façon que ce soit, notamment lorsque la fiche ou le cordon d’alimentation sont endommagés, lorsqu’un liquide a été renversé sur l’appareil ou des objets sont tombés à l’intérieur, l’appareil a été exposé à la pluie ou à l’humidité, ne fonctionne pas normalement ou est tombé par terre.
ATTENTION:Tout changement ou modification non expressément autorisés par l’autorité responsable de la conformité aux normes entraînera l’interdiction d’utiliser l’appareil.
Remarque: Tous les câbles audio, à l’exception du câble d’enceinte, utilisés avec le Night Train doivent être de bonne qualité et blindés. Ils ne peuvent excéder 10 mètres de longueur. Servez-vous toujours d’un câble d’enceinte non blindé approuvé parVoxpour relier l’ampli NightTrain et lesenceintes d’extension.
AVERTISSEMENT: Ne bouchez pas les grilles de ventilation et veillez à ce que l’air puisse toujours circuler librement autours de l’amplificateur.
Quand un symbole avec une poubelle barrée d’une croix apparait sur le produit, le mode d’emploi, les piles ou le pack de piles, cela signi e que ce produit, manuel ou piles doit être déposé chez un représentant compétent, et non pas dans une poubelle ou toute autre déchetterie conventionnelle. Disposer de cette manière, de prévenir les dommages pour la santé humaine et les dommages potentiels pour l'environnement. La bonne méthode d'élimination dépendra des lois et règlements applicables dans votre localité, s’il vous plaît, contactez votre organisme administratif pour plus de détails. Si la pile contient des métaux lourds au-delà du seuil réglementé, un symbole chimique est a‚ché en dessous du symbole de la poubelle barrée d’une croix sur la pile ou le pack de piles.
6
