VIZIO
INSTALLATION GUIDE
E32-D1, E32h-D1, and E50-D1
Please read this guide before using the product.
Safety Information
IMPORTANT SAFETY INSTRUCTIONS
Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the installation, use, and maintenance of your TV. Read the following safety instructions before operating your TV. Keep these instructions in a safe place for future reference.
•To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your TV.
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer.
•Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid injury from tip-over.
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
•Unplug the power cord before cleaning your TV.
•When moving your TV from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your TV to avoid causing fire, electric shock, or component damage.
•A distance of at least three feet should be maintained between your TV and any heat source, such as a radiator, heater, oven, amplifier etc. Do not install your TV close to smoke. Operating your TV close to smoke or moisture may cause fire or electric shock.
•Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your TV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your TV in a bookcase or cabinet unless proper ventilation is provided.
•Never push any object into the slots and openings on your TV cabinet. Do not place any objects on the top of your TV. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your
TV.
•Your TV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
•DonotapplypressureorthrowobjectsatyourTV.Thismaycompromise the integrity of the TV. The manufacturer’s warranty does not cover user abuse or improper installations.
•The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer.
•When connected to a power outlet, power is always flowing into your TV.
To totally disconnect power, unplug the power cord.
•The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within the inside of your TV that may be of sufficient magnitude to constitute a risk of electric shock to persons.
•Do not overload power strips and extension cords. Overloading can
English - ii
result in fire or electric shock.
•The wall socket should be installed near your TV and easily accessible.
•Only power of the marked voltage can be used for your TV. Any other voltage than the specified voltage may cause fire or electric shock.
•Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
•Unplug your TV during a lightning storm or when it will not be used for long period of time. This will protect your TV from damage due to power surges.
•Do not attempt to repair or service your TV yourself. Opening or removing the back cover may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel.
•WARNING: Keep your TV away from moisture. Do not expose your TV to rain or moisture. If water penetrates into your TV, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
•Do not use your TV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your TV yourself.
•Avoid using dropped or damaged appliances. If your TV is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your TV may cause fire or electric shock.
•The power cord fails or frays.
•Liquid sprays or any object drops into your TV.
•Your TV is exposed to rain or other moisture.
•Your TV is dropped or damaged in any way.
•The performance of your TV changes substantially.
•This apparatus shall not be exposed to dripping or splashing and no objectsfilledwithliquids,suchasvases,shallbeplacedontheapparatus.
•The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
•CAUTION - These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
•The lightning flash with arrowhead symbol within an H equilateral triangle is intended to alert the user to the
presence of uninsulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.
•Please use caution around the TV: pulling or pushing on the TV may cause the TV to tip or fall over resulting in personal injury and/or property damage.
•WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing
•in the ears). With continued exposure to loud noises, ears may become accustomed to the sound level, which may
•Do not install your TV in an area with heavy dust or high humidity. • result in permanent damage to hearing without any noticeable
Operating your TV in environments with heavy dust or high humidity may cause fire or electric shock.
•Follow instructions for moving your TV. Ensure that the power cord and any other cables are unplugged before moving your TV.
•When unplugging your TV, hold the AC/DC power adapter, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your TV will not be used for an extended period of time, unplug the power cord.
•To reduce risk of electric shock, do not touch the connector with wet hands.
•Insert batteries in accordance with instructions. Incorrect polarities may cause the batteries to leak which can damage the remote control or injure the operator. Do not expose batteries to excessive heat such as sunshine, fire or the like.
•If any of the following occurs, contact the dealer:
discomfort.
•Install the TV where it cannot be pulled, pushed or knocked over.
•Do not allow children to hang onto the product.
•Store the accessories (remote, batteries, etc.) in a location safely out of the reach of children.
•The American Academy of Pediatrics discourages television viewing for children younger than two years of age.
English - iii
Table of Contents |
|
Package contents.................................................................................................... |
5 |
This is your basic remote....................................................................................... |
6 |
Inserting and replacing batteries................................................................... |
7 |
Using your smartphone or tablet as a remote.................................................... |
8 |
Minimum Recommended Requirements...................................................... |
9 |
Installing the TV stands.......................................................................................... |
10 |
First-time setup....................................................................................................... |
12 |
Pairing your mobile device..................................................................................... |
16 |
Pairing Via Wi-Fi............................................................................................... |
17 |
Getting started with the VIZIO SmartCast app..................................................... |
18 |
Account Setup.................................................................................................. |
18 |
Selecting a Cast device.................................................................................... |
19 |
Basic TV functions........................................................................................... |
20 |
Category Pages................................................................................................ |
21 |
Getting started with the Google Cast.................................................................... |
22 |
How to cast content........................................................................................ |
23 |
Wall-mounting the TV............................................................................................. |
24 |
Additional connections........................................................................................... |
26 |
Connecting an audio device........................................................................... |
26 |
Regulatory Information ......................................................................................... |
30 |
Limited Warranty.................................................................................................... |
32 |
Legal Information.................................................................................................... |
34 |
English - iv
Package contents
VIZIO SmartCast |
TV |
4 x Phillips |
HDTV |
Stands |
Screws |
VIZIO |
|
|
GUIDE D’INSTALLATION |
|
|
E32-D1, E32h-D1, E50-D1 |
|
|
Veuillez lire ce guide avant d’utiliser l’appareil. |
|
|
Multi-Language |
Basic Remote |
Power |
Installation Guide |
w/Batteries |
Cable |
English - 5
This is your basic remote
POWER
Turn the TV on or off.
LINK
Activate linking mode on TV.
VOLUME
Increase or decrease the loudness of the audio.
MUTE
Turn the audio on or off.
INPUT
Change the currently displayed input.
CLOSED CAPTION
Turn closed caption On and Off.
CHANNEL UP/DOWN
Change the channel.
PIC
Cycles through the different picture setting modes.
English - 6
Inserting and replacing batteries.
Two AAA batteries are included for you to use with the basic remote control.
To insert/replace the batteries:
1.Find the notch on the back of the remote. Insert a coin and pry open the back cover.
2.Remove the back cover and insert two AAA batteries (included). Be sure to align the + and - signs on the batteries and remote.
Visit http://support.vizio.com/ if you have any questions.
1
2
English - 7
Using your smartphone or tablet as a remote
Your VIZIO SmartCast HDTV brings the way you interact up to speed with the rest of your entertainment experience. Using just your smart phone or tablet, you can tap, swipe, or use voice controls to access a virtually limitless library of casting content.
To use your smartphone or tablet as your
SmartCast Remote:
•Download the VIZIO SmartCast on your compatible mobile device and follow the on-screen instructions to pair your device with a VIZIO SmartCast HDTV.
*Device NOT included
English - 8
Minimum Recommended Requirements.
Android*
•Android 4.0 or later**
•RAM: 1.5gb or more
•Storage: 8GB or more
•Networking: Wi-Fi
•Countries: US, Canada & Mexico
Foralistofsupporteddevices,seeGooglePlay’s Supported Devices article.
iOS*
•iOS 8.0 or later
•Countries: US, Canada & Mexico
•Devices supported: iPhone, iPad
The VIZIO SmartCast app is available for download from the Google Play Store and Apple App Store.
*Subject to change
**To use the Bluetooth LE functionality you must have Android 5.1 or later
English - 9
Installing the TV stands
1
It is recommended that two people take part in the stand installation.
Remove any plastic film from the Home Theater TV and stands.
Place the TV screen-down on a |
clean, |
flat |
||
surface. To |
prevent |
scratches or |
damage |
to |
the screen, |
place the |
TV on a soft surface such |
||
as a carpet, rug, or blanket, and |
avoid |
any |
||
sharp edges. |
|
|
|
|
Make sure the top and bottom edges of the screen are being supported by the surface to avoid damage.
Î
P
English - 10
2
Insert the stands into the base of the TV. (The stands are identical.)
Secure each stand to the TV with two (2) Phillips screws (included).
Insert the screws into the back of the TV and tighten them using a Phillips screwdriver.
When you are finished, place the TV on a stable, level surface.
Note: The image shown here is for illustrative purposes only and may be subject to change.

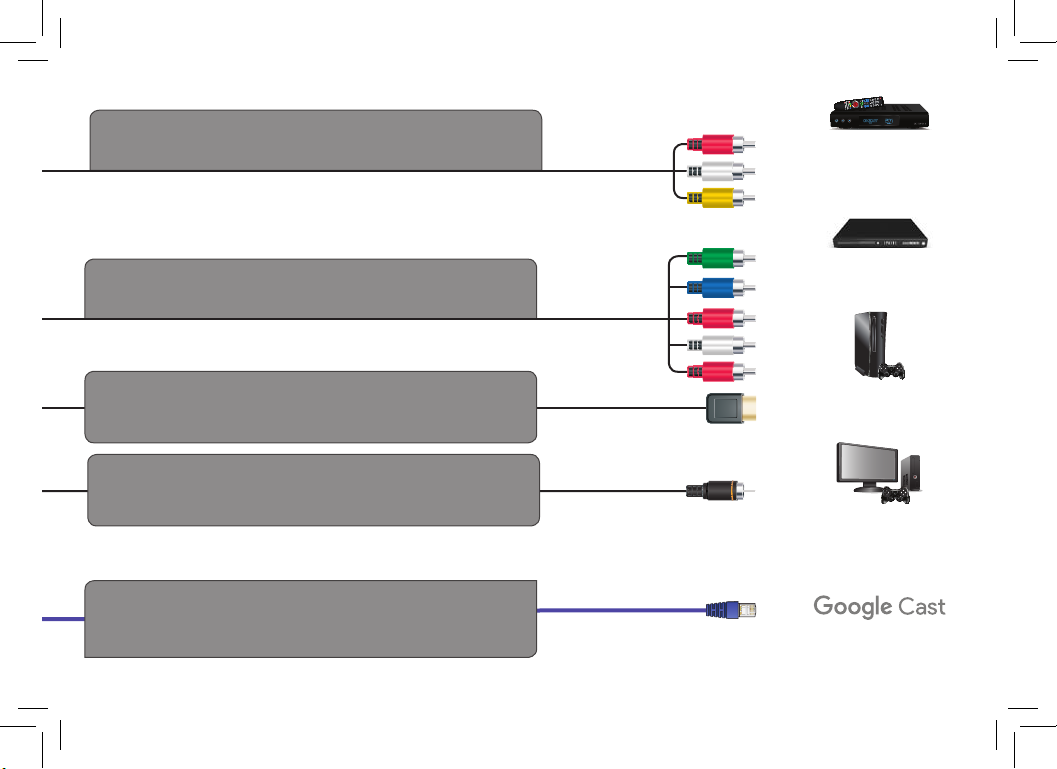

The actual number of ports and their locations may vary, depending on the model.
