Ubiquiti UFPVP Users Manual
UniFi Protect ViewPort
Model: UFP-VIEWPORT
Package Contents
UniFi Protect
ViewPort
M6 Screw M8 Screw Drywall Screws
Mounting
Bracket
Double-Sided
Tape
(Qty. 2)
HDMI Cable
Screw Anchors
(Qty. 2)
System Requirements
• UniFi Protect software TBD v1.X or above, available at
ui.com/downloads/unifi
Installation Requirements
• Phillips screwdriver
• Drill and 6 mm (1/4") bit for drywall anchors
• Drill and 6 mm (1/4") bit or 8 mm bit (5/16") for screws
• Shielded Category 5 (or above) cabling with drain wire
should be used for all wired Ethernet connections and
should be grounded through the AC ground of the PoE.
Hardware Overview
1
1
2
Power/Status LED
Color Status
Solid White Ready for conguration.
Blue
Alternating Blue/White The device is booting up.

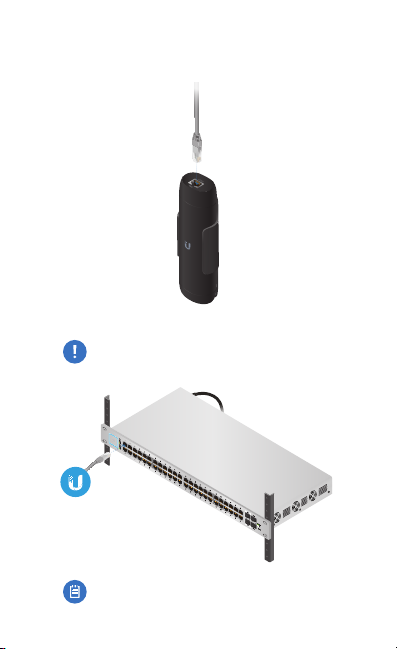

Main Port
2
This 10/100/1000 RJ45 port connects to an 802.3af switch for PoE power
and data.
The device has been adopted by the UniFi
Protect Controller.
3
4
5

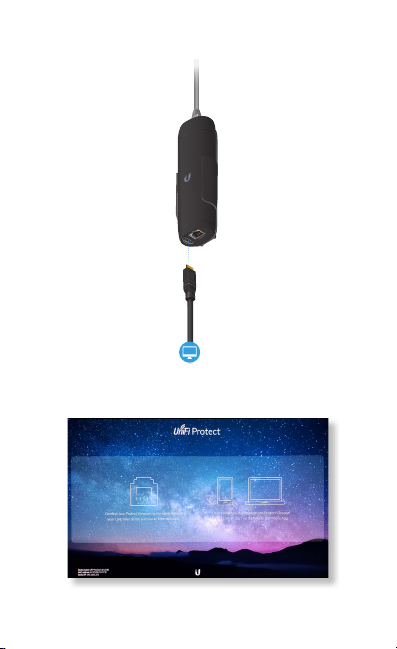

HDMI Port
3
This HDMI port connects to a TV or monitor with an HDMI cable. It
supports 1080p and 4K displays.
Secondary Port
4
This 10/100/1000 RJ45 port functions as a data pass-through port.
Reset Button
5
Restore to Factory Defaults Press and hold the Reset button for
5seconds while the device is powered on. Release the Reset button
when the LED turns off.
Hardware Installation
Mounting the UniFi Protect ViewPort is optional; it allows the
device to be installed in an inconspicuous and safe location.
You have three options for mounting:
• Wall Mount Mount the ViewPort onto a drywall surface.

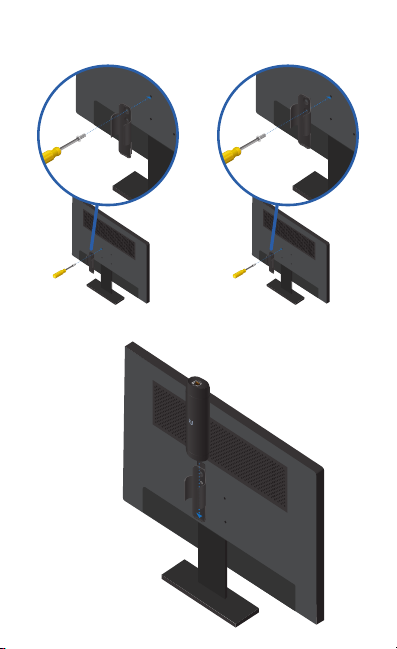

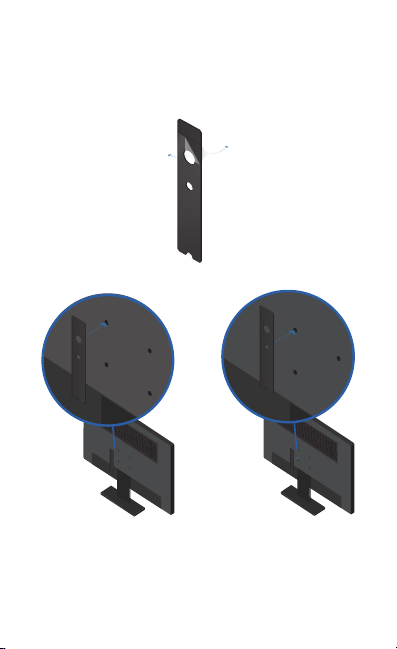

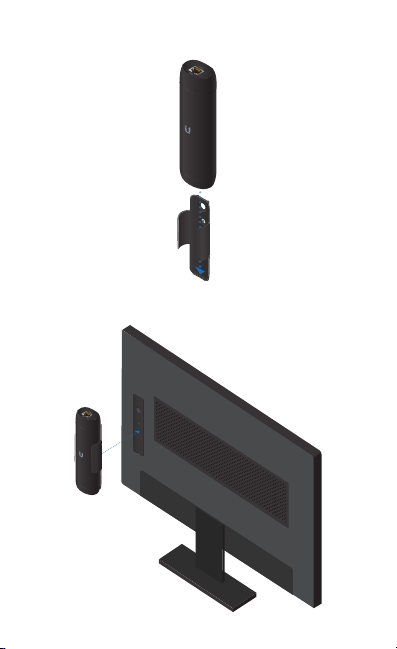

• TV VESA Mount M ount the ViewPort to the back of your
TV/monitor using the available VESA mounting hole(s).

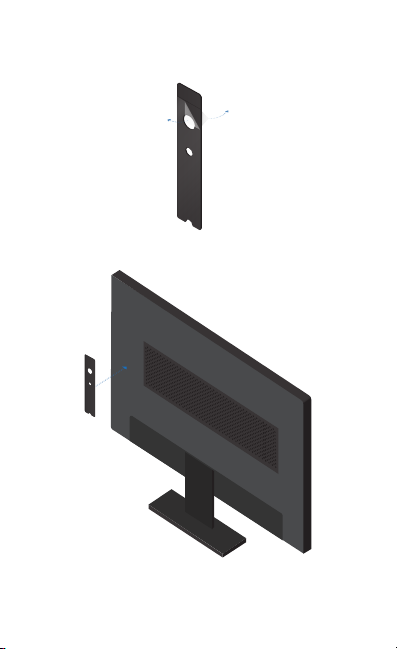

• TV Surface Mount Attach the ViewPort to the TV/monitor
or other surface using the included double-sided tape.
Wall Mount
1.
2.
3.
4.
5.
Loading...
