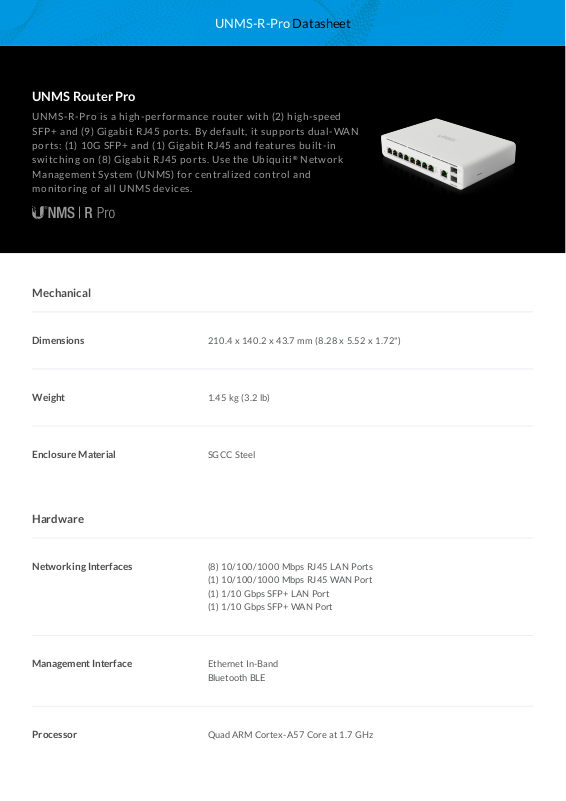

Ubiquiti UNMS-R-Pro Datasheet [en, fr]

Dimensions 210.4 x 140.2 x 43.7 mm (8.28 x 5.52 x 1.72")

Weight 1.45 kg (3.2 lb)

Enclosure Material SGCC Steel

Networking Interfaces (8) 10/100/1000 Mbps RJ45 LAN Ports

(1) 10/100/1000 Mbps RJ45 WAN Port
(1) 1/10 Gbps SFP+ LAN Port
(1) 1/10 Gbps SFP+ WAN Port

Management Interface Ethernet In-Band

Bluetooth BLE

Processor Quad ARM Cortex-A57 Core at 1.7 GHz

UNMS-R-Pro

UNMS-R-Pro

Datasheet

Datasheet

Mechanical

Hardware

UNMS Router Pro

UN MS-R-P r o i s a h igh-perfor m ance ro u ter w i th (2) hi gh-sp eed
SFP+ and (9) Gi gab i t RJ45 por ts. By default, it supp o r ts dual-WAN
ports: (1) 10G SFP + and (1) Gigabit RJ45 and f eatures buil t-i n
sw itchi n g on (8) Gigabit RJ45 p orts. Use the Ubi q uiti® Netw o rk
Man agemen t System (UNMS) f or c entral i zed c o ntr ol and
moni tor ing of all UN M S devi ces.

System Memory 4 GB DDR4

On-Board Flash Storage 16 GB eMMC

Power Method (1) External AC/DC Adapter

(1) UNMS Connector DC Input

Power Supply 24VDC, 2.5A Power Adapter (Included)

Supported Voltage Range 24 - 28VDC

Max. Power Consumption 30W

ESD/EMP Protection Air: ± 15 kV, Contact: ± 8 kV

Operating Temperature -5to 50° C (23 to 122° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

System Status

LEDs

RJ45 Data Ports Speed/Link/Activity

SFP+ Data Ports Speed/Link/Activity

Specications are subject to change . Ubiquiti products are sold with a limited warr anty described a t: www.ui.com/support/warra nty
©2020 Ubiquiti Inc. All rights rese rved. U biquiti, Ubiquiti Networks, the Ubiquiti U logo, the U biquiti bea m logo, and UNMS ar e trademar ks or re gistered
trademar ks of Ubiquiti Inc. in the United States and in other countries. All other tra demarks a re the pr operty of their r espective owner s.

FCC & IC

Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment

Operation of this device is subject to the following conditions:

1. this device may not cause interference, and

2. this device must accept any interference, including interference that may cause undesired opera­tion.

L’exploitation est autorisée aux deux conditions suivantes:

1. l’appareil ne doit pas produire de brouillage;

2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.

"This equipment has been tested and found to comply with the limits for a Class B digital device.
These limits are designed to provide reasonable protection against harmful interference in a resi­dential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be deter­mined by turning the equipment off and on, the user is encouraged to try to correct the interfer­ence by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is con­nected.

- Consult the dealer or an experienced radio/TV technician for help."

"IMPORTANT NOTE:
Radiation Exposure Statement:

-This equipment complies with radiation exposure limits set forth for an uncontrolled envi­ronment.

-This equipment should be installed and operated with minimum distance 20 cm between
the radiator & your body.

-This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.

AVIS IMPORTANT:
Déclaration sur l’exposition aux rayonnements:

-Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans
un environnement non contrôlé.

-Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y
ait une distance minimale de 20 cm entre l’élément rayonnant et vous.

-Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre
émetteur, et ne doit être utilisé conjointement à aucun autre de ces appareils.

Hereby, Ubiquiti Inc. declares that this radio equipment device is in compliance with Direc­tive 2014/53/EU, 2014/30/EU & 2014/35/EU. The full text of the EU declaration of conform­ity is
available at the following internet address: ui.com/compliance

European Directive 2012/19/EU requires that the equipment bearing this symbol on the
product and/or its packaging must not be disposed of
with unsorted municipal waste. The symbol indicates that this product should be disposed of
separately from regular household waste streams.
It is your responsibility to dispose of this and other electric and electronic equipment via
designated collection facilities appointed by the government
or local authorities. Correct disposal and recycling will help prevent potential negative con­sequences to the environment and human health. For more
detailed information about the disposal of your old equipment, please contact your local au­thorities, waste disposal service, or the shop where you
purchased the product."
