TP-Link TL-SG2428P installation Guide

Business Networking Solution

Installation Guide

Jetstream Smart Switch

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the points that should be attended to during the installation. This Installation Guide is structured as follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the switch.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• Some models featured in this guide may be unavailable in your country or region. For local sales information, visit https://www.tp-link.com.

• The figures in Chapter 2 and Chapter 3 are for demonstration purposes only. Your switch may differ in appearance from that depicted.

• PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

• This guide uses the specific formats to highlight special messages. The following table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the product.

Chapter 1 Introduction

1.1 Product Overview

Designed for workgroups and departments, TP-Link JetStream Smart Switch provides wire-speed performance and abundant L2 management features. It provides a variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible solutions for a variable scale of networks. QoS and IGMP snooping/filtering optimize voice and video application. Link aggregation increases aggregated bandwidth, optimizing the transport of business critical data. SNMP, RMON, WEB and CLI Login bring abundant management policies. TP-Link Gigabit Smart Switch integrates multiple functions with excellent performance, and is friendly to manage, which can fully meet the need of the users demanding higher net working performance.

T1600G-52PS (TL-SG2452P)/TL-SG2210MP/TL-SG2428P/TL-SL2428P is also a Power Sourcing Equipment (PSE*). Some of the RJ45 ports on the switch support Power over Ethernet (PoE*) function, which can automatically detect and supply power to those powered devices (PDs*) complying with IEEE 802.3af and IEEE 802.3at.

*PSE: a device (switch or hub for instance) that provides power through an Ethernet cable.

*PoE: a technology describes a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet.

*PD: a device powered by a PSE and thus consumes energy. Examples include powering network cameras, wireless LAN access points, IP telephones, network hubs, embedded computers etc.

1.2 Appearance

■

Front Panel

The front panel of T1500-28TC (TL-SL2428) is shown as the following figure.

Figu re 1-1 Front Panel of T1500-28TC (TL-SL2428)

LEDs Reset SFP Port10/100 Mbps RJ45

Port

The front panel of T1600G-18TS (TL-SG2216) is shown as the following figure.

Figu re 1-2 Front Panel of T160 0G-18TS (TL-SG2216)

LEDs Reset 10/100/1000 Mbps RJ45 Port SFP Port

10/100/1000 Mbps

RJ45 Port

01 Introduction

JetStream Smart Switch

Reset LEDs 10/100/1000 Mbps RJ45 Port SFP Port

Button

The front panel of T1600G-28TS is shown as the following figure.

Figu re 1-3 Front Panel of T160 0G-28TS

10/100/1000 Mbps RJ45 PortLEDs Reset SFP Port

The front panel of T1600G-52TS (TL-SG2452) is shown as the following figure.

Figu re 1-4 Front Panel of T160 0G-52TS (TL-SG2452)

T1600G-52TS

Smart Switch

PWR

Reset

SYS

The front panel of T1600G-52PS (TL-SG2452P) is shown as the following figure.

Figu re 1-5 Front Panel of T160 0G-52PS (TL-SG2452P)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

PWR

PoE Max

SYS

FAN

T1600G-52PS

Speed

PoE

Smart PoE Switch

Reset

Reset LED Mode Switch

LEDs 10/100/1000 Mbps RJ45 Port SFP Port

activity1000Mbps 10/100Mbps

Fault

Delivering Power Over Budget

PoE

Speed

The front panel of T1700G-28TQ is shown as the following figure.

Figu re 1-6 Front Panel of T1700G-28TQ

LEDs Unit ID LED Reset 10/100/1000 Mbps RJ45 Port SFP+ Port

The front panel of T1700X-16TS is shown as the following figure.

Figu re 1-7 Front Panel of T1700X-16TS

ResetLEDs 100 M/1000 M/10 Gbps

RJ45 Port

1 G/10 Gbps SFP+ PortLEDs Indication

02Introduction

JetStream Smart Switch

RJ45 Port

Port and PoE Port

Switch Button

The front panel of TL-SG2210MP is shown as the following figure.

Figu re 1-8 Front Panel of T L-SG2210MP

TL-SG2210MP

8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots

LEDs

LED Mode

Switch Button

Reset 10/100/1000 Mbps

RJ45 Port and PoE Port

SFP Port

The front panel of TL-SG2428P is shown as the following figure.

Figu re 1-9 Front Panel of T L-SG2428P

TL-SG2428P

24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots

LEDs Reset 10/100/1000 Mbps

Switch Button

RJ45 Port

SFP PortLED Mode

The front panel of TL-SL2428P is shown as the following figure.

Figu re 1-10 Front Pane l of TL-SL2428P

LEDs Reset SFP Port10/100/1000 Mbps

LED Mode

10/100 Mbps RJ45

LEDs

For T1500-28TC (TL-SL2428)/T1600G-18TS (TL-SG2216)/T1600G-28TS/T1600G-52TS (TG-SG2452)/T1700G-28TQ/T1700X-16TS

LED Indication

On: The switch is powered on.

PWR

SYS

10/10 0M Link/Act

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

Flashing: The switch works properly.

On or Off: The switch works improperly.

On: A device is connected to the corresponding port but no activity.

Flashing: Data is being transmitted or received.

Off: No device is connected to the corresponding por t.

Note: 10/100M for T1500-28TC. Link /Act for T1600G-18TS (TL-SG2216)/T1700G28TQ.

03 Introduction

LED Indication

On: Running at 1000 Mbps.

1000Mbps

1000M

10/10 0/100 0Mbps

100Base-FX 1000Base-X

25–28 Link/Act

Link/Act

Master

Fan

Off: Running at 10/100 Mbps or no device is linked to the corresponding port.

Note: For T1600G-18TS (TL-SG2216)/1700G-28TQ.

Green On: Running at 1000 Mbps, but no activity.

Green Flashing: Running at 1000 Mbps and is transmitting or receiving data.

Yel low On : Running at 10/100 Mbps, but no activity.

Yellow Flashing: Running at 10/100 Mbps and is transmit ting or receiving data.

Off: No device is linked to the corresponding port.

Note: 1000M for T1500 -28TC. 10/100/1000Mbps for port 1–24 of T1600G-28TS and port 1–48 of T1600G-52TS (TL-SG2452).

Green On: A 1000 Mbps device is connected to the corresponding port but no activity.

Green Flashing: A 1000 Mbps device is linked to the corresponding port and data is being transmitted or received.

Yel low On : A 10/100 Mbps device is connected to the corresponding port but no activity.

Yellow Flashing: A 10/100 Mbps device is linked to the corresponding port and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: 1000Base-X for port 25–28 of T1600G-28TS. 100Base-FX/1000Base-X for port 49–52 of T1600G-52TS (TL-SG2452).

Port 49–52 of T1600G-52TS (TL-SG2452) doesn't support 10 Mbps devices.

Green On: Running at 10 Gbps, but no activity.

Green Flashing: Running at 10 Gbps and is transmitting or receiving data.

Yel low On : Running at 1000 Mbps, but no activity.

Yellow Flashing: Running at 1000 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: 25–28 for T1700G-28TQ. Link /Act for port 13–16 of T1700X-16TS.

Green On: Running at 10 Gbps, but no activity.

Green Flashing: Running at 10 Gbps and is transmitting or receiving data.

Yel low On : Running at 100/1000 Mbps, but no activit y.

Yellow Flashing: Running at 100/1000 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: Only for port 1–12 of T1700X-16TS.

On: The switch works as master in the stack system, or does not join any stack system.

Off: The switch works as stack member in the stack system.

Note: Only for T1700G-28TQ.

Green: All the fans work properly.

Yel low : Not all the fans work properly.

Off: The switch is working abnormally.

Note: Only for T1700X-16TS.

JetStream Smart Switch

04Introduction

JetStream Smart Switch

T1600G-52PS (TL-SG2452P)/ TL-SG2210MP/TL-SG2428P/TL-SL2428P has an LED mode switch button which is used to switch the LED status indication. When the Speed LED is on, the port LED is indicating the data transmission rate. When the PoE LED is on, the port LED is indicating the power supply status. By default the Speed LED is on. Pressing the mode switch button, the Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn off af ter being on for 60 seconds and the Speed LED will light up again.

LED Indication

On: The switch is powered on.

PWR

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS

FAN

PoE Max

(Wh en the PoE LE D

is on)

Flashing: The switch works properly.

On or Off: The switch works improperly.

Green: All the fans work properly.

Yel low : Not all the fans work properly.

On: The remaining PoE power is ≤ 7 W.

Flashing: The remaining PoE power keeps ≤ 7 W after this LED is on for 2 minutes.

Off: The remaining PoE power is > 7 W.

Green On: Running at 100 Mbps, but no activity.

Green Flashing: Running at 100 Mbps and is transmitting or receiving data.

10/10 0M or PoE

(Wh en the Spee d

LED is o n)

Yel low On : Running at 10 Mbps, but no activit y.

Yellow Flashing: Running at 10 Mbps and is transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: Only for TL-SL2428P.

Green On: Running at 1000 Mbps, but no activity.

1000M

Speed or PoE

(Wh en the Spee d

LED is o n)

Green Flashing: Running at 1000 Mbps and is transmitting or receiving data.

Yel low On : Running at 10/100 Mbps, but no activity.

Yellow Flashing: Running at 10/100 Mbps and is transmit ting or receiving data.

Off: No device is linked to the corresponding port.

Note: 1000M for TL-SL2428P. Speed or PoE for TL-SG2210MP, port 1–24 of TLSG2428P and port 1–48 of T1600G-52PS (TL-SG2452P)

Green On: The port is supplying power normally.

Green Flashing: The supply power exceeds the correponding port's maximum power.

10/10 0M or PoE Speed or PoE

(Wh en the PoE LE D

is on)

Yel low On : Overload or short circuit is detected.

Yellow Flashing: Power-on self-test failed.

Off: Not providing PoE power on the port.

Note: 10/100M or PoE for TL-SL2428P. Speed or PoE for TL-SG2210MP, port 1–24 of TL-SG2428P and port 1–48 of T1600G -52PS ( TL-SG2452P)

05 Introduction

JetStream Smart Switch

LED Indication

Green On: A 1000 Mbps device is linked to the corresponding port, but no activity.

Green Flashing: A 1000 Mbps device is linked to the corresponding port and data is

being transmitted or received.

100Base-FX

1000Base-X

SFP1, SFP2

Yel low On : A 10/100 Mbps device is linked to the corresponding port, but no activit y.

Yellow Flashing: A 10/100 Mbps device is linked to the corresponding port and is

transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: 1000Base-X for port 25–28 of TL-SG2428P. 100Base-FX/1000Base-X for port 49–52 of T1600G-52PS (TL-SG2452P). SFP1/SFP2 for TL-SG2210MP.

100Base-FX and 1000Base-X ports don't support 10 Mbps device.

LED Mode Switch Button

Press this button to switch the LED status indication between Speed and PoE.

Reset

With the switch powered on, press Reset button for 5 seconds to reset the switch to its factory default settings.

Unit ID LED

Designed to display the stack Unit ID of the switch. For the switch that does not join any stack system, it displays its default Unit ID. To modify the default unit number, please log on to the GUI of the switch and go to Stack→Stack Management→Stack Cong page and congure the New Unit ID. The new Unit ID

will take eect after you reboot the switch.

10/100 Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10 Mbps or 100 Mbps.

10/100/1000 Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps.

SFP Port

Designed to install the SFP module. For products except T1700X-16TS, the switch features some slots that are shared with the associated RJ45 ports. The associated two ports are referred as a "Combo" port, which means they cannot be used simultaneously, otherwise only SFP port works.

SFP+ Port

Designed to install the SFP module. For T1700G-28TQ and T1700X-16TS, the switch supports 1 G or 10 G SFP module connection.

Port Feature

Model

T1500 -28TC / 4 24 2 /

T1600G -18 TS / 16 / 2 /

T1600 G-28TS / 24 / 4 /

T1600 G-52TS / 48 / 4 /

T1600 G-52PS / 48 / 4 /

T1700G-28TQ / 24 / / 4

100 M/100 0 M/10Gbps

RJ45 Por t

10/10 0/100 0 Mbps

RJ45 Por t

10/100 Mbps RJ45

Port

SFP Port SFP+ Por t

06Introduction

JetStream Smart Switch

Model

T1700X-16TS 12 / / / 4

TL-S G2210MP / 8 / 2 /

TL-SG2428P / 24 / 4 /

TL-SL2428P / 4 24 2 /

■

Rear Panel

100 M/100 0 M/10Gbps

RJ45 Por t

10/10 0/100 0 Mbps

RJ45 Por t

10/100 Mbps RJ45

Port

SFP Port SFP+ Por t

The rear panel is shown as the following figure. Here we take T1600G-28TS as an example.

Figu re 1-11 Rear Panel

Power SocketGrounding TerminalKensington Security slot

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being stolen.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents:

https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.

Power Socket

Connect the female connector of the power cord here, and the male connector to the AC power outlet. Make sure that the voltage of the power supply meets the requirement of the input voltage (100–240 V~ 50/60 Hz).

Caution:

You should use the provided power cord.

07 Introduction

JetStream Smart Switch

°C

Chapter 2 Installation

2.1 Package Contents

Make sure that the package contains the following items. If any of the listed items is damaged or missing, please contact your distributor.

One Switch

Installation Guide

Business Networking Solution

Installation Guide

One Power Cord

Two mounting brackets, eight screws and four rubber feet

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, you should observe the following rules.

■

Safety Precautions

■

Keep the power off during the installation.

■

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is well grounded.

■

Use only the power cord provided with the switch.

■

Make sure that the supply voltage matches the specifications indicated on the rear panel of the switch.

■

Ensure that the switch is installed in a well-ventilated environment and its ventilation hole is not blocked.

■

Do not open or remove the cover of the switch.

■

Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never use any other liquid cleaning method.

■

Place the device with its bottom surface downward.

■

Site Requirements

Temperature/Humidity

0°C

08Installation

JetStream Smart Switch

Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property changes, and corrosion. High temperatures may accelerate aging of the insulation materials, significantly shortening the service life of the device. To find out the best temperature and humidity conditions for the device, check the following table.

Environment Temperature Humidity

0 °C to 50 °C

Operating

(for TL-SG2210MP/TL-SG2428P/TL-SL2428P)

10% to 90%RH Non-condensing

0 °C to 40 °C (for other switches)

Storage -40 °C to 70 °C 5% to 90%RH Non-condensing

Clearness

The dust accumulated on the switch can be absorbed by static electricity and result in poor contact of metal contact points. Some measures have been taken for the device to prevent static electricity, but too strong static electricity can cause deadly damage to the electronic elements on the internal circuit board. To avoid the effect of static electricity on the operation of the Switch, attach much importance to the following items:

■

Dust the device regularly, and keep the indoor air clean.

■

Keep the device well grounded and ensure that the static electricity has been transferred.

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected by external interferences, such as conducted emission by capacitance coupling, inductance coupling, and impedance coupling. To decrease the interferences, make sure to take the following measures:

■

Use the power supply that can effectively filter interference from the power grid.

■

Keep the device far from high-frequency and strong-current devices such as radio transmitting station.

■

Use electromagnetic shielding when necessary.

Lightning Protection

09 Installation

JetStream Smart Switch

Extremely high voltage currents can be produced instantly when lightning occurs and the air in the electric discharge path can be instantly heated up to 20,000

°C

. As this instant current is strong enough to damage electronic devices, more effective lightning protection measures should be taken.

■

Ensure that the rack and the device are well earthed.

■

Make sure the power socket has a good contact with the ground.

■

Keep a reasonable cabling system and avoid induced lightning.

■

Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note: For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents:

https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.

Installation Site

When installing the device on a rack or a flat workbench, attach much importance to the following items:

■

The rack or workbench is flat, stable, and sturdy enough to support the weight of 5.5 kg at least.

■

The rack or workbench has a good ventilation system. The equipment room is well ventilated.

■

The rack is well grounded. Keep the device less than 1.5 meters away from the power socket.

2.3 Installation Tools

■

Phillips screwdriver

■

ESD-preventive wrist wrap

■

Cables

Note:

These tools are not included with our product. If needed, you can purchase them separately.

2.4 Product Installation

■

Desktop Installation

To install the device on the desktop, follow the steps:

1. Set the device on a flat surface which is strong enough to support the entire weight of the device

with all fittings.

2. Remove the adhesive backing papers from the rubber feet.

3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at

each corner of the device.

10Installation

JetStream Smart Switch

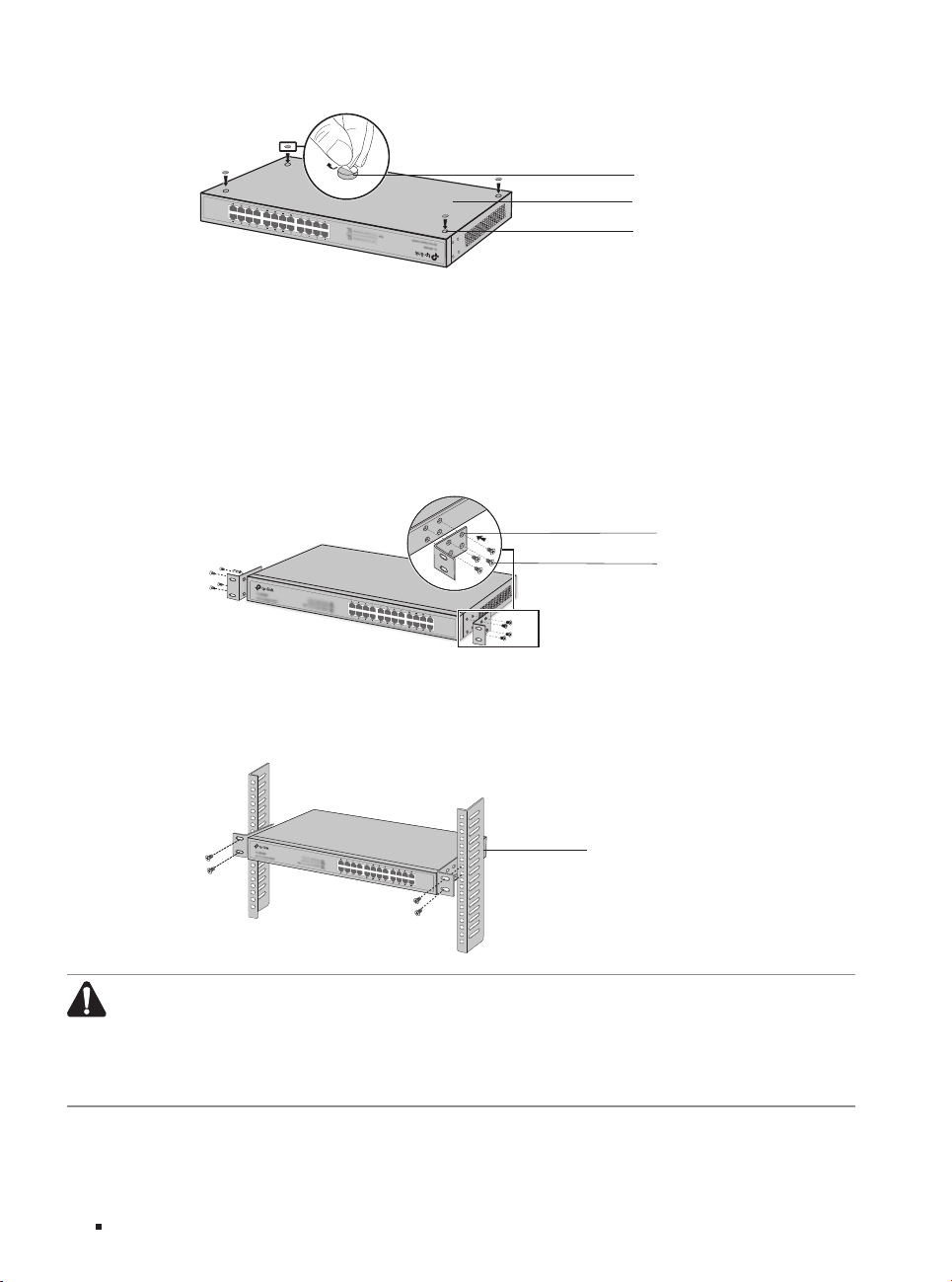

Figu re 2-1 Desktop Installation

Feet

Bottom of the Device

Notch

■

Rack Installation

To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below:

1. Check the efficiency of the grounding system and the stabilit y of the rack.

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as illustrated in the following figure.

Figu re 2-2 Bracket Installation

Rack-mounting Bracket

Screw

3. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure.

Figu re 2-3 Rack Installation

Rack

Caution:

■

Leave 5 to 10 cm gaps around the devices for air circulation.

■

Avoid placing heavy things on the device.

■

Place the device with its bottom facing downwards.

■

Mount devices in sequence from the bottom to top of the rack and ensure a certain clearance between devices for the purpose of heat dissipation.

11 Installation

JetStream Smart Switch

Chapter 3 Connection

3.1 Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows.

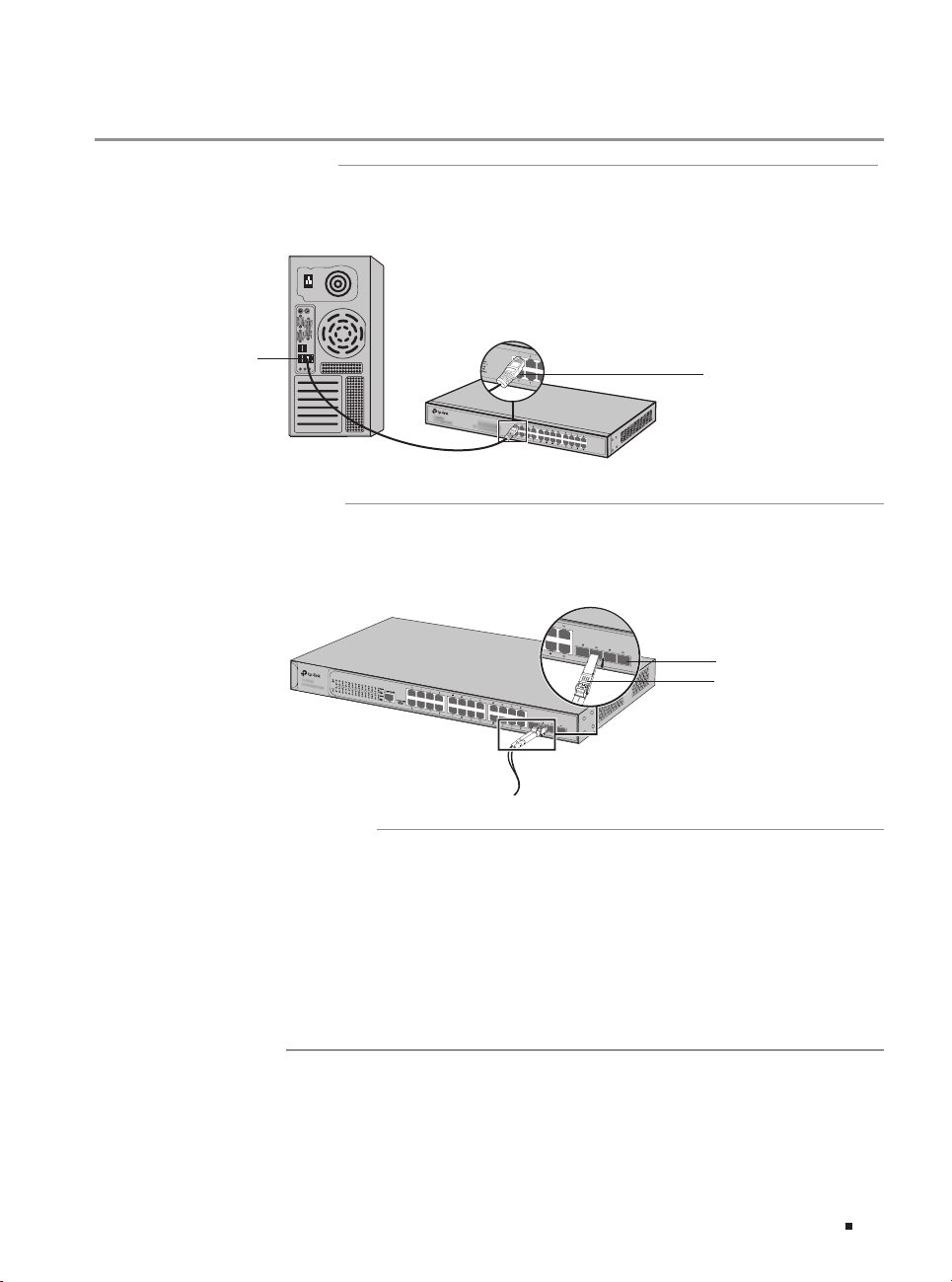

Figu re 3-1 Conn ecting th e RJ45 Port

RJ45 Port

RJ45 Cable

3.2 SFP/SFP+ Port

The following figure demonstrates the connection of SFP port to an SFP module.

Figu re 3-2 Inserting the SFP Module

SFP/SFP+ Slot

SFP/SFP+ Module

3.3 Verify Installation

After completing the installation, verify the following items:

■

There should be 5 to 10 cm of clearance around the device for ventilation and make sure the air flow is adequate.

■

The voltage of the power supply meets the requirement of the input voltage of the device.

■

The power socket, device and rack are well grounded.

■

The device is correctly connected to other network devices.

3.4 Power On

Plug the negative connector of the provided power cord into the power socket of the device and plug the positive connector into a power outlet as the following figure shows.

12Connection

JetStream Smart Switch

Figu re 3-3 Connecting to Power Supply

Note:

The gure is to illustrate the application and principle. The provided plug and the socket in your region may dier from the gures above.

3.5 Initialization

After the device is powered on, it begins the Power-On Self-Test. A series of tests run automatically to ensure the device functions properly. During this time, its LED indicators will respond in the following order:

1. The PWR LED indicator lights on all the time. The SYS LED and the LED indicators of all the ports keep off.

2. (For TL-SG2210MP/TL-SG2428P/TL-SL2428P) After about one minute, all LED indicators will turn green, and then the FAN indicator and LED indicators of all the ports will turn yellow momentarily. Subsequently, all LED indicators except the PWR LED will turn off.

(For other switches) Af ter about one minute, the SYS LED and LED indicators of all the ports will

flash momentarily and then turn off.

3. Several seconds later, the SYS LED indicator will flash, which represents a successful initialization.

13 Connection

JetStream Smart Switch

Chapter 4 Configuration

4.1 Conguration Overview

The switch supports two configuration options:

■

Standalone Mode: Configure and manage the switch singly.

■

Controller Mode: Configure and manage the network devices centrally. It is recommended in the large-scale network, which consists of mass devices such as access points, switches, and gateways.

Note:

Only TL-SG2428P, and TL-SG2210MP support Controller Mode. When the switch is changed

from Standalone Mode to Controller Mode, congurations of the switch will be lost. For details, refer to the related documents on the download center of our ocial website: https://ww w.tp-

link.com/support/download/.

4.2 Standalone Mode

In Standalone Mode, use a computer to configure and mange the switch.

Figu re 4-1 Topology for Standalone Mode

Switch PC

■

Using the GUI

1. To access the management page of the switch, make sure the switch and computer are in the same subnet. Open a browser and type the switch’s IP address in the address field, then press the Enter key.

■

If the switch obtains IP address from the DHCP server (typically a router), find the switch’s IP address on the DHCP server.

■

If not, use the default IP address 192.168.0.1 to launch the switch’s management page.

2. Enter admin for both the username and password in the lower case letters to log in. The first time

you log in, change the password to better protect your network and devices.

3. After a successful login, the main page will appear. You can click the menus on the top side and left side to configure the corresponding functions.

For the detailed configurations, refer to the User Guide and CLI Guide. The guides can be found on the download center of our official website: https://www.tp-link.com/support/download/.

■

Using the CLI

■

Set up a Telnet or SSH connection to access the switch via CLI (command-line interface).

14Conguration

JetStream Smart Switch

For the detailed configurations, refer to the User Guide and CLI Guide. The guides can be found on the download center of our official website: https://www.tp-link.com/download-center.html

Note:

For certain devices, you may need to change the password the rst time you log in, which will

better protect your network and devices.

4.3 Controller Mode

Controller Mode applies to the large scale network with mass devices. All devices can be centrally configured and monitored via Omada Software Controller, Omada Hardware Controller or Omada Cloud-Based Controller.

Note:

Before the following congurations, make sure the switch can access the internet. When using

Omada Soft ware/Hardware Controller, make sure the switch and the controller are in the same subnet. Typically, the switch obtains IP address from the DHCP server. You can check the switch’s IP address on the DHCP server.

■

Via Omada Software/Hardware Controller

Figu re 4-2 Manage th e network via Om ada Soft ware/Ha rdware Con troller

Router

Switch

Omada Hardware Controller

(OC3200/300)

Omada Software Controller

Controller

running on the Host PC

EAP EAP EAP

Clients

Via Omada Software Controller

1. On the PC with Windows OS or Linux OS, download the Omada Software Controller installation file from https://www.tp-link.com/support/download/omada-software-controller/.

2. Run the file and follow the wizard to install the Omada Software Controller.

15 Conguration

JetStream Smart Switch

3. Launch the Omada Software Controller and follow the step-by-step instructions to complete the Quick Setup. After the wizard is finished, a login screen will appear.

4. Enter the username and password you created and click Log in. Then you can further configure the controller.

Via Omada Hardware Controller (OC200/OC300)

Omada Hardware Controller (OC200/OC300), which is pre-installed with Omada Soft ware Controller, is a good alternative if you have no spare PC to keep running Omada Software Controller in the network. It needs to be purchased additionally. For more details, refer to the Installation Guide of Omada Hardware Controller.

Omada Cloud Service

After installing Omada Soft ware/Hardware Controller, you can remotely access and configure the controller through Omada Cloud Service. Follow the steps below.

1. Enable Cloud Access on the setting page on the controller and bind a TP-Link ID to your controller. If you have configured this in the setup wizard, skip the step.

2. Launch a web browser and enter https://omada.tplinkcloud.com in the address bar.

3. Enter your TP-Link ID and password to log in. A list of controllers that have been bound with your TP-Link ID will appear. Then you can click Launch to fur ther configure the controller.

■

Via Omada Cloud-Based Controller

Figu re 4-3 Manage th e network via Om ada Cloud -Based Co ntroller

Omada Cloud-Based

Controller

Router

Switch

EAPEAP EAP

Clients

Before managing the switch via Omada Cloud-Based Controller, make sure the devices can access the internet.

1. Launch a web browser and enter https://omada.tplinkcloud.com in the address bar. Enter your TPLink ID and password to log in.

16Conguration

JetStream Smart Switch

2. Click Add Controller and subscribe to Omada Cloud-Based Controller. Follow the instructions to choose a plan and complete the payment. Then wait until your controller is deployed.

3. The controller will appear in the list once bound with your TP-Link ID. Click Launch and follow the step-by-step instructions to complete the Quick Setup. After the wizard is finished, log in via the created username and password.

4. Click Devices on the side bar and then click Add Devices. Then you can add devices to the controller manually through the serial numbers at the bottom of the product.

Omada App

With the Omada app, you can also manage your controller at a local site or a remote site via your mobile device.

For the detailed configurations, refer to the User Guide of the controller. The guide can be found on the download center of our official website: https://www.tp-link.com/support/download/.

17 Conguration

JetStream Smart Switch

Appendix A Troubleshooting

Q1. What could I do if I forgot the username and password of the switch?

Press the Reset button for at least 5 seconds to reset the system. The system will be reset to the factory default settings, and the default login user name and password are both admin.

Q2. Why does the PWR/Power LED work abnormally?

The PWR/Power LED should be lit up when the power system works normally. If the PWR LED worked abnormally, try the following:

1. Make sure that the power cable is connected properly, and the power contact is normal.

2. Make sure the voltage of the power supply meets the requirement of the input voltage of the switch.

Q3. What should I do if I cannot access the web management page?

Try the following:

1. Check every port LED on the switch and make sure the Ethernet cable is connected properly.

2. Try another port on the switch and make sure the Ethernet cable is suitable and works normally.

3. Power off the switch and, after a while, power it on again.

4. Make sure the IP address of your PC is set within the subnet of the switch.

5. If you still cannot access the configuration page, please reset the switch to its factory defaults. Then the IP address of your PC should be set as 192.168.0.x ("x" is any number from 2 to 254) and subnet mask as 255.255.255.0.

18Appendix A Troubleshooting

JetStream Smart Switch

Appendix B Specifications

Item Content

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE

802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w

Standards

IEEE 802.3ae (For T1700G-28TQ/T1700X-16TS)

IEEE 802.3af, IEEE 802.3at (For T1600G-52PS/TL-SG2210MP/TL-SG2428P/ TL-SL2428P)

10Base-T: UTP/STP of Cat. 3 or above

100Base-TX: UTP/STP of Cat. 5 or above

100Base-FX/LX10/BX10: MMF or SMF SFP Module (For T1500-28TC/TLSG2210MP/ TL-SG2428P)

Transmission Medium

LEDs

Operating Temperature

Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)

Operating Humidity 10%

Storage Humidity 5%

1000Base-T: 4-pair UTP (≤ 100 m) of Cat. 5e, and Cat. 6 or above

1000Base-SX/LX/LX10/BX10: MMF or SMF SFP Module

10GBASE-SR/LR: MMF or SMF SFP+ Transceiver (For T1700G-28TQ/T1700X16TS)

10GBASE-T: 4-pair UTP of Cat.6 (maximum 55 m) or Cat.6a (maximum 100 m), 4-pair STP of Cat.6/Cat. 6a/Cat.7 (maximum 100 m) (For T1700X-16TS)

T1500-28TC: Power, System, 10/100M, 1000M

TL-SL2428P: PWR, SYS, PoE MAX, FAN, 10/100M or PoE, 1000M, 10/100M, PoE

TL-SG2210MP: PWR, SYS, PoE MAX, FAN, Speed or PoE, SFP1, SFP2, PoE, Speed

T1600G-18TS: PWR, SYS, 1000Mbps, Link /Act

T1600G-25TS/T1600G-52TS: PWR, SYS, 10/100/1000Mbps,100BaseTX/1000Base-X

TL-SG2428P/T1600G-52PS: PWR, SYS, FAN, PoE MA X, Speed, PoE, 100BaseTX/1000BASE-X

T1700G-28TQ: PWR, SYS, Master, Link /Act, 1000M, 25, 26, 27, 28, Unit ID LED

T1700X-16TS: PWR, SYS, FAN, Link /Act

0 °C to 50 °C (32 °F to 122 °F) (For TL-SG2210MP/TL-SG2428P/TL-SL2428P) 0 °C to 40 °C (32 °F to 104 °F) (For other switches)

90%RH Non-condensing

19 Appendix B Specications

CE Mark Warning

This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

EU declaration of conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими ак тами України.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device.

• Place the device with its bottom surface downward.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

To ask questions, nd answers, and communicate with TP-Link users

or engineers, please visit https://community.tp-link.com to join TP-Link

Community.

For technical support, the user guide and other information, please visit

https://www.tp-link.com/support, or simply scan the QR code.

If you have any suggestions or needs on the product guides, welcome to

email techwriter@tp-link.com.cn.

TP-Link TL-SG2428P installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1 Introduction

1.1 Product Overview

1.2 Appearance

Chapter 2 Installation

2.1 Package Contents

2.2 Safety Precautions

2.3 Installation Tools

2.4 Product Installation

Chapter 3 Connection

3.1 Ethernet Port

3.2 SFP/SFP+ Port

3.3 Verify Installation

3.4 Power On

3.5 Initialization

Chapter 4 Configuration

4.2 Standalone Mode

4.3 Controller Mode

Appendix A Troubleshooting

Appendix B Specifications
