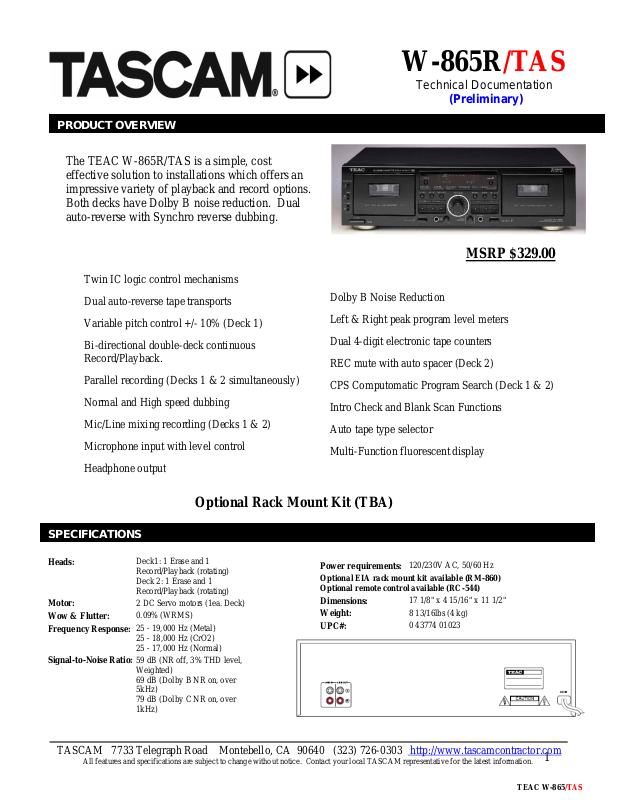

W-865R/TAS
(Preliminary)
Technical Documentation
The TEAC W-865R/TAS is a simple, cost
effective solution to installations which offers an
impressive variety of playback and record options.
Both decks have Dolby B noise reduction. Dual
auto-reverse with Synchro reverse dubbing.
Twin IC logic control mechanisms
Dual auto-reverse tape transports
Variable pitch control +/- 10% (Deck 1)
Bi-directional double-deck continuous
Record/Playback.
Parallel recording (Decks 1 & 2 simultaneously)
Normal and High speed dubbing
Mic/Line mixing recording (Decks 1 & 2)
Microphone input with level control
Headphone output
Dolby B Noise Reduction
Left & Right peak program level meters
Dual 4-digit electronic tape counters
REC mute with auto spacer (Deck 2)
CPS Computomatic Program Search (Deck 1 & 2)
Intro Check and Blank Scan Functions
Auto tape type selector
Multi-Function fluorescent display
MSRP $329.00
Optional Rack Mount Kit (TBA)
Heads:
Motor:
Wow & Flutter:
Frequency Response:
Signal-to-Noise Ratio:
Deck1: 1 Erase and 1
Record/Playback (rotating)
Deck 2: 1 Erase and 1
Record/Playback (rotating)
2 DC Servo motors (1ea. Deck)
0.09% (WRMS)
25 - 19,000 Hz (Metal)
25 - 18,000 Hz (CrO2)
25 - 17,000 Hz (Normal)
59 dB (NR off, 3% THD level,
Weighted)
69 dB (Dolby B NR on, over
5kHz)
79 dB (Dolby C NR on, over
1kHz)
TASCAM 7733 Telegraph Road Montebello, CA 90640 (323) 726-0303 http://www.tascamcontractor.com
All features and specifications are subject to change without notice. Contact your local TASCAM representative for the latest information.
Power requirements:
Optional EIA rack mount kit available (RM-860)
Optional remote control available (RC-544)
Dimensions:
Weight:
UPC#:
120/230V AC, 50/60 Hz
17 1/8" x 4 15/16" x 11 1/2"
8 13/16lbs (4 kg)
0 43774 01023
1
TEAC W-865/TAS
