Teac T-H380DNT Owner's Manual
Z
T-H380DNT
CQX1A1406Z
DAB/AM/FM Stereo Tuner
OWNER’S MANUAL
< Do not expose this apparatus to drips or splashes.
< Do not place any objects filled with liquids, such as vases, on the
apparatus.
< Do not install this apparatus in a confined space such as a book
case or similar unit.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
< The apparatus draws nominal non-operating power from the AC
outlet with its STANDBY/ON switch in the standby position.
< The apparatus should be located close enough to the AC outlet
so that you can easily grasp the power cord plug at any time.
< The main plug is used as the disconnect device, the disconnect
device shall remain readily operable.
< An apparatus with Class ! construction shall be connected to an
AC outlet with a protective grounding connection.
< Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
< Excessive sound pressure from earphones and headphones can
cause hearing loss.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
13) Unplug this apparatus during lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally,
or has been dropped.
MOISTURE.
CAUTION
< DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE
THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN!
< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,
CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE
PRODUCT UNTIL IT HAS BEEN REPAIRED.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS
and Thomson.
This product is protected by certain intellectual property rights of
Microsoft.
Use or distribution of such technology outside of this product is
prohibited without a license from Microsoft.
2
Contents
Before use
Thank you for choosing TEAC. Read this manual carefully to
get the best performance from this unit.
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting Antennas (DAB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting Antennas (AM/FM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DAB Basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using DAB Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Changing Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Listening to FM/AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Preset Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PTY Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Internet Radio Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Listening to Internet Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Radio Portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting up Music Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Listening to Music Player (Media Sharing) . . . . . . . . . . . . . . . . . . . . . 24
Listening to Music Player (File Sharing) . . . . . . . . . . . . . . . . . . . . . . . . 25
Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

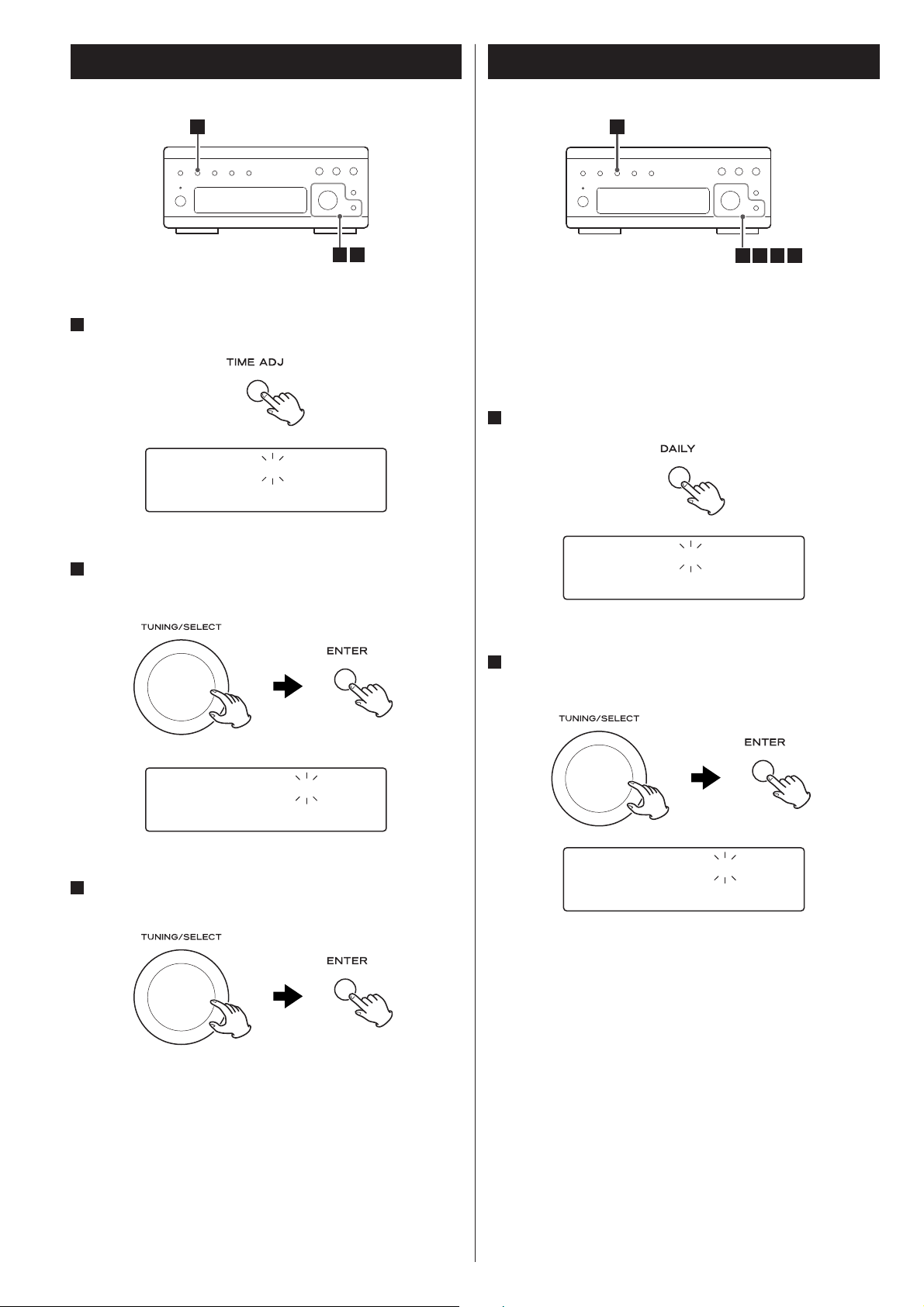

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

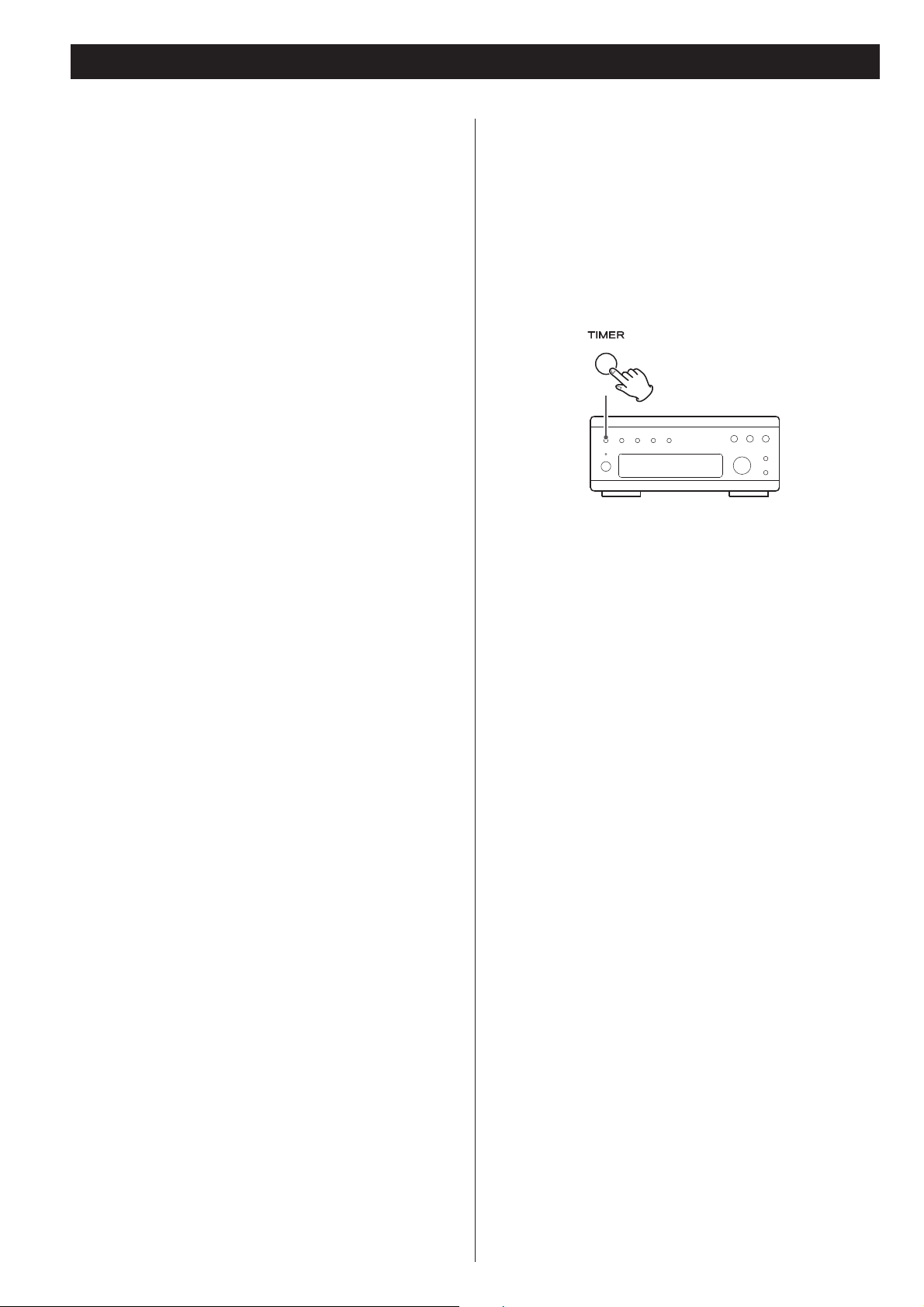

Setting the Daily Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Read this before attempting any operations.
< As the unit may become warm during operation, always leave
sufficient space around the unit for ventilation.
Make sure there is at least 20 cm of space above and at least 5 cm
of space on each side of the unit. Do NOT place anything on top
of the unit.
< The voltage supplied to the unit should match the voltage as
printed on the rear panel. If you are in any doubt regarding this
matter, consult an electrician.
< Choose the installation location of your unit carefully. Avoid
placing it in direct sunlight or close to a source of heat. Also avoid
locations subject to vibrations and excessive dust, heat, cold or
moisture.
< Do not place the unit on an amplifier/receiver.
< Do not open the cabinet as this might result in damage to the
circuitry or electrical shock. If a foreign object should get into the
unit, contact your dealer or service company.
< When removing the power plug from the wall outlet, always pull
directly on the plug, never yank the cord.
< Do not attempt to clean the unit with chemical solvents as this
might damage the finish. Use a clean, dry or slightly damp cloth.
< Keep this manual in a safe place for future reference.
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3
Connection
A
B
D
T-H380DNT
F
E
GC
RL
TUNER
(LINE IN)
A
DIGITAL OUT terminal
Digital audio signal of DAB, Internet radio and the Music Player
is output from this terminal. If you want to record digitally, or
decode the signal using an external digital decoder, connect
to the digital input terminal of a digital recording device or a
decoder using a commercially-available optical digital cable.
< When inserting the plug of the optical cable, the protective
shutter of the terminal will open and you should hear it click
into position when fully inserted. Be careful that you do not
force the plug, because this could result in damage to the
protective shutter, the cable, or the unit itself.
REMOTE CONTROL
A-H380
CAUTION:
< Switch off the power to all equipment before
making connections.
< Read the instructions of each component you
intend to use with this unit.
B
LINE OUT jacks
These jacks transmit an analog 2-channel audio signal. Connect
these jacks to the TUNER jacks of the amplifier (A-H380) with a
stereo RCA pin cable.
Make sure to connect the cable as follows:
white plug q white jack (L: left channel)
red plug q red jack (R: right channel)
White (L)
Red (R)
< Be sure to insert each plug securely. To prevent hum and noise,
avoid bundling the signal interconnection cables together with
the AC power cord or speaker cables.
White (L)
Red (R)
4
Connecting Antennas (DAB)
C
REMOTE CONTROL jack
If you have TEAC A-H380, convenient system control operations
are available:
< When you tune in a station, the input selector of the A-H380 is
set to “TUNER” automatically.
When you want to use the remote control functions, connect
the REMOTE CONTROL jack of each component by a remote
control connection cord, and set the REMOTE CONTROL
SELECTOR switch on the rear panel of the T-H380DNT to
”SYSTEM”.
< You can use the remote control unit RC-1179 (provided for
A-H380). Aim the remote control unit at the A-H380 to operate
this unit.
When the REMOTE CONTROL SELECTOR switch is set to
”SINGLE”, aim the remote control unit at this unit.
Note:
The remote control unit is not provided for this unit.
D
Wireless LAN antenna
If you can use a wireless LAN in your installation site, the unit
connects to the LAN using the wireless LAN antenna. Stand the
antenna up to use it.
DAB Indoor Antenna
Connect the T-type DAB antenna to the DAB antenna terminal.
Extend the lead vertically and attach it to a window frame or wall
with thumbtacks or the like.
< You can adjust the antenna positioning for the best reception by
viewing the signal strength on the display. See “Manual Tune“ on
page 10.
DAB Outdoor Antenna
In an area where DAB signals are weak, it will be necessary to use an
outdoor DAB antenna.
E
ETHERNET port
To enjoy the Internet radio function, connect the unit to the
Internet.
< To use a wired Internet connection, connect the Ethernet port of
this unit to the Ethernet network using a commercially available
Ethernet cable.
F
AC OUTLET
You can connect the AC power cord of your component.
Caution:
Make sure that the total power consumption of all equipment
connected to this outlet does not exceed 100 watts (or 500mA).
G
AC power cord
After all other connections are complete, connect the plug to the
AC wall socket.
Be sure to connect the power cord to an AC outlet which supplies
the correct voltage.
Hold the power plug when plugging or unplugging the power
cord.
Multi-element
Dipole
< It is possible to use a TV antenna or an FM antenna to receive
DAB signals. This may give a stronger signal than a simple internal
antenna.
You would need to change the plug on your TV/FM antenna to
an F type, and it may also be necessary to use a signal booster to
enhance the signal.
5
Connecting Antennas (AM/FM)
AM Indoor Loop Antenna
The high-performance AM loop antenna provided for this unit is
sufficient for good reception in most areas.
To stand the loop antenna on a surface, fix the claw to the slot in
the antenna base.
Connect the loop antenna‘s wires to the AM antenna terminals.
< Make sure to connect the black wire to the GND terminal.
Place the antenna on a shelf or hang it on a window frame, etc.,
in the direction which gives the best reception. Keep all other
wires such as power cords, speaker wires or interconnected wires
as far away as possible from the antenna.
AM Outdoor Antenna
If the AM loop antenna provided does not deliver sufficient reception
(often due to being too far from the transmitter or in a concrete
building, etc.), it may be necessary to use an outdoor AM antenna.
FM Indoor Antenna
Connect the lead-type FM antenna to the FM 75Ω socket, extend
the lead and tune in your favourite station (see page 14).
Adjust the antenna in a suitable location like a window frame or
wall which gives the best reception and then fix the antenna in
that position with thumbtacks or the like.
FM Outdoor Antenna
In an area where FM signals are weak, it will be necessary to use
an outdoor FM antenna. Generally, a 3-element antenna will be
sufficient; if you live in an area where the FM signals are particularly
weak, it may be necessary to use one with 5 or more elements.
< Disconnect the FM indoor antenna when using an outdoor
antenna.
Use either a high quality commercially available AM antenna or,
if not available, an insulated wire more than 5 m long, strip one
end, and connect this to the terminal as shown.
The antenna wire should be strung outdoors or indoors near a
window. For better reception, connect the GND terminal to a
reliable ground.
< Even when using an outdoor AM antenna, do not disconnect the
AM loop antenna.
6
Parts Identification
A DCB E F G H
N M
A
STANDBY/ON
Press this button to turn the unit on or put in the standby mode.
The standby indicator is orange when the unit is in the standby
mode. When the unit is turned on, it lights in blue.
The standby indicator lights in blue and orange alternately when
the timer is set.
I
JL K
H
FWD
While entering characters, press this button to select a character.
I
BAND
Press this button to select FM, AM, DAB or Internet Radio.
B
TIMER
Press this button to turn on or off the timer function.
C
TIME ADJ
Press this button to adjust the clock.
D
DAILY
Press this button to set the timer.
E
MEMORY
Press this button to store preset stations into memory.
F
FUNCTION/FM MODE
While listening to FM, press this button to select stereo or
monaural.
While listening to DAB, the Internet radio or the Music Player,
press this button to open menus.
G
BACK
While entering characters, press this button to select a character.
While operating menus, press this button to go back to the
previous display.
J

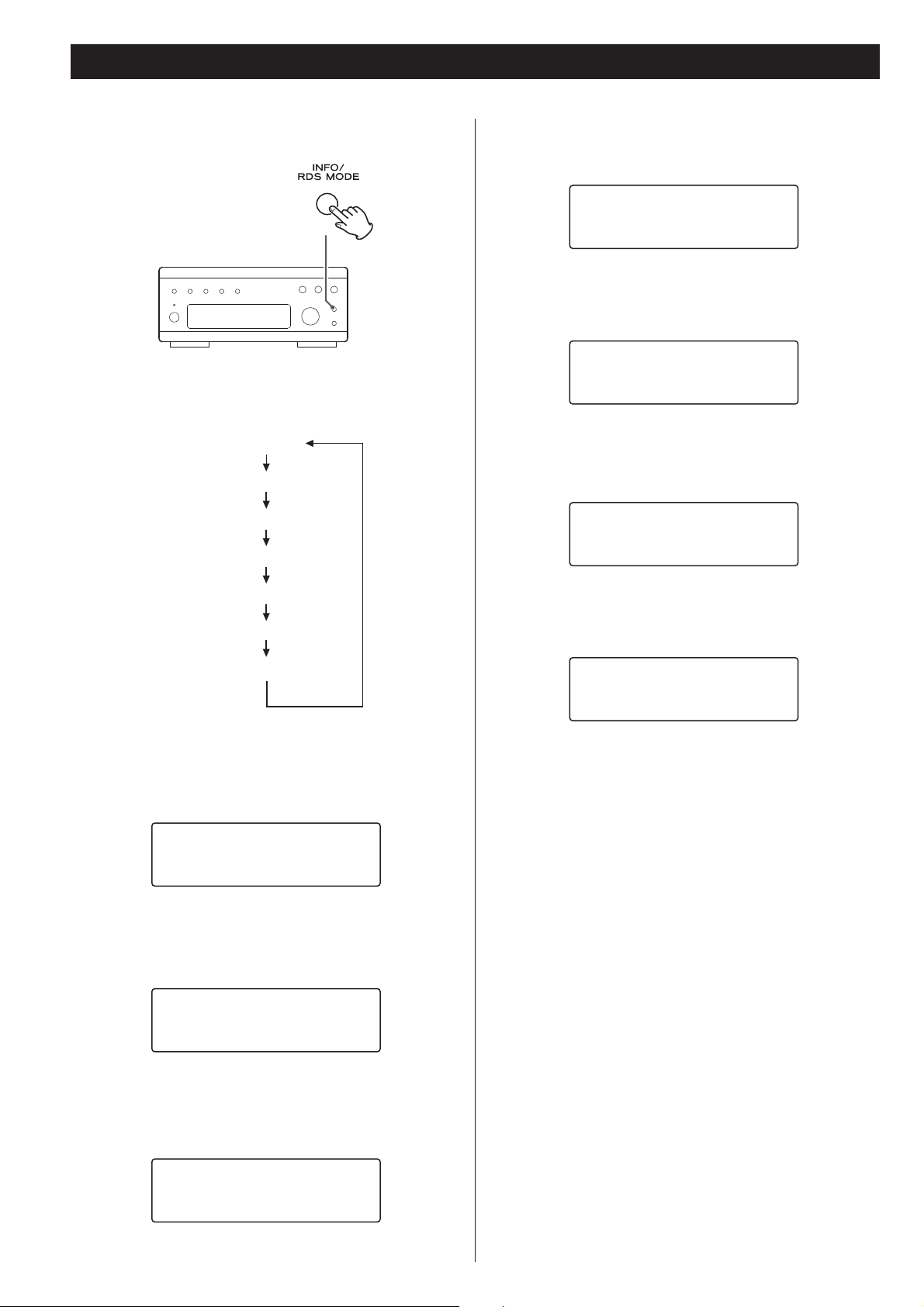

INFO/RDS MODE
While listening to FM, press this button to select the RDS mode.
While listening to DAB or the Internet radio, press this button to
change the information on the second line of the display.
K
ENTER
Press this button to enter your selection.
While listening to FM or AM, press this button to change the
tuning mode.
L
TUNING/SELECT
Turn this knob to tune in a station, to select a preset station, or to
select a menu item.
M
Remote sensor
When using the remote control unit, point it towards the remote
sensor.
N
Display
7
DAB Basic operations
Setting up your DAB Tuner
The first time you select DAB as the source, the unit will scan for DAB
channels and build a channel list.
2
1
1
Press the STANDBY/ON button to turn the unit on.
standby indicator
The standby indicator lights in blue.
2
Select DAB by pressing the BAND button repeatedly.
Using the Channel List
1
2 3
1
Select DAB by pressing the BAND button repeatedly.
The list of available channels is displayed.
< If the channel list is not displayed, turn the TUNING/SELECT knob.
2
Scroll through the channels in the channel list.
Turn the TUNING/SELECT knob.
The unit will scan for ensembles broadcast in the local area and
add them to the channel list as they are found. The scan should
take about 20 seconds.
Scanning...
209.93MHz
After broadcast services have been found, the channels are listed
in alphanumeric order.
< If no broadcast services are found, please check that the antenna
is correctly connected to the unit.
BBC Radio 1
BBC Radio 1Xtra
3
When you have found the channel that you want to listen
to, press the ENTER button.
Selecting...
BBC 6
Jazz festival on
The channel is tuned in and channel information is displayed.
8
Using DAB Menu 1
Note
< To display the channel list while listening to a DAB channel, turn
the TUNING/SELECT knob.
< Channels are displayed in alphanumeric order in the channel list,
with numbers coming first.
< If a channel is no longer broadcasting or the unit is moved out
of the area of a broadcast channel, the unit will no longer be
able to tune in the channel. If the channel cannot be tuned in, a
question mark “?” is displayed in front of the channel name. If you
select this channel to tune in by pressing the ENTER button, “No
stations Available” is displayed.
< You can move the channel that is no longer available to the end
of the channel list. See “Station order” on page 12.
DAB menu operations
In DAB mode, use DAB menu to access various functions. There are 7
options in the DAB menu.
FUNCTION/FM MODE BACK
TUNING/SELECT ENTER

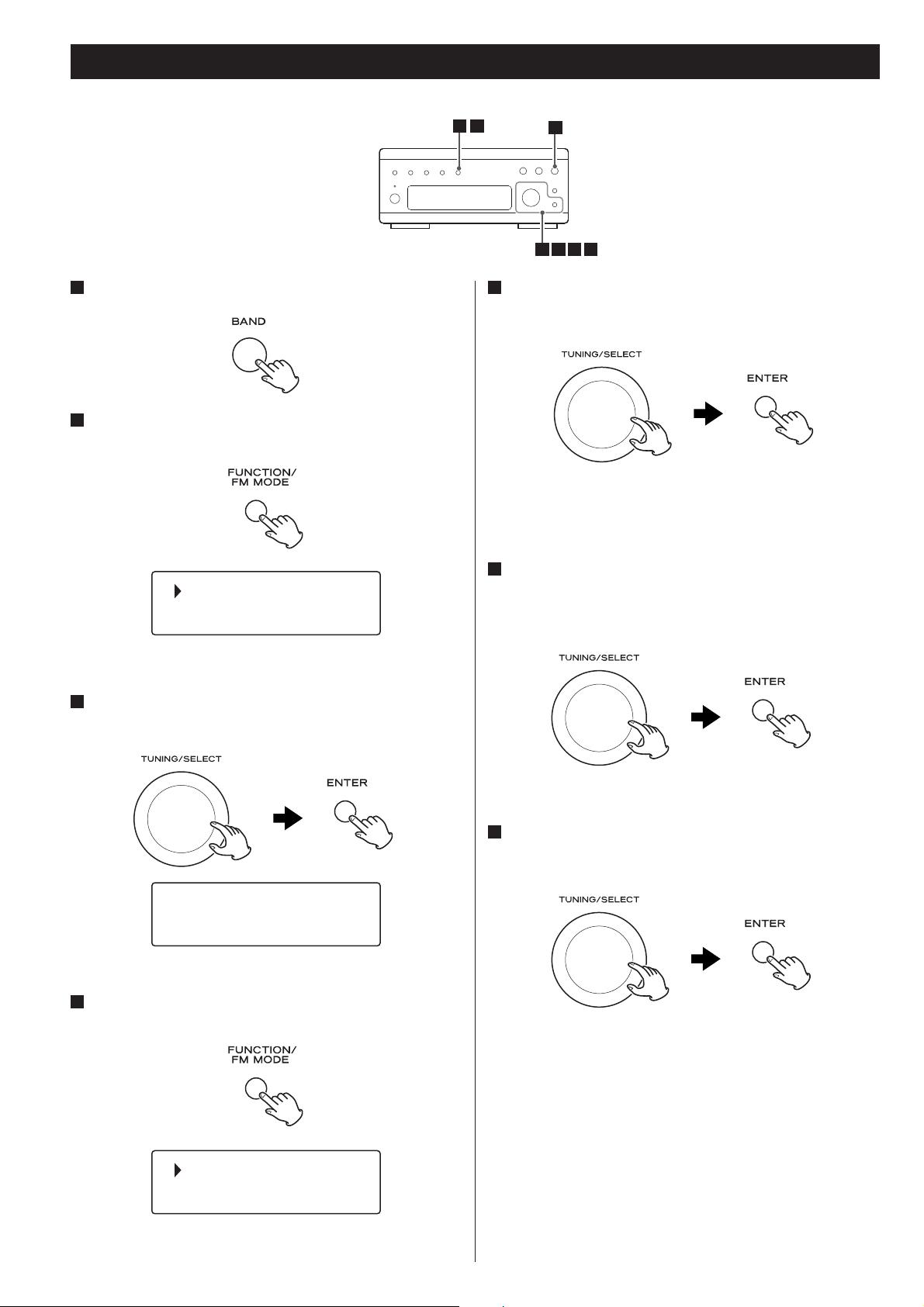

To open DAB menu
Press the FUNCTION/FM MODE button while DAB is selected as
the source.
To select the menu item
Turn the TUNING/SELECT knob to scroll to the menu item you
want, and then press the ENTER button.
To go back to the previous screen
Press the BACK button.
DAB menu items
Station List
See “Using the Channel List” on page 8.
Local Scan
See “Channel Scan” on page 10.
Full Scan
See “Channel Scan” on page 10.
Manual Tune
See “Manual Tune” on page 10.
Preset Tune
See “Preset Tune” on page 11.
DRC
See “DRC value” on page 11.
Station Order
See “Station order” on page 12.
9

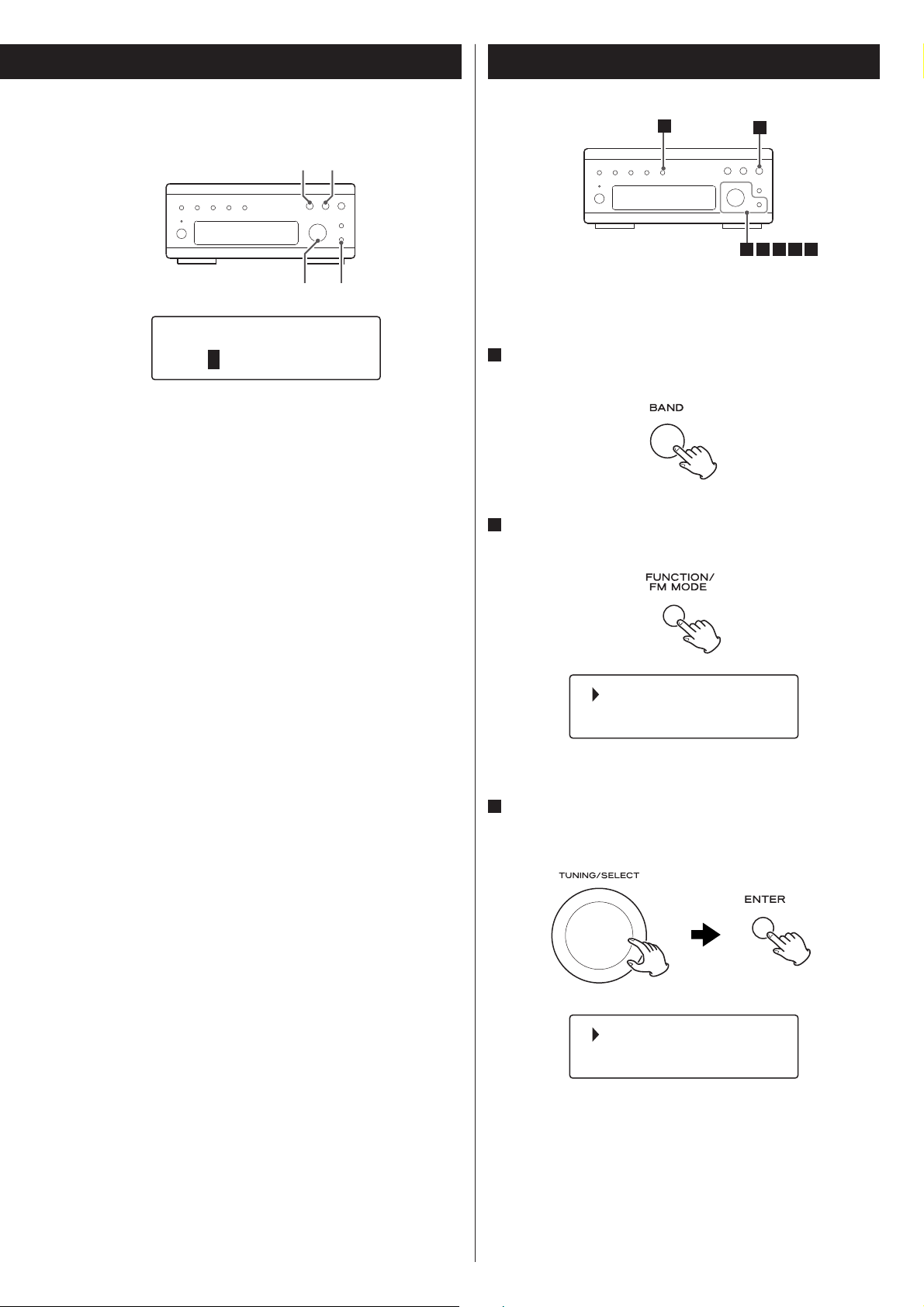

Using DAB Menu 2

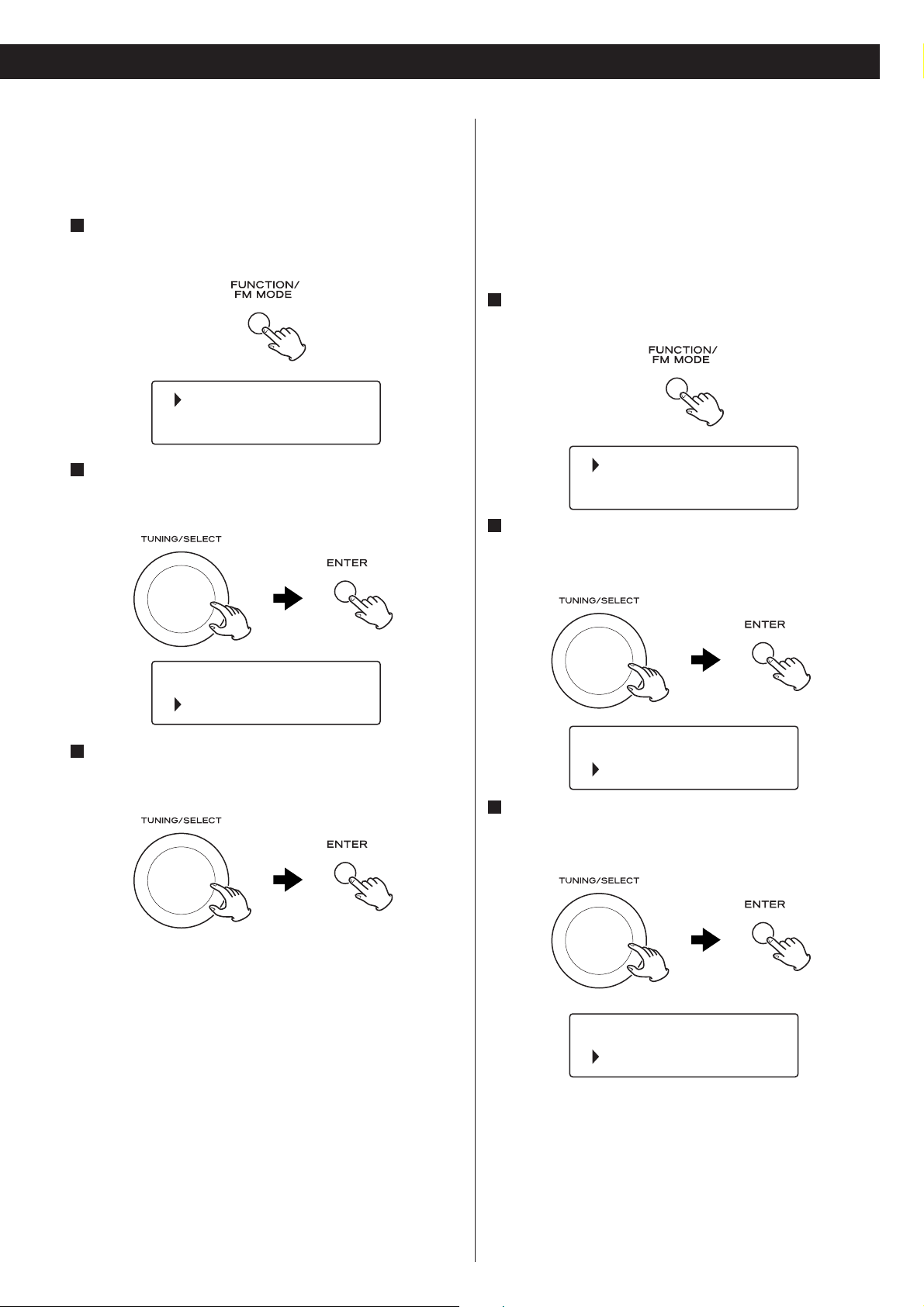

Channel Scan
If you move the unit to a new area or you want to check to see if
there are new channels available in your area, you can scan DAB
bands to find new channels.
1
Open the DAB menu.
Press the FUNCTION/FM MODE button while DAB is selected as
the source.
Station List
Local Scan
2
Select “Local Scan” or “Full Scan”.
Turn the TUNING/SELECT knob to select the item, and then press
the ENTER button.
Manual Tune
The signal strength is displayed. This may be useful when
adjusting or positioning an antenna for better reception.
1
Open the DAB menu.
Press the FUNCTION/FM MODE button while DAB is selected as
the source.
Station List
Local Scan
2
Select “Manual Tune”.
Turn the TUNING/SELECT knob to select the item, and then press
the ENTER button.
Local Scan
The unit will scan the DAB bands between 10A and 13F and add
the channels found to the channel list.
Full Scan
The unit will scan all the DAB bands and add the channels
found to the channel list. Try this if “Local Scan” does not find
the channels you want.
Full Scan
Manual Tune
3
Select the channel you want to tune in.
Turn the TUNING/SELECT knob to select the item, and then press
the ENTER button.
5A 174.92MHz
The signal strength indicator is displayed.
4
While viewing the indicator, adjust or reposition the
antenna until the best reception is indicated.
10
Loading...
