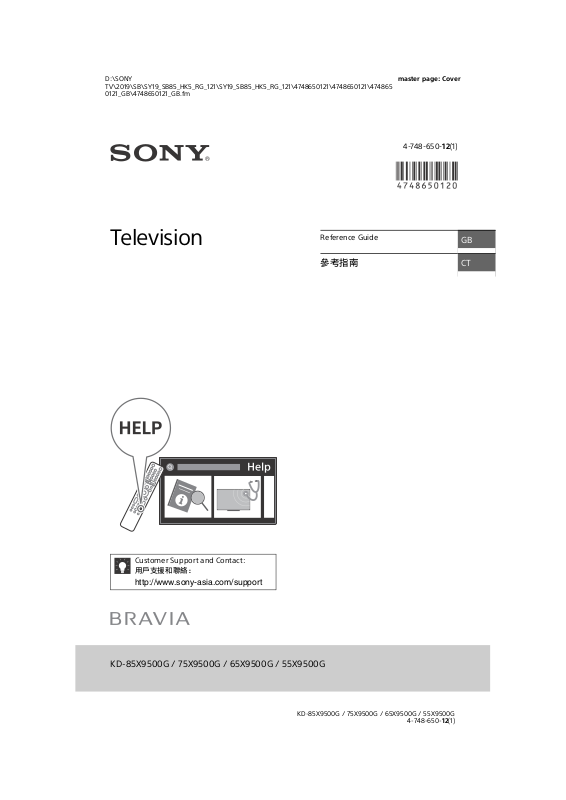

Television
4-748-650-12(1)
|
|
|
|
|
|
|
|
Reference Guide |
GB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Customer Support and Contact:
http://www.sony-asia.com/support
KD-85X9500G / 75X9500G / 65X9500G / 55X9500G
To attach the Table-Top
Stand, refer to the Setup
Guide.
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . 2
Parts and Controls . . . . . . . . . . . . . . . . . . . 4
Controls and Indicators . . . . . . . . . . . . . . . . .4
Using Remote Control . . . . . . . . . . . . . . . . 5
Remote Control Parts Description. . . . . . . . . 5
Connection Diagram . . . . . . . . . . . . . . . . . 7 Installing the TV to the Wall . . . . . . . . . . . 9
Using the optional Wall-Mount Bracket . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . 10
Troubles and Solutions. . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . . . . . .11
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual thoroughly and retain it for future reference.
Note
•Before operating the TV, please read the “Safety Information” (page 2).
•Read the supplied Safety Information for additional safety information.
•Instructions about “Installing the TV to the Wall” are included within this TV’s instruction manual.
•Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
Help
Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword.
Help Guide (Manual)
For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.
This television is designed for use in Hong Kong and ensured the usage in Hong Kong only.
Safety Information
Installation/Set-up
Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.
Installation
•The TV set should be installed near an easily accessible AC power outlet (mains socket).
•Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
•Install the TV where it cannot be pulled, pushed, or knocked over.
•Install the TV so that the TV’s Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.
•Only qualified service personnel should carry out wall-mount installations.
•For safety reasons, it is strongly recommended that you use
Sony accessories, including:
Wall-Mount Bracket SU-WL450
2GB
• Be sure to use the screws supplied with the Wall-Mount Bracket |
Topple prevention |
when attaching the Wall-Mount Bracket to the TV set. The |
|
supplied screws are designed as indicated by illustration when |
|
measured from the attaching surface of the Wall-Mount Bracket. |
|
The diameter and length of the screws differ depending on the |
|
Wall-Mount Bracket model. |
|
Use of screws other than those supplied may result in internal |
|
damage to the TV set or cause it to fall, etc. |
|
8 mm – 12 mm |
|
Screw (M6) |
|
Wall-Mount Bracket |
|
TV’s rear cover |
|
Transporting
•Before transporting the TV set, disconnect all cables.
•Two or more people (three or more people for KD-85X9500G) are needed to transport a large TV set.
•When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
KD-85X9500G
Screw (not
supplied)
GB
8 mm – 12 mm
M6 screw (not supplied)
1.5 N·m {15 kgf·cm}
Cord (not supplied)
KD-75/65/55X9500G
•When transporting the TV set, do not subject it to jolts or excessive vibration.
•When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.
3GB
Parts and Controls
Controls and Indicators
ȩ |
Ȫ ȫ Ȭ |
(Power) /+/–
When the TV is off,
Press to power on.
When the TV is on,
Press and hold to power off.
Press repeatedly to change the function, then press + or – button to:
•Adjust the volume.
•Select the channel.
•Select the input source of TV.
Remote Control sensor*1 / Light sensor*1 / Illumination LED
The illumination LED lights up or blinks according to the status of the TV.
For more information, refer to the Help Guide.
Built-in MIC*2*3
*1 Do not place anything near the sensor.
*2 The voice search requires an Internet connection. The voice search with the built-in MIC is available only on limited region/country/language.
Standby power consumption will increase because the built-in MIC is always listening when the voice search with the built-in MIC is enabled.
*3 For more information, see the Online Help Guide (page 2).
Use the hands-free built-in microphone for voice search. To enable the built-in MIC, follow the on-screen instructions when you press the
button.
Built-in MIC LED
The built-in MIC LED lights up in amber
when the built-in MIC is enabled. The built-in MIC LED can be disabled.*3
4GB
Using Remote Control
Remote Control Parts Description
The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.
MIC
ȩ
Ȫ
ȫ
Ȭ
ȭ
Ȯ
(TV standby)
Turn on or turn off the TV (standby mode).
Number buttons
Use with the 0-9 buttons to select digital channels.
(Text)
Display text information.
Google Play
Access the “Google Play” online service.
(Microphone) |
GB |
Use voice search*. (e.g., Search various content by voice.)
/ / / /
(Navigation D-Pad)
On screen menu navigation and selection.
TV
Switch to a TV channel or input and display the TV menu.
* The voice search requires an Internet connection.
NETFLIX (Only on limited region/ country/TV model)
Access the “NETFLIX” online service.
Colour buttons
Execute corresponding function at that time.
GUIDE/
Display the digital programme guide.
APPS
Display a list of installed apps.
5GB
(Input select)
Display and select the input source, etc.
(Quick settings)
Display Quick Settings.
BACK
Return to the previous screen.
HOME
Display the TV Home Menu.
+/– (Volume)
Adjust the volume.
(Jump)
Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected.
(Mute)
Mute the sound. Press again to restore the sound.
Hint
•The accessibility shortcut service can be turned on or off by pressing and holding .
CH +/–/ /
In TV mode: Select the channel.
In Text mode: Select the next ( ) or previous ( ) page.
AUDIO
Select the sound of multilingual source or dual sound for the programme currently being viewed (depend on programme source).
(Subtitle setting)
Turn subtitles on or off (when the feature is available).
HELP
Display the Help menu. Help Guide can be accessed from here.
/ / /
Operate media contents on the TV and connected BRAVIA Sync-compatible device.
EXIT
Return to the previous screen or exit from the menu. When an Interactive Application service is available, press to exit from the service.
/
(Info/Text reveal)
Display information.
6GB
Connection Diagram
For more information on connections, refer to the Help Guide by pressing HELP on the remote control.
ȩ |
VCR/Video game |
|
|
|
|
|
equipment/DVD player/ |
|
|
Camcorder |
|
Ȫ |
|
|
|
Headphone |
GB |
|
|
|
ȫ |
|
|
|
Digital still camera/ |
|
|
Camcorder/USB storage |
|
|
media |
|
Ȭ
HDMI Device
|
|
|
Ȭ |
|
|
ȫ |
Cable/ |
Router |
Audio System |
HDMI |
Audio |
HDMI |
Digital still |
Antenna |
|
with Optical |
Device |
System |
Device |
camera/ |
|
|
Audio Input |
|
with |
|
Camcorder/USB |
|
|
|
|
eARC/ |
|
storage media |
< 14 mm |
|
|
|
ARC/ |
|
|
|
|
|
|
HDMI |
|
|
|
|
|
|
Device |
|
|
7GB
/ VIDEO IN
• For a composite connection, use an
Analogue Extension Cable (not supplied).
•
3.5 mm
1 2 3 4
1:L
2:Video
3:Ground
4:R
(Headphone)
•Supports 3-pole stereo mini jack only.
•You cannot output sound from both the headphone and the TV speakers at the same time.
USB 1/2,
USB 3
•Connecting a large USB device may interfere with other connected devices beside it.
•When connecting a large USB device, connect to the USB 1 port.
HDMI IN 1/2/3/4
•HDMI interface can transfer the digital video and audio on a single cable.
•
< 12 mm
< 21 mm
•To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable and set the [HDMI signal format] to [Enhanced format].
Do this setting individually for each connected HDMI IN terminal. For details of supported formats, refer to the “Specifications” in this manual (page 11-12).
•HDMI IN 3 eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)
Connect your audio system to the
HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI eARC/ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI eARC/ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.
•Use the HDMI cable with Ethernet to connect audio system with eARC.
8GB
Installing the TV to the Wall
Using the optional Wall-Mount Bracket
This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation |
|
|
before it is installed on the wall. |
|
|
To Customers: |
|
|
For product protection and safety reasons, Sony strongly recommends that installation of your TV be |
|
|
GB |
||
performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. |
||
|
||
To Sony Dealers and Contractors: |
|
|
Provide full attention to safety during the installation, periodic maintenance and examination of this |
|
|
product. |
|
Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.
When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.
Note
• Be sure to store the removed screws in a safe place, keeping them away from children.
For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model.
http://www.sony-asia.com/support
Remove the screws from the rear of the TV.
9GB
