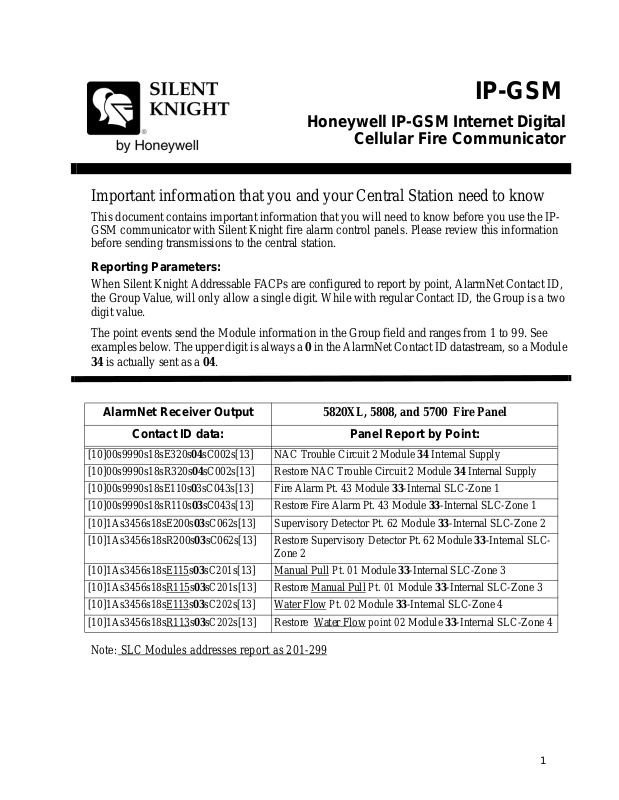

SilentKnight IP-GSM Special Instructions

Important information that you and your Central Station need to know

IP-GSM

Honeywell IP-GSM Internet Digital

Cellular Fire Communicator

This document contains important information that you will need to know before you use the IP­GSM communicator with Silent Knight fire alarm control panels. Please review this information
before sending transmissions to the central station.

Reporting Parameters:

When Silent Knight Addressable FACPs are configured to report by point, AlarmNet Contact ID,
the Group Value, will only allow a single digit. While with regular Contact ID, the Group is a two
digit value.

The point events send the Module information in the Group field and ranges from 1 to 99. See
examples below . The upper digit is always a 0 in the AlarmNet Contact ID datastream, so a Module
34 is actually sent as a 04.

AlarmNet Receiver Output 5820XL, 5808, and 5700 Fire Panel

Contact ID data: Panel Report by Point:

[10]00s9990s18sE320s04sC002s[13] NAC Trouble Circuit 2 Module 34 Internal Supply
[10]00s9990s18sR320s04sC002s[13] Restore NAC Trouble Circuit 2 Module 34 Internal Supply
[10]00s9990s18sE110s03sC043s[13] Fire Alarm Pt. 43 Module 33-Internal SLC-Zone 1
[10]00s9990s18sR110s03sC043s[13] Restore Fire Alarm Pt. 43 Module 33-Internal SLC-Zone 1
[10]1As3456s18sE200s03sC062s[13] Supervisory Detector Pt. 62 Module 33-Internal SLC-Zone 2
[10]1As3456s18sR200s03sC062s[13] Restore Supervisory Detector Pt. 62 Module 33-Internal SLC-

Zone 2
[10]1As3456s18sE115
[10]1As3456s18sR115
[10]1As3456s18sE113
[10]1As3456s18sR113

Note: SLC Modules addresses report as 201-299

s03sC201s[13] Manual Pull Pt. 01 Module 33-Internal SLC-Zone 3
s03sC201s[13] Restore Manual Pull Pt. 01 Module 33-Internal SLC-Zone 3
s03sC202s[13] Water Flow Pt. 02 Module 33-Internal SLC-Zone 4
s03sC202s[13] Restore Water Flow point 02 Module 33-Internal SLC-Zone 4

1

Panel setup parameters when using the Honeywell IP-GSM
Communicator, Report by Point, with Silent Knight addressable
FACP’s:

IntelliKnight - Internal SLC Loop = Module 33, Internal Power Supply = Module 34

1. Addressable Panels should be set to report by Zone and not Point.

2. If set to report by Point, SLC Loop Expander SBUS Modules addressed should fall in the
following range.

• 5820XL - Modules 1, 2 and 4 thru 9. Avoid Module address 03 because internal SLC

will report as 03)

• 5808 and 5700 don't support External SLC Module addresses, so other expanders

should try and fall in the 1 thru 9 for SBUS Module addresses.
