PowerFlex 400 Fan Replacement – Frames D-H

SK-U1-FAN2-D1

Installation Instructions

Installationsanleitung

Installation

Installazione

Instalación

Instructies

Instalação

SK-U1-FAN2-E2

SK-U1-FAN2-F1

SK-U1-FAN1-G1

SK-U1-FAN1-H1

SK-U1-FAN2-G2

SK-U1-FAN4-G3

SK-U1-FAN1-H2

SK-U1-FAN1-F2

SK-U1-FAN1-F3

SK-U1-FAN4-H3

L1 L2 L3

Frame

I

Baugröße
Taille
Quadro
Tam a ño
Frame
Gabinete

D

O

Wait three minutes for capacitors to discharge to safe voltage levels.

Drei Minuten warten, bis die Kondensatoren sich auf eine sichere
Spannung entladen haben.

Attendre trois minutes pour s’assurer que les condensateurs se sont
déchargés jusqu’ à des niveaux de tension sans danger.

Attendere tre minuti affinché i condensatori si scarichino fino a
raggiungere un livello di tensione sicuro.

Espere tres minutos a que los condensadores se descar-guen a niveles
seguros de tensión; de lo contrario puede sufrir lesiones o incluso la
muerte.

Wacht drie minuten zodat de condensators zich kunnen ontladen tot
een veilig niveau.

Espere três minutos para que os capacitores descarreguem a níveis
seguros de tensão.

SK-U1-FAN2-D1

Frame
Baugröße
Taille
Quadro
Tam añ o
Frame
Gabinete

E

SK-U1-FAN2-E2

Frame
Baugröße
Taille
Quadro
Tam añ o
Frame
Gabinete

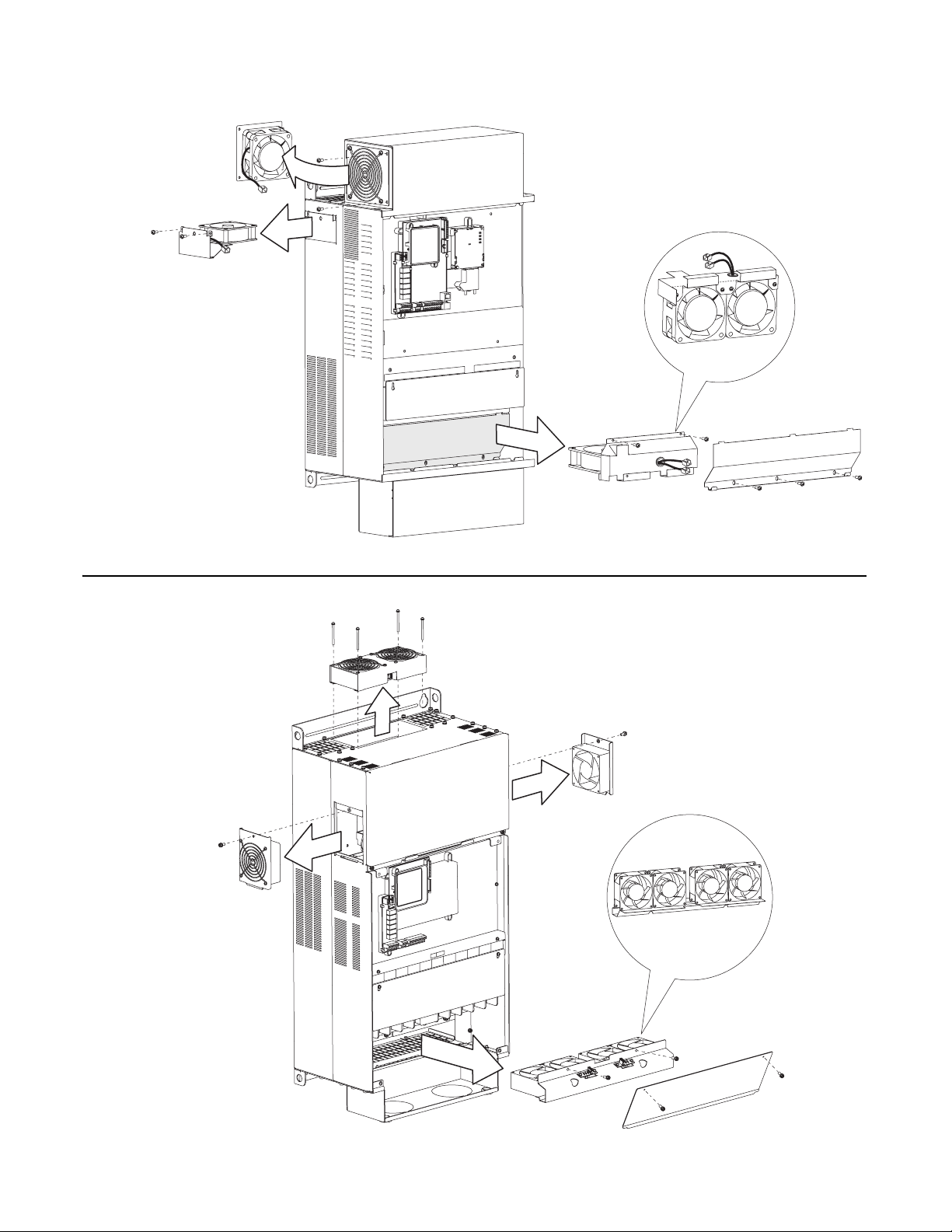

SK-U1-FAN1-F3

F

SK-U1-FAN1-F2

SK-U1-FAN2-F1

Frame
Baugröße
Taille
Quadro
Tam añ o
Frame
Gabinete

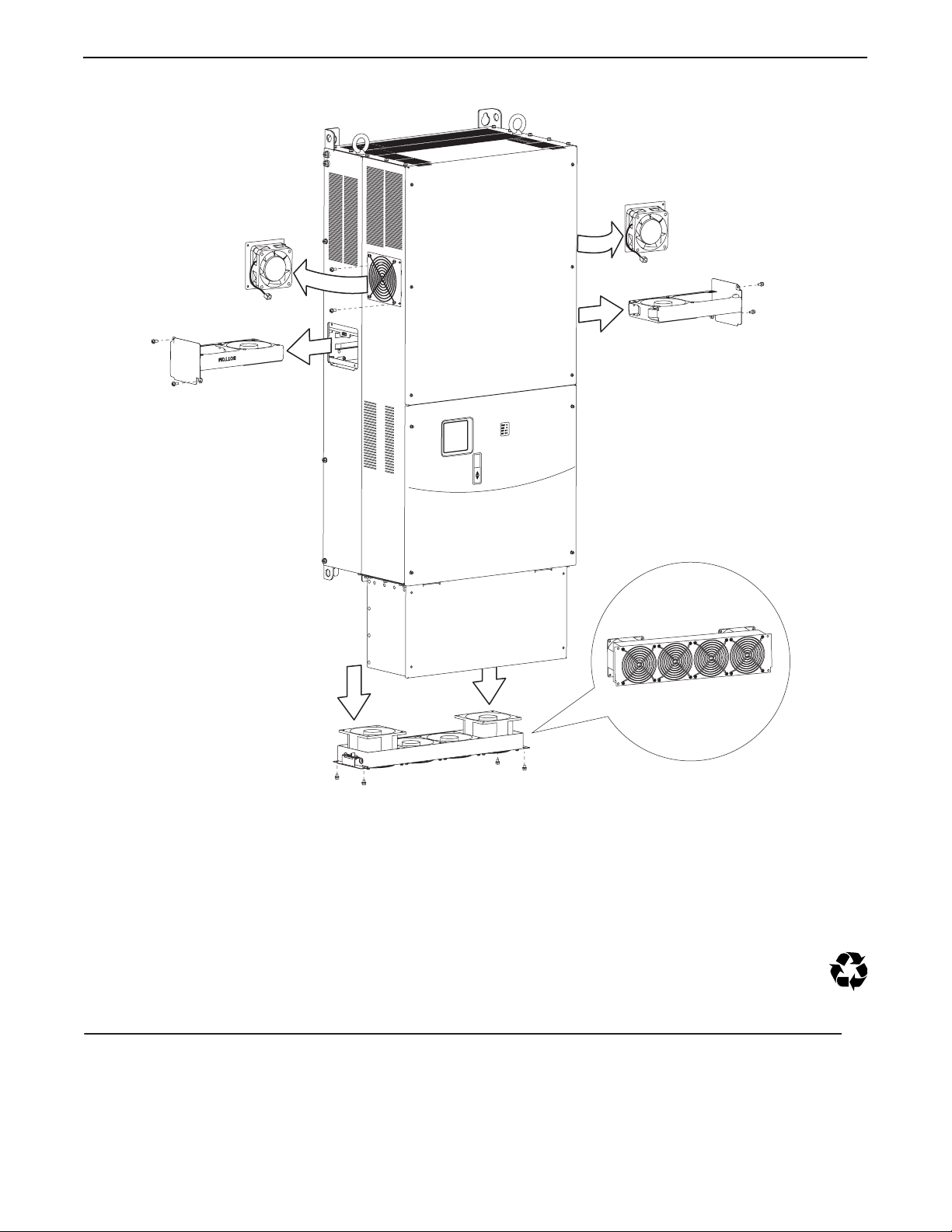

G

SK-U1-FAN1-G1

SK-U1-FAN2-G2

SK-U1-FAN1-G1

SK-U1-FAN4-G3

A

A

Frame
Baugröße
Taille
Quadro
Tam añ o
Frame
Gabinete

H

SK-U1-FAN1-H1

SK-U1-FAN1-H1

SK-U1-FAN1-H2

SK-U1-FAN1-H2

SK-U1-FAN4-H3
