Rockwell Automation 1734-ADNX User Manual

POINT I/O DeviceNet Adapter

1734-ADN, 1734-ADNX

User Manual

Important User Information

Because of the variety of uses for the products described in this publication, those responsible for the application and use of these products must satisfy themselves that all necessary steps have been taken to assure that each application and use meets all performance and safety requirements, including any applicable laws, regulations, codes and standards. In no event will Rockwell Automation be responsible or liable for indirect or consequential damage resulting from the use or application of these products.

Any illustrations, charts, sample programs, and layout examples shown in this publication are intended solely for purposes of example. Since there are many variables and requirements associated with any particular installation, Rockwell Automation does not assume responsibility or liability (to include intellectual property liability) for actual use based upon the examples shown in this publication.

Allen-Bradley publication SGI-1.1, Safety Guidelines for the

Application, Installation and Maintenance of Solid-State Control

(available from your local Rockwell Automation office), describes some important differences between solid-state equipment and electromechanical devices that should be taken into consideration when applying products such as those described in this publication.

Reproduction of the contents of this copyrighted publication, in whole or part, without written permission of Rockwell Automation, is prohibited.

Throughout this publication, notes may be used to make you aware of safety considerations. The following annotations and their accompanying statements help you to identify a potential hazard, avoid a potential hazard, and recognize the consequences of a potential hazard:

WARNING

Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION

Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss.

IMPORTANT

Identifies information that is critical for successful application and understanding of the product.

Allen-Bradley, RSNetWorx for DeviceNet, PointBus, and POINT I/O are trademarks of Rockwell Automation. DeviceNet is a trademark of Open DeviceNet Vendor Association.

Summary of Changes

Using Change Bars

New and Revised Information

This document contains updated information. Changes are identified by change bars in the margin, as shown to the left.

The table below lists the new and revised information included in this release of the POINT I/O DeviceNet Adapter user manual.

Table Summary of Changes.A

Information about New or revised: Location:

Guidelines for Using Your Adapter

Using Auto Start Mode New Chapter 2

Using the Cycling I/O Mapping Feature

Removing and Reinserting Modules on the DeviceNet Network

1734-ADNX Quick Start New Appendix B 1734-ADNX Rules and

Guidelines on How to Use the 1734-ADNX

New Preface

Chapter 6

Chapter 3 Appendix B

New Chapter 2

Chapter 3

New Chapter 2

New Appendix C

Use Default Data Maps New Appendix D

1 Publication 1734-UM002C-EN-P - July 2003

Summary of Changes 2

Notes:

Publication 1734-UM002C-EN-P - July 2003

Preface

Purpose of this Manual

This manual describes how to install, configure and operate your POINT I/O DeviceNet™ Adapter, catalog number 1734-ADN.

For more information about: See page:

Who Should Use This Manual Preface-1 What the Manual Contains Preface-2 Related Terms Preface-3 Related Products and Documentation Preface-5 Guidelines for Using Your Adapter Preface-5 Conventions Used in This Manual Preface-6

IMPORTANT

In this manual, we use 1734-ADN(X) to refer to both the 1734-ADN and 1734-ADNX modules. We use 1734-ADN to refer to only the 1734-ADN module. We use 1734-ADNX to refer to only the 1734-ADNX module.

In the rest of this manual (except Chapter 4), we refer to the 1734-ADN(X) POINT I/O DeviceNet adapter as the adapter.

Who Should Use This Manual

In Chapter 4, we refer to the POINT I/O DeviceNet adapter as the scanner because the chapter describes how to configure the adapter for use with POINT I/O modules.

You must be able to use RSNetWorx™ for DeviceNet software or similar configuration software to configure your adapter.

In this manual, we assume you know how to configure an adapter. If you do not, refer to your software user manuals or online help before attempting to use this adapter.

We also assume you are familiar with the POINT I/O product line, including other fieldbus interfaces, I/O modules and power supplies. If you are not familiar with these components, you can read some of the POINT I/O documents listed on page

Preface-5.

1 Publication 1734-UM002C-EN-P - July 2003

Preface 2

What the Manual Contains

Chapter 1 - Installing the 1734-ADN(X) Adapter

Description of how to install and wire the adapter

Chapter 3 - Using Auto Start Mode

Description of how to use the Auto Start Mode on your adapter to quickly get your system up and running

This manual contains the following sections:

Chapter 2 - What is the 1734-ADN(X) Adapter?

Overview of the adapter’s features and functionality

Module Status

DeviceNet

Status

DeviceBus Status

1734-ADN

1734-EP24DC

System Power

Field Power

Chapter 4 - Configuring the 1734-ADN(X) Adapter’s SubNet

Description of how to configure your adapter

Chapter 5 - Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist

Description of how to configure the DeviceNet adapter and to add it to the scanlist.

Appendix B - Quick Start

Learning how to use the 1734-ADNX with a ControlLogix system on DeviceNet

Chapter 6 - Troubleshooting the 1734-ADN(X) Adapter

Description of how to use the status indicators and to troubleshoot your adapter

Appendix C - 1734-ADNX Rules and Guidelines

Regarding how to use the 1734-ADNX

Appendix A - Specifications

Listing of the 1734-ADN(X) specifications

Appendix D - Default Data Maps

Listing of the default data maps for 1734-POINT I/O modules

Publication 1734-UM002C-EN-P - July 2003

Preface 3

Related Terms

This manual uses the following terms:

Ter m: Definition:

Adapter POINT I/O DeviceNet adapter (1734-ADN and 1734-ADNX). Auto Catalog Replace The POINT I/O DeviceNet adapter supports the swapping of

two identical modules connected to the adapter. I.e., if a 1734-IB4 is in slot 3 and another 1734-IB4 is in slot 7, the two modules can be removed from the POINT system and the slot 3 module placed into slot 7, and vice-versa. When ADR is active, the swapped modules will be reconfigured to match the previous module in their new slot. When ADR is not active, the configuration parameters will not be modified, the swapped modules must have identical configuration, and values for their EDS file parameters.

Auto Device Replace This refers to the ADR feature of a ControlLogix System on

DeviceNet. With ADR active, any device on the DeviceNet link may be removed and replaced with an out-of-the-box checkmark compliant DeviceNet device. The ADR feature will result in downloading the values of the configuration parameters of the EDS file, of the removed device, to the new device.

Auto Start Mode A feature that lets the POINT I/O system get “up and running”

without the prerequisite to configure any of the EDS parameters for the POINTBus Auto Start Mode will result in a scan list within the adapter which stores the modules identity information.

™ or POINT I/O modules. Using

Autobaud Feature in devices (e.g. POINT I/O modules) on the DeviceNet

network that causes them to listen to communications on the network and set their own baudrate to match the network rate.

Backplane The PointBus that consists of POINT I/O modules connected to

the 1734-ADN(X) adapter.

Baudrate Rate of communications between devices on the DeviceNet

network. Backplane baudrate is used for the 1734-ADN. Subnet baudrate is used for the 1734-ADNX.

Change of State (COS) DeviceNet communications method in which the adapter

sends data based on detection of any changed value within the input data. Data is independently received based on change of state from the sender. Data in both directions can be acknowledged or unacknowledged depending on the run time configuration of the system.

Commissioning The period in time associated with post startup activities.

Commissioning implies that the system has been validated and all configuration parameters are correct, all modules are in good operating condition, and the adapter scanlist is complete.

ControlFlash Utility software you can use to update the adapter’s firmware

with the most current Boot and Application code.

Publication 1734-UM002C-EN-P - July 2003

Preface 4

Term: Definition:

Cyclic DeviceNet communications method in which the adapter

sends data cyclically based on a configured time value. Data is independently received cyclically from the sender. Data in both directions can be acknowledged or unacknowledged

depending on the run time configuration of the system. MAC ID Media Access Control Identifier (DeviceNet network address). Master A DeviceNet network device (e.g., 1771-SDN) that initiates

communication with DeviceNet slave devices (e.g., POINT I/O

modules) to retrieve data. The master only receives

unprompted data when the slave is enabled for COS and there

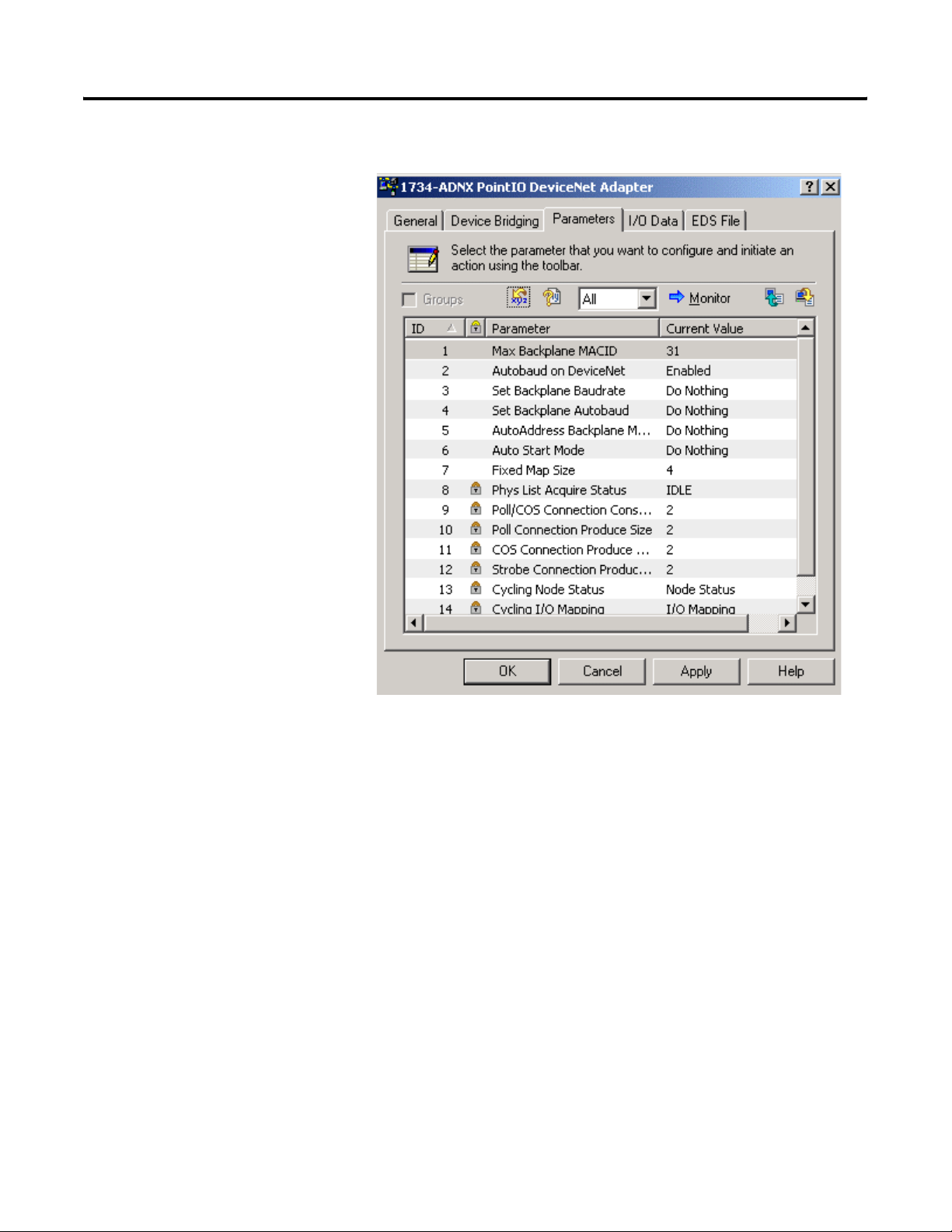

is a change in the device’s operating state. MAX BACKPLANE ID A unique attribute, Max(imum) Backplane MACID, has

been added to 1734-ADNX. This value represents the highest

node address of a module residing on the backplane. This

value must be greater than or equal to the rightmost

backplane POINT I/O module, but must be less than that of

any non-backplane Subnet module. Offline State of the adapter when it is not powered or maintaining

normal communications exchanges with other DeviceNet

devices. Online State of the adapter when it is powered and maintaining

normal communications exchanges with other DeviceNet

devices. PointBus The POINT I/O backplane. PointBus maintains all DeviceNet

network protocol but also offers configuration capabilities. Polled DeviceNet communications method in which a module sends

data in response to received data. Primary Network The Primary DeviceNet Network, and it is defined as the

DeviceNet link that provides the direct connection between

the POINT DeviceNet adapter and a DeviceNet scanner RSNetWorx for DeviceNet Configuration software for the adapter and Subnet modules. Scanlist The list of Subnet modules connected to the adapter. When

ADR is active, the scanlist stores the configured values of

each of the Subnet modules’ configurable parameters. When

ADR is not active, the scanlist stores only the module identity

information. Scanner Operating state of the 1734-ADN(X) when it retrieves I/O data

from Subnet modules. Slave A DeviceNet network device that cannot initiate

communication (except when configured with COS enabled)

but responds to a DeviceNet master device. Strobe Adapter sends data in response to the strobe command. The

single bit allocated to the adapter in the strobe message is not

used. If the configured size of the input data (sent from the

adapter) is greater than 8 bytes, the strobe connection

establishment will fail. In this case, the input size must be

reconfigure to 8 bytes or less.

Publication 1734-UM002C-EN-P - July 2003

Term: Definition:

Subnet 1734-ADNX only.

The Subnet DeviceNet Network, and is defined as the

DeviceNet link that provides the expansion of the POINTBus to

allow the 1734-ADNX to use its lower connector to add an

additional 500 meters and up to 63 nodes which will be

bridged through the 1734-ADNX up to the Primary Network.

Note that backplane modules are also part of the Subnet.

Preface 5

Guidelines for Using Your Adapter

If you need more information on these products, contact your local Rockwell Automation/Allen-Bradley distributor, integrator or sales office for assistance. For more information on the documentation, refer to the Allen-Bradley Publication Index, publication SD499.

Remember the following operational guidelines when using your 1734-ADN(X) adapter.

Publication 1734-UM002C-EN-P - July 2003

Preface 6

• Do not leave spaces in the I/O. Instead, install all POINT I/O

modules adjacent to each other.

IMPORTANT

• Populate every position on the DIN rail.

• Do not add new I/O modules to the end of the POINT I/O

system while the system is under power.

• Use both labels with the I/O modules and removable terminal

blocks (RTBs).

• Do not separate I/O modules and RTBs with the same number.

• Do not move I/O modules to different locations on the DIN rail

after they have been installed and configured. You should always place modules with the matching RTB.

• If adjacent modules (i.e., 2 or more) are removed, replace all of

them to operate the POINT I/O system. Input data will hold last state until all previously-removed modules are replaced.

If you must leave an I/O space open temporarily, you must change the keying position on the mounting base (1734-MB) to #5. This position will prevent you from installing the wrong I/O module on the base.

Conventions Used In This Manual

• Use Allen-Bradley terminal markers to identify your POINT I/O

modules. The cards are easily ordered from your Rockwell Automation representative under the Bulletin 1492 number.

For more information on the Allen-Bradley terminal marking kits, see the documents list on page

The following conventions are used throughout this manual:

• bullet lists (such as this one) provide information, not

procedural steps

• number lists provide sequential steps

• text written like this identify screen, menu, toolbar names, field

names, buttons, and check boxes on screens

• a menu item in this format File>Save identifies the submenu item

after the caret (>) accessed from the main menu (name before the caret)

• pictures of symbols and/or screens represent the actual symbols

you see or the screens you use

Preface-5.

Publication 1734-UM002C-EN-P - July 2003

Installing the 1734-ADN(X) Adapter

What is the 1734-ADN(X) Adapter?

Chapter 1

Installing the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Installing a Replacement DeviceNet Adapter in an

Existing System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Wiring the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

DeviceNet Connection Plug Wiring and Subnet. . . . . . . 1-6

Chapter Summary and What’s Next . . . . . . . . . . . . . . . . . . 1-6

Chapter 2

Using the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Set Subnet/Backplane Baudrate . . . . . . . . . . . . . . . . . . 2-3

Set Subnet I/O Module Addresses. . . . . . . . . . . . . . . . . 2-3

Configure the Subnet I/O. . . . . . . . . . . . . . . . . . . . . . . 2-4

Configure the Primary DeviceNet Network . . . . . . . . . . 2-4

Remove and Reinsert Modules on the Backplane . . . . . 2-5

Understanding the DeviceNet Network and Subnet . . . . . . 2-6

DeviceNet Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Subnet Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Adapter Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Communicating Through the Adapter . . . . . . . . . . . . . . . . 2-18

Mapping Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Overview of the Communication Process . . . . . . . . . . . 2-19

Image Table Mapping . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Communicating with I/O Modules . . . . . . . . . . . . . . . . . . . 2-22

Using Diagnostic Tables . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

Chapter Summary and What’s Next . . . . . . . . . . . . . . . . . . 2-24

Chapter 3

Using Auto Start Mode

i Publication 1734-UM002C-EN-P - July 2003

Why Use Auto Start Mode? . . . . . . . . . . . . . . . . . . . . . . . . 3-2

What Does Auto Start Mode Do?. . . . . . . . . . . . . . . . . . 3-2

When the Adapter Uses Auto Start Mode, How Does it

Map I/O Data? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Are There Any Requirements to Using Auto Start Mode? 3-4

Installing the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Wiring the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

DeviceNet and Subnet Connector Plug Wiring. . . . . . . . 3-8

Installing the I/O Modules. . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Adding Non-Backplane Modules to Subnet

(1734-ADNX Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Using RSNetWorx for DeviceNet . . . . . . . . . . . . . . . . . . . . 3-10

Beginning Auto Start Mode . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Using Custom Configuration . . . . . . . . . . . . . . . . . . . . . . . 3-13

Chapter Summary and What’s Next . . . . . . . . . . . . . . . . . . 3-14

Table of Contents ii

Configuring the 1734-ADN(X) Adapter’s SubNet

Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist

Troubleshooting the 1734-ADN(X) Adapter

Chapter 4

Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Adding the Scanner to Your Network . . . . . . . . . . . . . . 4-2

Adding I/O Modules to Your Network . . . . . . . . . . . . . 4-3

Setting the Scanner’s Parameters. . . . . . . . . . . . . . . . . . 4-3

Going Online. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Chapter Summary and What’s Next . . . . . . . . . . . . . . . . . . 4-8

Chapter 5

Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Adding the Adapter to Your Network . . . . . . . . . . . . . . 5-2

Setting the Adapter’s Parameters. . . . . . . . . . . . . . . . . . 5-3

Going Online. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Chapter Summary and What’s Next . . . . . . . . . . . . . . . . . . 5-6

Chapter 6

Use the Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Guidelines for Using Your Adapter . . . . . . . . . . . . . . . . . . 6-4

Chapter Summary and What’s Next . . . . . . . . . . . . . . . . . . 6-5

Specifications

1734-ADNX Quick Start

1734-ADNX Rules and Guidelines

Regarding How to Use the 1734-ADNX. Default Data Maps

Appendix A

Appendix B

What’s In This Appendix? . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Assumptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Review of the 1734-ADNX Rules and the

MAC ID Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

Review of Auto Start Mode. . . . . . . . . . . . . . . . . . . . . B-11

Browse the Subnet. . . . . . . . . . . . . . . . . . . . . . . . . . . B-15

Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . B-18

Navigate Between Networks. . . . . . . . . . . . . . . . . . . . B-23

Appendix C

Appendix D

1734-IA2 Input Module . . . . . . . . . . . . . . . . . . . . . . . . D-2

1734-IB2 Sink Input Module. . . . . . . . . . . . . . . . . . . . . D-2

1734-IB4 Sink Input Module. . . . . . . . . . . . . . . . . . . . . D-2

1734-IV2 Source Input Module . . . . . . . . . . . . . . . . . . . D-3

1734-IV4 Source Input Module . . . . . . . . . . . . . . . . . . . D-3

1734-OA2 Output Module . . . . . . . . . . . . . . . . . . . . . . D-3

1734-OB2E Electronically Protected Output Module . . . D-4

Publication 1734-UM002C-EN-P - July 2003

Table of Contents iii

1734-OB2EP Protected Output Module . . . . . . . . . . . . . D-4

1734-OB4E Electronically Protected Output Module . . . D-4

1734-OV2E Protected Sink Output Module . . . . . . . . . . D-5

1734-OV4E Protected Sink Output Module . . . . . . . . . . D-5

1734-OW2 Relay Sink/Source Output Module . . . . . . . . D-6

1734-OX2 Relay Output Module . . . . . . . . . . . . . . . . . . D-6

1734-IE2C Analog Current Input Module. . . . . . . . . . . . D-6

1734-IE2V Analog Input Module. . . . . . . . . . . . . . . . . . D-7

1734-OE2C Analog Current Output Module. . . . . . . . . . D-8

1734-OE2V Analog Output Module. . . . . . . . . . . . . . . . D-8

1734-IJ Encoder/Counter Module . . . . . . . . . . . . . . . . . D-9

1734-IK Encoder/Counter Module. . . . . . . . . . . . . . . . . D-9

1734-IM2 Input Module . . . . . . . . . . . . . . . . . . . . . . . D-10

1734-IR2 RTD Input Module. . . . . . . . . . . . . . . . . . . . D-10

1734-IT2I Isolated Thermocouple Input Module . . . . . D-11

1734-VHSC 24V dc High Speed Counter Module . . . . . D-11

1734-VHSC 5V dc High Speed Counter Module. . . . . . D-12

1734-SSI Synchronous Serial Interface Absolute

Encoder Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-12

1734-232ASC ASCII Module . . . . . . . . . . . . . . . . . . . . D-13

Publication 1734-UM002C-EN-P - July 2003

Table of Contents iv

Publication 1734-UM002C-EN-P - July 2003

Chapter

Installing the 1734-ADN(X) Adapter

This chapter describes how to install and wire your adapter.

For more information about: See page:

Installing the Adapter 1-2

Installing a Replacement DeviceNet Adapter in an Existing System

Wiring the Adapter 1-5 Chapter Summary and What’s Next 1-6

When properly installed, POINT I/O is grounded through the DIN rail to chassis ground. We recommend using zinc plated, yellow chromated steel DIN rail to assure proper grounding.

Other DIN rail materials (e.g. aluminum, plastic, etc.) can corrode or oxidize and are poor conductors that may result in improper or intermittent platform grounding.

If you choose not to use zinc plated, yellow chromated steel DIN rail for your POINT I/O, we recommend occasional cleaning of the DIN rail to prevent or lessen the effects of oxidation and corrosion.

1-4

1 Publication 1734-UM002C-EN-P - July 2003

1-2 Installing the 1734-ADN(X) Adapter

Installing the Adapter

1734-ADN(X) communication interface

Orange screw slot

To install the adapter on the DIN rail prior to installing other base units, proceed as follows.

1. Position the adapter vertically in front of the DIN rail.

2. Press firmly to install the adapter on the DIN rail. The locking

mechanism locks the adapter to the DIN rail.

DIN rail

31110-MC

3. Insert the DeviceNet network plug and tighten the holding screws.

DeviceNet network plug

Holding screw

31111-MC

Publication 1734-UM002C-EN-P - July 2003

Installing the 1734-ADN(X) Adapter 1-3

4. Set the node address using the 2-position thumbwheel switch. Valid physical settings range from 00 to 63. Press either the + or

- buttons to change the number.

You can also set the node address to some value between 64-99. In this case, you can change the adapter’s node address via the RSNetWorx for DeviceNet software. If a value between 64-99 is used, at power-up the node address stored in the adapter’s non-volatile memory is used.

Network Node Address Thumbwheel

Adapter Status

DeviceNet Status

PointBus Status

1734-ADN

System Power

Field Power

42510

5. Slide the safety end cap up to remove it. This exposes the backplane and power interconnections.

Safety end cap

ATTENTION

31112-MC

Do not discard the safety end cap. Use this end cap to cover the exposed interconnections on the last mounting base on the DIN rail. Failure to do so could result in equipment damage or injury from electric shock.

Publication 1734-UM002C-EN-P - July 2003

1-4 Installing the 1734-ADN(X) Adapter

Installing a Replacement DeviceNet Adapter in an Existing System

Your existing control application may be using another DeviceNet adapter (e.g., 1734-PDN) that you want to replace with a 1734-ADN(X) DeviceNet adapter. Remove the existing adapter from the DIN rail as follows:

1. Eliminate power to the adapter and all I/O modules in your

2. Remove the wiring assembly and DeviceNet cable from your

3. Remove the adjacent I/O module.

existing system.

existing adapter.

For information on how to remove POINT I/O modules from the DIN rail, see the associated publications for those modules.

RTB removal handle

42511

4. Use a small bladed screwdriver to rotate the DIN rail locking screw to a vertical position and release the locking mechanism.

42417

5. Pull the adapter off of the DIN rail to remove it from the existing system.

Publication 1734-UM002C-EN-P - July 2003

Installing the 1734-ADN(X) Adapter 1-5

6. Insert the new adapter into slot 0 using the steps described on

1-2.

page

7. Reattach I/O modules to the new adapter.

Wiring the Adapter

Your adapter’s wiring and network designations are shown below.

Adapter

Adapter Status

Node Address Thumbwheel

DeviceNet Connector

Subnet Connector

NC = No Connection CHAS GND = Chassis Ground C = Common V = Supply

Status

DeviceNet

DeviceNet Status

Status

PointBus

PointBus/Subnet Status

Status

1734-ADNX

System

System Power

Power

Field

Field Power

Power

CHAS GND

Adapter/Field Power 12/24V dc

NC NC

This dc supply is

CHASCHAS

connected to the internal power bus.

You cannot supply power to the adapter from the DeviceNet

power supply.

42513

V dc

NC = No Connection CHAS GND = Chassis Ground C = Common V = Supply (Do not connect 120/240V ac power to this supply.)

Publication 1734-UM002C-EN-P - July 2003

1-6 Installing the 1734-ADN(X) Adapter

Te rm in al Notes

0 No

Reserved

connection

1 No

connection

2 Chassis

Ground

3 Chassis

Ground 4 Common 5 Common 6 Voltage Input Apply 12/24V dc. Connects 7 Voltage Input

to the internal power bus.

DeviceNet Connection Plug Wiring and Subnet

Chapter Summary and What’s Next

DeviceNet connection

Black

Blue

Bare

White

Red

-V

CAN - Low

Shield

CAN - High

42514

In this chapter, you learned how to install and wire your adapter. Move to chapter 2 to learn about the 1734-ADN(X) adapter.

Publication 1734-UM002C-EN-P - July 2003

Chapter

What is the 1734-ADN(X) Adapter?

This chapter describes the POINT I/O DeviceNet adapter, including descriptions of the adapter’s features and functionality.

For more information about: See page:

Using the Adapter 2-2 Understanding the DeviceNet Network and Subnet 2-6 Adapter Features 2-8 Auto Start Mode 2-9 Communicating Through the Adapter 2-18 Communicating with I/O Modules 2-22 Using Diagnostic Tables 2-23 Chapter Summary and What’s Next 2-24

1 Publication 1734-UM002C-EN-P - July 2003

2-2 What is the 1734-ADN(X) Adapter?

Using the Adapter

The adapter resides on the primary DeviceNet network and the Subnet simultaneously.

IMPORTANT

The PointBus maintains all DeviceNet network protocol but also offers configuration capabilities.

From this position, the adapter interfaces between DeviceNet devices and POINT I/O modules. The graphic below shows the adapter on the DeviceNet network and PointBus.

computer with PLC programming software

ControlNet network

PLC-5 processor

1784-PCD PCMCIA card

computer with RSNetWorx for DeviceNet software

DeviceNet network

1734-ADN adapter

Subnet (1734-ADNX only)

After you have installed your adapter into a POINT I/O system, you must perform the following tasks:

The steps mentioned above are explained briefly here and then in greater detail throughout this manual. You must complete the steps for the adapter to work with DeviceNet masters (e.g., 1756-DNB) on the primary network and Subnet modules.

POINT I/O modules

Module Status

DeviceNet

Status

DeviceBus Status

1734-ADN

1734-EP24DC

System Power

Field Power

42407

1. Set Subnet/Backplane Baudrate

2. Set Subnet I/O Module Addresses

3. Configure the Subnet I/O

4. Configure the Primary DeviceNet Network

Publication 1734-UM002C-EN-P - July 2003

What is the 1734-ADN(X) Adapter? 2-3

Set Subnet/Backplane Baudrate

The adapter and Subnet modules must use the same baudrate to communicate with each other. Use one or both of the following to set a Subnet baudrate.

• Enable or disable the Backplane Autobaud feature for POINT

I/O modules. POINT I/O modules have Autobaud enabled as the default- See page

• Set the adapter baudrate for the Subnet. The default for the

1734-ADN is 1Mbaud. The default for the 1734-ADNX is 125Kbaud - See page

2-12.

2-9.

IMPORTANT

You set the backplane baudrate for the 1734-ADN. You set the Subnet baudrate for the 1734-ADNX.

Set Subnet I/O Module Addresses

Once the adapter and POINT I/O modules are communicating at the same rate on the backplane, you must make sure all modules use a valid MAC ID.

Set the Auto Address feature for POINT I/O modules - See page 2-13.

Publication 1734-UM002C-EN-P - July 2003

2-4 What is the 1734-ADN(X) Adapter?

Configure the Subnet I/O

In the first two steps, you set a consistent communication rate and made sure each module uses address for communication. Next you must configure the PointBus (e.g., set scan list).

You can configure the PointBus using one of two methods: Auto Start Mode (ASM) or manually. For more information on configuring the PointBus using ASM, see Chapter 3 or see Chapter 4 for manual configuration.

Configure the Primary DeviceNet Network

Finally, you must configure the adapter for communication with a master (e.g., 1756-DNB).

For more information on configuring the DeviceNet network, see Chapter 5, Scanlist.

Adding the 1734-ADN(X) to the DeviceNet Scanner’s

You must understand all of the adapter’s features to effectively use it in your POINT I/O system. Keep these four steps in mind as you read this manual:

1. Set Subnet Baudrate

2. Set Subnet I/O Module Addresses

3. Configure the Adapter’s Scanlist

4. Configure the Primary DeviceNet Network

Publication 1734-UM002C-EN-P - July 2003

What is the 1734-ADN(X) Adapter? 2-5

Remove and Reinsert Modules on the Backplane

POINT I/O modules can easily be removed and reinserted on the 1734-ADN(X) backplane. If the removal and reinsertion is not done with caution, you can affect the adapter’s operations and, consequently, the entire POINT I/O application.

If you must remove and reinsert modules, we recommend the following:

• Do not move I/O modules to different locations on the DIN rail

after they have been installed and configured.

• Always place modules with the matching Removable Terminal

Block.

• If adjacent modules (i.e., 2 or more) are removed from the

backplane, replace all of them before attempting to operate the POINT I/O system. Input data will hold last state until all previously-removed modules are replaced.

IMPORTANT

The 1734-ADN(X) can only detect the location of POINT I/O modules residing on the 1734-ADN(X) backplane. It is the user’s responsibility to maintain all non-backplane devices, including POINT I/O modules attached to the Subnet with a 1734-PDN adapter.

– If adjacent modules are removed and all but one is returned,

the adapter cannot verify the location of the returned modules. For example, if modules are removed from nodes 3 and 4 and only the module from node 4 is returned, the adapter cannot verify the location. In this case, the adapter alerts you (via RSNetWorx for DeviceNet) that it cannot verify the presence of modules in the affected locations. I/O data will not be exchanged with this node until both modules have been reinserted.

– If modules of different types are removed and returned to

the wrong locations, the adapter identifies the returned modules and alerts you (via RSNetWorx for DeviceNet) that the error has occurred and must be corrected.

Publication 1734-UM002C-EN-P - July 2003

2-6 What is the 1734-ADN(X) Adapter?

– If modules of the same type are removed and returned to the

wrong locations, the adapter identifies the returned modules, updates their MAC IDs and continues operation.

IMPORTANT

The removal and return scenario exists whether the system is under power or not. If the system is under power, the scenario arises immediately. If the system is not under power, the scenario arises in the next power cycle.

Also, the example above shows removal of two adjacent modules. The scenario described exists anytime 2 or more adjacent modules are removed and not all are returned.

Care must be taken when replacing backplane I/O modules. Each I/O module stores its configuration parameters in internal non-volatile memory. You must either enable ADR for all modules or manually configure each module in a non-manufacturing environment when the module is being replaced or placed on the network for the first time. Failure to do so could result in inadvertent control attributed to different configuration settings.

Understanding the DeviceNet Network and Subnet

DeviceNet Network

Your adapter serves as a slave to DeviceNet masters. The adapter receives data from and returns data to the master through the following I/O connections:

• Change of State (COS)

• Cyclic

• Polled

• Strobe

Subnet Network

On the Subnet, your adapter acts as a scanner and is the master of the Subnet modules. The adapter performs the following functions:

• Exchanges I/O data with devices on Subnet

Publication 1734-UM002C-EN-P - July 2003

What is the 1734-ADN(X) Adapter? 2-7

• Collects I/O data from the Subnet and sends it to devices on the

DeviceNet network (e.g., scanners or controllers)

• Supplies power to the backplane I/O modules (See Appendix A

for power supply rules regarding I/O modules power requirements.)

Data Collection

The adapter collects I/O data from up to 63 modules via the Subnet. The I/O modules appear on the primary DeviceNet network as a single node, though, and require only one DeviceNet node address.

IMPORTANT

If Automatic Device Replacement (ADR) is enabled on the adapter, you can only connect up to 62 modules via the Subnet.

For more information on ADR, see page 2-15.

Module Power

The adapter supplies 5V logic power to POINT I/O modules by converting 24V dc field power to PointBus 5V power.

You can connect up to 63 I/O modules to each adapter, and you can power to the backplane I/O modules from the adapter (with a maximum of 10A of field power). You may use the integrated, isolated 24V dc expansion power unit (1734-EP24DC) to power additional I/O modules, as shown below.

1734-ADN adapter 12 POINT I/O modules

Adapter

Status

Network

Status

Subnet

Status

1734-ADNX

System Power Field Power

1734-EP24DC expansion power unit

1734-EP24DC

System Power

Field Power

31114-M

Publication 1734-UM002C-EN-P - July 2003

2-8 What is the 1734-ADN(X) Adapter?

For more information on the 1734-EP24DC expansion power unit, see:

• POINT I/O Technical Data, publication 1734-TD002

• POINT I/O 24V dc Expansion Power Supply Installation

Instructions, publication 1734-IN058

Adapter Features

Your adapter uses the following features on both the DeviceNet network and the PointBus:

• Self-Test

• Field Upgradable Firmware

• Fully Software Configurable

• Connections

• Baudrates

Self-Test

On power-up, the adapter performs a self-test. The adapter tests various internal and programmatic memories and checks the status indicators (LEDs).

Field Upgradable Firmware

You can update the adapter’s firmware with the ControlFlash Utility software. This feature lets you always use the most current application code.

Publication 1734-UM002C-EN-P - July 2003

Fully Software Configurable

The adapter is fully software configurable using RSNetWorx for DeviceNet. You must configure the adapter for use with a DeviceNet master (e.g., 1756-DNB) and separately for use with Subnet devices.

For more information on how to configure your adapter for use with a DeviceNet master, see Chapter 5.

For more information on how to configure your adapter for use with Subnet modules, see Chapter 4, Adapter’s SubNet.

Configuring the 1734-ADN(X)

What is the 1734-ADN(X) Adapter? 2-9

Connections

Your adapter supports the following connections on both the primary DeviceNet network and Subnet:

• I/O connections:

– Polled – Strobe – Cyclic – COS

• Explicit connections

You can use I/O mapping to determine the data contained in each connection.

The adapter supports Master/Slave connection types on the DeviceNet network. On the Subnet, the adapter functions as a scanner device, exchanging data with I/O modules.

Baudrates

Choose baudrates for the adapter in the RSNetWorx for DeviceNet software. It supports these rates:

• 125Kbaud

• 250Kbaud

• 500Kbaud

• Autobaud - The adapter detects the primary DeviceNet network

baudrate and automatically sets its own baudrate to match the network.

• For the 1734-ADN, the PointBus can be configured to operate at

1Mbaud (1000Kbaud).

Auto Start Mode

Auto Start Mode lets you easily get your adapter installed and operating. In this mode, the adapter’s configurable features operate as they were most recently configured. For example, if Autobaud on DeviceNet was enabled in the adapter’s last configuration, it will be enabled when Auto Start Mode is used.

For a more detailed explanation of how to use Auto Start Mode, see Chapter 3.

Publication 1734-UM002C-EN-P - July 2003

2-10 What is the 1734-ADN(X) Adapter?

Auto Catalog Replace

Auto Catalog Replace corrects errors that might occur when backplane modules of the same type are removed and replaced in the wrong location. If modules of the same type are removed and returned to the wrong locations, the adapter identifies the returned modules, updates their MAC IDs and continues operation.

IMPORTANT

If modules of different types are removed and returned to the wrong locations, the adapter identifies the returned modules and alerts you (via RSNetWorx for DeviceNet, the Node Status Table, and the Faulted Node Table) that the error has occurred and must be corrected.

Also, the example above shows removal of two adjacent modules. The scenario described exists anytime 2 or more adjacent modules are removed and not all are returned.

Publication 1734-UM002C-EN-P - July 2003

Backplane (1734-ADN)/Subnet (1734-ADNX) Baudrate

EDS parameter Backplane Baudrate is accessible from the primary DeviceNet and sets a specific baudrate for all backplane I/O modules.

What is the 1734-ADN(X) Adapter? 2-11

Set this parameter in RSNetWorx for DeviceNet to one of the following baudrates:

• 125 Kbaud

• 250 Kbaud

• 500 Kbaud

• 1 Mbaud (available with the 1734-ADN only)

When you download this parameter, the adapter sends a command to reset all present I/O modules on the backplane to the new baudrate. If additional modules are connected to the adapter, you must download the Backplane/Subnet Baudrate to make sure the new modules use the same rate as the others.

The baudrate may not take effect until power is recycled or the I/O modules are reset.

IMPORTANT

Changes to the Backplane/Subnet Baudrate parameter only take effect if they are downloaded on an individual basis (e.g., If you change the Backplane/Subnet Baudrate and download the changes with additional changes to other features, the Backplane/Subnet Baudrate remains at the previous setting).

Also, this parameter should be set to “Do Nothing” when you download all parameters or when Automatic Device Replacement is enabled for the adapter.

If you want to set an I/O module to use a specific baudrate (i.e., 125, 250, 500), you must first disable Backplane Autobaud for that module.

Backplane/Subnet Baudrate performs the following functions:

• Sets the adapter’s Subnet baudrate

• Sends a message to all connected backplane I/O modules. If an

I/O module is set to autobaud, it receives the message but ignores the new baudrate.

Publication 1734-UM002C-EN-P - July 2003

2-12 What is the 1734-ADN(X) Adapter?

Backplane Autobaud

The adapter itself never autobauds on the Subset. Backplane Autobaud automatically enables or disables Autobaud for all I/O modules currently attached to the backplane. The adapter does not set a specific rate, though (as with Backplane Baudrate).

If you enable Backplane Autobaud in the adapter or the EDS parameter access that you set from the primary DeviceNet, the adapter only enables the Autobaud in all backplane I/O modules. When the modules listen to communications on the DeviceNet network, they detect the rate of communication and automatically set their own baudrates to match the network rate.

The module does not actually automatically detect the backplane baudrate until power is cycled or the module is reset.

TIP

Autobaud, when enabled, is useful if you swap POINT I/O modules between networks that are operating at different baudrates.

Enable Backplane Baudrate in RSNetWorx for DeviceNet.

IMPORTANT

Changes to the Backplane Autobaud parameter only take effect if they are downloaded on an individual basis (e.g., If you enable the Backplane Autobaud setting and download the change with additional changes to other features, the Backplane Baudrate remains disabled).

This parameter should be set to “Do Nothing” when you download all parameters or when Automatic Device Replacement is enabled for the adapter.

If you want to set an I/O module to use a specific baudrate (i.e., 125, 250, 500), you must first disable Autobaud for that module.

Publication 1734-UM002C-EN-P - July 2003

What is the 1734-ADN(X) Adapter? 2-13

Auto Address

The EDS parameter Auto Address is available from the primary DeviceNet and lets the user sequentially order the node addresses of backplane I/O modules. This parameter is not a mode but occurs on a single occurrence only. The node address selected is assigned to the module closest to the adapter. The next closest module is assigned the next numerically higher value. The numbering pattern continues for all connected backplane I/O modules.

Enable this parameter in the RSNetWorx for DeviceNet software.

IMPORTANT

Changes to the Auto Address parameter only take effect if they are downloaded on an individual basis (e.g., If you enable the Auto Address and download the changes with additional changes to other features, the node addresses of the I/O modules remain at the previous settings).

This parameter should be set to “Do Nothing” when you download all parameters or when Automatic Device Replacement is enabled for the adapter.

Physical List Acquire Status

Physical List Acquire Status shows the status of the Physical List acquire process. The adapter maintains a Physical List that indicates the order of the node addresses of all POINT I/O modules present on the backplane.

The adapter requires that each backplane I/O module has a MAC ID greater than that of its neighbor to its immediate left. The list is created at power-up and each time a module is inserted on the backplane.

The valid values are:

• IDLE

• BUSY

• AUTO START MODE

Publication 1734-UM002C-EN-P - July 2003

2-14 What is the 1734-ADN(X) Adapter?

Cycling Node Status

Using the Cycling Node Status parameter, you can easily determine the status of any POINT I/O modules with which the adapter is experiencing problems. A corresponding text string appears, including the MAC ID and a description of the status code reported in the Node Status Table. For more information on the Node Status Table, see page 2-23.

For the connection sizes mentioned below, the I/O connection sizes on DeviceNet are dependent on the scanlist configuration on the backplane.

Poll/COS Connection Consume Size

Poll/COS Connection Consume Size shows the size (number of data bytes) consumed by the poll/COS (Instance 2) I/O connection on the primary DeviceNet.

Poll Connection Produce Size

Poll Connection Produce Size shows the size (number of data bytes) produced by the polled (Instance 2) I/O connection on the primary DeviceNet.

COS/Cyclic Connection Produce Size

COS Produce Size shows the size (number of data bytes) produced by the Change of State I/O connection on the primary DeviceNet.

Strobe Connection Produce Size

The Strobe Produce Size shows the size (number of data bytes) produced by the Strobe I/O connection on the primary DeviceNet.

Publication 1734-UM002C-EN-P - July 2003

What is the 1734-ADN(X) Adapter? 2-15

Cycling I/O Mapping

Cycling I/O Mapping is an EDS parameter accessible from the primary DeviceNet that shows you how data is mapped in the adapter’s scanlist. The data, as shown below, is listed in order of active modules in the scanlist.

The data format is NN OBBB:b-BBB:b,IDBBB:b-BBB:b, where:

• NN = node number

• O or I = data type (output or input)

• BBB = byte number

• b = bit number

• D = DeviceNet connection (C [COS/cyclic], S [strobe], or P [poll])

IMPORTANT

If an I/O module’s data has multiple mappings, you must use RSNetWorx for DeviceNet to browse to the backplane to view the mappings.

Automatic Device Replacement

With Automatic Device Replacement (ADR), the adapter automatically configures a new replacement module.

IMPORTANT

The replacement module must match the original module (i.e., same vendor I.D., device type, product code, major, and minor revision) for ADR to work. The parameters that must match are those selected in the electronic keying portion of the scanlist. The user determines the level of electronic keying.

The backplane configuration parameters (e.g., Auto Address) should be set to “Do Nothing”.

Publication 1734-UM002C-EN-P - July 2003

2-16 What is the 1734-ADN(X) Adapter?

The adapter is capable of holding approximately 64K of configuration data for POINT I/O modules connected to it. The adapter sends configuration data to an I/O module each time connections are created with that module (i.e., power cycle or module insertion to backplane).

You can exchange an old module for a new one if the following conditions are met:

• ADR is enabled for the adapter.

• The new module matches the old one (i.e., electronic keying).

• The new module is inserted in proper location (only for

modules using the backplane).

For modules that do not use the backplane, you can exchange an old module for a new one if the following conditions are met

• The MAC ID equals 63.

• The new module matches the electronic keying of the old

module.

• Only one missing module matches the electronic keying of the

old module.

If the conditions listed above are met, the new module’s MAC ID is changed to the appropriate value, if necessary, and the configuration information is subsequently downloaded to the module.

Physical Ordering

At start-up, or when an I/O module is inserted, the adapter detects the backplane I/O modules’ order, based on MAC ID. With Physical Ordering, the adapter detects if any POINT I/O modules connected to it are out of order. If this condition is detected, the adapter changes the MAC IDs of any new modules.

IMPORTANT

The adapter’s MAC ID is always 0 on Subnet. The MAC IDs of each attached backplane I/O module must be sequentially ordered (i.e., each module’s MAC ID is greater than the left adjacent module). Gaps may be left between modules.

If any backplane I/O modules are missing at start-up, none of the backplane modules enter run mode.

Publication 1734-UM002C-EN-P - July 2003

What is the 1734-ADN(X) Adapter? 2-17

Interscan Delay (ISD)

Interscan Delay is the time delay between consecutive I/O scans of polled devices. The default setting is 10mS. The ISD=4ms for Auto Start mode. You can change this parameter in the RSNetWorx for DeviceNet software.

The scanner uses this period of time to perform non-time-critical communications on the DeviceNet network, such as communicating with RSNetWorx for DeviceNet software. Setting this parameter to a very low value increases the latency for non-time-critical scanner operations, including the time required to respond to RSLinx software and configuration functions. Setting this parameter to a very large value reduces the freshness of the I/O data being collected by the scanner and is not advisable.

Foreground to Background Poll Ratio

Foreground to Background Poll Ratio is the ratio of foreground to background polls. You can set this parameter in the RSNetWorx for DeviceNet software.

Devices can be polled on every I/O scan (foreground) or they can be polled less frequently (background). Whether a particular device will be polled in the foreground or in the background is determined by its Poll Rate parameter on the Edit I/O Parameters dialog box, which is accessed from the Scan List property page.

The poll ratio sets the frequency of poll I/O messages to a device in relation to the number of I/O scans. For example, if the poll ratio is set to 5, the scanner will poll the selected devices once every six I/O scans. We recommend that you use a poll ratio of 1.

Expected Packet Rate

Expected Packet Rate is the rate at which the packets will be expected to be received by the scanner. You set this parameter in the RSNetWorx for DeviceNet software.

IMPORTANT

We recommend that you do not change the Expected Packet Rate unless you are instructed to do so by a Rockwell Automation technical support representative.

Publication 1734-UM002C-EN-P - July 2003

2-18 What is the 1734-ADN(X) Adapter?

Transmit Retries

Transmit Retries are the maximum number of times that the scanner will attempt to send an I/O message to a device before it times out and generates an error message. You set this parameter in the RSNetWorx for DeviceNet software

Communicating Through the Adapter

IMPORTANT

As described previously in this manual, the adapter resides on the DeviceNet network and the PointBus simultaneously. The adapter’s functions are as follows:

• DeviceNet – adapter serves as a slave device that exchanges I/O

data with another DeviceNet scanner device (e.g., 1771-SDN) via DeviceNet messages

• PointBus – adapter serves as master for up to 63 I/O modules,

using DeviceNet messages to consume from or produce data to each module

IMPORTANT

We recommend that you do not change the Transmit Retries unless you are instructed to do so by a Rockwell Automation technical support representative.

If Automatic Device Replacement (ADR) is enabled on the adapter, you can only connect up to 62 modules via the PointBus.

Publication 1734-UM002C-EN-P - July 2003

For more information on ADR, see page 2-15.

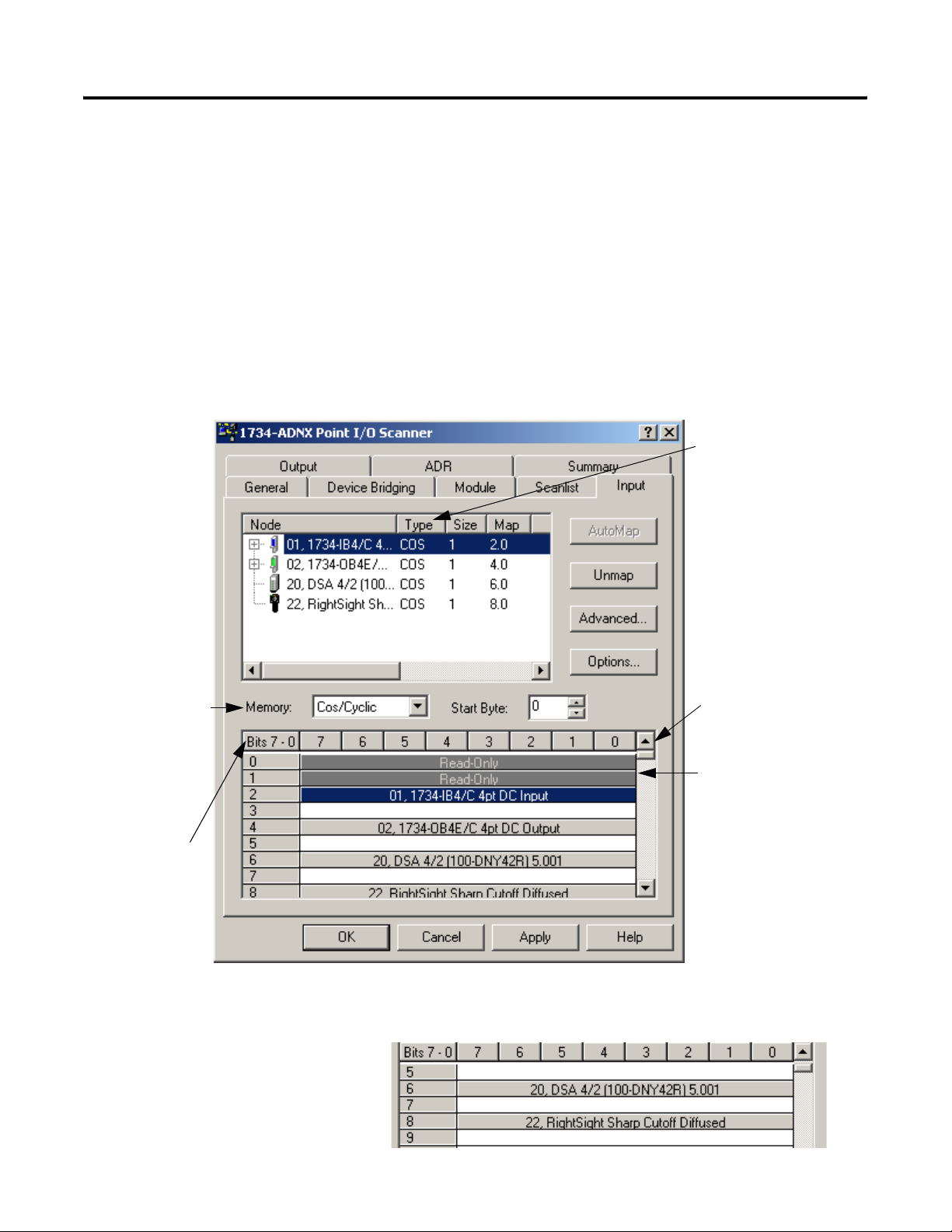

Mapping Data

Your adapter must store data temporarily before transferring it between devices. You must map data to your adapter’s memory before transferring it.

For a detailed description of the mapping process, see page 2-20.

What is the 1734-ADN(X) Adapter? 2-19

Overview of the Communication Process

In a typical configuration, the adapter acts as an interface between a DeviceNet scanner (e.g., 1756-DNB) and POINT I/O modules. The example graphic below shows information transferred from a 1756-DNB to POINT I/O modules.

IMPORTANT

Four data transfers are shown in the diagram, including:

1. Scanner to adapter

2. Adapter to I/O modules

3. I/O modules to adapter

4. Adapter to scanner

Key Points About Scanner to Adapter Transfer (Step 1)

1. Scanner initiates transfer

2. Scanner uses DeviceNet I/O messaging to write

data to adapter. Data may contain:

• device output data

• configuration data

Key Points About Adapter to Output Module Transfer (Step 2)

1. Adapter initiates transfer

2. Adapter produces data for I/O module to consume.

Data may contain:

• device output data

• configuration data

Key Points About Input Module to Adapter Transfer (Step 3)

1. Adapter consumes data I/O module has produced.

Data may contain:

• device input data

• status data

Key Points About Adapter to Scanner Transfer (Step 4)

1. SDN consumes I/O data produced by adapter.

Data may contain:

• device input data

• status data

DeviceNet network

1734-ADN adapter

Although information is exchanged between the Logix5550 and 1756-DNB, this diagram (nor this chapter) is not designed to explain such an exchange.

computer with PLC programming software

ControlNet network

Logix5550 controller

The Logix5550 controller sits in the backplane. The 1756-DNB contained in the controller communicates with the 1734-ADN(X).

computer with

1784-PCD PCMCIA card

POINT I/O modules

RSNetWorx for DeviceNet software

The computers and PCMCIA card shown in the diagram are required to configure the processor, adapter and I/O modules. Although the PCMCIA card is used in this example, you can use other communications cards, such as PCID and KFD cards.

42409

Because the adapter simultaneously resides on the DeviceNet network and on PointBus, it serves as a slave to the processor (i.e., #1 & 4) and a master to the I/O modules (i.e., #2 & 3).

The four data transfers are not necessarily sequential.

Publication 1734-UM002C-EN-P - July 2003

2-20 What is the 1734-ADN(X) Adapter?

Image Table Mapping

Your adapter receives data from:

• master devices (e.g., scanners) - output data is then passed to

POINT I/O modules

• input modules - input data is passed to the scanner

The adapter must map the data it receives to its internal memory before passing it to the appropriate device. The I/O map for a module is divided into:

• read bytes - input and status bytes

• write bytes - output and configuration bytes

The data is mapped by 3 buffers for input data (each representing an I/O connection on the primary DeviceNet) and 1 buffer for output data (representing data sent for Poll or COS connections on the primary DeviceNet).

The number of read bytes or write bytes can be 2 or more. The length of each I/O module’s read bytes and write bytes vary in size depending on module complexity. Each I/O module supports at least 1 input byte or 1 output byte. Status and configuration are optional, depending on the module.

The graphic below shows how the adapter maps information.

DeviceNet

Scanner

DeviceNet

1734-ADN

DeviceNet Poll Buffer

DeviceNet Strobe Buffer

DeviceNet COS/CYC Buffer

INPUT DATA

248 bytes

+ 2 bytes status

6 + 2 bytes

248 bytes

+ 2 bytes status

(each node up to 4 mappings each direction)

I/O MAPPING

OUTPUT DATA

Poll OR COS (inst 2)

248 + 2 bytes

Publication 1734-UM002C-EN-P - July 2003

Subnet MODULES

Subnet DeviceNet

42406

What is the 1734-ADN(X) Adapter? 2-21

Byte 0

Byte 1

See Table 2.A for definitions of the first 2 bytes of each I/O message produced by the adapter on DeviceNet.

Table 2 . A I/O Status Word Bit Definitions

Bit Operating Mode Operating Mode Description

0 0 = Run mode

1 = Idle mode

1 1 = Device failure (at least one

device failed) 2 1 = Communication failure 3 1 = Duplicate node

address failure 4 Reserved 5 Reserved 6 Reserved 7 Reserved 0 Reserved 1 Reserved 2 Reserved 3 Reserved 4 Reserved 5 Reserved 6 Reserved 7 Reserved

Run - The adapter maps output data to each module on PointBus.

Idle - Output data with zero length is sent to I/O modules.

Device Failure - One or more of the devices in the scan list has failed to communicate with the adapter.

Communications Failure - The adapter has entered the BUSOFF state on the Subnet. Another Subnet device is configured with the wrong baud rate.

Duplicate Node Address Failure There is another node with the same address (0) as the scanner on the Subnet, and the adapter has failed its DupMAC test.

The first 2 bytes of output data on the DeviceNet network that are sent to the adapter are reserved as a command word. No bits have been defined.

Publication 1734-UM002C-EN-P - July 2003

2-22 What is the 1734-ADN(X) Adapter?

Communicating with I/O Modules

The adapter module supports multiple communication choices. These choices all use the default I/O structure previously described. The adapter’s master (e.g., 1756-DNB) makes the actual communication choice. The choices are:

• Polled – Adapter sends data in response to received data.

• Strobe – Adapter sends data in response to the strobe command.

The single bit allocated to the adapter in the strobe message is not used. If the configured size of the input data (sent from the adapter) is greater than 8 bytes, the strobe connection establishment will fail. In this case, the input size must be reconfigured to 8 bytes or less (only 6 bytes are I/O data because the first 2 bytes are the status word).

• Change of State – Adapter sends data based on detection of any

changed value within the input data. Data is independently received based on change of state from the sender. Data in both directions can be acknowledged or unacknowledged depending on the run time configuration of the system.

• Cyclic – Adapter sends data cyclically based on a configured

time value. Data is independently received cyclically from the sender. Data in both directions can be acknowledged or unacknowledged depending on the run time configuration of the system.

The adapter uses these messages to solicit data from or deliver data to each device. Data received from the devices (i.e., input data) is organized by the adapter and retransmitted to the master. Data received from the master (i.e., output data) is organized in the adapter and sent on to the I/O modules.

Publication 1734-UM002C-EN-P - July 2003

What is the 1734-ADN(X) Adapter? 2-23

Using Diagnostic Tables

The adapter maintains three diagnostic tables to manage the flow of data between a processor and a network’s devices. You can access the table over DeviceNet through the Scan Config Object (Class Code 0x90), Instance 1, via the following read-only attributes:

• Faulted Node Table (Attribute 0xA) - In this 8-byte table, each

bit represents a node on the backplane. For example, bit 0 in byte 0 represents MAC ID 0 (the adapter), while bit 0 in byte 1 represents MAC ID 8 and so on. If a bit is set, a corresponding non-zero status value can be read from the Node State Table described below.

• Idle Node Table (Attribute 0xB) - In this 8-byte table, each bit

also represents a node on the backplane, as with the Faulted Node Table. If a bit is set in the Idle Node Table, the corresponding node is in the scanlist and currently in idle mode.

• Node Status Table (Attribute 0xC) - This 64 byte table contains a

status code for each possible MAC ID on the backplane. Non-zero values are accompanied with the respective bit in the Faulted Node Table being set.

See Table 2.B for an explanation of the text messages associated with the Node Status Table.

Table 2 . B Node Status Table Numeric Code Definitions

Numeric Code: Text Message: Definition: Take this action:

70 DupMAC Failure Adapter failed Duplicate Node

Address check.

71 Scanner Cfg Error Illegal data in the scan list table. Reconfigure the scan list table and

72 Comm Failure Slave device stopped communicating. Inspect the I/O modules and

73 Wrong Device Type Device’s identity information does not

match electronic key in scan list table entry.

74 Port Overrun Error Data overrun on port detected. Modify your configuration and check for

75 Network Failure Communication has ceased on

the backplane.

76 No Msg for Scanner No direct network traffic for

scanner detected.

77 Wrong Data Size Data size expected by the device does

not match scan list entry.

An I/O module has a MAC ID of zero. Change the module’s address.

remove any illegal data.

verify connections. Verify that the correct device is at this

node number. Make sure that the device matches the desired electronic key (vendor, product code, product type).

invalid data. Check network communication traffic.

Inspect the I/O modules and verify connections.

No action. The scanner hears other network communication.

Reconfigure your module for correct transmit and receive data sizes.

Publication 1734-UM002C-EN-P - July 2003

2-24 What is the 1734-ADN(X) Adapter?

Numeric Code: Text Message: Definition: Take this action:

78 No Such Device Slave device in scan list table does

Table 2 . B Node Status Table Numeric Code Definitions

not exist.

Add the device to the network, or delete scan list entry for that device.

79 Transmit Failure Adapter has failed to transmit

a message.

80 In Idle Mode Adapter is in IDLE mode. No action necessary.

82 Fragmentation Error Error detected in sequence of

fragmented I/O messages from device.

83 Slave Init Error Slave device is returning error

responses when scanner attempts to communicate with it.

84 Not Yet Initialized Adapter is initializing the

DeviceNet channel.

85 Rcv Buffer Overflow Data size is larger than 255 bytes. Configure the device for a smaller data

86 Device Went Idle Device is producing zero length data

(idle state) while channel is in Run Mode.

89 ADR Failed Failure occurred when downloading

ADR data to the I/O module.

Make sure that other modules exist on the backplane.

If you want the adapter to run, put it in RUN mode.

Check scan list table entry for slave device to make sure that input and output data lengths are correct. Check slave device configuration.

Check accuracy of scan list table entry. Check slave device configuration. Slave device might be in another master’s scan list. Reboot slave device.

No action.

size. Check device configuration and slave

node status.

Reconfigure the ADR download data for the I/O module.

91 Port Bus Off Bus-off condition detected on

92 Port Power Off No network power detected on

Chapter Summary and What’s Next

Publication 1734-UM002C-EN-P - July 2003

Check DeviceNet connections and communications port. Scanner is detecting communications errors.

communications port.

physical media integrity.

Check system for failed slave devices or

other possible sources of network

interference.

Provide network power.

Make sure that scanner drop cable is

providing network power to adapter

communications port.

A user program can monitor the Device Failure Bit in the I/O message(s) received from the adapter. When it has determined the bit set, you can read the Faulted Node Table and Node Status Table, using the Explicit Message Program Control Feature of the scanner device, to determine the module experiencing problems and the nature of those problems.

In this chapter you learned about the 1734-ADN(X) DeviceNet adapter. Move to Chapter 3 to learn about using Auto Start Mode.

Chapter

Using Auto Start Mode

This chapter describes how to use the Auto Start Mode with your POINT I/O DeviceNet adapter.

For more information on: See page:

Why Use Auto Start Mode? 3-2 Installing the Adapter 3-4 Wiring the Adapter 3-7 Installing the I/O Modules 3-8 Adding Non-Backplane Modules to Subnet (1734-ADNX Only) 3-9 Using RSNetWorx for DeviceNet 3-10 Beginning Auto Start Mode 3-11

Using Custom Configuration 3-13 Chapter Summary and What’s Next 3-14

This chapter assumes you already have a DIN rail installed for your POINT I/O system. There are five simple steps to the Auto Start Mode:

1. Installing the Adapter 2. Wiring the Adapter

Adapter Status

DeviceNet Status

Subnet Status

1734-ADNX

System Power

Field Power

4. 1734-ADNX Only

Add and Commission

5. Using RSNetWorx for DeviceNet

Non-Backplane I/O

Modules to the Subnet

3. Installing the I/O Modules

Module

Status

Network

Status

NODE:

24VDC

Source

Output

1734

OB4E

5. Beginning Auto Start Mode

1 Publication 1734-UM002C-EN-P - July 2003

3-2 Using Auto Start Mode

Why Use Auto Start Mode?

Auto Start Mode offers you a quick and easy method of getting your POINT I/O system ‘up and running’. If your POINT I/O application can use default configuration, you should use Auto Start Mode to easily begin operations.

Once your adapter is:

• installed

• connected to the system’s I/O modules

• online (in RSNetWorx for DeviceNet)

you only need to choose the Auto Start Mode option and the adapter begins working with a default configuration.

IMPORTANT

Although Auto Start Mode allows your adapter to operate with a default configuration, you can write a custom configuration after operation has begun.

For more information on how to write custom configuration for your adapter on DeviceNet, see Chapter 5, DeviceNet Scanner’s Scanlist.

Adding the 1734-ADN(X) to the

What Does Auto Start Mode Do?

When using Auto Start Mode, the adapter:

1. Sets all modules on the backplane to Auto Baud.

2. Reads the Subnet module’s identity information.

3. Sets backplane modules’ addresses sequentially.

4. Generates a scanlist for the Subnet.

5. Maps I/O data, based on byte, word, double-word, or fixed

boundaries.

When this sequence of events is completed, the POINT I/O modules connected to the adapter are ready to accept connections from a scanner.

Publication 1734-UM002C-EN-P - July 2003

Using Auto Start Mode 3-3

When the Adapter Uses Auto Start Mode, How Does it Map I/O Data?

In Auto Start Mode, you can map I/O data in the adapter’s memory in one of the following ways:

• Byte Boundaries

• Word Boundaries

• Double Word Boundaries

• Fixed Boundaries

Byte Boundaries

Each node’s I/O data is mapped in the adapter’s memory at the next available byte. This option works best in applications that use Allen-Bradley PLCs and SLCs.

Word Boundaries

Each node’s I/O data is mapped in the adapter’s memory at the next available word. This option works best in applications that use Allen-Bradley PLCs and SLCs.

Double Word Boundaries

Each node’s I/O data is mapped in the adapter’s memory at the next available double word. This option works best in applications that use Allen-Bradley Logix products.

Fixed Boundaries

The map to the fixed location is based on the node address. Mapping size ranges from 1 to 32 and is set using an EDS parameter. The mapping for a node with address 1 begins on byte 2. The formula for mapping is: 2+((N-1)(mapsize)), where N = node address.

• The user specifies fixed map size using EDS parameters

• Data mapped after status/channel words in I/O image,

beginning with byte 2

• No data area reserved for MAC ID 0 (the adapter)

Publication 1734-UM002C-EN-P - July 2003

3-4 Using Auto Start Mode

Are There Any Requirements to Using Auto Start Mode?

There are two requirements to using the Auto Start Mode:

• Your 1734-ADN DeviceNet adapter must use firmware revision

2.001 or higher. If your adapter does not have the required firmware, you can upgrade it with the ControlFlash tool. For more information on how to upgrade your adapter’s firmware, contact your Rockwell Automation representative.

• Your 1734-ADN(X) DeviceNet adapter must be free of I/O

connections on DeviceNet when you use Auto Start Mode. If another scanner device has established I/O connections with the adapter, the attempt to use Auto Start Mode is rejected. When the adapter is configuring itself in Auto Start Mode, no other device can establish I/O connections to the adapter.

Installing the Adapter

1734-ADN communication interface

Orange screw slot

To install the adapter on the DIN rail prior to installing other base units, proceed as follows.

1. Position the adapter vertically in front of the DIN rail.

2. Press firmly to install the adapter on the DIN rail. The locking

mechanism locks the adapter to the DIN rail.

DIN rail

31110-MC

Publication 1734-UM002C-EN-P - July 2003

Using Auto Start Mode 3-5

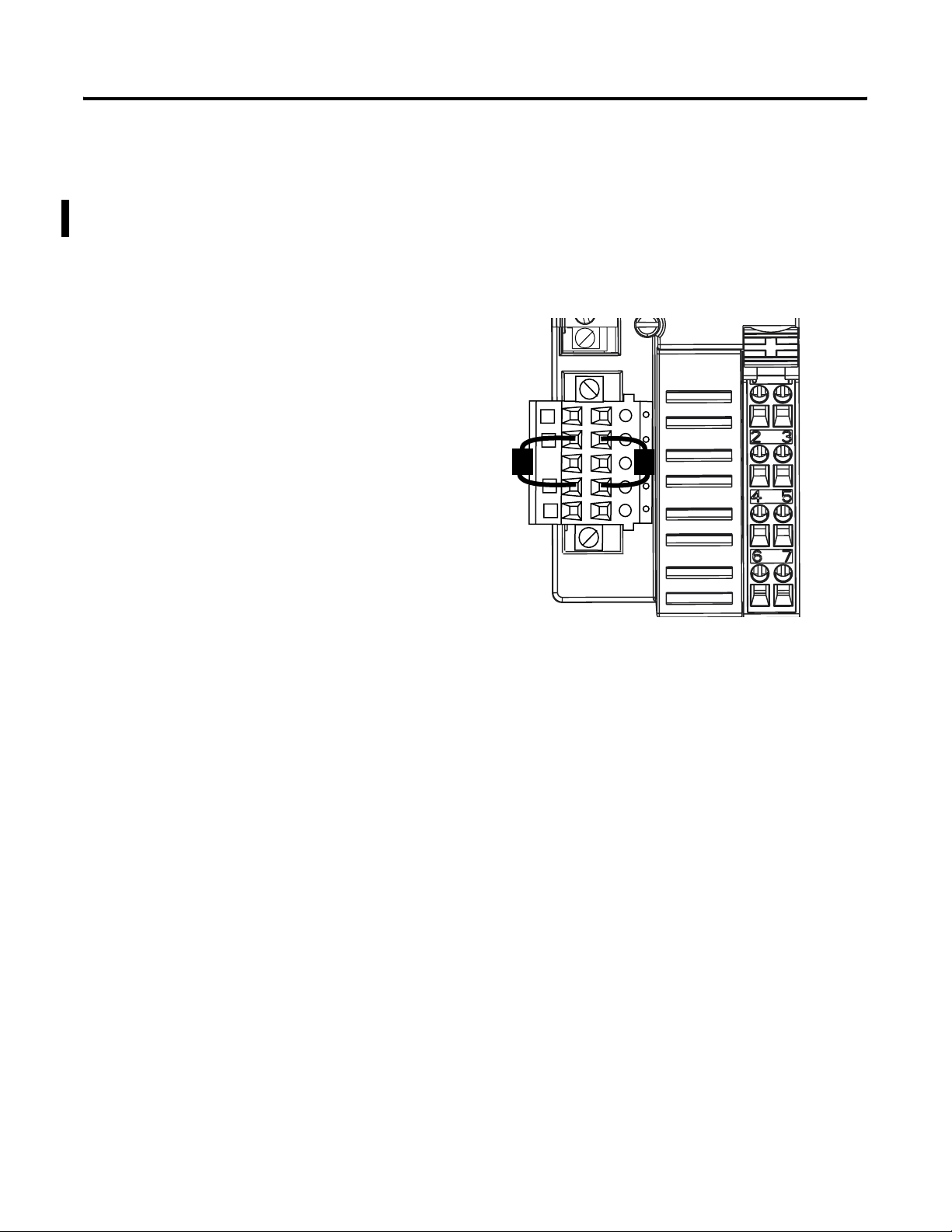

3. Insert the DeviceNet network plug and tighten the holding screws.

DeviceNet network plug

Network Node Address Thumbwheel

Holding screw

31111-MC

Holding screw

4. Set the node address using the 2-position thumbwheel switch. Valid physical settings range from 00 to 63 (Factory setting =63). Press either the + or - buttons to change the number.

Adapter Status

Network Status

Subnet Status

1734-ADNX

System Power

Field Power

42510

Publication 1734-UM002C-EN-P - July 2003

3-6 Using Auto Start Mode

5. Slide the safety end cap up to remove it. This exposes the backplane and power interconnections.

Safety end cap

31112-MC

ATTENTION

Publication 1734-UM002C-EN-P - July 2003

Using Auto Start Mode 3-7

Wiring the Adapter

Your adapter’s wiring and network designations are shown below.

Node Address Thumbwheel

DeviceNet Connector

Subnet Connector (1734-ADNX only)

NC = No Connection CHAS GND = Chassis Ground C = Common V = Supply

Adapter Status

Network Status

Subnet Status

1734-ADNX

System Power

Field Power

CHAS GND

Adapter Status Network Status

Subnet Status

System Power Field Power

CHAS GND

1734ADNX

12/24V dc

NC NC

This dc supply is

CHAS

GND

connected to the internal power bus.

You cannot supply power to the adapter from the DeviceNet

power supply.

42513

V dc

CHAS

GND

NC = No Connection CHAS GND = Chassis Ground C = Common V = Supply (Do not connect 120/240V ac power to this supply.)

Publication 1734-UM002C-EN-P - July 2003

3-8 Using Auto Start Mode

Te rm in al Notes

0 No

Reserved

connection

1 No

connection

2 Chassis

Ground

3 Chassis

Ground 4 Common 5 Common 6 Voltage Input Apply 12/24V dc. Connects 7 Voltage Input

to the internal power bus.

Installing the I/O Modules

DeviceNet and Subnet Connector Plug Wiring

DeviceNet connection

Black

Blue

Bare

White

Red

After installing and wiring the adapter, you should install the POINT I/O modules that will be used in your application.

For more information on installing and wiring the multiple POINT I/O modules, see the installation instructions for each catalog number or the POINT I/O Digital and Analog Modules and POINTBlock I/O Modules user manual, publication 1734-UM001.

-V

CAN - Low

Shield

CAN - High

42514

Publication 1734-UM002C-EN-P - July 2003

Using Auto Start Mode 3-9

Adding Non-Backplane Modules to Subnet (1734-ADNX Only)

The Subnet must be properly terminated. A terminating resistor (included with the 1734-ADNX) must be placed at each end of the Subnet trunk segment (see the Rockwell Automation publication DeviceNet Cable System Planning and Installation Manual, publication no. DN-6.7.2). If no cable is attached to the 1734-ADNX Subnet connector, two resistors should be attached across the blue CAN_H and white CAN_L wires, as shown below.

CAN_Low (Blue) CAN_High (White)

43506

The node addresses of all non-Backplane Subnet modules must be numerically greater than the number of modules residing on the 1734-ADNX backplane.

Non-backplane modules should be configured to allow them to communicate at the desired baud rate.

If a module’s configuration affects the amount of I/O data produced or consumed by that module, the desired configuration should be downloaded to the module before beginning the Auto Start Mode operation.

Publication 1734-UM002C-EN-P - July 2003

3-10 Using Auto Start Mode

Using RSNetWorx for DeviceNet

You must use the RSNetWorx for DeviceNet software to configure your adapter. If using a 1734-ADNX adapter, make sure that you properly configure non-backplane modules for baudrate and MAC ID.

Follow the steps below to use Auto Start Mode.

1. Go online in the software.

IMPORTANT

A. Click on the Network

pull-down menu.

B. Choose Online.

Auto Start Mode is only available when RSNetWorx for DeviceNet is online.

2. Browse for the primary network (e.g. You can use Single Pass Browse).

A. Click on the Network

pull-down menu.

B. Choose a Browse type.

The adapter appears on the Browse screen.

3. To launch the adapter information menu, double-click on the adapter icon.

Double-click on this icon.

Publication 1734-UM002C-EN-P - July 2003

Upload here.

Using Auto Start Mode 3-11

You can either:

• upload configuration from the device to update the software

• download configuration from the software to the device

4. Upload configuration from the device.

Beginning Auto Start Mode

A. Click on the

Parameters tab.

B. Use the Auto Start

Mode pull-down menu to choose a mapping option. The options are described on page 3-3.

A. Choose Single Value.

1. After you upload configuration from the device to the software, you must begin Auto Start Mode.

2. Download the Auto Start Mode value. Make sure you only download this Single value, as shown below.

B. Download the value.

Publication 1734-UM002C-EN-P - July 2003

3-12 Using Auto Start Mode

After 30-40 seconds, the adapter begins operations and uses the configuration most recently applied. During the auto start mode process, the Physical List Acquire Status field displays the words: Auto Start Mode, but after the download is complete the field displays the word: Idle.

Check for solid RED indicators on all modules

Verify that all non-backplane modules have the proper baudrate (or have autobaud enabled)

Check that MAC IDs are set to proper values

Check scanlist

– browse to Subnet and view scanlist, or look at mapping text

– Make sure the scanlist was saved (if not, why?)

– check ‘maximum backplane mac/id’ parameter. It should

equal the number of modules residing on the backplane.

After ASM has completed (i.e., Physical List Acquire Status field is Idle), verify that the operation was successful and that each I/O module was added to the adapter’s scanlist. The PointBus LED (1734-ADN) or Subnet Led (1734-ADNX) should be solid green. This indicates only that the adapter is able to establish I/O connections with each module in its scanlist, not that each module on the Subnet was successfully added to its scanlist.

To verify the presence of each module in the adapter’s scanlist, one of the following checks should be done:

• Each I/O module’s Network or Module/Network LED should

be solid green. If the device has neither LED, use one of the following methods.

• By browsing to the Subnet and uploading the adapter’s

scanlist using RSNetWorx for DeviceNet and verifying that the device is found in the scanlist.

• By repeatedly uploading the EDS parameter “Cycling I/O

Mapping” to verify that a mapping for the concerned module exists. See page

2-15 for more information about this

parameter.

Publication 1734-UM002C-EN-P - July 2003

If one of the following is observed, it is likely that one of the Subnet modules has been addressed incorrectly or is configured to communicate at the wrong baud rate.

• The adapter’s PointBus LED (1734-ADN) or Subnet LED

(1734-ADNX) is solid or blinking red

Using Auto Start Mode 3-13

• An I/O module’s Network or Module/Network LED is solid

red

• It appears that the adapter has not saved a scanlist

Use the following procedures to attempt to remedy the problem:

• Verify that each non-backplane module’s address and

baudrate have been set correctly.

• Verify that each backplane module is configured to autobaud.

The adapter’s EDS parameter “Set Backplane Autobaud’ can be used to set each module’s autobaud parameter. It is necessary to cycle a module’s power before the autobaud parameter change takes effect. In rare situations, it may be necessary to download the parameter and cycle power several times before each backplane module’s autobaud parameter has been changed.

Note that if the adapter is configured to autobaud on the primary DeviceNet network, network traffic on the primary network is required before the backplane modules will attempt to communicate. For this reason, it is sometimes helpful to have RSLinx continuously browsing the primary network while attempting the ASM process and verification.

Using Custom Configuration

When it is believed that each non-backplane module is correctly configured and that each backplane module is able to communicate on the Subnet, the ASM process can be attempted again.

After successfully configuring your adapter with the Auto Start Mode feature, the adapter must still be added to the primary DeviceNet network scanner’s scanlist. See Chapter 5 for more information.

The Auto Start Mode is recommended to quickly and easily get your POINT I/O system ‘up and running’. But this mode does not prevent you from changing the adapter’s default configuration after system operation has begun.

For more information on how to write custom configuration for your adapter on DeviceNet, see Chapter 4, Adapter’s SubNet and Chapter 5, Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist.

IMPORTANT

Running Auto Start Mode causes the adapter’s ADR configuration for the Subnet modules to be reset.

Configuring the 1734-ADN(X)

Publication 1734-UM002C-EN-P - July 2003

3-14 Using Auto Start Mode

Chapter Summary and What’s Next

In this chapter, you learned about the Auto Start Mode. Move on to Chapter 4, Chapter 5, Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist.

Configuring the 1734-ADN(X) Adapter’s SubNet or to

Publication 1734-UM002C-EN-P - July 2003

Chapter

Configuring the 1734-ADN(X) Adapter’s SubNet

This chapter describes how to custom configure your adapter for use with POINT I/O modules.

For more information about: See page:

Configuration Overview 4-1 Adding the Scanner to Your Network 4-2 Adding I/O Modules to Your Network 4-3 Setting the Scanner’s Parameters 4-3 Going Online 4-8 Chapter Summary and What’s Next 4-8

Your adapter works on two networks simultaneously and must be configured for each separately. The chapter explains configuration of the adapter for use with POINT I/O modules.

Configuration Overview

For information on how to configure the adapter for use on the DeviceNet Network see Chapter 5, Adding the 1734-ADN(X) to the DeviceNet Adapter’s Scanlist.

You must use the RSNetWorx for DeviceNet software to configure your adapter. You can configure the adapter while it is:

• online

• offline

This chapter shows configuration in the offline mode. Configuration screens appear the same in both modes. The only difference is that if you make changes offline, you must take the adapter online before the configuration changes take effect.

IMPORTANT

Throughout most of this manual, we refer to the POINT I/O DeviceNet adapter (1734-ADN(X)) as the adapter. The adapter also communicates with Subnet modules as a scanner, though. In this chapter only, the adapter is referred to as a scanner.

1 Publication 1734-UM002C-EN-P - July 2003

4-2 Configuring the 1734-ADN(X) Adapter’s SubNet

You must follow these steps during configuration:

Adding the Scanner to Your Network

Follow these steps:

1. Adding the Scanner to Your Network

2. Adding I/O Modules to Your Network

3. Setting the Scanner’s Parameters

4. Going Online

1. Start RSNetWorx for DeviceNet.

2. Add the scanner as shown below.

1. Expand the list of communication adapters.

2. E xpand the 1734-ADN POINT I/O Scanner field.

IMPORTANT

The scanner appears on the network.

The adapter must always exist on the Subnet at Node

00.

Publication 1734-UM002C-EN-P - July 2003

1. Select the I/O module you want to add to the network.

2. Double-click on the catalog number to add the module.

TIP: You can also click and drag the

module name onto the network.

Configuring the 1734-ADN(X) Adapter’s SubNet 4-3

Adding I/O Modules to Your Network

After you add the scanner, you must add the modules connected to the scanner on the Subnet. In the offline mode, I/O modules must be added individually. Follow these steps:

1. Add modules as shown below.

1. Right-click on the scanner.

You must configure the modules connected to the scanner. For more information on how to configure POINT I/O modules, see the POINT I/O Digital and Analog Modules and POINTBlock I/O Modules user manual, publication 1734-UM001.

Setting the Scanner’s Parameters

After adding it to the network, you must configure the scanner for use with I/O modules.

IMPORTANT

1. Configure the adapter as shown below.

This chapter shows configuration in the offline mode. Changes set in this mode do not take effect until the adapter goes online. For more information on how to go online, see page

TIP: You can also double-click on the scanner

to view the Properties menus.

4-8.

2. Click on Properties to configure your scanner.

Publication 1734-UM002C-EN-P - July 2003

4-4 Configuring the 1734-ADN(X) Adapter’s SubNet

You will see a pop-up screen with a series of tabs. Each tab provides options to write configuration for your adapter. The tabs are shown below and on the following pages.

Type the scanner’s name here. Type a description here.

The scanner’s address must = 0.

This screen also shows the scanner’s device identity. These fields are read-only.

Use Associate File to associate this configuration file (i.e., configuring the 1734-ADN for communication with POINT I/O modules) with the configuration file that configures the same 1734-ADN for communication with a master device on the primary DeviceNet network.

For more information on the need to maintain two configuration files in the same adapter, and the simultaneous presence of the adapter on two networks (i.e., DeviceNet as a slave and PointBus as a master), see page 5-1.

At any point, you can click here to finish changing configuration parameters.

IMPORTANT: Configuration changes made

in offline mode do not take effect until the scanner goes online. For more information on how the scanner goes online, see page 4-8.

Use Clear Association to remove previously established configuration file associations that no longer apply to your adapter.

Publication 1734-UM002C-EN-P - July 2003

Set the Interscan Delay here. Set the Foreground to

Background Poll Ratio here.

We recommend you DO NOT change module settings unless advised to do so by a Rockwell Automation support representative.

Set the Expected Packet Rate here. Set the number of Transmit Retries here.

Configuring the 1734-ADN(X) Adapter’s SubNet 4-5

Click here to reset the Interscan Delay and Foreground to Background Poll Ratio back to the module default values.

Click here to change the Advanced Module Settings, as shown in the screen below.

Click here for new settings to take effect.

Add and remove I/O modules to and from the scanlist on this screen.

To set any of the parameters on this screen (e.g., Node Active) for a specific module, first highlight the module and then make specific changes.

Click here to automap I/O data when adding modules.

Click here to edit the module’s I/O parameters, as shown below.

Click on the appropriate I/O data transmission method (e.g., Polled) and make changes on this screen.

Click here when finished.

Choose electronic keying parameters for each module.

Publication 1734-UM002C-EN-P - July 2003

4-6 Configuring the 1734-ADN(X) Adapter’s SubNet

Use this pull-down menu to choose a Memory type. The Memory type corresponds to an I/O connections on DeviceNet.

Highlight a module and click here to unmap it. Click here to edit the advanced

mapping parameters, as shown below. Click here to edit the automap options,

as shown below.

Set the starting byte for I/O mapping.

Set Map From parameters here. Set Map To

Click here when finished.

Use this pull-down menu to choose a type. This corresponds to an I/O on the primary DeviceNet.

Set the starting byte for I/O mapping here.

The bytes mapped last will determine sizes on the primary DeviceNet.

parameters here.

Click here to apply changes and leave the screen open.

Highlight a module and click here to unmap it. Click here to edit the advanced

mapping parameters.

Click here to edit the automap options.

The Advanced and Options pop-up screens are the same for output modules as those shown for input modules. See above for an explanation of these screens.

Choose a Data Alignment and click here.

Publication 1734-UM002C-EN-P - July 2003

Use this screen to choose Automatic Device Replacement options.

Configuring the 1734-ADN(X) Adapter’s SubNet 4-7

The screens below show the remaining configuration tabs.

You must have loaded each device into RSNetWorx for DeviceNet before loading using this button.

You cannot change any configuration parameters on this screen. It is shown here to maintain the software’s graphical integrity.

Click here when finished setting configuration parameters.

IMPORTANT: Configuration changes

made in offline mode do not take effect until the scanner goes online. For more information on how the scanner goes online, see page 4-8.

This completes the configuration options. Your adapter must go online for configuration changes to take effect.

Publication 1734-UM002C-EN-P - July 2003

4-8 Configuring the 1734-ADN(X) Adapter’s SubNet

Going Online

After you set configuration parameters, your adapter must go online. Follow these steps:

1. Click on Network.

2. Click on Online.

The software prompts you to save your configuration changes.

1. Use the Network pull-down to go online.

1. Click on Yes.

1. Select the DeviceNet

interface.

2. Select the DeviceNet Network subnetwork.

This selection accesses the PointBus to configure the adapter on the DeviceNet network.

3. Click here.

Chapter Summary and What’s Next

2. Choose your adapter’s network as shown below.

3. Apply the data to your adapter.

In this chapter, you learned how to configure the adapter. Move to Chapter 5 to learn how to add the 1734-ADN(X) to the DeviceNet Scanner’s scanlist.

Publication 1734-UM002C-EN-P - July 2003

Chapter

Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist

This chapter describes how to custom configure your adapter for use with DeviceNet devices.

For more information about: See page:

Configuration Overview 5-1 Adding the Adapter to Your Network 5-2 Setting the Adapter’s Parameters 5-3 Going Online 5-6 Chapter Summary and What’s Next 5-6

Configuration Overview

Your adapter works on two networks simultaneously and must be configured for each separately, including separate RSNetWorx for DeviceNet software files.

This chapter explains configuration of the adapter for use on the primary DeviceNet network. For information on how to configure the adapter for use on the Subnet see Chapter 4, 1734-ADN(X) Adapter’s SubNet.

You must use the RSNetWorx for DeviceNet software to configure your adapter. You can configure the adapter while it is:

• online

• offline

Configuring the

1 Publication 1734-UM002C-EN-P - July 2003

5-2 Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist

You must follow these steps during configuration:

1. Adding the Adapter to Your Network

2. Setting the Adapter’s Parameters

3. Adding the DeviceNet scanner’s scanlist (see the Quick Start,

Appendix B)

4. Going Online

Adding the Adapter to Your Network

Follow these steps:

1. Start the RSNetWorx for DeviceNet software.

1. Expand the list of communication adapters.

2. Expand the 1734-ADN POINT I/O DeviceNet Adapter field.

3. You can double-click or click and drag the scanner name onto the network.

2. Add the adapter as shown below.

The adapter appears on the network.

Publication 1734-UM002C-EN-P - July 2003

Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist 5-3

Setting the Adapter’s Parameters

After adding it to the network, you must configure the adapter for use with master DeviceNet devices.

1. Right-click on the adapter.

2. Click on Properties to

configure your adapter.

IMPORTANT

This chapter shows configuration in the offline mode. Changes set in this mode do not take effect immediately. For configuration changes to take place, you must:

• go online with your adapter

• download the new configuration to your adapter

For more information on how to go online, see page 5-6.

1. Configure the adapter as shown below.

TIP: You can also double-click on the adapter

to view the Properties menus.

Type the adapter’s name here. Type a description here.

Select the desired address. This address corresponds to the address switch on the adapter.

This screen also shows the adapter’s device identity. These fields are read-only.

You see a pop-up screen with a series of tabs. Each tab provides options to write configuration for your adapter. The tabs are shown below and on the following pages.

Publication 1734-UM002C-EN-P - July 2003

5-4 Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist

Use Associate File to associate this configuration file (i.e., configuring the 1734-ADN for communication with DeviceNet) with the configuration file that configures the same 1734-ADN for communication with POINT I/O modules.

Use Clear Association to remove previously established configuration file associations that no longer apply to your adapter.

Restore all parameter default values.

For a description of a specific parameter, highlight the parameter below and click here.

Any parameter with a lock shown before it cannot be changed.

The values correspond to the I/O connection sizes from the I/O Defaults tab. They can be uploaded from an adapter with a downloaded scanlist.

The screens below show how to change the other parameters.

AutoAddress

Enable or disable autoaddress.

Backplane Autobaud

Auto Start Mode

IMPORTANT: The following

configuration parameters:

• Auto Start Mode

• Set Subnet Baudrate

• Set Backplane Autobaud

• AutoAddress Backplane

Modules

should only be used when online and should be set to Do Nothing when Download All Parameters is selected or when saving to a scanner’s ADR data.

Note: Max Backplane MAC ID and Fixed Map Size are only 1734-ADNX configuration parameters.

Backplane Baudrate

Set the backplane baudrate.

AutoAddress Backplane Modules

Configure backplane modules to autobaud.

Publication 1734-UM002C-EN-P - July 2003

Choose the autoaddress.

Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist 5-5

The screens below show the remaining configuration tabs.

Connection sizes appear only when the Subnet network file has been associated using the Device Bridging tab.

These values correspond to the 4 parameters (Poll/COS Connection Consume Size, Poll Connection Produce Size, COS Connection Produce Size, Strobe Connection Produce Size) found on the Device Parameter’s tab.

Click here to view the EDS file. An example of the EDS file is shown below.

The screen below shows an example EDS file.

This completes the configuration options. Your adapter must go online for configuration to take effect.

Publication 1734-UM002C-EN-P - July 2003

5-6 Adding the 1734-ADN(X) to the DeviceNet Scanner’s Scanlist

Going Online

Follow these steps for the adapter to go online:

1. Use the Network pull-down.

1. Click on Network.

2. Click on Online.

The software prompts you to save your configuration changes.

1. Click on Yes.

1. Select the DeviceNet

interface.

2. Select the DeviceNet Network subnetwork.

This selection accesses the Subnet to configure the adapter on the DeviceNet network.

3. Click here.

2. Choose your adapter’s network as shown below.

3. Apply the data to your adapter.

To learn how to add the 1734-ADN(X) to the scanner’s scanlist, refer to the Quick Start section, Appendix B.

Chapter Summary and What’s Next

Publication 1734-UM002C-EN-P - July 2003

In this chapter, you learned how to configure the adapter. Move to Chapter 6 if you need troubleshooting assistance.

Chapter

Troubleshooting the 1734-ADN(X) Adapter

This chapter describes how to troubleshoot your adapter.

To learn how to: See page:

Use the Status Indicators 6-1 Use Guidelines for Using Your Adapter 6-4 Chapter Summary and What’s Next 6-4

Use the Status Indicators

System Power

Field Power

You can use the status indicators to troubleshoot your adapter. The graphic below shows the adapter’s status indicators.

Adapter Status

DeviceNet Status

PointBus Status

1734-ADN

Adapter Status Network Status

PointBus Status

System Power Field Power

System Power

Field Power

Adapter Status

DeviceNet Status

Subnet Status

1734-ADNX

Adapter Status Network Status

Subnet Status (includes PointBus status)

System Power Field Power

1734adnb

1 Publication 1734-UM002C-EN-P - July 2003

6-2 Troubleshooting the 1734-ADN(X) Adapter

Indicator: Indication: Probable Cause: Take This Action:

System Power Off Any of the following:

Use the table below to troubleshoot your adapter.

1. Not active

2. Field power is OFF

3. DC-DC converter problem

1. Check adapter configuration

2. Turn field power ON

3. Check DC-DC converter

Green Any of the following:

None

1. System power ON

2. DC-DC converter active (5V)

Field Power Off Any of the following:

1. Not active

2. Field power is OFF

1. Check adapter configuration

2. Turn field power ON

Green Power ON, 24V present None

Adapter Status Off No power applied to device Power the adapter

Green Device operating normally None Flashing Green Device needs to be

commissioned because

Check configuration and

recommission the adapter configuration is missing, incomplete or incorrect

Flashing Red Recoverable fault Make sure the adapter

does not need a FLASH

update

Red Unrecoverable fault may

Replace the adapter require device replacement

Flashing

Device is in self-test Wait for self-test to finish

Red/Green

Publication 1734-UM002C-EN-P - July 2003

Troubleshooting the 1734-ADN(X) Adapter 6-3

Indicator: Indication: Probable Cause: Take This Action:

Network Status Off Device is not online

- Device is autobauding

- Device has not completed dup_MAC_id test

- Device not powered

Check adapter status

indicator to determine if

more time is needed to

complete the dup_MAC_id

test or if the adapter needs

to be powered

Flashing Green Device is on-line but has no

None connections in the established state

Green Device on-line and has

None connections in the established state

Flashing Red One or more I/O

connections in timed-out state

Red Critical link failure - failed

communication device. Device detected error that

Determine the cause of the

time-out. The EPR may

need to be increased

Make sure the device is

using the correct MAC ID

and baudrate prevents it communicating on the network.

Subnet and PointBus Status

Off Device is not on-line

- Device has not completed Dup_MAC_ID test.

- Device not powered check module status indicator

Flashing Green Device is online but has no

connections in the established state

Green Device on-line and has

connections in the established state.

Flashing Red No scanlist is available.

I/O module is missing.

Red Critical link failure - failed

communication device. Device detected error that prevents it communicating on the network.

Check adapter status

indicator to determine if

more time is needed to

complete the dup_MAC_id

test or if the adapter needs

to be powered

None

Make sure all I/O modules

are connected and using

the correct MAC IDs.

Check “Cycling Node

Status” parameter in

RSNetWorx for DeviceNet.

Make sure an I/O module is

not using a MAC ID =0.

Make sure all backplane

modules are

communicating at the

proper baudrate.

Publication 1734-UM002C-EN-P - July 2003

6-4 Troubleshooting the 1734-ADN(X) Adapter

Guidelines for Using Your Adapter

Remember the following operational guidelines when using your 1734-ADN(X) adapter.

• Do not leave spaces in the I/O. Instead, install all POINT I/O

modules adjacent to each other.

IMPORTANT

• Populate every position on the DIN rail.

• Do not add new I/O modules to the end of the POINT I/O

system while the system is under power.

• Use both labels with the I/O modules and removable terminal

blocks (RTBs).

• Do not separate I/O modules and RTBs with the same number.

If you must leave an I/O space open temporarily, make sure you change the keying position on the mounting base (1734-MB) to #5. This position will prevent you from installing the wrong I/O module on the base.

Chapter Summary and What’s Next

• Do not move I/O modules to different locations on the DIN rail

after they have been installed and configured. You should always place modules with the matching RTB.

• If adjacent modules (i.e., 2 or more) are removed, replace all of

them to operate the POINT I/O system. Input data will hold last state until all previously-removed modules are replaced.

• Use Allen-Bradley marker cards to identify your POINT I/O

modules. The cards are easily ordered from your Rockwell Automation representative under the Bulletin 1492 number.

• Properly terminate the 1734-ADNX Subnet.

• Correctly set the Max Backplane MAC ID (1734-ADNX only).

In this chapter you learned how to troubleshoot your adapter. Move to Appendix A to see specifications for your adapter.

Publication 1734-UM002C-EN-P - July 2003

Appendix

Specifications

Specifications - 1734-ADN(X) DeviceNet Adapter Module Communication Interface Specifications

Expansion I/O Capacity Up to 13 modules (13 times 75mA = 0.975, just under

the limit of 1.0A). The actual number of modules can vary. Add up the current requirements of the modules you want to use to make sure they do not exceed the amperage limit of the 1734-ADN. (Note: Total expansion up to 63 modules - 13 modules maximum with 1734-ADN - add 1734-EP24DC modules for an additional 17 modules (or less based on current requirements), up to 63 module maximum) Cat. No. PointBus Current Requirements 1734-232ASC 75mA 1734-485ASC 75mA 1734-IB2 75mA 1734-IB4 75mA 1734-IV2 75mA 1734-IV4 75mA 1734-OB2E 75mA 1734-OB2EP 75mA 1734-OB4E 75mA 1734-OV2E 75mA 1734-OV4E 75mA 1734-OW2 80mA 1734-OX2 100mA 1734-IE2C 75mA 1734-OE2C 75mA 1734-IE2V 75mA 1734-OE2V 75mA 1734-IA2 75mA 1734-IM2 75mA 1734-OA2 75mA 1734-IJ2 160mA 1734-IK2 160mA 1734-IR2 220mA 1734-SSI 110mA 1734-IT2I 175mA 1734-VHSC5 180mA 1734-VHSC24 180mA

DeviceNet Communication Rate 125K bit/s (500m maximum)

250K bit/s (250m maximum) 500K bit/s (100m maximum)

DeviceNet Cable Allen-Bradley part number 1485C-P1-Cxxx

Refer to publication DN-2.5 for more information

Module Location Starter module - left side of 1734 system

1 Publication 1734-UM002C-EN-P - July 2003

A-2 Specifications

DeviceNet Power Specifications

Power Supply Note: In order to comply with CE Low Voltage

Directives (LVD), you must use a Safety Extra Low Voltage (SELV) or a Protected Extra Low Voltage

(PELV) power supply to power this adapter. Input Voltage Rating 24V dc nominal DeviceNet Input Voltage Range 11-25V dc DeviceNet specification Input Overvoltage Protection Reverse polarity protected DeviceNet Power Requirements 24V dc (+4% = 25V dc max) @ 30mA maximum

Power Supply Specifications

Power Supply

Note: In order to comply with CE Low Voltage

Directives (LVD), you must use either a NEC Class 2,

a Safety Extra Low Voltage (SELV) or a Protected

Extra Low Voltage (PELV) power supply to power this

adapter. A SELV supply cannot exceed 30V rms,

42.4V peak or 60V dc under normal conditions and

under single fault conditions. A PELV supply has the

same rating and is connected to protected earth. Input Voltage Rating 24V dc nominal

10-28.8V dc range Field Side Power Requirements 24V dc (+20% = 28.8V dc maximum) @ 400mA

maximum Inrush Current 6A maximum for 10ms PointBus Output Current 1A maximum @ 5V dc ±5% (4.75 - 5.25) Input Overvoltage Protection Reverse polarity protected Interruption Output voltage will stay within specifications when

input drops out for 10ms at 10V with maximum load.

General Specifications

Indicators 3 red/green status indicators

Adapter status

DeviceNet status

PointBus status

2 green power supply status indicators:

System Power (PointBus 5V power)

Field Power (24V from field supply) Power Consumption 8.1W maximum @ 28.8V dc Power Dissipation 2.8W maximum @ 28.8V Thermal Dissipation 9.5 BTU/hr maximum @ 28.8V dc Isolation Voltage 1250V rms/V ac Field Power Bus

Nominal Voltage Supply Voltage Range Supply Current

1. For the 1734-ADN, DeviceNet and user supplied power (I/O power) should be powered from separate

sources. For the 1734-ADNX, because there are three inputs, for CE purposes, the user supplied power must be separate from the other two (because of surge testing). DeviceNet and the Subnet can be powered from the same source.

24V dc

10-28.8V dc range,

10A maximum

Publication 1734-UM002C-EN-P - July 2003

Specifications A-3

Dimensions Inches

(Millimeters)

3.0H x 2.16W x 5.25L

(76.2H x 54.9W x 133.4L) Environmental Conditions

Operational Temperature Storage Temperature Relative Humidity ShockOperating

Non-operating

Vibration

Conductors Wire Size

-20 to 55oC (-4 to 131oF)

-40 to 85oC (-40 to 185oF)

5 to 95% noncondensing

30g peak acceleration, 11(±1)ms pulse width

50g peak acceleration, 11(±1)ms pulse width

Tested 5g @ 10-500Hz per IEC 68-2-6

14 AWG (2.5mm2) - 22 AWG (0.25mm2) solid or

stranded maximum

3/64 inch (1.2mm) insulation maximum

What’s In This Appendix?

Assumptions

In this Quick Start, you will learn how to use the 1734-ADNX with a ControlLogix system on DeviceNet. You will also use one of the 1734-ADNX’s features (Auto Start Mode) in an exercise to automatically configure devices on its Subnet

When you complete this quick start you will be familiar with:

• The 1734-ADNX as an adapter on the ControlLogix primary

DeviceNet network and as a scanner on the DeviceNet expansion Subnet.

• Configuring the 1734-ADNX with POINT I/O and additional

devices on its Subnet.

• Using and applying the correct termination of the 1734-ADNX’s

Subnet.

• Using the 1734-ADNX to expand the length of a DeviceNet

system

• Using the 1734-ADNX to implement a second baudrate for

Subnet devices.

A ControlLogix DeviceNet system already exists to which you are going to add new devices without modifying the existing system’s architecture. You are going to expand the length of the system beyond its maximum specification and add new devices which can operate at a different baudrate than the existing system.

The existing system attributes include:

• ControlLogix processor in a Logix chassis of 8 or more slots.

• 1756-ENBT (EtherNet/IP) in the Logix chassis.

• Configured to 125 Kbaud with thin trunk (max distance is 100m

(328 ft) (ControlLogix chassis may be connected on any DeviceNet network).

• ControlLogix Processor with a 1756-DNB (DeviceNet) in slot 8

(slot 8 was picked for this example. This can be any slot.)

1 Publication 1734-UM002C-EN-P - July 2003

B-2 1734-ADNX Quick Start

The new Subnet system attributes include:

• Most field devices are more than 100m from the ControlLogix

Processor

• Previously installed and documented at 500 Kbaud

• 1734-ADNX with discrete inputs and outputs for several field

devices

• DeviceNet Starter Auxiliary (DSA)

• DeviceNet RightSight Photoelectric Sensor

• The ability to be replicated several times in the future without

changing documentation. (i.e., devices will be replicated with same attributes, node addresses, etc.)

The existing devices will be wired to POINT I/O. The DSA and RightSight will be connected to the 1734-ADNX on the 1734-ADNX’s subsystem. This will allow them to run at the 500 Kbaud rate of the Subnet, at more than 100m from the ControlLogix Processor.

NetLinx will let you configure everything from your PC, using the 1756-ENBT module and a 1756-DNB. You will be able to connect from your computer over Ethernet to the ControlLogix backplane and configure both the primary (remember the 1734-ADNX will be a new node on this network) and Subnet network (the 1734-ADNX will be node 0 on this network).

When you have completed this exercise, you will be able to browse through the 1734-ADNX to see its backplane and the DSA and RightSight, using only the RSNetWorx for DeviceNet software package.

1. Open RSNetWorx for DeviceNet by double clicking the icon on your desktop.

2. From the RSNetWorx for DeviceNet main menu select File>New.

Publication 1734-UM002C-EN-P - July 2003

1734-ADNX Quick Start B-3

3. Select DeviceNet configuration.

4. Click OK.

Now that you have created a new DeviceNet project, go online by selecting the Online icon on the toolbar.

5. A list of the available drivers in RSLinx appears. Drill down from Ethernet into your ControlLogix project through the backplane to your 1756-DNB in slot 8. Select channel A, as shown below.

Your system may not be configured as illustrated. You must pick an Ethernet driver that is configured with the address of your ControlLogix 1756-ENBT bridge module.

The sticker on the front of your 1756-ENBT module identifies the IP address configured for your module.

6. Click OK to accept the path configuration.

7. Click OK to the prompt.

Publication 1734-UM002C-EN-P - July 2003

B-4 1734-ADNX Quick Start

RSNetWorx will go online. A screen similar to the one below will appear:

8. After the browse is complete, from the RSNetWorx for DeviceNet main menu select File>Save As.

9. Type in MainNetwork (use this exact name to avoid confusion later) as the filename.

10. Click Save.

You see a screen similar to the following:.

Your system may not look like the above system. (You may have more or less nodes.) It is only important to verify that you have the 1756-DNB at node 0 and the 1734-ADNX at note 16.

On the main network, the 1734-ADNX acts as an adapter.

• The dials on the front of the 1734-ADNX should be set to

node 16.

• Verify your browse reported the 1734-ADNX at node 16.

• Later you will browse deeper to see the Subnet. (Note that on

the Subnet, the 1734-ADNX acts as a scanner and is always at node 0 on that network.)

11. Download a blank scanlist to the 1756-DNB. a. You do not want the existing program in our Logix processors

to interfere with clearing the scanlist. To ensure that this does not occur, use the key switch to put

all the processors in program mode then back to remote program (turn the keys right then back to the middle position).

b. Double click the 1756-DNB to bring up its properties page.

Publication 1734-UM002C-EN-P - July 2003

1734-ADNX Quick Start B-5

c. Select the scanlist tab and when prompted click Download.

12. When the download is complete, add the 1734-ADNX to the

scanlist by selecting the 1734-ADNX (node 16) and clicking the single right arrow.

A warning window opens that says that the 1734-ADNX does not contain any I/O data.

At this point, RSNetWorx for DeviceNet does not know how many bytes of data are being inputted and outputted to the Subnet so it cannot fill in the values for you.

13. Press OK to close the Warning window.

14. To verify that there are no data for input and outputs, click the

1734-ADNX in the Scanlist window.

Publication 1734-UM002C-EN-P - July 2003

B-6 1734-ADNX Quick Start

15. Click Edit I/O Parameters.

Click the 1734-ADNX in the Scanlist and then click Edit I/O Parameters to verify input and output bytes.

16. Verify that nothing is filled in for input and output sizes (both are zero). If you knew how much data was being produced and consumed on the Subnet, you could fill these fields in manually. Because it is easier to let RSNetWorx for DeviceNet fill in these values for us, Click Cancel to close this window.

Publication 1734-UM002C-EN-P - July 2003

1734-ADNX Quick Start B-7

17. Remove the 1734-ADNX from the scanlist for now by clicking the double arrows.

Click the double left arrow to remove the 1734-ADNX from the Scanlist. Then verify that the Scanlist is empty. You will return here later after RSNetWorx for DeviceNet knows more about the devices on the Subnet.

18. Click OK. When prompted if you want to download changes to the device, click Yes.

At this point you have a choice:

• You could start another instance of RSNetWorx for DeviceNet

and configure the Subnet. You would then see the 1734-ADNX at node 0 on the Subnet and add the POINT I/O, DSA, and photoswitch to its scanlist. You would then map the data to the exact location you want it. For example, if someone had already written ladder logic and needed the photoswitch input at a particular address, you would map it to that address.

• If you have not written your ladder logic yet and you are not

particular about the mapping, you could use the auto start feature of the 1734-ADNX to map all the devices automatically from the primary network. After the mapping is complete, look at the Subnet to verify that everything worked as expected.

19. Verify that the subnetwork taps are electrically isolated and have their own terminating resistors at each end (4 taps: ADNX-0, DSA-20, RightSight-22, and Power with termination resistors at each end).

IMPORTANT

The Subnet must always be properly terminated. In this example there is a terminating resistor at each end of the tap string.

Publication 1734-UM002C-EN-P - July 2003

B-8 1734-ADNX Quick Start

If you are not going to use the subnet, you must still terminate it! You can use the connector provided with the 1734-ADNX and connect two resistors between the white and blue positions.

20475w-res

• Termination resistors are 121 Ohms, 1/4 Watt, 1%, Rockwell

part number 1785A-C2.

• Do not use carbon resistors. Metal film is recommended.

Continue ONLY after You have verified that the taps are terminated correctly.

20. Double click on the 1734-ADNX to open the properties window. In the next step you will download the EDS defaults to the 1734-ADNX.

21. Select the parameter tab and choose Download.

Publication 1734-UM002C-EN-P - July 2003

1734-ADNX Quick Start B-9

22. Verify that your screen looks similiar to the following screen:

Review of the 1734-ADNX Rules and the MAC ID Parameter

To understand some of the MAC ID parameters, you should review some of the rules for using the 1734-ADNX.

• The 1734-ADNX always has address 0 on the Subnet.

• All POINT I/O backplane module MAC IDs must be numerically

less than those of non-backplane Subnet modules (for our example, the POINT I/O node numbers must be less than the DSA and photoswitch).

• Each backplane module’s MAC ID must be greater than that of

its left neighboring module.

Publication 1734-UM002C-EN-P - July 2003

B-10 1734-ADNX Quick Start

• A unique attribute, Max(imum) Backplane MACID has been

added to 1734-ADNX. This value represents the highest node address of a module residing on the backplane. This value must be greater than or equal to the rightmost backplane POINT I/O module,

but must be less than that of any non-backplane Subnet module. You select this value to allow for the future addition of backplane modules. The attribute’s default value is 31, representing the middle of the address range (The DSA is already at a node number less than 31, so you will be required to lower this number in a later step).

• The 1734-ADNX will automatically maintain the MAC IDs of the

backplane modules.

• Note that the assignment of the MAC IDs of the non-backplane

Subnet modules is manual and is not performed or retained by the 1734-ADNX.

• The 1734-ADNX supports 125kb, 250kb, and 500kb baudrates.

For this example, you are going to set the Subnet to 500 kb.

When using Auto Start Mode, the adapter:

• Sets all POINT I/O modules on the backplane to Auto Baud

• Reads all POINT I/O module IDs on the backplane

• Sets the POINT I/O module addresses sequentially

• Set the Max Backplane MACID

• Generates a scanlist for the backplane

• Maps automatically I/O data, based on byte (I/O data is

mapped in the adapter’s memory at the next available byte),

word (I/O data is mapped at the next available word), double-word (I/O data is mapped at the next available double

word) boundaries or the data is mapped to a fixed allocation size. You will choose one of these four options from a drop down menu later in this Quick Start

IMPORTANT

Your 1734-ADNX DeviceNet adapter must be free of I/O connections when you use Auto Start Mode. If another scanner device has established I/O connections with the adapter (if it is mapped in another scanner’s scanlist), the attempt to use Auto Start Mode is rejected. Also, when the adapter is configuring itself in Auto Start Mode, no other device can establish I/O connections to the adapter.

Publication 1734-UM002C-EN-P - July 2003

1734-ADNX Quick Start B-11

When the adapter completes this sequence of events, the POINT I/O modules connected to the adapter are ready to accept connections from a scanner.

IMPORTANT

Although Auto Start Mode lets your adapter (1734-ADNX) operate with a default configuration, you can choose to manually change the configuration after operation has begun or you can write a custom configuration.

When Auto Start Mode is used, the adapter and connected I/O modules go through the following sequence of events:

• Connections are established to I/O modules

• The adapter makes Change of State (COS) connections if the I/O

module supports COS, if not, the connection is Polled

• Data is mapped to the connections

The notes above explain parameter 1 – Max Backplane MACID. Next you will review parameter 6 and 7.

Review of Auto Start Mode

1. Select parameter 6, then click the help icon to display information about Auto Start Mode.

Publication 1734-UM002C-EN-P - July 2003

B-12 1734-ADNX Quick Start

A window describing Auto Start Mode opens.

Right now, the 1734-ADNX is not in another scanner’s scanlist so you can use the Auto Start Mode feature. By using Auto Start Mode, the 1734-ADNX will map all the devices on the Subnet and automatically adjust the value for parameters 1, 9, 10, 11, and 12.

2. Select the dropdown box next to parameter 6. You can map the data using the four options discussed earlier. If you choose to use the Map Data with Fixed Map Size option, the map size is selected with parameter 7.

3. For this example, choose Map Data to Word Boundaries as shown below:

Publication 1734-UM002C-EN-P - July 2003

1734-ADNX Quick Start B-13

Notice that parameters 9, 10, 11 and 12 are still at their default of 2 bytes. These values will be filled out for you when this action is complete.

Download parameters to the device

Monitor icon

4. Make sure All is selected then click the icon to download parameters to the device (this triggers the Auto Start Mode).

5. Click the Monitor icon and notice:

• Parameter 6 has gone back to "Do Nothing". The Auto Start

has begun and will not repeat unless you trigger it again later.

• Parameter 8 indicates you are in Auto Start Mode. Give the

system at least a minute or two to complete the configuration you requested then go to the next step.

6. Wait for parameter 8 to return to idle. Then click the Monitor icon to end Monitoring. Notice the following:

• Parameter 1 has been filled in for you. There are two POINT

I/O modules in the backplane, causing the default to change from 31 to 2.

Publication 1734-UM002C-EN-P - July 2003

B-14 1734-ADNX Quick Start

• Parameter 3: Verify the Backplane Baudrate is 500 Kbaud.

If it is not, you will need to find out why and make the necessary corrections.

• Parameter 9, 10 11 and 12 have been filled in for you.

Expand the column to view all the text.

Consume size is data that the adapter will consume from the scanner. These are the outputs being sent from the scanner to the POINT I/O adapter.

Produce size is data the 1734-ADNX adapter will produce for the 1756-DNB scanner. This will be discussed in more detail later in this section.

Publication 1734-UM002C-EN-P - July 2003

Note: You do not need to view the Subnet to determine where the data has been mapped. You can go back to monitor mode and view parameter 14. The help for this parameter states how to use the parameter to determine mapping.

7. Press OK to close this window.

8. From the RSNetWorx for DeviceNet main menu, select

File>Save.

IMPORTANT

You must save your work before moving on.

1734-ADNX Quick Start B-15

Browse the Subnet

Look at the Subnet at this point to make things more clear.

1. From the RSNetWorx for DeviceNet main menu, select File>New and then select DeviceNet Configuration.

2. Click OK.

Now that you have a new DeviceNet project created.

3. Click the Online icon.

Last time you browsed to the 1756-DNB. This time you will browse a little deeper.

4. Drill down from Ethernet into your ControlLogix demo box through the backplane to your 1756-DNB in slot 8, channel A, 1734-ADNX and select DeviceNet Subnet as shown below:

Last time you browsed the main network This time we will browse the Subnet

5. To go online, click OK to accept the path configuration and then OK to the prompt.

Wait for the browse to complete.

Publication 1734-UM002C-EN-P - July 2003

B-16 1734-ADNX Quick Start

6. From the RSNetWorx for DeviceNet main menu, select

File>Save As.

7. Type in SubNet as the filename.

8. Click Save.

IMPORTANT

You must save your work before continuing.

9. Verify your screen appears as shown below.

The nodes can be in any order. Verify:

• All five are there

• They have the correct node numbers

On the Subnet, the 1734-ADNX is a scanner and it is always at node 0. It is OK for some or all of the node numbers on the Subnet to be the same as devices on the primary network. Because they are two different networks, duplicate node errors will not occur. The 1734-ADNX will communicate back to the 1756-DNB scanner as a single entity (only taking up one node number on the main network).

Publication 1734-UM002C-EN-P - July 2003

10. To view the configuration you just created, Upload the scanlist from the 1734-ADNX. Double click on the 1734-ADNX to bring up its properties page.

11. Select the scanlist tab and when prompted select Upload.

1734-ADNX Quick Start B-17

Make sure you click Upload! You do not download over the configuration you just created.

12. When the upload is complete, select the scanlist tab.

• Verify your scanlist matches that shown below.

want to

• Notice that all the POINT I/O, the DSA, and the RightSight

have been added to the scanlist as you probably expected.

You are about to look at the input and output tabs. Based on your selections earlier, all the data should be mapped to word boundaries.

Publication 1734-UM002C-EN-P - July 2003

B-18 1734-ADNX Quick Start

Inputs and Outputs

1. Select the Input tab. A single word is 16 bits. Notice that the mapping is as expected.

• The first two bytes (1 byte = 8 bits) are reserved as read only.

• The first word is completely used, so the 1734-IB4 can map to

the beginning of the next word (Byte 2, bit 0).

• There is a space between the 1734-IB4 and the 1734-OB4E

because the next word does not start until Byte 4. The same is true for the DSA and the RightSight.

This field describes how the data is transferred between the I/O modules and the adapter on the PointBus Subnet.

The current memory buffer selected is COS/Cyclic. There are also buffers for Polled and Strobed. This is how the data will be transferred to the scanner (1756-DNB in this example).

Note the mapping in the 1734-ADNX Scanner is shown in byte increments. The 1756-DNB displays in double words (4 bytes).

Use the scroll bar as needed to see all of the data.

The first 2 bytes are reserved for status.

Scroll down and notice that bytes 0 through 8 = 9 bytes total were enough for the input data.

Publication 1734-UM002C-EN-P - July 2003

1734-ADNX Quick Start B-19

This matches what you observed earlier on the main network:

Earlier view of the parameters.

The primary network knew you were producing 9 bytes of data.

• The data mapped in the 1734-ADNX will be exchanged with the

1756-DNB scanner.

• There are three memory buffers that the 1734-ADNX uses for

input data to the scanner on DeviceNet. The buffers are Cos/Cyclic, Polled, and Strobed. You can map data into any of the three buffer areas on the adapter.

• Currently, all of the I/O modules are mapped to the Cos/Cyclic

buffer.

2. Select the dropdown listbox next to the Memory label in the middle of the window to display the three memory buffer choices.

3. Select each of the choices and view the mapping. You will see that only the Cos/Cyclic buffer is being used (There are 2 bytes reserved for status in each buffer. These words are not for a specific module.)

4. Set the Memory selection back to Cos/Cyclic.

Publication 1734-UM002C-EN-P - July 2003

B-20 1734-ADNX Quick Start

Note that for the 1734-ADNX, each line in the mapping area represents a byte of data. When you view the 1756-DNB, each line will be 4 bytes of data (double word).

Now you are ready to take a look at the output side. Based on the numbers you saw on the main network you expect to see 5 bytes (two of them are going to be reserved status words).

Earlier view of the parameters.

Publication 1734-UM002C-EN-P - July 2003

Rockwell Automation 1734-ADNX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important User Information

Summary of Changes

Using Change Bars

New and Revised Information

Preface

Purpose of this Manual

Who Should Use This Manual

What the Manual Contains

Related Terms

Guidelines for Using Your Adapter

Conventions Used In This Manual

Table of Contents

Installing the Adapter

Installing a Replacement DeviceNet Adapter in an Existing System

Wiring the Adapter

Chapter Summary and What’s Next

Using the Adapter

Understanding the DeviceNet Network and Subnet

Adapter Features

Communicating Through the Adapter

Communicating with I/O Modules

Using Diagnostic Tables

Chapter Summary and What’s Next

Why Use Auto Start Mode?

Installing the Adapter

Wiring the Adapter

Installing the I/O Modules

Adding Non-Backplane Modules to Subnet (1734-ADNX Only)

Using RSNetWorx for DeviceNet

Beginning Auto Start Mode

Using Custom Configuration

Chapter Summary and What’s Next

Configuration Overview

Chapter Summary and What’s Next

Configuration Overview

Chapter Summary and What’s Next

Use the Status Indicators

Guidelines for Using Your Adapter

Chapter Summary and What’s Next

What’s In This Appendix?

Assumptions

Review of the 1734-ADNX Rules and the MAC ID Parameter
