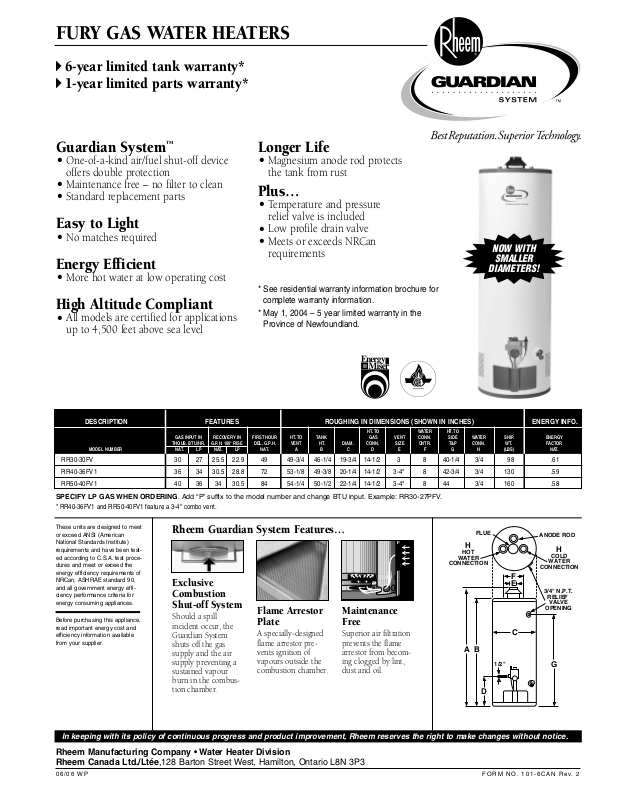

FURY GAS WATER HEATERS
6-year limited tank warranty*
1-year limited parts warranty*
Guardian System™
•One-of-a-kind air/fuel shut-off device offers double protection
•Maintenance free – no filter to clean
•Standard replacement parts
Easy to Light
• No matches required
Energy Efficient
• More hot water at low operating cost
High Altitude Compliant
•All models are certified for applications up to 4,500 feet above sea level
Longer Life
•Magnesium anode rod protects the tank from rust
Plus…
•Temperature and pressure relief valve is included
•Low profile drain valve
•Meets or exceeds NRCan requirements
*See residential warranty information brochure for complete warranty information.
*May 1, 2004 – 5 year limited warranty in the Province of Newfoundland.
®
NOW WITH
SMALLER
DIAMETERS!
DESCRIPTION |
|
|
FEATURES |
|
|
ROUGHING IN DIMENSIONS (SHOWN IN INCHES) |
|
ENERGY INFO. |
||||||||
|
|
|
|
|
|
|
|
|
|
HT. TO |
|
WATER |
HT. TO |
|
|
|
|
GAS INPUT IN |
|
RECOVERY IN |
FIRST HOUR |
HT. TO |
TANK |
|
GAS |
VENT |
CONN. |
SIDE |
WATER |
SHIP. |
ENERGY |
||
|
THOUS. BTU/HR. |
|
G.P.H. 100° RISE |
DEL. G.P.H. |
VENT |
HT. |
DIAM. |
CONN. |
SIZE |
CNTR. |
T&P |
CONN. |
WT. |
FACTOR |
||
MODEL NUMBER |
NAT. |
LP |
|
NAT. |
LP |
NAT. |
A |
B |
C |
D |
E |
F |
G |
H |
(LBS) |
NAT. |
RR30-30FV |
30 |
27 |
|
25.5 |
22.9 |
49 |
49-3/4 |
46-1/4 |
19-3/4 |
14-1/2 |
3 |
8 |
40-1/4 |
3/4 |
98 |
.61 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RR40-36FV1 |
36 |
34 |
|
30.5 |
28.8 |
72 |
53-1/8 |
49-3/8 |
20-1/4 |
14-1/2 |
3-4* |
8 |
42-3/4 |
3/4 |
130 |
.59 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RR50-40FV1 |
40 |
36 |
|
34 |
30.5 |
84 |
54-1/4 |
50-1/2 |
22-1/4 |
14-1/2 |
3-4* |
8 |
44 |
3/4 |
160 |
.58 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SPECIFY LP GAS WHEN ORDERING. Add “P” suffix to the model number and change BTU input. Example: RR30-27PFV. * RR40-36FV1 and RR50-40FV1 feature a 3-4" combo vent.
These units are designed to meet or exceed ANSI (American National Standards Institute) requirements and have been tested according to C.S.A. test procedures and meet or exceed the energy efficiency requirements of NRCan, ASHRAE standard 90, and all government energy efficiency performance criteria for energy consuming appliances.
Before purchasing this appliance, read important energy cost and efficiency information available from your supplier.
Rheem Guardian System Features…
Exclusive Combustion Shut-off System
Should a spill incident occur, the Guardian System shuts off the gas supply and the air supply preventing a sustained vapour burn in the combustion chamber.
Flame Arrestor Plate
A specially-designed flame arrestor prevents ignition of vapours outside the combustion chamber.
Maintenance Free
Superior air filtration prevents the flame arrestor from becoming clogged by lint, dust and oil.
FLUE |
ANODE ROD |
|
H |
H |
|
HOT |
||
WATER |
COLD |
|
WATER |
||
CONNECTION |
||
CONNECTION |
||
|
||
|
F |
|
|
E |
|
|
3/4" N.P.T. |
|
|
RELIEF |
|
|
VALVE |
|
|
OPENING |
C
A B
1/2" G
D
In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.
Rheem Manufacturing Company • Water Heater Division
Rheem Canada Ltd./Ltée,128 Barton Street West, Hamilton, Ontario L8N 3P3
