Use & Care Manual
With Installation Instructions for the Installer
Electric
Water Heaters
Single and Double Element Models,
15–50 Gallon
The purpose of this manual is twofold: one, to provide the installer with the basic
directions and recommendations for the proper installation and adjustment of the water heater;
and two, for the owner–operator, to explain the features, operation, safety precautions,
maintenance and troubleshooting of the water
heater. This manual also includes a parts list.
It is imperative that all persons who are expected to install, operate or adjust this
water heater read the instructions carefully so they may understand how to perform these operations. If you do not understand
these instructions or any terms within it, seek
professional advice.
Any questions regarding the operation, maintenance, service or warranty of this water heater should be directed to the seller from whom it was purchased. If additional information is required, refer to the warranty.
Do not destroy this manual. Please read carefully and keep in a safe place for future reference.
Recognize this symbol as an ! indication of Important Safety
Information!
! California Proposition 65 Warning:
This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
AP17947-2 (12/17)
Safety Information
Safety Precautions. . . . 3, 4
Installation Instructions
Location. . |
. . . . . |
. . |
5 |
Water Connections . . |
. . |
. 8 |
|
Electrical Connections. |
. . . . |
10 |
|
Wiring Diagram . . . . |
|
11 |
|
Operating Instructions
Safety Controls . . . . . . 14
Water Temperature . . . . .14
Care and Cleaning
Draining. . . . . . . . . 16
Maintenance. . . . . . 16
Extended Shut-Down. . . 16
Troubleshooting Tips
Before You Call
For Service.. . . . . . . 17
Customer Service |
|
|
Parts List. . . . . . . . |
|
18 |
Replacement Parts. . . |
19, 20 |
|
Element Replacement. . |
. |
21 |
Warranty.. . . . . . . |
22-24 |
|

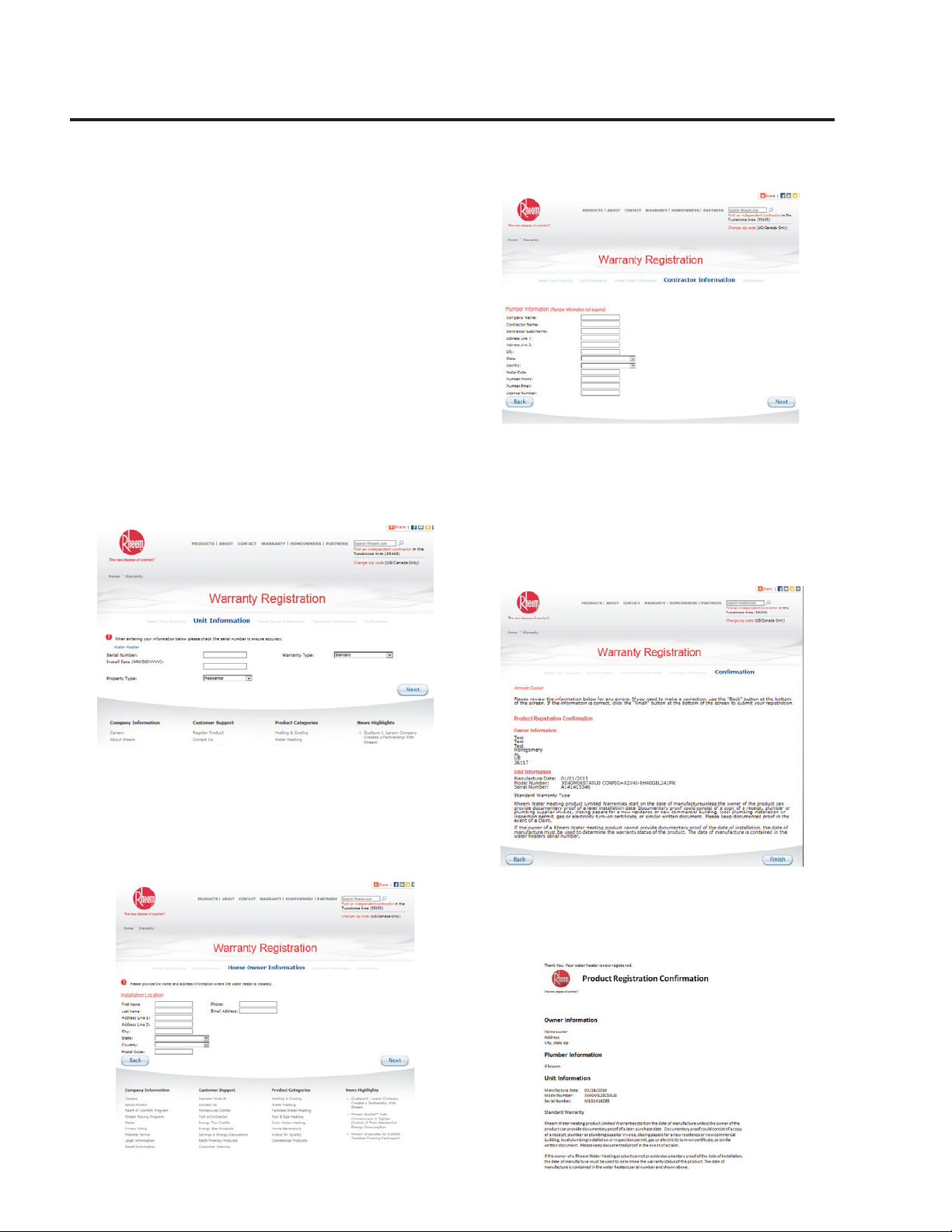

How To Register. . . . |
24-25 |
|
If You Need Service . . |
. |
. 28 |
FOR YOUR RECORDS
Write the model, serial numbers, and installation details on the back cover of the manual.
This information is located on the rating plate (silver label) on the unit.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service under the warranty.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your water heater properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your water heater.
You’ll find many answers to common problems in the Before You Call For Service section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.
READ THE SAFETY INFORMATION
Your safety and the safety of others are very important. There are many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. Recognize this symbol ! as an indication of Important Safety Information!
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING”, “CAUTION” or “NOTICE”.
These words mean:
! |
DANGER |
An imminently hazardous situation |
|
|
that will result in death or serious |
|
WARNING |
injury. |
! |
A potentially hazardous situation that |
|
|
|
could result in death or serious injury |
|
CAUTION |
and/or damage to property. |
! |
A potentially hazardous situation that |
|
|
|
may result in minor or moderate |
|
|
injury. |
NOTICE: |
Attention is called to observe a |
|
|
|
specified procedure or maintain |
a specific condition.
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
DANGER!
WATER TEMPERATURE SETTING
Safety and energy conservation are factors to be considered when selecting the water temperature setting of water heater’s thermostat. Contact (such as at the water use fixture) with water temperatures above 125°F (51°C) can cause severe burns or death from scalding. Be sure to read and follow the warnings outlined on the label pictured below. This label is also located on the water heater near the thermostat access panel.
! D A N G E R
HOT
BURN
Water temperature over 125°F can cause severe burns instantly or death from scalds.
Children, disabled and elderly are at highest risk of being scalded.
See instruction manual before setting temperature at water heater.
Feel water before bathing or showering.
Temperature limiting valves are available, see manual.
NOTICE: Mixing valves are recommended for reducing point of use water temperature by mixing hot and
cold water in branch water lines. It is recommended that a mixing valve complying with the Standard for Temperature Actuated Mixing Valves for Hot Water Distribution Systems, ASSE 1017 be installed. See page 14 for more details and contact a licensed plumber or the local plumbing authority for further information.
Time/Temperature Relationship in Scalds
Temperature |
Time To Produce a Serious Burn |
120°F (49°C) |
More than 5 minutes |
125°F (51°C) |
1½ to 2 minutes |
130°F (54°C) |
About 30 seconds |
135°F (57°C) |
About 10 seconds |
140°F (60°C) |
Less than 5 seconds |
145°F (63°C) |
Less than 3 seconds |
150°F (66°C) |
About 1½ seconds |
155°F (68°C) |
About 1 second |
Table courtesy of Shriners Burn Institute
The chart shown above may be used as a guide
in determining the proper water temperature for your home.
! DANGER: Households with small children, disabled, or elderly persons may require a 120°F (49°C) or lower thermostat setting to prevent contact with “HOT” water.
The temperature of the water in the heater is regulated by the adjustable surface mounted thermostat(s) located behind the jacket access panel(s). Dual element heaters have two thermostats. To comply with industry standards the thermostat(s) were set at 120°F before the water heater was shipped from the factory. Canadian models are set to 140°F (60°C).
Reset button |
Thermostat dial |
pointer |
Thermostat protective
cover
The illustration at the left shows the temperature adjustment dial used for setting the water temperature.
Refer to the Operating Instructions in this manual for detailed instructions in how to adjust the thermostat(s).
!DANGER: Hotter water increases the potential for Hot Water SCALDS.
3
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this water heater. It may save you time and cost. Pay particular attention to the Safety Instructions. Failure to follow these warnings could result in
serious bodily injury or death. Should you have problems understanding the instructions in this manual, or have any questions, STOP, and get help from a qualified service technician, or the local electric utility.
FOR INSTALLATIONS IN THE STATE OF CALIFORNIA
California Law requires that residential water heaters must be braced, anchored or strapped to resist falling or horizontal displacement due to earthquake motions. For residential water heaters up to 52 gallon capacity, a brochure with generic earthquake bracing instructions can be obtained from: Office of the State Architect, 1102 Q Street, Suite 5100, Sacramento, CA 95811 or you may call 916-445-8100 or ask a water heater dealer.
However, applicable local codes shall govern installation. For residential water heaters
of a capacity greater than 52 gallons, consult the local building jurisdiction for acceptable bracing procedures.
SAFETY PRECAUTIONS
Have the installer show you the location of the circuit breaker and how to shut it off if necessary. Turn off the circuit breaker if the water heater has been subjected to overheating, fire, flood, physical damage or if the ECO (Emergency Cut Off) on the thermostat fails to shut off.
●Read this manual entirely before installing or operating the water heater.
●Use this appliance only for its intended purpose as described in this Use and Care Manual.
●Be sure your appliance is properly installed in accordance with local codes and the provided installation instructions.
●DO NOT attempt to repair or replace
any part of your water heater unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
●All replacement parts used on this product must be manufacturer authorized components.
●DO NOT turn on the electrical supply or operate this water heater unless it is completely full of water.
READ AND FOLLOW THIS SAFETY INFORMATION
CAREFULLY.
SAVE THESE INSTRUCTIONS
4
Installing the water heater.
Local Installation Regulations
This water heater must be installed in accordance with these instructions, local codes, utility codes, utility company requirements or, in the absence of local codes, the latest edition of the National Electrical Code. It is available from some local libraries or can be purchased from the National Fire Protection Association, Batterymarch Park, Quincy, MA 02269 as booklet ANSI/NFPA 70.
If the water heater is to be installed in a restaurant, or other location where NSF International listing is required, it must
be weather sealed to the floor, a raised base, or on a shelf so that seepage cannot accumulate under it; or elevated to provide at least (6) inches of clearance from the floor.
In order to meet NSF International requirements for Standard 5, the base of the water heater must be sealed to the floor to prevent seepage underneath. Apply a 3/8" bead of RTV Silicone completely around the floor edge of the base of the tank.
The location chosen for the water heater must take into consideration the following:
NOTICE: DO NOT use fittings on top of the unit as handles or lift points.
Location
Locate the water heater in a clean dry area as near as practical to the area of greatest heated water demand. Long un-insulated hot water lines can waste energy and water.
Place the water heater in such a manner that the thermostat and element access panels can be removed to permit inspection and servicing such as removal of elements or checking controls.
The water heater and water lines should be protected from freezing temperatures.
DO NOT install the water heater in outdoor, unprotected areas or near any other appliances where high temperatures are present, such as wood burning stoves, boilers, or furnaces. High temperatures can warp or otherwise damage the nonmetallic construction of this water heater.
Make certain the floor underneath the water heater is strong enough to sufficiently support the weight of the
water heater once it is filled with water.
Unit |
Unit |
Dimensions (Inches) |
Shipping |
Approximate |
||
Capacity |
Capacity |
|
|
Weight |
Full Weight |
|
(Gallons) |
(Imperial Gallons) |
Height 1 |
Diameter |
(lbs) |
(lbs) |
|
15 |
13 |
35 5/8 |
21 5/8 |
58 |
183 |
|
20 |
17 |
34 1/2 |
23 1/2 |
61 |
228 |
|
30 |
25 |
53 |
21 5/8 |
75 |
325 |
|
40 |
33 |
65 1/2 |
21 5/8 |
90 |
424 |
|
50 |
42 |
66 3/4 |
23 1/2 |
100 |
517 |
|
50S |
47 1/4 |
28 1/4 |
95 |
512 |
||
|
||||||
1 Height includes factory installed Temperature and Pressure Relief Valve.
5
Installing the water heater.
Thermal Expansion
Determine if a check valve exists in the inlet water line. Check with your local water utility. It may have been installed in the cold water line as a separate back flow preventer, or it may be part of a pressure reducing valve, water meter or water softener. A check valve located in the cold water inlet line can cause what is referred to as a “closed water system”. A cold water inlet line with no check valve or back flow prevention device is referred to as an “open” water system.
As water is heated, it expands in volume and creates an increase in the pressure within the water system. This action is referred to as “thermal expansion”. In an “open” water
system, expanding water which exceeds the capacity of the water heater flows back into the city main where the pressure is easily dissipated.
A “closed water system”, however, prevents the expanding water from flowing back into the main supply line, and the result of “thermal expansion” can create a rapid and dangerous pressure increase in the water heater
and system piping. This rapid pressure increase can quickly reach the safety setting of the relief valve, causing it to operate during each heating cycle. Thermal expansion, and the resulting rapid and repeated expansion and contraction of components in the water heater and piping system can cause premature failure of the relief valve,
and possibly the heater itself. Replacing the relief valve will not correct the problem!
The suggested method of controlling thermal expansion is to install an expansion tank in the cold water line between the water heater and the check valve (refer to the illustration on page 9). The expansion tank is designed with an air cushion built in that compresses as the system pressure increases, thereby relieving the over pressure condition and eliminating the repeated operation of the relief valve. Other methods of controlling thermal expansion are also available. Contact
your installing contractor, water supplier or plumbing inspector for additional information regarding this subject.
Inspect Water Heater
Inspect the water heater for possible damage. Check the markings on the rating plate of the water heater to be certain the power supply corresponds to the water heater requirements.
NOTICE: DO NOT operate the unit without the vacuum relief valve for any reason.
Doing so will void the manufacturer’s warranty.
Vacuum Relief Valve
The vacuum relief valve, which must be used when installing the water heater, is factory installed.
The cold water inlet has a vacuum relief valve connected to it. Certain conditions in the field may produce a vacuum or negative pressure condition inside the water heater’s tank. This negative pressure can cause the tank to fail. The vacuum relief valve provides
a means to eliminate the negative pressure or vacuum by admitting air into the tank to equalize the pressure.
It is not recommended to pull a vacuum on the unit.
If a vacuum is pulled on the unit, refer to the "To Fill the Water Heater" section to ensure the unit is full of water before operating.
6
A new combination temperature and pressure relief valve, complying with the Standard for Relief Valves for Hot Water Supply Systems, ANSI Z21.22, is supplied and must be installed in the opening provided and marked for the purpose on the water heater. No valve of any type should be installed between the relief valve and the tank. Local codes shall govern the installation of relief valves.
Temperature and Pressure Relief Valve
! WARNING: The pressure rating of the relief valve must not exceed 150 psi, (1034 kPa), the maximum working pressure of the water heater as marked on the rating plate.
The BTUH rating of the relief valve must not be less than the input rating of the water heater as indicated on the rating label located on the front of the heater
(1 watt=3.412 btu/h).
Connect the outlet of the relief valve to a suitable open drain so that the discharge water cannot contact live electrical parts or persons and to eliminate potential water damage.
Piping used should be of a type approved for hot water distribution. The discharge line must be no smaller than the outlet of the valve and must pitch downward from the valve to allow complete drainage (by gravity) of the relief valve and discharge line. The end of the discharge line should not be threaded or concealed and should be protected from freezing. No valve of any type, restriction or reducer coupling should be installed in the discharge line.
NOTICE: Auxiliary catch pan MUST conform to local codes.
NOTICE: Water heater must be centered in drain pan.
Drain Pan
The water heater should not be located in an area where leakage of the tank or connections will result in damage to the area adjacent to it or to lower floors of the structure. Where such areas cannot be avoided, it is recommended that a suitable drain pan, adequately drained, be installed under the water heater.
Under no circumstance will the manufacturer be held liable for any water damage in connection with this water heater.
Drain pan kits are available from the store where the water heater was purchased, or any water heater distributor.
B = Max 2″
B
A = Diameter of water heater
plus 2″ min. A
To open drain, this line should be at least 3/4″ ID and pitched for proper drainage.
7
Installing the water heater.
Water Supply Connections
NOTICE: DO NOT attempt to turn any fitting connected to the water heater union hex nuts that are tightened.
NOTICE: The hex nut connections on the units use rubber seal rings to provide the water tight seal. DO NOT use pipe sealant on this joint. DO NOT torque the union hex nuts to over 35 ft-lbs when reinstalling the components.
SOLDER WITH CARE!!!
If sweat connections are used, DO NOT apply heat directly to any component directly connected to the water heater. Assemblies should be built to a minimum length of 12” before attaching to any connection on the water heater to avoid damaging the unit.
! WARNING: Failure to follow the instructions provided in this manual may permanently damage
the unit and void the manufacturer’s warranty.
Refer to the illustration on the next page for suggested typical installation. The installation of unions or flexible connectors is recommended on the hot and cold water connections so that the water heater may be easily disconnected
for servicing if necessary. If flexible water connections are used, the must comply with the standard for flexible Water Connectors, ASME A112.18.6/ CSA-B125.6. The HOT and COLD water connections are clearly marked on the water heater. Install a shutoff valve in the cold water line near the water heater. Refer to the following illustration for suggested typical installation.
The hot water connection is provided with a ¾” or 1” connection depending on the size of the unit. A metal fitting should be used for the
connection to the unit at this location. The hot water connection contains a plastic cap to contain a rubber seal ring that is used to form a water tight connection. Take care when removing the plastic cap so the rubber seal ring is not lost. Be sure the rubber seal ring is seated inside the union hex nut before making the final connection. DO NOT use pipe sealant on this joint. DO NOT torque the union
hex nuts to over 35 ft-lbs when reinstalling the components.
The cold water connection and the temperature and pressure relief valve are supplied with ¾” NPT
connections. They may be temporarily disconnected from the unit to ease installation by loosening the union hex nuts connecting the fittings to the unit. The connection of these parts to the unit use rubber seal rings to form a water tight connection. Re-use the rubber seal rings that are provided with the unit when re-installing these components. Follow the instructions listed for the hot water connection to reconnect the union hex nuts.
Rubber |
Seal |
Ring |
Minimum Dimension
3/4” Connection: 0.725”
1” Connection: 0.920”
Hex Union
Nut
The hot water connection fitting must have an inside diameter greater than the minimum shown in the picture above.
! WARNING: DO NOT turn on the electrical supply or operate this water heater unless it is completely full of water.The tank must be full of water before heater is turned on. The water heater warranty does not cover damage or failure resulting from operation with an empty or partially empty tank.
To Fill the Water Heater
Make certain the drain valve on the water heater is completely closed.
Open the shut-off valve in the cold water supply line.
Open each hot water faucet slowly to allow the air to vent from the water heater and piping.
A steady flow of water from the hot water faucet(s) indicates a full water heater.
8
Typical Installation
|
Pre-solder 12" minimum |
|
|
stub pipes before |
|
|
installing to unit. |
|
Temperature & Pressure |
|
|
Relief Valve |
Hot Water Outlet |
|
|
|
|
Seal Ring (Inside nut)
Hex Union Nut
(Relief Valve)
Top of Water Heater
Junction Box
Cold Inlet
Shut Off
Support the relief valve drain pipe using metal strapping or wire fastened to the structure
overhead
Heat Trap 6" Minimum
Union
(The addition of a union at this point will help in the
replacement of the T & P Relief Valve should the need arise.)
Thermal Expansion Tank (if required) See thermal expansion section on page 6.
Drain Valve
Drain Pan
Drain Pipe -(3/4" minimum)
No threads permitted on end of Drain Pipe.
6” Maximum distance from drain pipe to suitable open drain.
9
Loading...
