This water heater must be installed and serviced by a qualified person.

Please leave this guide with the householder.

Owner’s Guide

and

Installation Instructions

Continuous Flow

Gas Water Heater

874, 876 series

612 to 620, E16 models

PATENTS

This water heater may be protected by one or more patents or registered designs in the name of

Rheem Australia Pty Ltd or Paloma Co., Ltd.

Rheem Australia Pty Ltd is the supplier of the Rheem range of continuous flow gas water heaters,

manufactured by Paloma Co., Ltd., a world leader in water heater technology and manufacture.

TRADEMARKS

Registered trademark of Rheem Australia Pty Ltd.

™ Trademark of Rheem Australia Pty Ltd.

Note: Every care has been taken to ensure accuracy in preparation of this publication.

No liability can be accepted for any consequences, which may arise as a result of its application.

Warning: Upon completion of the installation and commissioning of the water heater, leave this guide

with the householder or

a responsible officer. DO NOT leave this guide inside of the cover of the water

heater

, as it may interfere with the safe operation of the water heater or ignite when the water heater is

turned on.

CONTENTS

HOUSEHOLDER - We recommend you read pages 4 to 44.

The other pages are intended for the installer but may be of interest.

About Your Water Heater ............................................................................................................ 4

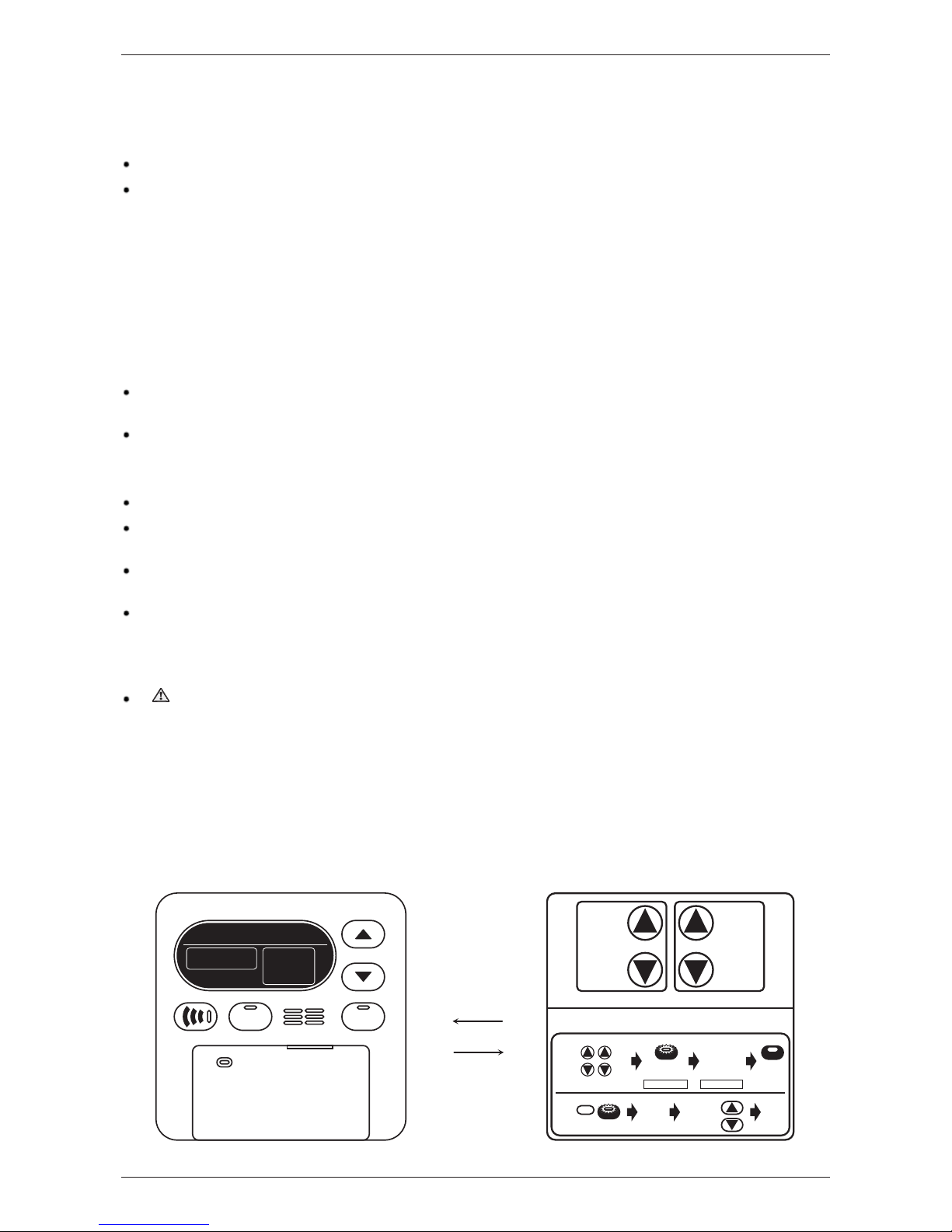

Temperature Control ................................................................................................................. 11

Temperature Control – Standard ............................................................................................. 12

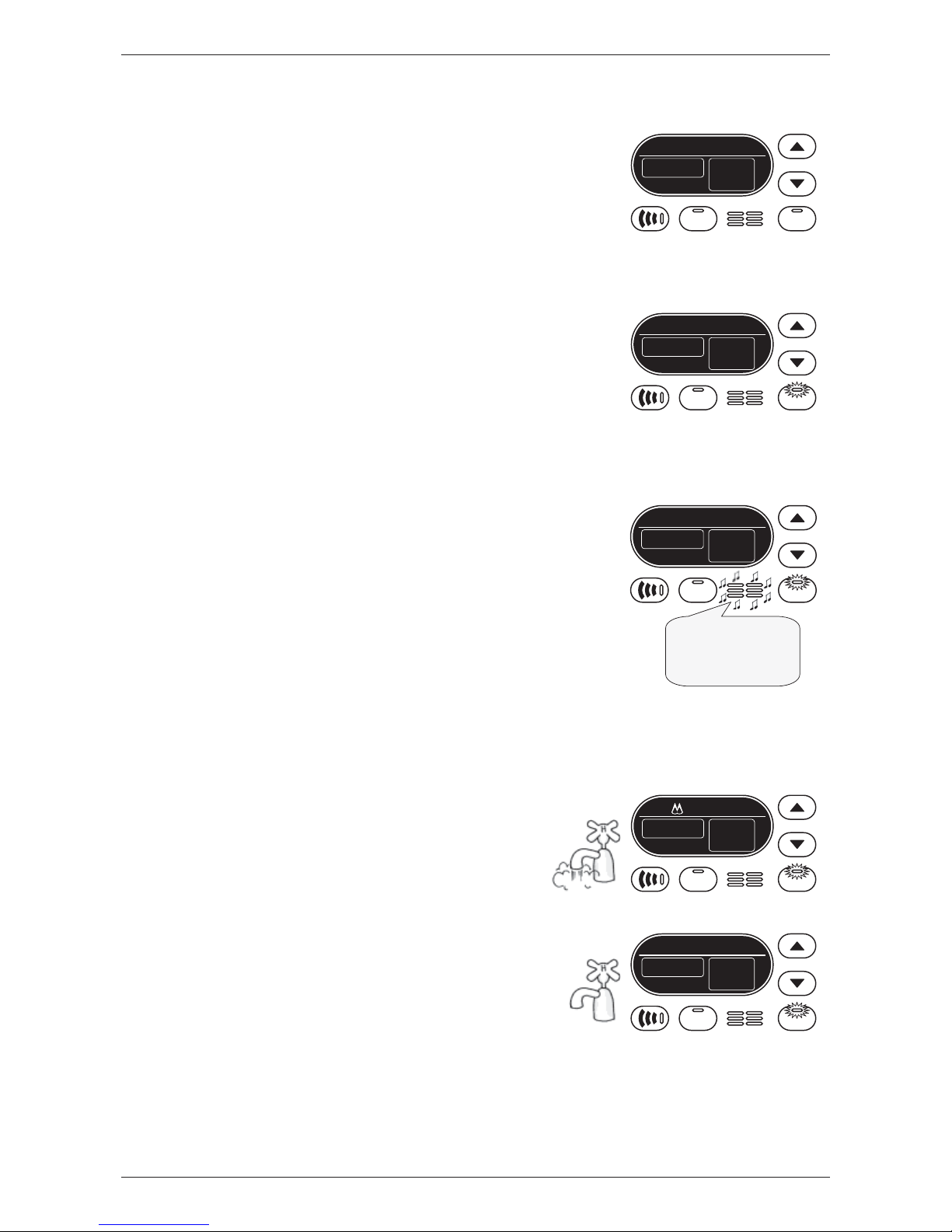

Temperature Control – Deluxe ................................................................................................. 22

Water Supplies ........................................................................................................................... 41

Save A Service Call ................................................................................................................... 42

Installation – Water Heater ....................................................................................................... 45

Connections – Plumbing .......................................................................................................... 57

Connections – Electrical ........................................................................................................... 59

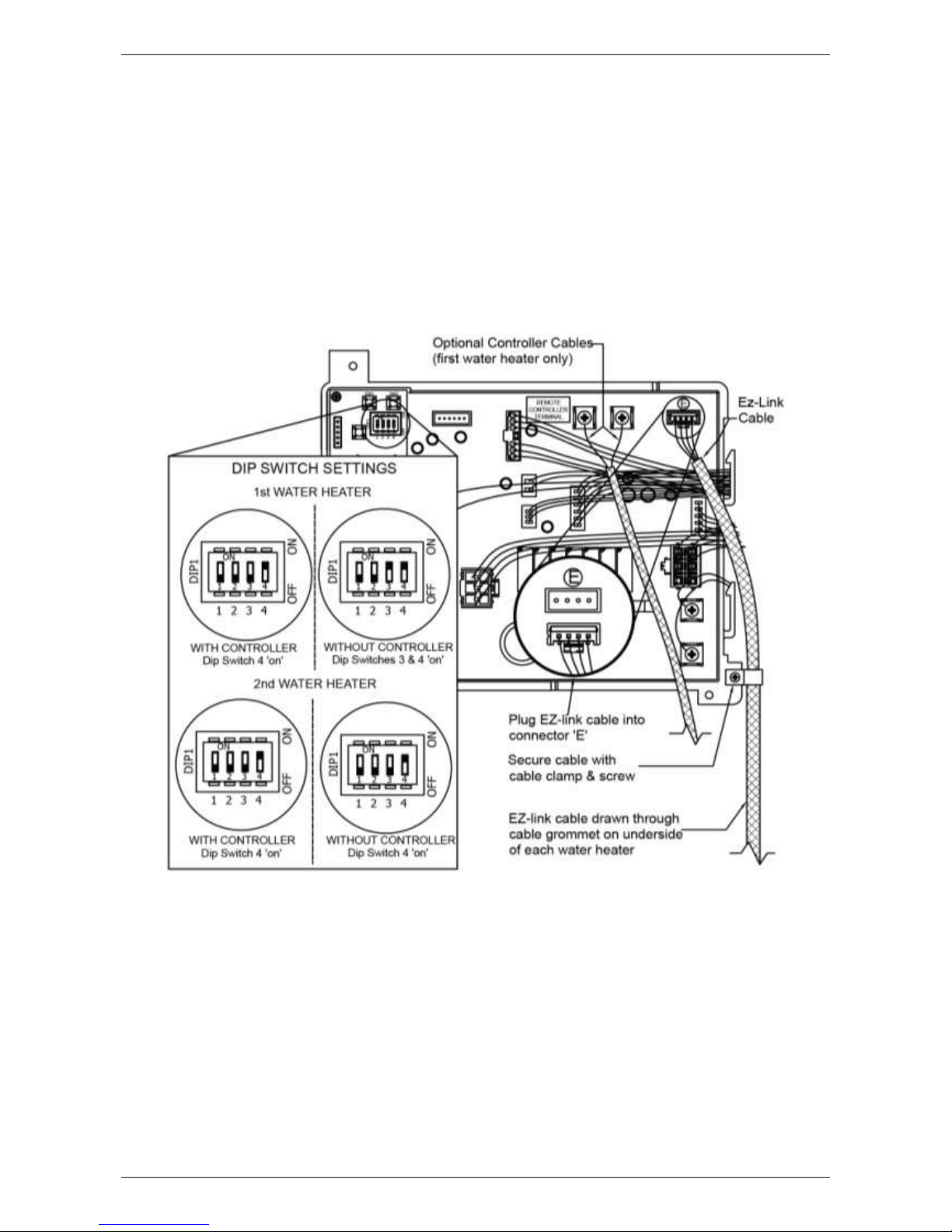

Ez-Link System Dual Installation ............................................................................................. 60

Installation – Controllers .......................................................................................................... 65

Commissioning .......................................................................................................................... 72

Draining The Water Heater ....................................................................................................... 82

Warranty ..................................................................................................................................... 83

ABOUT YOUR WATER HEATER

WATER HEATER APPLICATION

This water heater is designed for use in a single family domestic dwelling for the purpose of heating potable water. Its use in an application other than this may shorten its life.

MODEL TYPE

The Rheem® continuous flow gas water heater model you have chosen is for outdoor installation only. This model has an extended manufacturer’s warranty (refer to the Rheem warranty on page 83).

The water heater has a maximum preset outlet temperature setting of:

874 series 70°C

876 series 48°C

Notes:

The 876 series water heater is marked “THIS APPLIANCE DELIVERS WATER NOT EXCEEDING 50°C

IN ACCORDANCE WITH AS 3498” on the front panel. This model;

 must not be installed as an in-series gas booster to a solar water heater, as water temperature

greater than 50°C can be delivered from the water heater contravening its compliance to AS 3498.

 must not be installed with a Water Star water heater as water

temperature greater than 50°C can be delivered from the system.

The 874 series of water heater may be installed as an in-series gas

booster to a solar water heater. For information relating to the function

and operation of the solar water heater, refer to the Owner’s Guide

and Installation Instructions supplied with the solar water heater.

When installed as an in-series gas booster to a solar water heater, the

874 series water heater:

 can deliver water at temperatures up to 70°C to 80°C for a

Premier Loline and Loline pumped system and a Hiline thermosiphon system and possibly higher temperatures from a Premier Hiline thermosiphon system.

 during periods of low solar energy gain, will boost the water

temperature automatically to its preset outlet temperature setting.

MAINS PRESSURE

The water heater is designed for direct connection to the mains water supply. If the mains supply pressure in your area exceeds that shown on page 47, a pressure limiting valve must be fitted. The supply pressure should be greater than 140 kPa for the rated flow and performance to be achieved.

WATER HEATER OPERATION

The water heater operates automatically, heating water as it passes through the water heater. When a hot tap is opened, the gas burners ignite to provide immediate heating of the water. The heat produced by the burner is transferred to the water through the heat exchanger. The water is heated to a constant temperature by the automatic adjustment of the gas supply to the burner to suit the water flow rate (refer to “Temperature

Control” on pages 11 to 40). The gas burners extinguish when the hot tap is closed.

Automatic safety controls are fitted to the water heater to provide safe and efficient operation.

REDUCED HOT WATER FLOW WHEN HEAT EXCHANGER IS COLD

At a cold start-up, i.e. when the water heater has not operated for some time (which is most often first thing in the morning), the initial flow of hot water may be reduced for a period of 5-10 seconds while the heat exchanger warms up. This is both an energy and water saving feature of this water heater. Once the heat exchanger has warmed up the hot water flow will increase and remain at normal flow levels. This feature will only occur at a cold start-up and not when the heat exchanger is already warm from a recent use of hot water.

ABOUT YOUR WATER HEATER

GAS BOOSTING FOR A SOLAR WATER HEATER

Water stored in the solar storage tank passes through the in-series gas booster when a hot tap is opened. The in-series gas booster is for heating water at times of low solar energy gain, such as during cloudy or rainy weather, or during colder months.

Solar heated water can reach temperatures up to 70°C to 80°C for a Premier Loline and Loline pumped system and a Hiline thermosiphon system and possibly higher for a Premier Hiline thermosiphon system. The in-series gas booster operates automatically. When the solar heated water temperature is 58°C or higher, the flow passes through the in-series gas booster without boosting. When the solar heated water temperature is below 58°C, the in-series gas booster heats the water to its preset outlet temperature setting.

HOW HOT SHOULD THE WATER BE?

The water heater may be installed with one or more user adjustable temperature controllers, which allow you to choose the most suitable temperature for your hot water needs (refer to “Temperature Control” on page 11).

If a controller is not installed, the water heater heats the water to the preset outlet temperature setting. The factory preset outlet temperature setting is:

874 series 60°C

876 series 48°C

Note:

The preset outlet temperature setting of this water heater cannot be adjusted by the householder. The setting can only be adjusted by the installer, Rheem Service or their nearest Accredited Service Agent.

Note: AS 3498 requires that a water heater provides the means to inhibit the growth of Legionella bacteria in potable water. When this water heater is used as an in-series booster for a solar water heater it can satisfy this AS 3498 requirement provided it is energised, the booster preset outlet temperature setting is 70°C, and that a remote temperature controller is not used.

Warning: Temperature controllers must not be fitted to this water heater (874 series) if it is installed as

an in-series gas booster with a solar water heater system or if a Water Star water heater is installed because water at a temperature much higher than the controller setting can be delivered. If a solar or Water Star water heater has been installed to an existing water heater installation, then all controllers must be disconnected and removed.

If this water heater is installed as part of a solar water heater system, the system can deliver water at temperatures from 58°C up to 80°C and possibly higher depending upon the model of solar water heater installed.

HOTTER WATER INCREASES THE RISK OF SCALD INJURY

This water heater can deliver water at temperatures which can cause scalding. Check the water temperature before use, such as when entering a shower or filling a bath or basin, to ensure it is suitable for the application and will not cause scald injury.

We recommend and it may be required by regulations that an approved temperature limiting device be fitted into the hot water piping to the bathroom and ensuite when an 874 series water heater is installed. This will keep the water temperature below 50°C at the bathroom and ensuite. The risk of scald injury will be reduced and if no controllers are installed or if a Kitchen controller is installed, still allow hotter water to the kitchen and laundry.

An 876 series water heater will not deliver temperatures exceeding 50°C, in accordance with AS 3498. There is no requirement in AS/NZS 3500.4 to fit a temperature limiting device if this water heater is installed in other than an early childhood centre, school, nursing home or a facility for young, aged, sick or disabled people.

maximum Kitchen controller

temperature setting 874

series

maximum recommended supply

temperature to bathrooms and

ensuites.

maximum Bathroom controller

temperature setting 874

series

minimum Kitchen and Bathroom

controller temperature setting

maximum Kitchen and Bathroom

controller temperature setting

876 series

ABOUT YOUR WATER HEATER

WARNING

This water heater is only intended to be operated by persons who have the experience or the knowledge and the capabilities to do so. This water heater is not intended to be operated by persons with reduced physical, sensory or mental capabilities i.e. the infirm, or by children. Children should be supervised to ensure they do not interfere with the water heater.

The water heater uses 240 Volt AC electrical power for operation of the control systems and the combustion fan. The removal of the front panel will expose 240 V wiring. It must only be removed by a qualified person.

The power lead from the water heater must be plugged into a weatherproof electrical outlet. Take care not to touch the power plug with wet hands.

SAFETY

This water heater is supplied with temperature sensors, a FlameSafe™ protection system and a pressure relief valve. These devices must not be tampered with or removed. The water heater must not be operated unless each of these devices is fitted and is in working order.

If the power supply cord or plug is damaged, it must be replaced by a qualified person in order to avoid a hazard. The power supply cord and plug must be replaced with a genuine replacement part available from Rheem. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.

Warning: For continued safety of this water heater it must be installed, operated and maintained in

accordance with the Owner’s Guide and Installation Instructions.

The Rheem warranty may not cover faults if relief valves or other safety devices are tampered with or if the installation is not in accordance with these instructions.

Do not store flammable or combustible materials near the

water heater. Flammable liquids (such as petrol), newspapers and similar articles must be kept well away from the water heater and the flue terminal.

Do not use aerosols, stain removers and household

chemicals near the water heater whilst it is working. Gases from some aerosol sprays, stain removers and household chemicals become corrosive when drawn into a flame.

Do not store swimming pool chemicals, household

cleaners, etc., near the water heater.

Do not place anything on top of the water heater or in contact

with the flue terminal. Ensure the flue terminal is not obstructed in any way at any time.

Do not use Propane / Butane gas mixtures in a Propane model. A Propane model is designed to operate

on Propane only. The use of Propane / Butane mixture, such as automotive LPG fuel, in a Propane model is unsafe and can cause damage to the water heater.

PRECAUTIONS

Where damage to property can occur in the event of the water heater leaking, the water heater must be installed over a safe tray. Construction, installation and draining of a safe tray must comply with AS/NZS 3500.4 and all local codes and regulatory authority requirements.

The water heater must be maintained in accordance with the Owner’s Guide and Installation Instructions.

Refer to “General Maintenance” on page 7, “Minor Six Month Maintenance” on page 7 and “Major Five Year

Service” on page 7.

If this water heater is to be used where an uninterrupted hot water supply is necessary for your application or business you should ensure that you have back up redundancy within the hot water system design. This should ensure the continuity of hot water supply in the event that this water heater were to become inoperable for any reason. We recommend you seek advice from your plumber or specifier about your needs and building back up redundancy into your hot water supply system.

ABOUT YOUR WATER HEATER

GENERAL MAINTENANCE

The jacket of the water heater can be cleaned with a soft cloth and warm mild soapy water. Under no circumstances should abrasive materials or powders be used.

The area around the water heater can be sprayed with insecticide to rid the area of insects. Insects encroaching into or nesting in the water heater can interfere with the operation of the water heater and also damage components.

MINOR SIX MONTH MAINTENANCE

It is recommended minor maintenance be performed every six months by the dwelling occupant.

The minor maintenance includes:

Inspect around the air inlet, flue terminal and the water heater in general for plant growth.

 Trim back any shrubs, bushes or other plants which have encroached around the water heater.

Plant growth across the air inlet and flue terminal can interfere with the performance of the water heater.

Inspect around the water heater for insect infestations, such as ants.

 Spray insecticide around the water heater if necessary to rid the area of insects. Do not spray the

surface or into the air inlet or flue terminal of the water heater.

Insects encroaching into or nesting in the water heater can interfere with the operation of the water heater and also damage components.

Check the drain line from the safe tray (if one is installed) is not blocked.

MAJOR FIVE YEAR SERVICE

For safe and efficient operation, it is recommended a five year service be conducted on the water heater.

Warning: Servicing of a water heater must only be carried out by qualified personnel. Phone Rheem

Service or their nearest Accredited Service Agent.

Note: The five year service and routine replacement of any components, if required, are not included in the Rheem warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.

The five year service includes the following actions:

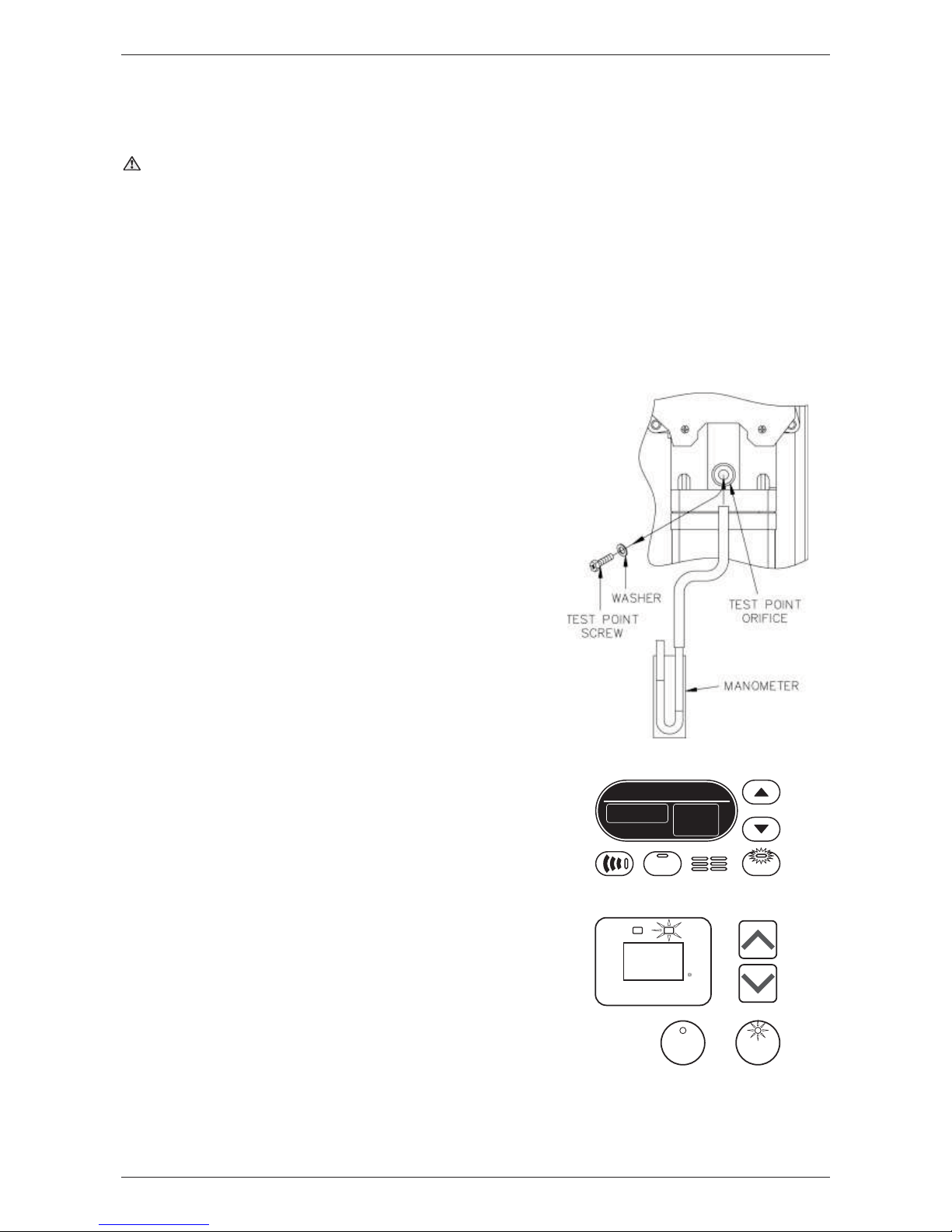

Check and if necessary adjust the gas pressure.

Check the operation of and clean the burner.

Visually check the unit for any potential problems.

Inspect all connections.

Check the drain line from the safe tray (if one is installed) is not blocked.

ABOUT YOUR WATER HEATER

CIRCULATED HOT WATER FLOW AND RETURN SYSTEM

A Rheem 874 series continuous flow water heater can be installed as part of a circulated hot water flow and return system in a building. Refer to “Circulated Hot Water Flow and Return System” on page 50 for further information and notes on this type of installation.

GOING ON HOLIDAYS

If you are going on holidays, it is not necessary to turn the water heater off. If it is necessary to turn off the water heater, refer to “To Turn Off The Water Heater” on page 8.

TO TURN OFF THE WATER HEATER

If it is necessary to turn off the water heater:

Turn off the controllers(s) (if fitted) by pressing the on / off button.

The light in the on / off button will go out and the priority light (standard controller) or the ACTIVE light (Deluxe controller), if it is on, will go out.

Switch off the electrical supply at the power outlet to the water heater if there is no risk of freezing

conditions occurring (refer to note below).

Close the gas isolation valve at the inlet to the water heater.

Close the cold water isolation valve at the inlet to the water heater.

Note: If there is a risk of freezing conditions, the electrical supply to the water heater should not be switched

off unless the water heater is drained, otherwise damage could result (refer to “Frost Protection” on page 9 and “Draining the Water Heater” on page 9).

TO TURN ON THE WATER HEATER

Screw in the drain plugs at the cold water inlet and hot water outlet of the water heater if the water

heater has been drained.

Open all of the hot taps in the house (don’t forget the shower).

Open the cold water isolation valve fully at the inlet to the water heater.

Air will be forced out of the taps.

Close each tap as water flows freely from it.

Open the gas isolation valve fully at the inlet to the water heater.

Plug in the power supply cord at the power outlet.

Switch on the electrical supply at the power outlet to the water heater.

Turn on a controller, if one is fitted, by pressing the on / off button.

The light in the on / off button and the priority light (standard controller) or ACTIVE light (Deluxe controller) will both glow.

The water heater will operate automatically when you open a hot tap.

ABOUT YOUR WATER HEATER

FROST PROTECTION

The water heater has a frost protection system. The frost protection system will protect the water heater from damage, by preventing ice forming in the waterways of the water heater, in the event of freezing conditions occurring.

Notes:

The frost protection system will be rendered inoperable if electrical power is not available at the water

heater. Damage caused by freezing due to the unavailability of power at the water heater is not covered by the Rheem warranty (refer to “Terms of the Rheem Warranty” on page 83).

If it is necessary to switch the power off to the water heater and there is a risk of freezing, then it is

necessary to drain the water heater (refer to “Draining the Water Heater” on page 9).

Pipe work to and from the water heater must be adequately insulated to prevent freezing.

The water heater is not suitable for installation in areas where the ambient temperature falls below -20°C

(including wind chill factor).

Refer to “Terms of the Rheem Warranty” on page 83.

DRAINING THE WATER HEATER

Turn off the water heater (refer to “Turn Off The Water Heater” on page 8).

Open a hot tap (preferably the shower outlet).

Unscrew the two drain plugs, one each at the cold water inlet and hot water outlet, on the underside of

the water heater.

Water will drain from the water heater.

When water stops flowing from the water heater, close the hot tap.

Note: It is recommended not to screw the drain plugs back in, until the water heater is to be turned on again.

ABOUT YOUR WATER HEATER

HOW DO I KNOW IF THE WATER HEATER IS INSTALLED CORRECTLY?

Installation requirements are shown on pages 45 to 56. The water heater must be installed:

by a qualified person, and

in accordance with the installation instructions, and

in compliance with Standards AS/NZS 3500.4, AS 5601 or AS/NZS 5601.1, as applicable under local

regulations, and all local codes and regulatory authority requirements.

Warning: Temperature controllers must not be fitted to this water heater (874 series) if it is installed as

The pipe work between the solar storage tank (if one is installed) and the in-series gas booster has a minimum recommended pipe size of DN20, MUST BE

of copper and be fully insulated in accordance with the requirements of AS/NZS 3500.4. The insulation must be weatherproof and UV resistant if exposed. The insulation must be fitted up to the connections on both the solar storage tank and the in-series gas booster.

VICTORIAN CUSTOMERS

Notice to Victorian Customers from the Victorian Plumbing Industry Commission. This water heater must be installed by a licensed person as required by the Victorian Building Act 1993.

Only a licensed person will give you a Compliance Certificate, showing that the work complies with all the relevant Standards. Only a licensed person will have insurance protecting their workmanship for 6 years. Make sure you use a licensed person to install this water heater and ask for your Compliance Certificate.

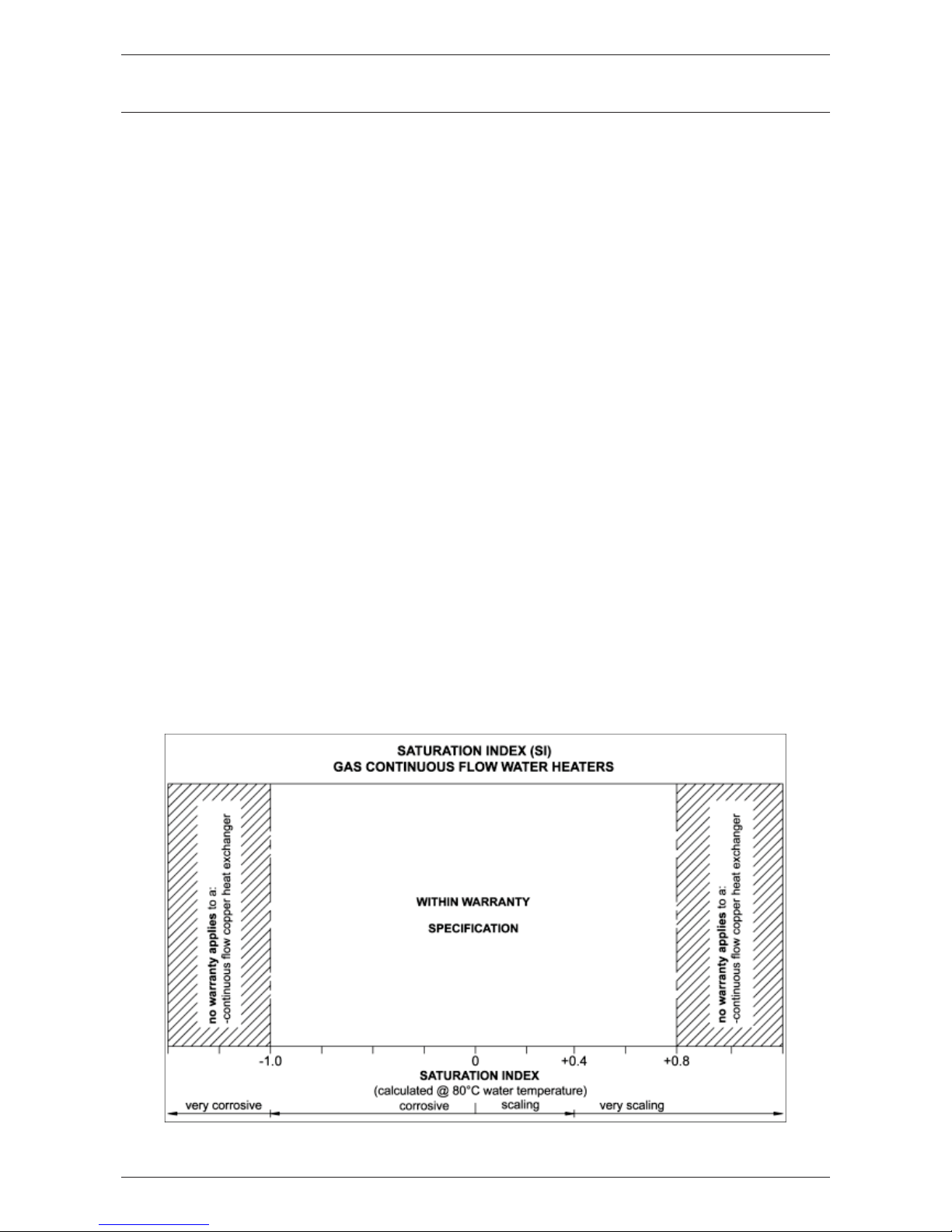

DOES THE WATER CHEMISTRY AFFECT THE WATER HEATER?

The water heater is suitable for most public water supplies, however some water chemistries may have detrimental effects on the water heater, its components and fittings. Refer to “Water Supplies” on page 41.

If you are in a known harsh water area or you are not sure of your water chemistry, have your water checked against the conditions described on page 41.

HOW LONG WILL THE WATER HEATER LAST?

The water heater is supported by a manufacturer’s warranty (refer to page 83). There are a number of

factors that will affect the length of service the water heater will provide. These include but are not limited to the water chemistry, the water pressure, the water temperature (inlet and outlet) and the water usage pattern. Refer to “Precautions” on page 6.

TEMPERATURE CONTROL

CONTROLLERS

The Rheem 874 and 876 series can be installed with Rheem controllers to enable the user to control the temperature of the delivered water from the outlet of the water heater. There are two families of Rheem controllers suitable for installation with this water heater. These are the standard controllers and the Deluxe controllers.

Standard Controllers

There are three types of standard controller. They are the Kitchen controller (Rheem PN 299853), Bathroom1 controller (Rheem PN 299854) and the Bathroom2 controller (Rheem PN 299855). The standard controllers are suitable for use on all 874 and 876 series models.

The standard controllers are identified by a ‘K’ (Kitchen controller), ‘B1’ (Bathroom1 controller) or ‘B2’ (Bathroom2 controller) located on the front bottom left hand corner of the standard controller.

Deluxe Controllers

There are three types of Deluxe controller. They are the Kitchen Deluxe controller (Rheem PN 299861), Bathroom1 Deluxe controller (Rheem PN 299862) and the Bathroom2 Deluxe controller (Rheem PN 299863). The Deluxe controllers are suitable for use on all 874 and 876 series models.

The Deluxe controllers are identified by a ‘K’ (Kitchen Deluxe controller), ‘B1’ (Bathroom1 Deluxe controller) or ‘B2’ (Bathroom2 Deluxe controller), located under the front panel, to the bottom left hand corner adjacent

to the BATH FILL VOLUME label.

The Deluxe controllers offer additional functions to the standard controllers. These are:

An assistance call function, which provides a voice prompt when pressed and will sound on all

controllers. This is useful should a family member require assistance when in the bathroom.

A Bath Fill mode, which is designed to allow the water heater to deliver a selected volume of water at a

selected temperature.

Bath filling takes place when the hot tap is opened. When the set volume has been delivered, the water flow from the water heater ceases. Refer to “Bath Fill Mode” on page 32.

Note: The bath level should be monitored periodically while this function is in use to avoid the possibility of the bath overflowing. The Bath Fill mode should also be used with caution until you are familiar with its operation.

Warning: Baths should not be left unattended whenever young children are present.

Warning: Temperature controllers must not be fitted to this water heater (874 series) if it is installed as

Notes:

Where more than one controller is installed, the second or third controller must be of the same family.

A standard controller can only be installed with another standard controller(s) and a Deluxe controller

can only be installed with another Deluxe controller(s). A standard controller(s) and a Deluxe controller(s) cannot be connected to the same water heater.

One, two or three controllers can be installed. Only one of each type of controller can be connected to

the water heater. Therefore, a maximum of three controllers only can be connected to each water heater.

A Bathroom2 controller can only be installed if a Bathroom1 controller is installed and a Bathroom2

Deluxe controller can only be installed if a Bathroom1 Deluxe controller is installed.

Other manufacturers’ controllers are not suitable to and cannot be installed with this water heater.

TEMPERATURE CONTROL – STANDARD

STANDARD CONTROLLER FUNCTIONS

If one or more controllers are installed, at least one must be on for the water heater to operate. If all controllers are off, the water heater will only deliver cold water.

on / off button – This button must be pressed once to turn on the controller.

A controller cannot be turned on if water is flowing from a hot tap.

To turn off a controller, press the on / off button once. The light will go out.

A controller can be turned off whilst water is flowing.

on / off operating light – The light in the on / off button will glow when the controller is turned on.

The light will go out when the controller is turned off.

priority light – This light will glow on a controller when that controller has priority.

The Bathroom controller(s), if they are turned on, have priority over the Kitchen controller.

Priority means that controller has control of the water heater temperature setting.

The water temperature setting can only be adjusted by the controller that has priority.

in use light – This light will glow on all controllers, whether they are on or off, when hot water is

flowing, regardless of which controller has priority.

display panel – The current temperature setting is displayed on all controllers (whether hot water is

flowing or not), when any controller is on.

If all controllers are off, then the display remains blank.

The water volume can also be displayed on the Kitchen controller. The x10l symbol glows when the water volume is displayed.

i (up button) – The up button increases the temperature setting.

Refer to “Temperature Adjustment – Standard Controller” on page 15.

j (down button) – The down button decreases the temperature setting.

Refer to “Temperature Adjustment – Standard Controller” on page 15.

water volume button (Kitchen controller only) – This feature enables an alarm to sound when a set volume

of water has flowed through the water heater.

Refer to “Water Volume Function – Standard Controller” on page 20.

water volume operating light – The light in the water volume button will glow when the water volume button

is pressed and the water volume mode is turned on.

The light will go out when the water volume button is pressed and the water volume mode is turned off.

water volume symbol – The x10l symbol below the display panel glows when the water volume mode is

turned on and the water volume is displayed.

TEMPERATURE CONTROL – STANDARD

STANDARD CONTROLLER

Note: water volume button, water volume operating light and water volume symbol are on the Kitchen

controller only.

SILENCING A CONTROLLER – STANDARD

The controller emits a sound whenever a button is pressed. This sound can be turned off to provide silent operation.

To turn off the sound:

Press the on / off button, to deactivate the controller (on / off light is off).

Press and hold the up (i) button.

Press the on / off button, whilst the up (i) button is pressed.

The sound for the controller is deactivated. Repeat this procedure on the other controllers if you wish to deactivate their sound. To restore the sound, repeat this procedure.

i up

button

j down

button

display panel

water volume

operating light

controller type

K = Kitchen

B1 = Bathroom1 B2 = Bathroom2

water volume

button

water volume

symbol

in use light

priority light

on / off

operating light

on / off

button

TEMPERATURE CONTROL – STANDARD

TEMPERATURE SETTINGS – STANDARD CONTROLLER

The temperature settings of each type of controller are:

Bathroom1 & 2 37°C to 46°C (in 1°C increments), 48°C*, 50°C

Kitchen 37°C to 46°C (in 1°C increments), 48°C*, 50°C, 55°C, 60°C

* limited to 48°C on an 876 series model.

Temperature settings

warm

average hot shower

hot very hot

The installation of a Bathroom controller(s) only (i.e. no Kitchen controller) limits the temperature setting of the water heater to a maximum of:

874 series 50°C

876 series 48°C

regardless of the preset outlet temperature setting of the water heater.

The installation of a Kitchen controller will allow a maximum temperature setting of:

874 series 60°C

876 series 48°C

regardless of the preset outlet temperature setting of the water heater.

If controllers are not installed, the water heater defaults to the preset outlet temperature setting. This may be up to:

874 series 70°C

876 series 48°C

Refer to “How Hot Should The Water Be?” on page 5.

On a building fitted with a temperature limiting device such as a tempering valve and where an 874 series water heater is installed without a separate untempered hot water line to the kitchen, laundry or other nonablution area, although the Kitchen controller will be able to display temperatures above 50°C and the water leaving the water heater will be at the set temperature, the maximum water temperature which can be delivered to the hot water outlets in these locations is determined by the temperature setting of the temperature limiting device. This is usually 50°C.

On a building fitted with a temperature limiting device set to 50°C, to enable the delivery of water temperatures above 50°C to the kitchen, laundry or other non-ablution area, separate untempered pipe work must be installed from the water heater to the hot water outlets in these locations.

TEMPERATURE CONTROL – STANDARD

TEMPERATURE ADJUSTMENT – STANDARD CONTROLLER

A controller must be on and have priority to be able to adjust the temperature setting.

The temperature adjustment is made by pressing the up (i) button or down (j) button.

The maximum temperature setting for the controllers are:

Kitchen

Bathroom

874 series

60°C

50°C

876 series

48°C

Each press of the up (i) button will increase the temperature setting by one increment.

Pressing and holding the up (i) button will scroll the temperature setting up to a maximum 43°C if there

is hot water flowing or 45°C if there is no hot water flowing.

From the 45°C setting, the up (i) button must be pressed once for each increase in temperature

increment.

The temperature setting cannot be increased above 43°C whilst hot water is flowing.

The minimum temperature setting for each type of controller is 37°C.

Each press of the down (j) button will decrease the temperature setting by one temperature increment.

Pressing and holding the down (j) button will scroll down the temperature setting.

The temperature setting can be decreased from any temperature setting whether the hot water is flowing

or not.

TEMPERATURE CONTROL – STANDARD

KITCHEN CONTROLLER – STANDARD

The Kitchen controller allows the user to select the temperature setting for the hot water to be used in the kitchen and laundry. It has a minimum temperature setting of 37°C and a maximum temperature setting of:

874 series 60°C

876 series 48°C

The Kitchen controller does not have priority if a Bathroom controller is on.

Notes on the Kitchen controller:

The controller cannot be turned on whilst a hot tap is open.

The Kitchen controller must be on and have priority in order to adjust the temperature setting on the

Kitchen controller.

The Bathroom controller(s) can be turned off from the Kitchen controller.

 Press and hold the on / off button on the Kitchen controller for three seconds.

This turns off all the controllers and the displays go blank.

If hot water is flowing from a hot tap, it will go cold.

Kitchen Controller

TEMPERATURE CONTROL – STANDARD

To operate the Kitchen controller:

1. Turn off the Bathroom controller(s)

 If a temperature setting is displayed and the priority light is not glowing, it is necessary to turn off the

Bathroom controller(s) to gain priority.

 Refer to the notes on the Kitchen controller on page 16.

2. Turn on the Kitchen controller

 Press the on / off button.

The on / off operating light and the priority light will both glow.

The previous Kitchen controller temperature setting will be displayed on the temperature display panel.

3. Select the temperature setting

 Press the up (i) button or down (j) button.

 Refer to “Temperature Adjustment – Standard

Controller” on page 15.

The selected temperature setting will be displayed on all controllers.

4. Open the hot tap.

The in use light will glow on all controllers.

5. Close the hot tap.

The in use light will go out on all controllers, if no other hot tap is open.

6. Turn off the Kitchen controller

 Press the on / off button.

The priority light and on / off operating light will go out and the temperature display will go blank.

Important: Turn off the Kitchen controller after hot water usage is finished in the kitchen and / or laundry. Refer to Important note for Bathroom controllers on page 18.

water

volume

on off

check

hot water

temperature

before use

priority

in use

x10l

priority

in use

x10l

priority

in use

x10l

priority

in use

x10l

water

volume

on off

check

hot water

temperature

before use

priority

in use

x10l

TEMPERATURE CONTROL – STANDARD

BATHROOM CONTROLLERS – STANDARD

The Bathroom controller(s) allows the user to select the temperature setting for the hot water to be used in the bathroom. They have a minimum temperature setting of 37°C and a maximum temperature setting of:

874 series 50°C

876 series 48°C

The Bathroom controllers operate in tandem. Whenever an operation is selected on one Bathroom controller, it is also set on the other Bathroom controller. The Bathroom controllers automatically have priority if they are on.

Important: It is important to turn on the Bathroom controller before opening a hot tap in the bathroom (priority is automatically gained). If the Bathroom controller is not on and the Kitchen controller is on (has priority), then it is possible to receive water at a temperature higher than expected from a hot tap in the bathroom. This temperature could be up to:

874 series 50°C if a temperature limiting device is installed in the hot pipe to the

bathroom or up to 60°C if a temperature limiting device is not installed.

876 series 48°C

Notes on the Bathroom controllers:

The controller cannot be turned on whilst a hot tap is open.

When a Bathroom controller is turned on, it gains priority from the Kitchen controller.

The Bathroom controller must be on in order to adjust the temperature setting on the Bathroom

controller.

The Kitchen controller can be turned off from a Bathroom controller.

 Press and hold the on / off button on a Bathroom controller for three seconds.

This turns off all the controllers and the displays go blank.

If hot water is flowing from a hot tap, it will go cold.

Warning: It is advised to leave the Bathroom controller on after hot water usage is finished in the

bathroom. Turning off a controller in one bathroom will also turn off the controller in the other bathroom. The Kitchen controller will gain priority if it is on and the temperature setting can be up to:

 874 series 60°C

 876 series 48°C

If a hot tap is open in another bathroom, the water will be delivered at this temperature.

Bathroom Controller

TEMPERATURE CONTROL – STANDARD

check

hot water

temperature

before use

on off

priority

in use

priority

in use

priority

in use

priority

in use

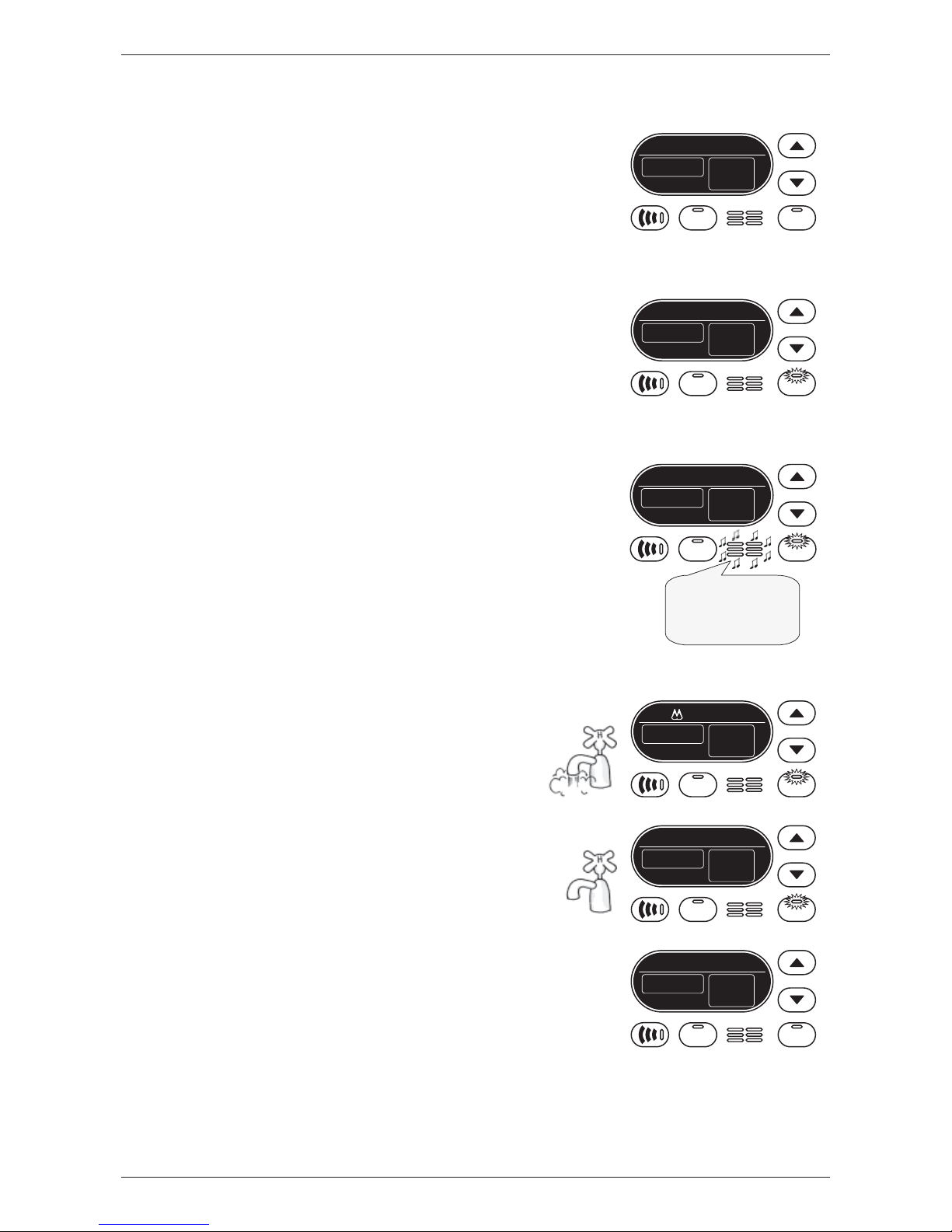

To operate a Bathroom controller:

1. Turn off the Kitchen controller

 If a temperature setting is displayed and the priority light is not glowing, it is advised to turn off the

Kitchen controller.

Refer to the notes on the Bathroom controllers on page 18.

2. Turn on the Bathroom controller

 Press the on / off button.

The on / off operating light and the priority light will both glow.

The previous Bathroom controller temperature setting will be displayed on the temperature display panel.

3. Select the temperature setting

 Press the up (i) button or down (j) button.

 Refer to “Temperature Adjustment – Standard Controller”

on page 15.

The selected temperature setting will be displayed on all controllers.

4. Open the hot tap

The in use light will glow on all controllers.

5. Close the hot tap

The in use light will go out on all controllers, if no other hot tap is open.

It is advised not to turn off the Bathroom controller(s).

 Refer to the warning in the notes on page 18.

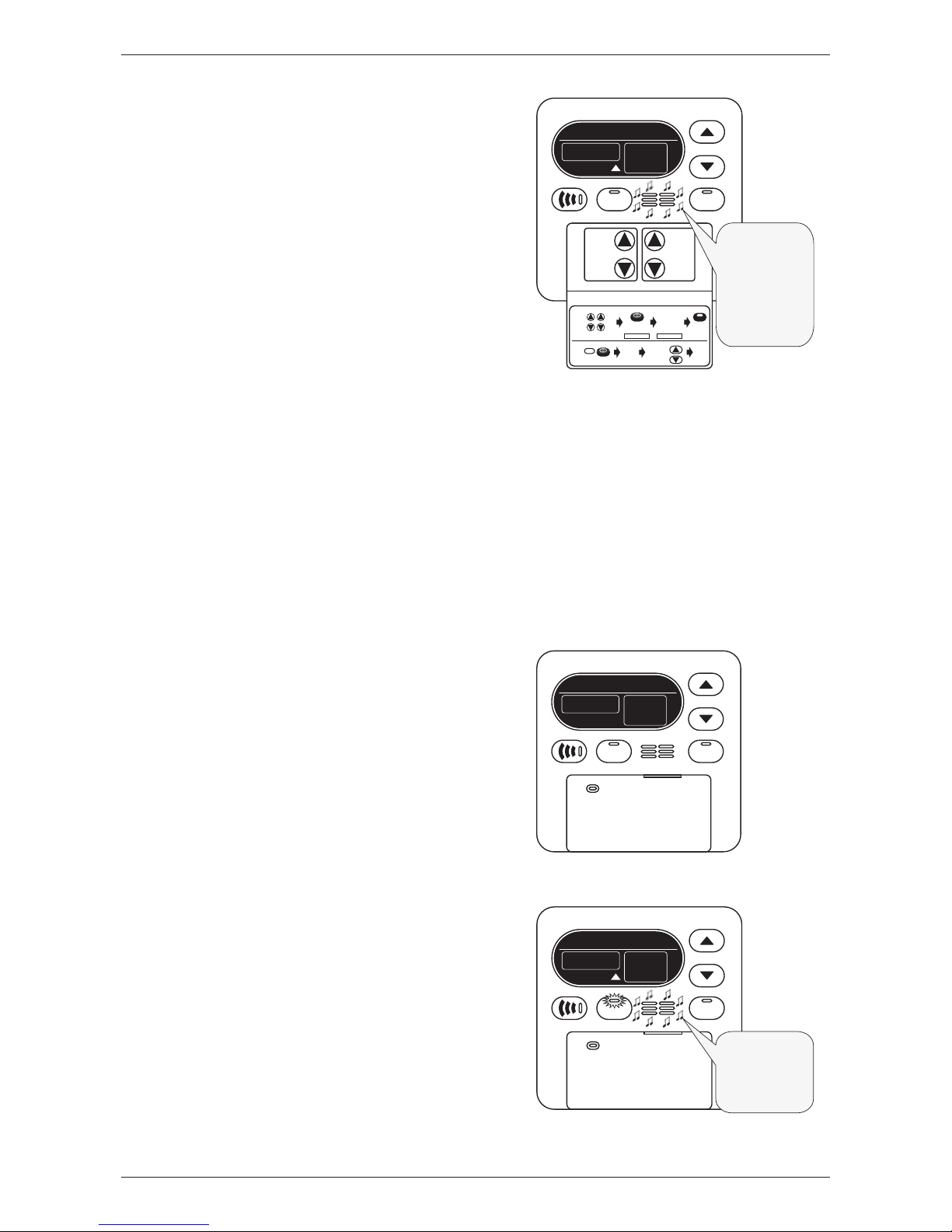

TEMPERATURE CONTROL – STANDARD

WATER VOLUME FUNCTION – STANDARD CONTROLLER

The water volume function is designed to warn, by a beeping sound, that a certain volume of water has been delivered from the water heater. It does not stop either the flow of or the heating of water. This function is particularly useful if a bath is being filled, or measuring the water consumed by the use of a shower.

The water volume function can only be set by the Kitchen controller. Refer to the notes on the water volume

function on page 21.

To operate the water volume alarm:

1. Turn on the water volume alarm

 Press the water volume button.

The water volume operating light will glow.

The current set water volume (in litres divided by 10) will be displayed and the x10l indicator will also glow.

E.g. the factory preset water volume of 180 litres is shown as 18 x10l.

2. Adjust the water volume setting (if necessary)

 To adjust the water volume setting, press the

up (i) button to increase the water volume or the down (j) button to decrease the water volume.

Each press of the up (i) button or down (j) button will change the water volume setting by 10 litres.

Pressing the up (i) button or down (j) button continuously will scroll the water volume setting.

Fifteen seconds after the water volume has been selected, the water volume operating light will start to flash and the selected water volume is set.

The water volume operating light will continue to flash until the alarm sounds.

A maximum of 500 litres (50 and x10l displayed) and a minimum of 10 litres (1 and x10l displayed) can be set

with the water volume alarm.

3. Set the water temperature

 Turn on the controller for the room where the hot water

is to be used.

 Gain priority (if using the Kitchen controller).

 Select the temperature setting.

4. Open the hot tap

The in use light will glow on all controllers.

Measurement of the water flow at the water heater will commence when a hot tap is open and the water volume operating light is flashing.

The alarm will sound when the set volume of water has passed through the water heater.

water

volume

off

check

hot water

temperature

before use

priority

in use

x10l

water

volume

off

check

hot water

temperature

before use

priority

in use

x10l

off

check

hot water

temperature

before use

priority

in use

priority

in use

water

volume

TEMPERATURE CONTROL – STANDARD

5. Turn off the alarm

 Press the water volume button to turn off the alarm.

The water volume operating light goes out and 0 x10l is displayed momentarily on the controller.

The temperature setting of the controller with priority is then displayed.

6. Close the hot tap

If it is a Bathroom controller which is in use and has priority, then it is advised to leave the controller on.

 Refer to the warning in the notes on page 18.

If it is the Kitchen controller which is in use and has priority, then it is advised to turn the controller off.

 Refer to Important note for Bathroom controllers on

page 18.

Notes on the water volume function:

The water volume can only be set by the Kitchen controller.

The Kitchen controller does not require priority nor to be on in order to set the water volume function.

The water volume function can be set whilst a hot tap is open.

The water volume alarm will only sound from the Kitchen controller.

The water volume alarm will still sound if the Kitchen controller has been silenced (refer to “Silencing A

Controller” on page 13).

The factory preset water volume is 180 litres.

If a hot tap is not opened for one hour after the new water volume has been set, then the setting will be

automatically cancelled. The water volume resets to the previously set water volume (or the factory preset water volume if no water volume has previously been set).

To display the remaining water volume while water is being drawn, press the water volume button. After

a few seconds, the display returns to the temperature setting.

To turn off the water volume function before the alarm sounds, press the water volume button twice.

The water volume is measured as the water flows through the water heater. Therefore if more than one

hot tap is open, the alarm will respond to the total water volume drawn from all taps and the expected water volume from the first tap will be decreased.

If the hot tap is closed before the set water volume flows through the water heater and the water volume

button is left on, then the alarm will sound when the remaining water volume is consumed during a later operation. To prevent the alarm from sounding, press the water volume button twice to turn it off.

water

volume

off

check

hot water

temperature

before use

priority

in use

x10l

priority

in use

TEMPERATURE CONTROL – DELUXE

DELUXE CONTROLLER FUNCTIONS

If one or more Deluxe controllers are installed, at least one must be on or the bath fill function activated for the water heater to operate. If all Deluxe controllers and the bath fill function are off, the water heater will only deliver cold water.

ON / OFF button – The ON / OFF button must be pressed once to turn on the Deluxe controller. A Deluxe

controller cannot be turned on if water is flowing from a hot tap.

To turn off a Deluxe controller, press the ON / OFF button once. A Deluxe controller can be turned off whilst water is flowing.

ON / OFF operating light – The light in the ON / OFF button will glow when the Deluxe controller is turned on.

The light will go out when the Deluxe controller is turned off.

ACTIVE light – The ACTIVE light will glow on a Deluxe controller when the controller is ‘active’, i.e. it

has priority. The Bathroom Deluxe controller(s), if they are turned on, are ‘active’ and have priority over the Kitchen Deluxe controller.

ACTIVE or priority means that Deluxe controller has control of the water heater temperature setting. The water temperature setting can only be adjusted by a Deluxe controller that has priority and is displaying the ACTIVE light.

operating light – The operating light will glow on all Deluxe controllers, whether they are on or off, when

hot water is flowing, regardless of which Deluxe controller has priority.

temperature display panel – The current temperature setting is displayed in °C on all Deluxe controllers

(whether hot water is flowing or not), when any Deluxe controller is on. If all Deluxe controllers are off, the display remains blank.

i (up button) – The up button increases the water temperature setting.

Refer to “Temperature Adjustment – Deluxe Controllers” on page 27.

j (down button) – The down button decreases the water temperature setting.

Refer to “Temperature Adjustment – Deluxe Controllers” on page 27.

assistance call button – Pressing this button sounds an alert message on all Deluxe controllers, indicating

that assistance is required in the room from which the assistance call button was activated.

speaker – The audio of the voice prompts and chimes is emitted from the speaker.

BATH FILL button – The BATH FILL button must be pressed once to turn on the Bath Fill mode.

When the Bath Fill mode is turned on, the last selected bath fill water volume in litres will be displayed in the bath fill water volume display panel and the last selected bath fill temperature in °C will be displayed in the ‘temperature’ display panel.

The bath fill water volume and temperature can be adjusted by using the BATH FILL VOLUME and BATH FILL TEMPERATURE buttons located behind the hinged panel on the lower half of the Deluxe controller. Refer to “Bath-Fill Mode” on page 32.

To turn off the Bath Fill mode, press the BATH FILL button.

BATH FILL operating light – The light in the BATH FILL button will glow when the BATH FILL button is

pressed and the Bath Fill mode is turned on.

The light in the button will flash when the selected bath fill function is complete but before the Bath Fill mode has been turned off.

The light will go out when the BATH FILL button is pressed and the Bath Fill mode is turned off.

TEMPERATURE CONTROL – DELUXE

bath fill water volume display panel – The selected bath fill water volume is displayed in litres on all Deluxe

controllers.

The selected bath fill water volume is displayed whenever the Bath Fill mode is on (refer to “Bath Fill Mode” on page 32) or when the bath fill water volume is being adjusted and the Bath Fill mode is off.

If the bath fill water volume is being adjusted and the Bath Fill mode is off, then the bath fill water volume display panel goes blank three (3) seconds after a BATH FILL VOLUME button is last pressed.

At other times, if the Bath Fill mode is off, the bath fill water volume display panel remains blank.

bath fill indicator light – this light in the display panel will glow when the bath fill water volume is displayed.

BATH FILL TEMPERATURE i (up button) – The up button increases the bath fill water temperature setting

(refer to “Temperature Adjustment – Deluxe Controllers” on page 27 and to “Bath Fill

Mode” on page 32).

BATH FILL TEMPERATURE j (down button) – The down button decreases the bath fill water temperature

setting (refer to “Temperature Adjustment – Deluxe Controllers” on page 27 and to

“Bath Fill Mode” on page 32).

BATH FILL VOLUME i (up button) – The up button increases the bath fill water volume setting in

increments of 10 litres up to 500 litres. A further setting of 990 litres can be selected.

BATH FILL VOLUME j (down button) – The down button decreases the bath fill water volume setting from

990 litres to 500 litres and in increments of 10 litres from 500 litres down to 10 litres.

DELUXE CONTROLLER

Rheem

BATH (l)

°C

230

ACTIVE

BATH FILL

ON/OFF

BATH FILL

VOLUME

BATH FILL

TEMPERATURE

ACTIVE Light on

Adjust

Temperature

Open hot

tap

Hot Water

Press

ON/OFF

Bath Fill completed (automatic)

Bath Fill Button

(Red light flas hes)

6. Close hot tap

Press Bath Fill Button

(Red light on)

4. Open hot tap

BATH FILL

Press Bath Fill Button

(red light of f)

BATH FILL

Bath Fil l

Bath

Water

Volume

Bath Fill Temp

Set Bath Fill Water Volume

and Temperature

BATH FILL

VOLUME

j down button

BATH FILL

VOLUME

i up button

BATH FILL

button

assistance call

button

BATH FILL

operating light

Deluxe controller type

K = Kitchen

B1 = Bathroom1 B2 = Bathroom2

brief Deluxe controller

operating instructions

bath-

fill mode and

hot water mode

BATH FILL

TEMPERATURE

j down button

BATH FILL

TEMPERATURE

i up button

ON / OFF

button

ON / OFF

operating light

i up

button

j down

button

operating

light

ACTI VE

light

BATH FILL

indicator light

temperature display panel

speaker

bath fill water volume

display panel

TEMPERATURE CONTROL – DELUXE

VOICE PROMPT AND OPERATING TONE

The Deluxe controllers have a series of voice prompts and operating tones which sound during c ertain operations.

The voice prompts and operating tones sound from all Deluxe controllers, regardless of which Deluxe controller is being operated at the time.

Voice Prompt

The voice prompts are:

When either the up (i) button or BATH FILL TEMPERATURE i (up button) is pressed

“hot water temperature has been increased”

When either the down (j) button or BATH FILL TEMPERATURE j (down button) is pressed

“hot water temperature has been decreased”

When the BATH FILL VOLUME i (up button) is pressed

“Caution, bath fill water volume has been increased, bath may overflow”

When the BATH FILL VOLUME j (down button) is pressed

“bath fill water volume has been decreased”

When the BATH FILL button is pressed to turn on the bath Fill mode

“please set bath water volume and bath temperature, then open the hot water tap”

When the set bath fill water volume has been delivered from the water heater during Bath Fill mode

“the bath is ready, please turn off the hot water tap and press the BATH FILL button to finish”

When the BATH FILL button is pressed to halt the bath fill function before it is complete

“bath filling has been stopped, please turn off the hot water tap and press the BATH FILL button to finish”

When the BATH FILL button is pressed to turn the Bath Fill mode off and the hot tap has not been

turned off

“please ensure the bath hot water tap is turned off”

When the Deluxe controllers have been turned off during the bath fill function

“bath filling has been stopped”

When the assistance call button is pressed

“assistance required, assistance required”

Operating Tone

The operating chime will sound when the temperature adjustment up (i) button or down (j) button is pressed and the voice prompt is not speaking.

The operating beep will sound for each change in temperature increment when a BATH FILL TEMPERATURE adjustment button is pressed or scrolled, whether the voice prompt is speaking or not.

The operating beep will sound for each change in volume increment when a BATH FILL VOLUME adjustment button is pressed or scrolled and the voice prompt is not speaking.

TEMPERATURE CONTROL – DELUXE

Adjusting the Volume of the Voice Prompt and Operating Tone

The volume of the voice prompt and the operating tone can be adjusted to a level comfortable for you. The volume of the voice prompt and the operating tone can be adjusted independently of each other. The volume levels on a Deluxe controller are adjusted independently of another Deluxe controller.

The voice prompt and / or operating tone can also be turned off on an individual or all Deluxe controllers so they do not sound at all.

The factory default volume setting of both the voice prompt and operating tone is medium [med]. If there is an interruption to the water heater power supply, the volume of both the voice prompt and operating tone returns to the default setting.

When adjusting the volume levels, the operating tone volume level is indicated by a chime, followed by the voice prompt volume level which is indicated by two beeps. If during the volume setting procedure only the chime is audible, this indicates the voice prompt is off. If during the volume setting procedure only the two beeps is audible, this indicates the operating tone is off.

To adjust or turn off the volume for the voice prompt and operating tone:

Turn off all Deluxe controllers.

Press and hold the up (i) button, then within four (4) seconds press the ON / OFF button.

Each press of the ON / OFF button will change the voice prompt and operating tone in the following sequence:

 operating tone [MAX], voice prompt [OFF]

 operating tone [MIN], voice prompt [MIN]

 operating tone [MIN], voice prompt [OFF]

 operating tone [OFF], voice prompt [OFF]

 operating tone [MAX], voice prompt [MAX]

 operating tone [MED], voice prompt [OFF]

 operating tone [MED], voice prompt [MED]

This order then repeats.

Note: If the ON / OFF button is not pressed within four (4) seconds of the up (i) button being pressed, “CL” will start flashing on the temperature display panel. If this occurs, release the up (i) button and recommence the procedure.

ASSISTANCE CALL FUNCTION

A Deluxe controller has an assistance call button. Should assistance be required, such as when in the bathroom, a voice prompt will sound on all Deluxe controllers to notify others that assistance is required.

The Deluxe controller does not have to be on for the assistance call function to be activated and the function can be activated during any operation.

To Call for Assistance

To operate the assistance call function:

1. Press the green assistance call button.

The voice prompt will sound on all Deluxe controllers,

“assistance required, assistance required”

The red light in the assistance call button will glow on all Deluxe controllers for the duration of the voice prompt.

“assistance required,

assistance required”

BATH (l)

°C

ACTIVE

BATH FILL

ON/OFF

BATH (l)

°C

ACTIVE

BATH FILL

ON/OFF

TEMPERATURE CONTROL – DELUXE

TEMPERATURE SETTINGS – DELUXE CONTROLLERS

The temperature settings of each type of Deluxe controller are:

Bathroom1 & 2 Deluxe 37°C to 46°C (in 1°C increments), 48°C*, 50°C

Kitchen Deluxe 37°C to 46°C (in 1°C increments), 48°C*, 50°C, 55°C, 60°C

* limited to 48°C on an 876 series model and when set to Bath Fill mode on 874 series model. This is to ensure the water temperature does not exceed 50°C.

Temperature settings

warm

average hot shower

hot very hot

The installation of a Bathroom Deluxe controller(s) only (i.e. no Kitchen Deluxe controller) limits the temperature setting of the water heater to a maximum of:

874 series 50°C

876 series 48°C

regardless of the preset outlet temperature setting of the water heater.

The installation of a Kitchen Deluxe controller will allow a maximum temperature setting of:

874 series 60°C

876 series 48°C

regardless of the preset outlet temperature setting of the water heater.

If Deluxe or standard controllers are not installed, the water heater defaults to the preset outlet temperature setting. This may be up to:

874 series 70°C

876 series 48°C

Refer to “How Hot Should The Water Be?” on page 5.

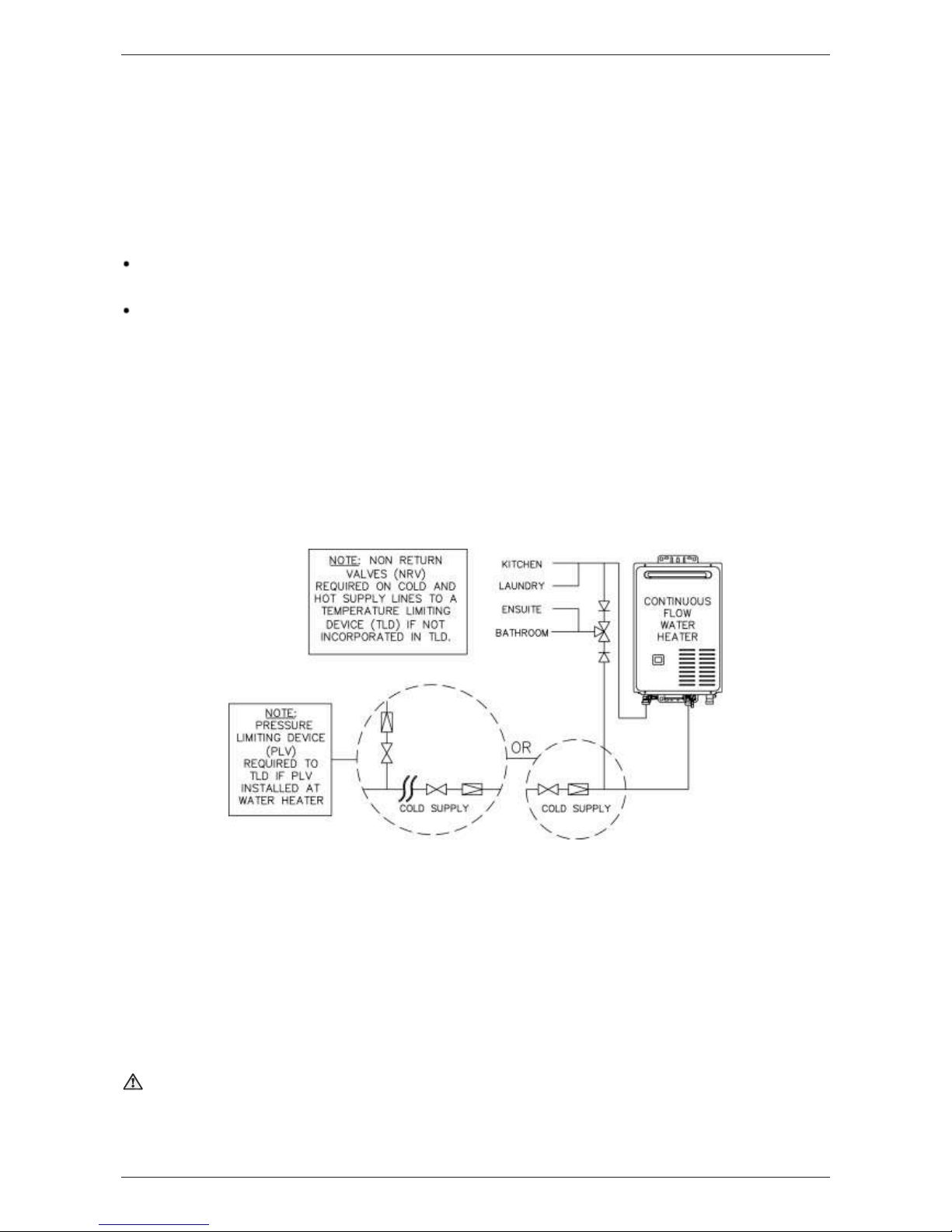

On a building fitted with a temperature limiting device such as a tempering valve and where an 874 series water heater is installed without a separate untempered hot water line to the kitchen, laundry or other nonablution area, although the Kitchen Deluxe controller will be able to display temperatures above 50°C and the water leaving the water heater will be at the set temperature, the maximum water temperature which can be delivered to the hot water outlets in these locations is determined by the temperature setting of the temperature limiting device. This is usually 50°C.

+ 58 hidden pages
